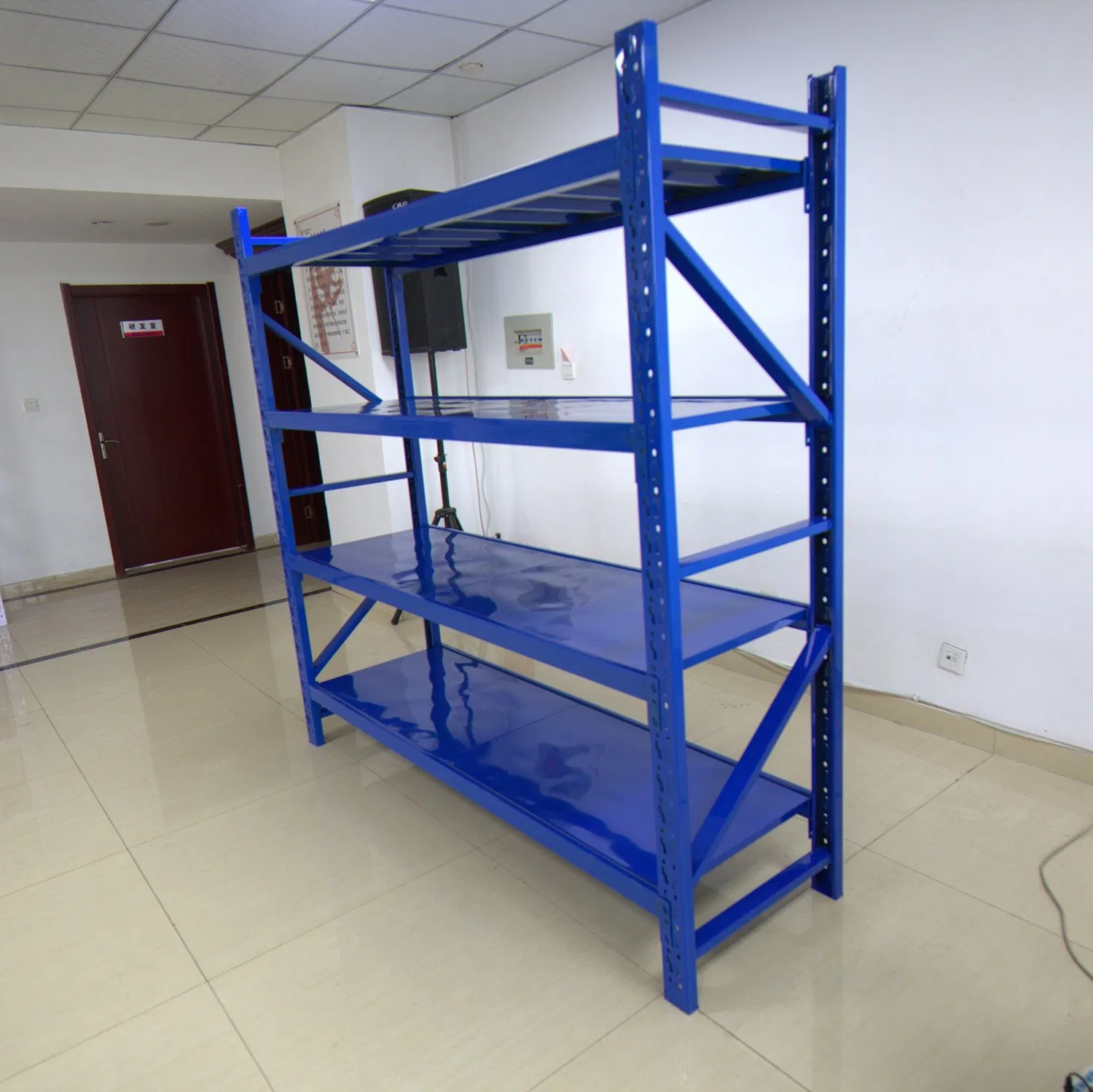

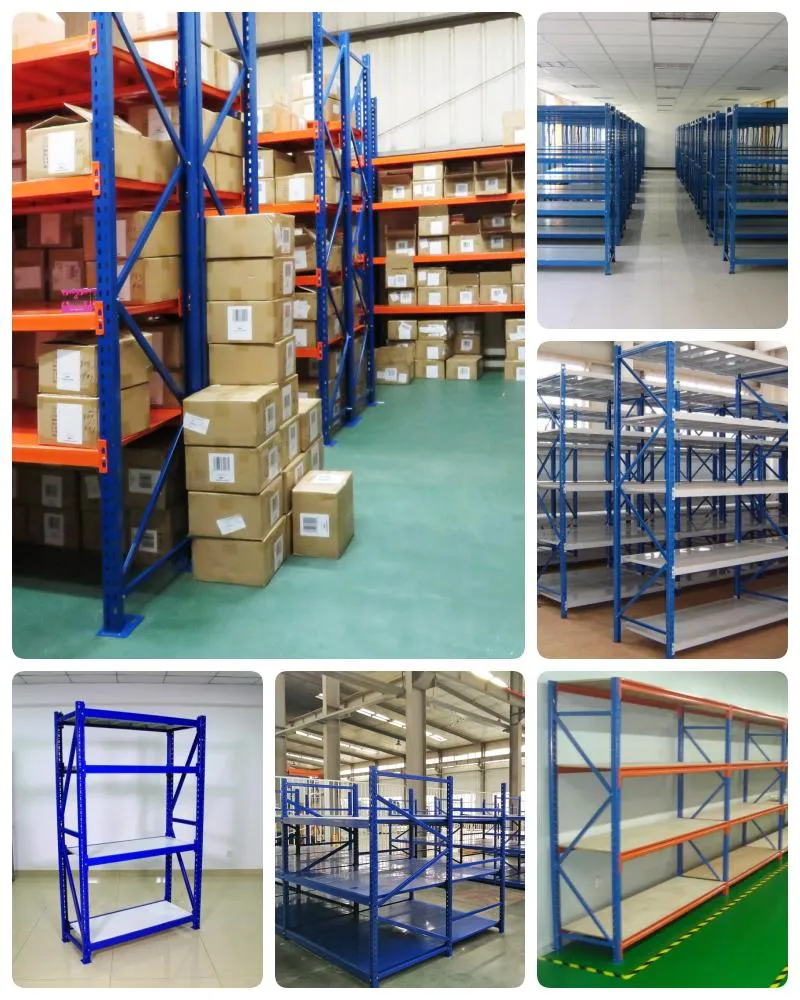

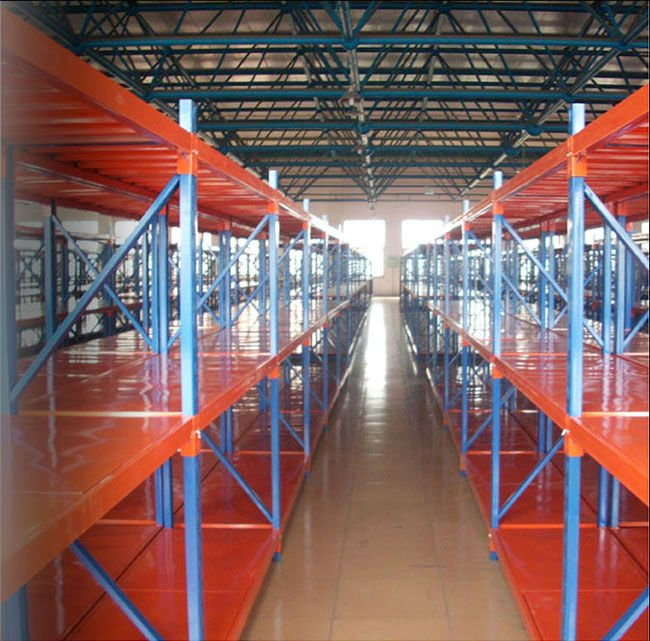

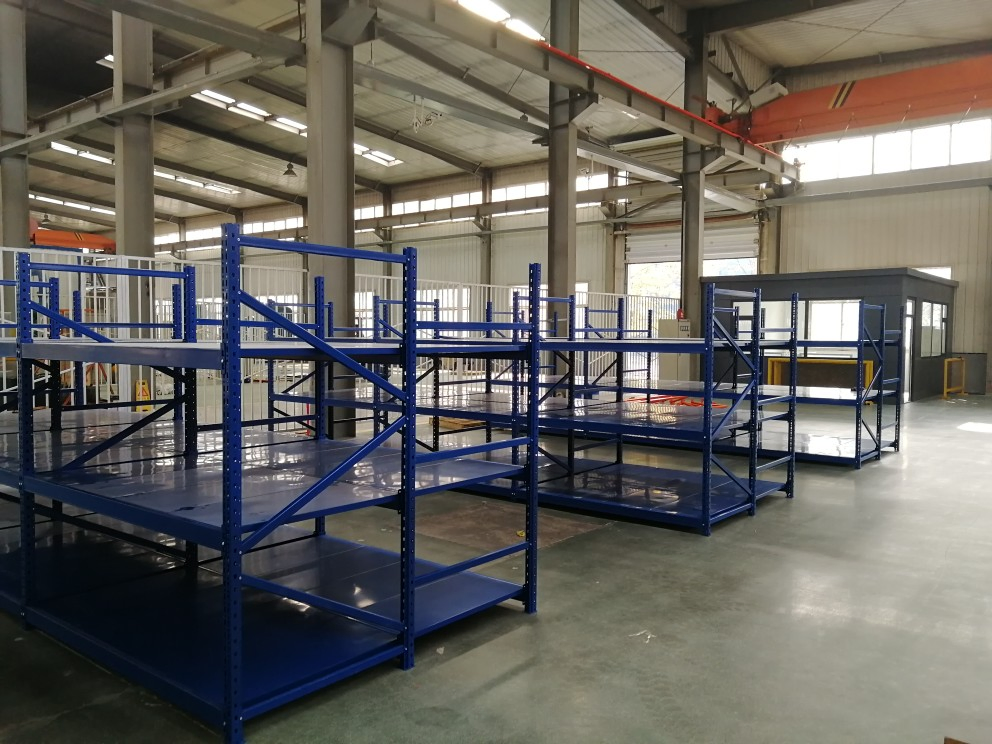

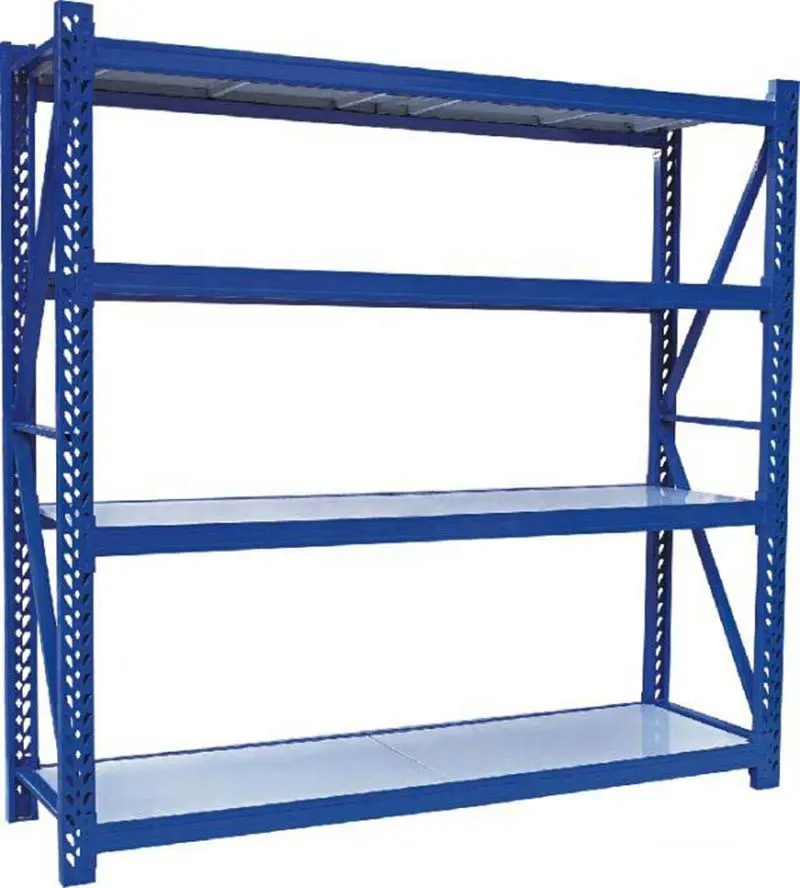

Long span shelving racks are absolute storage systems perfect for warehouse and industrial applications. It can be configured to accommodate a wide range of storage requirements. These racks are suitable for storing small boxes and cartons. Further, these racks are available with an adjustable shelving system along with a load-bearing capacity of 300-800 kg per level.

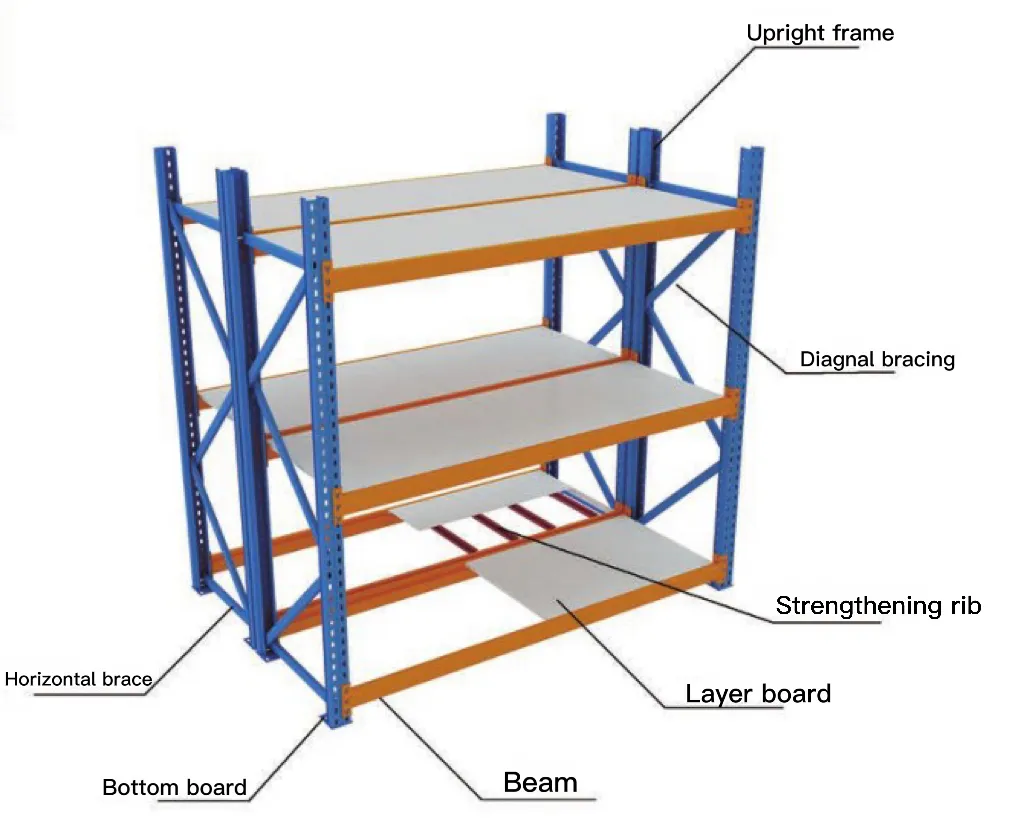

Shelving consists of frames, step beams, and steel decking. The depth can be 500 mm, 600 mm, or customized. Long span shelving is especially suitable for hand-loaded goods.
| Specification | L2000*W600*H2000 mm / L2000*W600*H3000 mm (Customized) |
| Tier | 4 Tier / Customized |
| Thickness | 1.5 - 3.0 mm |
| Shelving Board | 0.3 - 0.5 mm |
| Color | RAL System: 5005 / 2004 / 9016 |
| Adjustability | Layer height can be adjusted freely |
| Component | Pitch Hole | Size Dimensions |
|---|---|---|

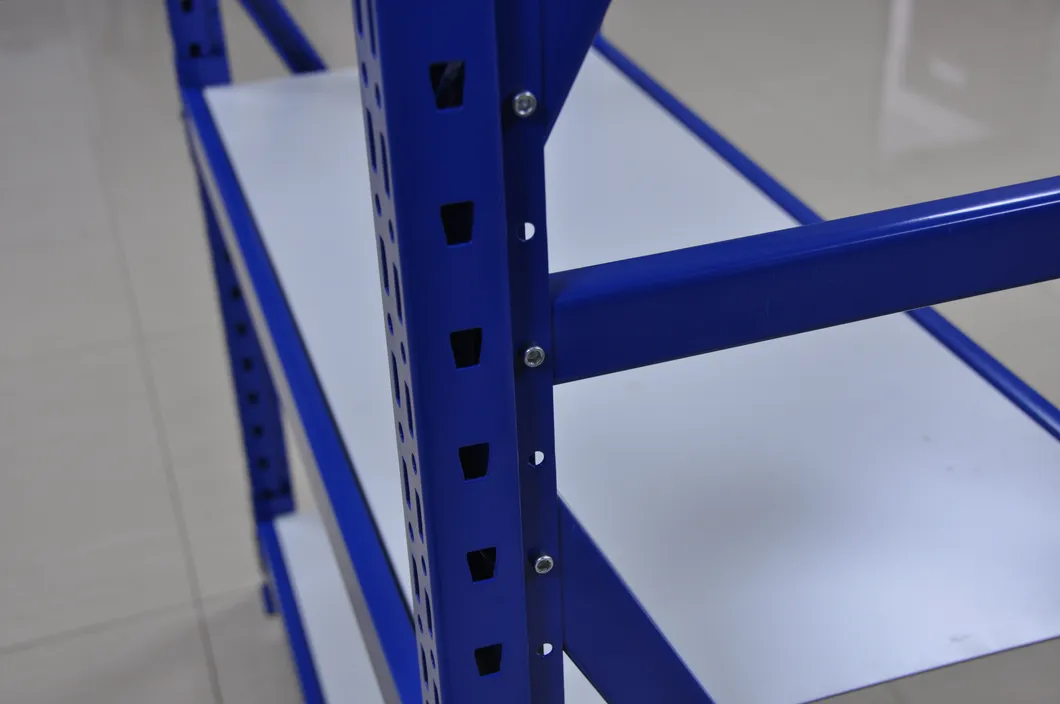

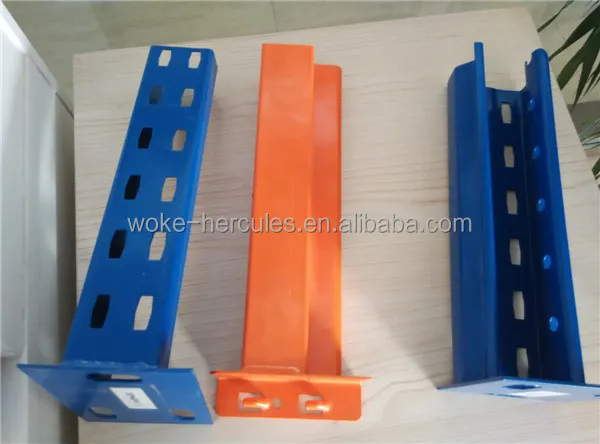

| Upright | 50 mm | 50*56 / 80*70 / 90*70 / 100*70 mm |
| 70 mm | 90*70 / 100*70 mm | |
| 75 mm | 120*85 mm | |

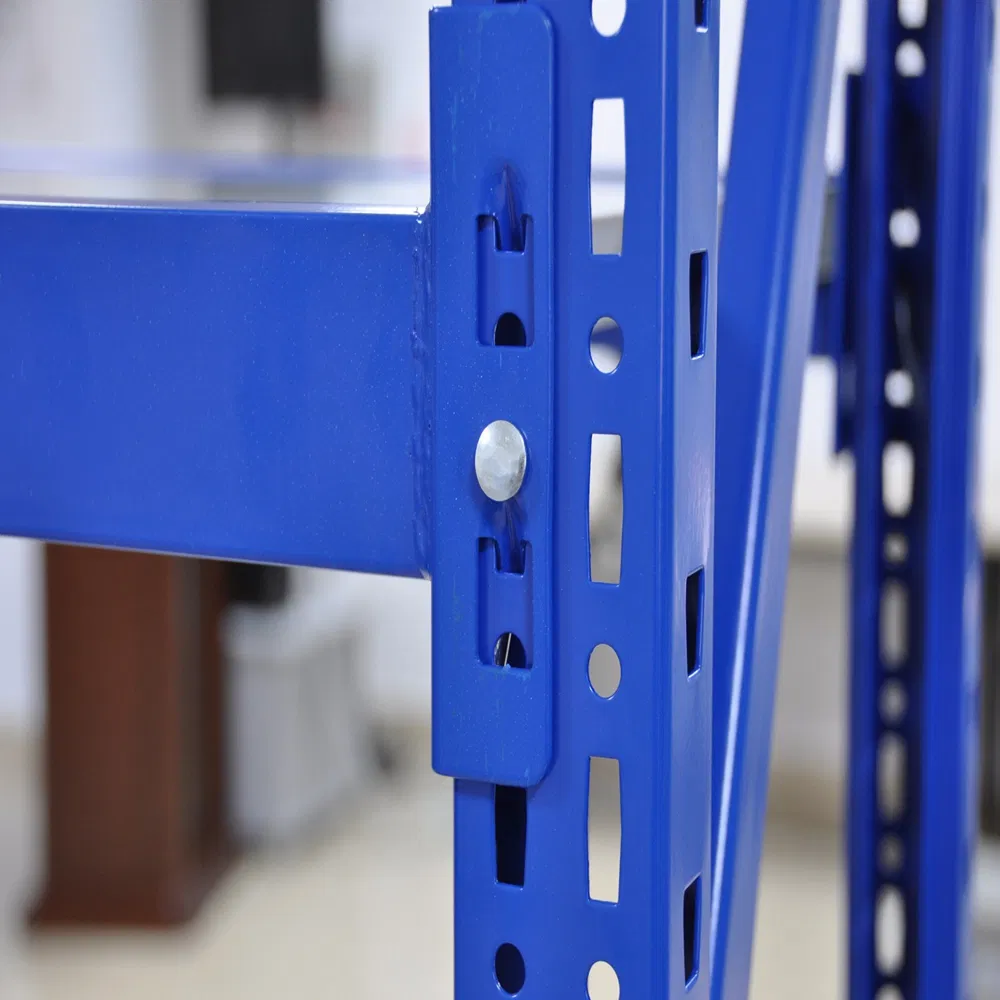

| Beam | 50 / 70 mm | 80*50 / 100*50 / 120*50 / 140*50 / 160*50 mm |
| Racking Types | Pallet racking, Drive-in racking, Long span racking, Radio shuttle racking, Crane stacker, Cantilever racking, Push back racking, Gravity racking, Electric mobile racking |
| Accessories | Plastic pallet, Steel pallet, Hand pallet truck, Storage cages |
Please provide the following information so we can provide an exact quotation:
