Adjustable Pallet Racking System Push Back Rack

1 / 5

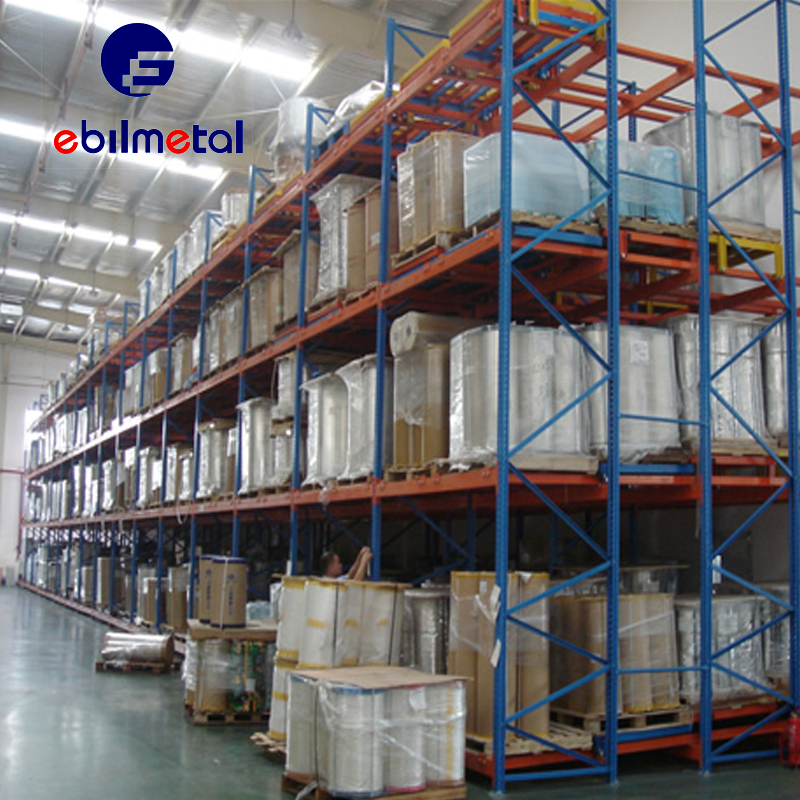

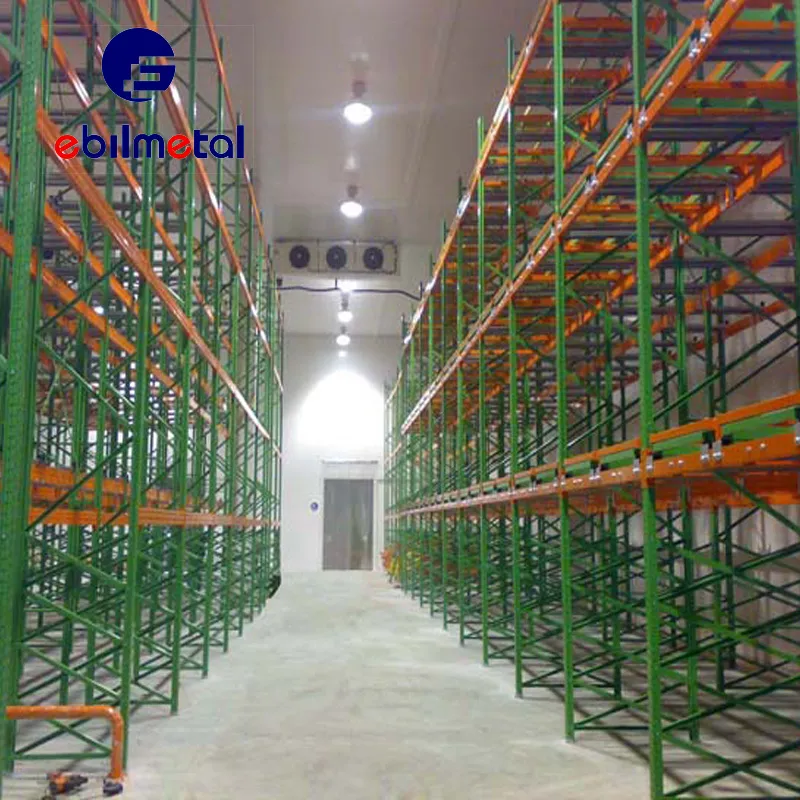

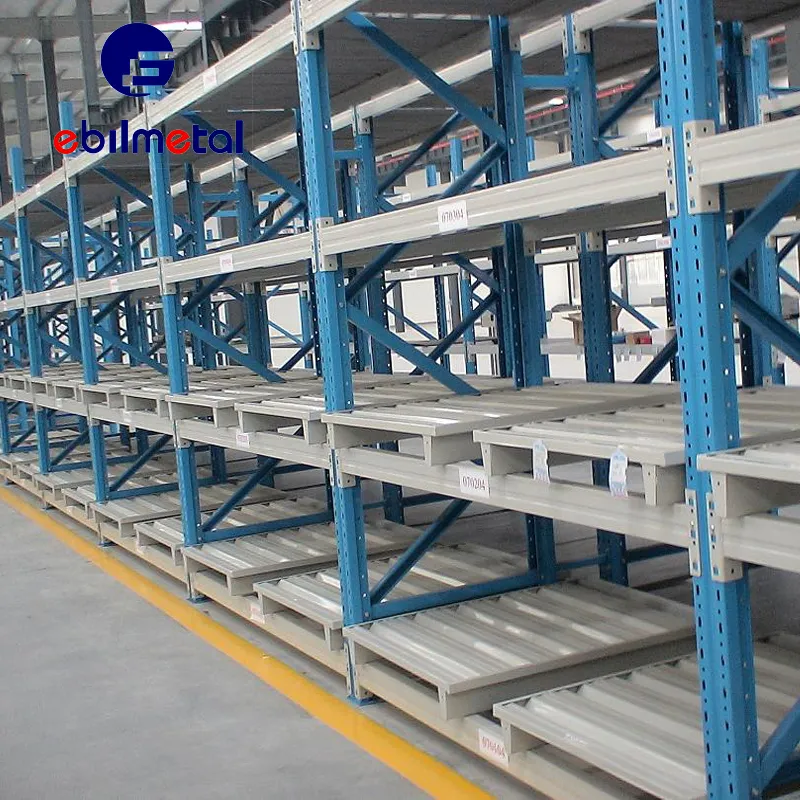

Adjustable Pallet Racking System Push Back Rack

Customization:	Available
Usage:	Warehouse Rack
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

EBIL-PBR

Structure

Rack

Type

Push Back Rack

Mobility

Fixed

Height

5-15m

Weight

150-500kg

Closed

Semi-closed

Development

New Type

Serviceability

Common Use

Size

as Request

Color

Blue for Upright, Orange for Beam

Finishing

Powder Coated

Storage Way

Filo

Level

2-7

Certification

CE, ISO, SGS, TUV

Capacity

5000 Tons/Month

Product Description

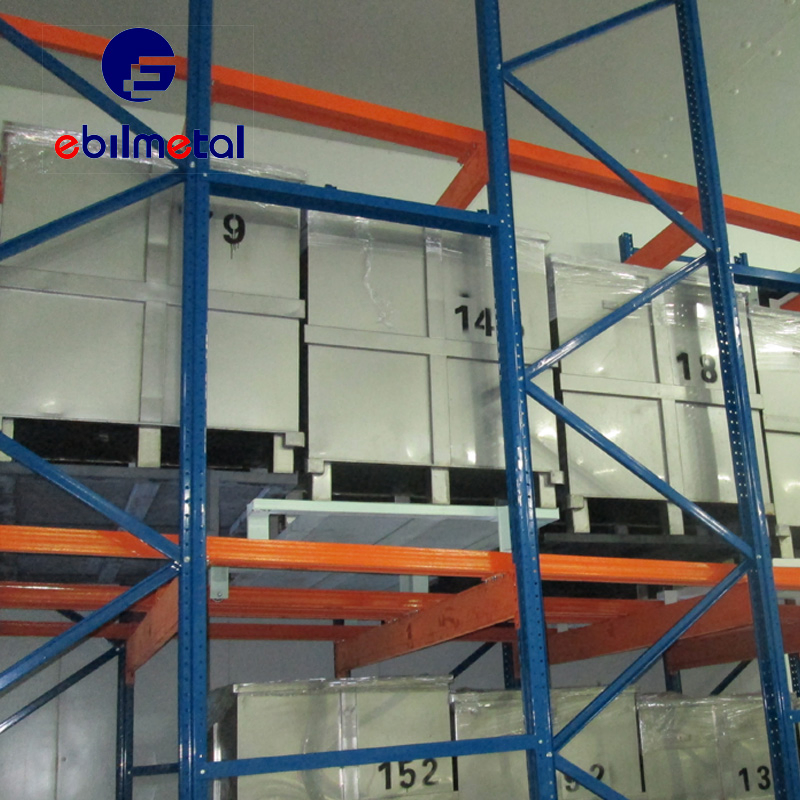

Overview of Push Back Racking Systems

1) Push back racking is designed for the proper segregation of medium-sized items, optimizing warehouse space while maintaining easy retrieval.

2) This system allows both retrieval and deposit to be performed on the same side of the rack, enhancing operational efficiency.

3) It is compatible with forklift trucks, support-wheel stackers, or reach trucks to achieve the ideal working height.

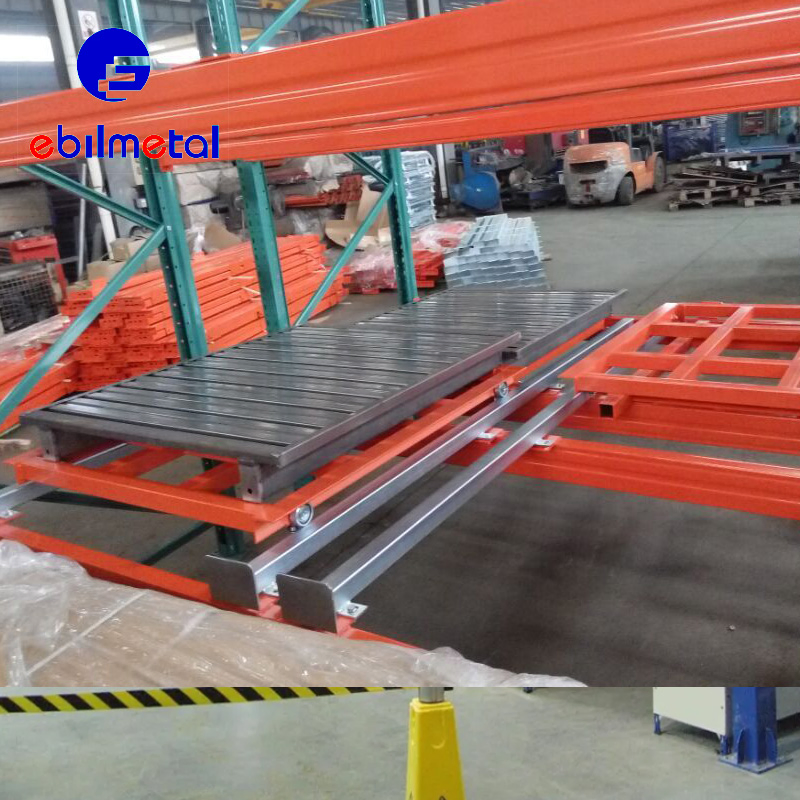

4) The mechanism works by sliding the load in, which pushes the existing pallets further back into the channel. When the front load is removed, the subsequent pallets automatically slide forward.

Required Information for Quotation:

Warehouse layout drawings (if available)
Overall warehouse dimensions
Desired racking dimensions (Height * Width * Length)
Number of racking levels required
Loading capacity per level
Preferred RAL color configuration

Why Choose Push Back Rack Systems?

Space Optimization: Offers up to 90% more product storage compared to selective rack systems.
High Versatility: Store a variety of SKUs on different lane levels for quick access.
Safety Design: Interlocking carts prevent dangerous jamming and protect products from damage.
High Selectivity: Provides up to 400% more selectivity than traditional drive-in racks.
Efficiency: High storage density coupled with selectivity leads to faster pick rates.
Visual Management: Color-coded carts allow for easy and rapid visual inventory checks.
LIFO Management: Perfect for "Last In, First Out" inventory flow.

System Specifications
Style	Pallet style, easy installation, and fully adjustable.
Certification	CE, ISO9001:2015
Standard Unit Size	(L) 2,700 x (W) 1,050 x (H) 5,025mm, 4 levels loading.
Loading Capacity	2500kg per level
Adjustability	75mm pitch adjustment
Available Colors	Blue, orange, green, red, grey
Delivery Time	7-15 days for 2*40' containers

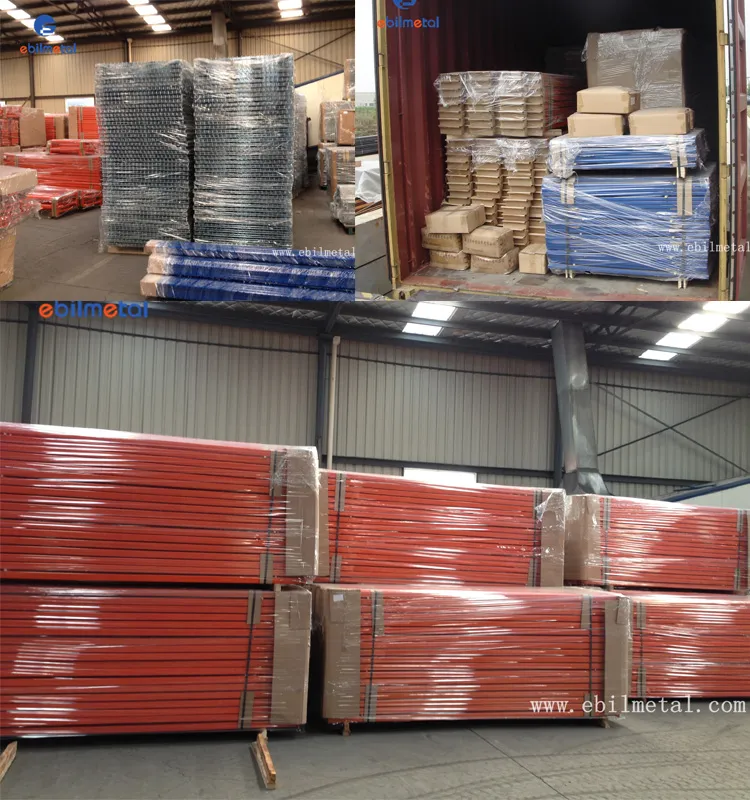

Packaging	Standard exporting package: Metal strip, film, paper board.

Frequently Asked Questions (FAQ)

What is a Push Back Racking system?

It is a high-density storage system that allows pallets to be stored from 2 to 6 deep on wheeled carts. It operates on a Last-In, First-Out (LIFO) principle where pallets are loaded and retrieved from the same aisle.

How does it improve warehouse space utilization?

By eliminating multiple access aisles required for selective racking, push back systems can increase storage capacity by up to 90% within the same footprint.

Is this system compatible with standard forklifts?

Yes, push back racks can be operated by standard forklift trucks, support-wheel stackers, and reach trucks, making it a versatile choice for most warehouses.

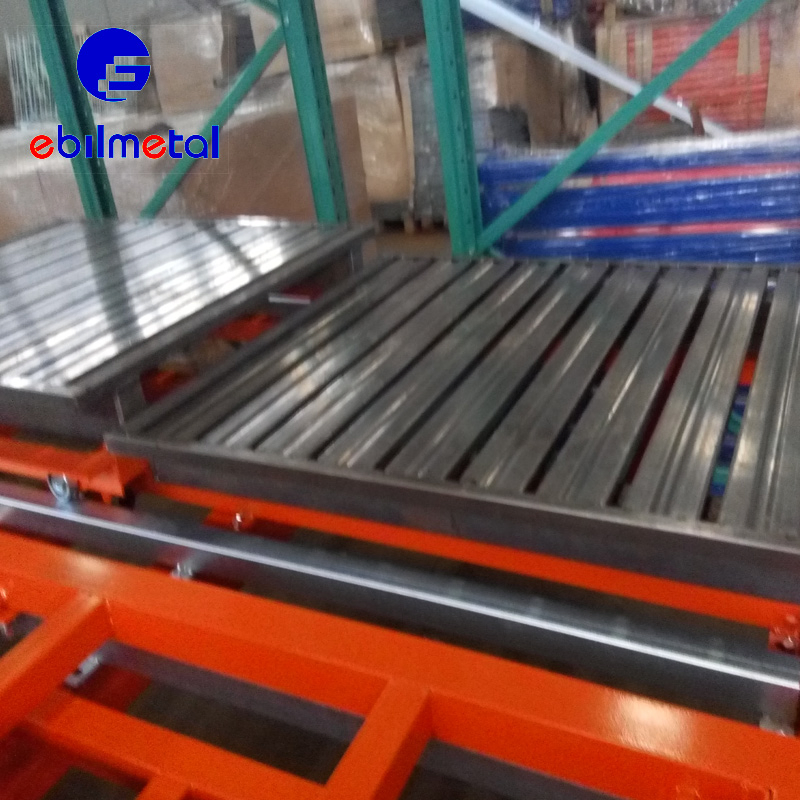

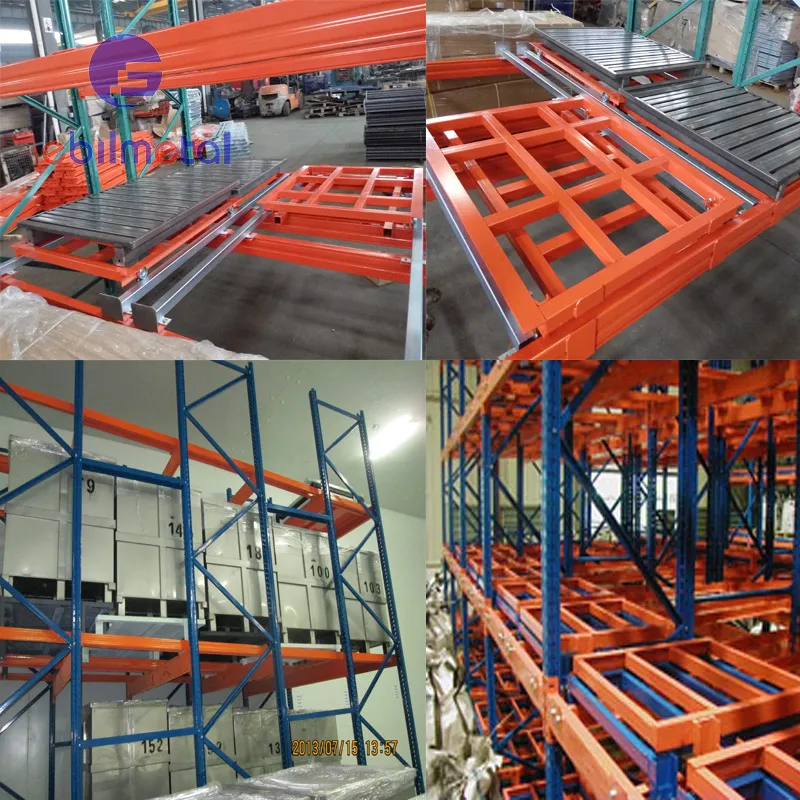

What is the benefit of the interlocking cart design?

The interlocking carts are designed to prevent jamming and ensure smooth pallet movement, which significantly reduces the risk of product damage and operational downtime.

Can the racking height and levels be customized?

Absolutely. The system is highly adjustable with a 75mm pitch, and we can customize the height (typically 5-15m) and the number of levels (usually 2-7) based on your specific requirements.

What kind of inventory is best suited for Push Back Racks?

It is ideal for warehouses with high-volume products, a medium number of SKUs, and inventory that does not require First-In, First-Out (FIFO) rotation.
