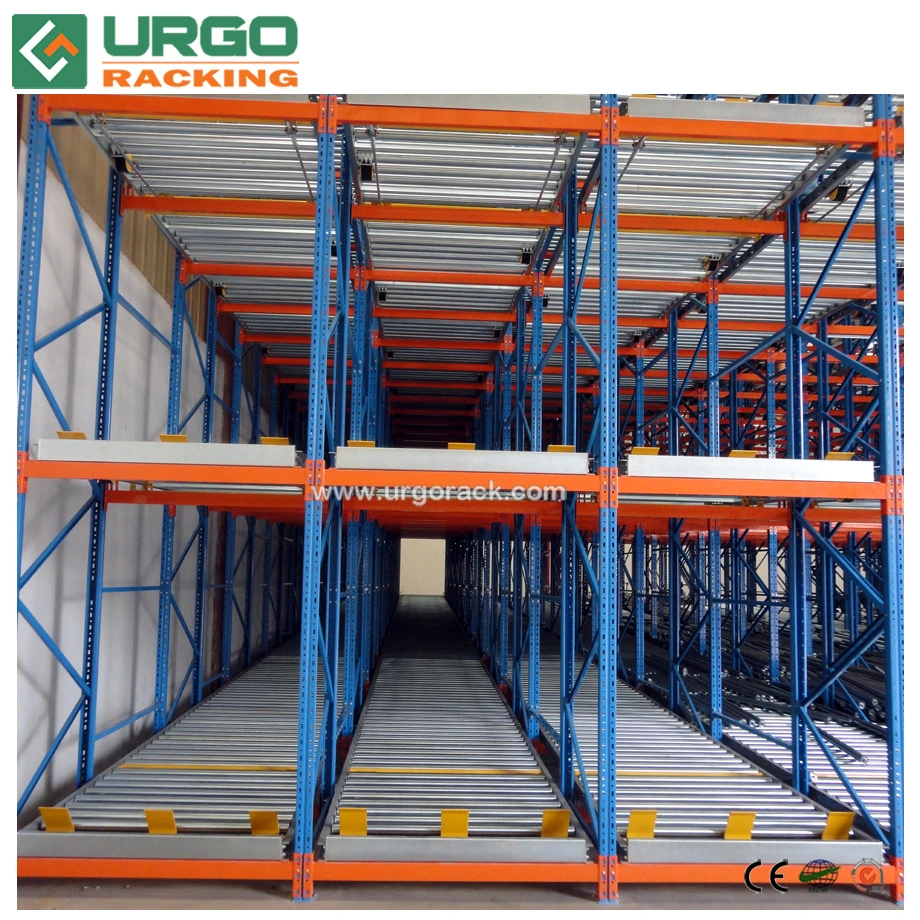

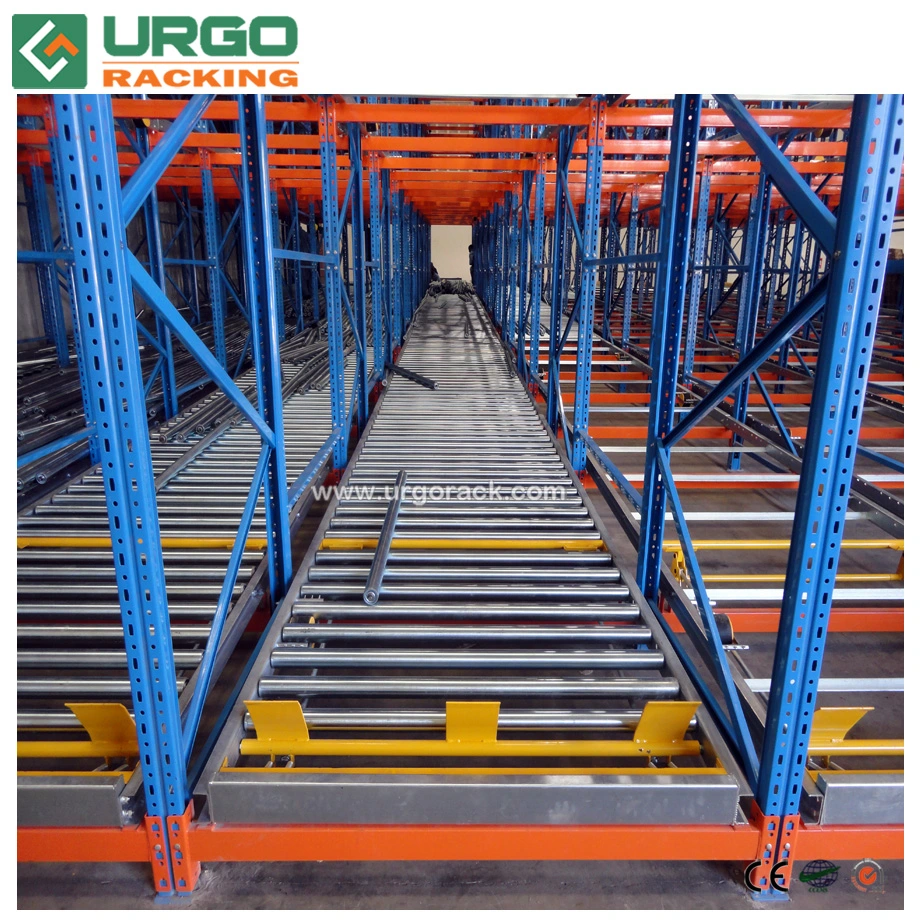

Racking System Blue and Orange Steel Beam Racking Gravity Flow Roller Rack

Basic Specifications

Model NO.

URGO-18000187

Structure

Rack

Type

Pallet Racking

Mobility

Adjustable

Height

3-12m

Weight

500-4000kg

Closed

Open

Surface Treatment

Powder Coating

Feature

Corrosion Protection

Certification

CE

Production Capacity

80,000 tons/Year

HS Code

73089000

Product Description

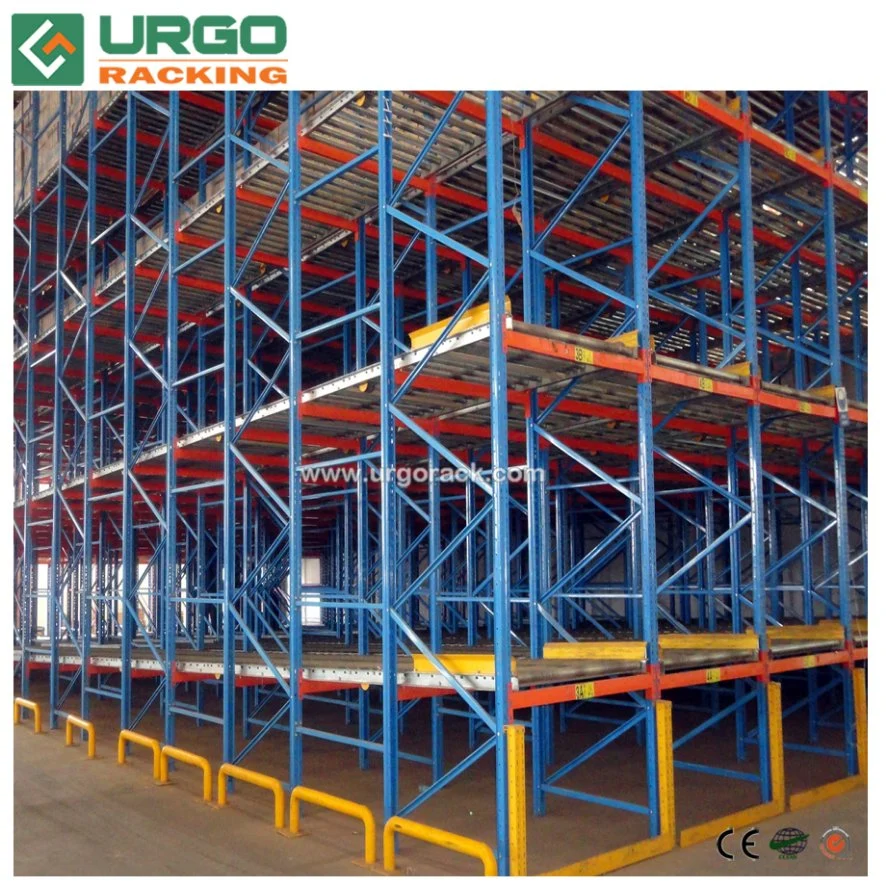

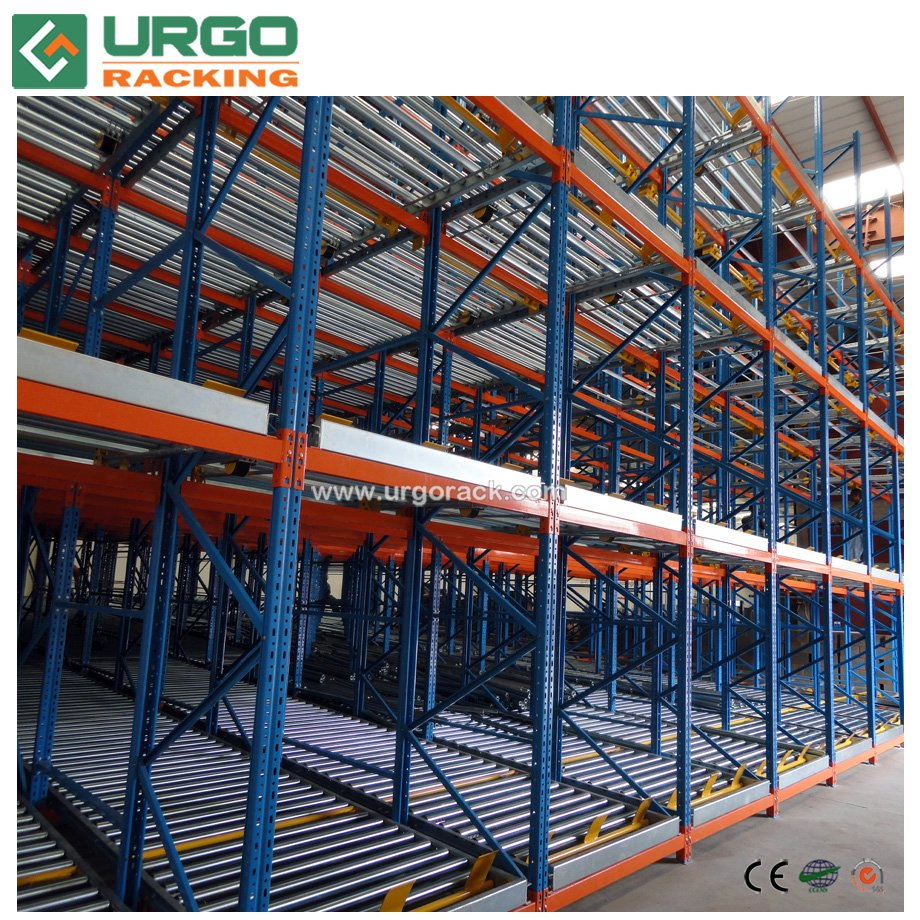

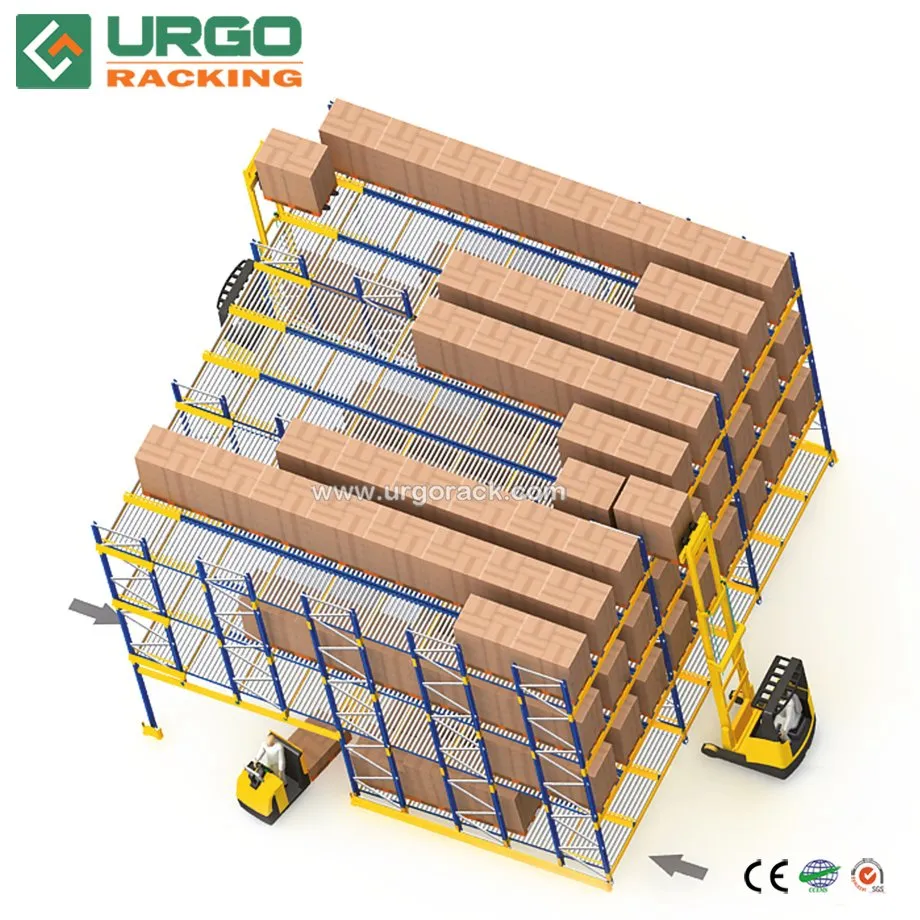

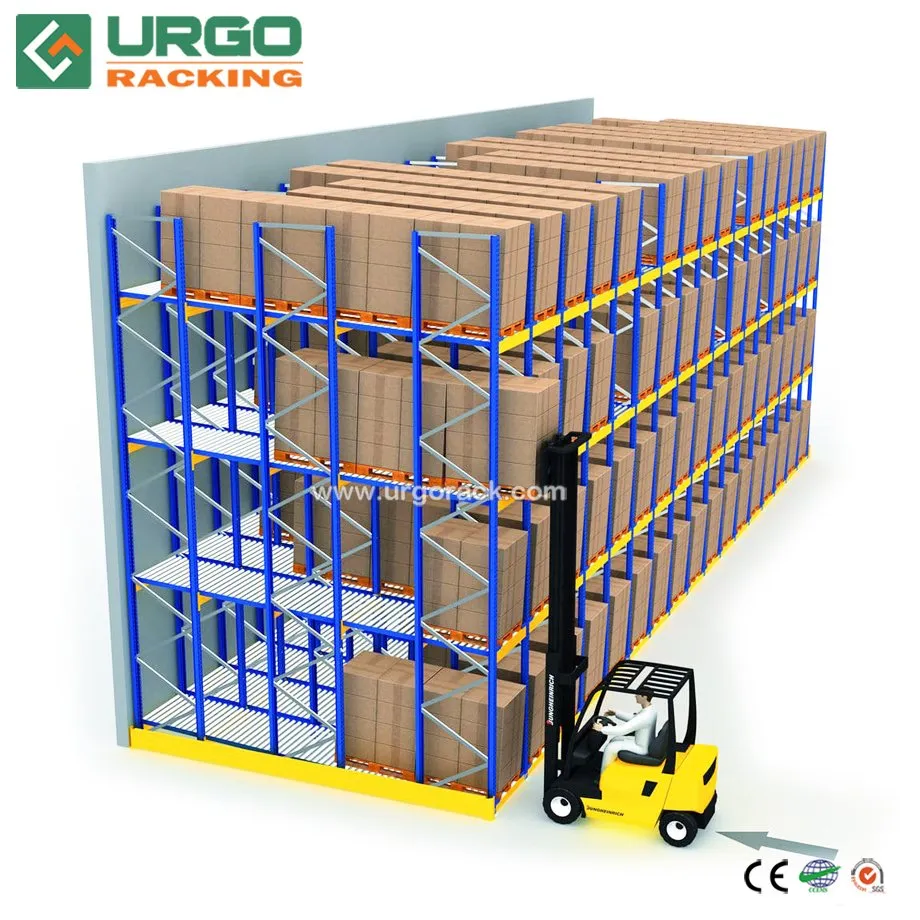

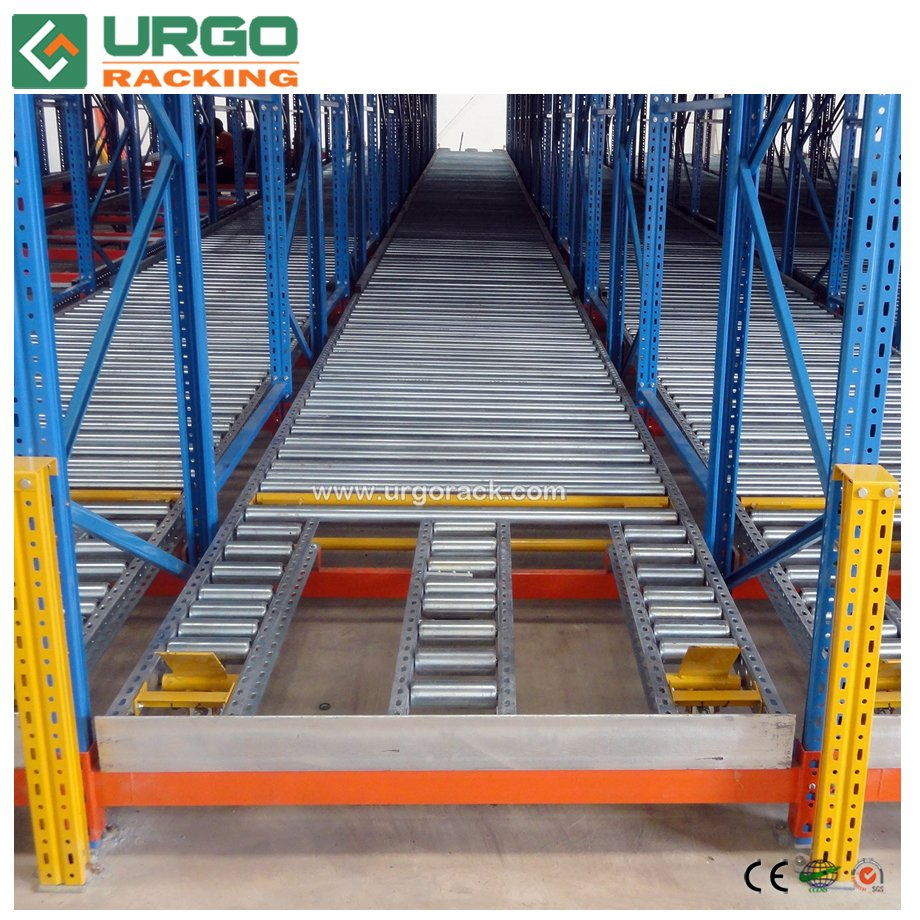

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out) solution is required. This system is highly popular when pallets need to be moved quickly from one area to another without the assistance of lift trucks.

📉

Reduced Cost
Significantly lowers warehouse operational costs.

⚡

High Efficiency
Easy and efficient goods loading and unloading process.

🔄

FIFO System
Ensures perfect First In First Out pallet goods storage.

🏗️

Heavy Duty
Long-life construction designed for industrial use.

📏

Space Saving
Reduces aisle space by 60-70% and increases utilization.

🛡️

Safety
Reduced forklift damage as pallets flow to the operator area.

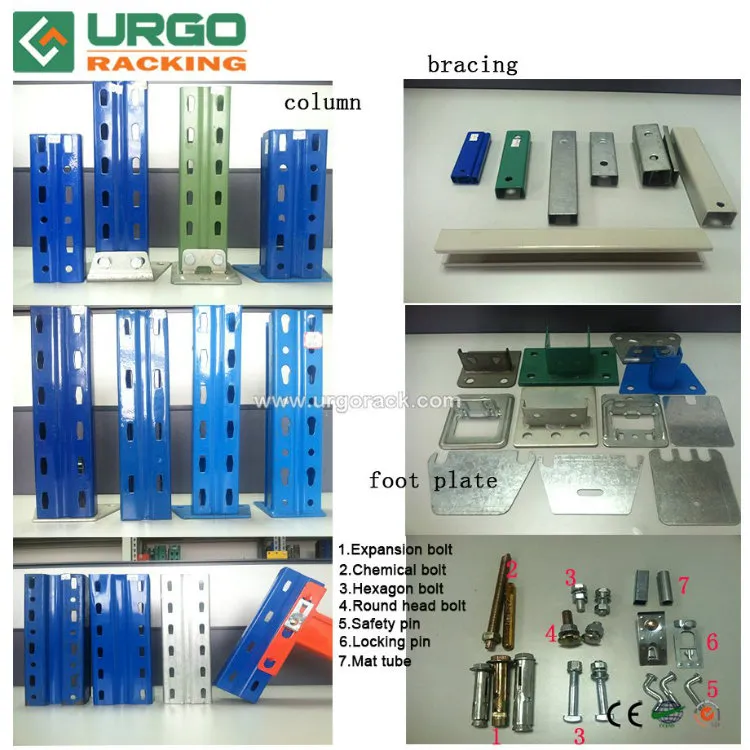

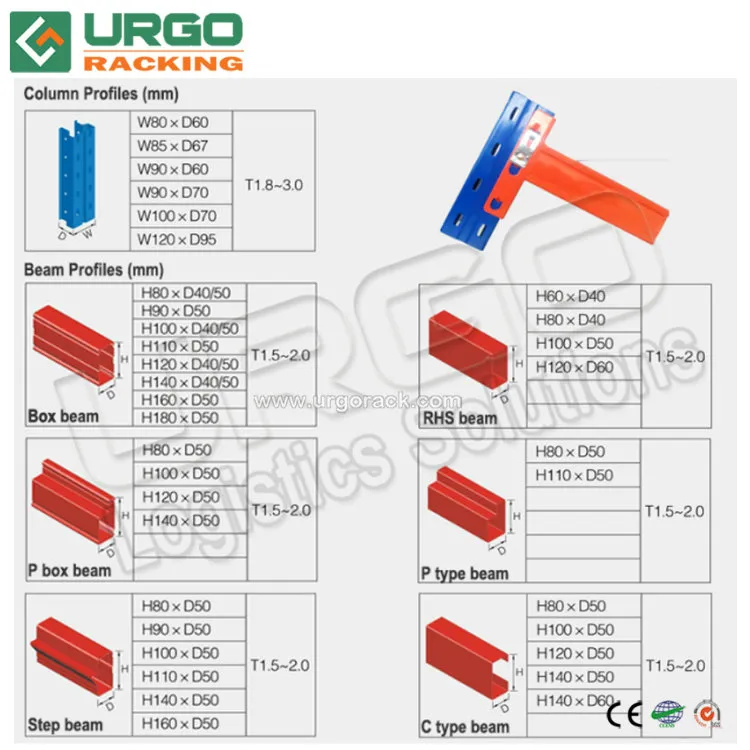

Column Profiles

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000 KG

Box Beam Loading Capacity (kg)

Spec (mm)	1500mm	2000mm	2500mm	3000mm	3600mm
80 x 50 x 1.5	3000	1740	1160	-	-
100 x 50 x 1.5	-	2960	1930	1380	-
120 x 50 x 1.5	-	-	2730	1930	1379
140 x 50 x 1.5	-	-	3868	2720	2020
160 x 50 x 2.0	-	-	-	4130	3320

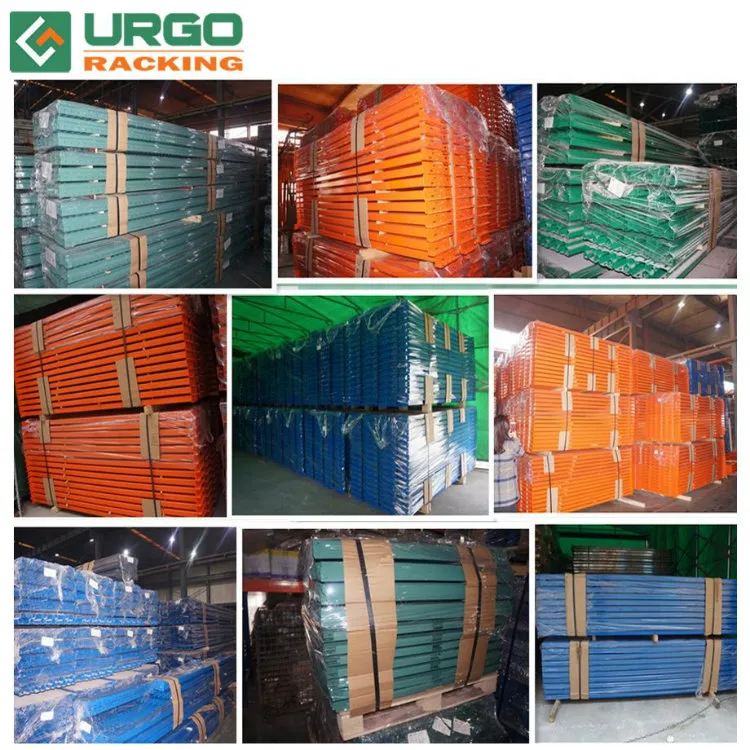

Packaging and Shipping

Frequently Asked Questions

What makes this racking system different from other suppliers?

We provide excellent service with rapid quote responses within 12 hours, quick manufacturing times (15 days for pallet racking), and specialized export packaging including plastic protection clips and transparent film wrapping.

Can I know the real-time status of my order?

Yes. We proactively send detailed information and photos at different production stages so you can stay updated on your order's progress.

Are product samples available?

Yes, we can provide sections of samples for your reference and send them via express delivery for your evaluation.

Is a Galvanized Finish available for these racks?

Yes. Both pallet racking posts and bracings are available with a high-quality galvanized finish for enhanced durability.

What information is needed for a quick quotation?

To provide an accurate quote, please provide the required racking dimensions (H*D*L), number of storage levels, loading capacity per level, and the total quantity required.

What is the standard warranty period?

Our high standards in design and manufacturing allow us to offer a 10-year warranty for normal use, which is one of the longest in the industry.
