Product Description

Basic Product Information
Model NO.Flow through racking
UsageWarehouse, Beverage, Industrial
MaterialSteel Q235B, Q235D
StructureRack System
TypeSelective Pallet Racking
Height0-12m
Load CapacityUp to 4000 Kg per Layer
Surface TreatmentElectrostatic Spraying
Product Overview

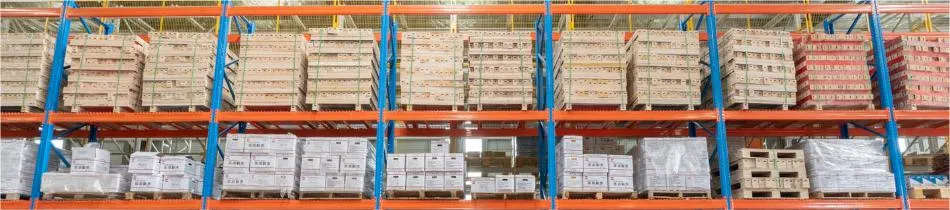

Flow Through Rack
Flow Through Racking Concept:

A Flow Through Pallet Rack (also known as Pallet Flow Rack or Gravity Flow) is a high-density solution for fast-moving SKUs. The concept allows pallets to be loaded from the back of the system and flow to the front for easy picking, making it ideal for warehouse spaces where efficiency is paramount.

Type: Flow through racking Certification: CE, ISO9001
Feature: Corrosion Protection Size: Customized
Color: Blue, Orange or Customized Pitch: 75mm
Thickness: 1.5mm-3.0mm Width: 1350mm-3900mm
Dimensions & Pickup Diagram

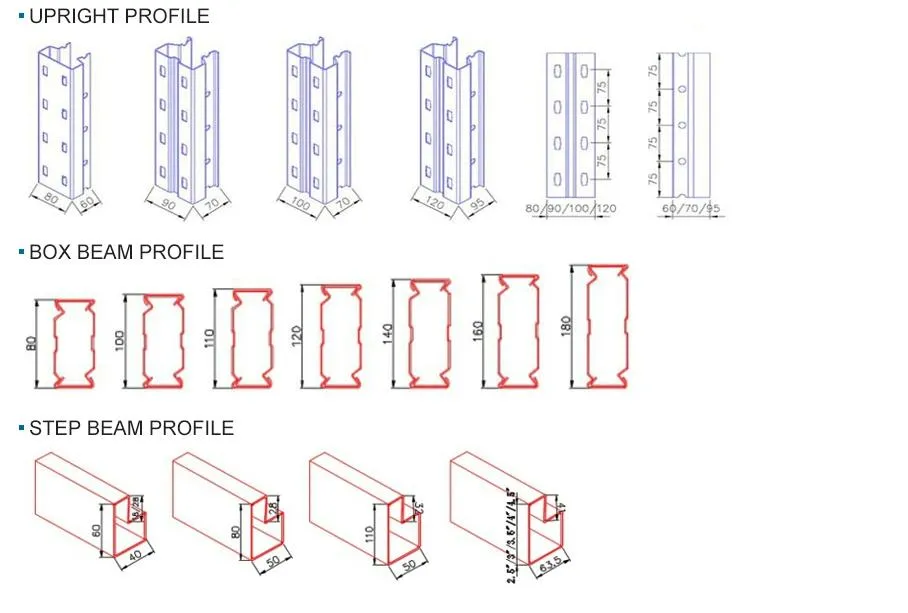

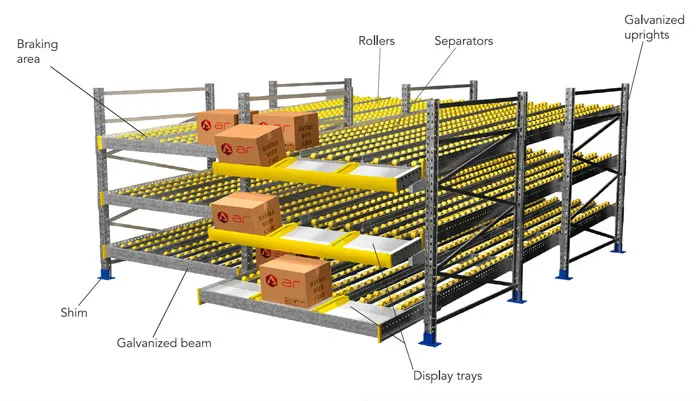

Flow Diagram 1 Flow Diagram 2 Size Display

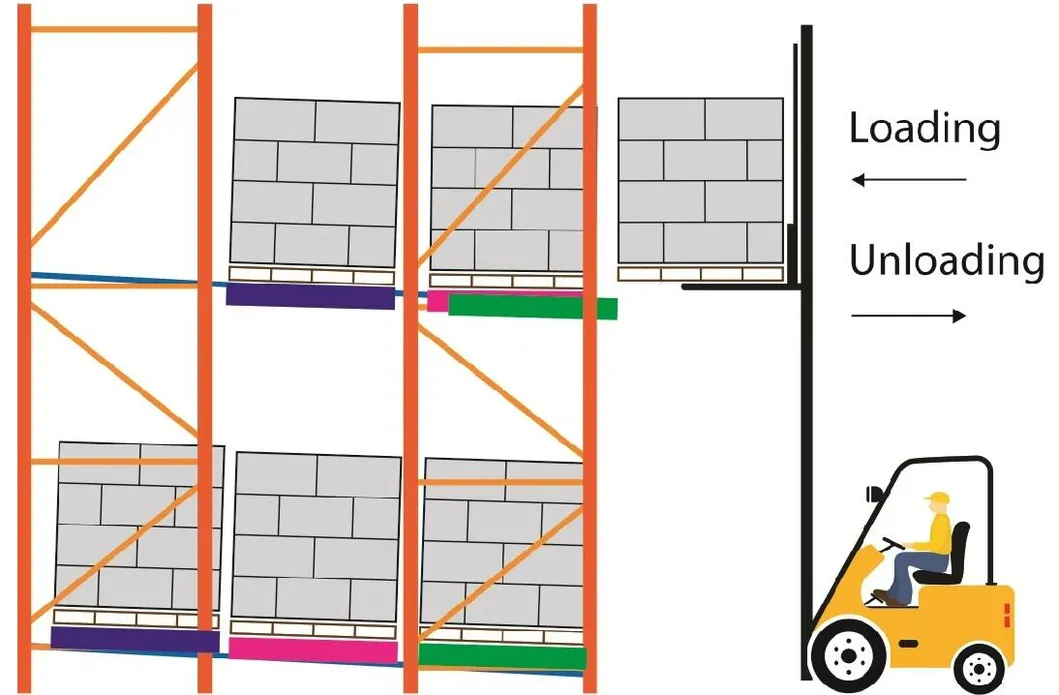

Pickup Diagram
Production & Packaging

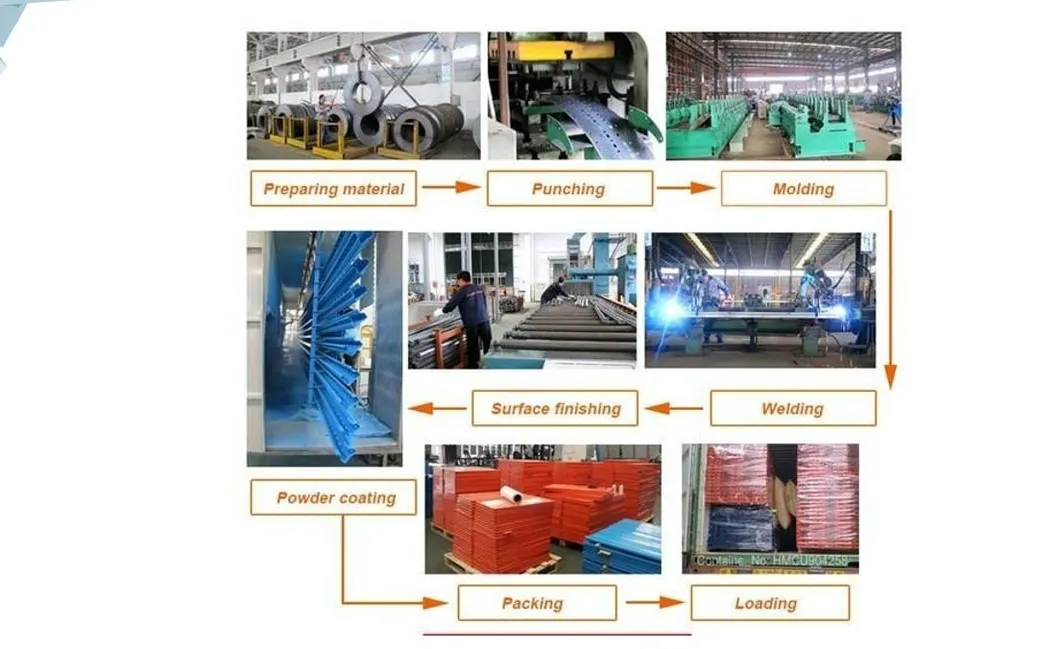

Production Process
Packaging 1 Packaging 2
Certifications & Industry Standards
Certifications
Other Related Products
AGV Shelving
Frequently Asked Questions
What is Flow Through Racking?
It is a high-density gravity-fed storage system where goods flow on inclined rollers from the loading side to the picking side, following a FIFO (First-In, First-Out) logic.
What materials are used in the construction?
We use high-quality steel such as Q235B and Q235D, finished with electrostatic spraying for superior durability and corrosion protection.
Can the rack height and width be customized?
Yes, the system is fully customizable. Heights can reach up to 12 meters, and widths are typically adjusted between 1350mm and 3900mm based on your requirements.
What is the maximum load capacity per level?
Each layer is engineered to support heavy loads, typically bearing up to 4000 kg depending on the specific structural design.
What are the main benefits for warehouse management?
It significantly improves picking efficiency, maximizes floor space utilization, and ensures strict inventory rotation (FIFO), making it perfect for food, beverage, and clothing industries.
How is the product packaged for shipping?
Components are carefully packed in customized bundles to ensure safety during transit, typically arriving in standardized sizes for easy handling.
