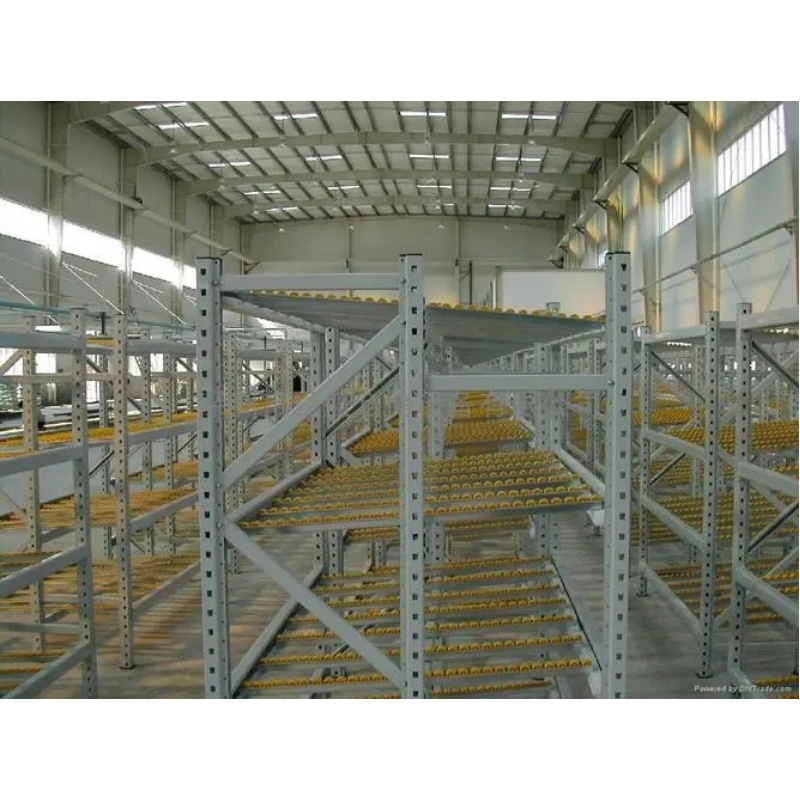

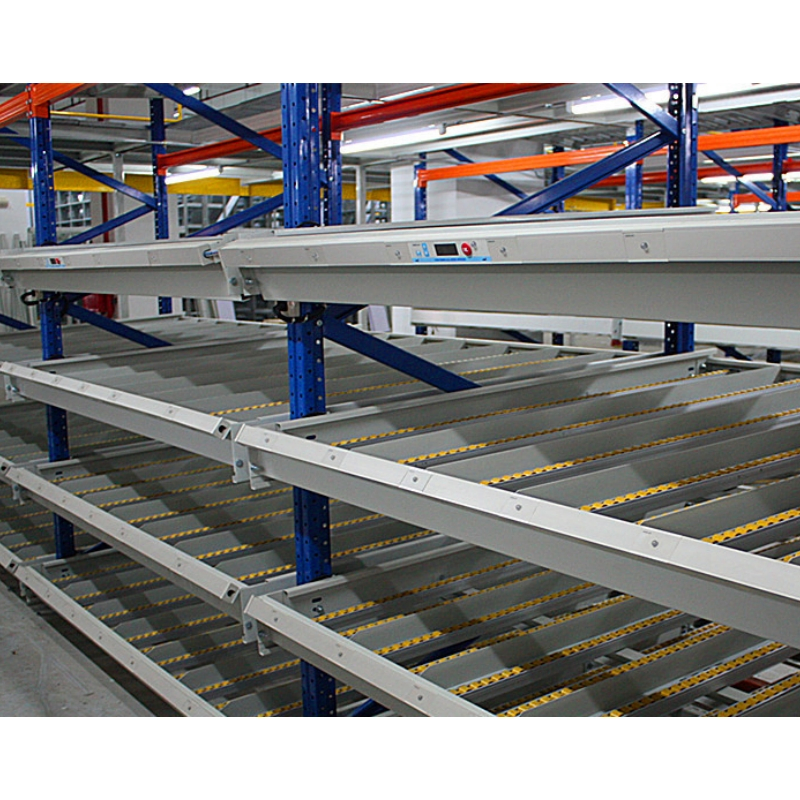

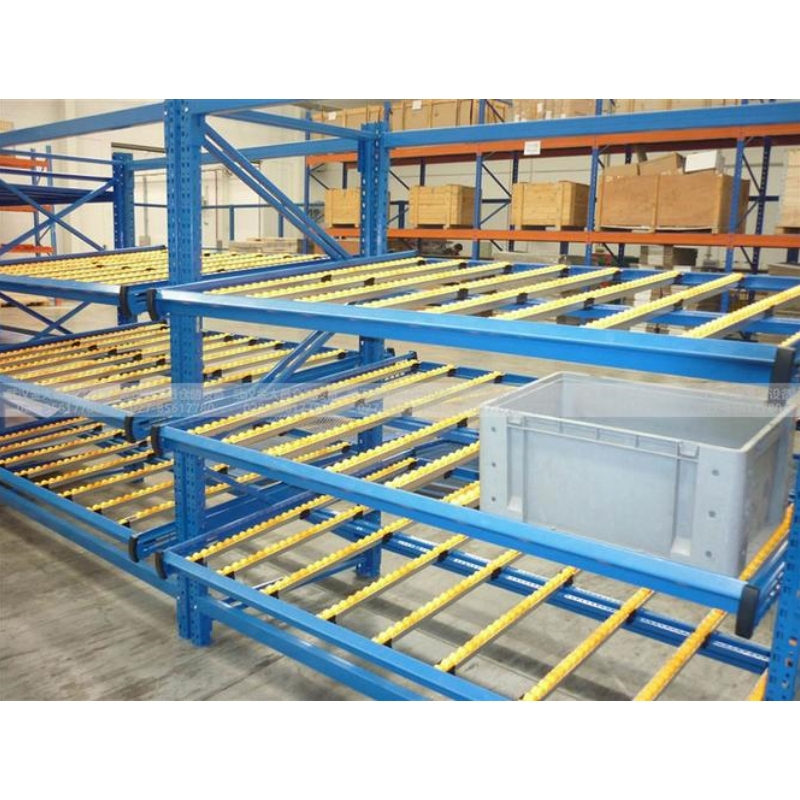

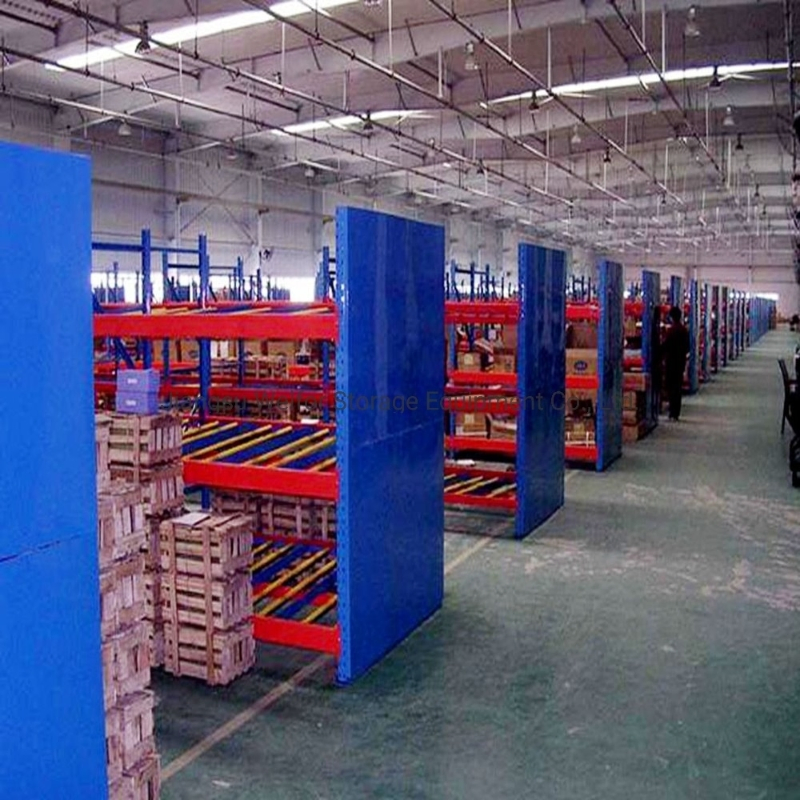

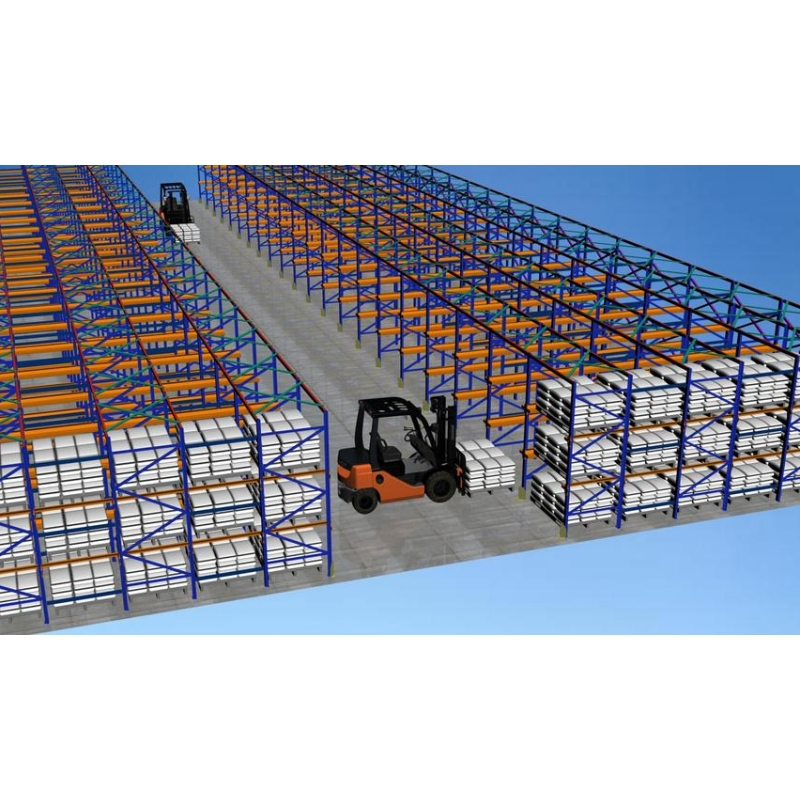

Assembly Plants Carton Flow Rack with Sloping Metal Roller System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.Carton Flow Rack 007
UsageTool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
MaterialSteel
StructureRack
TypeCarton Flow Rack
MobilityAdjustable
Height5-15m
WeightMore Than 1,000kg
Surface TreatmentPowder Coated
ColorBlue and Orange
CertificateCE, SGS
Production Capacity5, 000 Ton/Month

Product Overview

Assembly Plants Carton Flow Rack with Sloping Metal Roller System
By using alumal or steel roller rail system and under the influence of gravity, "first in and first out" for the goods is implemented. It is convenient to access and suitable for places such as the sides of the assembly line, distribution center, etc.

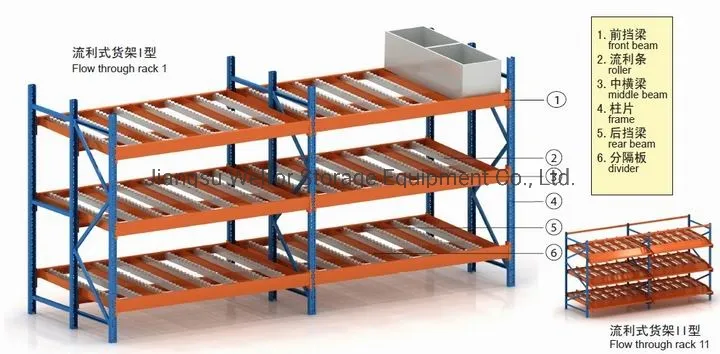

Assembly Plants Carton Flow Rack

Key Features

  • Individual access to all pallets to full height of warehouse.
  • Simple stock rotation achieved.
  • Easy beam adjustment accommodates variable pallet heights.
  • Compatible with many handling equipment styles.
  • Conventional tolerance for floors when used to 10m high.
  • Accessories available can accommodate every unit load type.

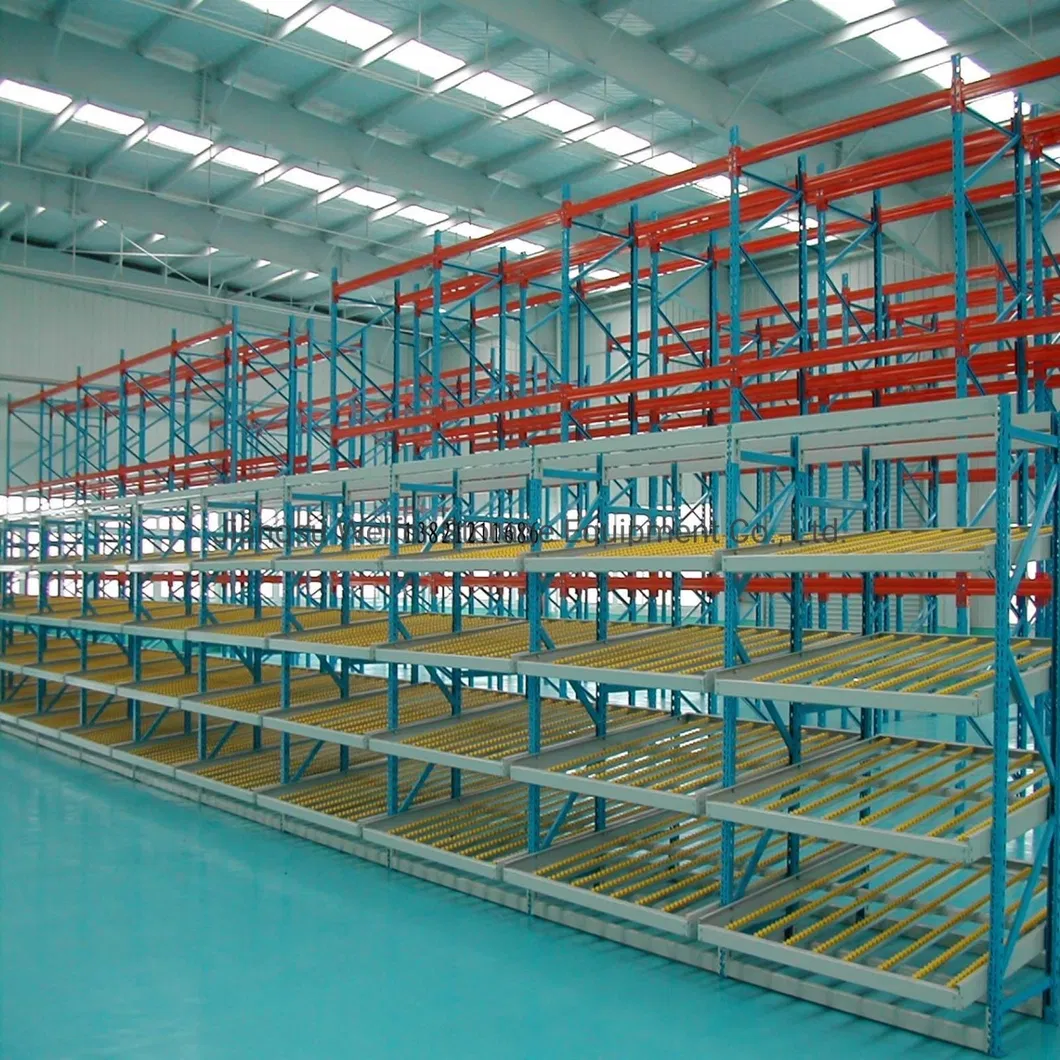

Carton Flow Rack Features

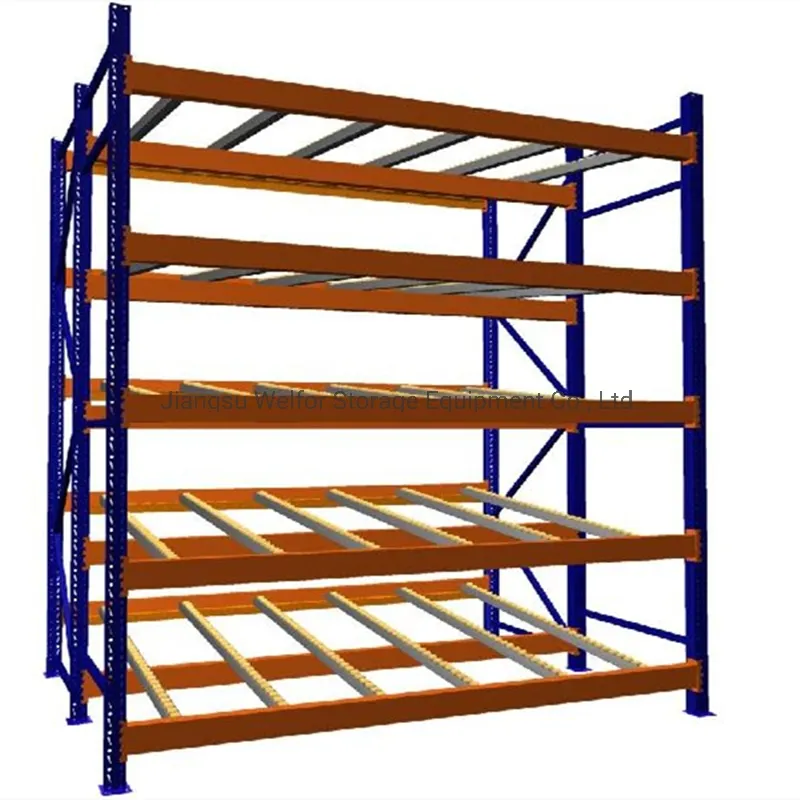

Carton Flow Rack Structure

Advantages

  • Space utilization is approximately 85%.
  • Ideal for substantial homogeneous goods.
  • Customizable pallet sizes to fit specific racking requirements.

Technical Data

MaterialHigh quality rolled steel
Surface TreatmentPowder coating
ColorSelective
Capacity1000kg Max per level
PackingCarton, bubble film, PE stretch or as requested
Delivery Time10~30 days depending on order quantity

Production & Logistics

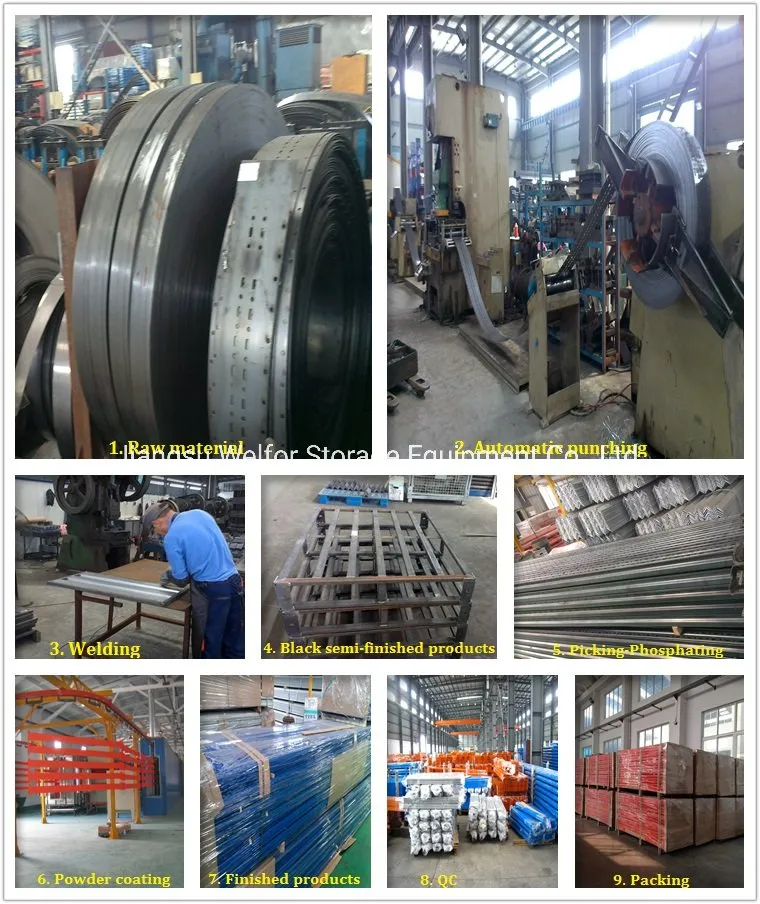

Production Process

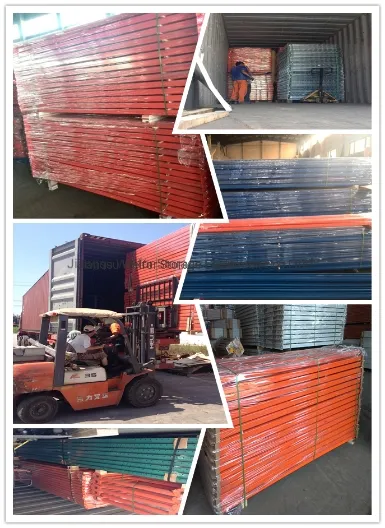

Packing and Loading

Quotation Requirements

To provide a quick and accurate quotation, please provide the following:

  • 1.CAD drawing of the warehouse (if available).
  • 2.Dimensions (Width, Depth, Height).
  • 3.Number of loads/levels required.
  • 4.Required Quantity.
  • 5.Port of destination for shipping estimates.
  • 6.Loading capacity of each layer.

Frequently Asked Questions

1. What is the MOQ limitation for the rack system? There is no strict MOQ. However, larger purchases offer more competitive prices. A 20FT container (10T~13T) is highly recommended for optimal production handling.
2. What is the typical lead time? For a standard 20FT container, manufacture time is about 10-15 days. For customized items, the lead time is approximately 20-25 days.
3. What payment methods are accepted? We generally accept T/T and L/C payment methods.
4. Can I request samples? Yes, short sections of uprights and beams can be provided free of charge. Freight costs will be collected upon delivery.
5. What is the warranty for the racking system? All items are warrantied against manufacturing defects. We also provide 1%~2% spare parts to ensure no shortage of components.
6. Is the height of the racking adjustable? Yes, easy beam adjustment allows for variable pallet heights to meet changing storage needs.
