Certificated Cold Storage Customized Powder Coating Push Back Rack

Customization:	Available
Usage:	Warehouse Rack
Material:	Steel

Basic Specifications

Model NO.

EBIL-PBR

Structure

Rack

Type

Push Back Rack

Mobility

Fixed

Height

5-15m

Weight Capacity

150-500kg

Closed

Semi-closed

Development

New Type

Serviceability

Common Use

Size

As Request

Color

Blue for Upright, Orange for Beam

Finishing

Powder Coated

Storage Way

FILO (First In, Last Out)

Level

2-7

Certification

CE, ISO, SGS, TUV

HS Code

73089000

Production Capacity

5000 Tons/Month

Product Overview

Push back racking systems are designed for the efficient segregation of medium-sized items, ensuring optimum use of warehouse space. The system allows both retrieval and deposit to be performed on the same side of the rack, maximizing workflow efficiency.

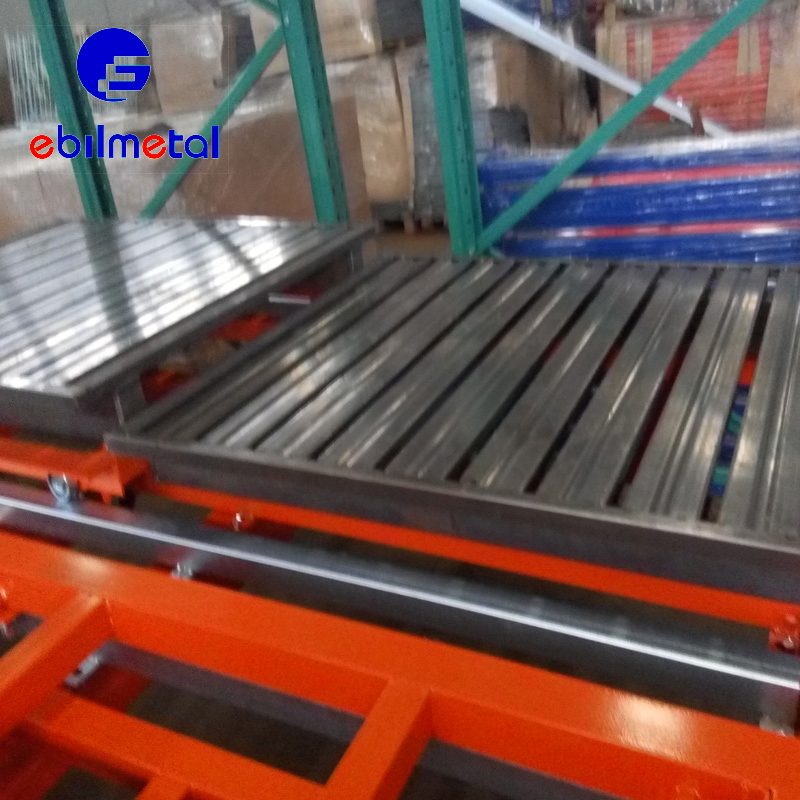

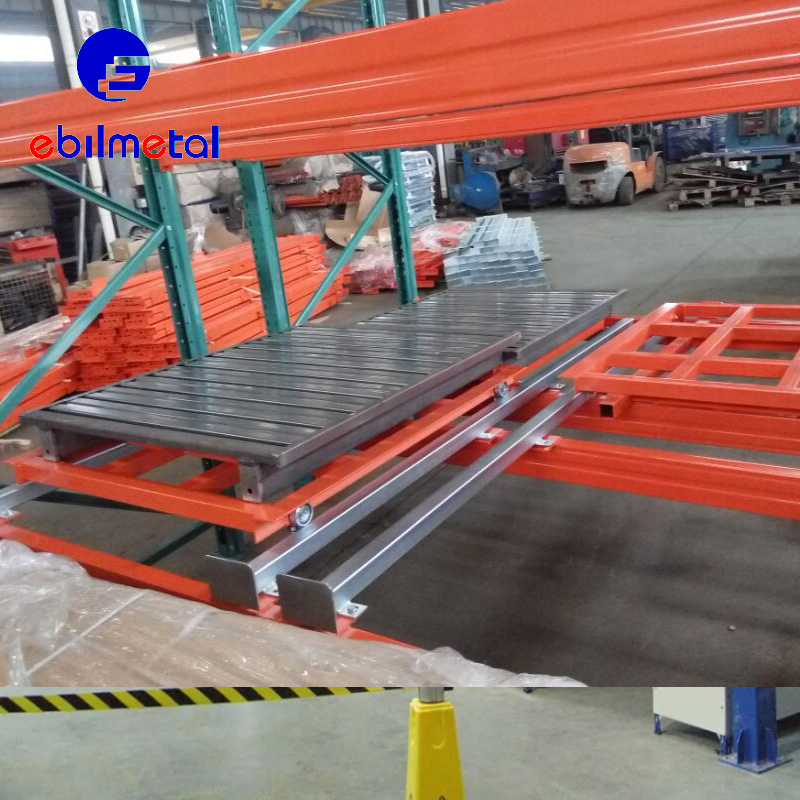

The operation is versatile, compatible with forklift trucks, support-wheel stackers, or reach trucks to achieve the ideal working height. The mechanism works by sliding loads in, pushing existing loads further into the channel. When the front load is removed, the subsequent loads automatically slide forward to the front position.

📋 Quick Quotation Requirements:

Warehouse layout drawing (if available)
Total warehouse dimensions
Required racking size (Height * Width * Length)
Number of levels required
Loading capacity per level
Preferred RAL color

Why Choose Push Back Rack Systems?

Maximize Space: Offers up to 90% more product storage compared to selective rack systems.
High Selectivity: Provides up to 400% more selectivity than drive-in racks.
Versatile Storage: Store various SKUs on different levels of lanes for easy access.
Safety Design: Interlocking carts prevent dangerous jamming and protect products from damage.
Efficiency: High storage density coupled with faster pick rates.
Inventory Management: Color-coded carts for easy visual inventory and "Last In, First Out" (LIFO) flow.

Technical Specifications

Feature	Details
Style	Pallet style, easy installation and adjustable
Certification	CE, ISO9001:2015
Regular Unit Size	(L) 2,700 x (W) 1,050 x (H) 5,025mm
Loading Capacity	2500kg per level (4 levels total)
Adjustability	75mm increments
Standard Colors	Blue, Orange, Green, Red, Grey
Minimum Order (MOQ)	10 units
Delivery Time	7 - 15 days for 2*40' containers

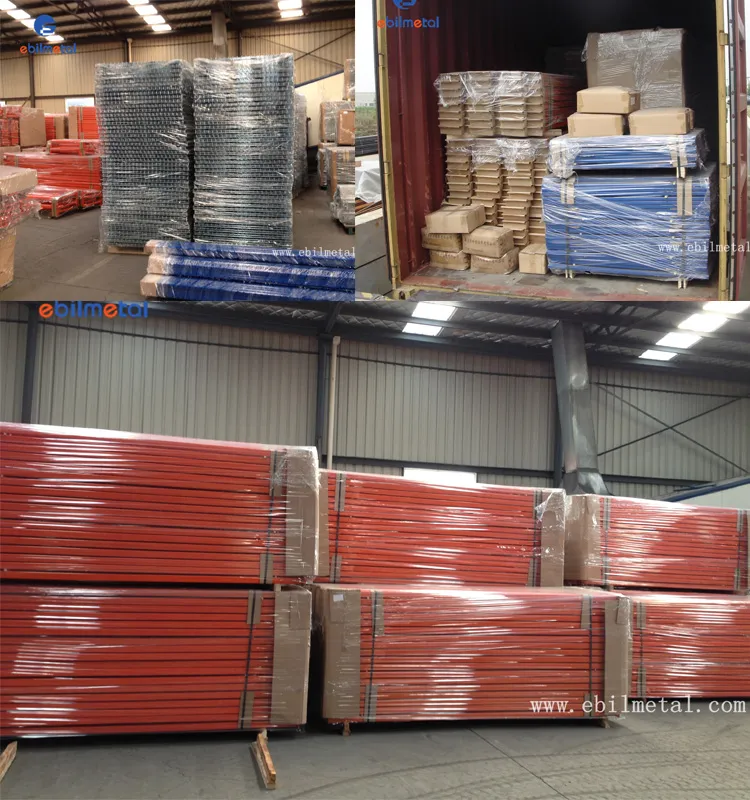

Packaging	Metal strip, film, paper board and master carton

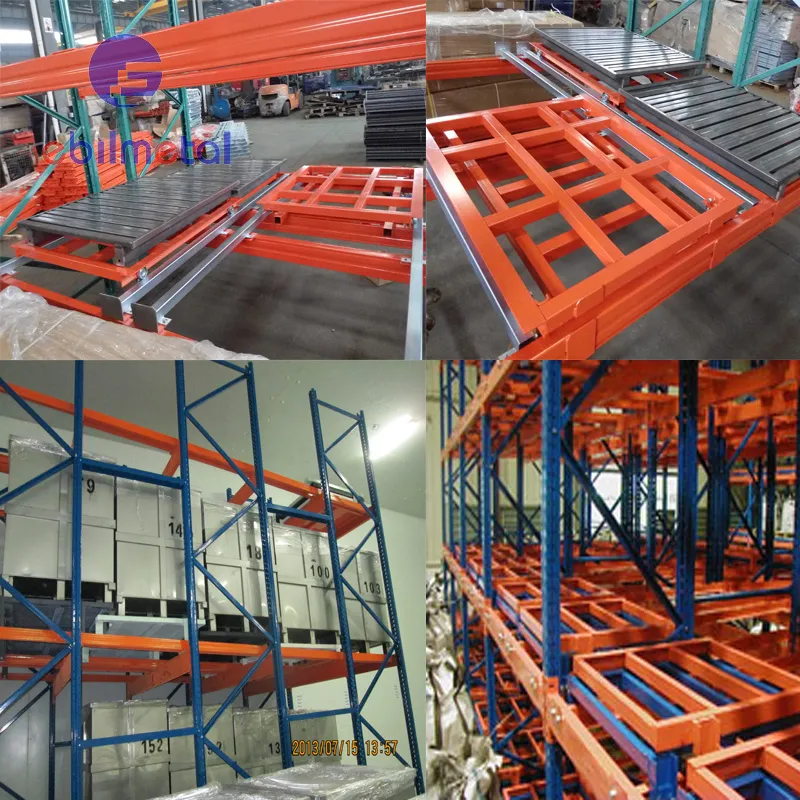

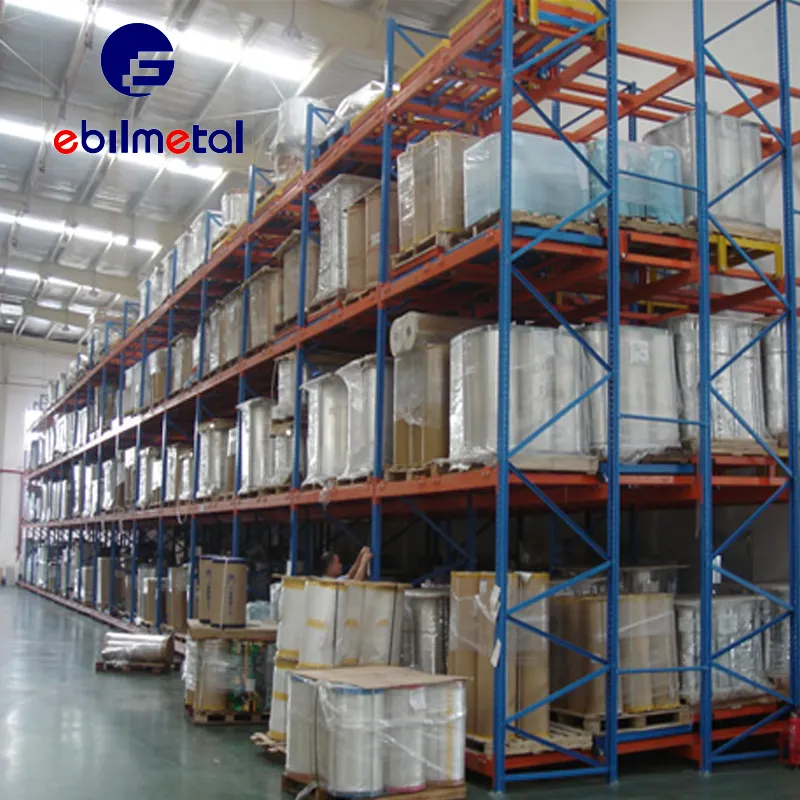

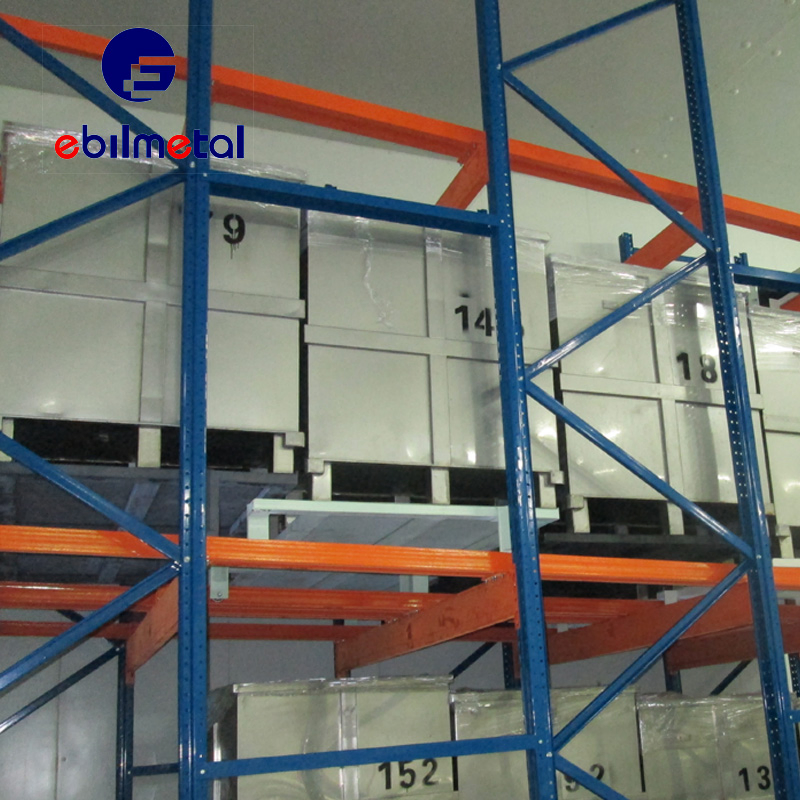

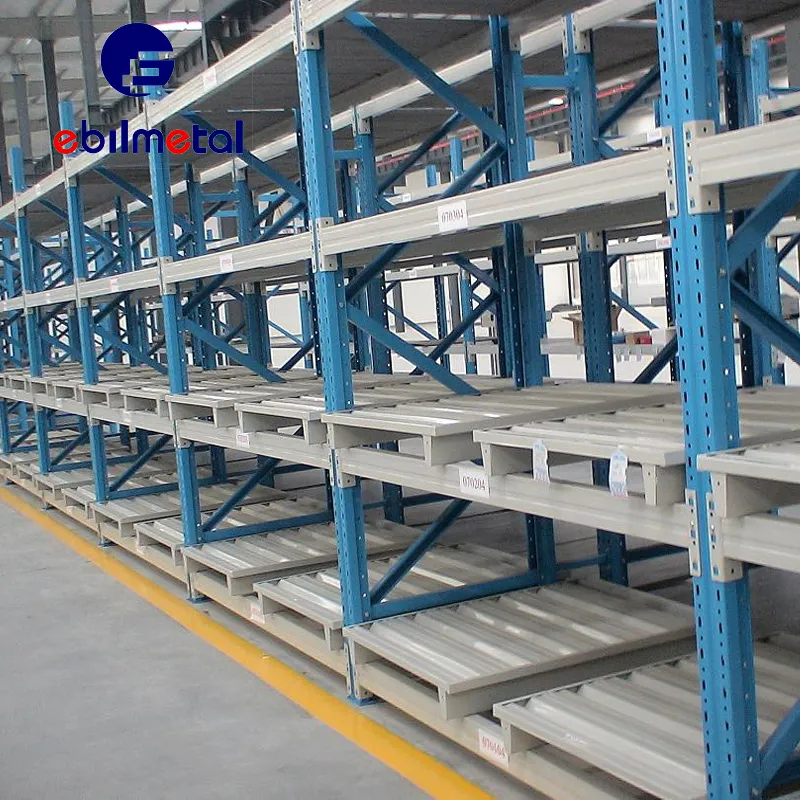

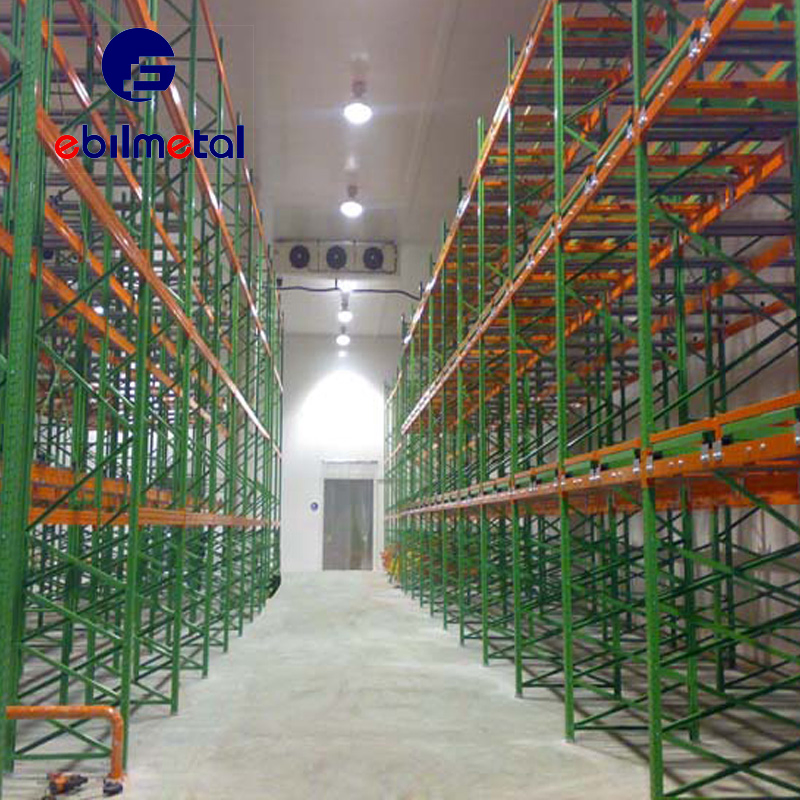

Product Visuals

Frequently Asked Questions

1. What is a Push Back Rack system?

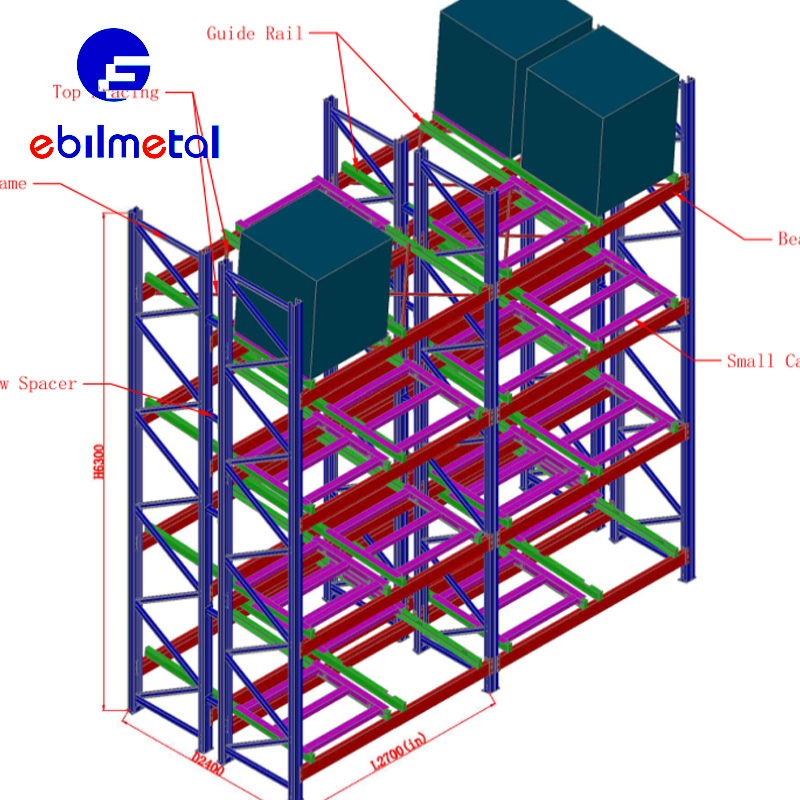

It is a high-density storage solution that allows pallets to be stored 2 to 5 deep on wheeled carts that slide along inclined rails. It uses the "Last In, First Out" (LIFO) principle.

2. How much space can I save with this system?

Push back racking can offer up to 90% more storage space than standard selective racking by reducing the number of aisles needed.

3. What is the loading capacity per level?

The standard loading capacity is approximately 2500kg per level, but this can be customized based on specific warehouse requirements.

4. Can I use standard forklifts with these racks?

Yes, push back racks can be operated by standard forklift trucks, support-wheel stackers, or reach trucks.

5. Is the racking size customizable?

Absolutely. While there are standard sizes (like 2700mm x 1050mm x 5025mm), we accept customized dimensions to fit your specific warehouse layout.

6. Are the racks durable and certified?

Yes, our systems are powder-coated for durability and hold certifications including CE, ISO9001:2015, SGS, and TUV.
