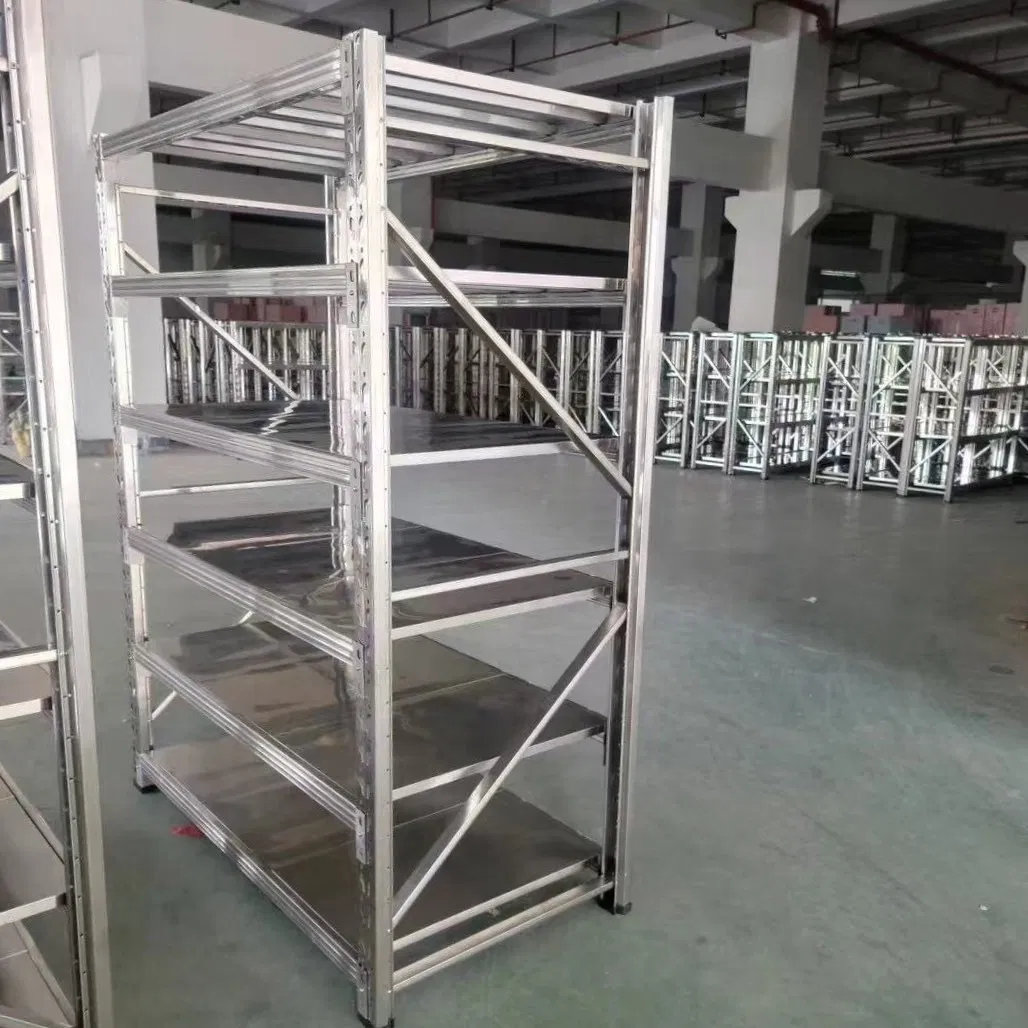

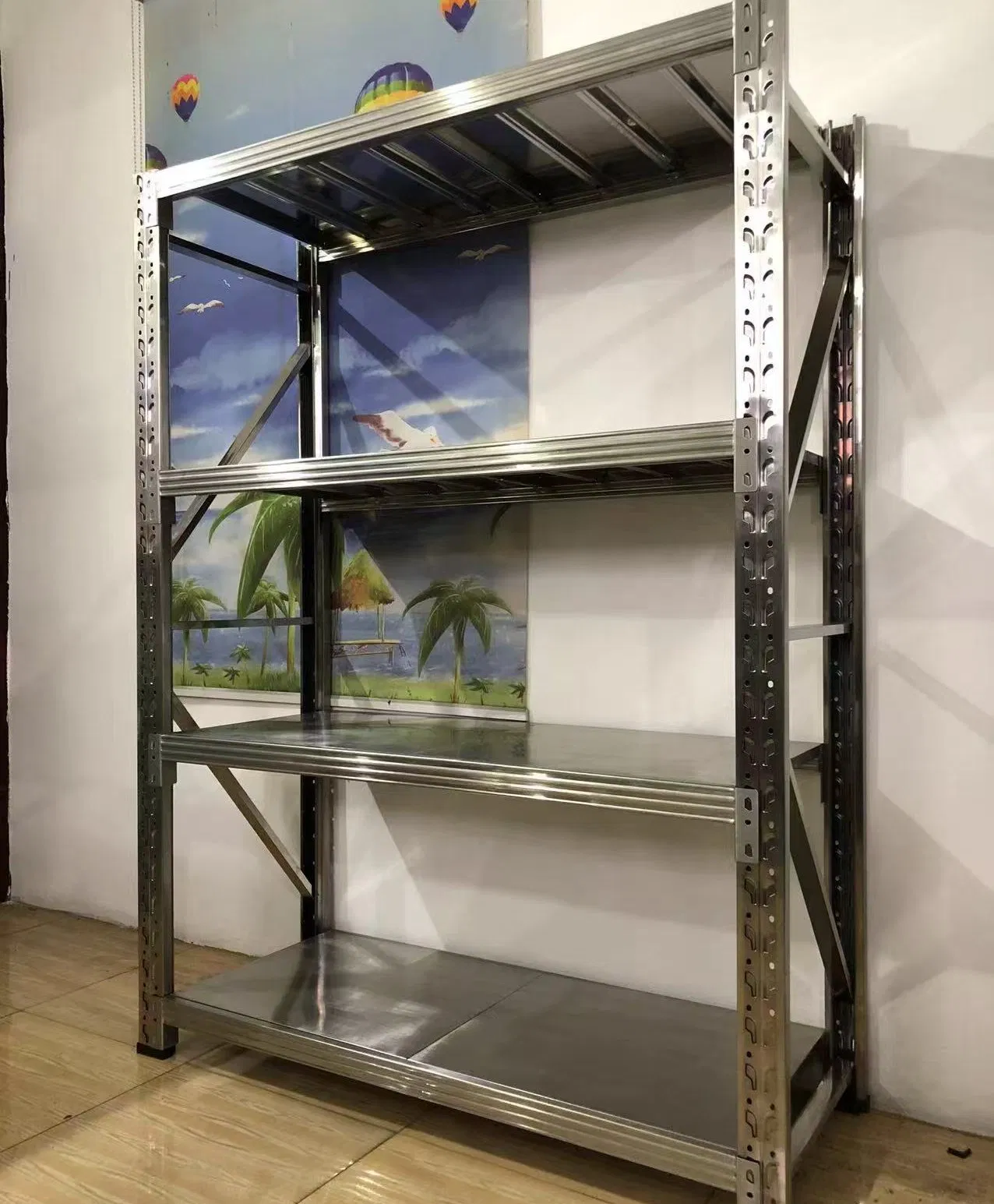

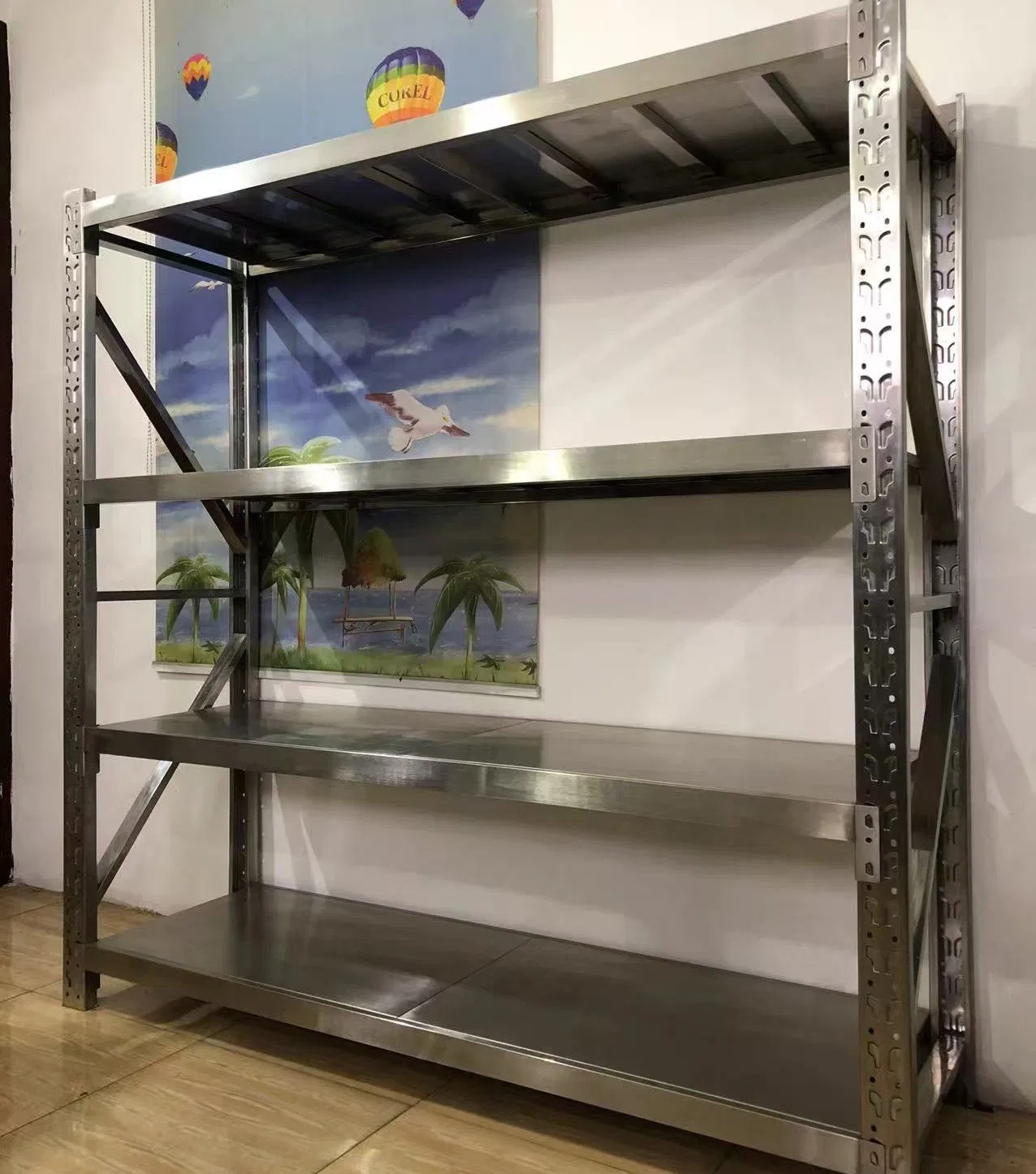

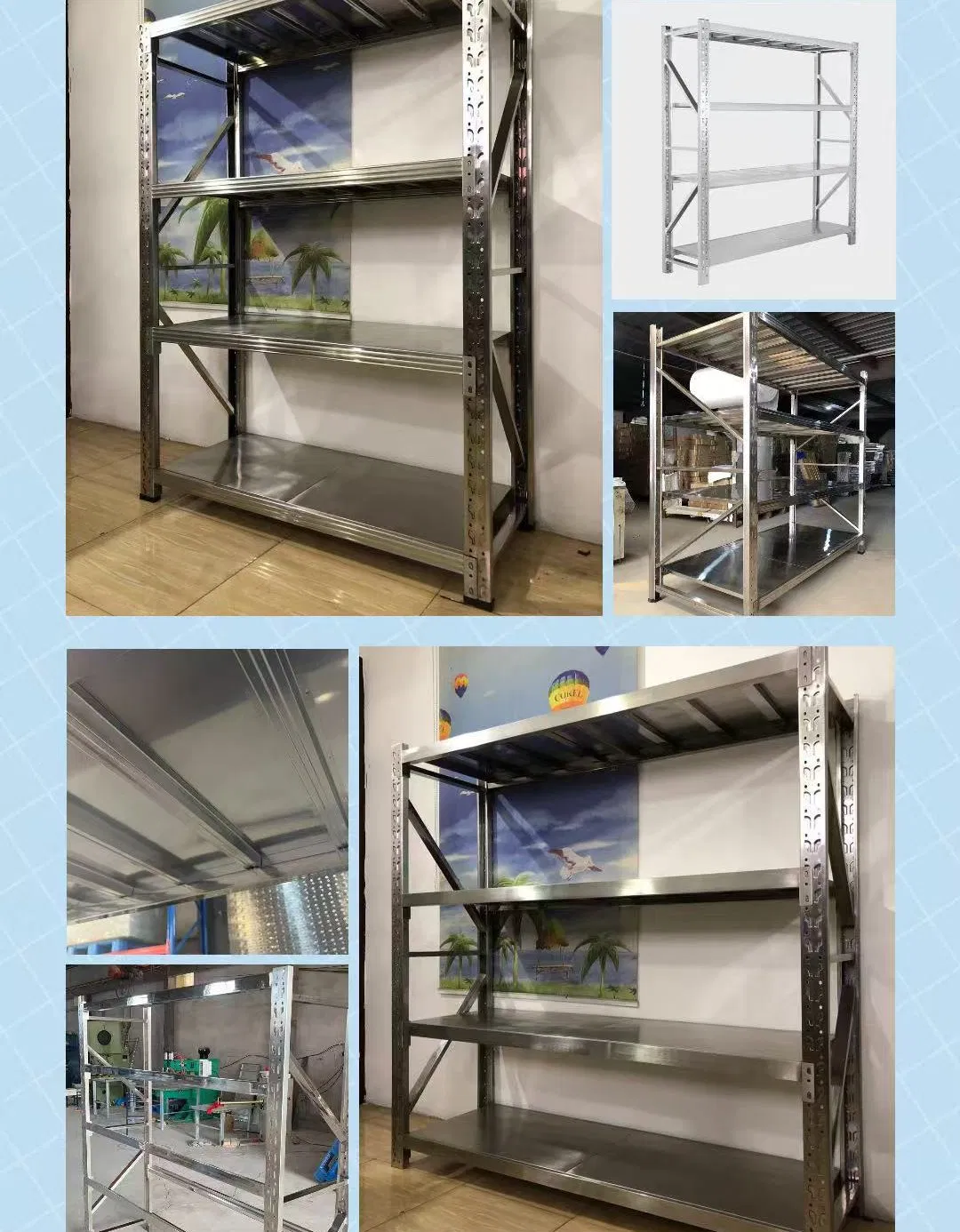

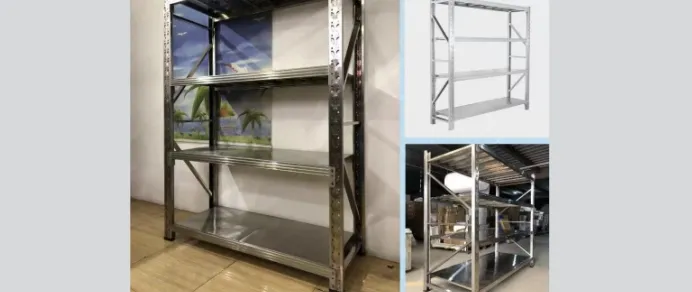

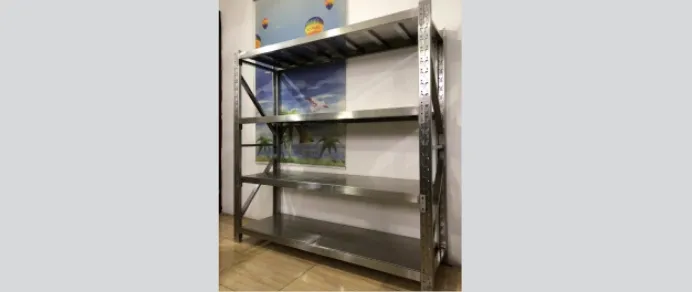

Stainless Steel Anti-cut C-type Column Storage Shelf Racks
Stainless steel shelf racks are efficient storage solutions designed for industrial, warehouse, and commercial environments. Made of 304/201 stainless steel, these racks offer excellent rust resistance, strong load-bearing capacity, and long service life. The modular structure supports flexible adjustment and expansion, making it ideal for environments with humidity, high temperature, or strict cleanliness requirements.

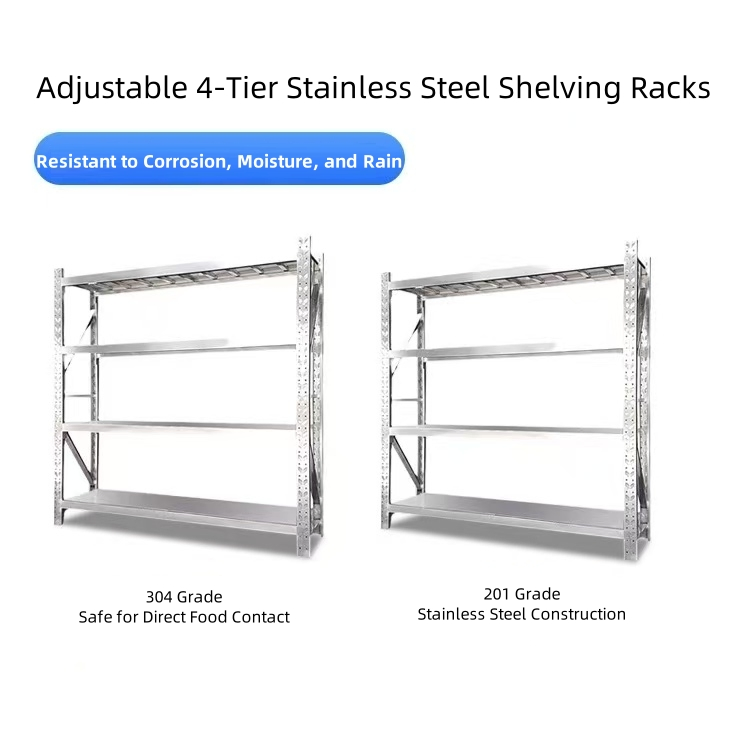

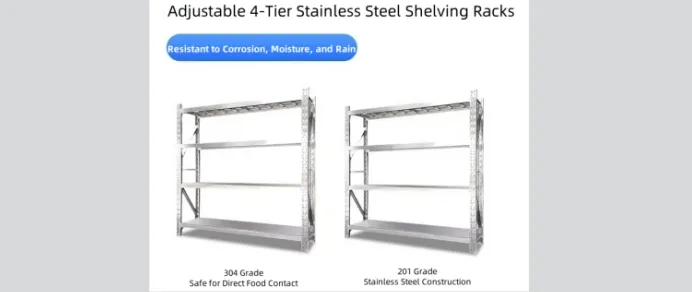

304 Stainless Steel (Premium): Corrosion-resistant, FDA/CE compliant. Ideal for food processing, medical, or outdoor use.
201 Stainless Steel (Economy): Cost-effective solution for dry indoor storage such as retail or general warehouses.

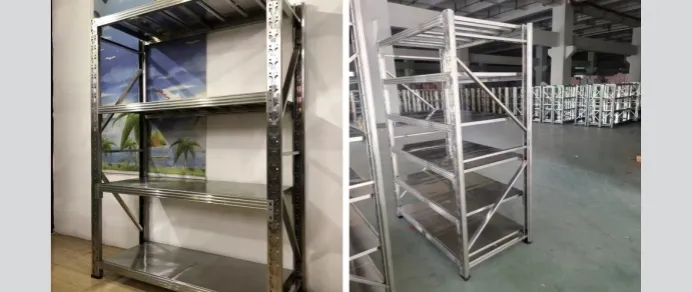

| Type | Duty Level | Key Components | Available Sizes (L*W*H) |
|---|---|---|---|
| Standard Type | Medium Duty (250kg/Layer) | Column: 80x48x0.7mm Beam: 60x40x0.7mm P-type Plate: 0.4mm |
200x60x202cm / 200x50x202cm 150x60x202cm / 150x50x202cm |
| Light Duty (150kg/Layer) | Column: 50x38x0.6mm Beam: 50x30x0.5mm P-type Plate: 0.3mm |
200x50x198cm / 150x50x198cm 120x50x198cm / 120x40x198cm |

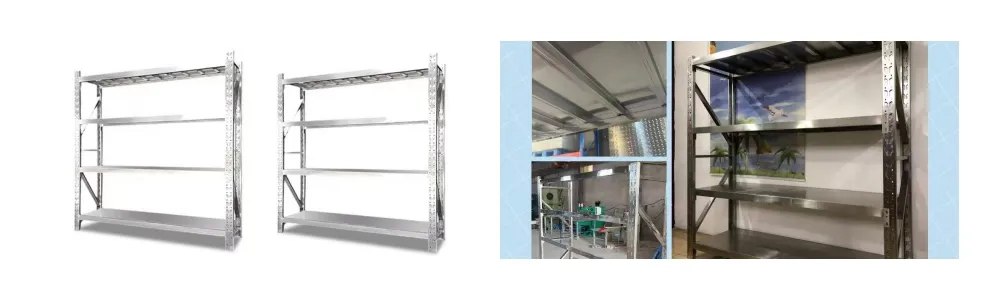

Bespoke Solutions: We offer thickening treatment for columns and plates to reach a maximum load of 1,000 kg/layer. Non-standard sizes and flat crossbeam options are also available.
