Customize Selective Hot Sale Q235 Cold Rolled Shelf Push Back Racking

1 / 5

Customize Selective Hot Sale Q235 Cold Rolled Shelf Push Back Racking

Customization:	Available
Usage:	Warehouse Rack
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.: EBIL-PBR

Structure: Rack

Type: Push Back Rack

Mobility: Fixed

Height: 5-15m

Weight: 150-500kg

Closed: Semi-closed

Development: New Type

Serviceability: Common Use

Size: as Request

Color: Blue for Upright, Orange for Beam or Railsystem

Finishing: Powder Coated

Storage Way: FILO (First In, Last Out)

Level: 2-7

Certification: CE, ISO, SGS, TUV

Production: 5000 Tons/Month

Product Overview

Push back racking systems are designed for the efficient segregation of medium-sized items, maximizing warehouse space utilization while maintaining accessibility. This system allows both retrieval and deposit to be performed on the same side of the rack, optimizing workflow.

✓ Operated by forklift trucks or support-wheel stackers.

✓ Automatic sliding mechanism: loads slide forward when the front pallet is removed.

✓ Ideal for optimizing working height and storage density.

Quotation Requirements

No.	Information Needed for Quick Quote
1	Drawing (if available)
2	Size of your warehouse
3	Size of racking (Height * Width * Length)
4	Number of racking levels
5	Loading capacity of each level
6	Preferred RAL Color

Why Choose Push Back Rack Systems?

★ Space Optimization: Offers up to 90% more storage than selective rack systems.

★ SKU Variety: Store different SKUs on various levels for easy access.

★ Safety: Interlocking carts prevent dangerous jamming and product damage.

★ Efficiency: High storage density combined with fast pick rates.

★ Inventory Control: Color-coded carts for easy visual management.

Technical Details

Gravity sensing system fills storage cubes with product, supporting pallets 2 to 5 deep.
Style:	Pallet style, easy installation and adjustable.
Certification:	CE, ISO9001:2015
Regular Size/Unit:	(L) 2,700 x (W) 1,050 x (H) 5,025mm
Loading:	2500kg/level (4 levels loading)
Adjustable Pitch:	75mm
Standard Colors:	Blue, orange, green, red, grey

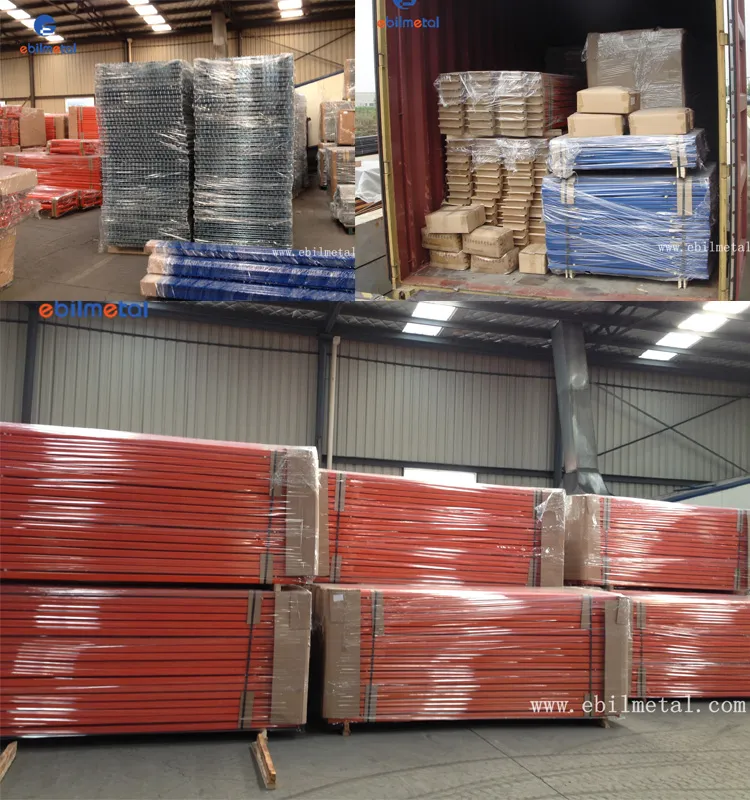

Package:	Metal strip, film, paper board and master carton.

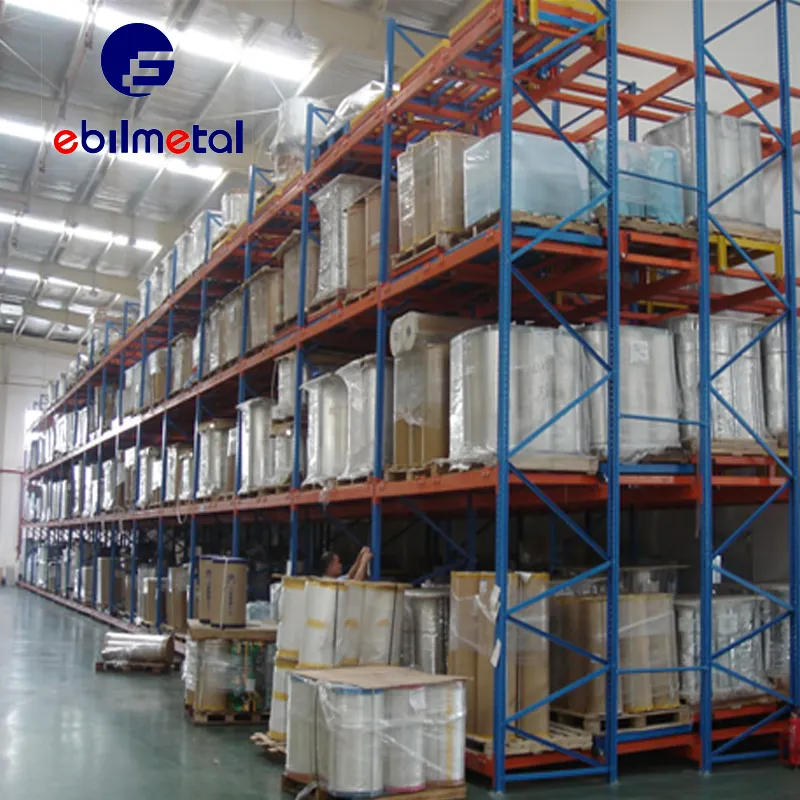

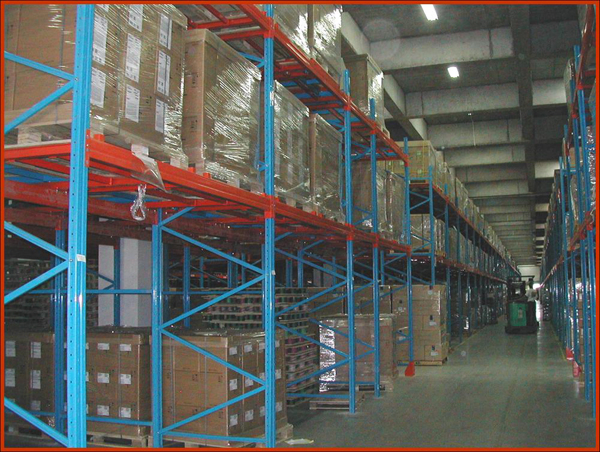

Product Gallery

Frequently Asked Questions

Q: What is the main storage principle of Push Back Racking? A: Push Back Racking follows the FILO (First-In, Last-Out) principle. Pallets are loaded onto carts that slide back into the system, and they slide forward automatically when the front pallet is retrieved.

Q: How many pallets deep can the system store? A: Most Push Back systems are designed to store pallets 2 to 6 deep, significantly increasing storage density compared to standard selective racking.

Q: Can standard forklifts be used with this system? A: Yes, Push Back Racking is compatible with standard forklift trucks and reach trucks, as the forklift does not need to enter the racking lanes.

Q: What is the maximum height and load capacity? A: The system can reach heights of 5 to 15 meters, with loading capacities typically ranging from 2500kg per level, depending on specific custom designs.

Q: Is the system customizable for different warehouse sizes? A: Absolutely. The racking can be customized in terms of height, width, number of levels, and colors to fit the specific dimensions and requirements of your warehouse.

Q: How does it improve safety compared to Drive-in racking? A: Unlike Drive-in racking, forklifts stay in the aisle, reducing the risk of rack damage. Additionally, interlocking carts prevent jamming and accidental pallet slips.
