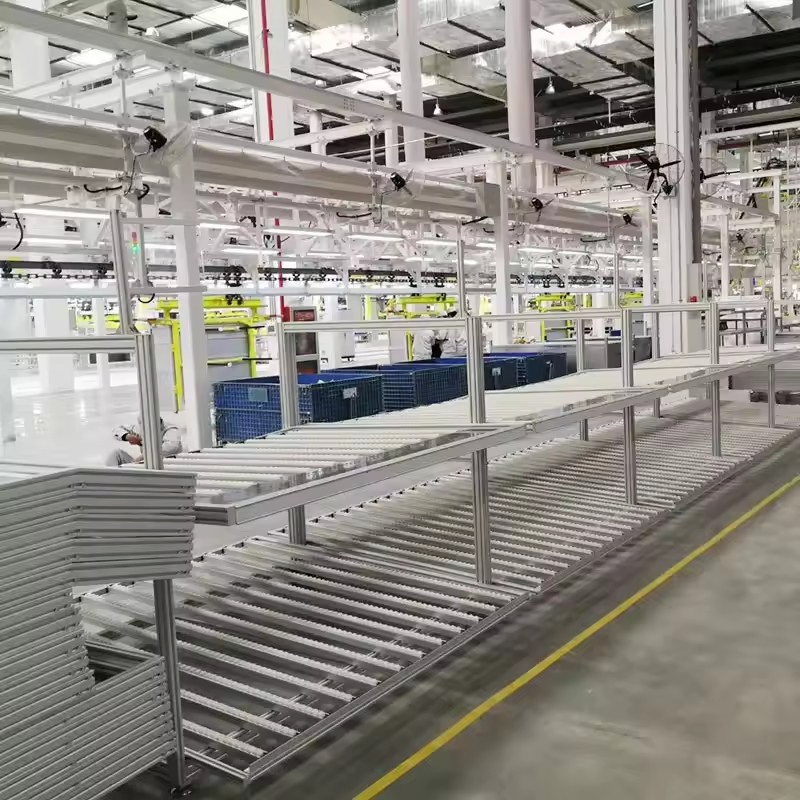

Popular Customized Carton Flow Racking System Live Storage System From Nanjing Factory

1 / 5

Popular Customized Carton Flow Racking System Live Storage System From Nanjing Factory

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	Gravity Pallet Rack	Material	Steel Q235B
Usage	Beverage, Food, Industrial, Warehouse Rack	Type	Pallet Racking
Height	5-15m (Customized)	Surface Treatment	Galvanized / Powder Coating
Load Capacity	Up to 1500kg per pallet	Mobility	Fixed

Product Description

Pallet Flow Racking (FIFO): Ideal for warehouses where stock turnover control and space saving are critical. It uses high-density storage with linear roller beds to allow load units to slide easily via gravity.

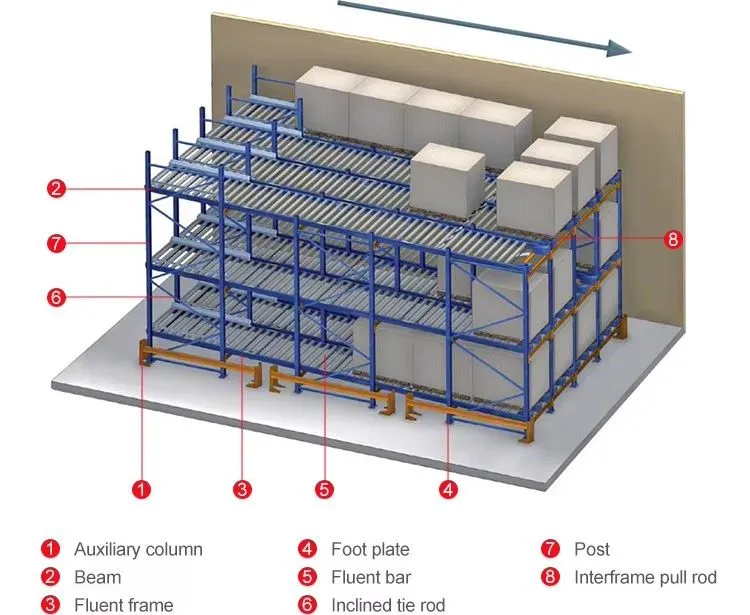

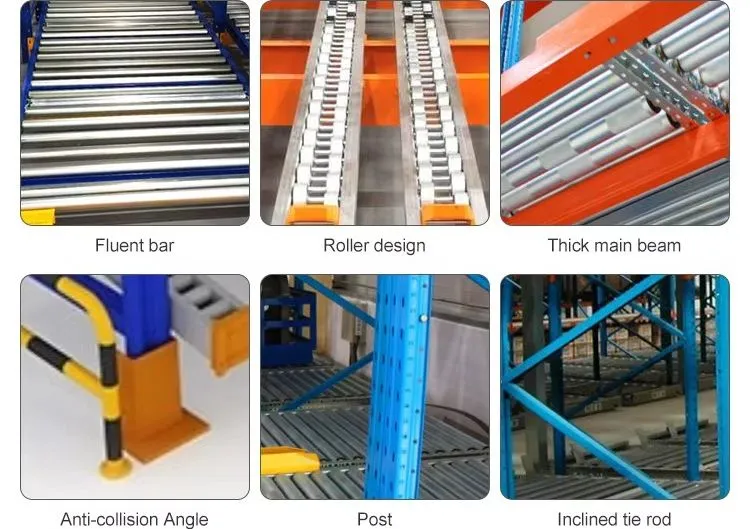

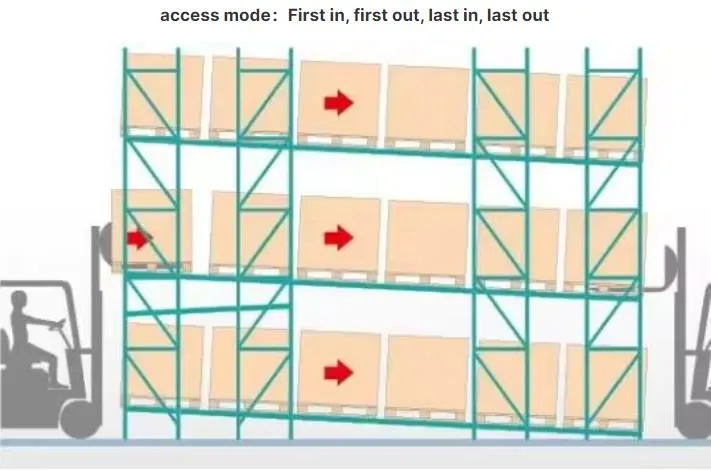

How It Works

Fluent shelf are high density dynamic storage systems that maintain the First-In / First-Out (FIFO) product flow. This eliminates redundant aisles and increases efficiency.

System Capabilities

Lane Dimensions	1000mm (1 lane) to 3600mm (3 lanes)
Block Height	Up to 13500mm
Channel Depth	Up to 15 pallets deep
Finish Options	Pre-galvanized or painted Uprights & Beams

Types of Live Storage Systems

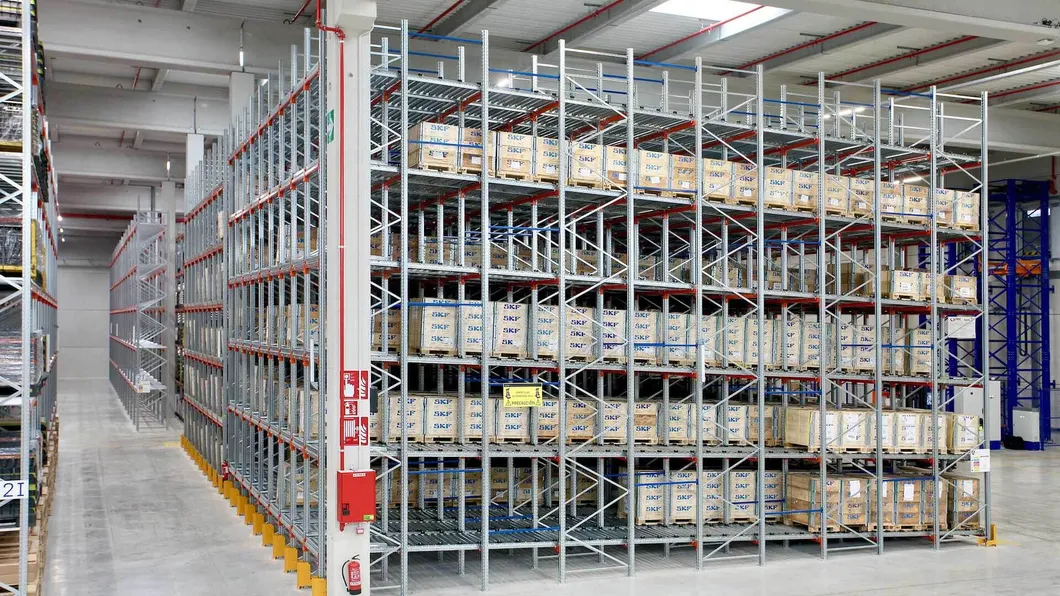

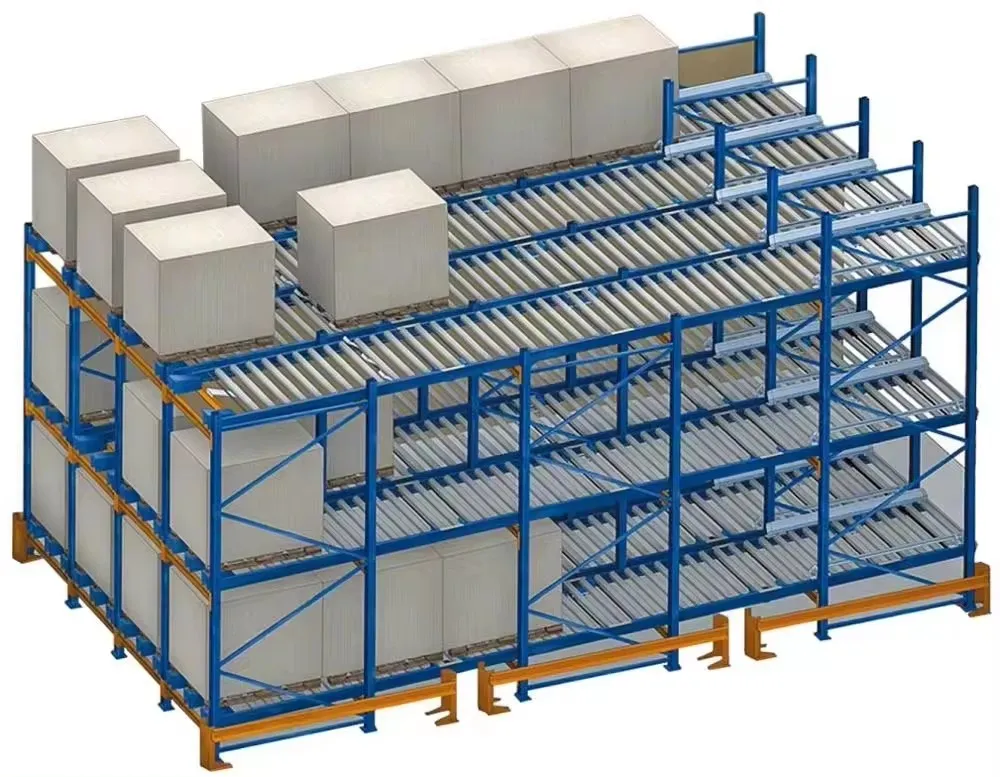

1. Pallet Flow Racking (FIFO)

Uses the force of gravity to move pallets from the loading area to the unloading area. Ideal for products with short expiration dates.

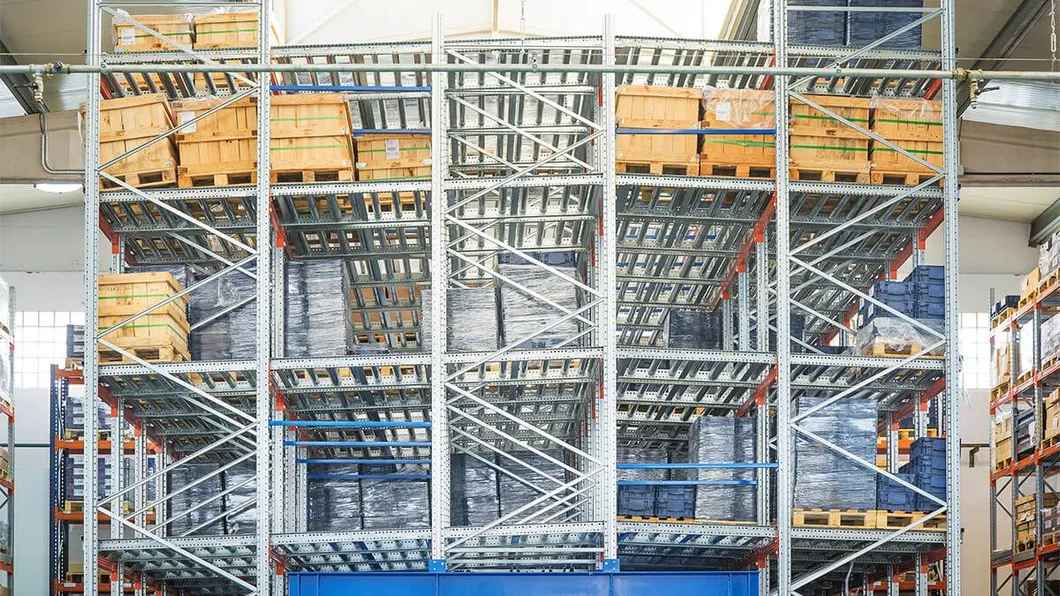

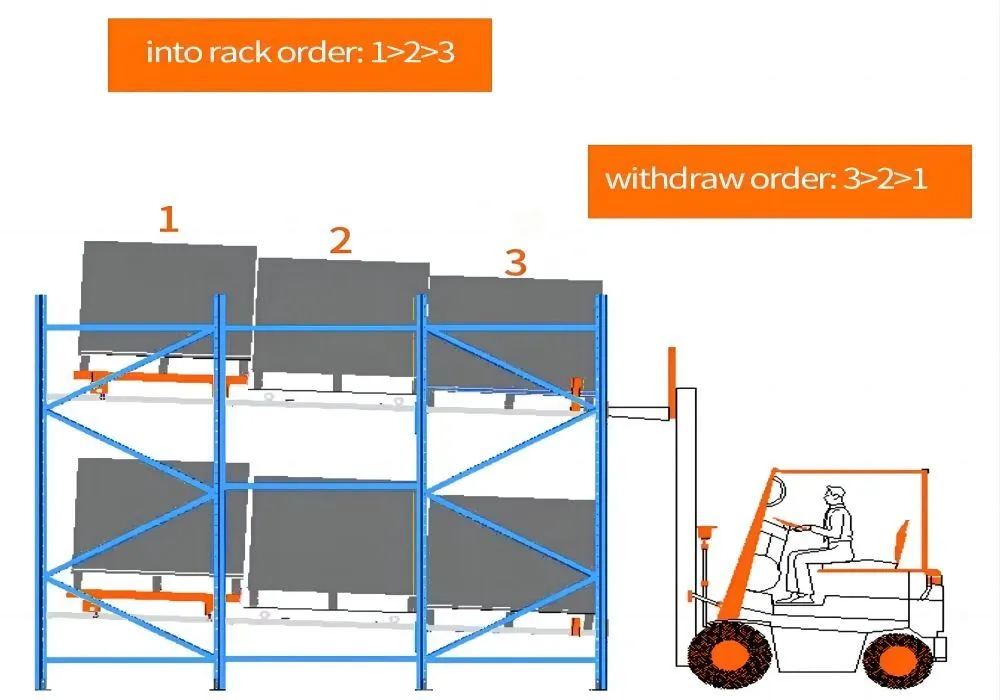

2. Push-back Pallet Racking (LIFO)

Designed for Last-In, First-Out management. Loading and unloading occur in the same aisle, utilizing shuttles or rollers to push back previous loads.

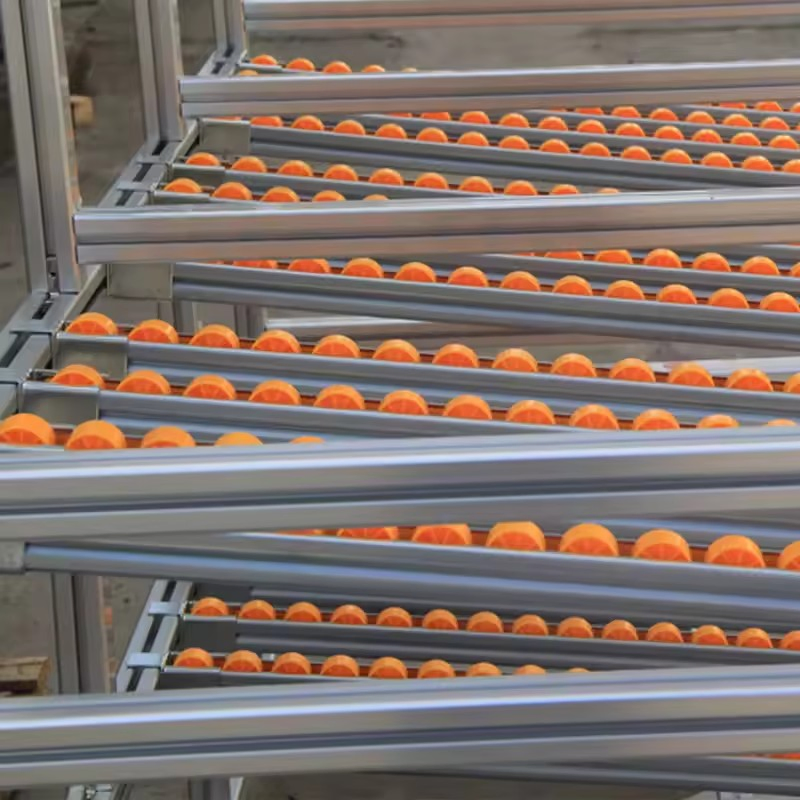

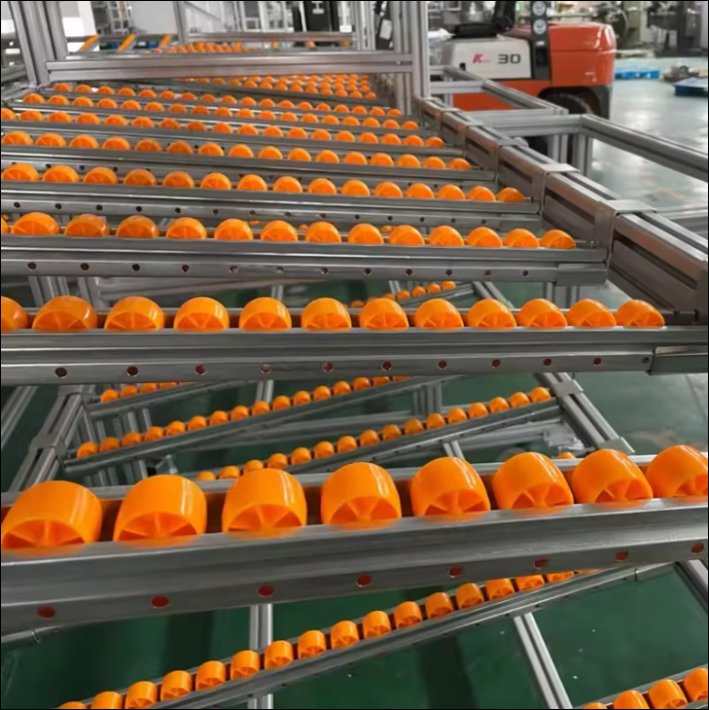

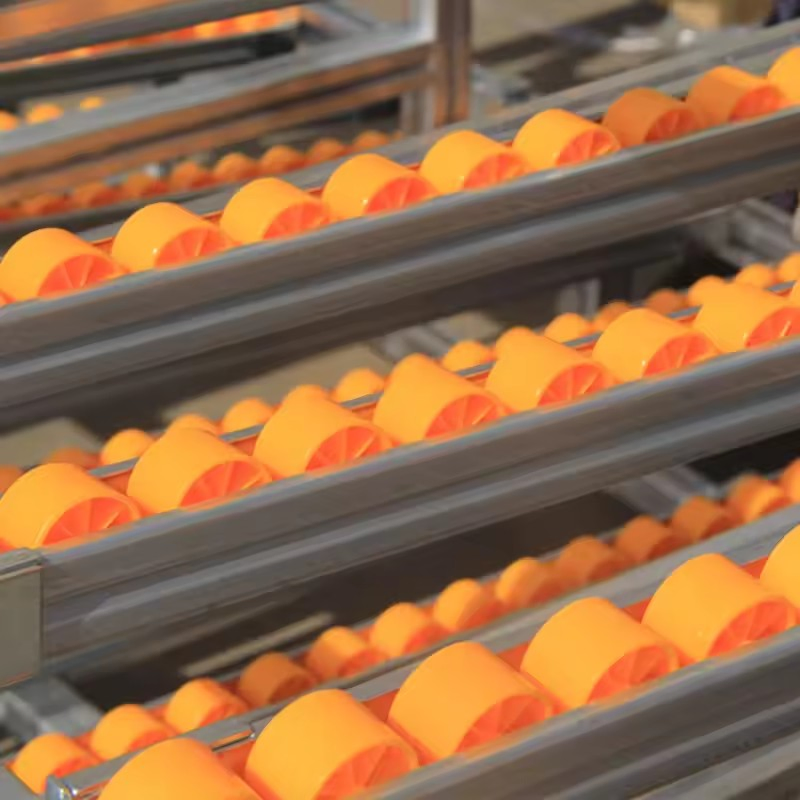

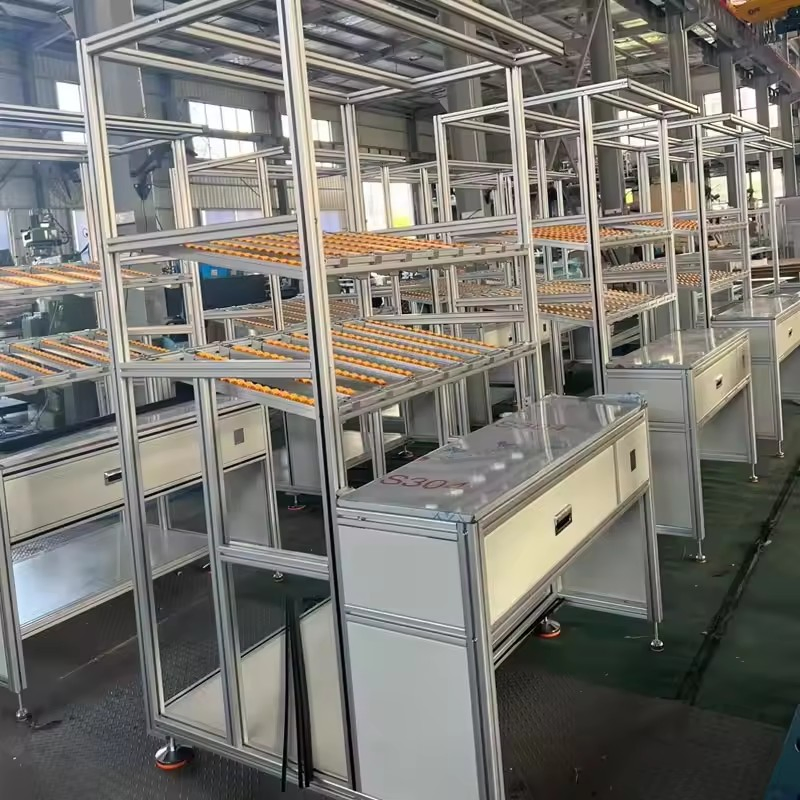

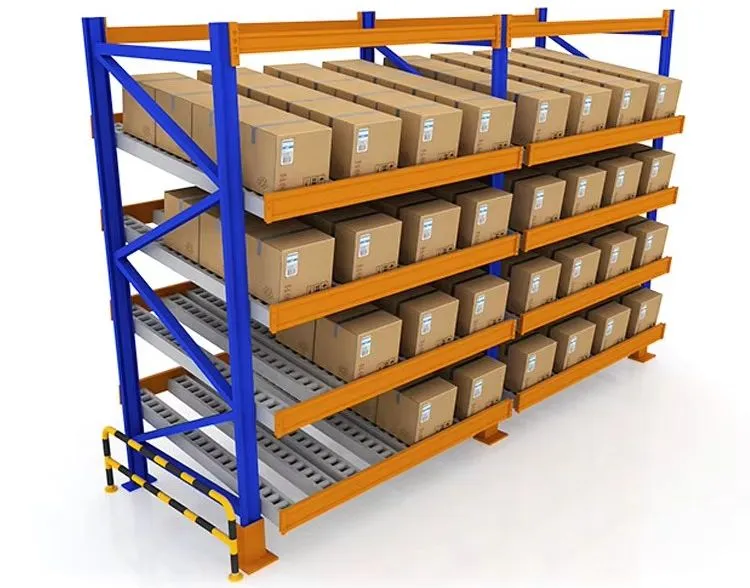

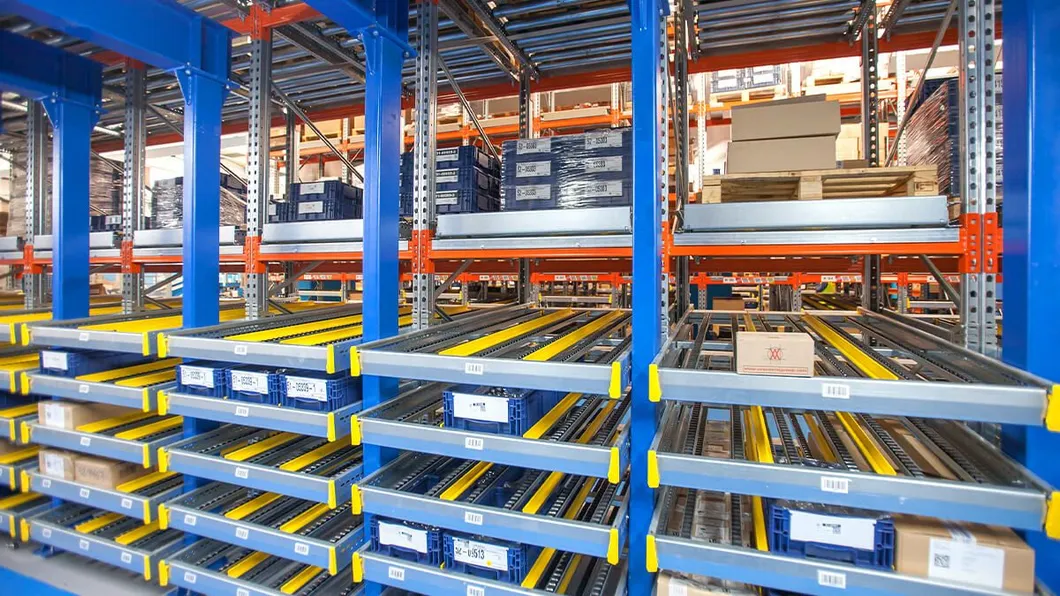

3. Carton Flow Systems

A gravity-controlled high-density system for manual loading. Adapted for light loads like cartons, perfect for high-volume picking operations.

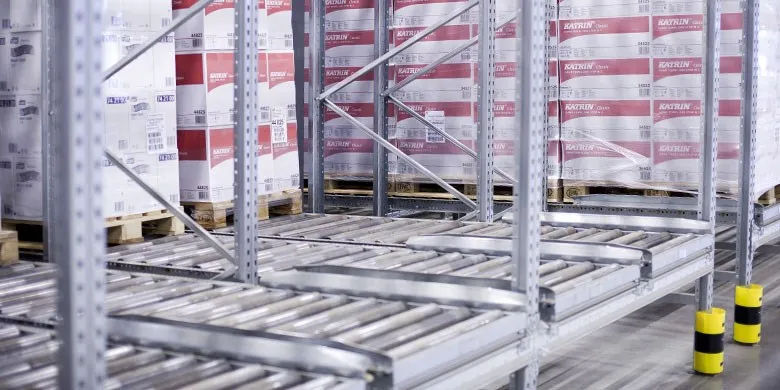

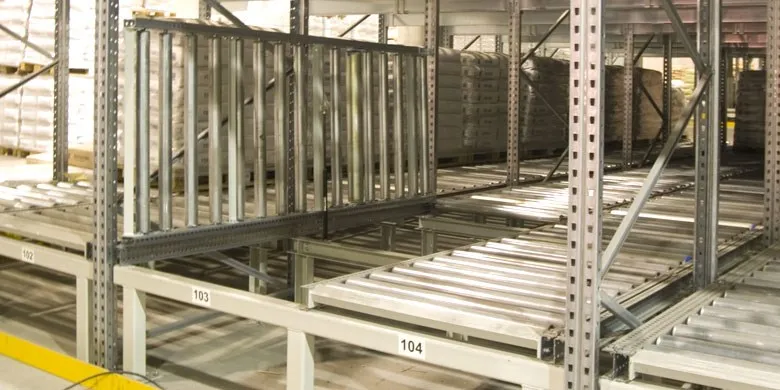

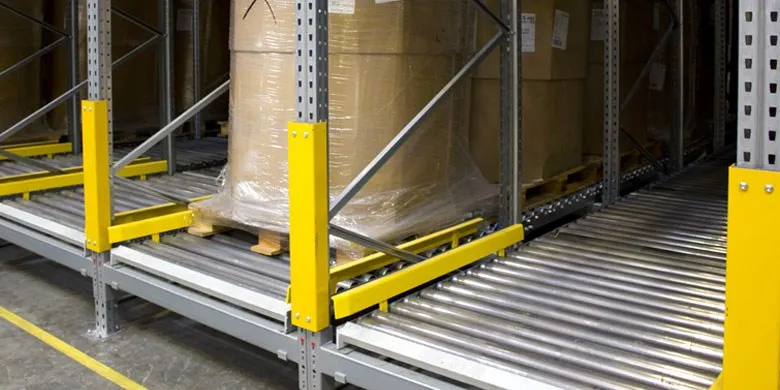

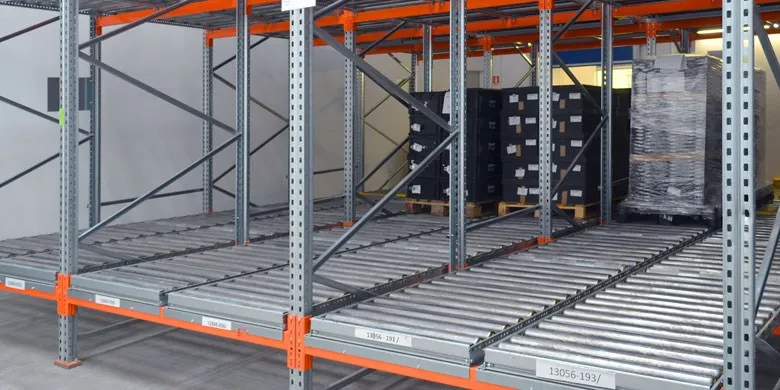

Customer Site Gallery

Packaging & Shipping

Frequently Asked Questions

Q1: What is the main advantage of a FIFO pallet flow system? A: It ensures perfect stock rotation, making it ideal for perishable goods. It also significantly reduces travel time for forklifts by separating loading and unloading aisles.

Q2: Can the rack dimensions be customized for different pallet sizes? A: Yes, we provide customized designs based on your pallet size, weight, and warehouse height requirements to ensure maximum space utilization.

Q3: What safety features are included in the gravity flow system? A: Our systems are equipped with control rollers, speed controllers, and braking systems to ensure pallets slide at a safe, controlled speed.

Q4: What is the difference between FIFO and LIFO racking? A: FIFO (First-In, First-Out) uses separate entry and exit aisles for continuous flow. LIFO (Last-In, First-Out), like Push-back racking, uses a single aisle for both loading and unloading.

Q5: What information is required for a customized quote? A: We need the warehouse layout (CAD or draft), height, pallet dimensions, maximum load per pallet, and preferred color.

Q6: Do you provide a warranty for the racking structures? A: Yes, we provide a 3-year warranty on our racking systems, backed by high-quality Q235B steel construction.
