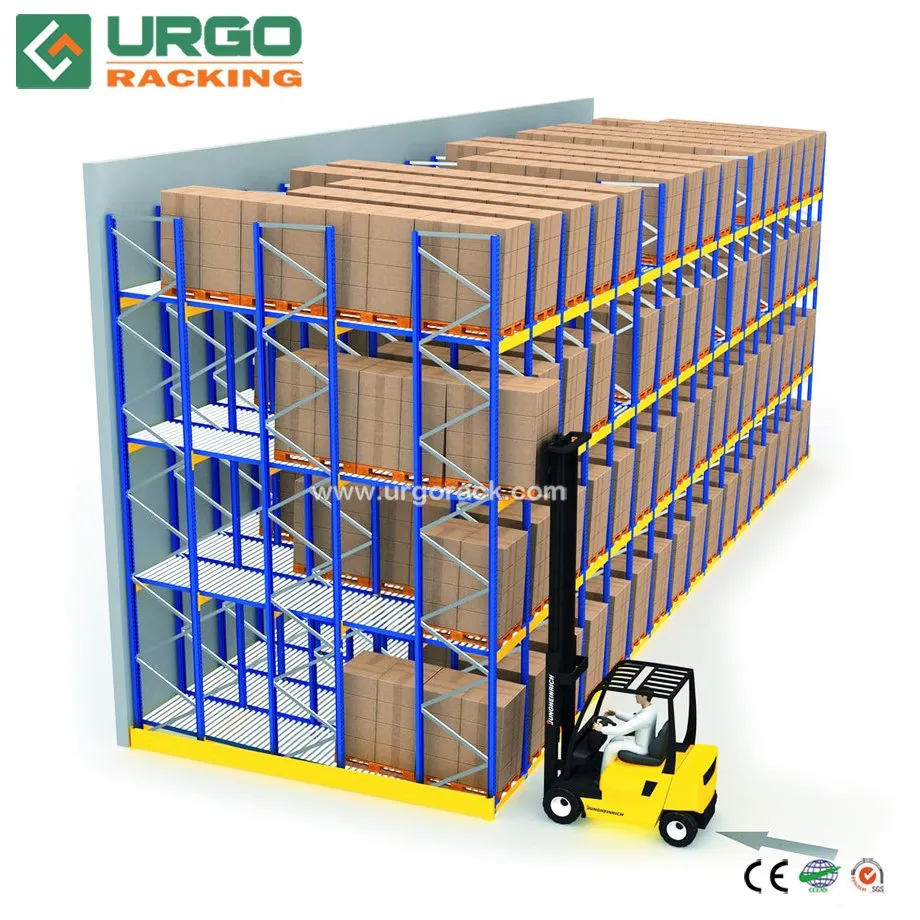

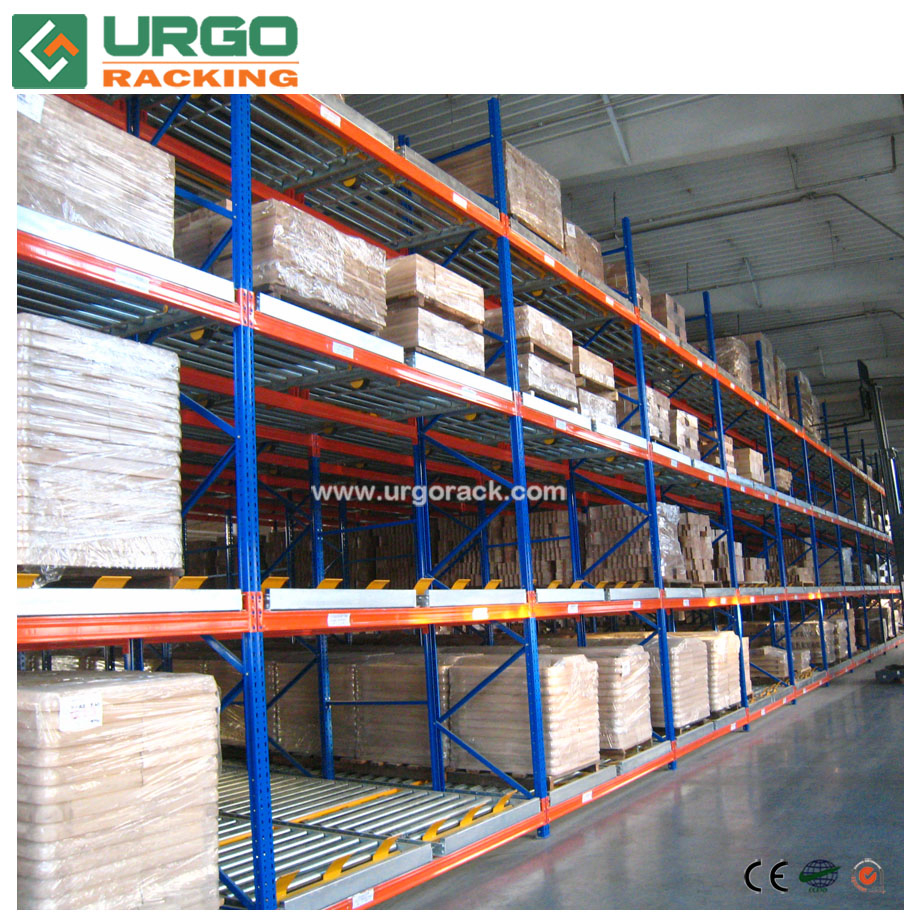

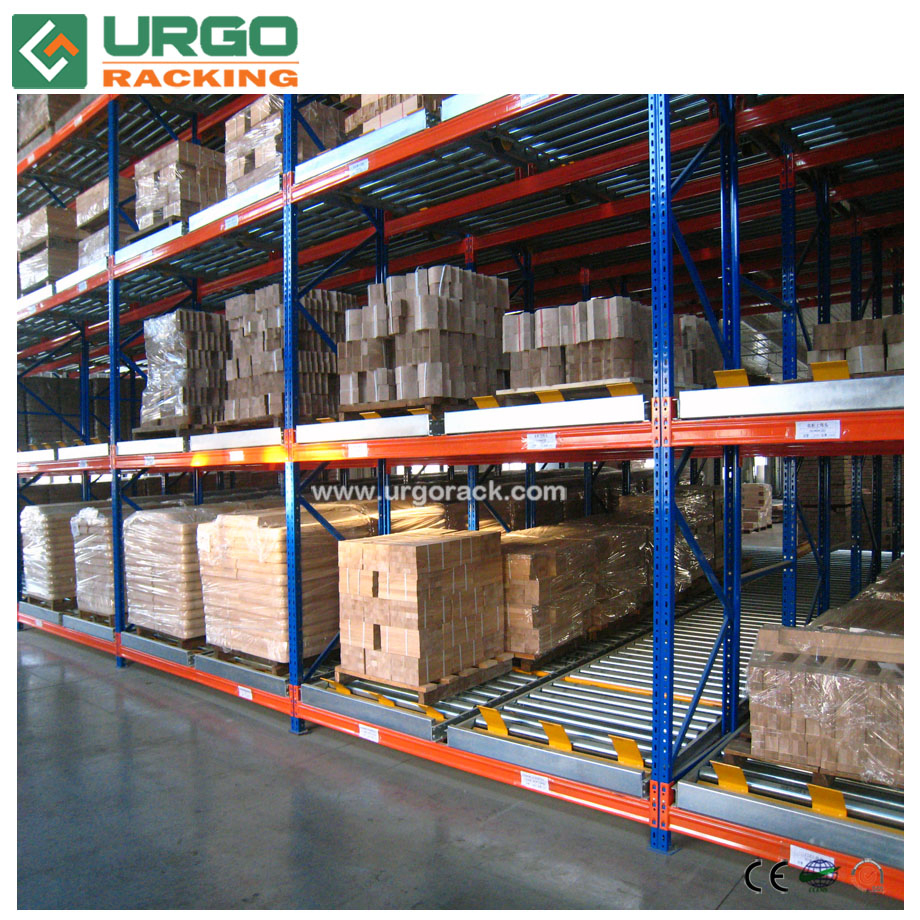

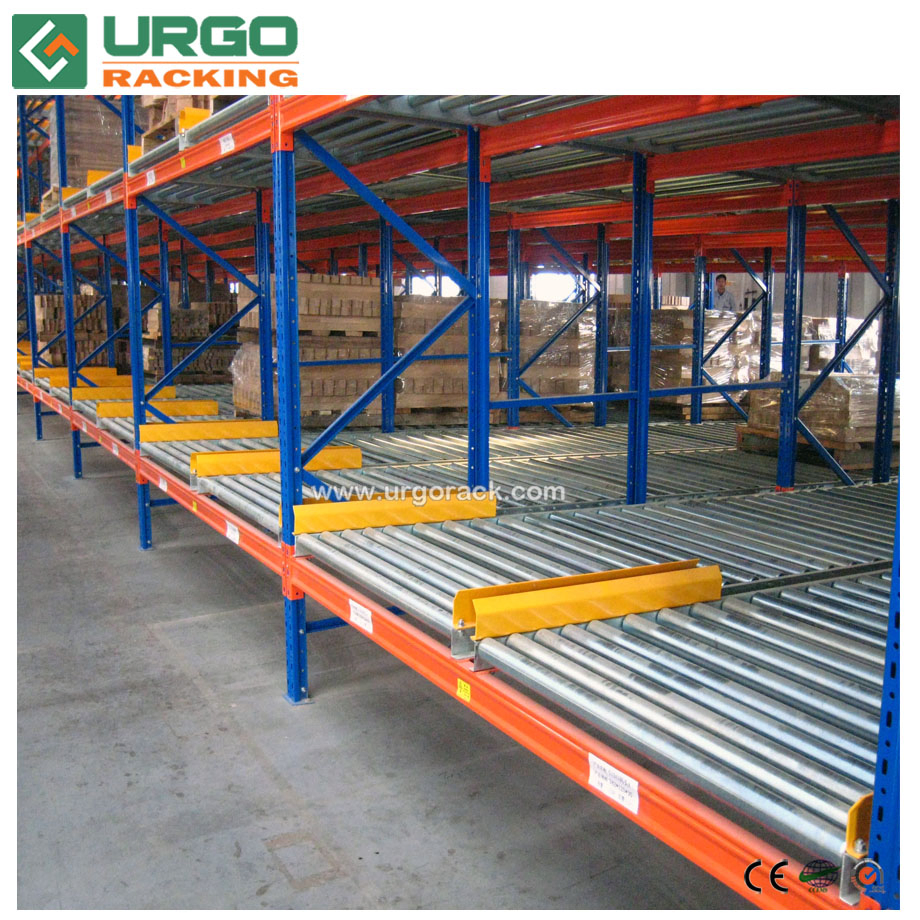

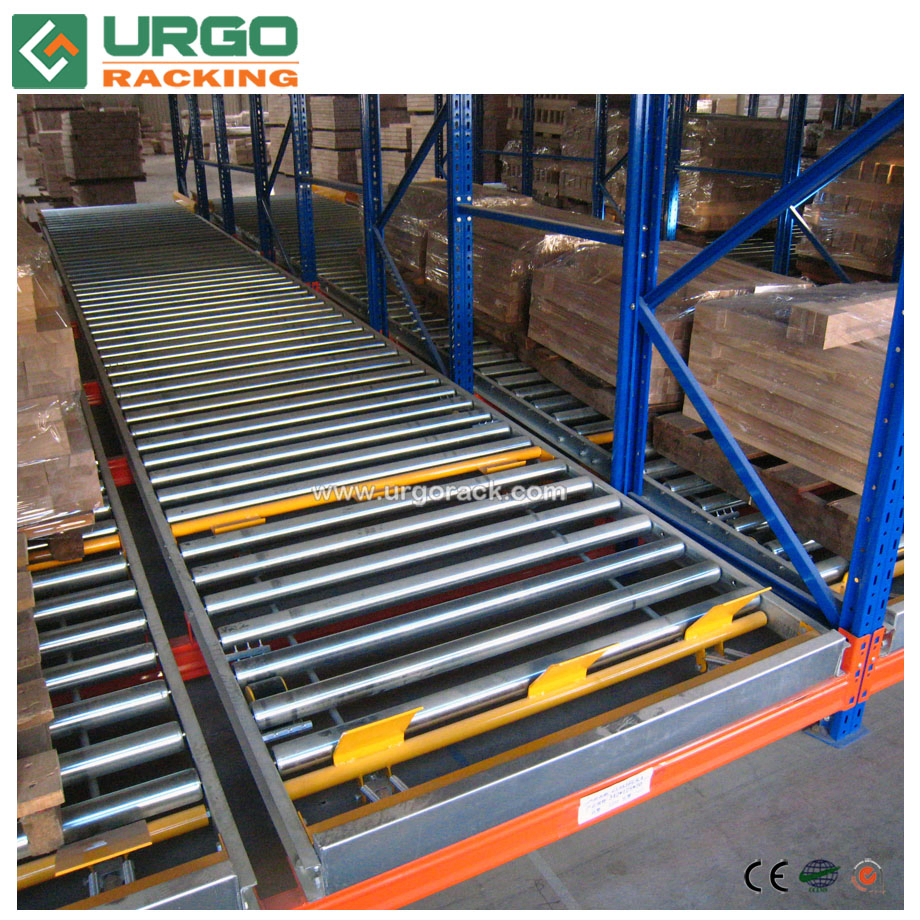

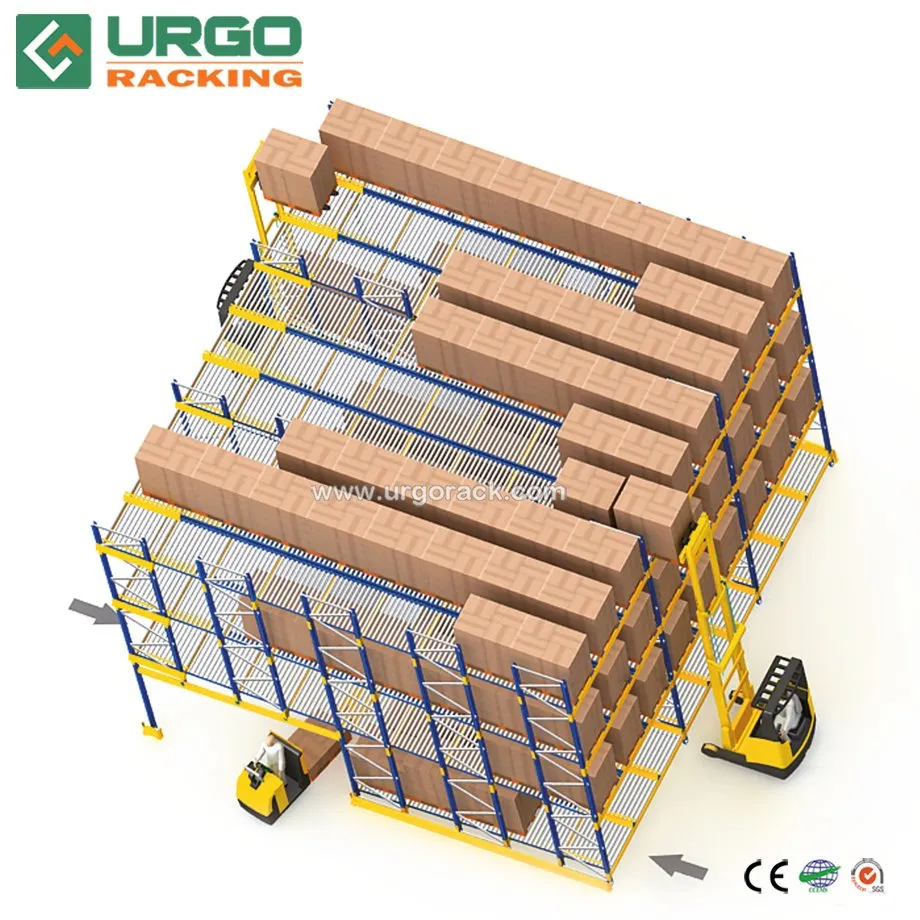

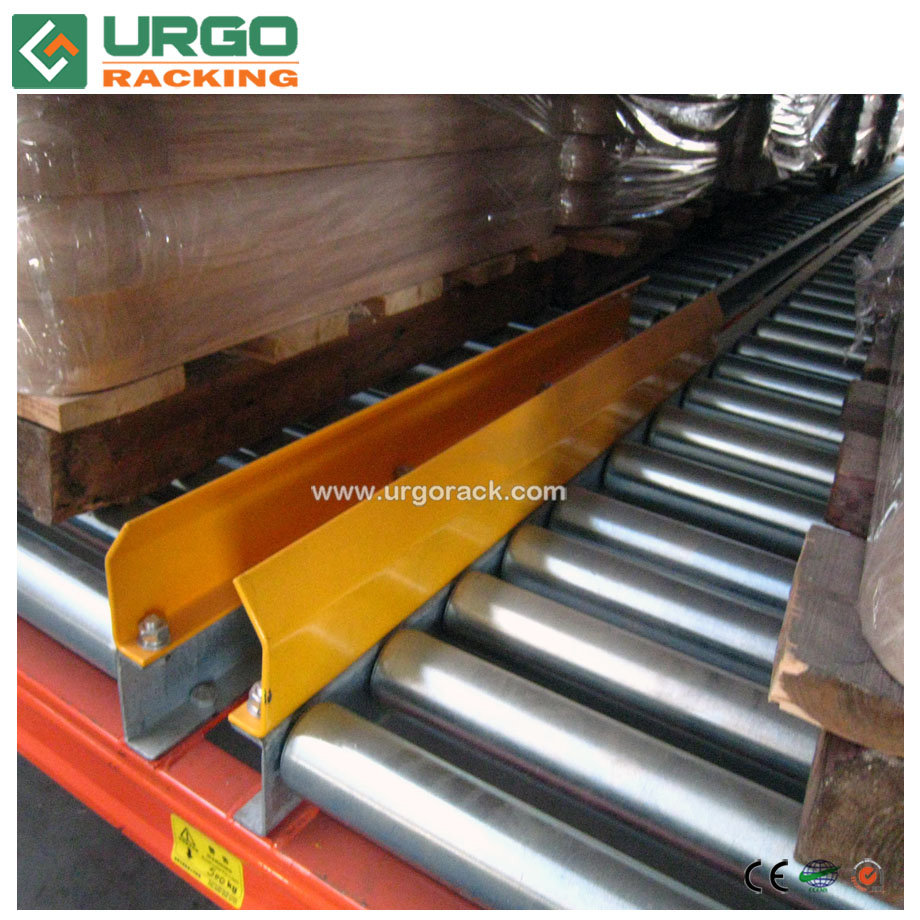

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required. It is a popular choice when pallets need to be moved quickly from one area to another without the continuous assistance of lift trucks.

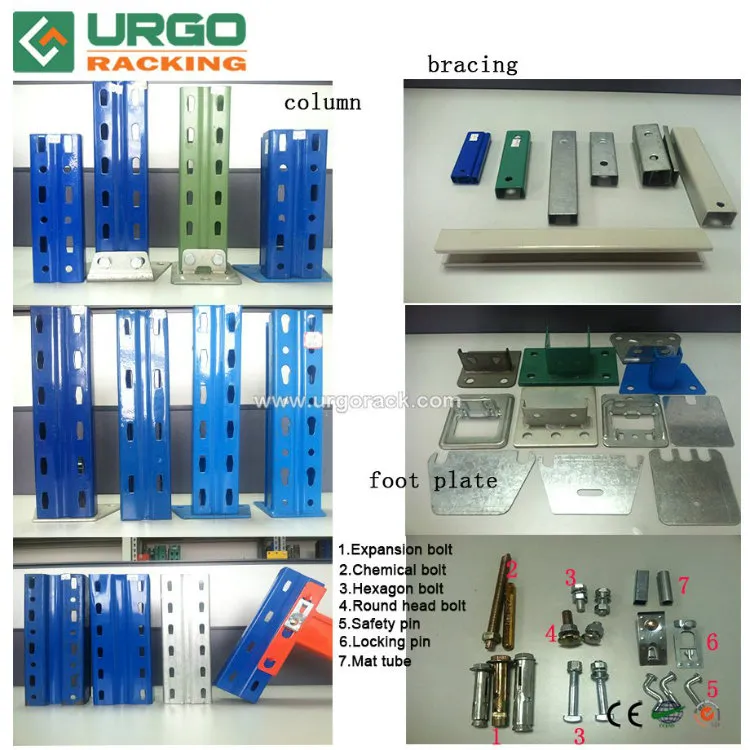

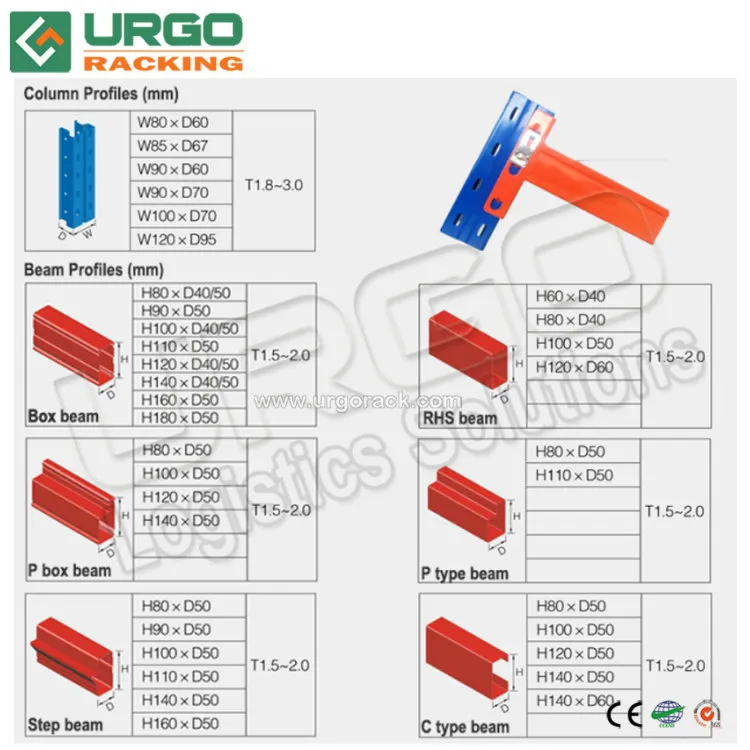

Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Profiles (Loading Capacity per Length):
| Specification (mm) | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm |
|---|---|---|---|---|---|
| 80 x 50 x 1.5 | 3000 | 1740 | 1160 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 1930 | 1380 | - |
| 120 x 50 x 1.5 | - | - | 2730 | 1930 | 1450 |
| 140 x 50 x 1.5 | - | - | 3868 | 2720 | 2100 |
