🔹 Basic Information
Package
Standard Export Pack
Specification
Customization
🔹 Product Description

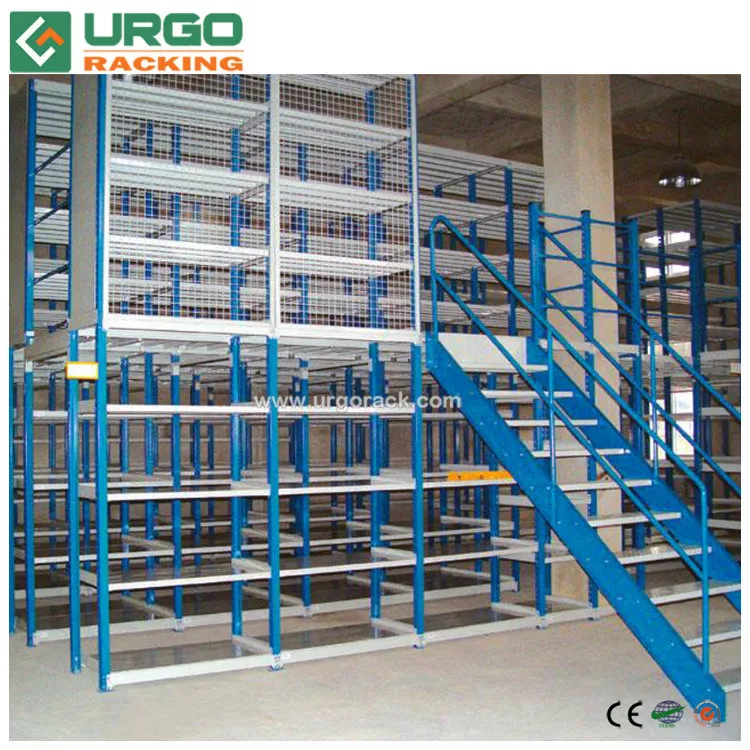

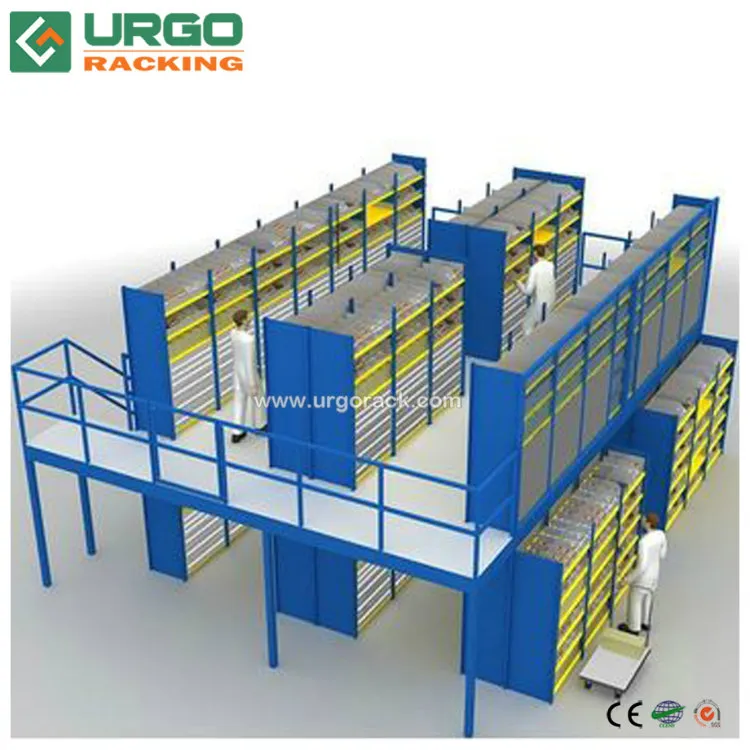

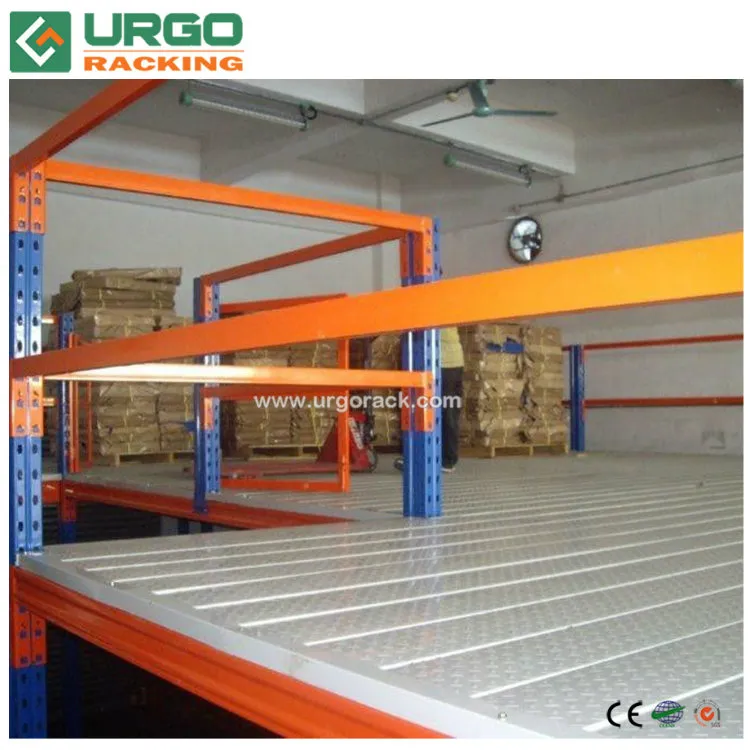

Customized Warehouse Mezzanine Racking
Technical Standards & Pricing:
- MOQ: 10SQM
- Load Capacity: 500kg/SQM
- Total Height: 4500mm

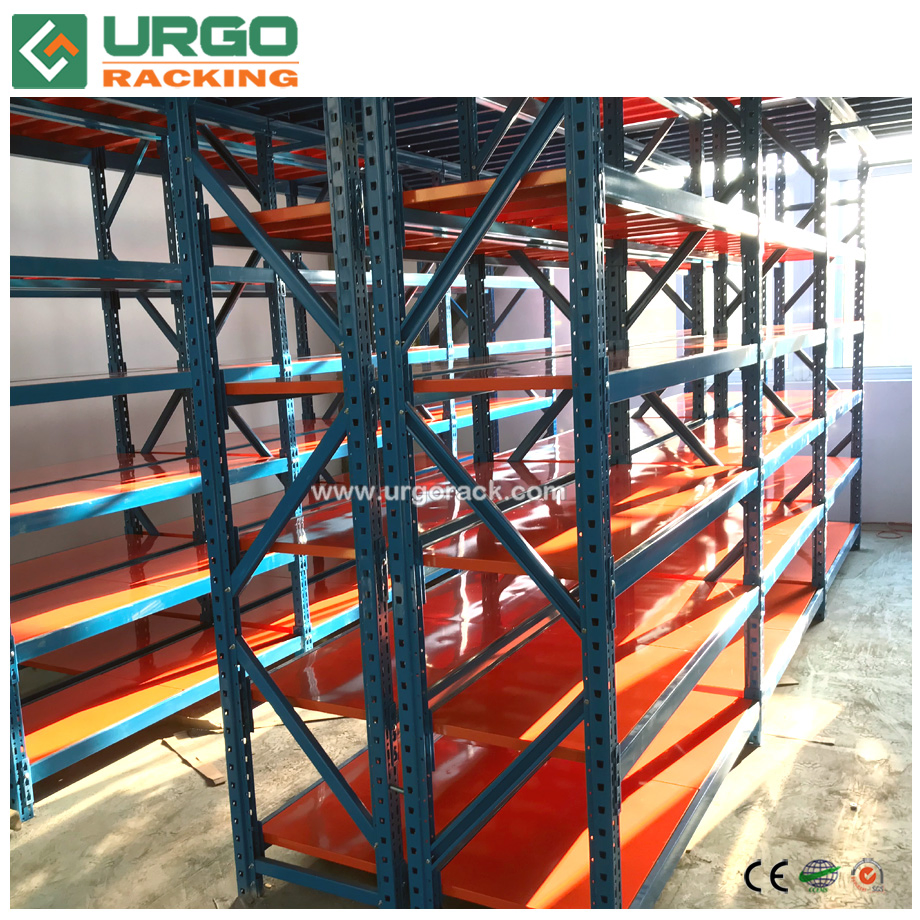

- Standard Shelf Rack: L2000*D400/600*H2000 (4 layers)
- Reference Price: $126USD/SQM
🔹 Technical Data
| Material |
Q235B Steel |
| Loading | Max 1000kg/m2 |

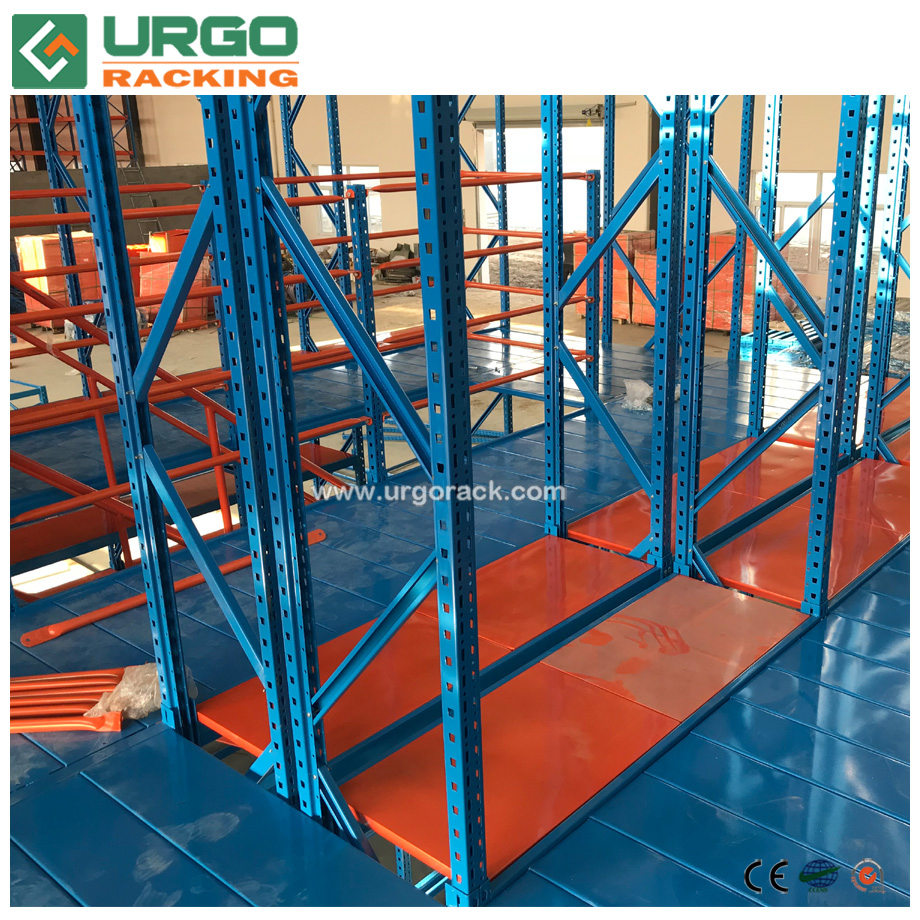

| Decking Type | MDF, Steel Plate (plain, punching hole) |
| Features | Robust, H-Beam supported, Can be Selective/Pallet/Drive-in rack supported, Max Height 8000mm |
| Adjustable | 75mm/50mm per pitch |

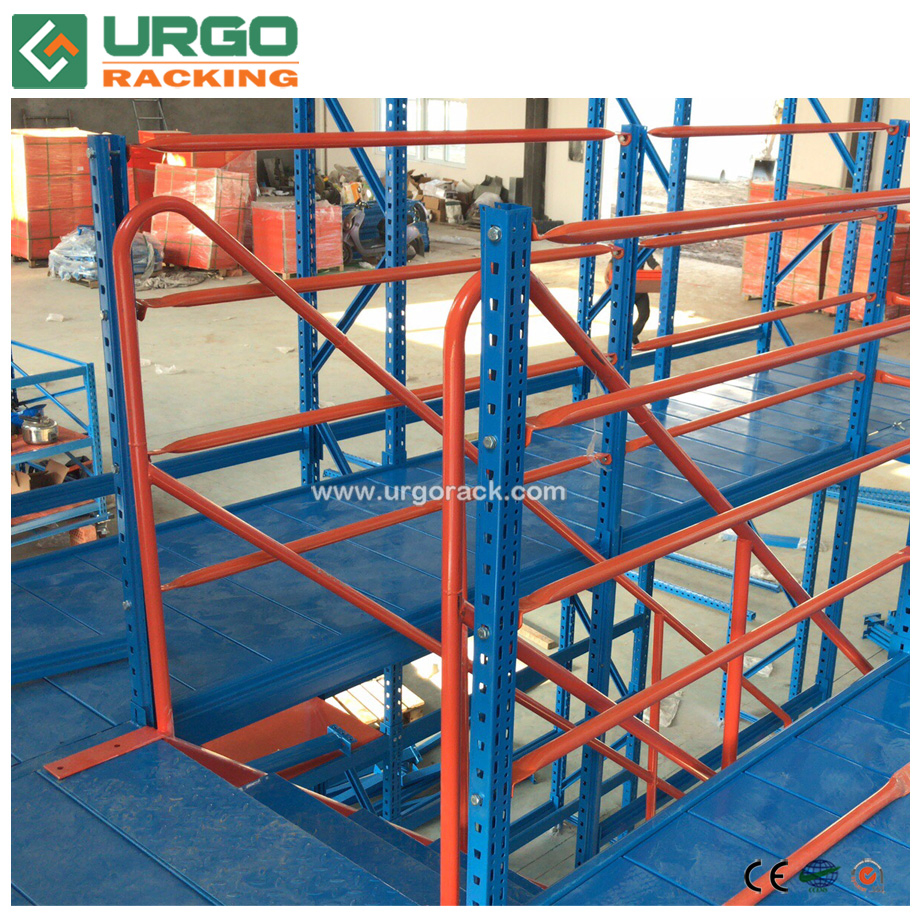

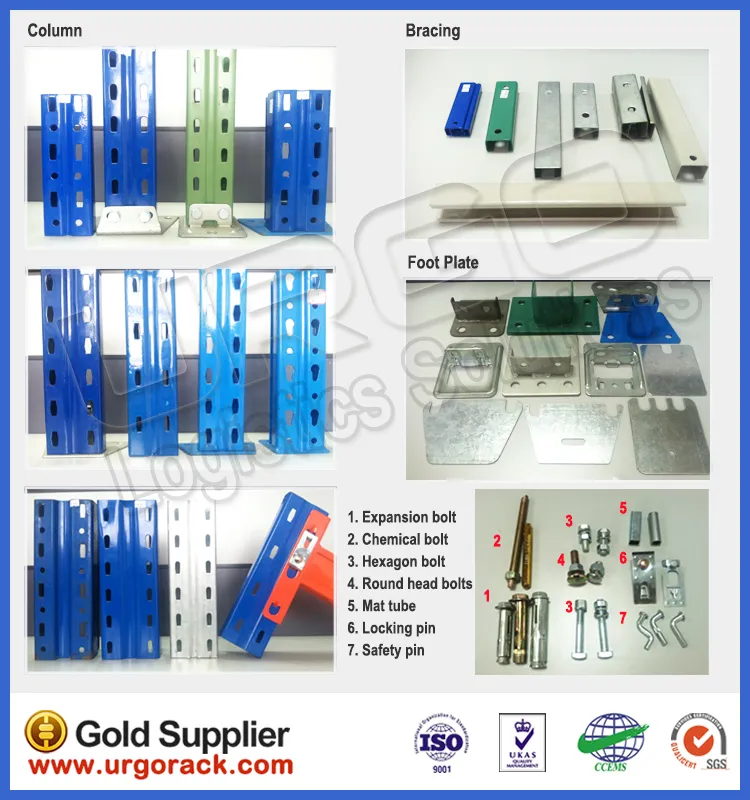

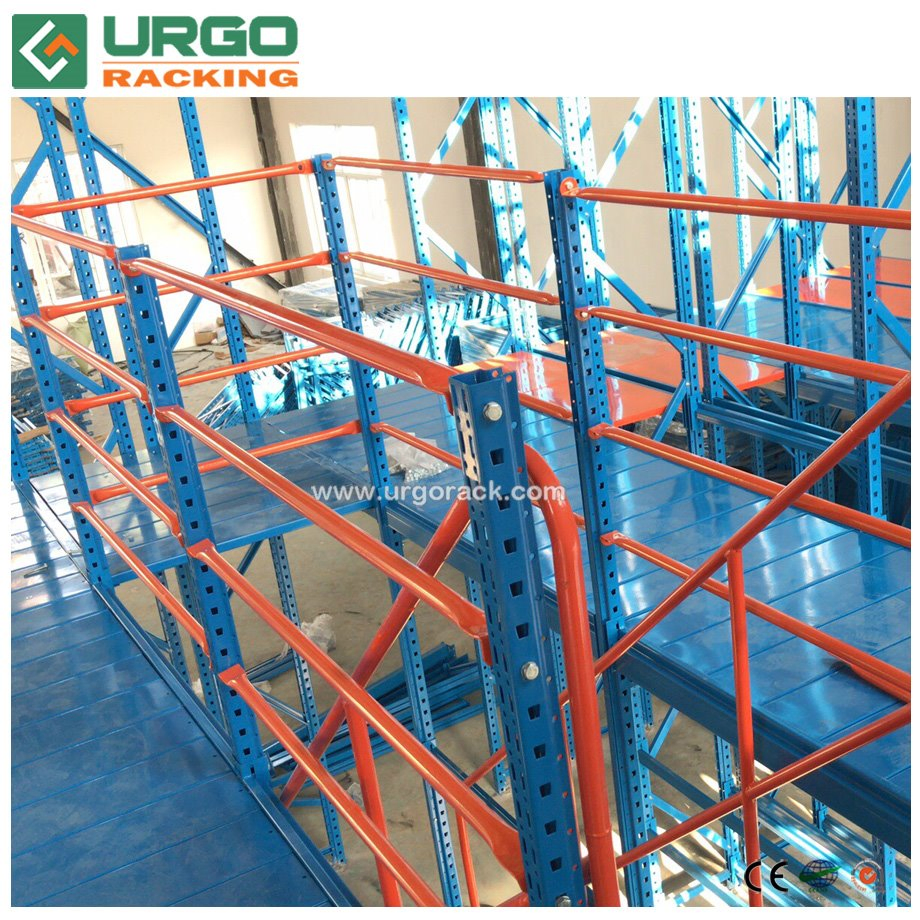

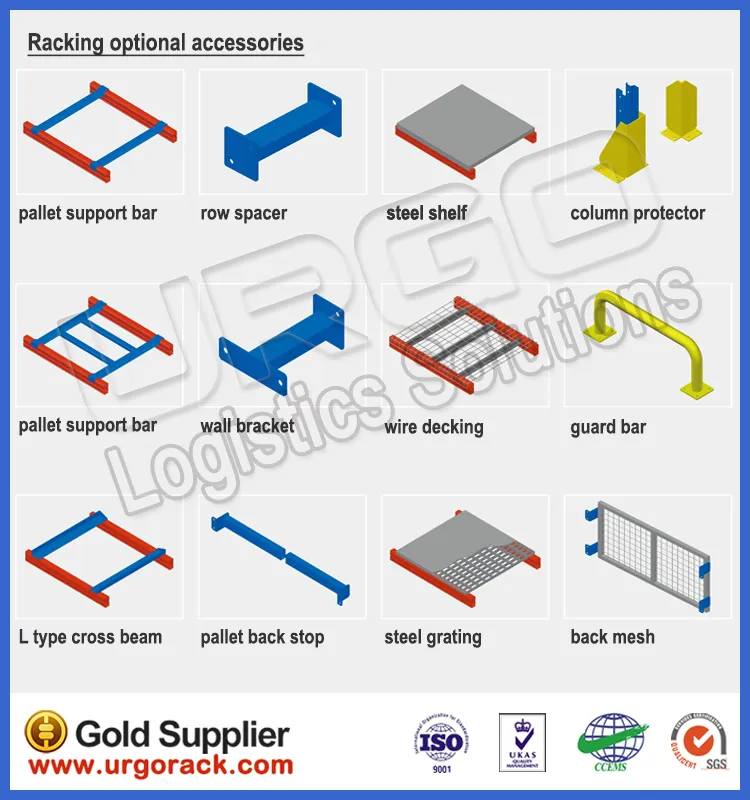

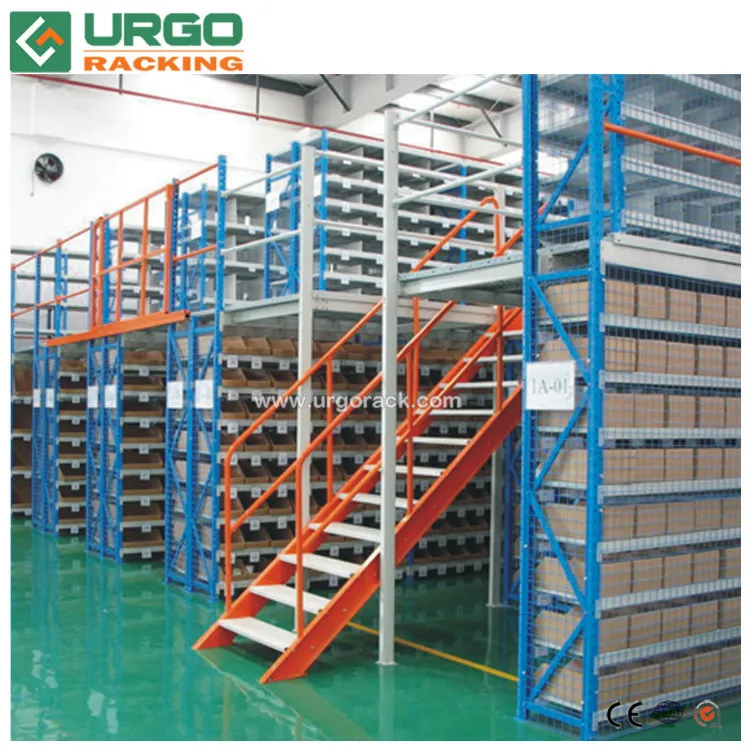

| Parts & Accessories | Upright stand column, Main/Vice/Side Beams, Floor decking, Handrails, Staircase, Bolts, Discharge gate |
🔹 Why Choose Us
- Quick Delivery: Shipping can be done within 10 days.
- Expertise: 10 years of experience in manufacturing and exporting steel racks.
- Professional Design: CAD/PDF layout and manufacturing drawings provided.
- Quality Control: Quality is the core life of our group.
- Certifications: SGS/ISO approval for trouble-free import.
🔹 Upright Specifications
High load capacity up to 21000kg. Frames include all elements: bracing, feet, and nuts & bolts. Blue epoxy coated (RAL 5012/5015/5017). Adjusted by 50/75mm pitch.
| Column Specification (mm) |
Thickness (mm) |
Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
🔹 Beam Profiles & Loading
| Box Beam Specification (mm) |
1500mm |
2000mm |
2500mm |
3000mm |
3900mm |
| 80 x 50 x 1.5 | 3000 | 1740 | 1160 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 1930 | 1380 | - |
| 120 x 50 x 1.5 | - | - | 2730 | 1930 | - |
| 160 x 50 x 2.0 | - | - | - | 4130 | 2840 |
🔹 FAQ
1. What is the maximum load capacity for this mezzanine system?
The standard loading capacity is 500kg per square meter, but it can be engineered to support up to 1000kg/m² based on technical requirements.
2. What materials are used in the construction?
We use high-quality Q235B grade steel for all structural components, including columns and beams, to ensure long-term durability and safety.
3. Is the racking system height adjustable?
Yes, the system is designed with a pitch of 50mm or 75mm, allowing for easy adjustment of beam levels to accommodate different cargo sizes.
4. What are the options for floor decking?

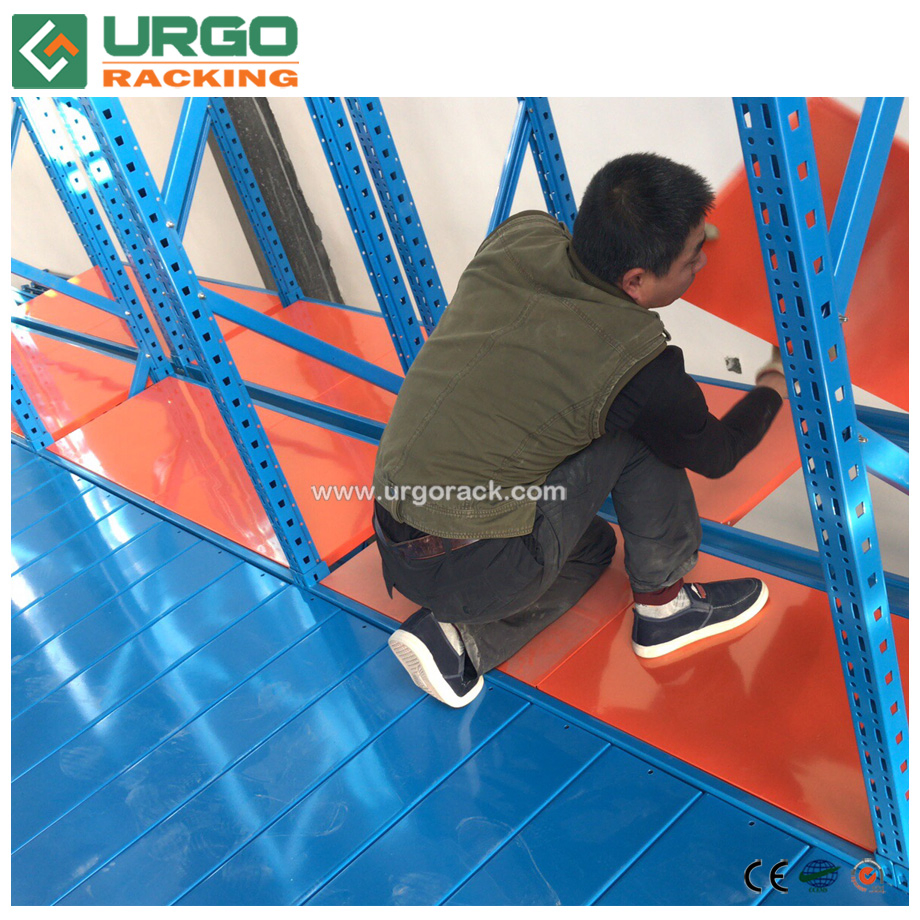

Customers can choose from MDF boards or steel plates. Steel plates are available in both plain and punching hole (perforated) designs.
5. How long does shipping and delivery take?
We offer quick turnaround times, with standard shipping typically completed within 10 days after design confirmation.
6. Do you provide design assistance?
Yes, we provide professional CAD and PDF layout designs based on your warehouse dimensions to ensure optimal space utilization.
