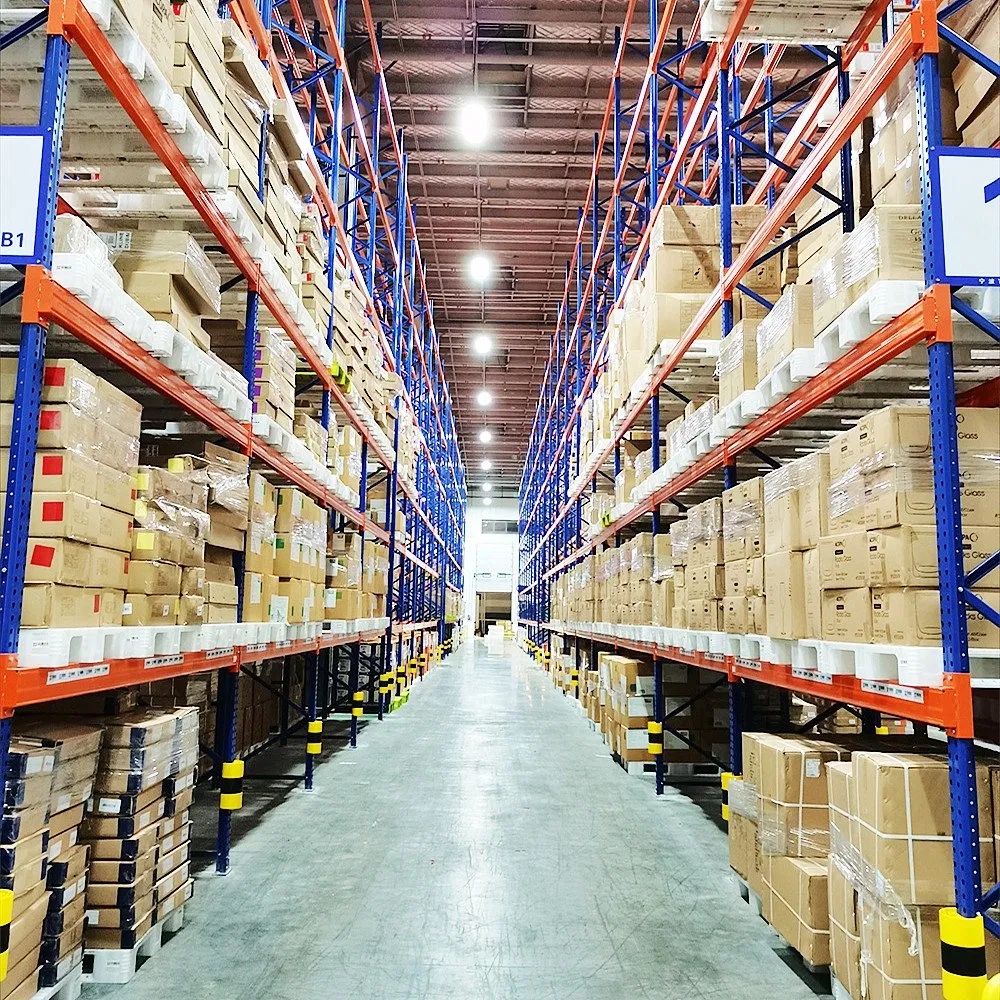

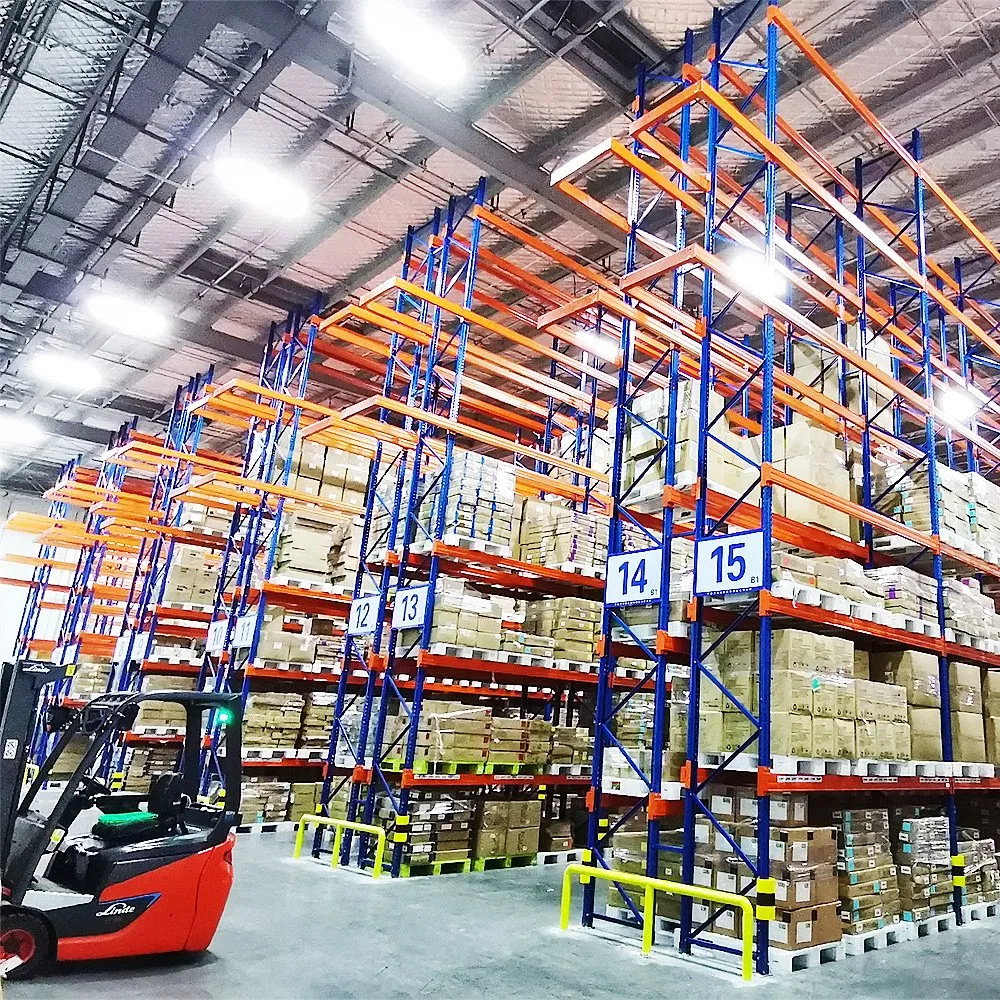

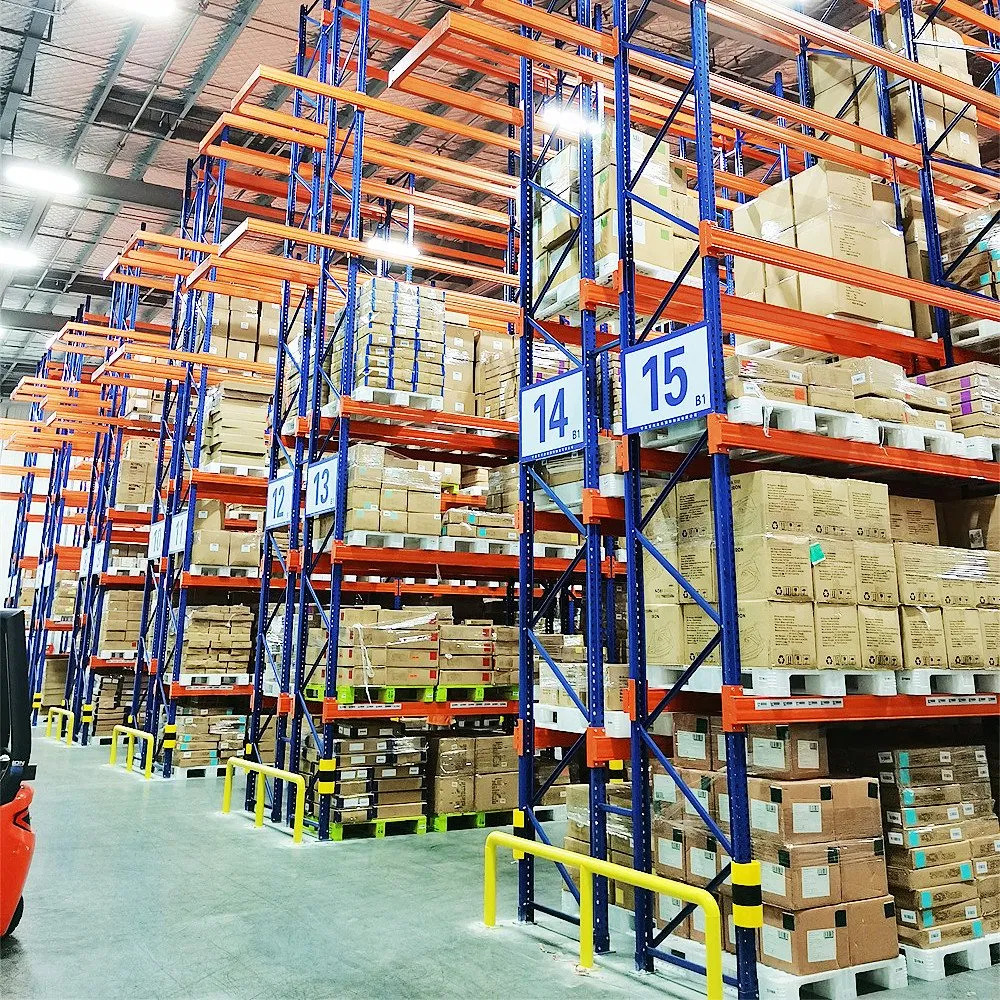

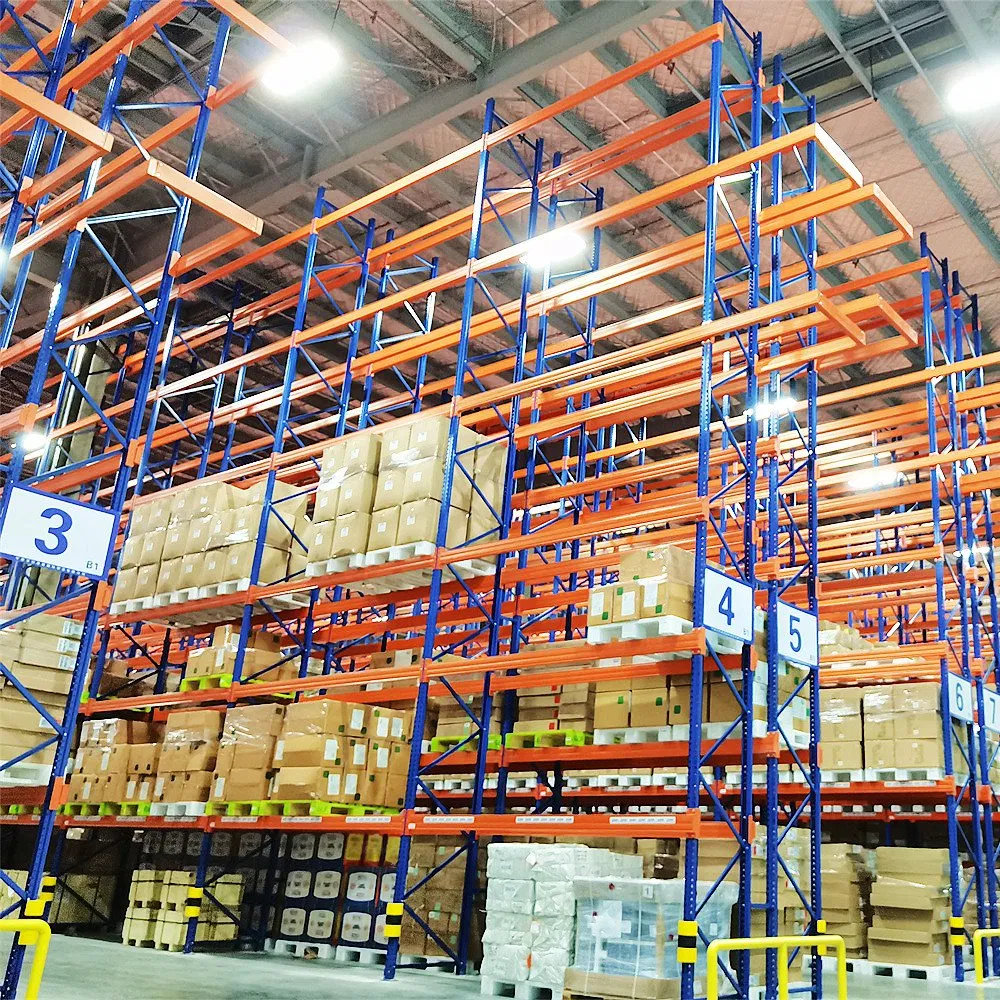

Customized Heavy Duty Steel Pallet Racking for Warehouse Storage

Basic Info.

Model NO.

PR90

Usage

Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Selective Pallet Racking

Mobility

Adjustable

Height

5-15m

Weight

1000kg-3000kg

Norm

Fem 10.02

Tensile Strength

>400MPa

Frame Load

up to 30 Tons

Surface Finish

Epoxy Powder Coating

Certificate

CE, ISO9001, ISO14001

HS Code

73089000

Product Description

Customized Heavy Duty Warehouse Rack | Galvanized Steel Industrial Storage Shelving with Long Span

Dual Storage Compatibility

Suitable for heavy-duty pallets (2-4t/pallet) & hand-picking cartons; 4t UDL per beam level

Premium Durable Material

High-tensile carbon steel (Q235B/Q355B) & hot-dip galvanized steel; epoxy-powder coating (>60μm)

Quality Compliance

Complies with FEM, SEMA & National Standards; passed mechanical tests for safe load-bearing

Customizable Design

Tailored to 15m max warehouse height, pallet sizes & loads; compatible with common warehouse trucks

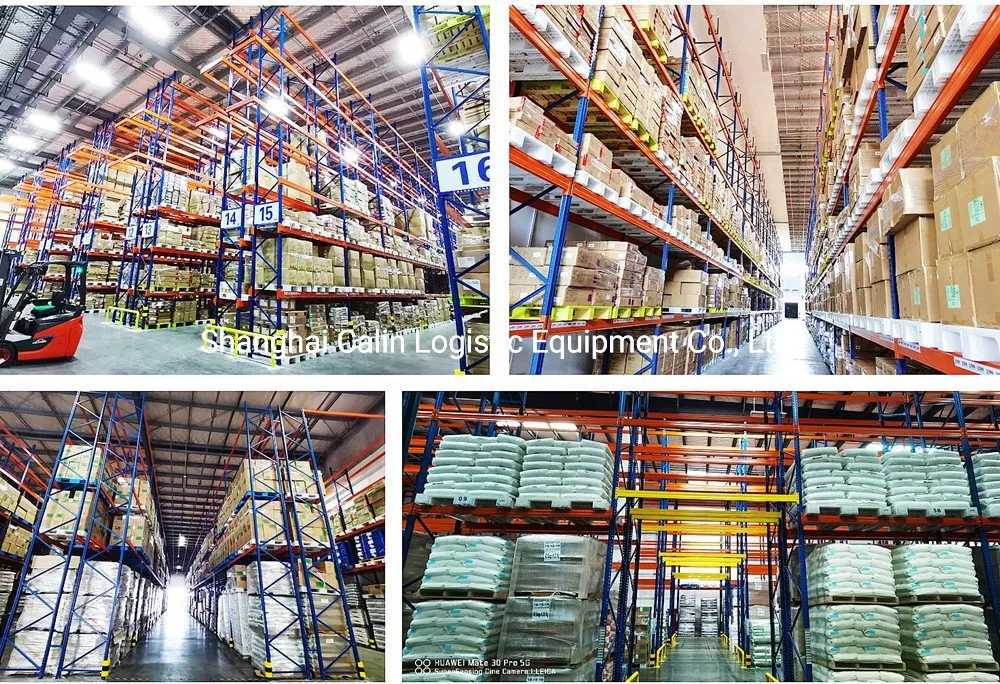

Customized industrial warehouse pallet rack storage system is a popular choice for storing heavy-duty pallets and hand-picking cartons. It effectively improves operational efficiency, safety, and space utilization, widely used in distribution centers and manufacturing facilities.

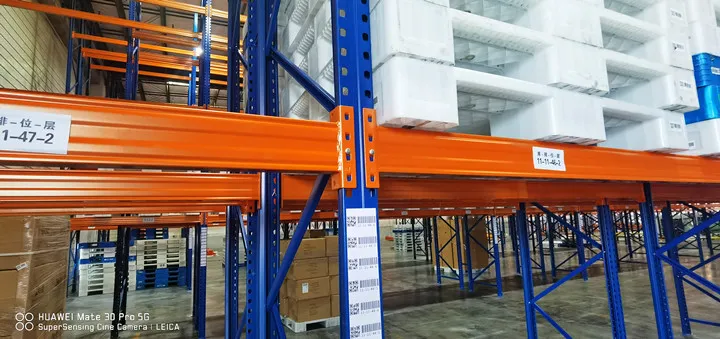

Specifications & Parameters

Frame Components

Composition: 2 cold-formed uprights + multiple diagonals for structural stability.
Connection: Bolted assembly with lock-nuts for easy maintenance.
Performance: Max height up to 15m; max bay load up to 30 tons.
Thickness: 1.8mm - 3.0mm based on loading requirements.

Beam Components

Composition: Two cold-formed C-profiles offering excellent torsion resistance.
Load Capacity: Up to 4 tons UDL per level; deflection < 1/200.
Thickness: 1.5mm - 2.0mm customized based on span and load.

Parameter	Specification
Raw Material	High Tensile Carbon Steel (Q235B & Q355B)
Product Type	Selective Pallet Racking
Finish	Epoxy-Powder Coating (> 60μm)
Loading Capacity	Frame: 30t; Beam: 4t UDL
Design Standard	FEM Standard, SEMA Standard
Standard Colors	Frames: RAL 5010; Beams: RAL 2004

Complete Accessories

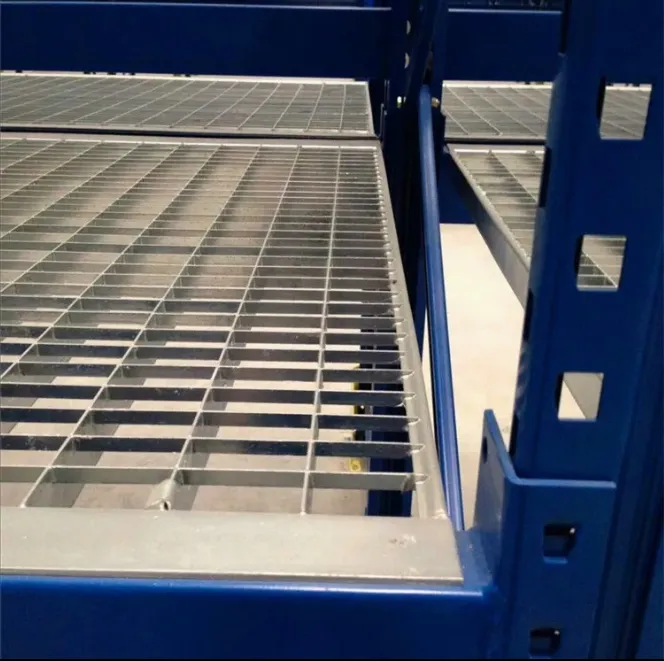

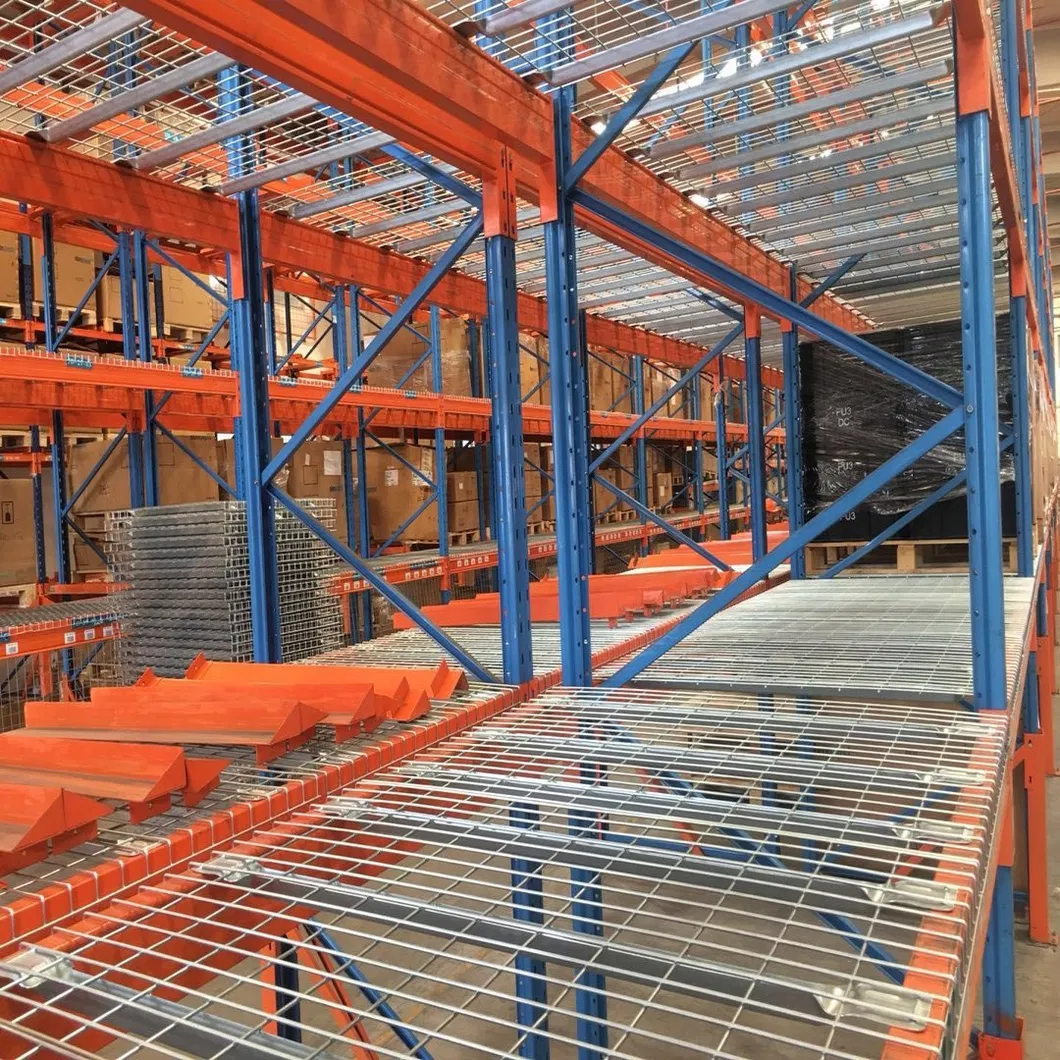

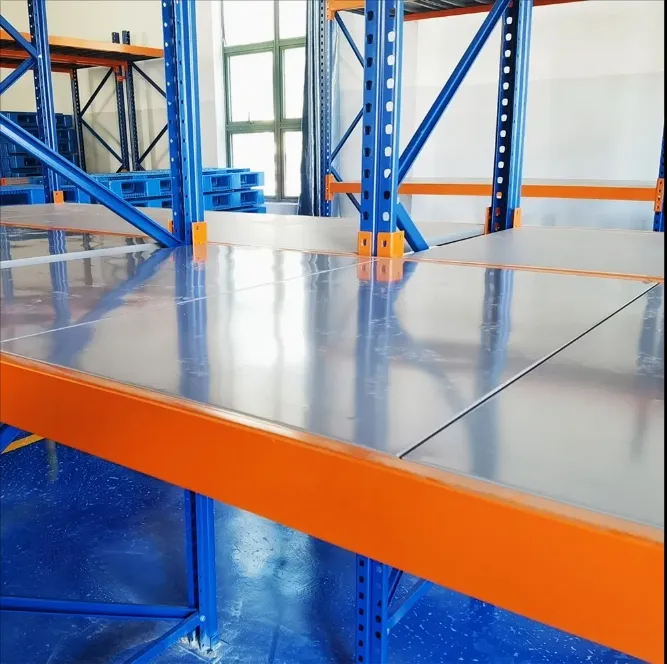

Wire mesh decking | Steel Shelves | Grating Panel

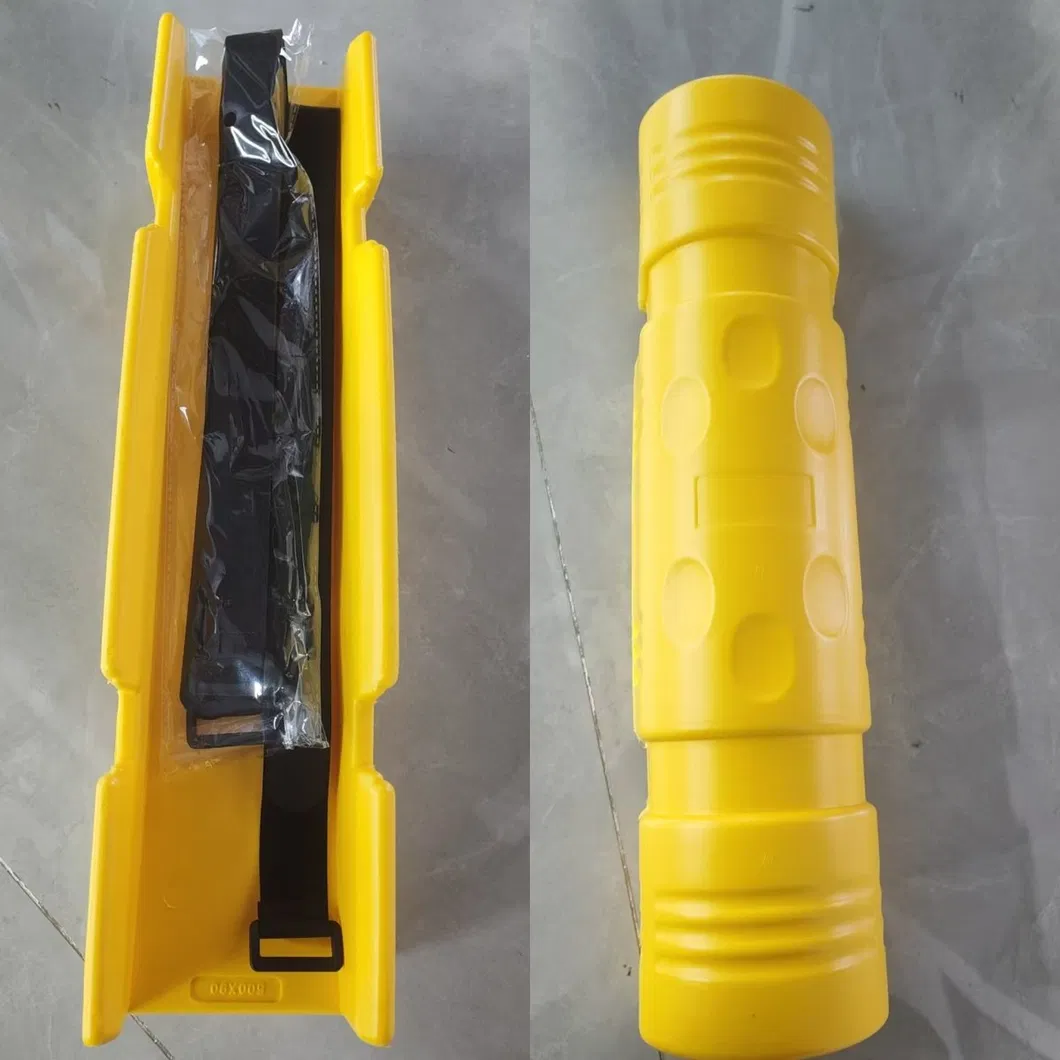

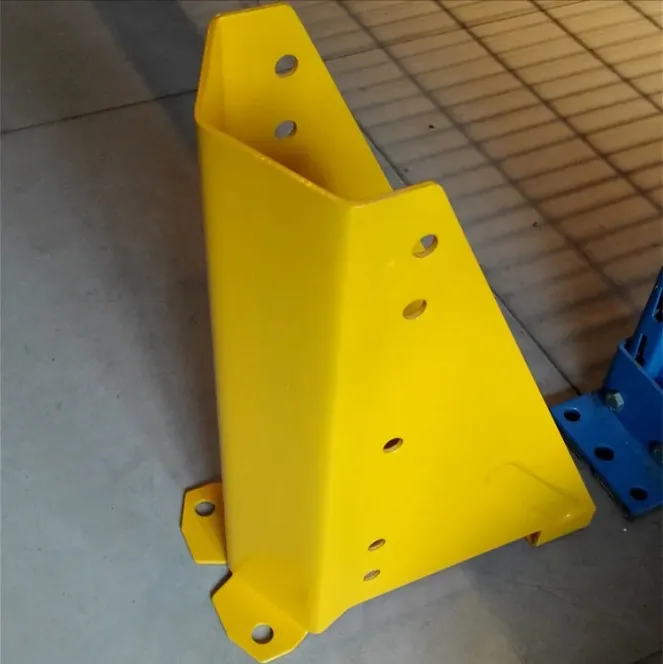

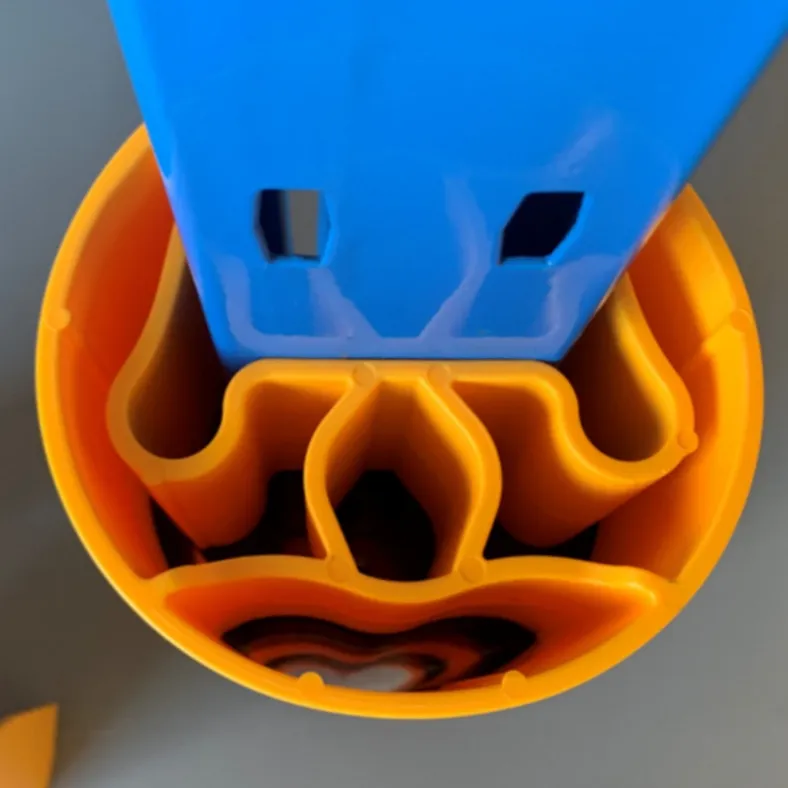

Upright Protectors & Safety Guards

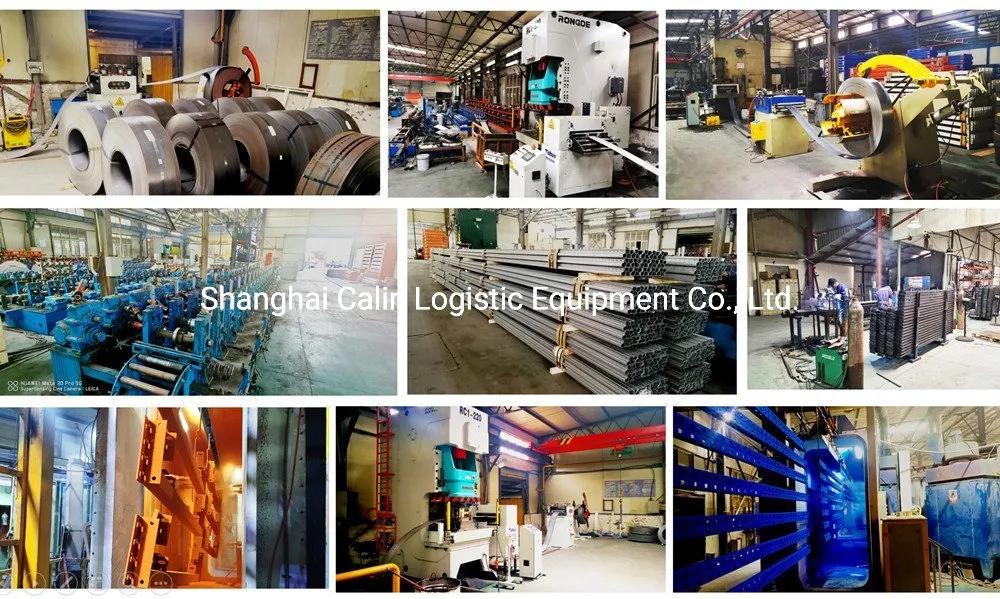

Factory Strength & Capabilities

Scale: 18,000m² workshop area; over 80 professional employees.
Core Equipment: High-precision roll-forming lines, automated welding, laser cutting, and 2 fully automatic electrostatic powder coating lines.
Design: 20+ years of industry experience using AutoCAD for 3D layout and static calculations.
Quality Control: Strict IQC→IPQC→FQC system to ensure component precision.

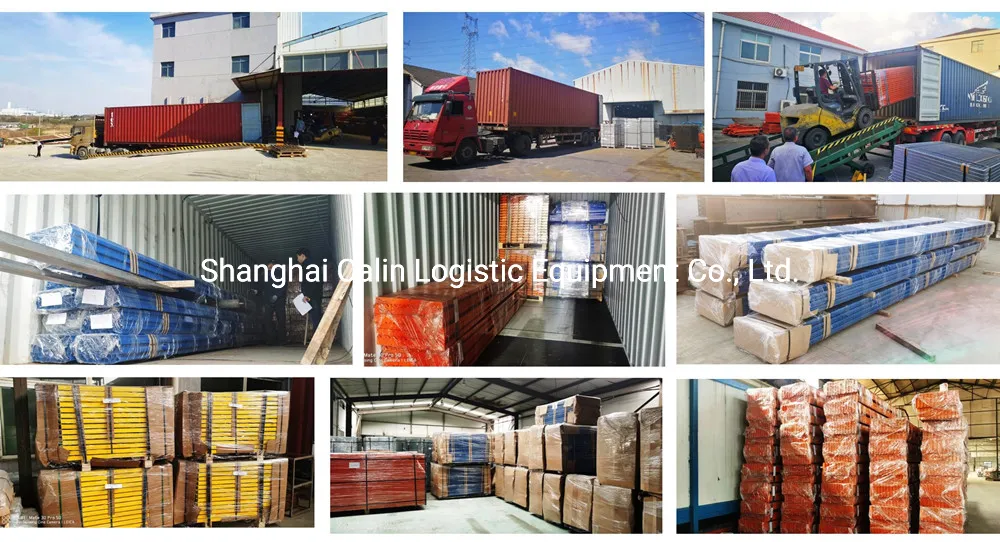

Packing and Delivery

Standard Export Package: Long profiles are bundled on plywood/steel pallets, wrapped in durable plastic film with air bags for shock absorption.
Lead Time: Standard products: 3 weeks; Customized products: 4-5 weeks after deposit.
Documentation: Complete commercial invoices, packing lists, and compliance certificates for smooth clearance.

Inquiry Requirements

To provide an accurate quotation, please share:

Pallet dimensions (L*W*H) and overall height of goods.
Loading weight per pallet for structural optimization.
Warehouse layout drawings (CAD preferred).
Forklift model and working aisle width.

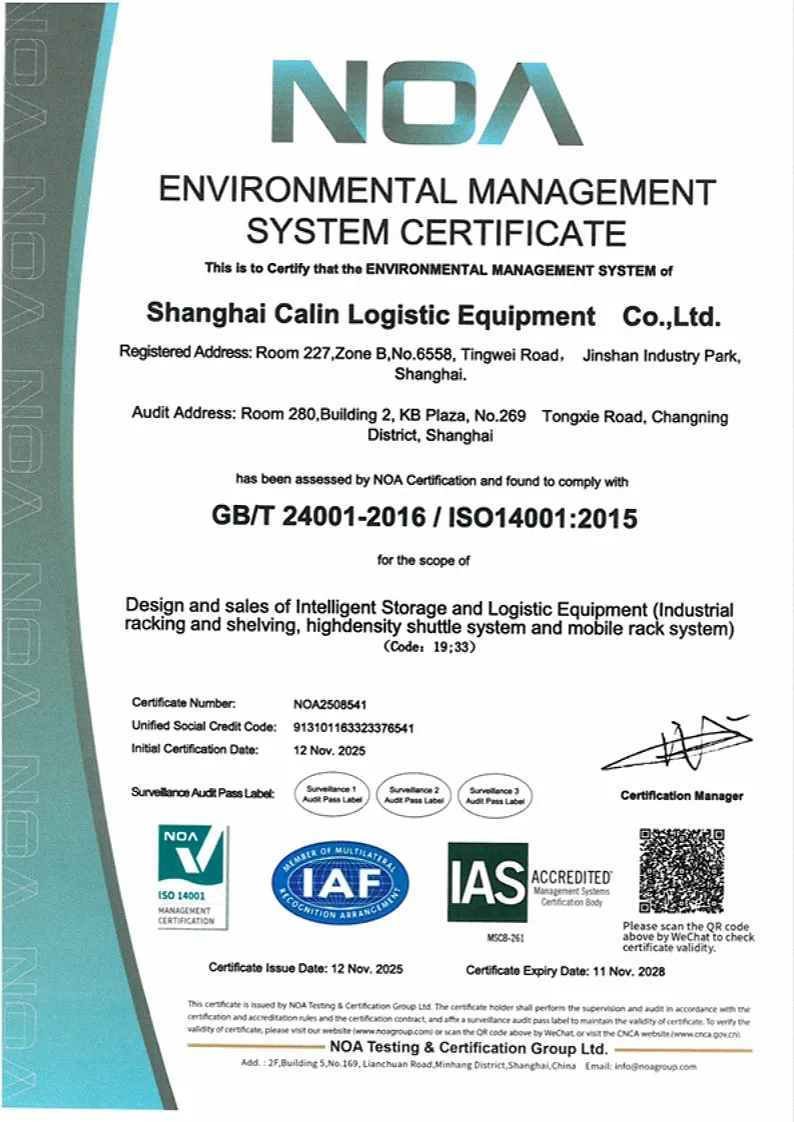

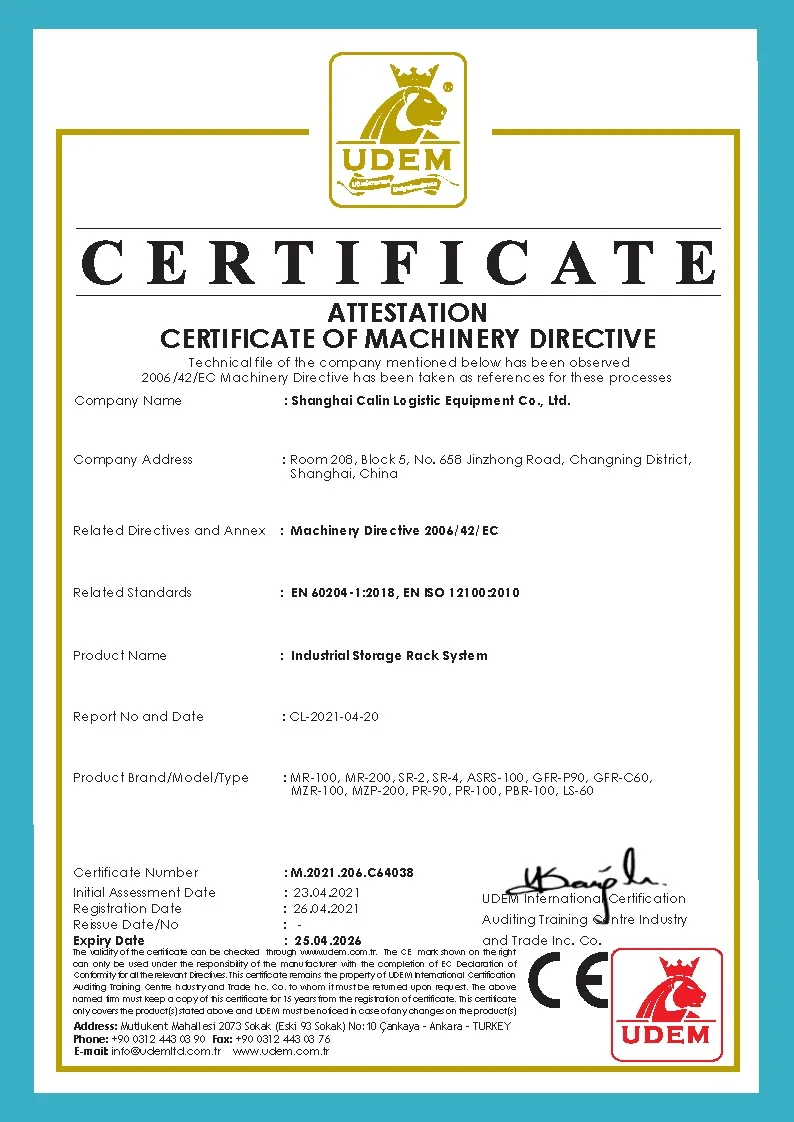

Certificates

Frequently Asked Questions

Q1: What is the Minimum Order Quantity (MOQ)?

For regular products, the MOQ is 50 sets. For customized solutions, the quantity is negotiable, and we support small trial orders for new clients.

Q2: Are samples available for quality checking?

Yes, samples are available. Please note that sample fees and shipping costs apply, but the sample fee will be fully refunded upon confirmation of a bulk order.

Q3: What are your standard payment terms?

Our standard terms are T/T (30% deposit + 70% balance before shipment) or L/C at sight for international transactions.

Q4: What is the warranty period for your racking systems?

We provide a 24-month warranty for structural components. We offer free replacement for any non-human damage occurred during the warranty period.

Q5: Can I customize the color of the racks?

Yes. While our standard colors are RAL 5010 (Blue) and RAL 2004 (Orange), custom colors are available upon request subject to MOQ requirements.

Q6: Do you provide installation support?

We provide detailed English installation manuals, 3D assembly videos, and 7×24h online technical support. On-site guidance can also be arranged at an extra cost.
