Basic Information
Usage
Tool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack
Type

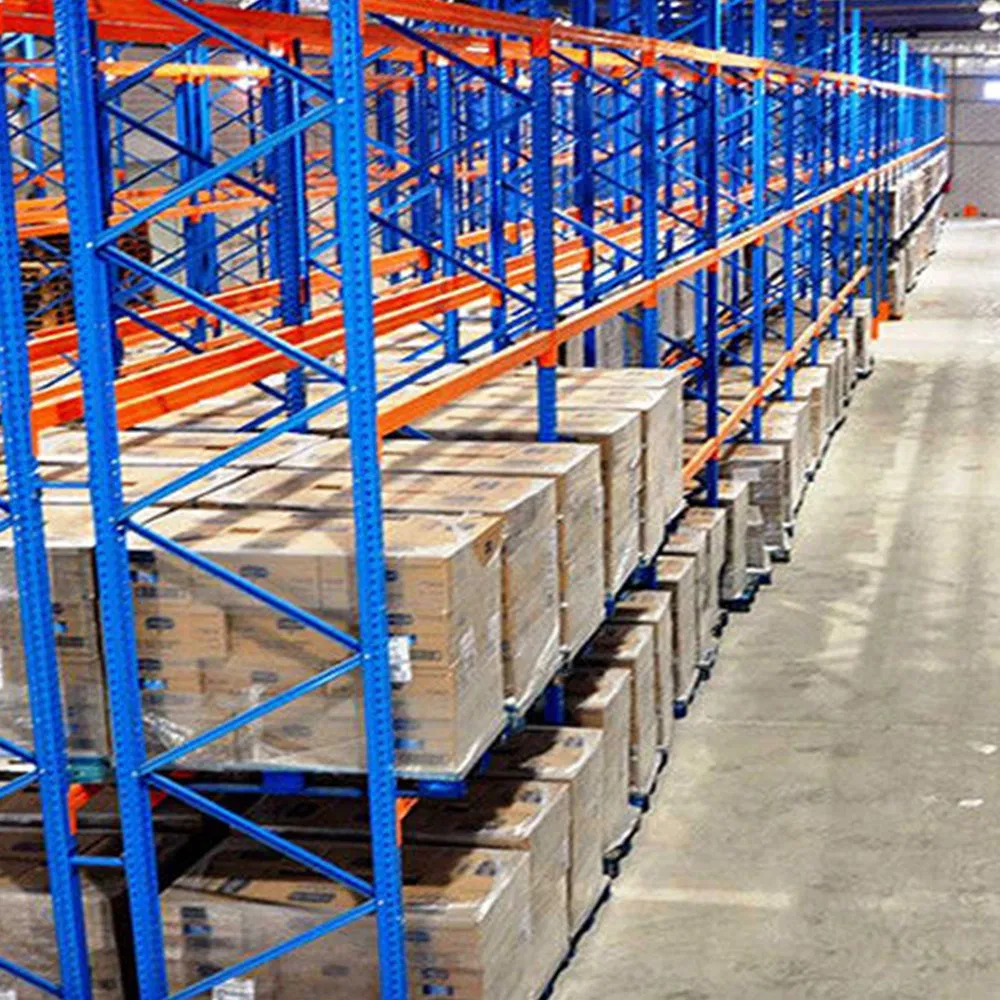

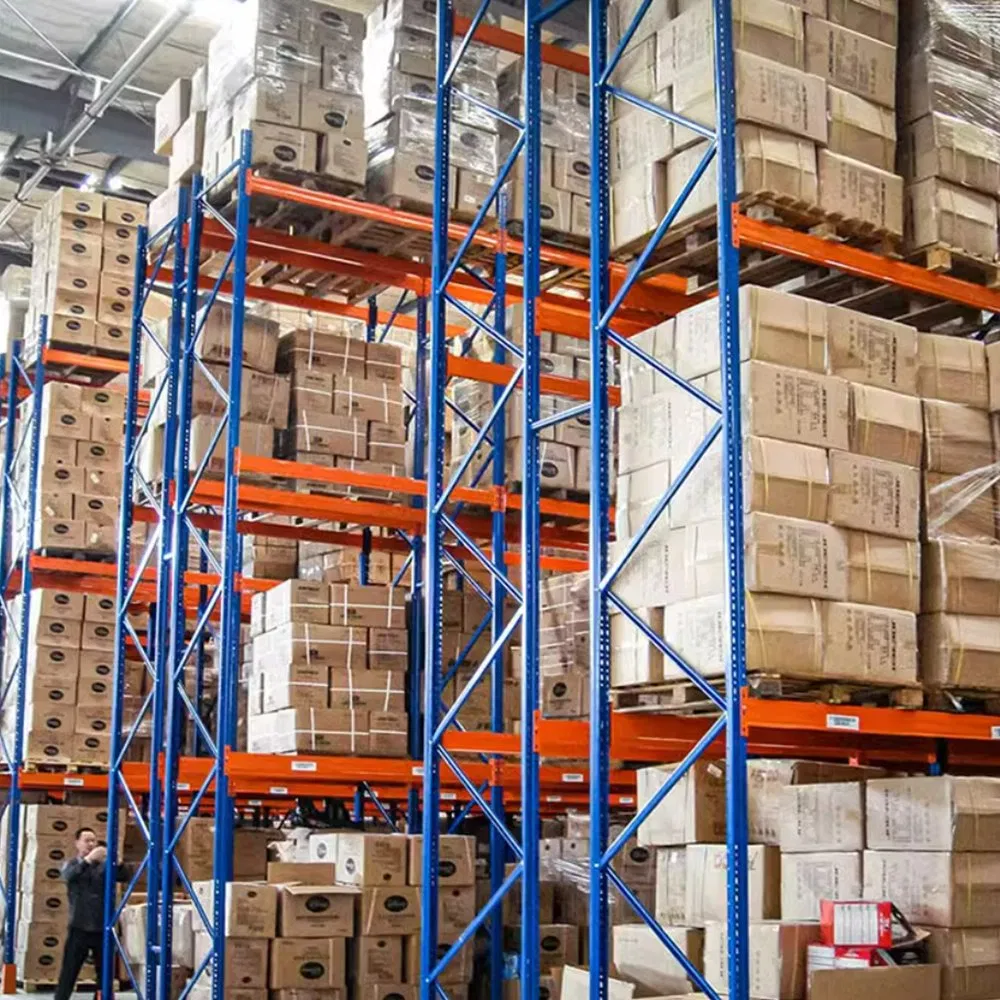

Selective Pallet Racking
Height
Max 12000mm or Customized
Weight Capacity
5000kg (Each Shelf)
Depth
850-1050 mm or Customized
Surface Finish
Powder Coated/ Galvanized
Unit Bay Capacity
500kg-23000kg / Customized
Color
Blue, Orange or Customized
Product Details

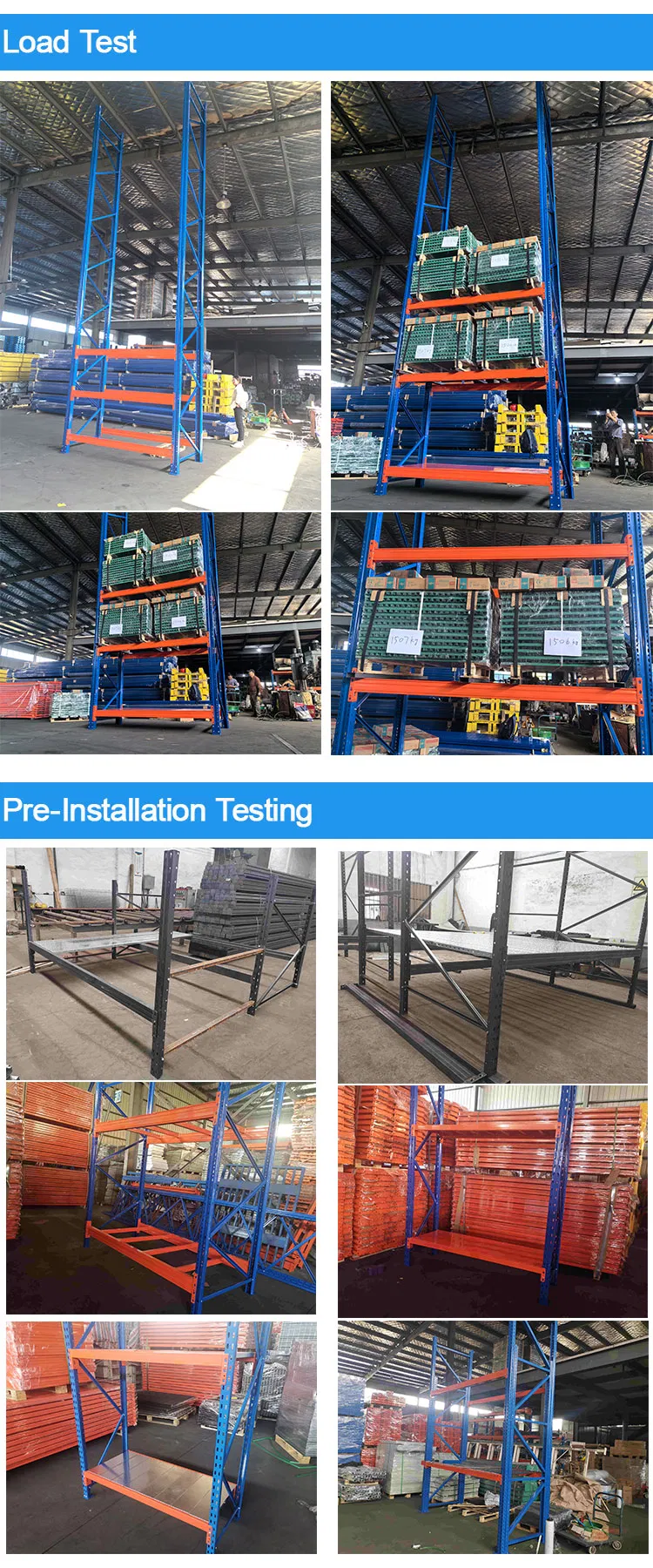

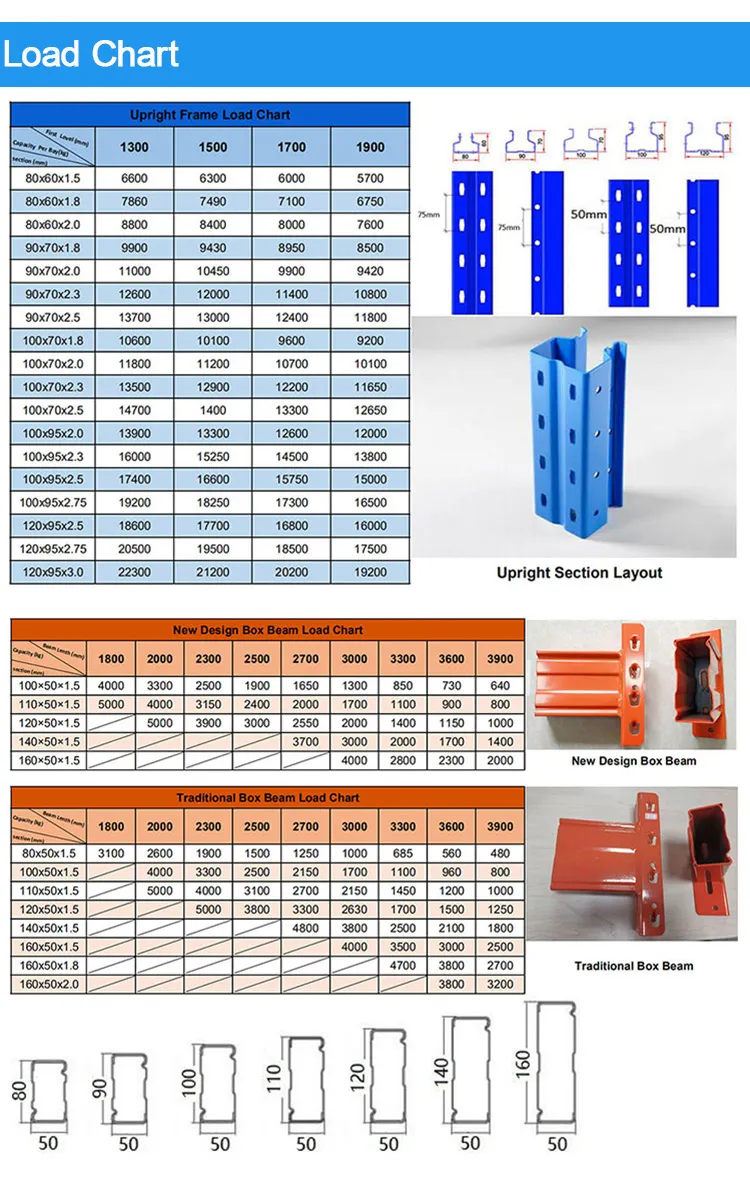

Load Testing & Performance
Our Safety Assurance
The stability of our shelves and the safety of personnel are always our top priorities. High-quality materials and Stringent Inspection Standards form the foundation of our shelf stability.
High-Quality Steel (Q235 cold-rolled steel):
- Yield Strength: Approximately 235 MPa
- Tensile Strength: 370-500 MPa
- Elongation: Approximately 26%
🛡️Footplates: Fixed to the ground using expansion screws for maximum stability.
🛡️Guardrail: Prevent forklifts from knocking down the shelves.
🛡️Safety Bolt: 7-shaped bolts to maintain the stability of the beams.
🛡️Mesh Decking: Eliminates fire hazards and supports various item sizes.
🛡️Pallet Supports: Increase beam support and prevent items from falling.
🛡️Diagonal Braces: Reduce lateral deformation and shaking.
Professional Services & Support
| Free Consultation | Yes, expert advice for your storage needs. |
| Custom Design | Yes, CAD/PDF/3D Drawing provided. |
| 3D Sample | 1:1 3D Sample to save time and trial costs. |
| OEM & ODM | Available. |
| Lead Time | 15-20 Days for regular pallet racking. |
| Installation Service | Installation drawings, videos, or engineer site visits. |

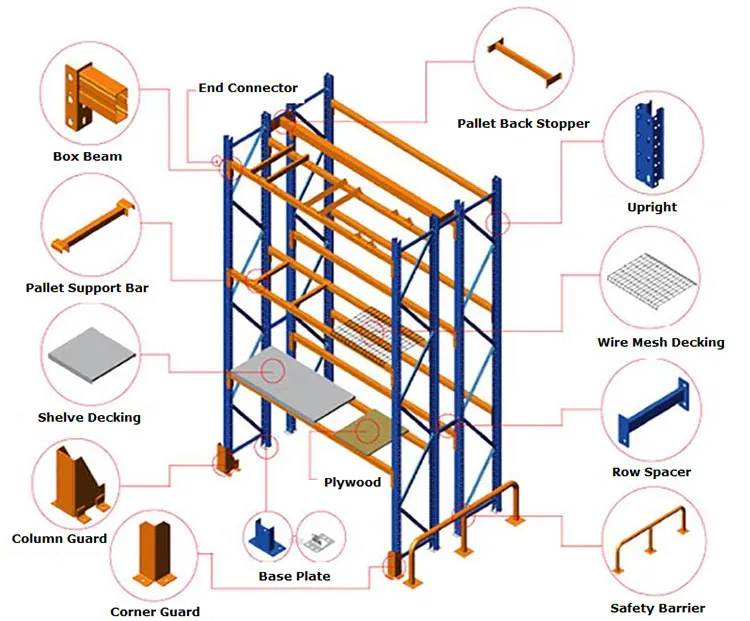

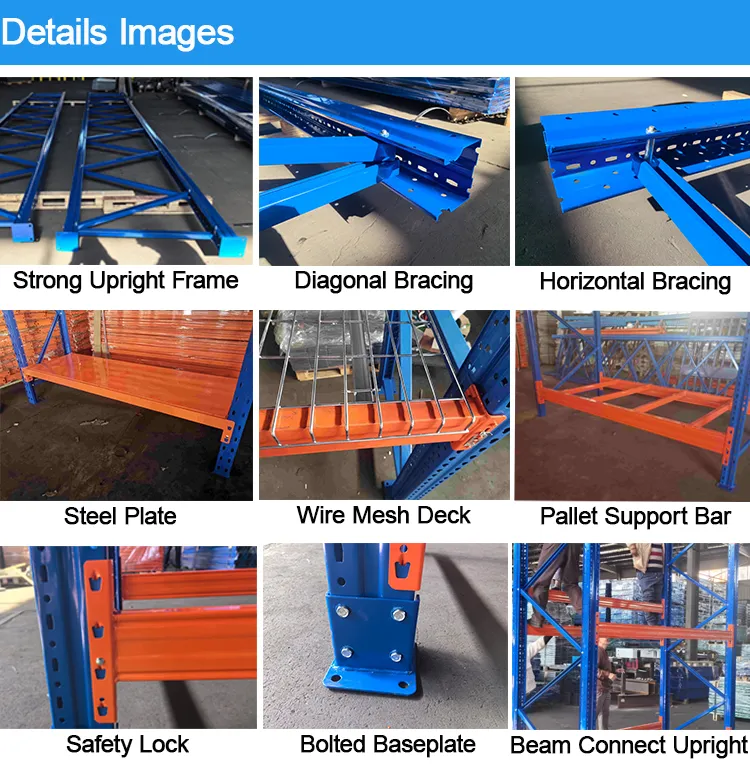

Core Racking Components
Why Choose Our Solutions

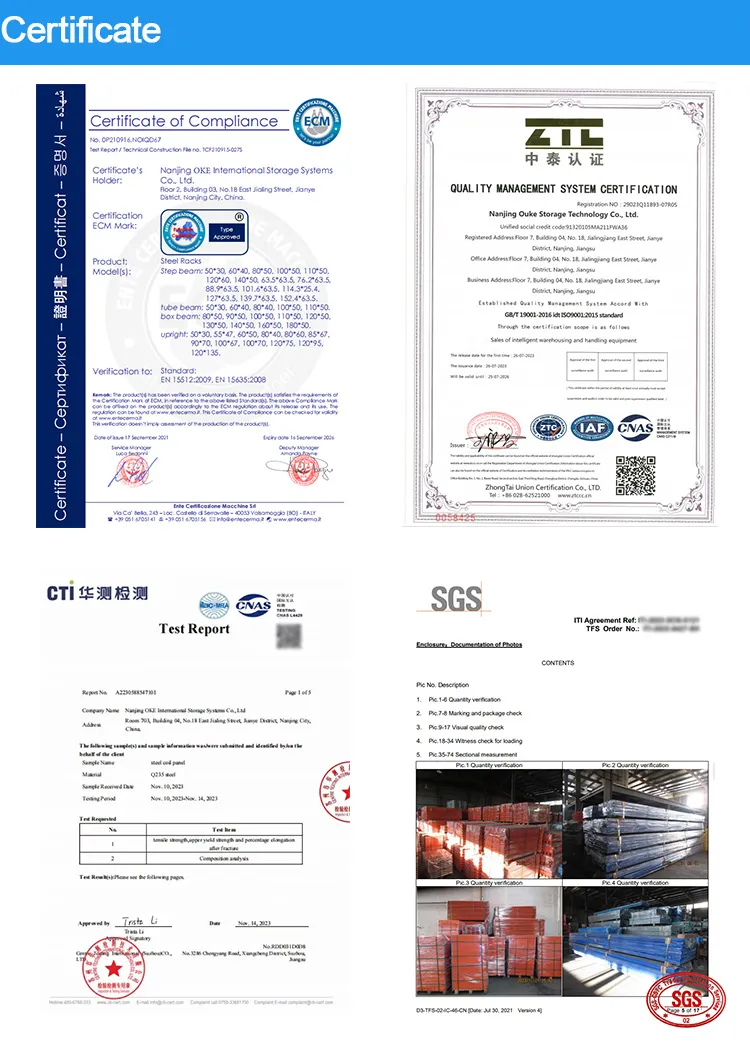

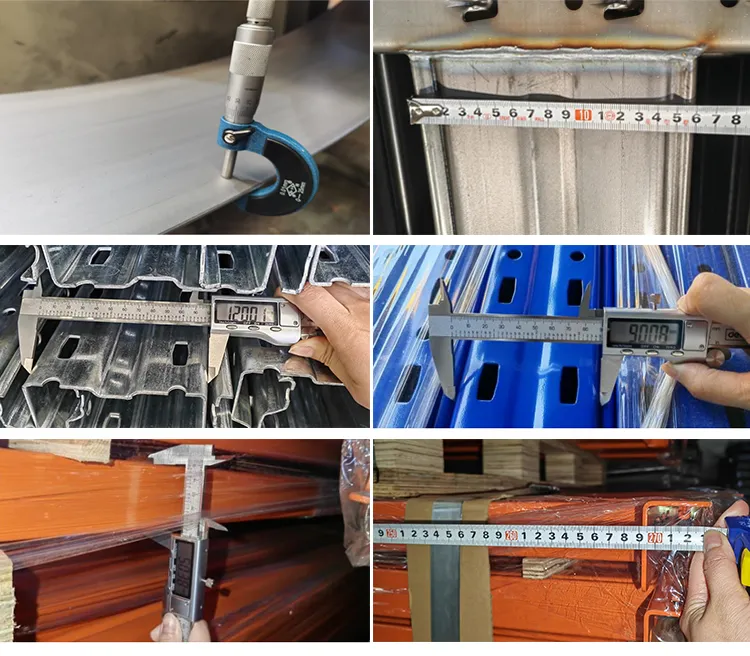

✅Strict Quality Inspection: Professional team checking every production step.

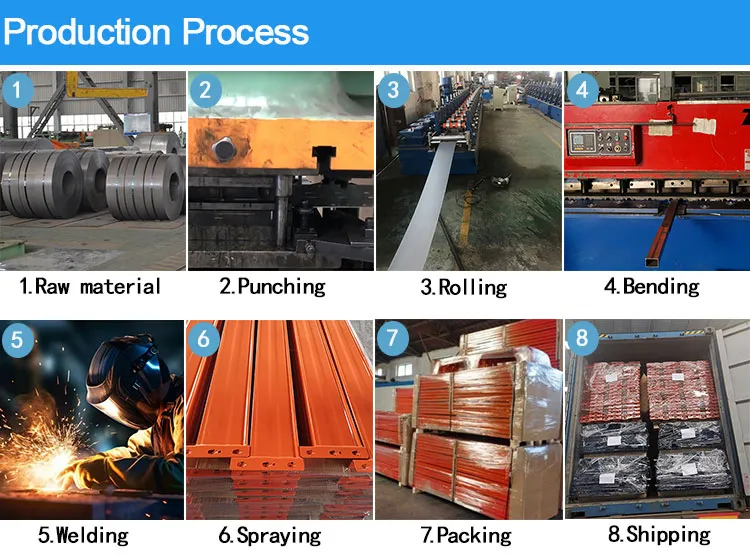

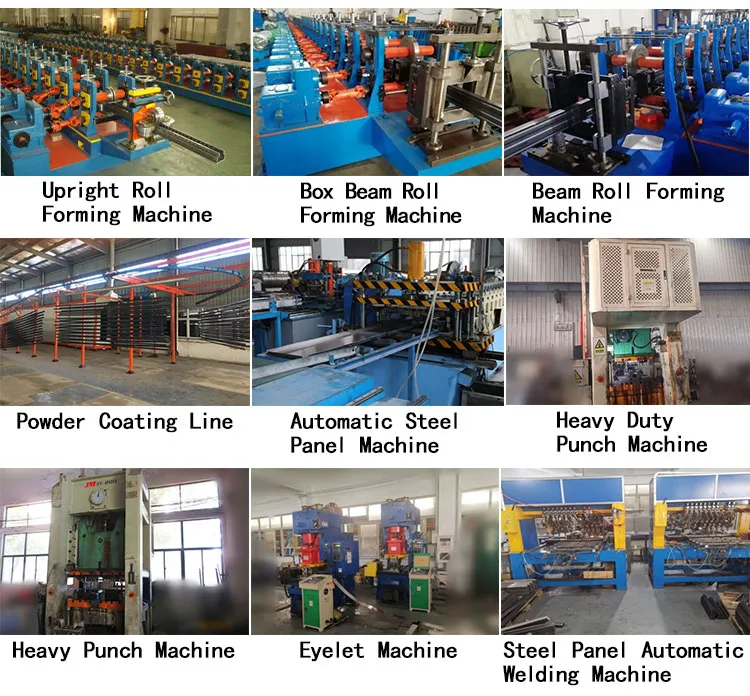

✅Advanced Equipment: Complete production lines to ensure delivery and control.

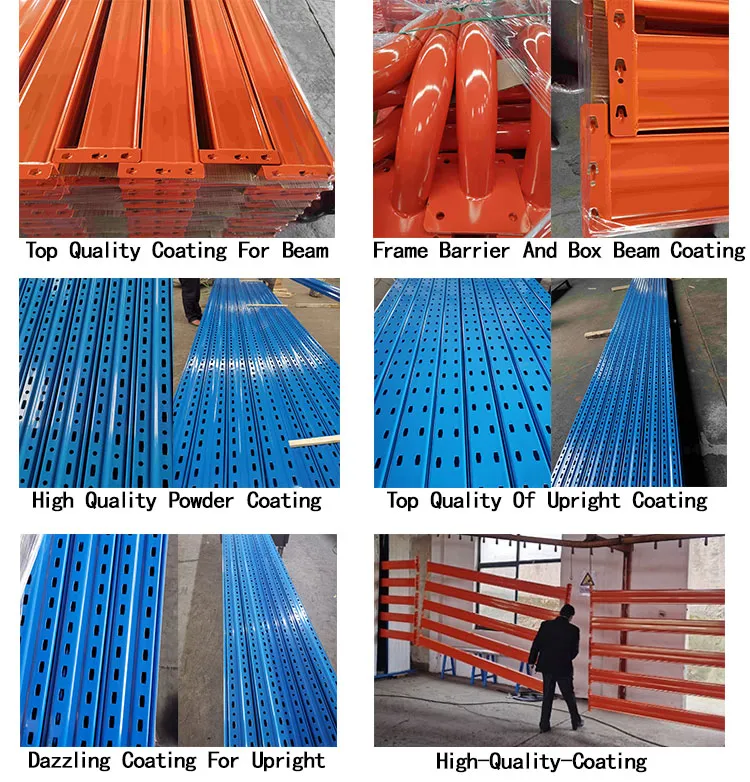

✅Superior Powder Coating: Two-stage pickling technology for better adhesion and rust protection.

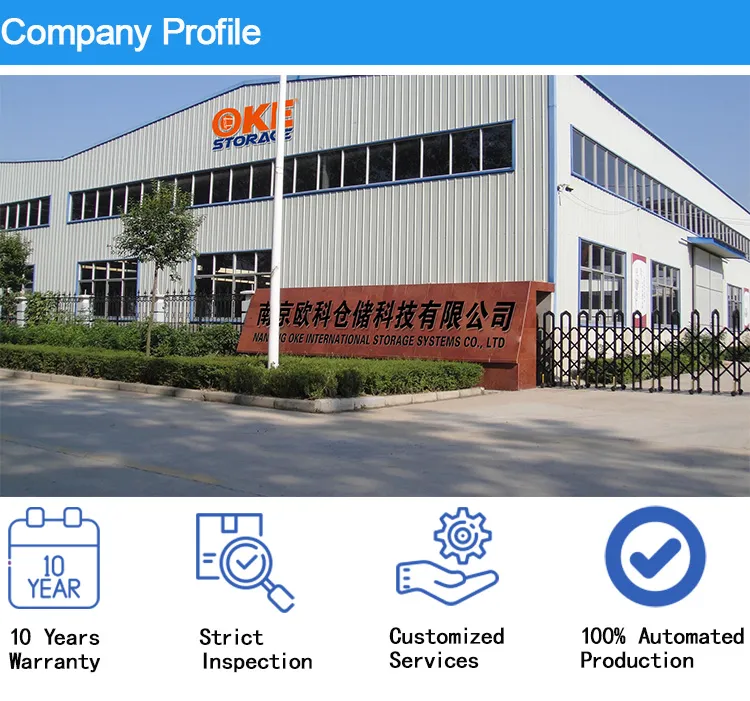

Global Export Experience
We are dedicated to the production of racking storage, providing quality solutions for saving your storage space. With over 23 years of experience exporting to over 85 countries worldwide, our fully automated technology ensures optimum production. We also offer a 10-year warranty to cover future needs.
Frequently Asked Questions
Is Selective Pallet Racking the same as Teardrop Pallet Racks?
Selective racking is the standard version. Teardrop racks are just one specific type of selective rack design.
Can the racking be easily adjusted or expanded in the future?
Yes. The beams are inserted into the uprights with hole spacing of 50mm/75mm, making disassembly and height adjustment very convenient. You can extend the depth by adding additional frames indefinitely in theory.
What safety accessories are included?
The system includes foot guards, guardrails, rear load beams, safety bolts, back mesh, pallet stops, cargo dividers, mesh panels, pallet supports, and signage/warning labels.
How do you ensure proper load distribution and stability?
Our design team calculates the rigidity, strength, and torque of the steel, considering permanent and accidental loads. The design of beams and braces helps distribute loads evenly and provides structural rigidity.
What products are suitable for selective pallet racking?
It is ideal for large quantities of various items, including food, clothing, pharmaceuticals, parcels, packaging materials, and automotive parts.
What is the typical layout of selective pallet racking?
The layout is typically one pallet deep. This allows for placing two racks back-to-back, providing direct access to every pallet.

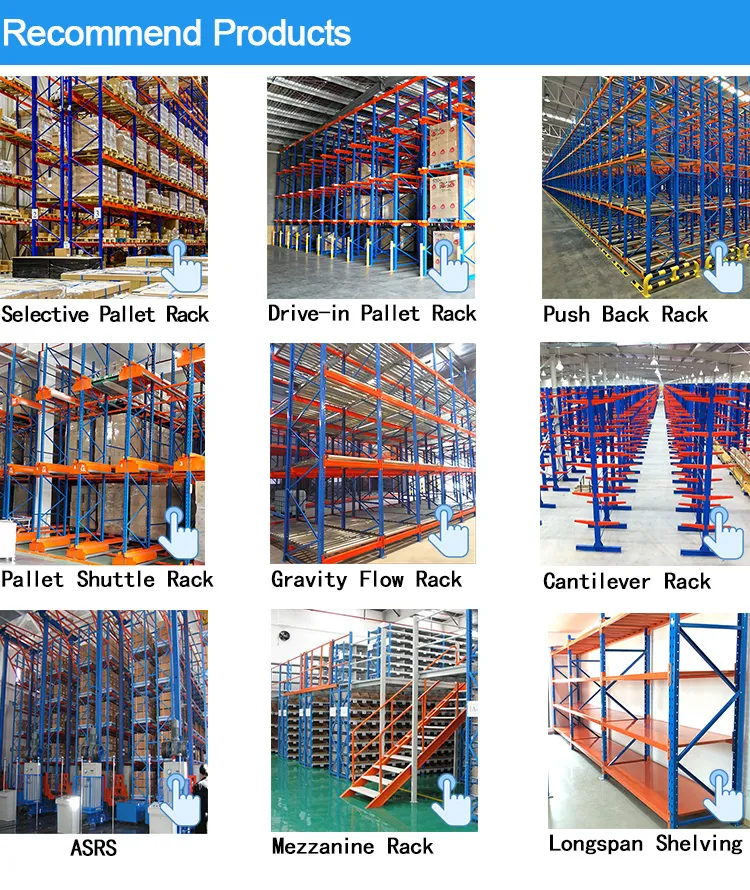

Recommended Solutions
