Global Push Back Pallet Racking System for Warehouse

📋

Technical Specifications

Model NO.

HBE-SR-12

Structure

Rack

Type

Drive-In Pallet Racking

Mobility

Adjustable

Height

>15m

Weight Capacity

500kg - 5000kg

Surface Treatment

Powder Coating

Material

Cold-rolled Steel

Design Style

Push Back Pallet Rack

HS Code

73269090

Certification

CE, ROHS, TUV

Production Cap.

5000 PCS/ Week

📦

Product Overview

Global Push Back Pallet Racking System for Warehouse

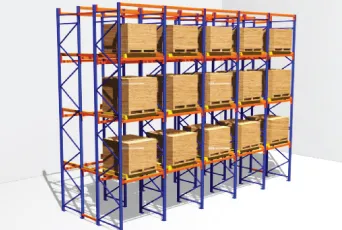

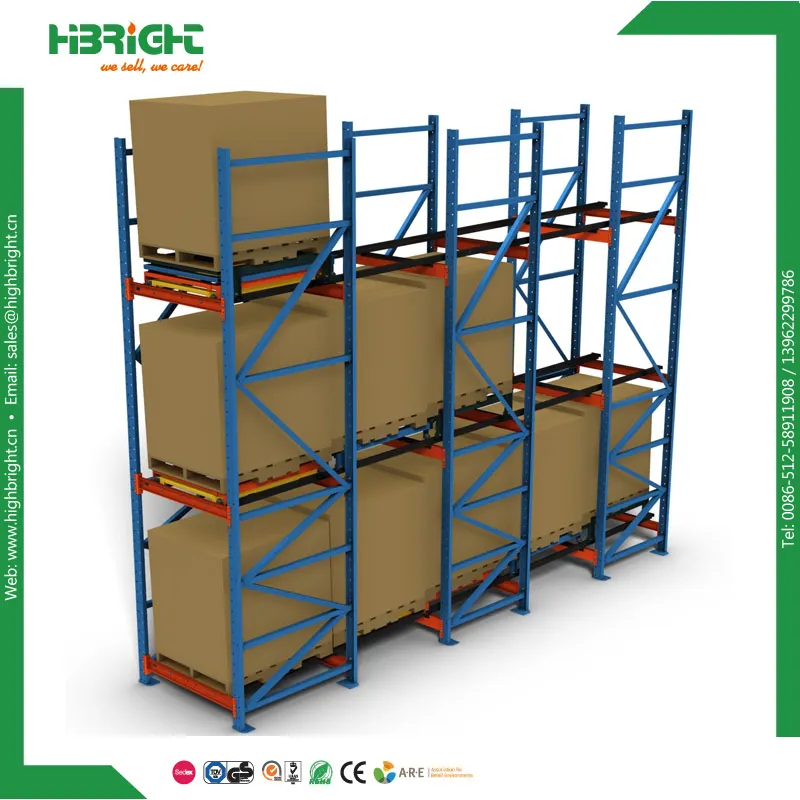

Push Back pallet racking is a system that combines the benefits of drive-in racking with pallet live storage. Using Push Back you can access up to four pallets deep from one face. Ideally suited to order picking operations it enables areas of rack backing onto a wall to be fully utilised.

The Push Back frames support the pallet around its perimeter so it moves easily, either when being pushed back or once the front pallet is removed. Gravity does the rest, remove the front pallet and the rear pallet rolls forward slowly and safely.

Global Push Back Pallet Racking System for Warehouse

⭐ Key Features

Material: High-quality Cold-rolled Steel
Finish: Durable Electrostatic Spray / Powder Coating
Feature: Anti-rust and Corrosion-protection
Inventory Management: Last-In-First-Out (LIFO)
Flexibility: Various sizes and colors available
Efficiency: Pallets can be located, accessed and moved individually

📊

Beam Specifications & Load Capacity

Length (mm)	1500	1800	2000	2300	2500	2700	3000	3300
Beam Spec	Load Capacity (kg)
80×50	3000	2300	1800	1500	1200	1000	800	700
100×50	4000	4000	3000	2400	2000	1750	1400	1100
120×50	4000	4000	4000	3500	3000	2500	2000	1800
140×50	4000	4000	4000	4000	4000	3800	3000	2500

⚙️

How It Works

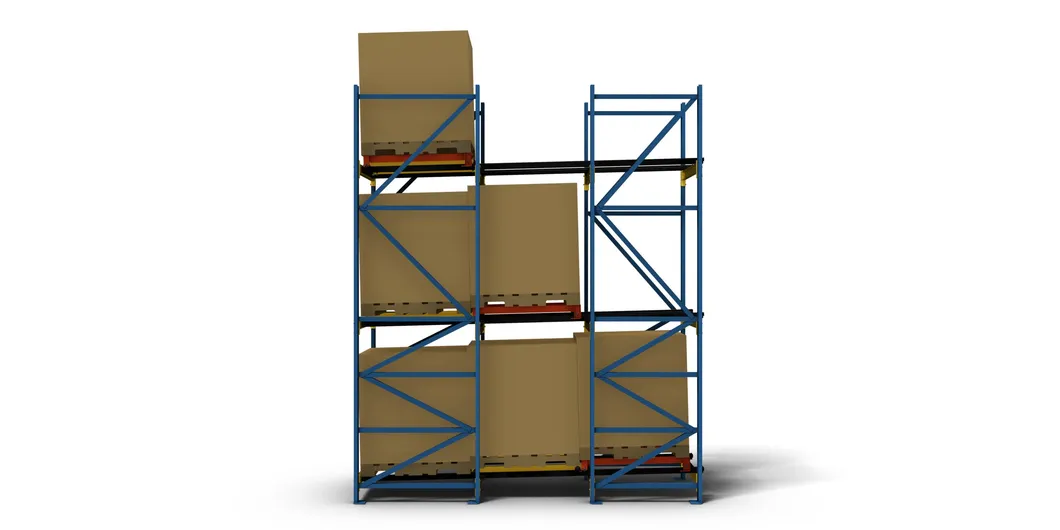

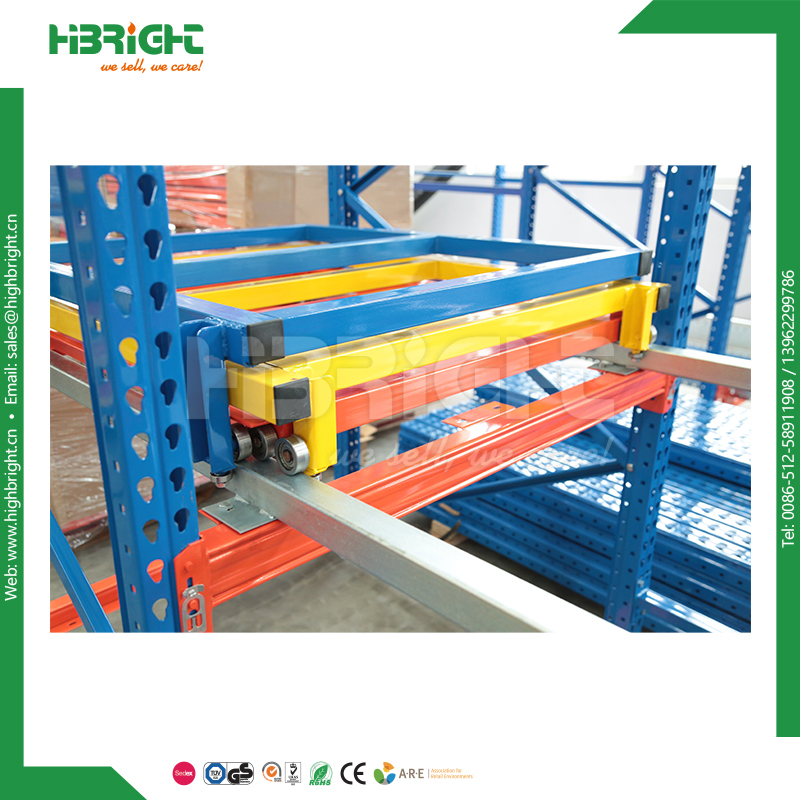

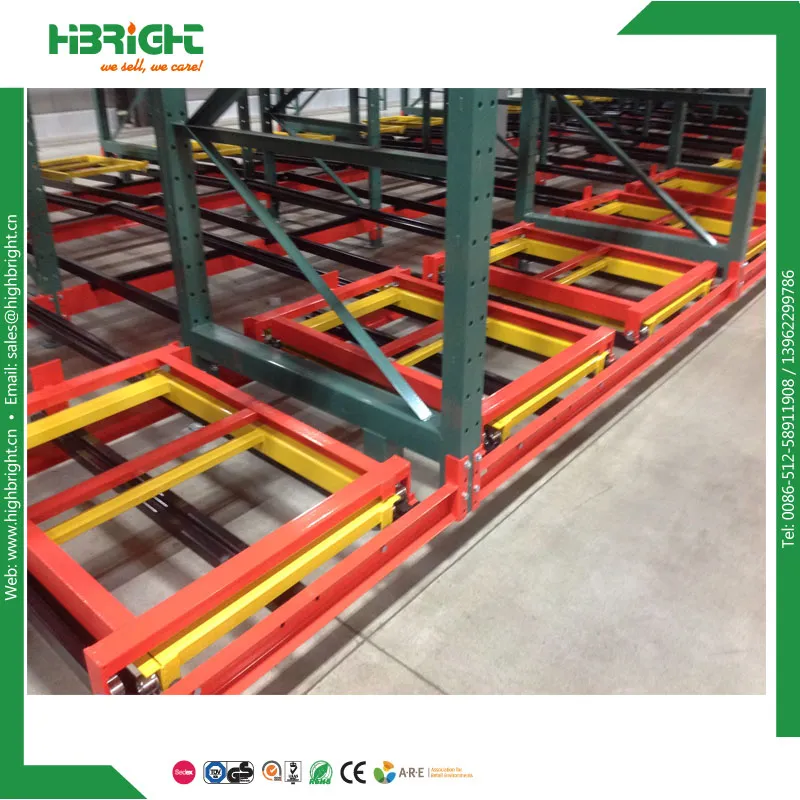

Pushback Rack works by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position.

When unloading, the front pallet is removed and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management.

Push Back offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below.

Frequently Asked Questions

What is the primary benefit of a Push Back Racking system?

It maximizes warehouse space by allowing storage up to 4 pallets deep while maintaining high selectivity compared to traditional drive-in racking.

Does this system use FIFO or LIFO?

The Push Back system operates on a Last-In-First-Out (LIFO) inventory management principle.

What is the maximum weight capacity?

The system is heavy-duty, with load capacities ranging from 1000kg to 5000kg depending on the beam specifications and configuration.

Is the material resistant to rust?

Yes, the components are made of cold-rolled steel and finished with an electrostatic spray powder coating for superior anti-rust and corrosion protection.

Can the sizes be customized for specific warehouse needs?

Absolutely. The system is adjustable, and various sizes, heights, and colors are available to fit specific warehouse layouts.

What certifications does this racking system hold?

The system complies with international standards, holding CE, ROHS, and TUV specifications.
