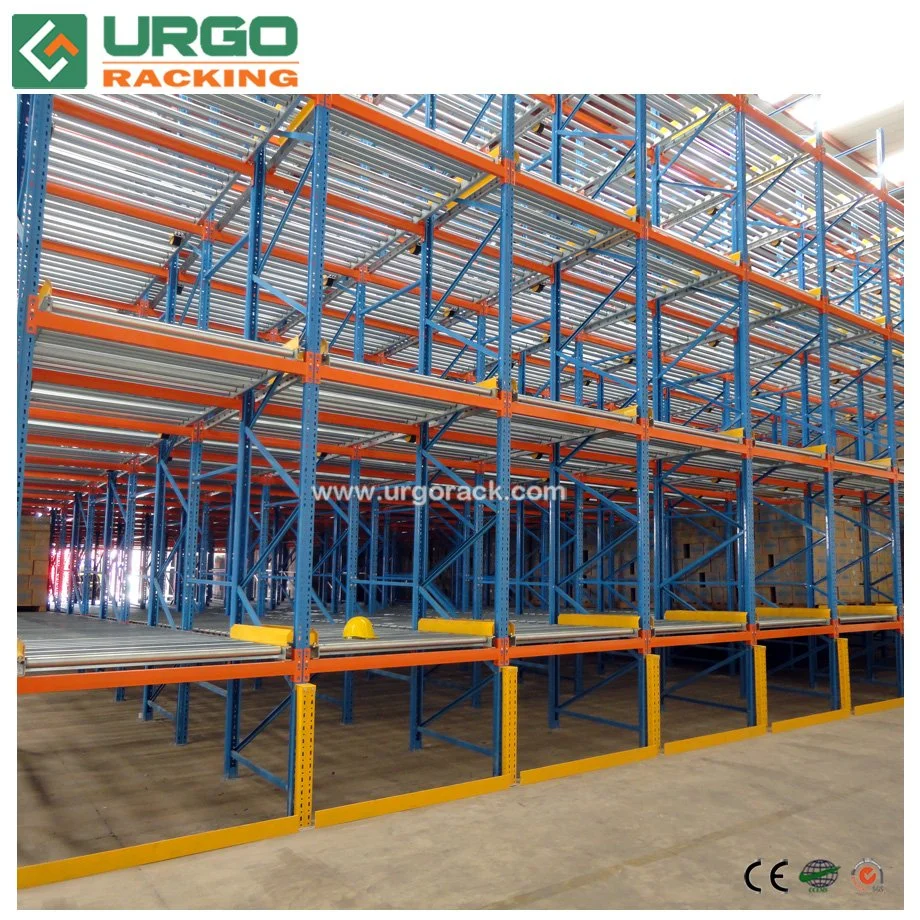

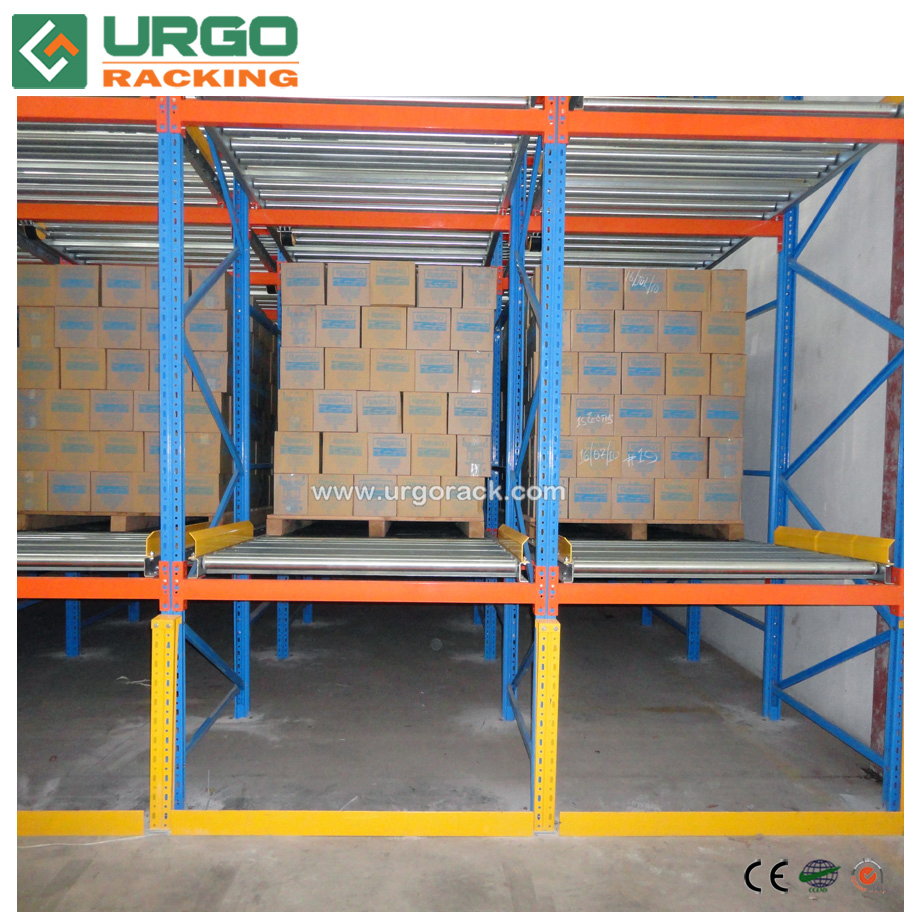

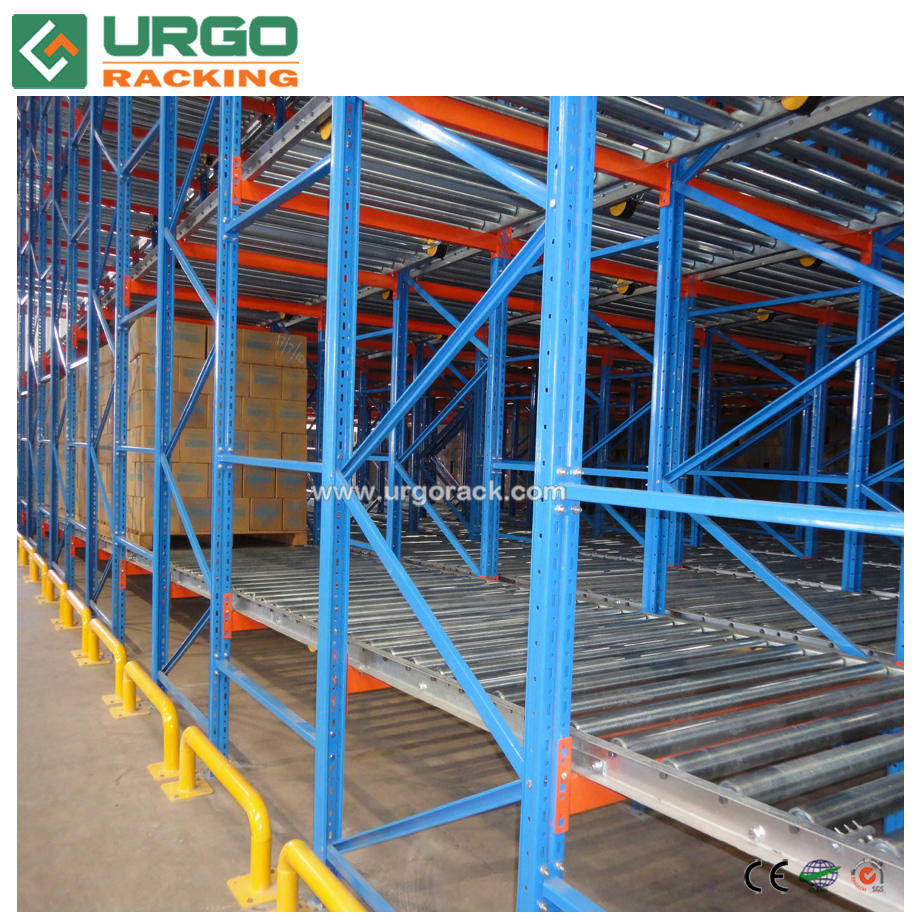

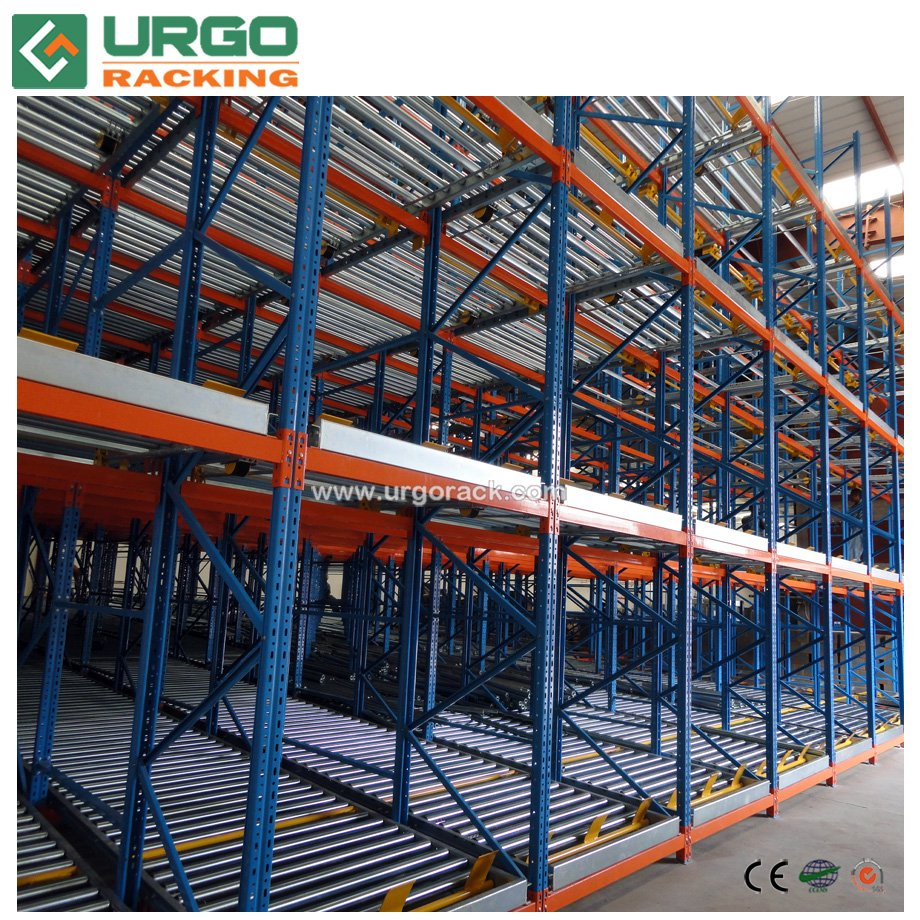

Warehouse Storage Gravity Roller Pallet Rack

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
17001237
Usage
Warehouse Rack
Material
Steel
Structure
Rack
Type
Pallet Racking
Mobility
Fixed
Height
5-15m
Weight Capacity
500-5000kg
Surface Treatment
Powder Coating
Feature
Corrosion Protection
Certification
CE
Production Capacity
80000tons/Year
Product Description
Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required. It is a highly efficient solution when pallets need to be moved quickly from one area to another without the assistance of lift trucks, utilizing gravity to streamline the flow of goods.
Reduced warehouse operational cost
Easy and efficient goods loading/unloading
Strict First In First Out (FIFO) storage
Heavy duty long life construction
Reduced aisle space by 60-70%
Increased warehouse utilization
Reduced forklift damage during operation

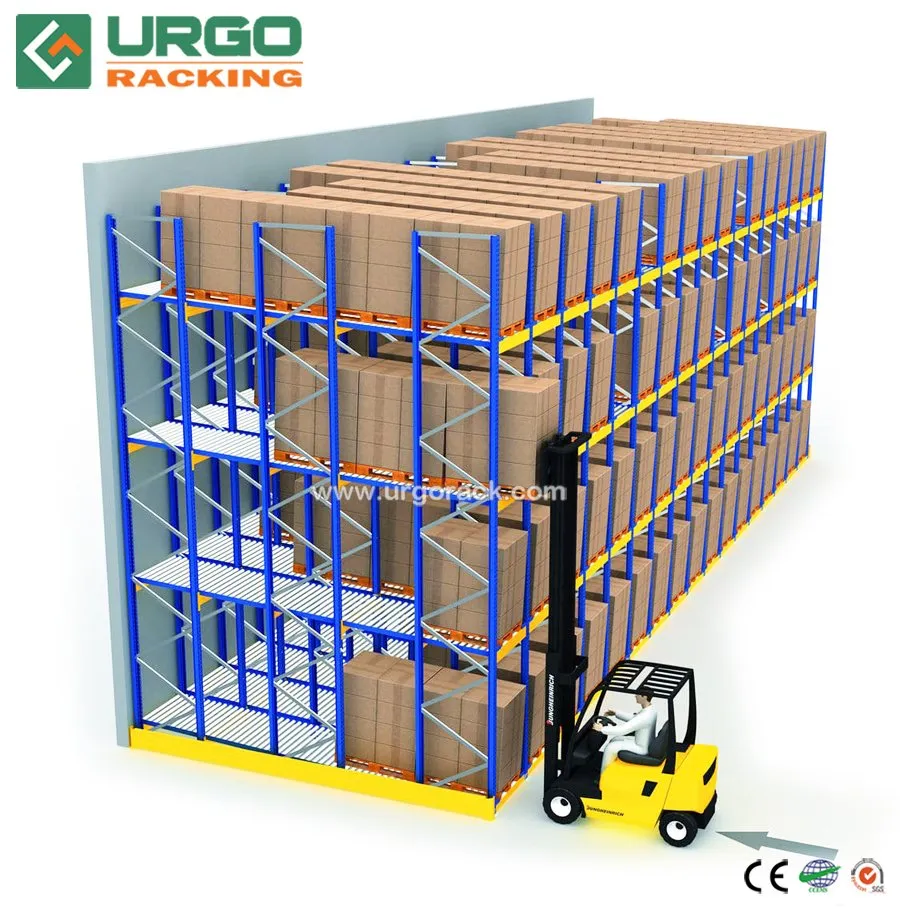

Gravity Roller Pallet Rack System

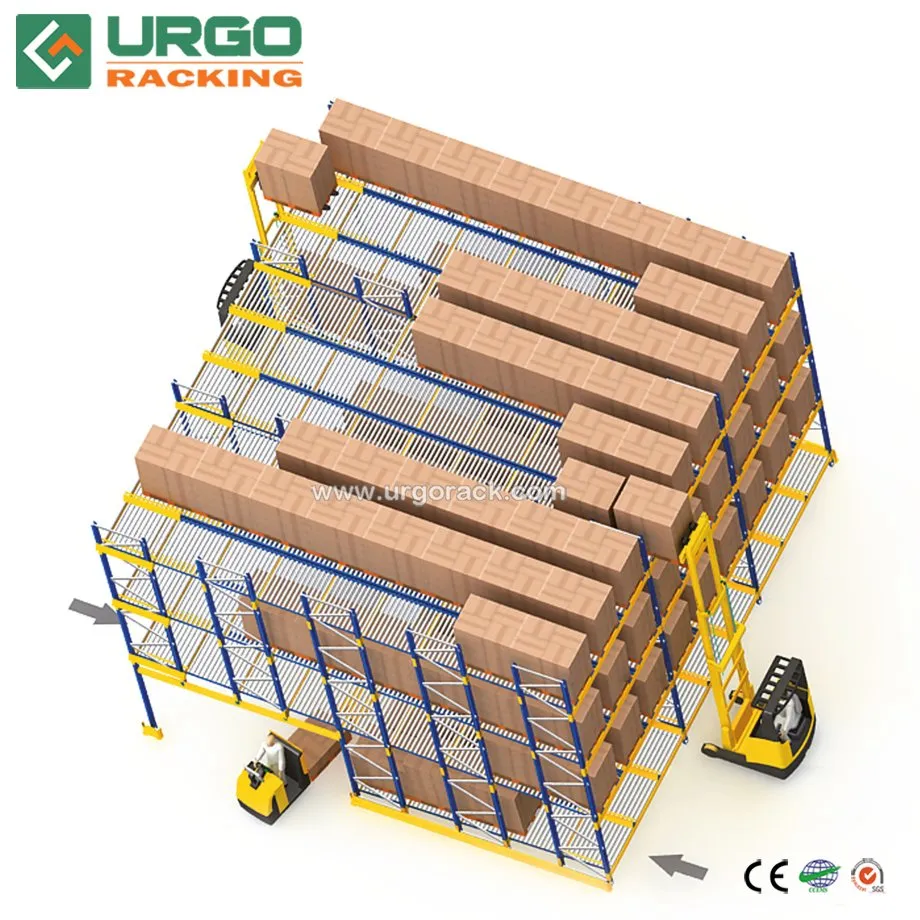

Gravity Pallet Racking Detail
Column Profiles
Column Specification (mm) Thickness (mm) Upright Loading (kg)
W80 x D601.8-2.04000-6000 KG
W85 x D671.8-2.37500-12500 KG
W90 x D601.8-2.58000-10000 KG
W90 x D701.8-2.510000-12000 KG
W100 x D702.0-2.511000-14000 KG
W120 x D952.3-3.017000-21000 KG
Beam Loading Profiles
Specification (mm) 1500mm 2000mm 2500mm 3000mm 3600mm
80 x 50 x 1.5300017401160--
100 x 50 x 1.54470296019301380-
120 x 50 x 1.5-3910273019301379
140 x 50 x 1.5-5722386827202020
Product Application & Packaging

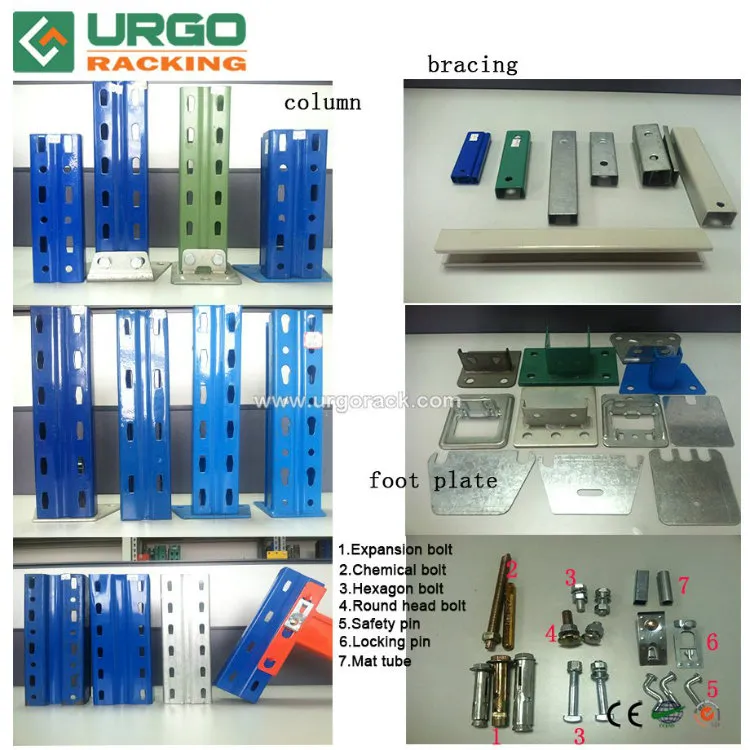

Rack Components
Gravity Flow System

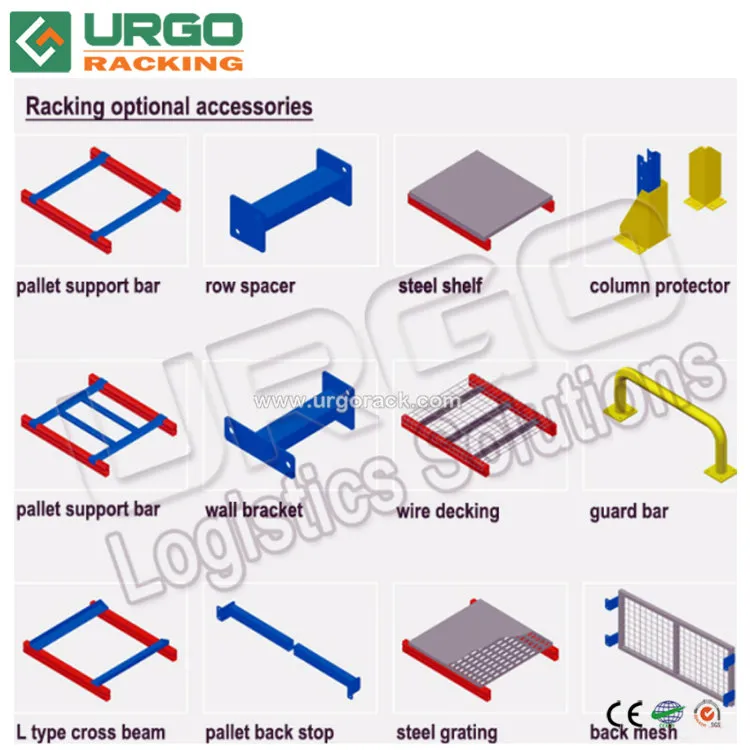

Warehouse Installation

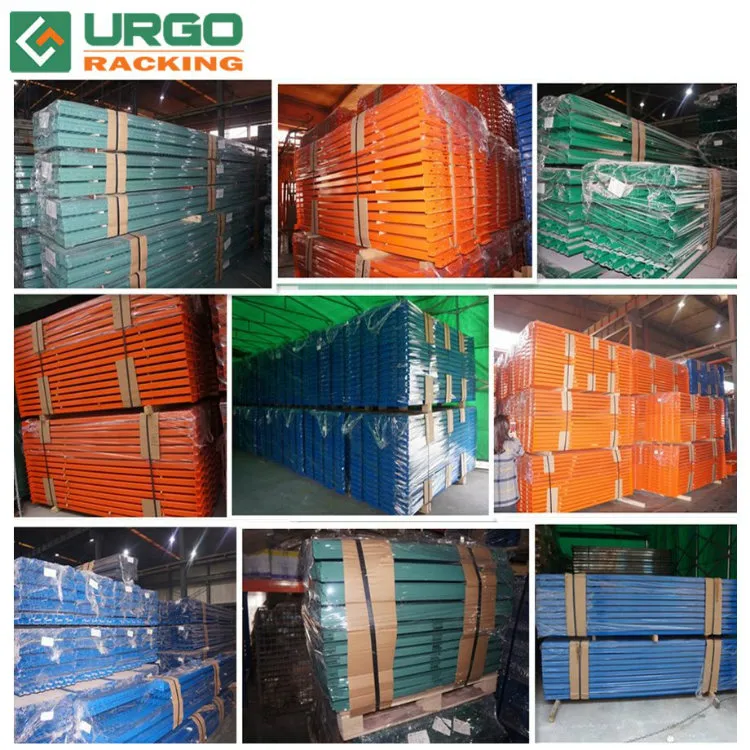

Export Packaging
Frequent Questions & Answers
What makes this gravity racking system different from other suppliers?
We offer quick manufacturing times (selective orders within 15 days), specialized export packaging with protective plastic clips, and an industry-leading 10-year warranty for normal use.
How can I track the status of my order?
We provide regular updates, including information and photos at different production stages, ensuring you have the latest information in real-time.
Are samples available for quality reference?
Yes, we can provide sections of samples for your reference, which can be sent via express delivery.
Is a galvanized finish available for these racks?
Yes, both the pallet racking posts and bracings are available with a galvanized finish for enhanced durability.
What information is required for a quick quotation?
To provide an accurate quote, we need the required rack dimensions (Height x Depth x Length), the number of levels, the loading capacity per level, and the total quantity required.
How does the FIFO system improve warehouse efficiency?
The First In First Out (FIFO) system ensures stock rotation is automatic. By reducing aisle space by up to 70%, it significantly increases warehouse utilization and reduces forklift travel time.
