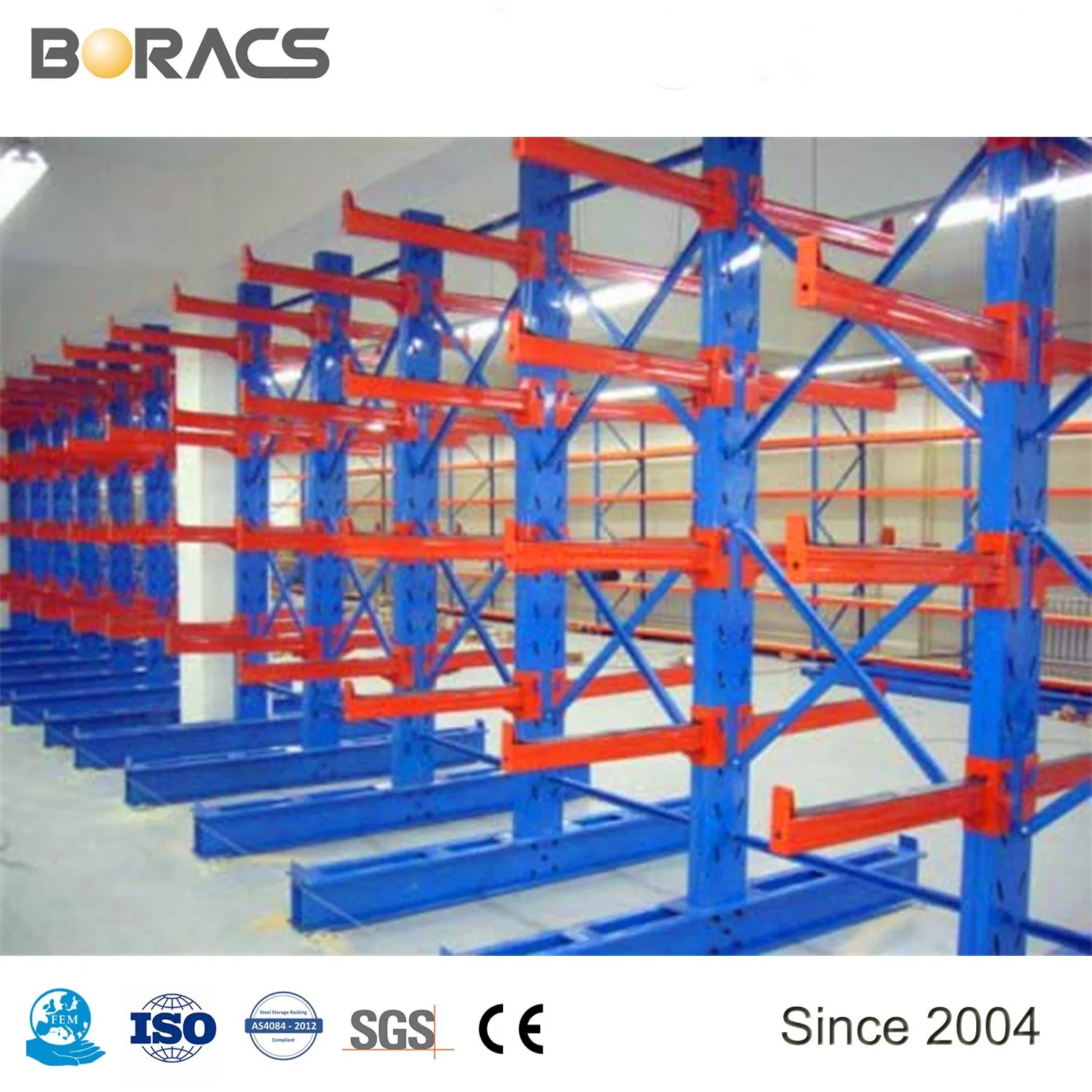

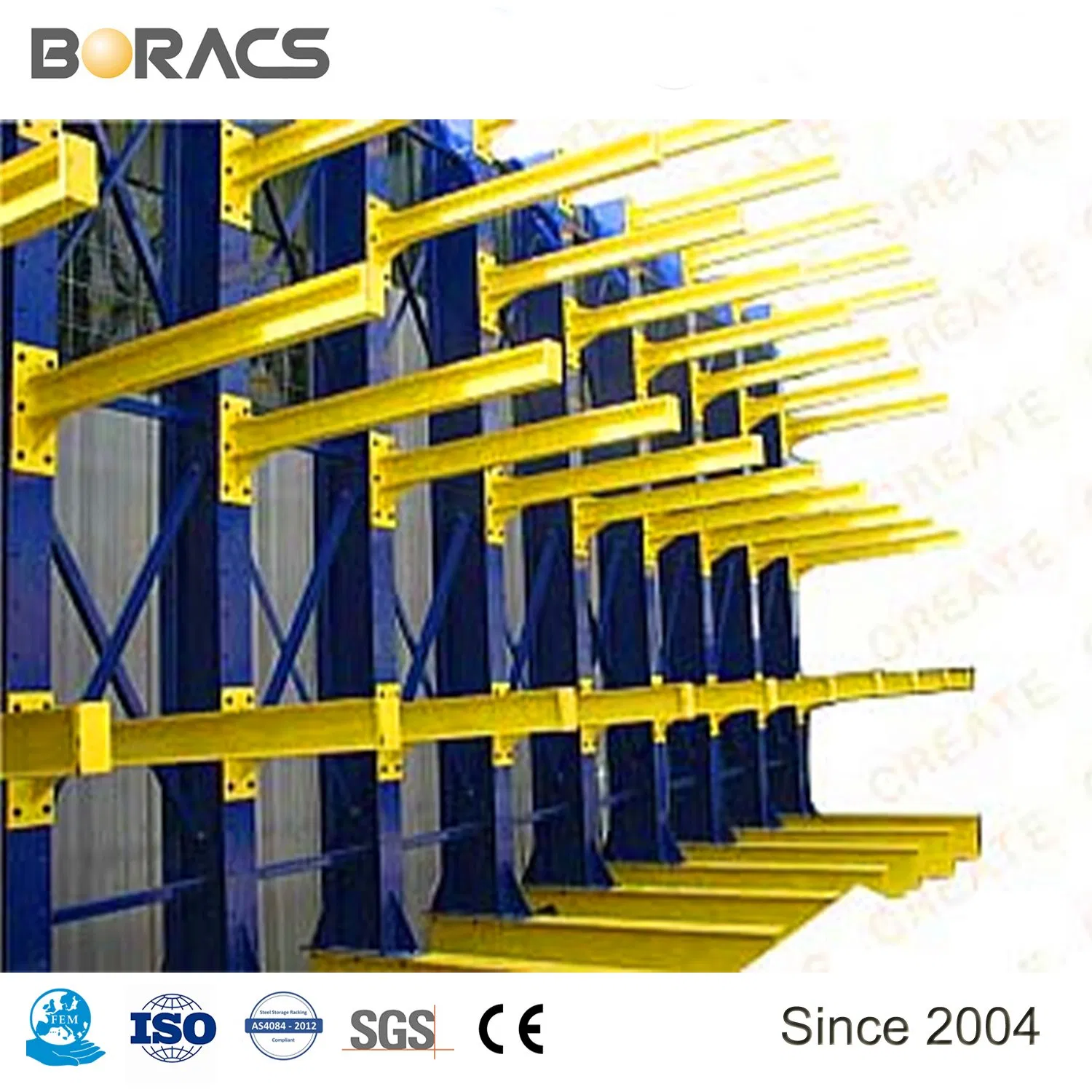

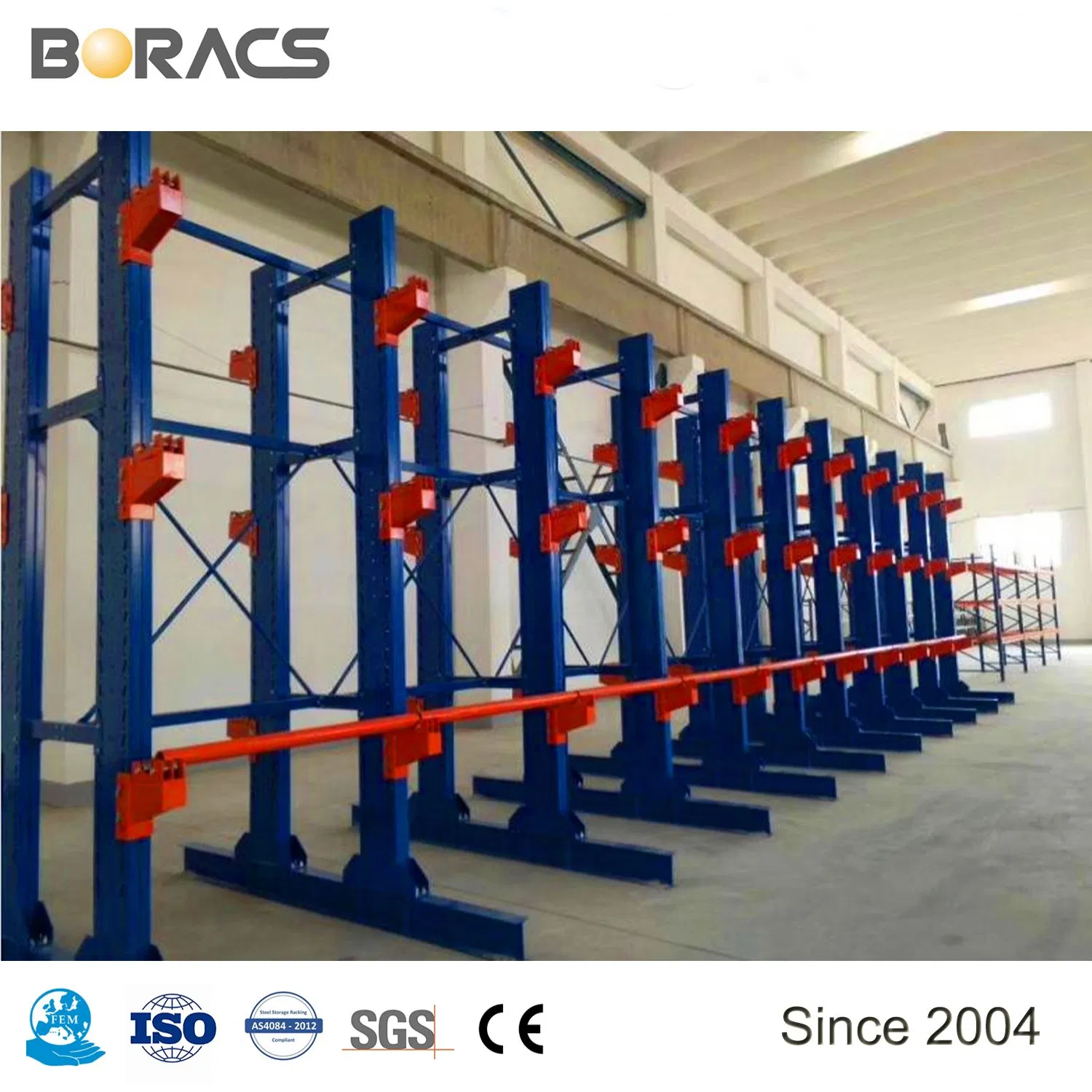

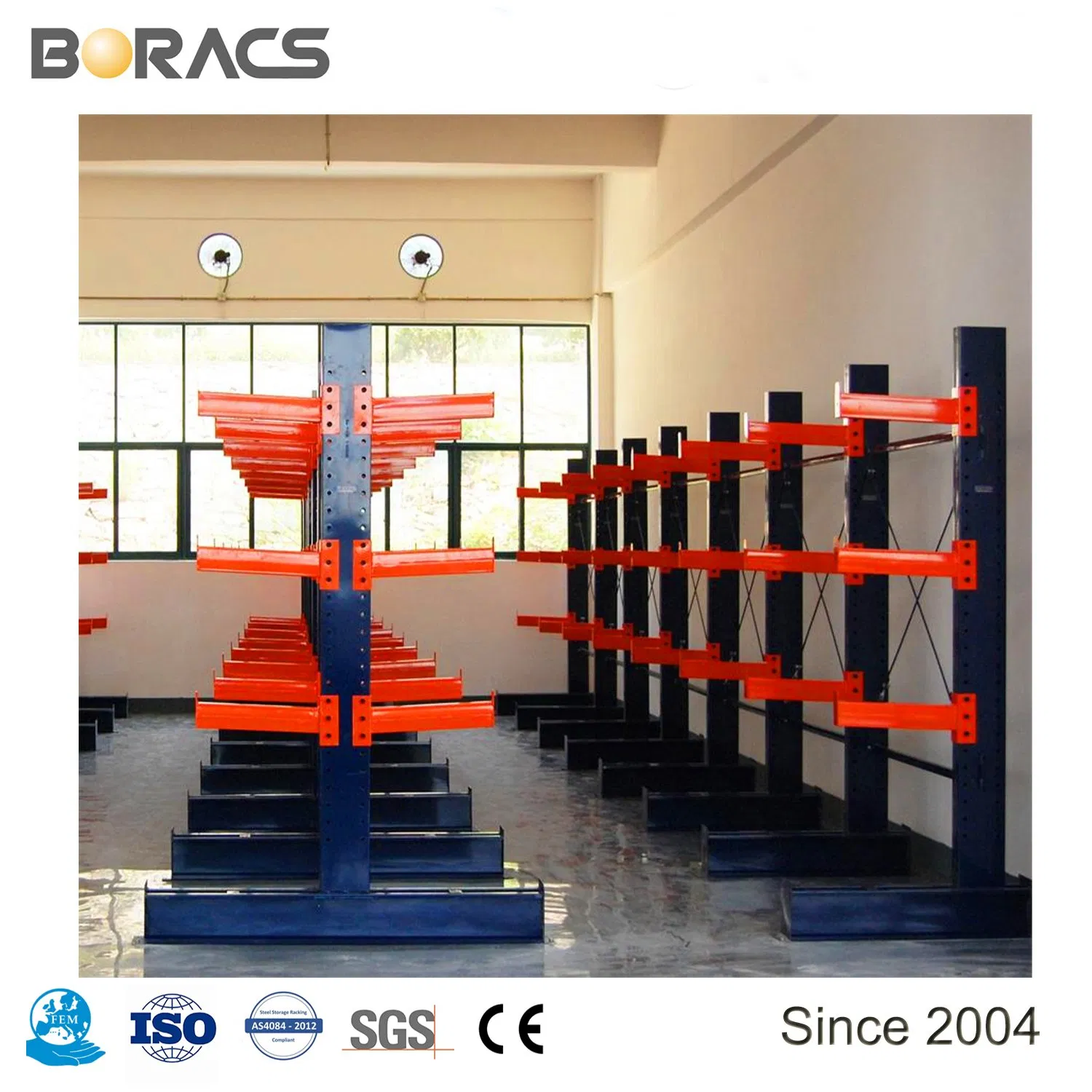

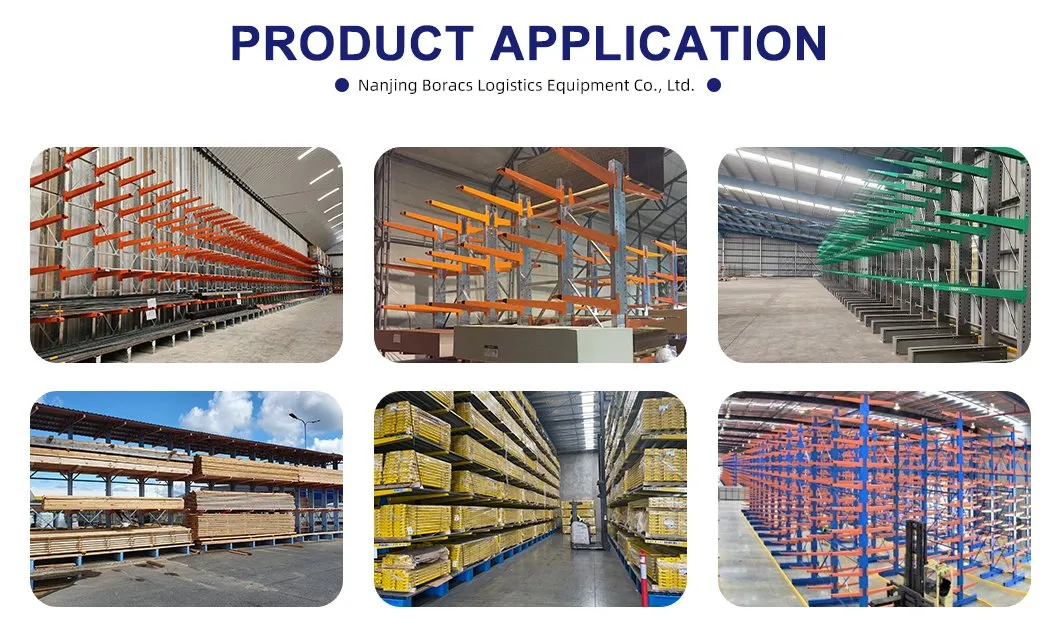

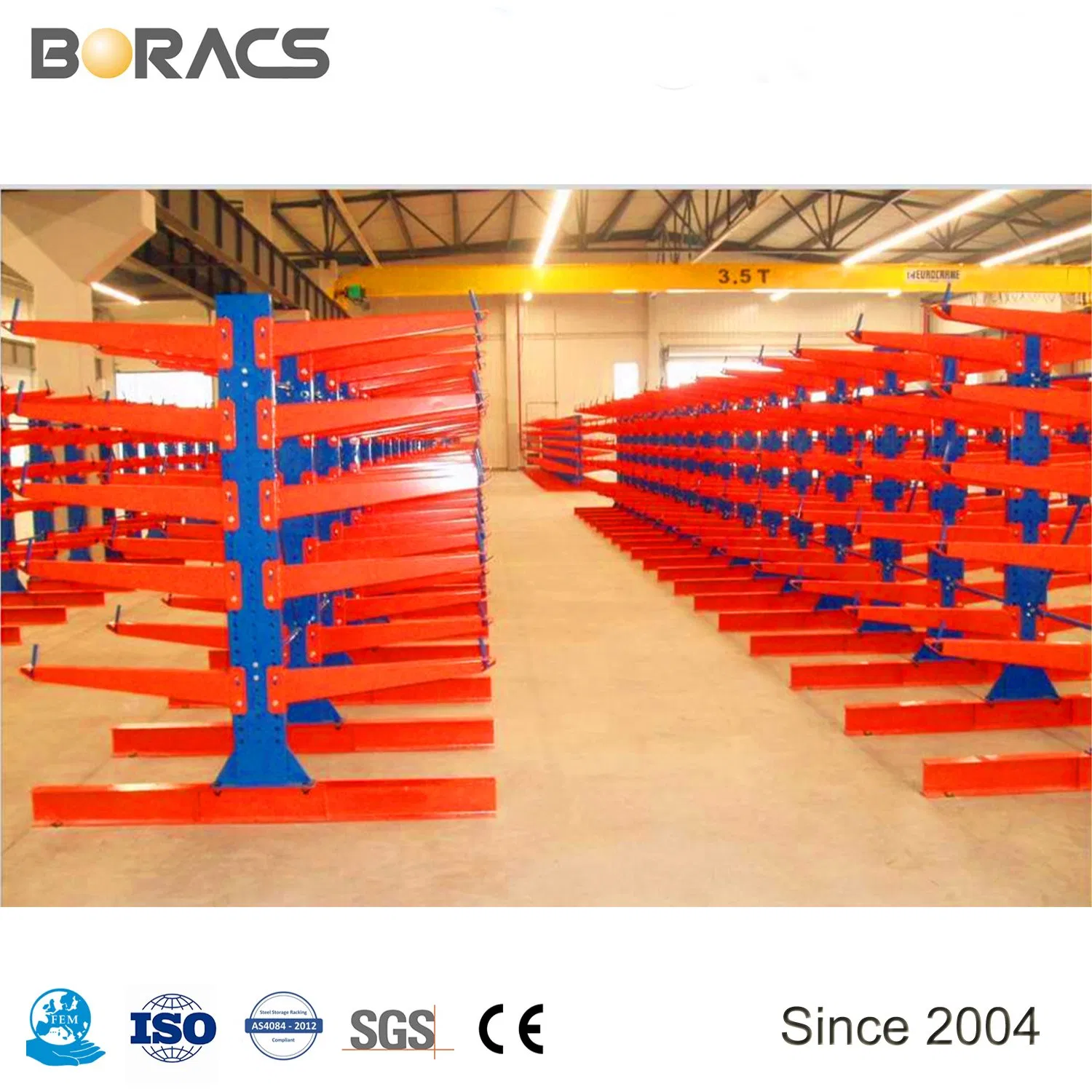

Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking

Cantilever Rack / Medium Duty Cantilever Racks

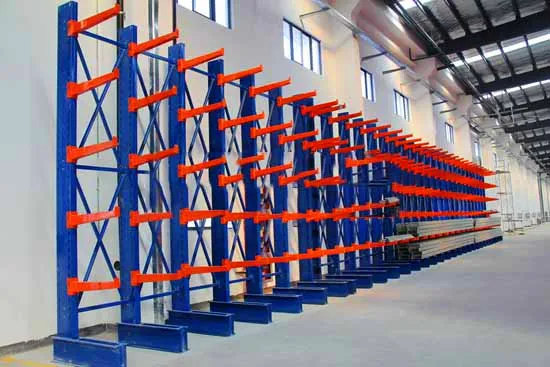

The light load cantilever system is ideal for storing long items where ceiling height is less than 3.5m and total load is under 3000kg. Recommended arm length is within 1000mm with a load on each arm less than 400kg.

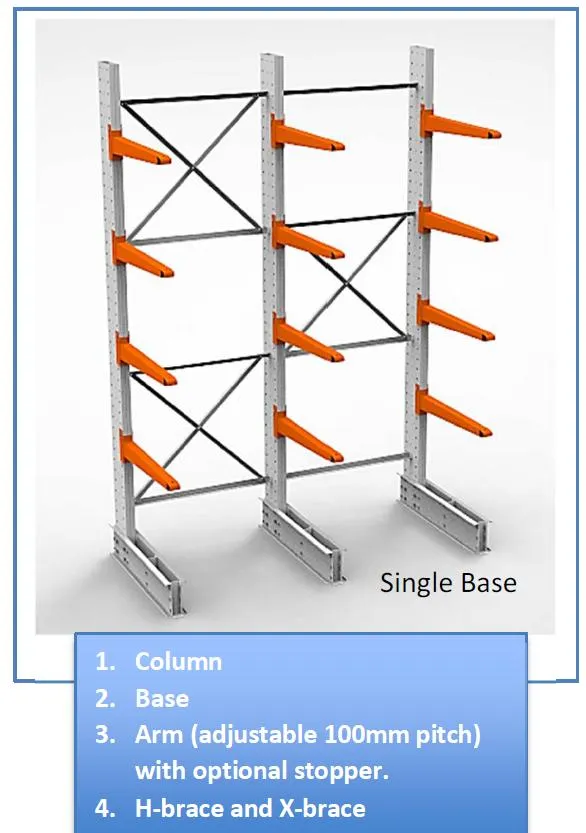

• Column: C200 x 60 hot dip pre-galvanised coil. Recommended maximum height 3500mm.
• Base: Single-sided and Double-sided welded Base using hot dip pre-galvanised coil. Easy to assemble.

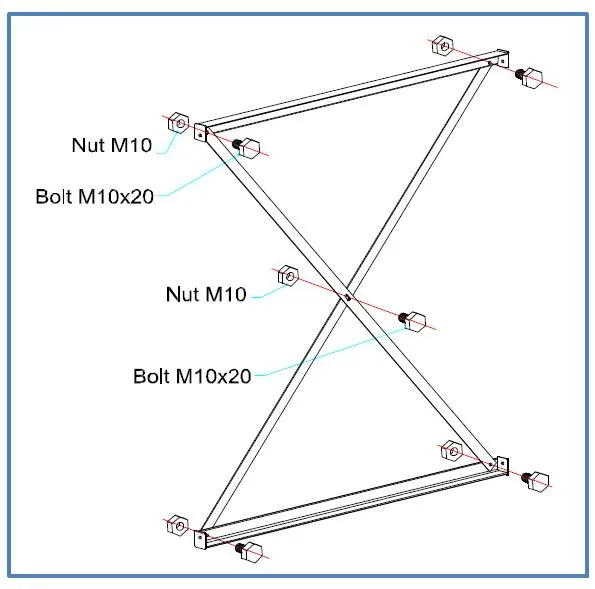

• X-Brace Set: Consists of Horizontal and X-braces providing necessary stability to the racks.
• Finish: Available in Pre-Galvanised or Powder Coated RAL 5015.

Arm Profiles

There are two primary arm profiles:

• C80x60
• RHS100x50

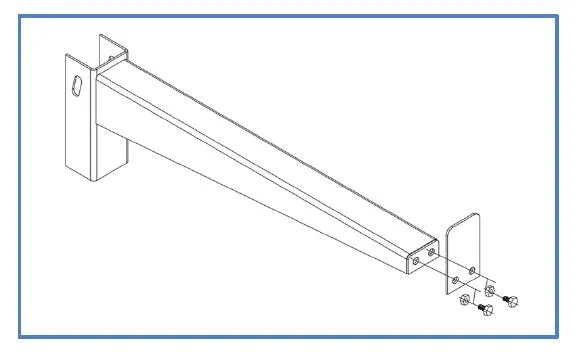

Both are welded with light duty brackets. The end of the arm can be bolted with an optional Stopper Plate. Finish: Powder Coated RAL 2004.

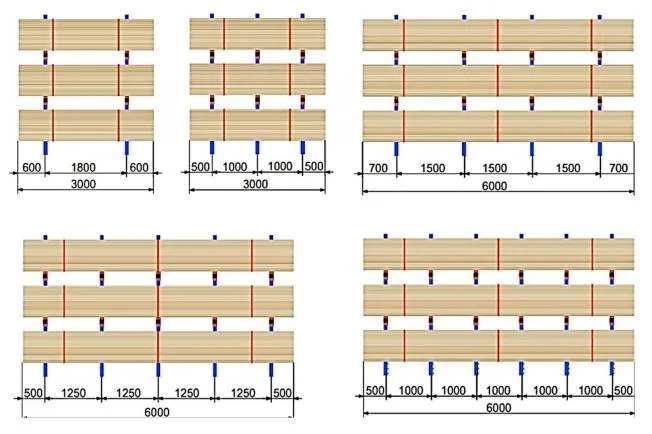

Uniformly distributed load on cantilever racks and arms is paramount for operational safety. The overhanging dimensions must be managed according to engineering guidelines.

Impact Safety Design

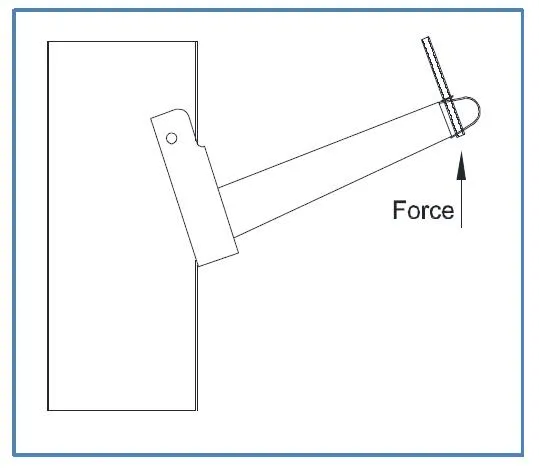

The rounded nose design at the tip of the arm, together with the single-round-pin bracket, provides the arm with a free uplift motion in case of accidental impact by a forklift. This feature reduces structural damage.

Pallet Support Bar

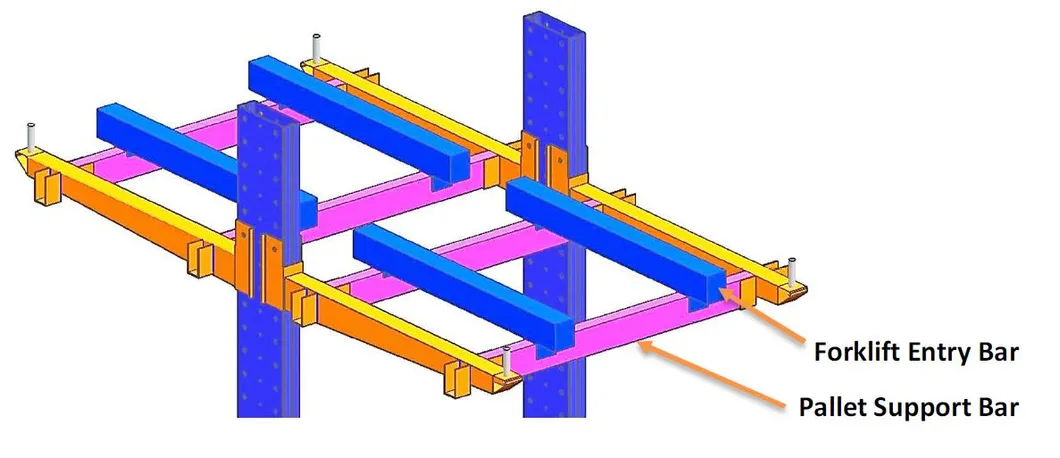

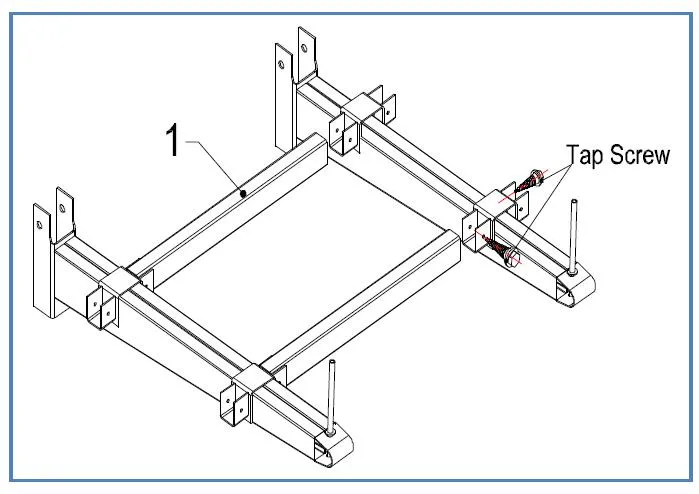

Cantilever racks can store pallets by adding Pallet Support Bars on the arms. Each pallet support rests on a pair of saddles.

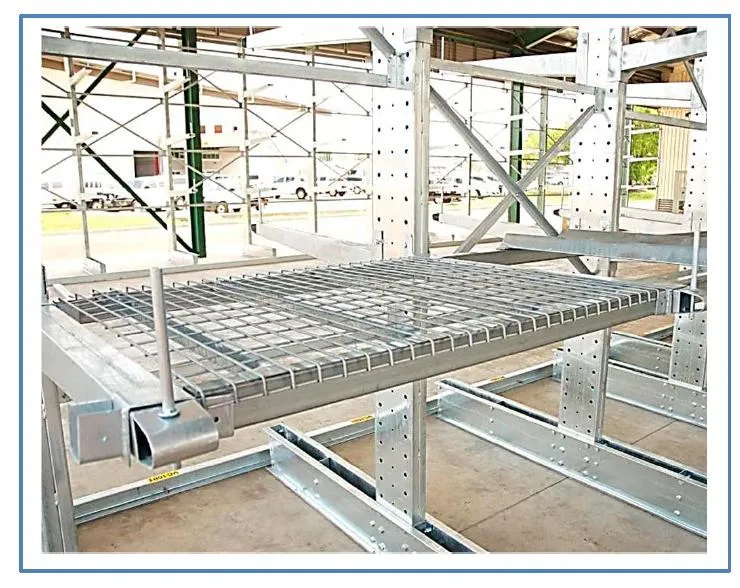

Storage levels can be converted into "Manual Picking" zones by adding Wire Mesh Decking.
