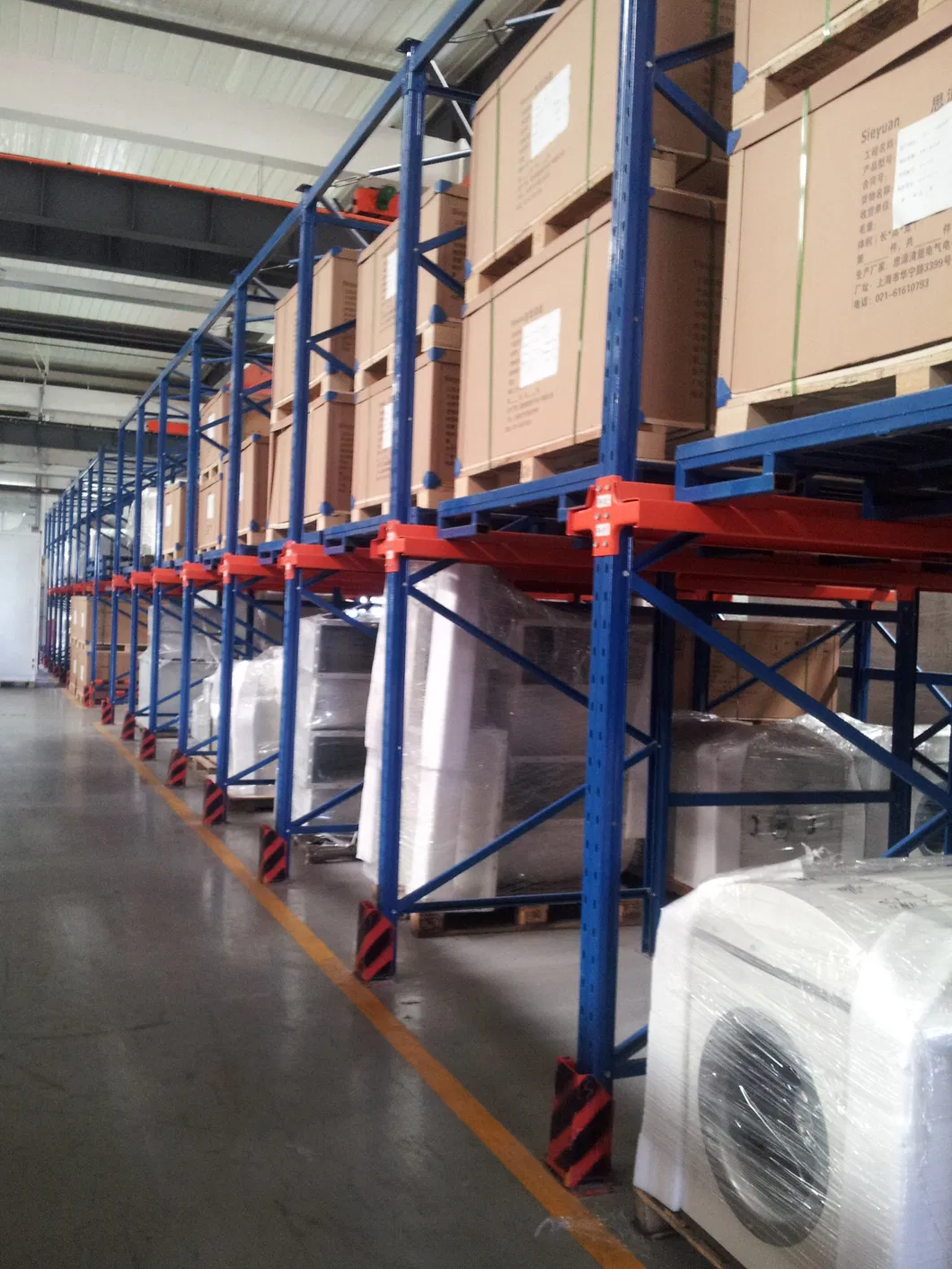

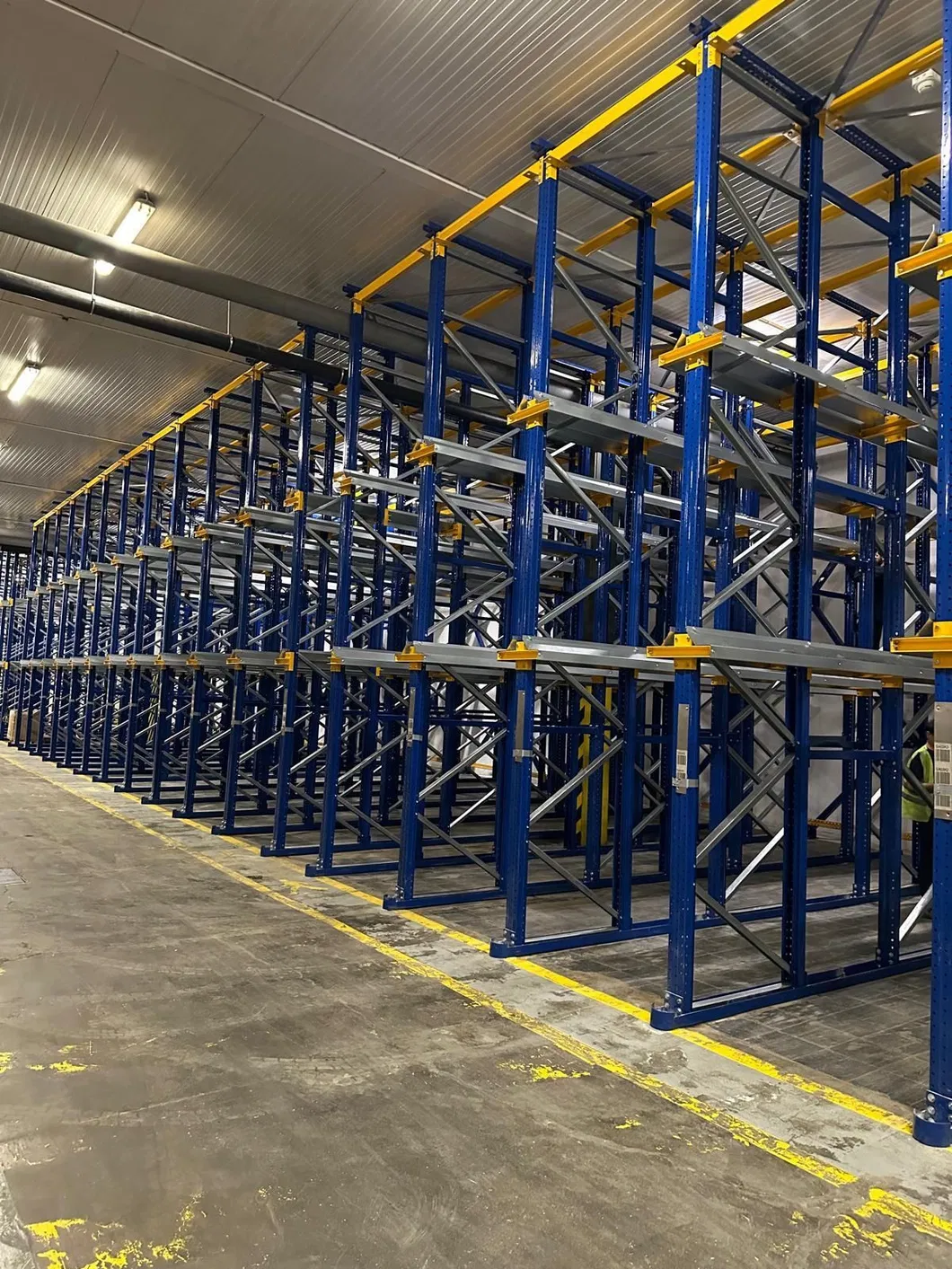

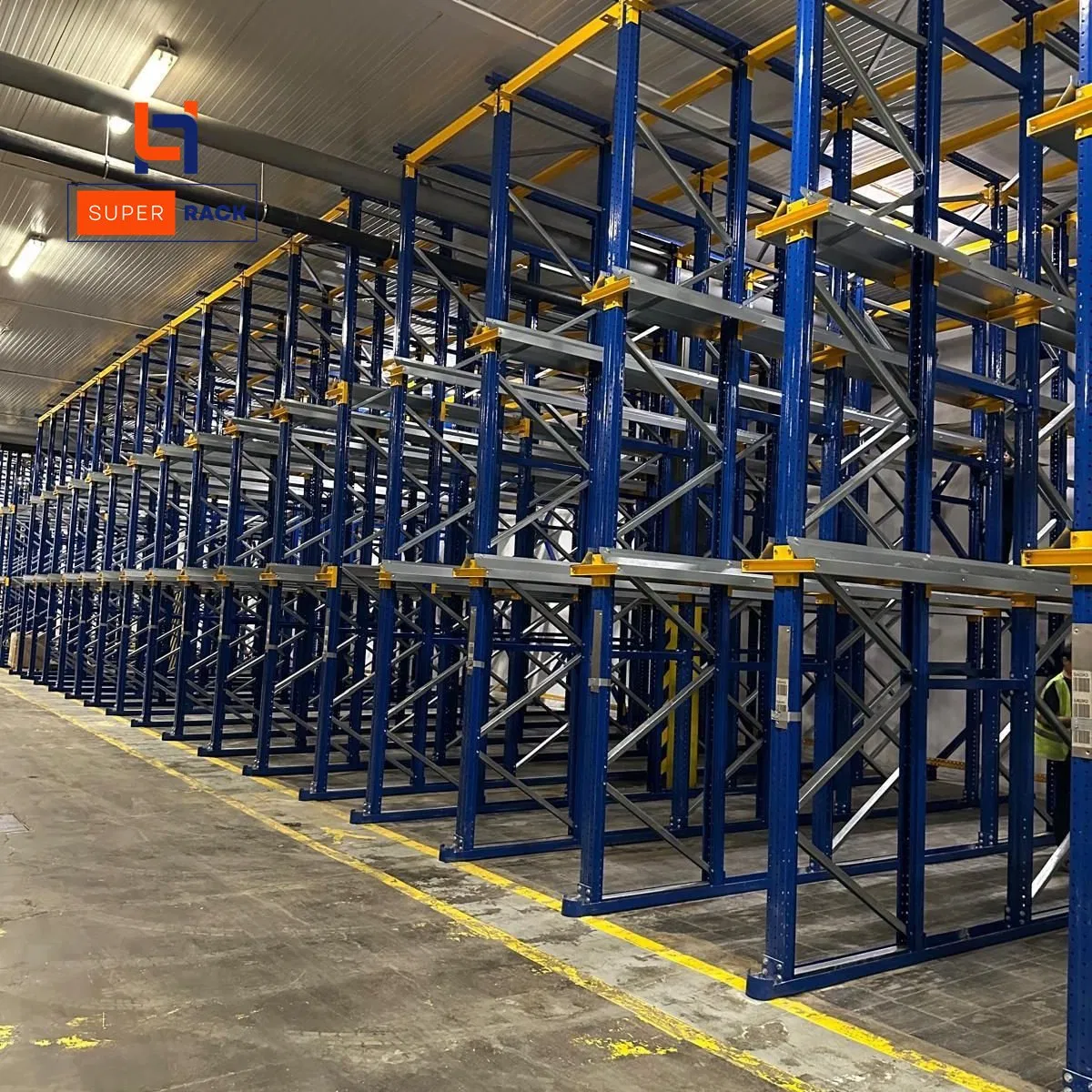

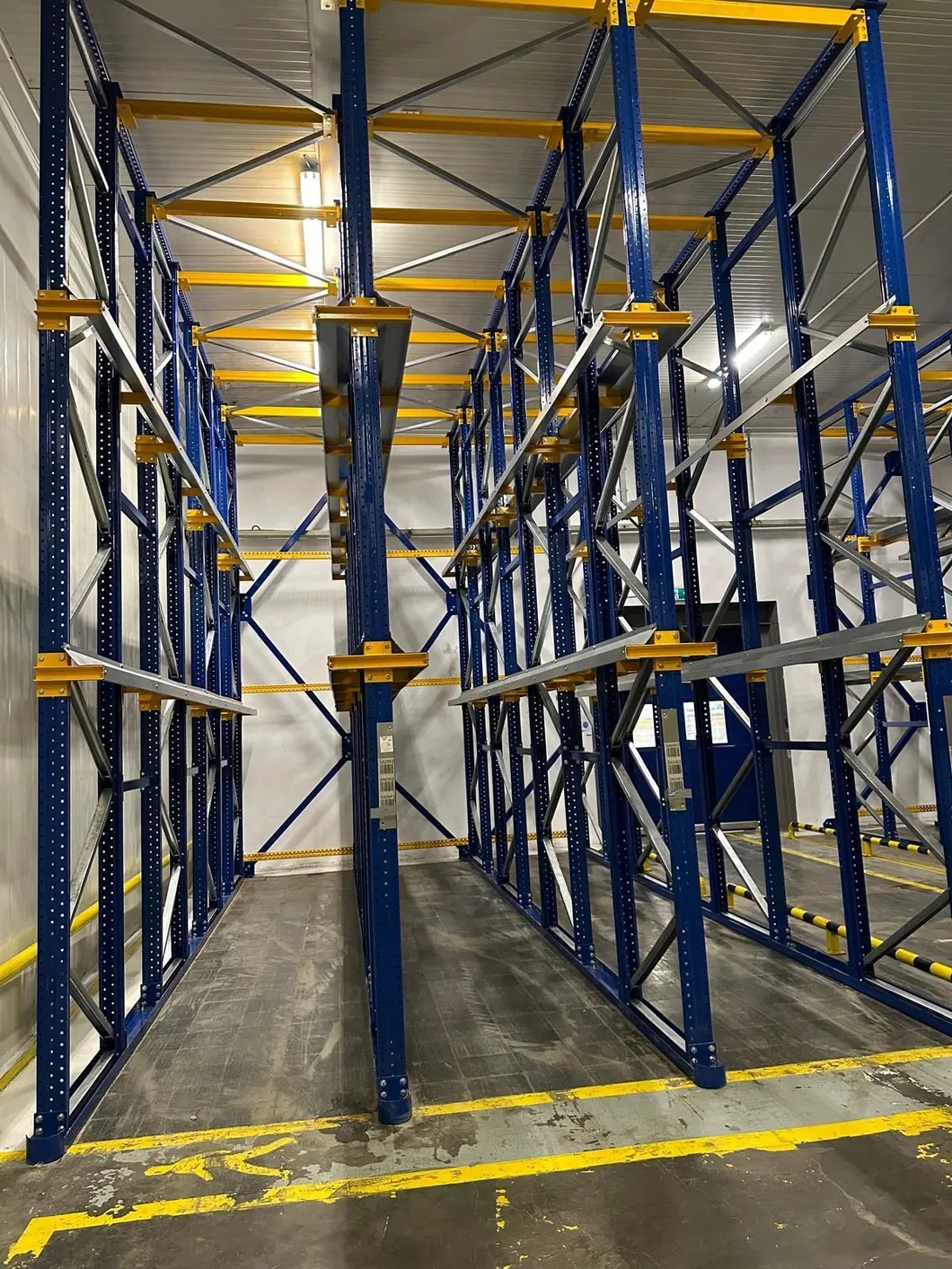

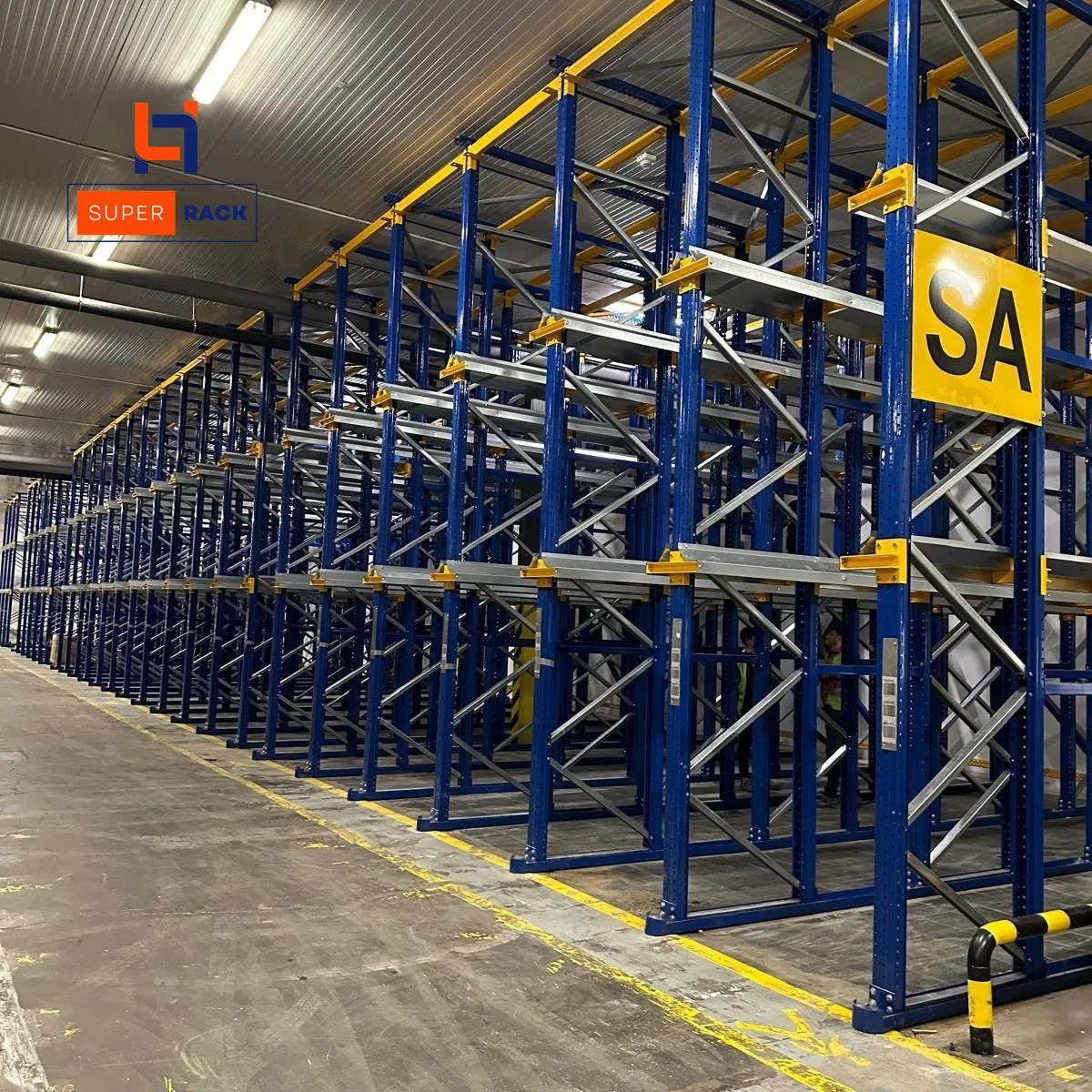

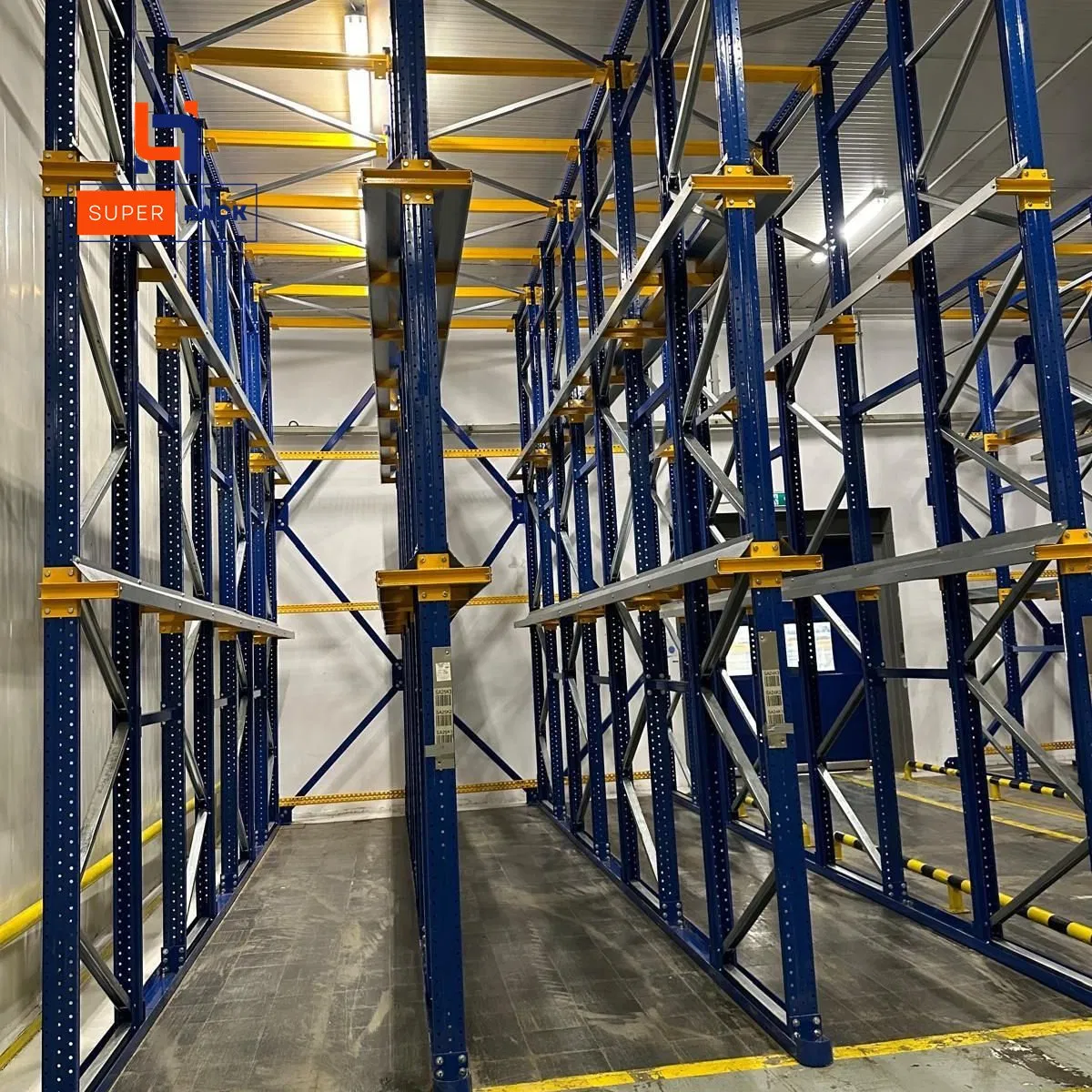

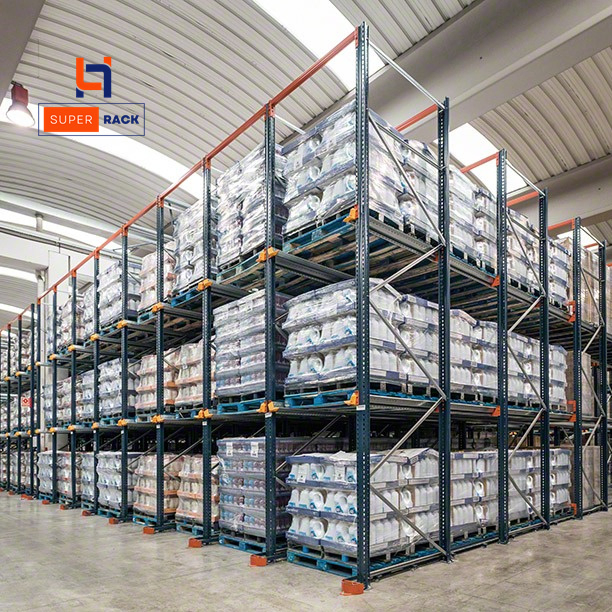

OEM Heavy Duty Adjustable Steel Storage Rack Drive-In System

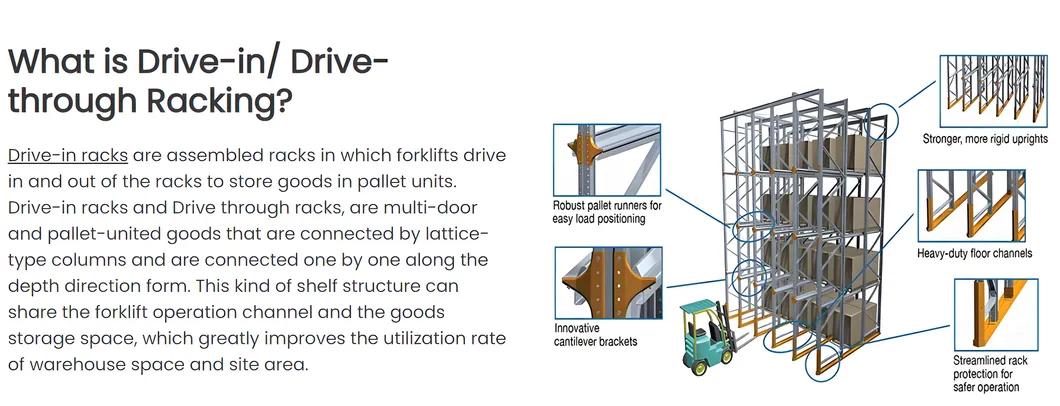

A leading solution for racking systems and warehouse equipment, specializing in high-quality storage including:

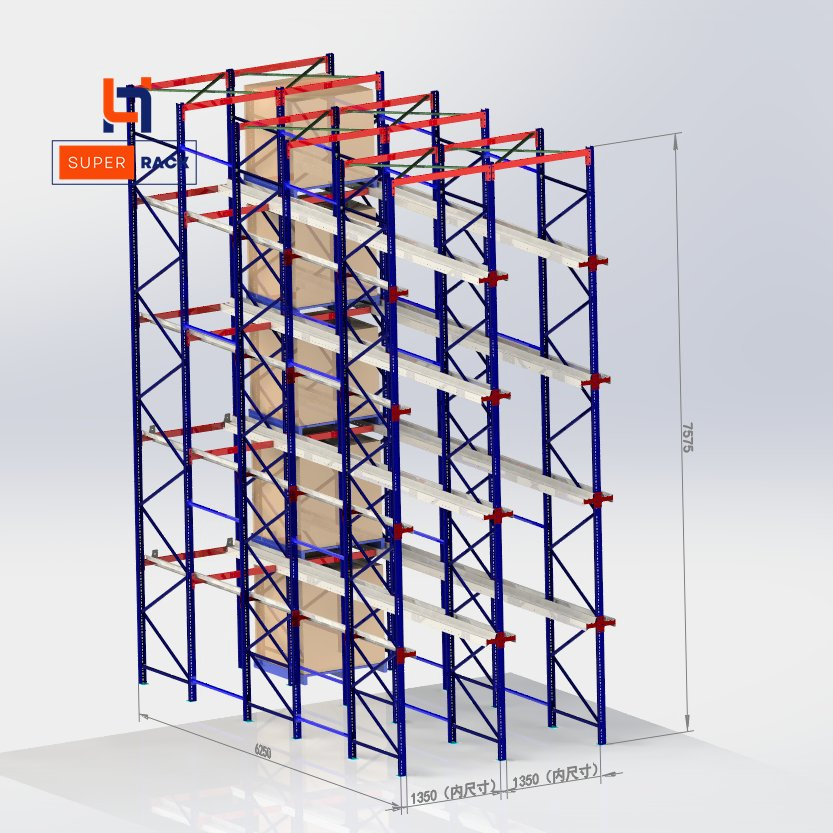

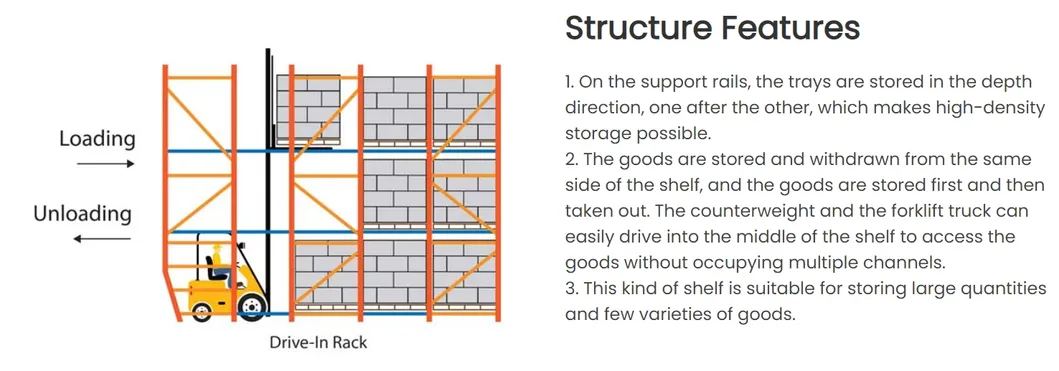

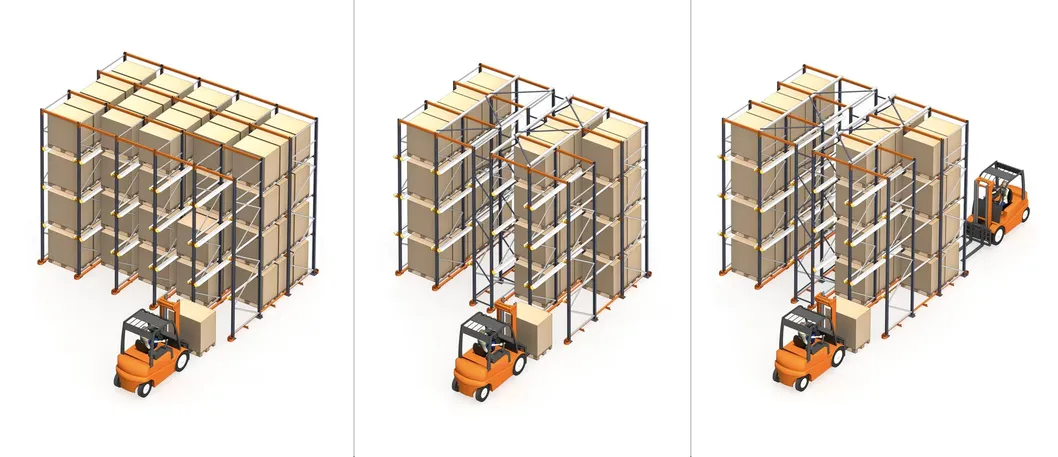

The total depth of drive-in racks in wall areas can be designed for up to 7 pallet depths. For middle areas with access from both sides, it typically reaches 9 pallet depths. This design significantly improves forklift access efficiency and reliability.

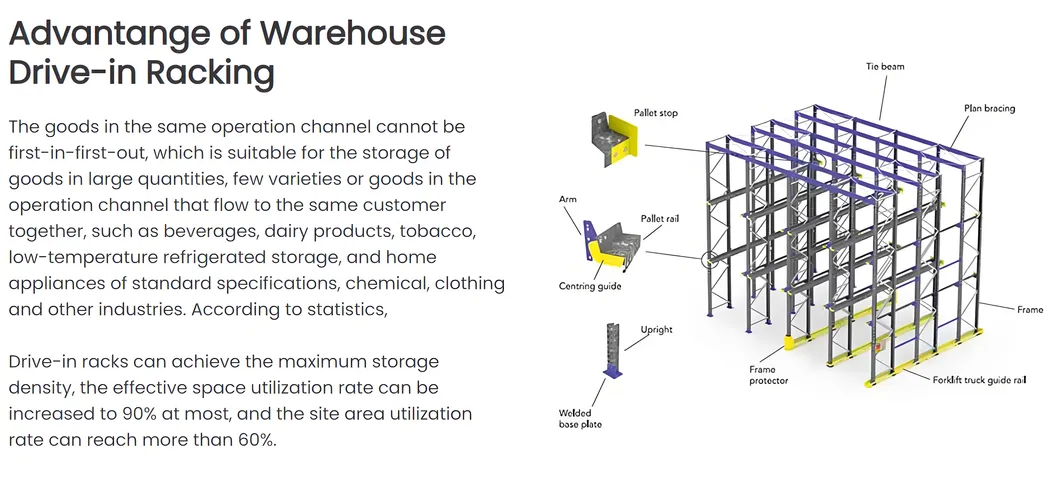

| Upright | 70*90*1.8/2.0, 70*100*1.8/2.0 |
| Arm | Double arm, single arm |
| Top Bar / Diagonal Bar | 24*36*1.5C |
| Pallet Sizes | 800*1200, 1000*1200, 1000*1000, 800*1000, etc. |
| Load Capacity | 500 - 2000kg per pallet |
| Depth Capacity | 5 - 7 pallets deep |
| Height Capacity | 4 - 6 pallets high |
| Material | Cold rolled Q235 steel |
The standard load capacity ranges from 500kg up to 2000kg per pallet, depending on the specific configuration and steel thickness used.
For wall-side installations, it can go up to 7 pallets deep. For central island configurations with access from both sides, it can reach up to 9 pallets deep.

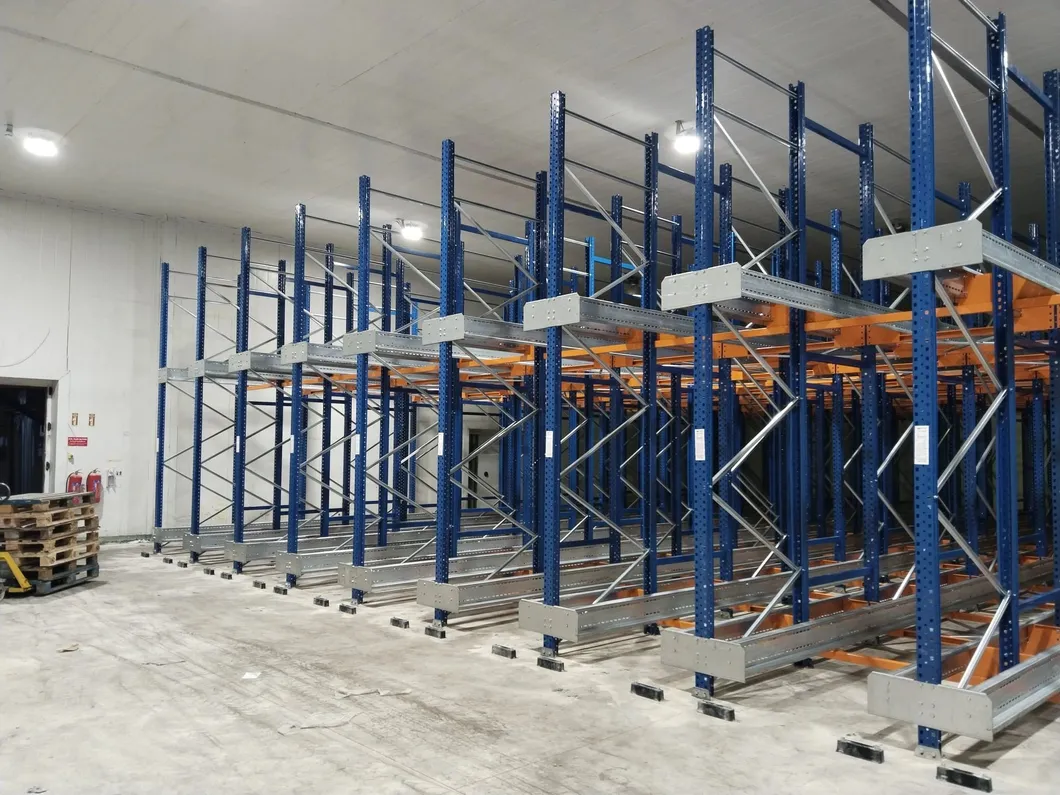

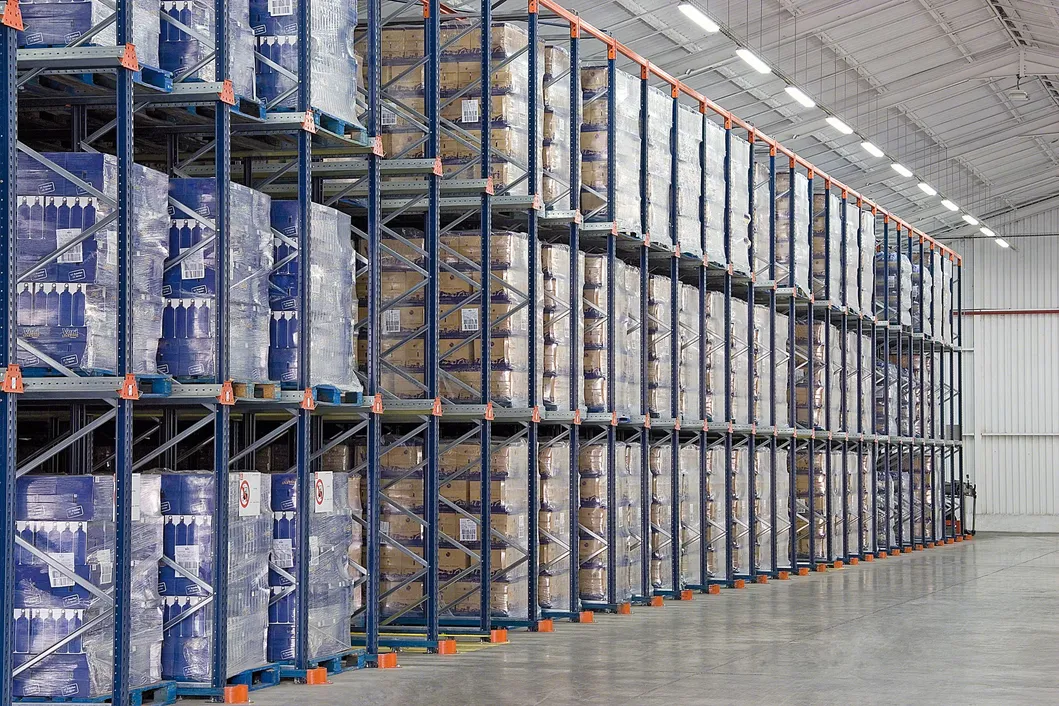

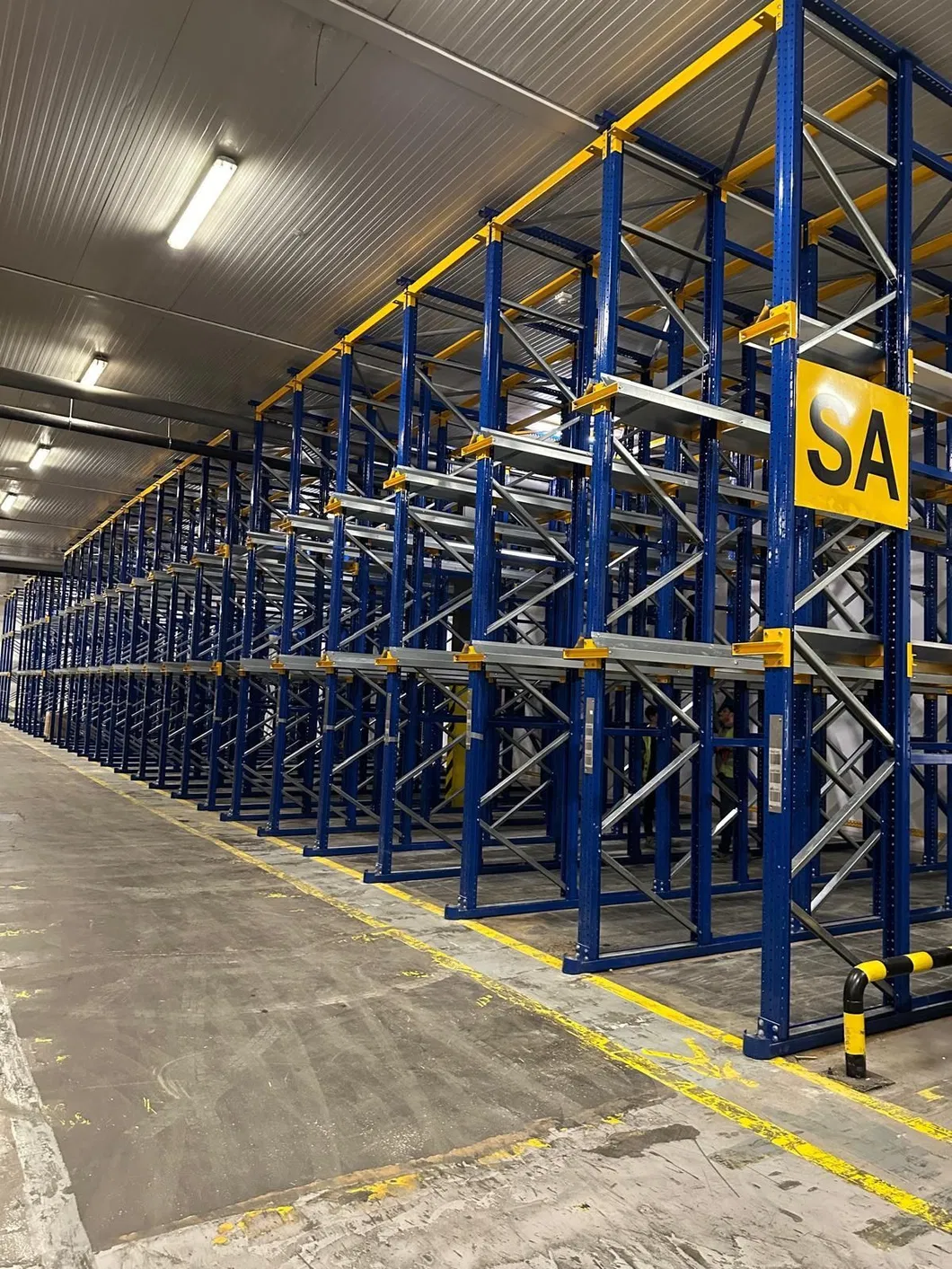

It is best suited for high-volume storage of identical products (few SKUs) and is particularly effective for cold storage or large logistics centers.
The system is constructed from high-quality cold-rolled Q235 steel for durability and high stability.
Yes, the system features adjustable shelf heights with increments of 50mm or 75mm to accommodate different pallet heights.
We provide both Powder Coated and Galvanized finishes to ensure corrosion protection and long-term durability in various environments.
