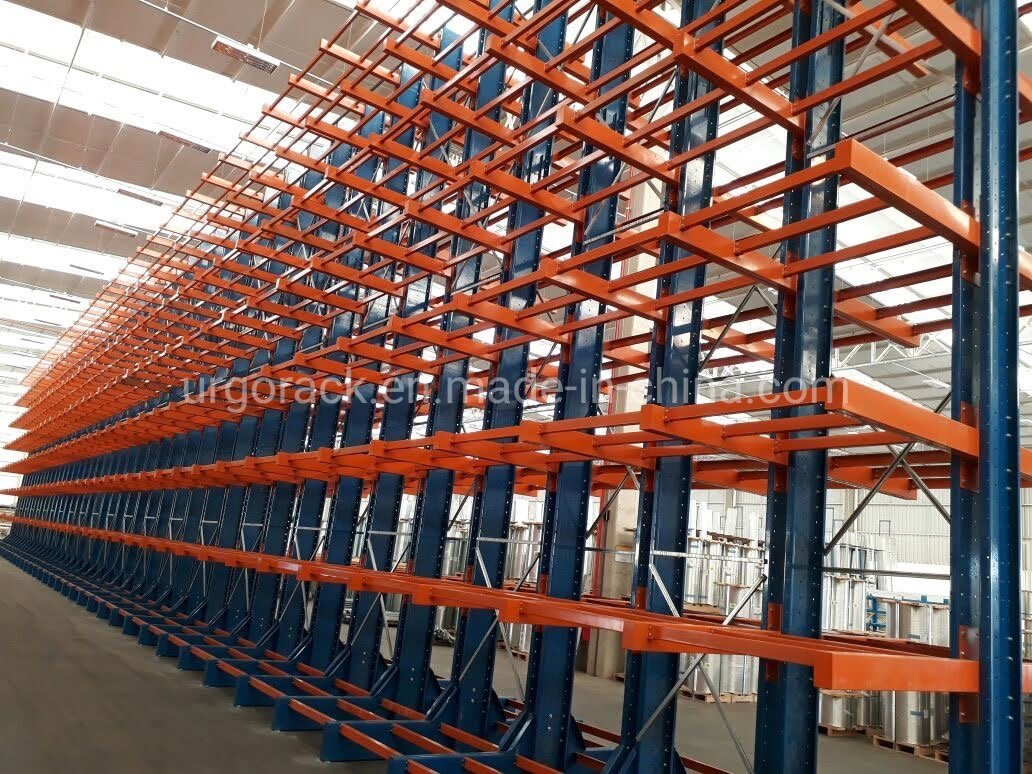

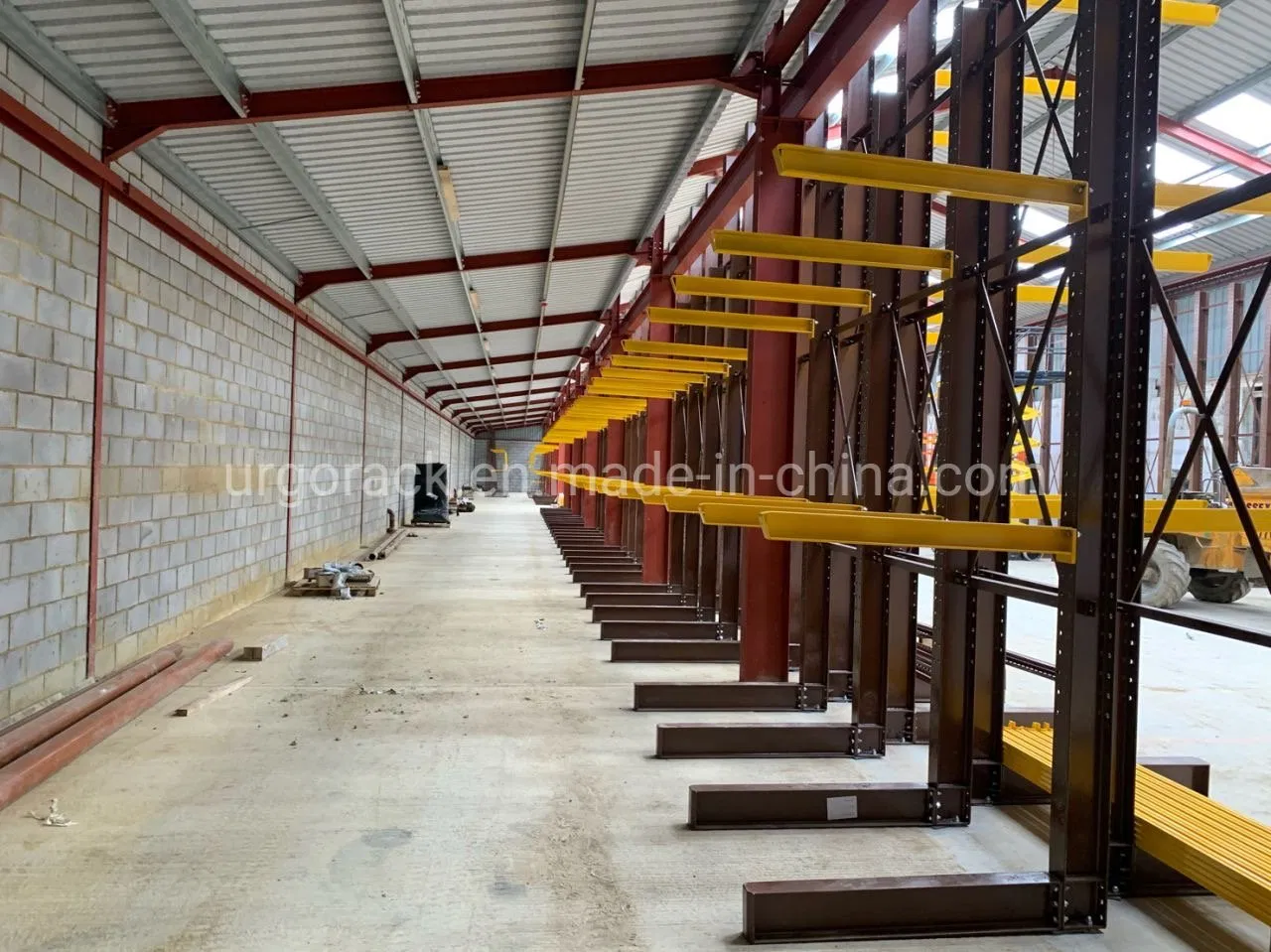

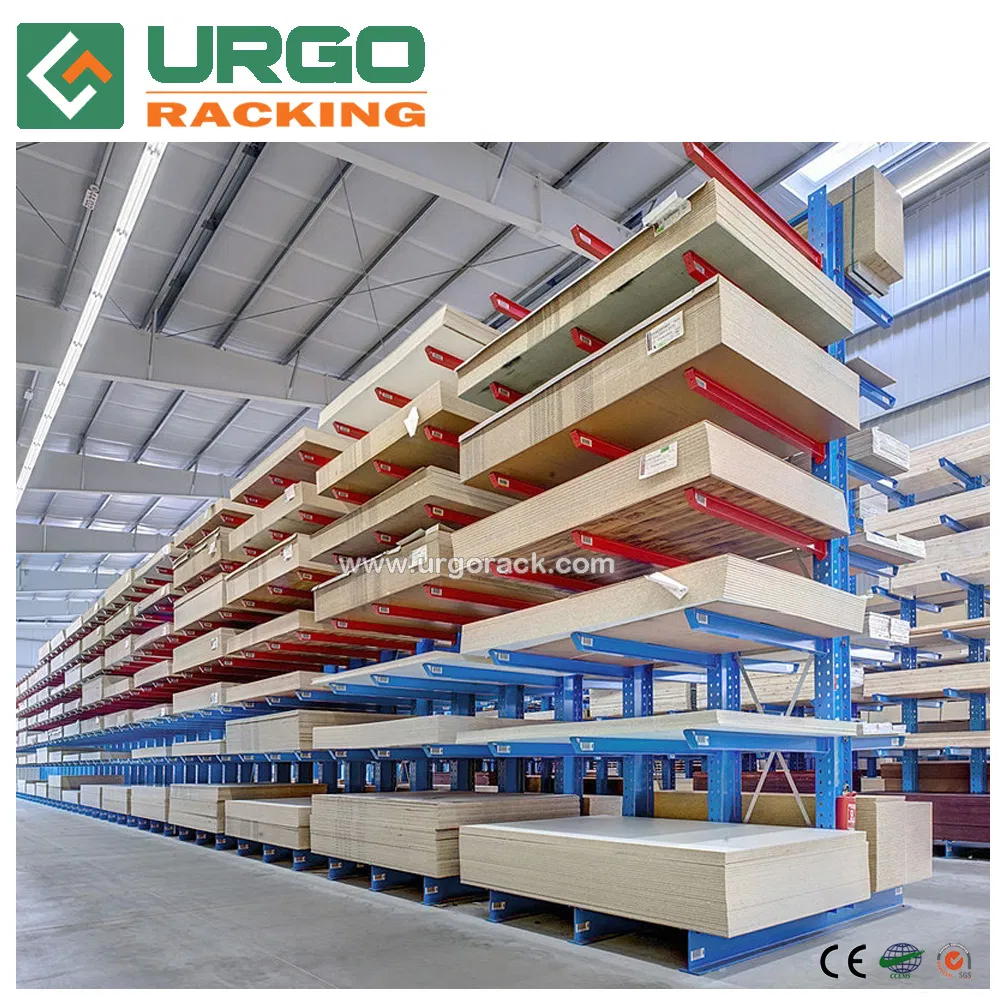

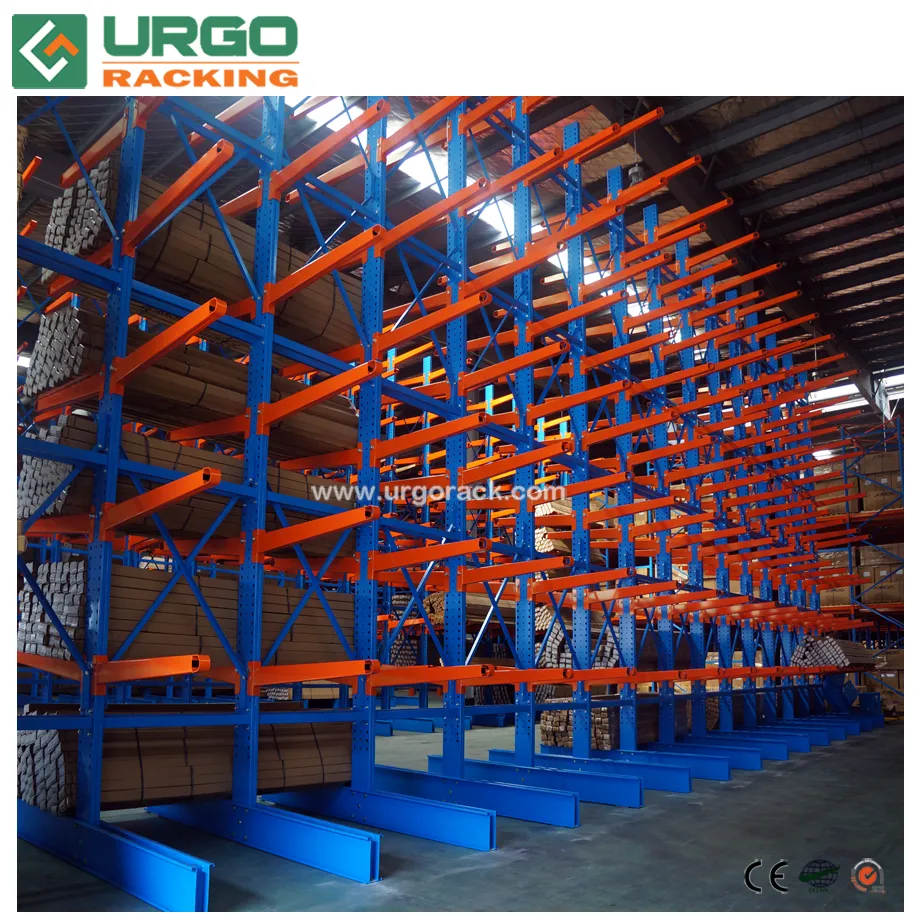

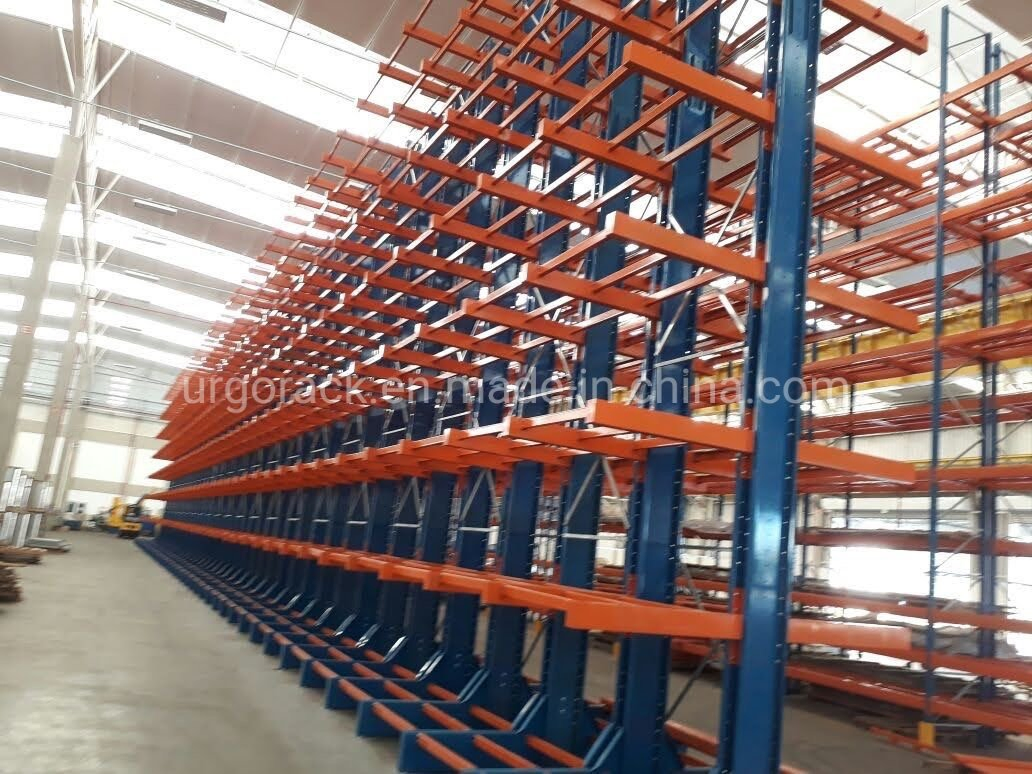

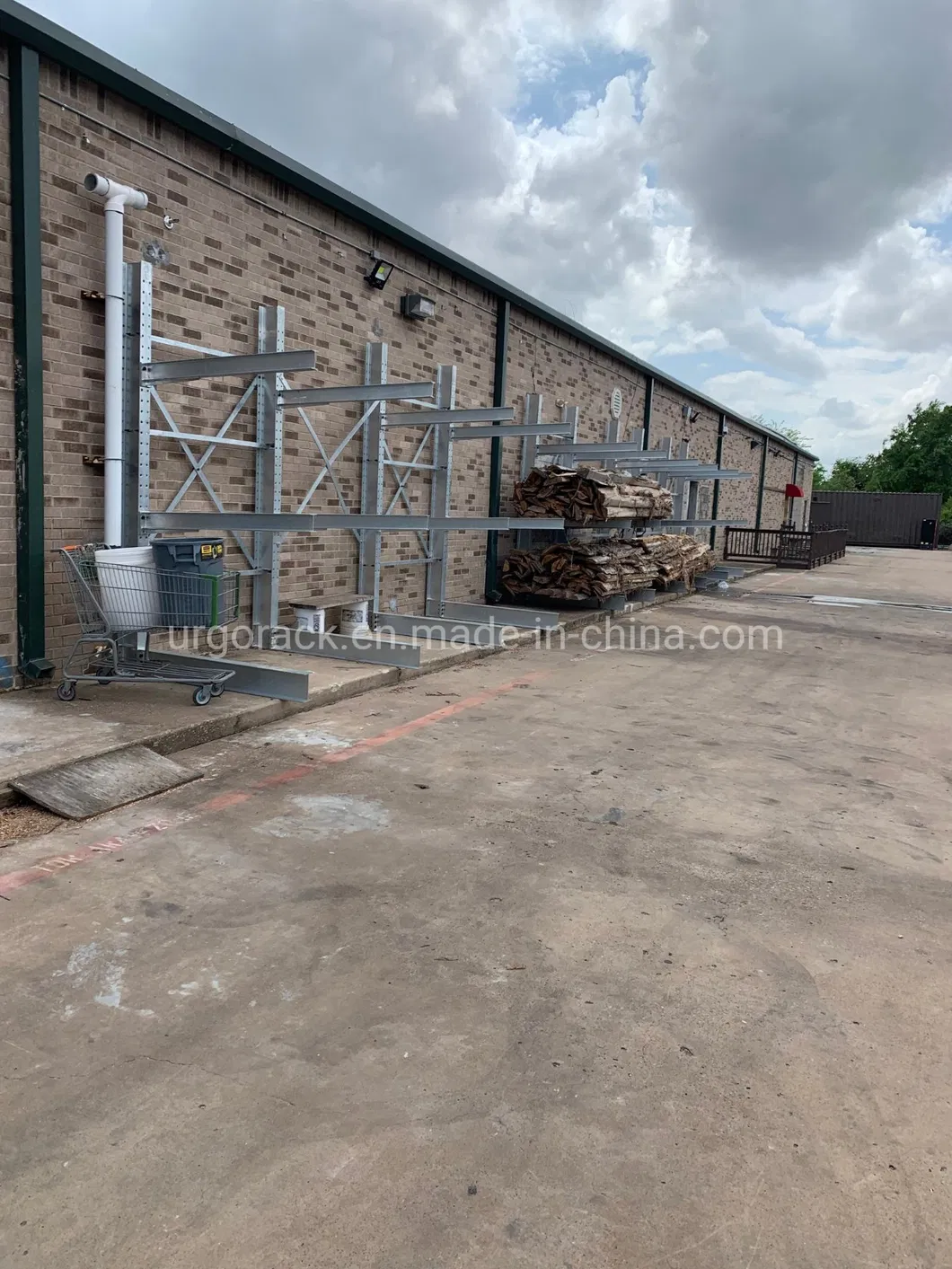

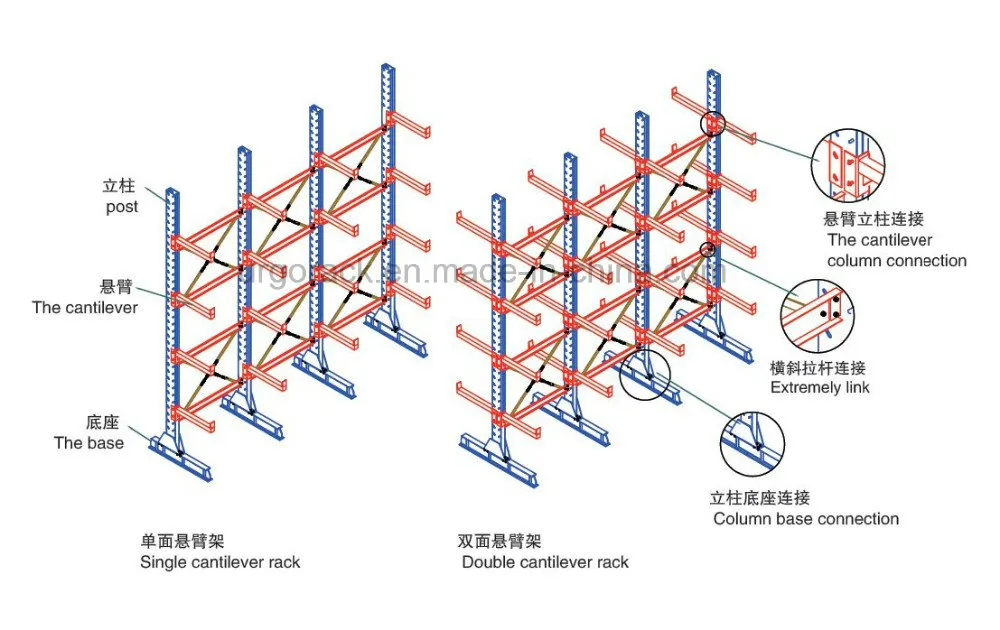

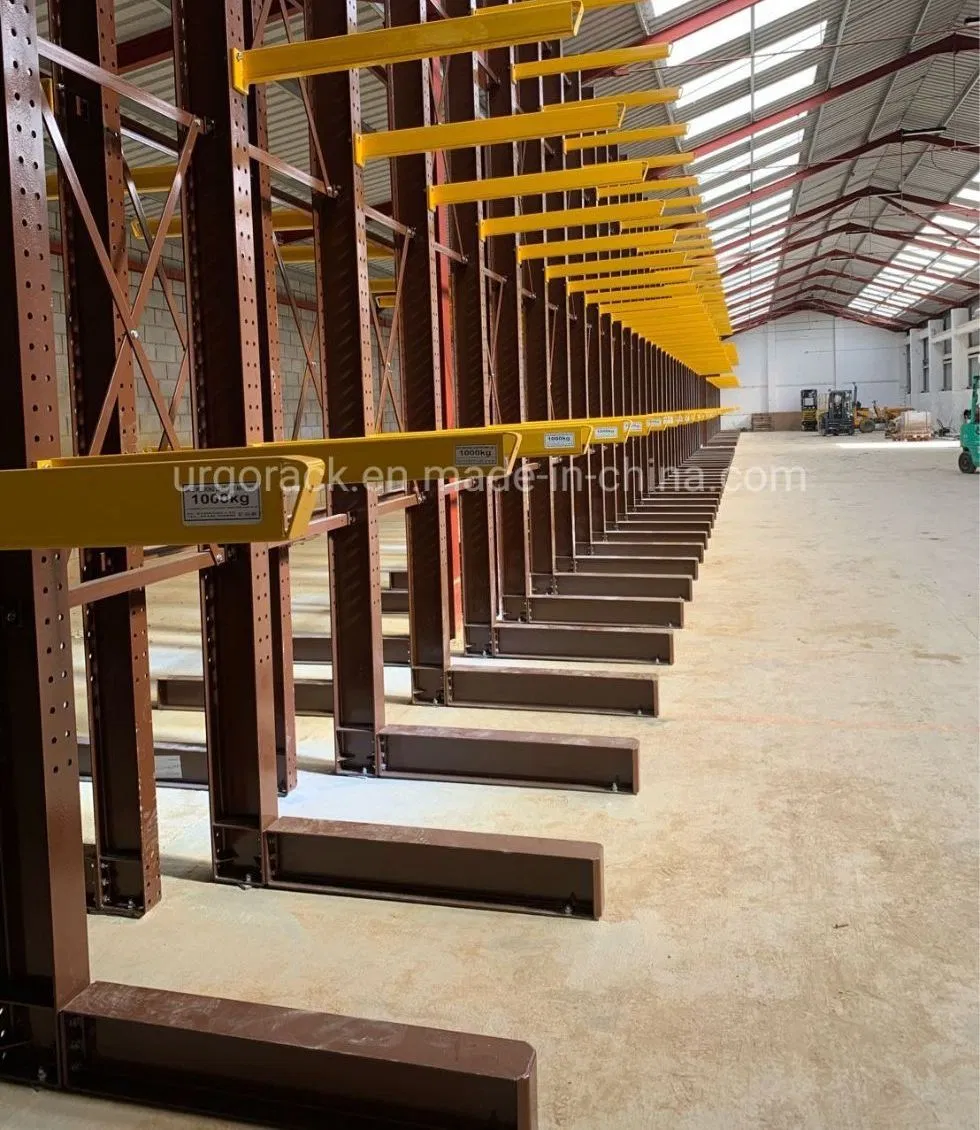

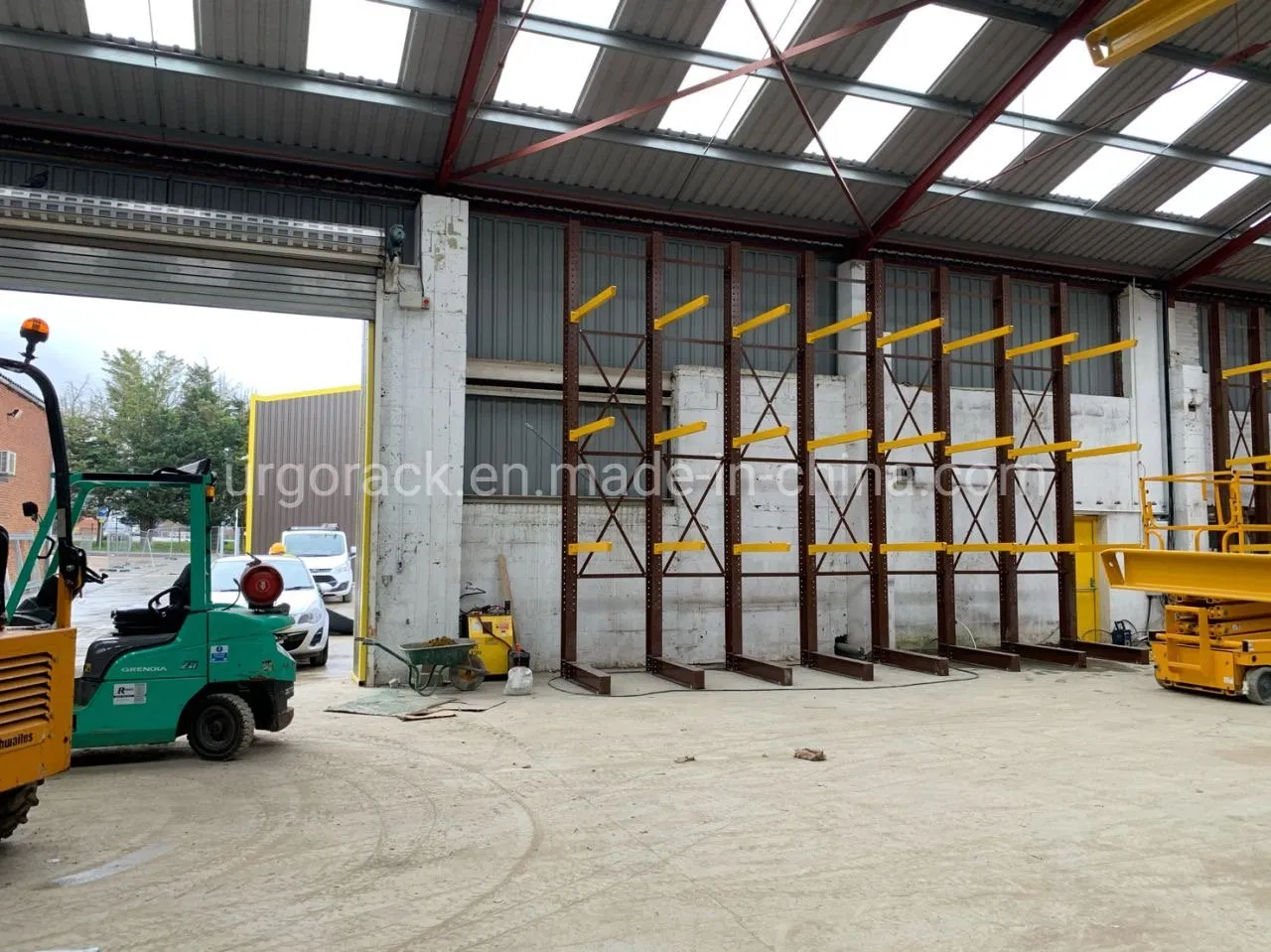

Cantilever Racking is the best solution for storing all those special items. The open front structure facilitates faster loading and unloading. Single or double sided, these units are designed for effective storage and handling of items such as lumber, pipe, plywood, furniture, and structural steel etc. This racking is widely used in mechanical manufacture and architecture material supermarket enterprises.
With no front column in the way, faster to load and unload, lowering handling time and costs.
Loads may be placed anywhere along the entire length of a row on a cantilever rack.
The lack of a front column saves horizontal space and provides more abundant handling clearance.
Any load or storage slot is immediately accessible.
Reduced handling time and increased space utilization make cantilever racks more cost-efficient.
Can store nearly any type of load long, bulky, or oddly-shaped.

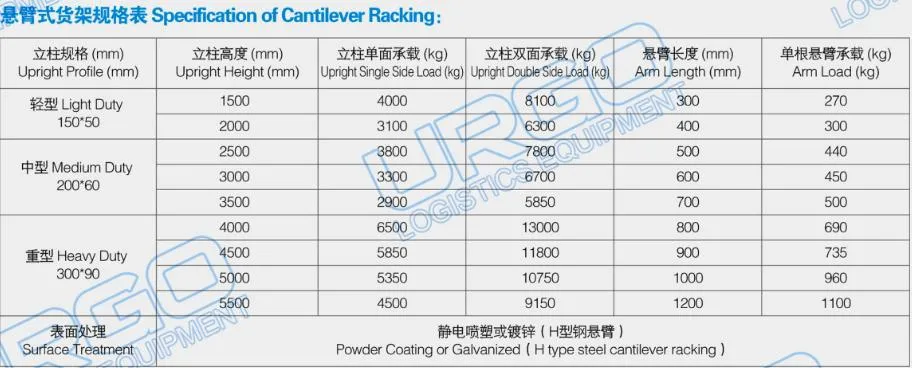

| Upright Profile (mm) | Upright Height (mm) | Single Side Load (kg) | Double Side Load (kg) | Arm Length (mm) | Arm Load (kg) |
|---|---|---|---|---|---|
| Light Duty 150*50 |
1500 | 4000 | 8100 | 300 | 270 |
| 2000 | 3100 | 6300 | 400 | 300 | |
| Medium Duty 200*60 |
2500 | 3800 | 7800 | 500 | 440 |
| 3000 | 3300 | 6700 | 600 | 450 | |
| 3500 | 2900 | 5850 | 700 | 500 | |
| Heavy Duty 300*90 |
4000 | 6500 | 13000 | 800 | 690 |
| 4500 | 5850 | 11800 | 900 | 735 | |
| 5000 | 5350 | 10750 | 1000 | 960 | |
| 5500 | 4500 | 9150 | 1200 | 1100 | |
| Surface Treatment | Powder Coating or Galvanized (H type steel cantilever racking) | ||||

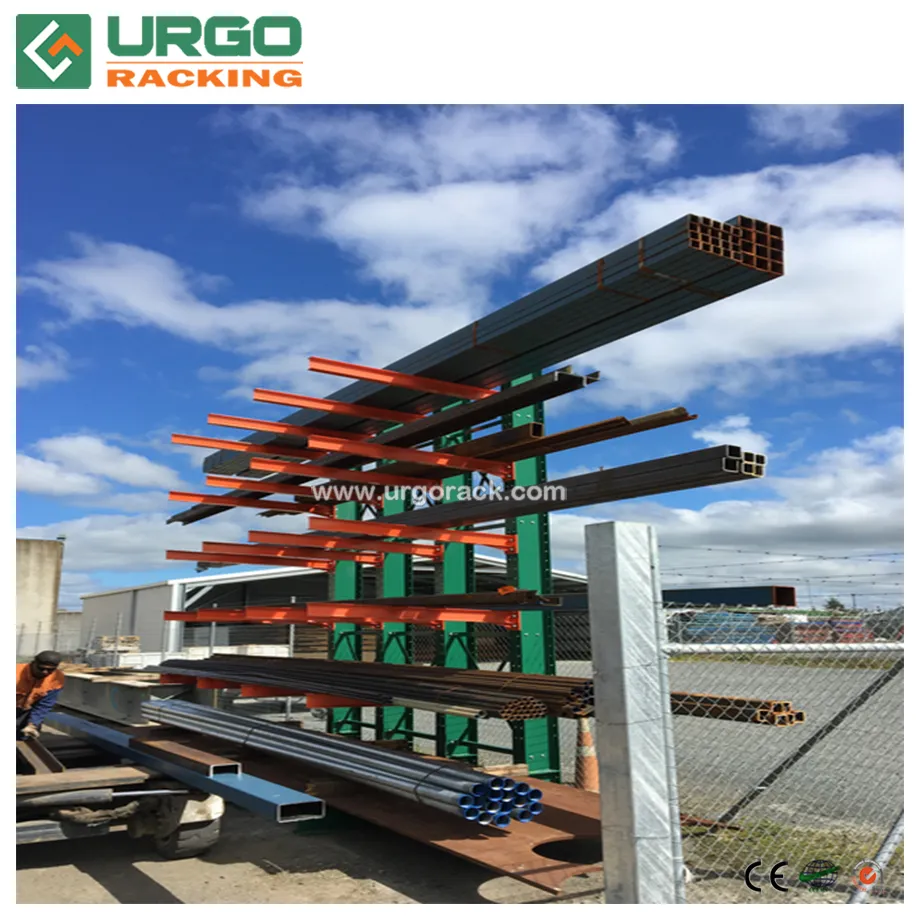

Our professional racking installation team can install or relocate storage rackings according to different customer needs.
Service Commitment: Integrity and pragmatic, innovative and high quality. Excellent quality to ensure a lifetime warranty.
