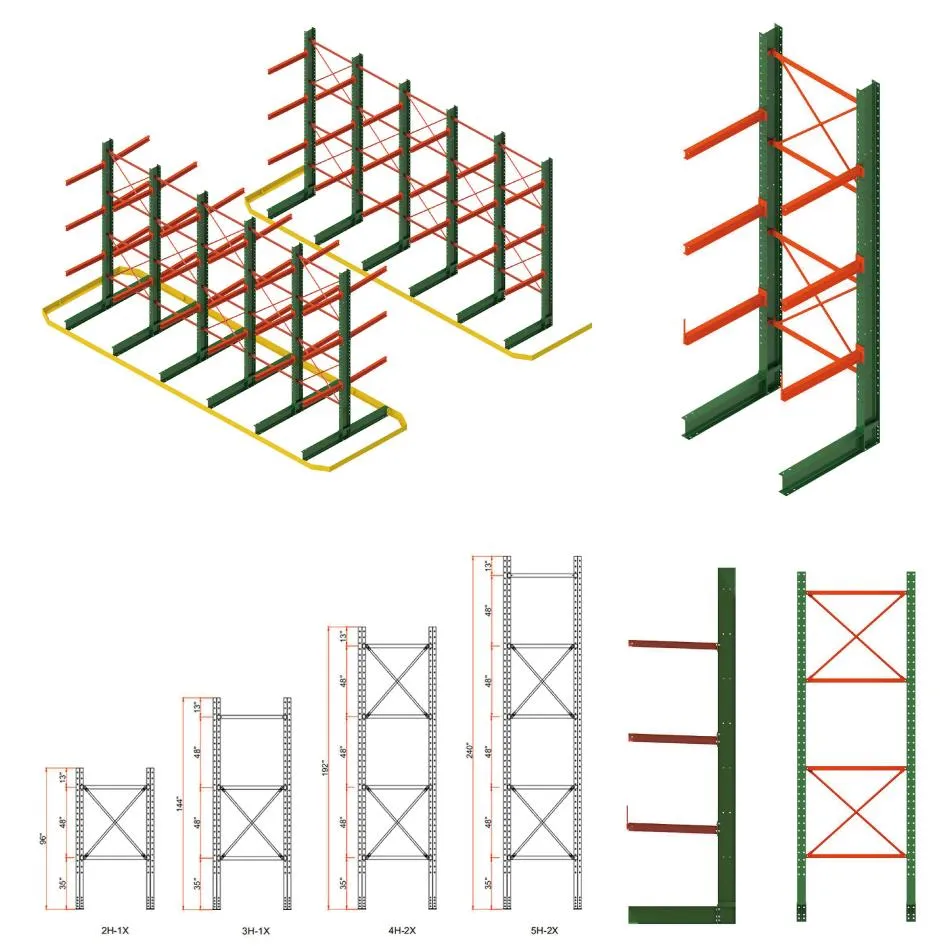

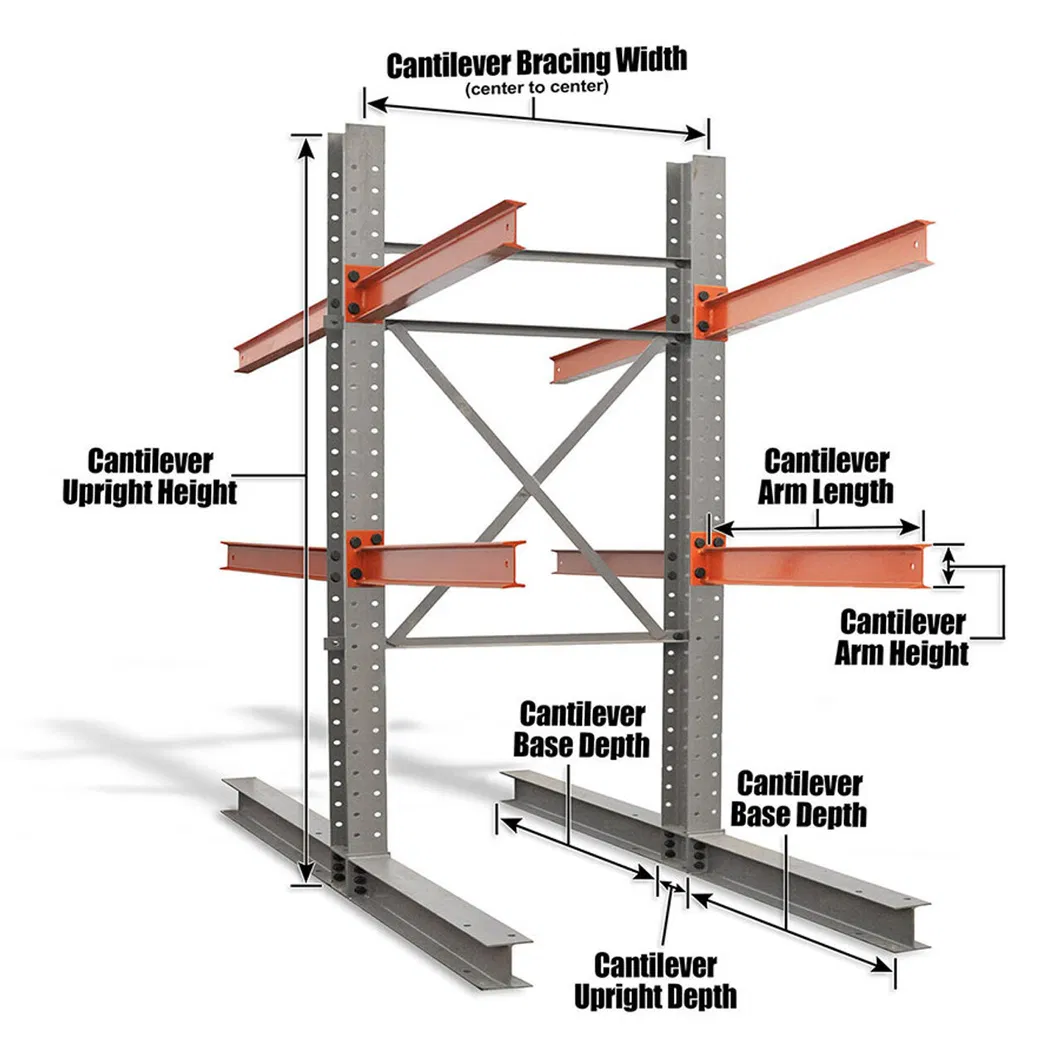

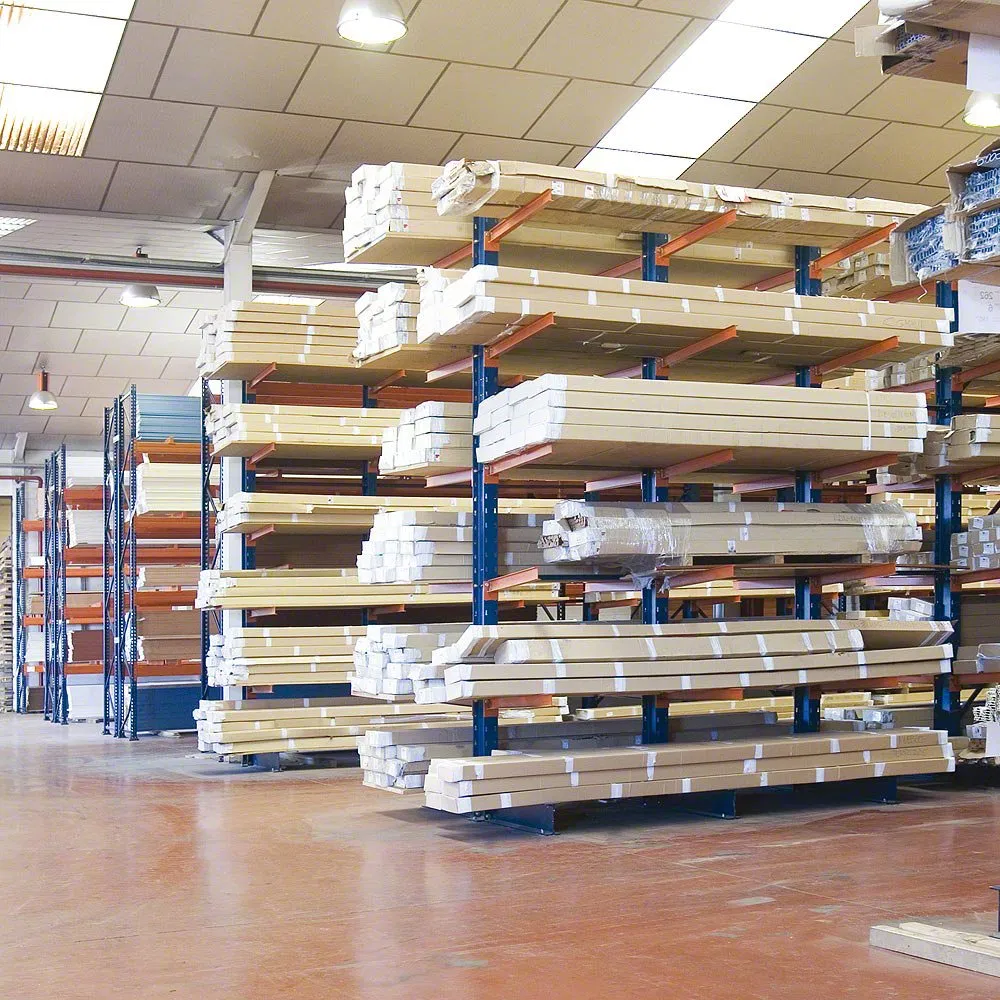

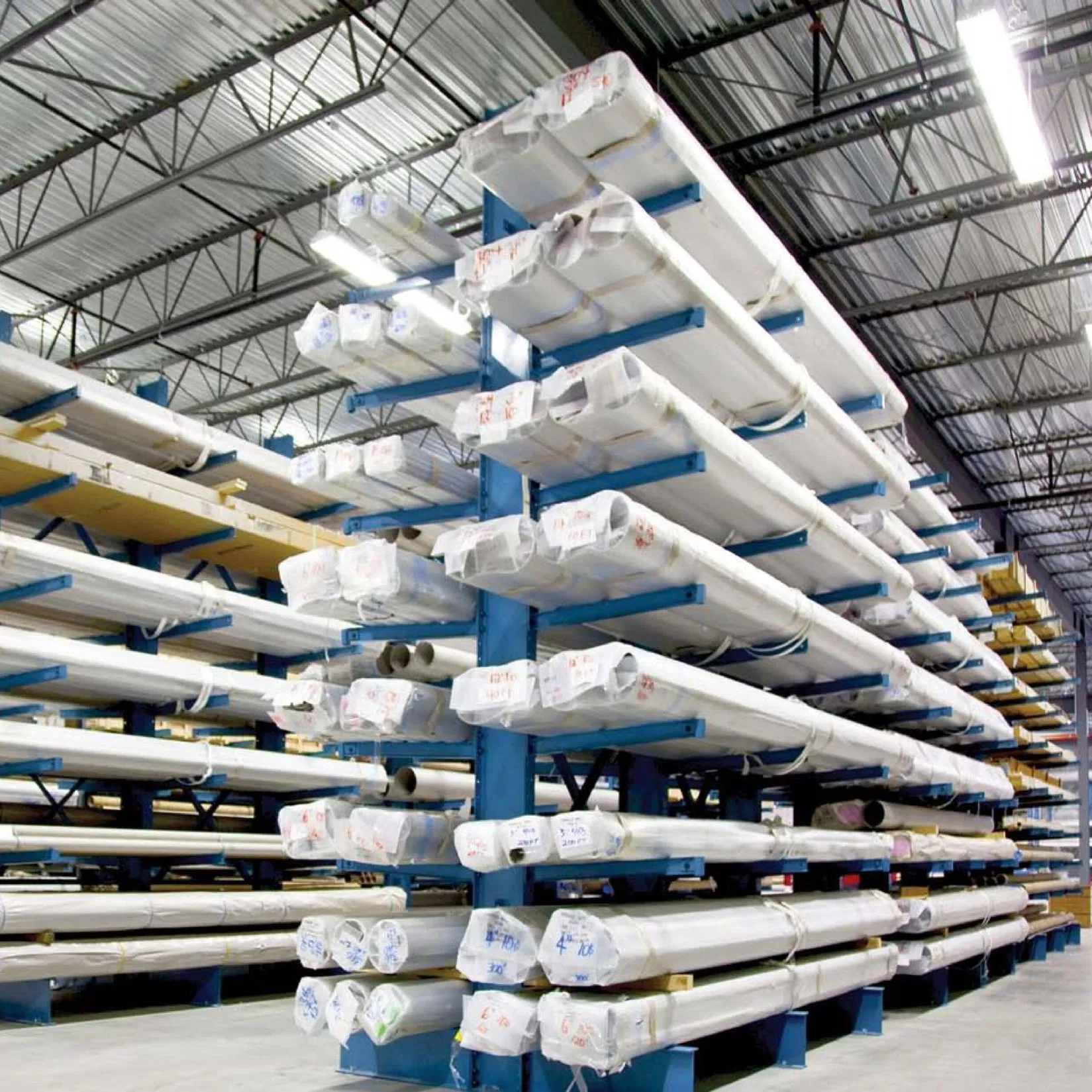

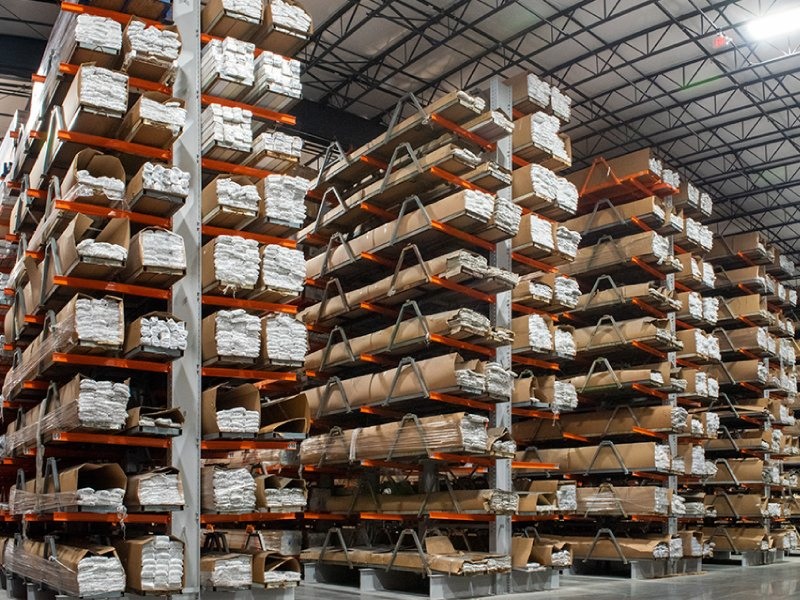

Cantilever racking is a storage system designed specifically for long, bulky, or awkwardly shaped items that wouldn't work well on standard pallet racking systems. Unlike pallet racks, cantilever racks have no vertical posts in front, which creates a completely open storage area.
| Larm [in] | Static Capacity [lbs] Cantilever Column Per Side | |||
|---|---|---|---|---|
| 36'' | 40'' | 48'' | 60'' | |
| 8' | 14,000 | 14,000 | 14,000 | 14,000 |
| 12' | 13,000 | 13,000 | 13,000 | 12,000 |
| 16' | 12,000 | 12,000 | 12,000 | 10,000 |
| 20' | 12,000 | 12,000 | 11,000 | 8,300 |
| 24' | 8,800 | 6,600 | - | - |
| Larm [in] | Cantilever Arm Static Capacity [lbs] | |||
|---|---|---|---|---|
| 36'' | 40'' | 48'' | 60'' | |
| Arm 4'' | 2,600 | 2,600 | 2,300 | - |
| Arm 4.7'' | 3,300 | 3,300 | 3,300 | 2,900 |
| Arm 5.5'' | 3,900 | 3,900 | 3,900 | 3,900 |
