| Usage | Tool Rack, Clothing, Tools, Supermarket, Industrial, Warehouse Rack |
| Material | Steel |
| Structure | Rack |
| Type | Pallet Racking |
| Mobility | Mobile |
| Height | 5-15m |
| Weight Capacity | >500kg |
| Surface Treatment | Powder Coating & Galvanized |
| Certificates | Fem, As4084, ISO9001, CE |
| Origin | China |

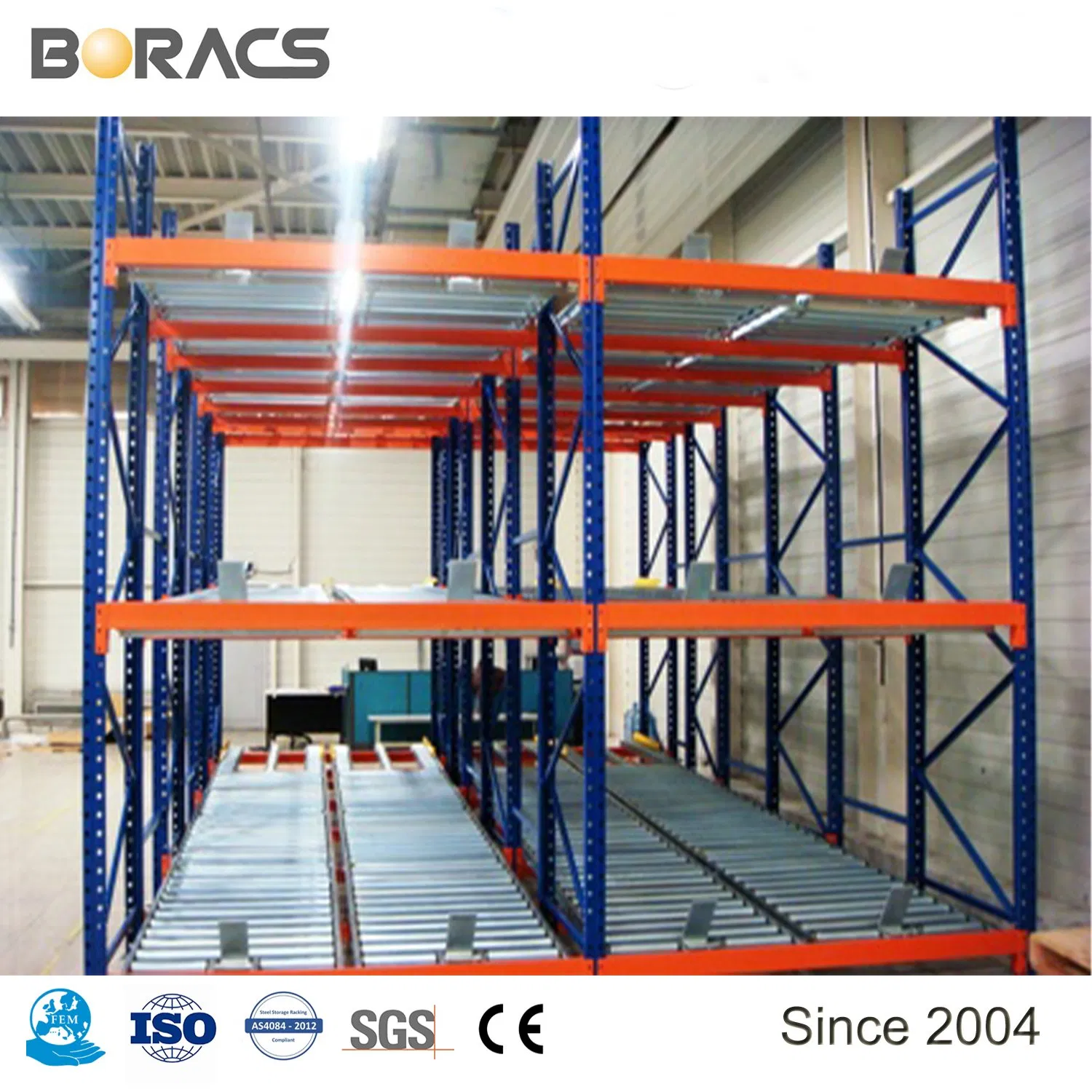

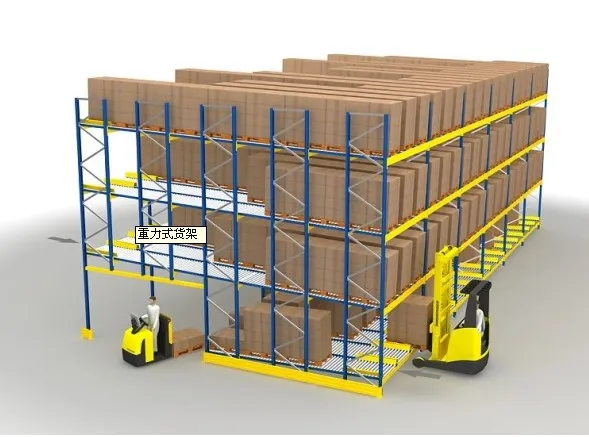

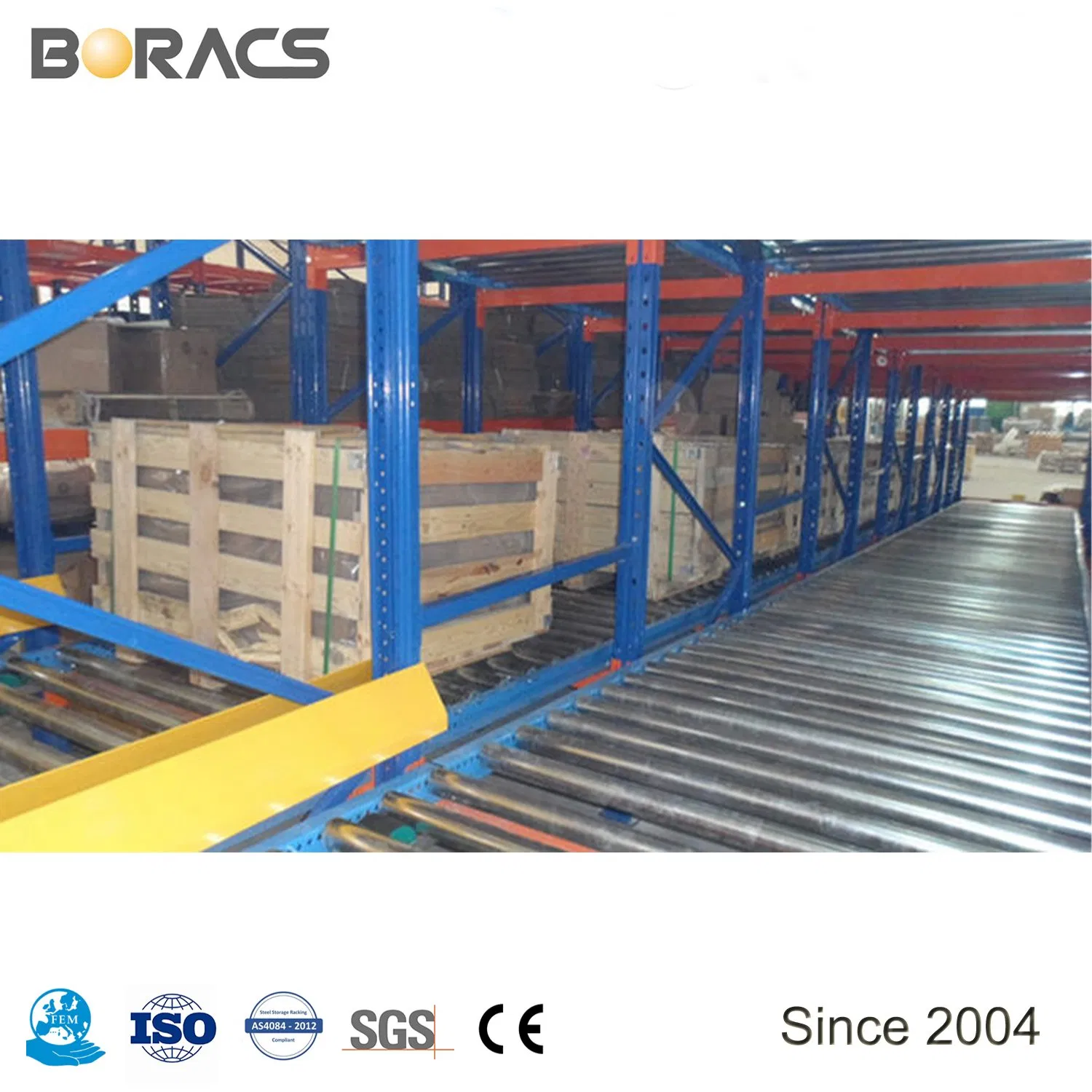

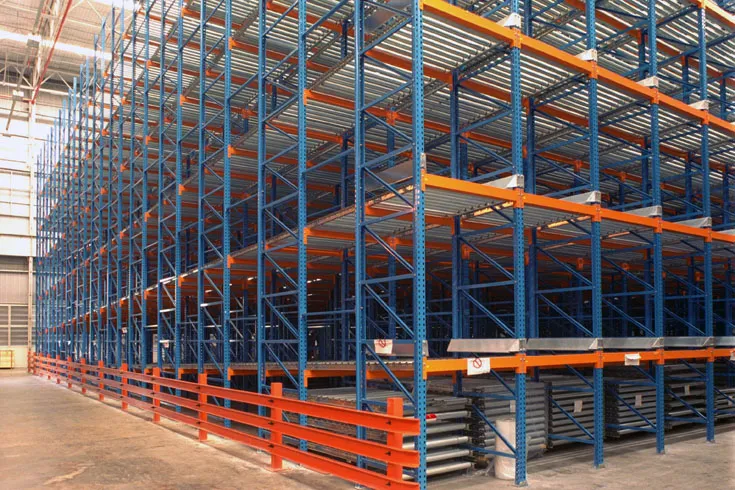

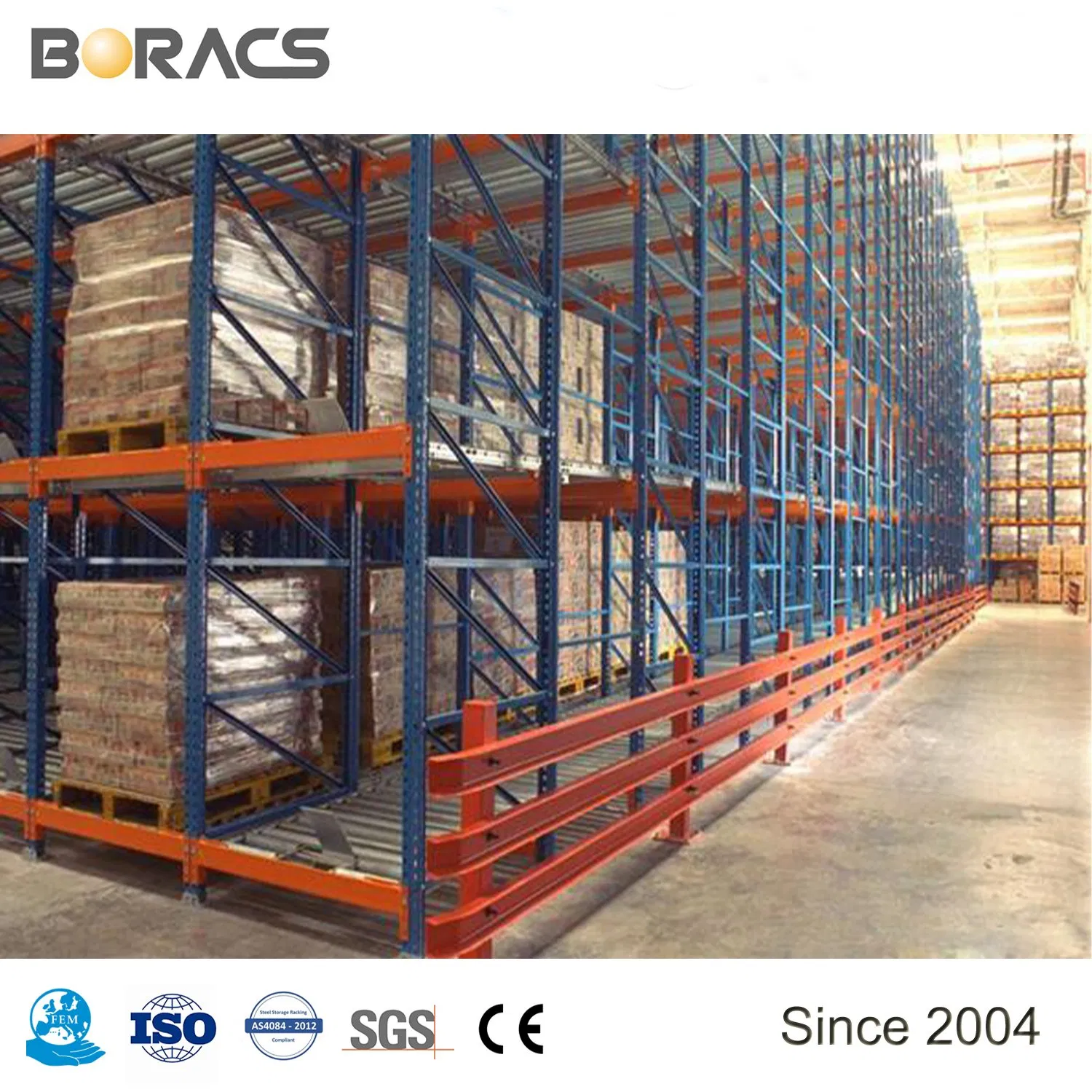

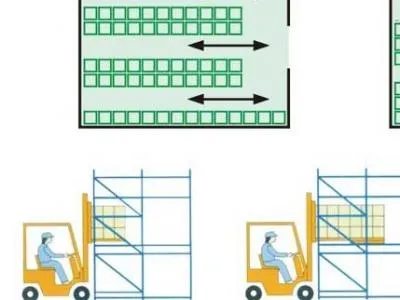

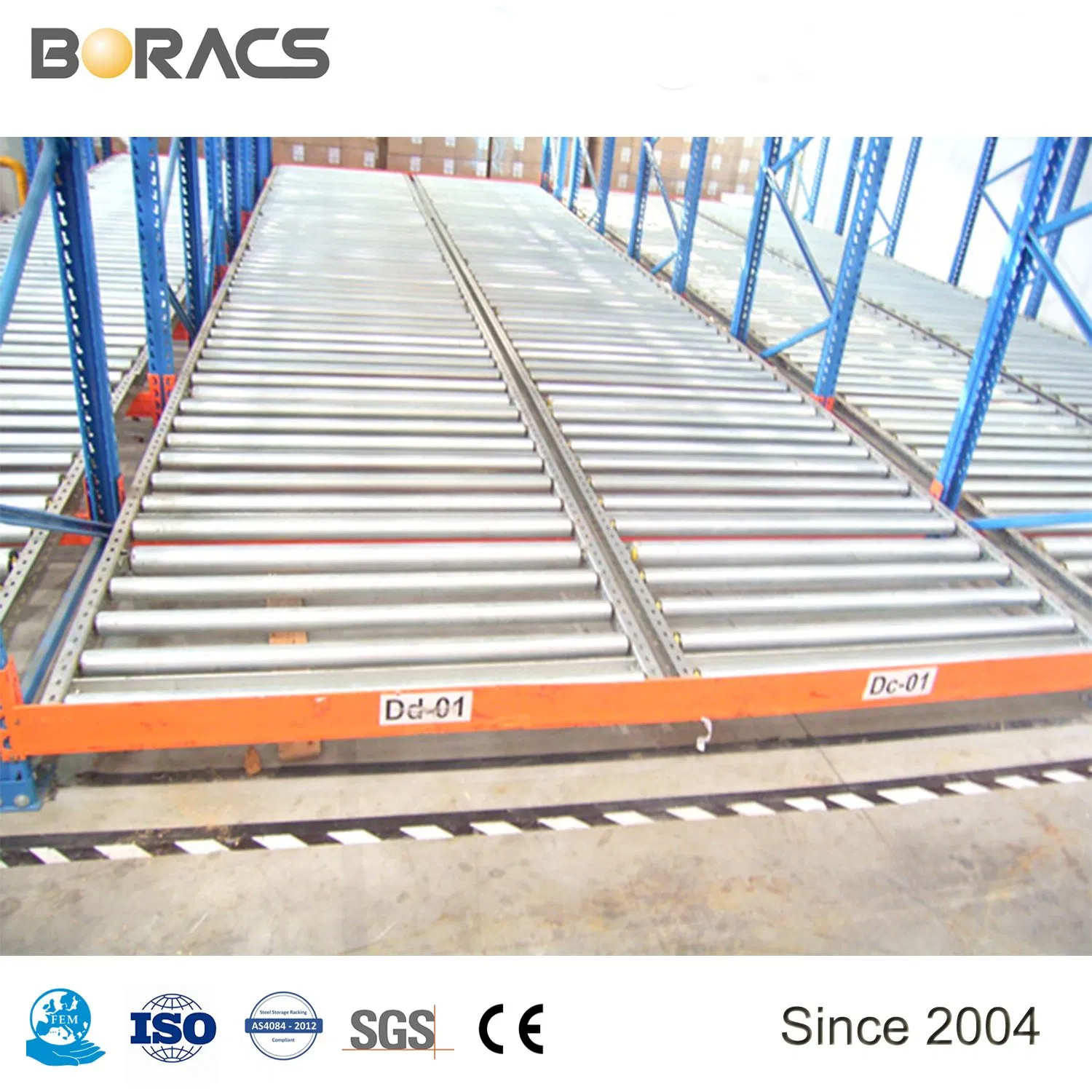

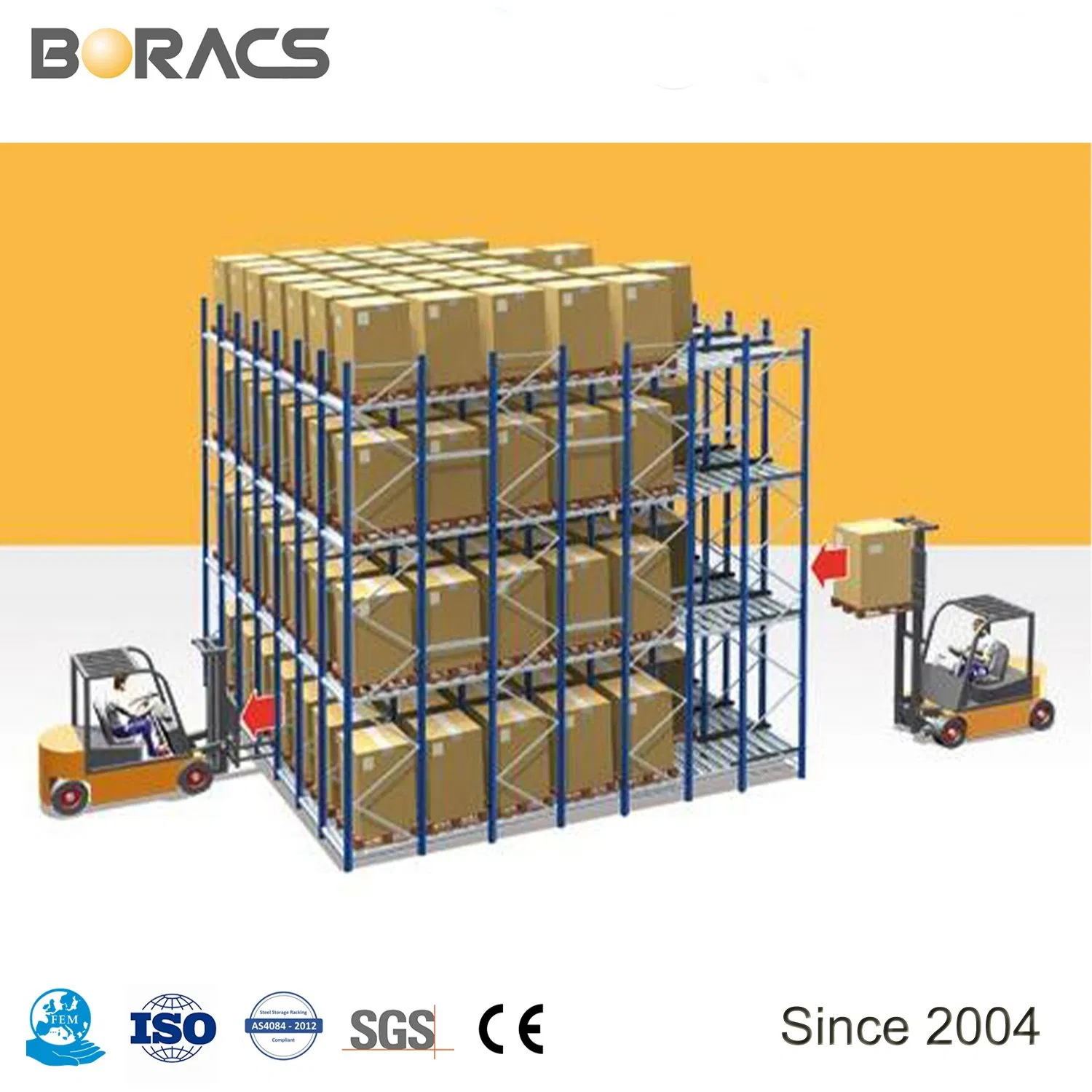

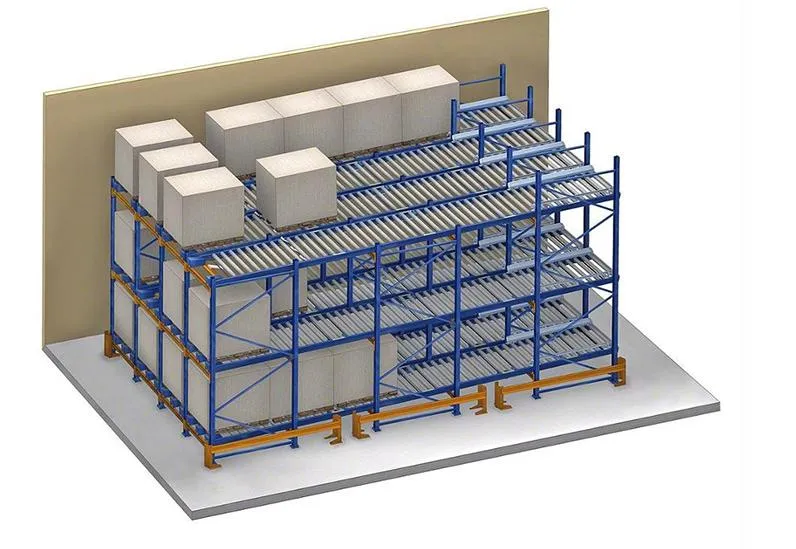

Pallet live rack (also called gravity rack) is a high density and low energy consumption storage system. The pallet is supported by steel rollers, then slide down from entrance side to exit along the sloping roller conveyor. The brake is installed in the roller system to control the sliding speed of pallet. The safety separator can separate the first pallet from the following one at the exit side so that forklift can easily take away the pallets.
Applicable to storage operations using pallets as carriers. The stack of goods is neat and provides a good solution for the storage of large and heavy objects. The utilization rate of storage space is above 75%, and only one import and export channel is required.
| Parameter | Specification |
|---|---|
| Loading Capacity | Up to 4,000 kgs UDL/level |
| Racking Height | Up to 12,000mm |
| Racking Depth | 700-1500mm |

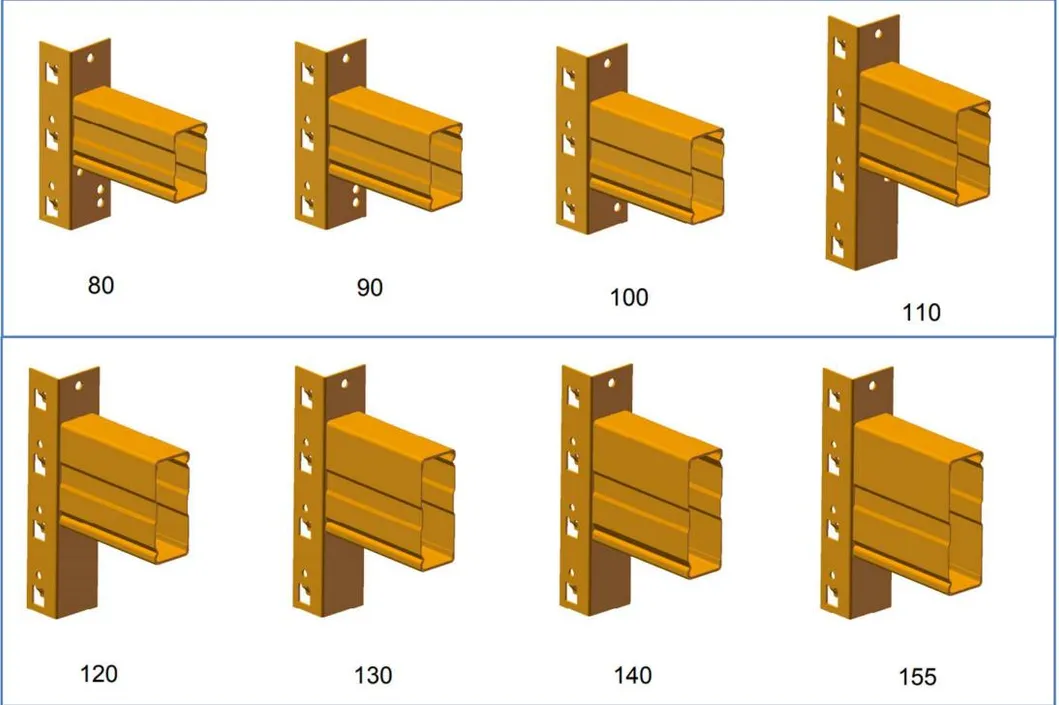

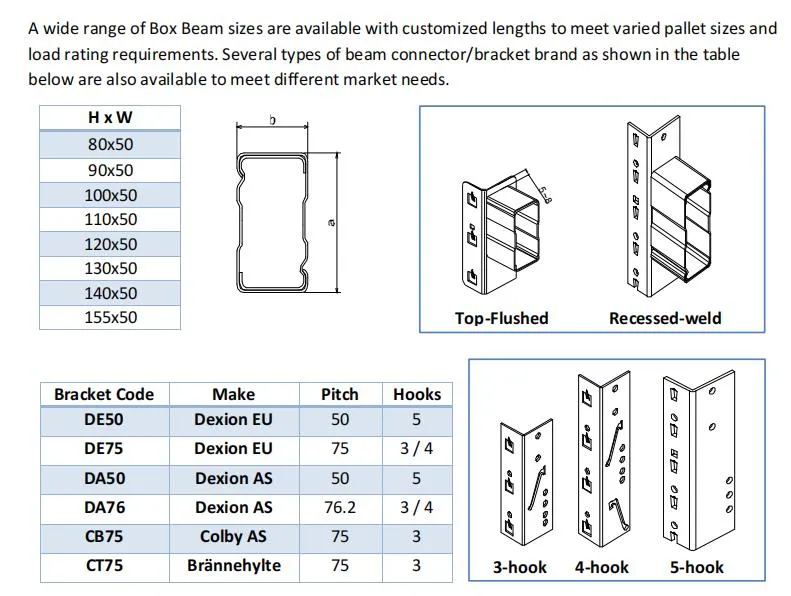

| Beam Length | Up to 4500mm |
| Raw Steel Code | Q235B High Grade Hot Rolled Steel |
| Inventory System | FIFO (First-In, First-Out) |

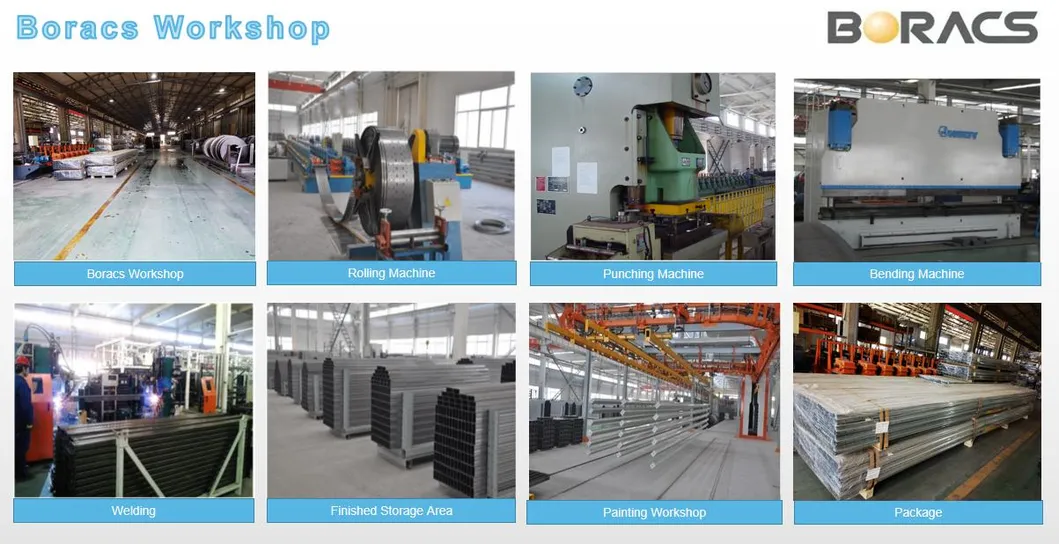

As a leading racking systems manufacturer, we specialize in international export markets. Over the years, we have provided installations in over 30 countries globally. We strive to serve clients with quality products, competitive prices, and prompt services. Regular Tensile and Yield Strength tests are conducted to ensure only qualified materials are used. Racking designs comply with European FEM and Australian Standards.
