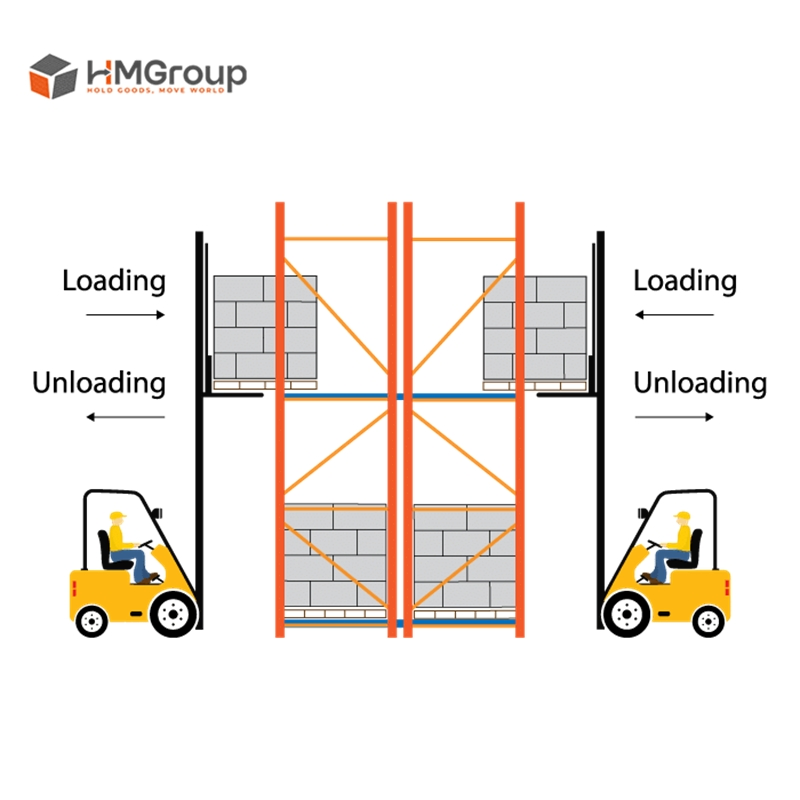

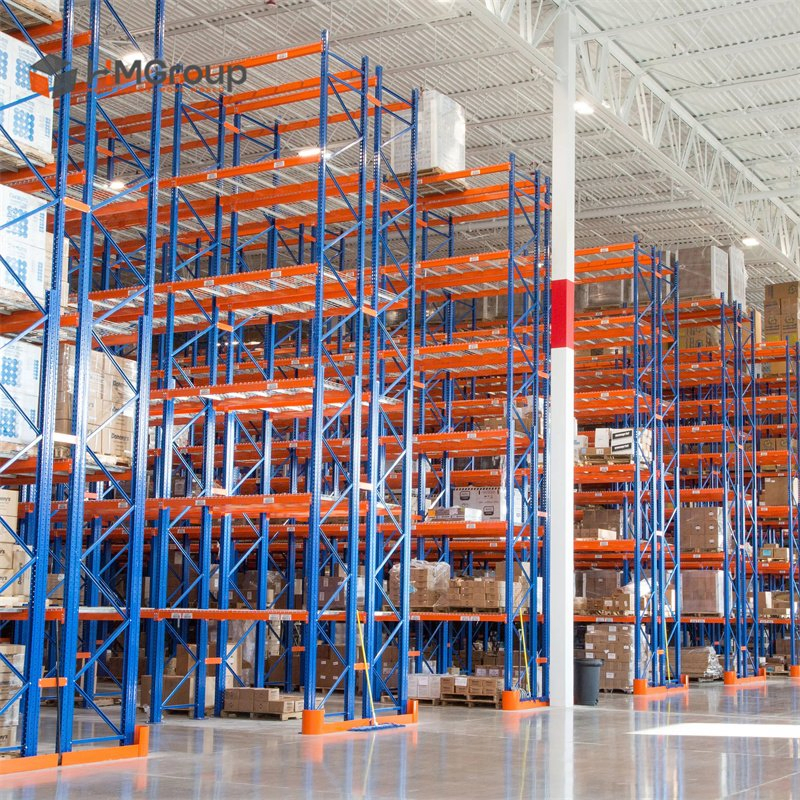

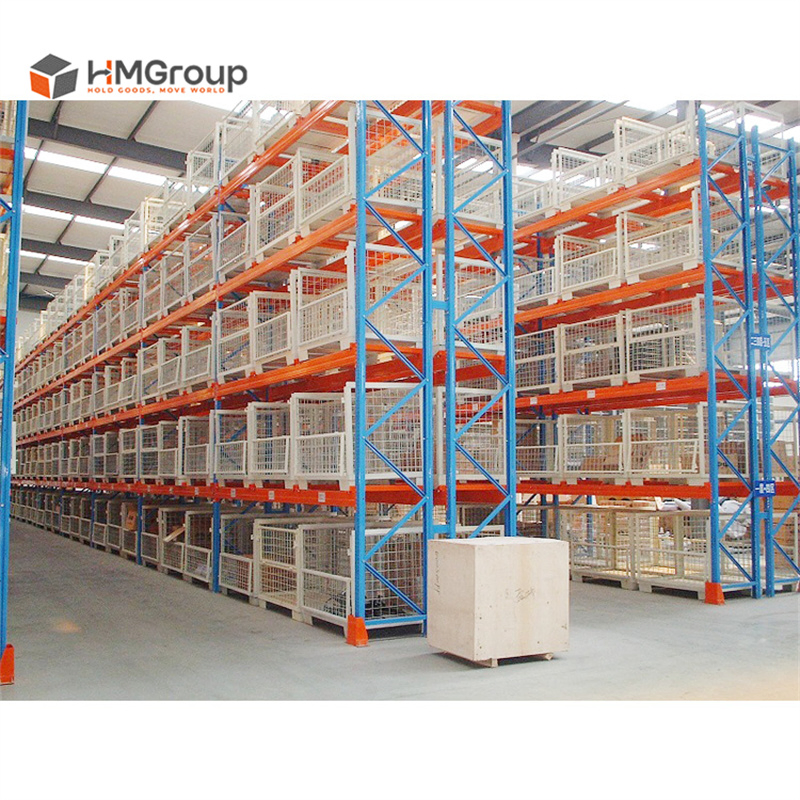

Pallet Racking Warehouse Storage Heavy Duty Pallet Racking
Pallet Rack is hooking structured, easy to dismount and install.

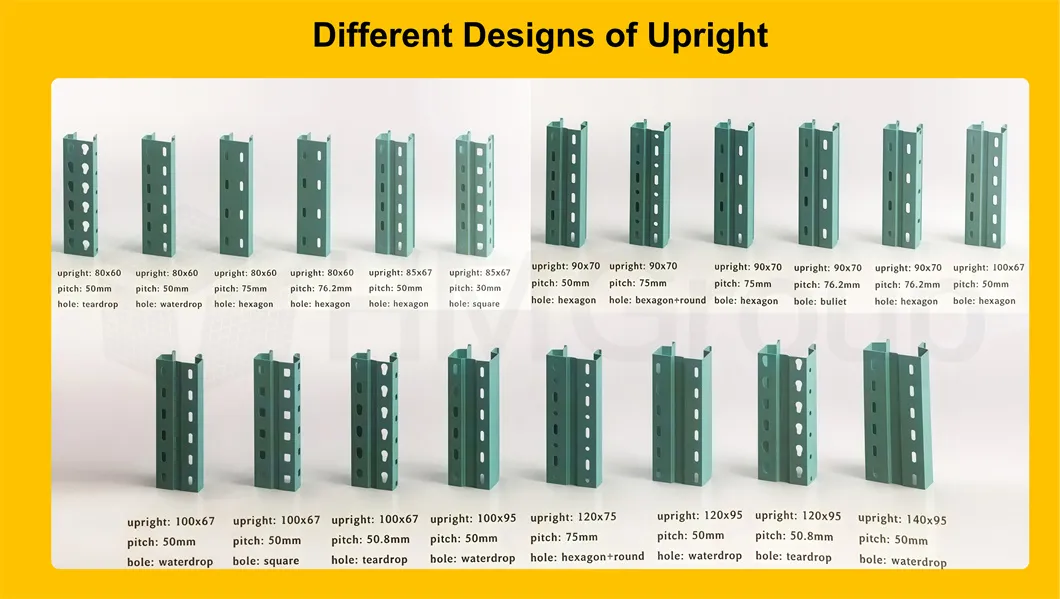

Specifications of Heavy Duty Pallet Racking
| Part Number | Description | Specification | Color |
|---|---|---|---|
| HM-SC096-36-1533-58 | Upright 36"x96" | 15ga.,5"x8"BP | Custom |
| HM-SC120-36-1533-58 | Upright 36"x120" | 15ga.,5"x8"BP | Custom |
| HM-SC144-36-1533-58 | Upright 36"x144" | 15ga.,5"x8"BP | Custom |
| HM-SC192-36-1533-58 | Upright 36"x192" | 15ga.,5"x8"BP | Custom |
| HM-SC240-36-1433-58 | Upright 36"x240" | 14ga.,8"x8"BP | Custom |
| HM-SC096-42-1533-58 | Upright 42"x96" | 15ga.,5"x8"BP | Custom |
| HM-SC120-42-1533-58 | Upright 42"x120" | 15ga.,5"x8"BP | Custom |
| HM-SC144-42-1533-58 | Upright 42"x144" | 15ga.,5"x8"BP | Custom |
| HM-SC192-42-1533-58 | Upright 42"x192" | 15ga.,5"x8"BP | Custom |
The surface of the cold-rolled steel is smooth and bright, without burrs or revision, and the surface is powder-coated without rust.

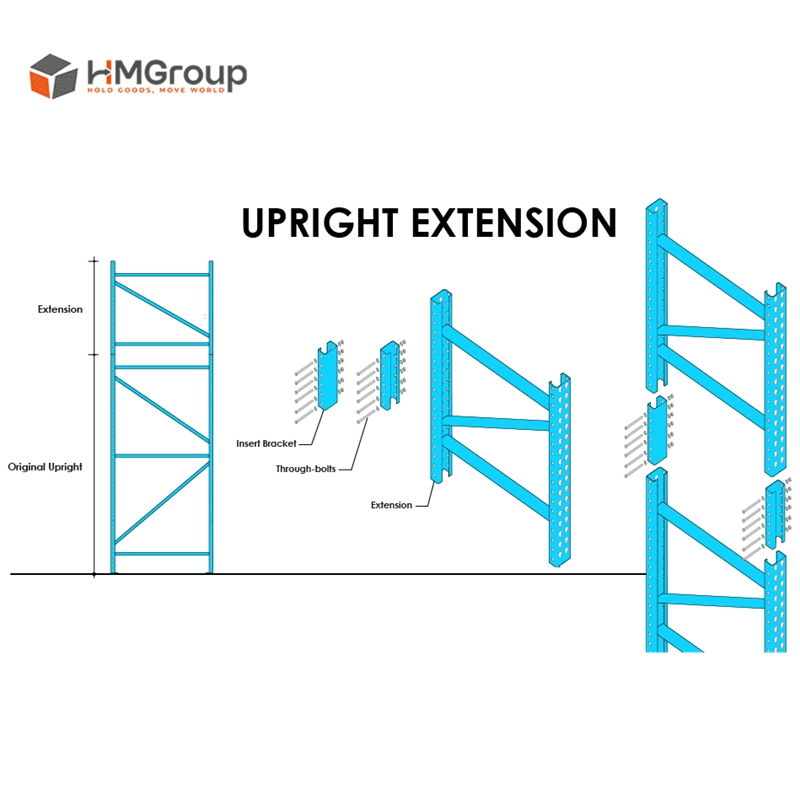

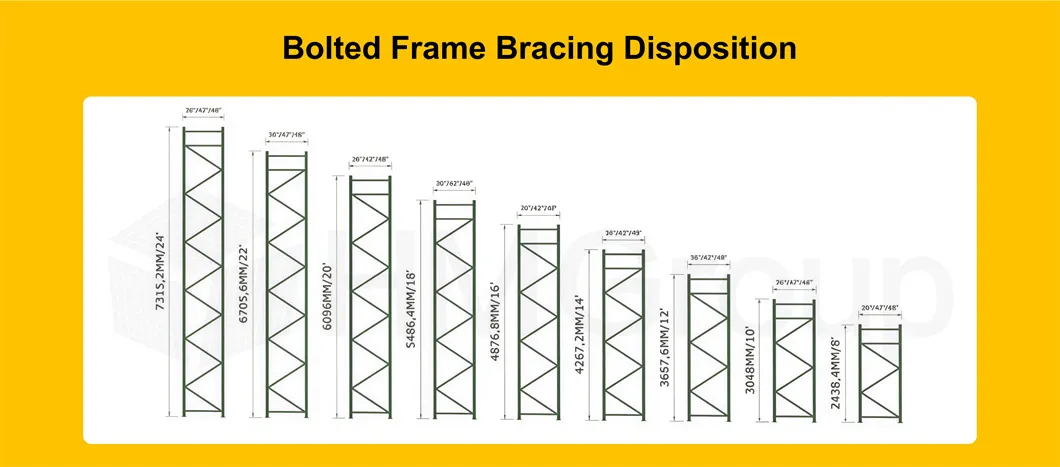

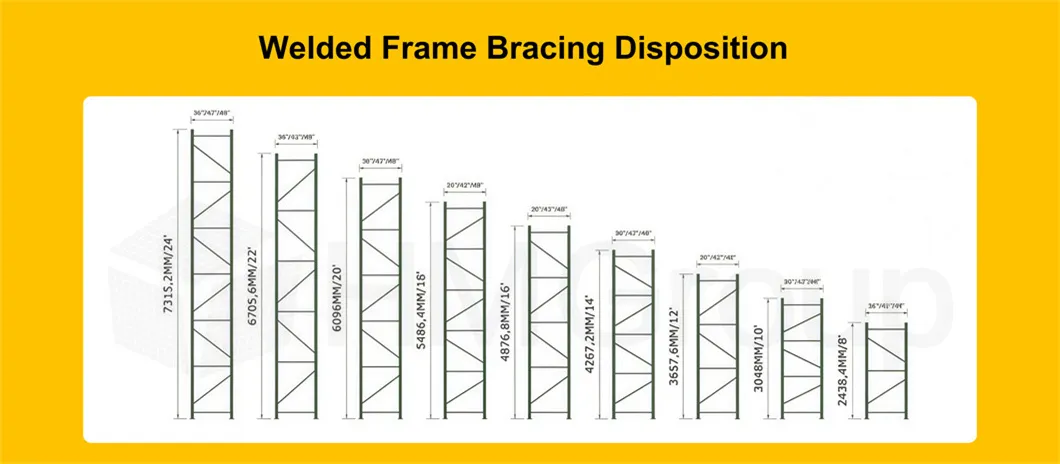

| Item | Bolted Upright Frame | Welded Upright Frame |
|---|---|---|
| Structure | Uprights, horizontals, and diagonals are connected with bolts, assembled on site | Uprights, horizontals, and diagonals are welded together in the factory |
| Installation Efficiency | Takes longer, requires on-site assembly | Faster installation, ready to use upon arrival |
| Transportation Cost | Can be disassembled, smaller volume, lower freight cost | Occupies more space, higher freight cost |
| Structural Stability | Slightly weaker than welded frame | Stronger rigidity, excellent seismic performance |
The height of the rack is determined according to the effective height of the warehouse eaves and the max fork height of the forklift.

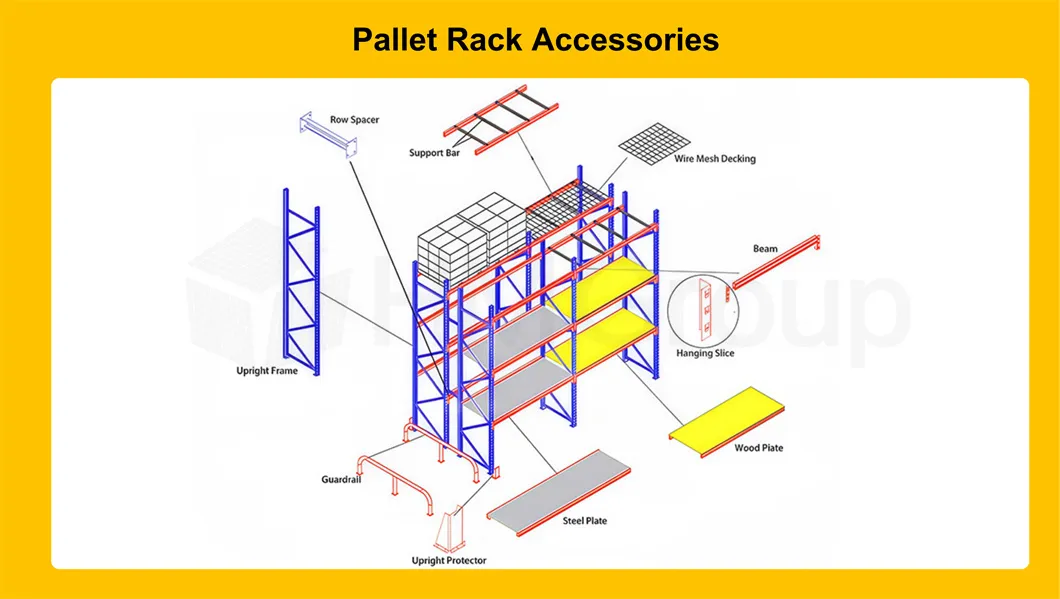

Certifications & Accessories
