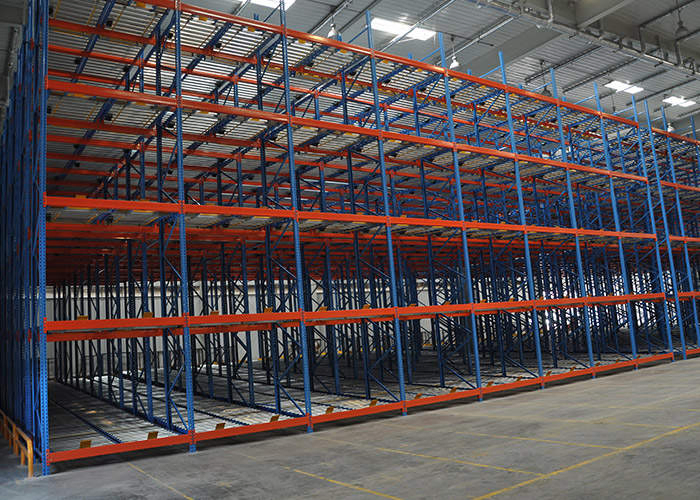

Heavy-Duty Pushback Pallet Racking System for Industry Storage.

1 / 5

Heavy-Duty Pushback Pallet Racking System for Industry Storage.

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Push back racking

Structure

Rack

Type

Pallet Racking

Mobility

Fixed

Height

Maximum 12000mm

Weight Capacity

1000-4000kg Per Tier

Surface Treatment

Powder Coated

Certification

CE, ISO9001, 14001

Features

Versatility, Stability, Durability

HS Code

73089000

Product Description

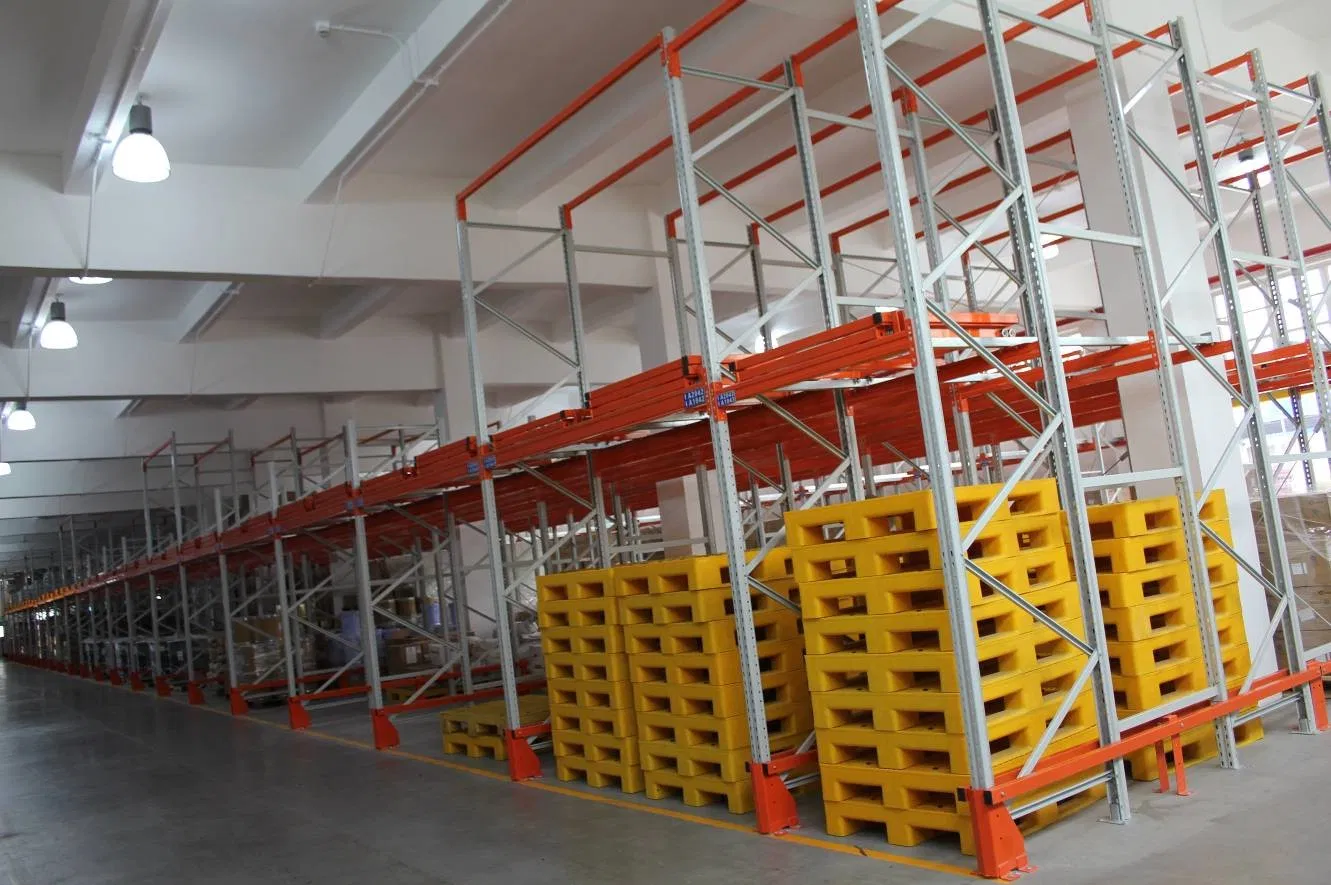

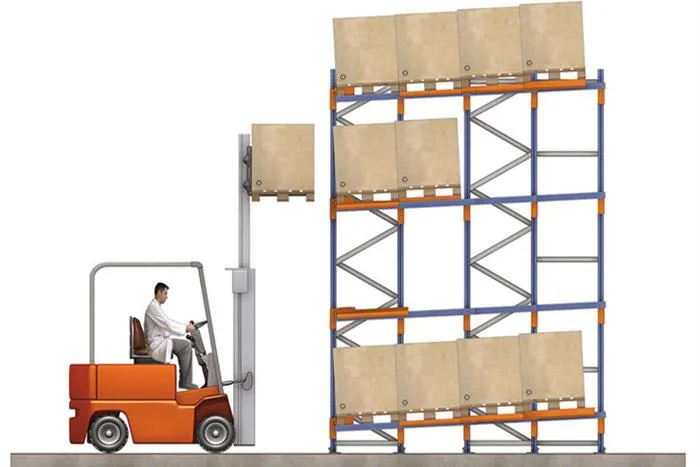

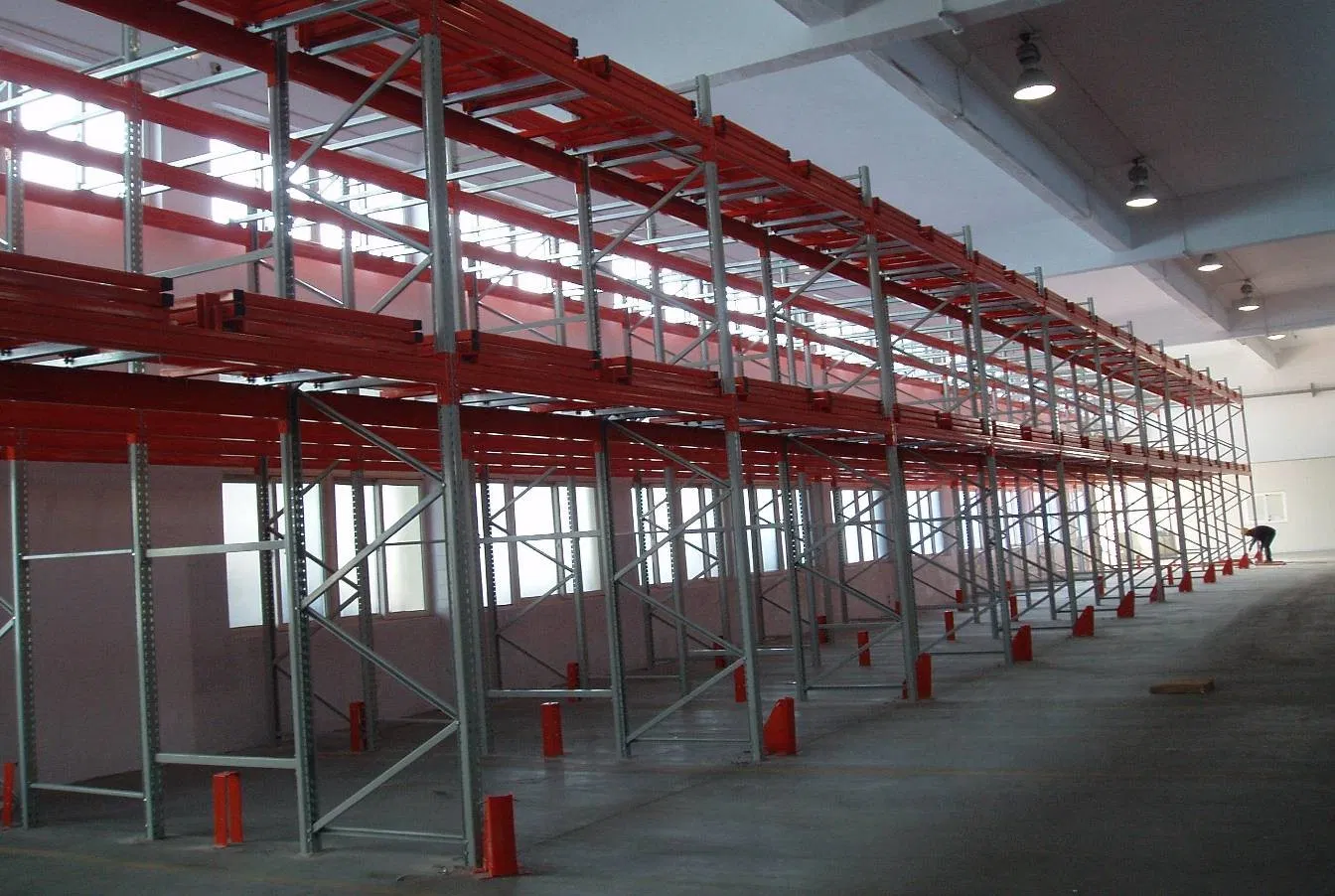

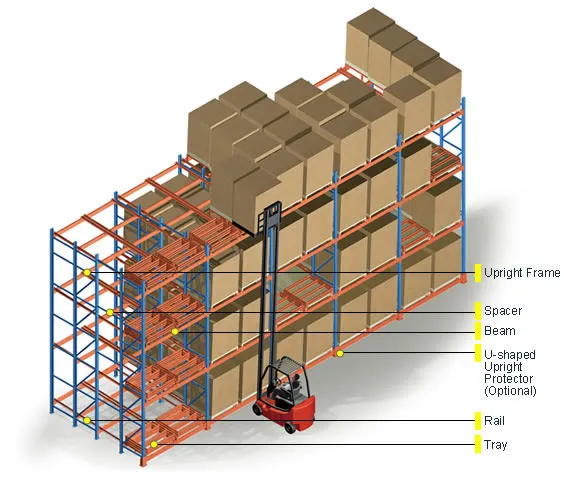

Understanding Push-Back Racking: The push-back racking system is a live storage solution for pallets formed by a compact structure, where unit loads are moved by means of rollers or shuttles with the aid of a slight incline.

It is designed for LIFO (Last in, First out) management. The forklift operates in a single aisle, pushing existing pallets back to create space for new ones.

Technical Specifications

Material	Steel Q235B, Q235D, SS400
Feature	Third-party logistics, e-commerce, distribution centers
Specification	Customization Available
Finish	Color Powder Coated
Packing	Beam and upright in bubble film
Certification	CE, ISO9001, 14001

Main Applications of LIFO Racking

Storage of homogeneous non-perishable products or products with a long expiration date.
Warehouses with a wide variety of product references; each lane can be reserved for a specific type.
Warehouses with a low number of unit loads for each reference (up to 6 unit loads per lane).
Combination with other types of pallet racking or manual picking.
Suitable for cold rooms or freezing chambers.

Packaging & Logistics

Supply Ability: 10 Cartons per Day

Packaging Details: 1. One type part per pallet. 2. Export-standard pallet quantities. 3. Custom packaging available upon request.

Lead Time: Approximately 20-40 days after production confirmation.

Manufacturing Advantages

Laser Cutting Services:

High efficiency with exact design replication.
Reduced energy consumption for all material types.
High precision and accurate outcomes in less time compared to traditional methods.
Computer-monitored processes ensuring safety and workload reduction.
Flexible application for almost all material types.

Production Capabilities

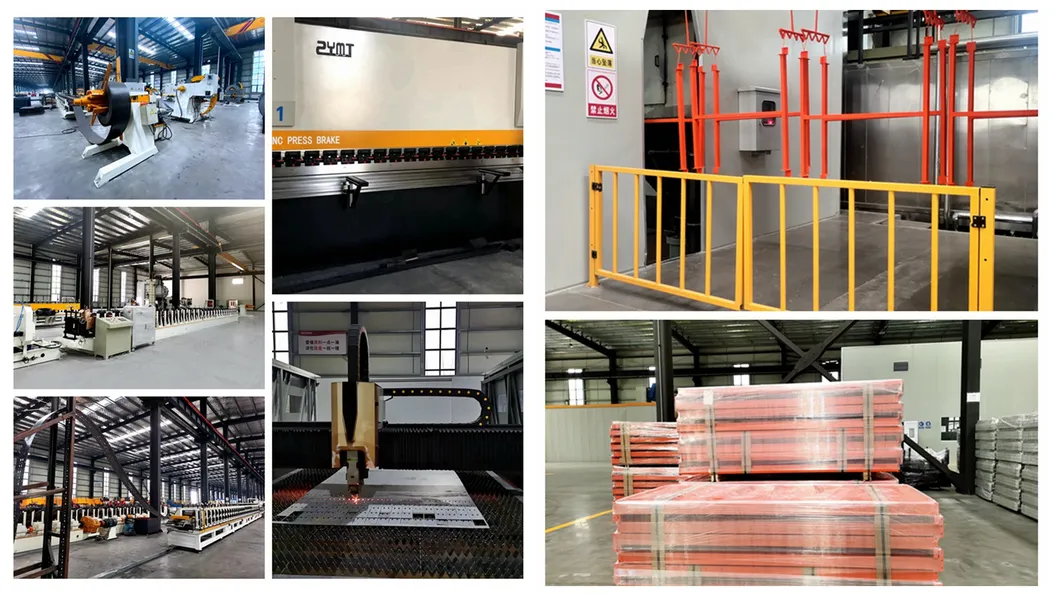

Our production facility covers 35,000 square meters, featuring advanced automatic production lines and domestic first-class electrostatic powder coating systems. With an annual capacity of 40,000 tons, the equipment is widely utilized in e-commerce, electronics, automotive, and pharmaceutical industries worldwide.

Frequently Asked Questions

What is the main difference between Push-Back and Drive-In racking?

Push-back racking allows for higher selectivity than drive-in racking because each lane can store different SKUs. It also requires less forklift travel time as the driver doesn't need to enter the rack structure.

How many pallets deep can a push-back system store?

Typically, push-back systems are designed to store between 2 to 6 pallets deep per lane, depending on the specific warehouse requirements and equipment used.

Is the system suitable for First-In-First-Out (FIFO) inventory?

No, push-back racking is specifically designed for Last-In-First-Out (LIFO) management. If you require FIFO, a gravity flow racking system would be more appropriate.

Can this racking system be used in cold storage environments?

Yes, the system is highly effective in cold rooms or freezing chambers as it maximizes high-density storage, reducing the overall volume that needs to be refrigerated.

What maintenance is required for push-back racking?

Maintenance is minimal but essential. Regular inspections of the rails and rollers are recommended to ensure smooth operation and to clear any debris that might obstruct the pallet carts.

What is the weight capacity per tier?

Our heavy-duty push-back systems typically support between 1000kg and 4000kg per tier, depending on the customized design and material specifications.
