Heavy Storage Selective Pallet Storage Racking

1 / 5

Heavy Storage Selective Pallet Storage Racking

Customization:	Available
Usage:	Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Material:	Steel and Wood

Send Inquiry

Product Description

Basic Specifications

Model NO.

TU-P4

Structure

Layer Frame

Type

Pallet Racking

Mobility

Adjustable

Height

0-5m

Weight

150-500kg

Closed

Semi-closed

Development

New Type

Serviceability

Common Use

Mezzanine Racking

Mezzanine Rack

Transport Package

Carton

HS Code

9403200000

Capacity

5000 unit/Month

Product Description

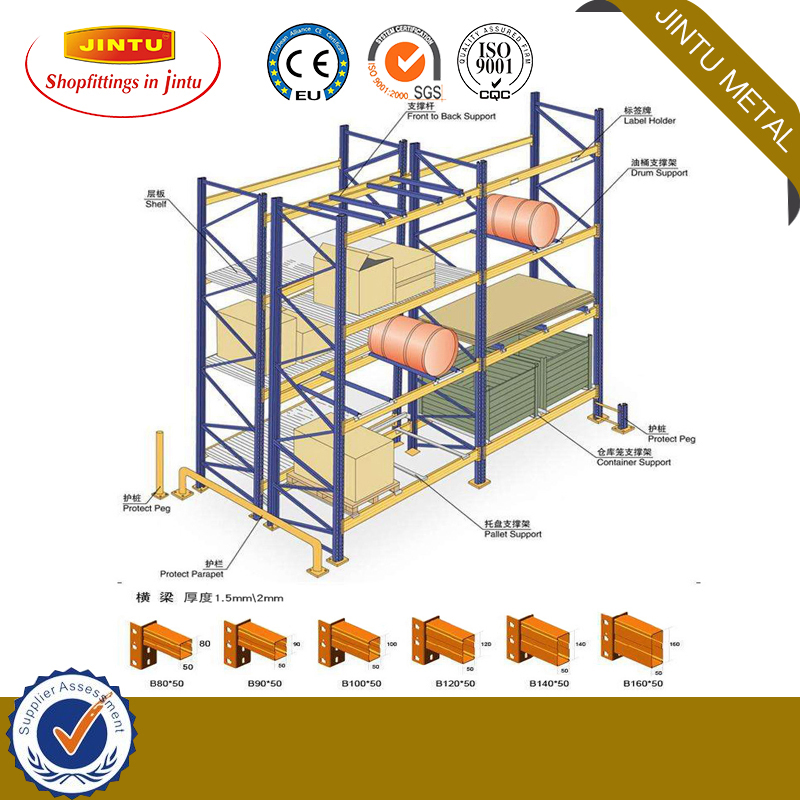

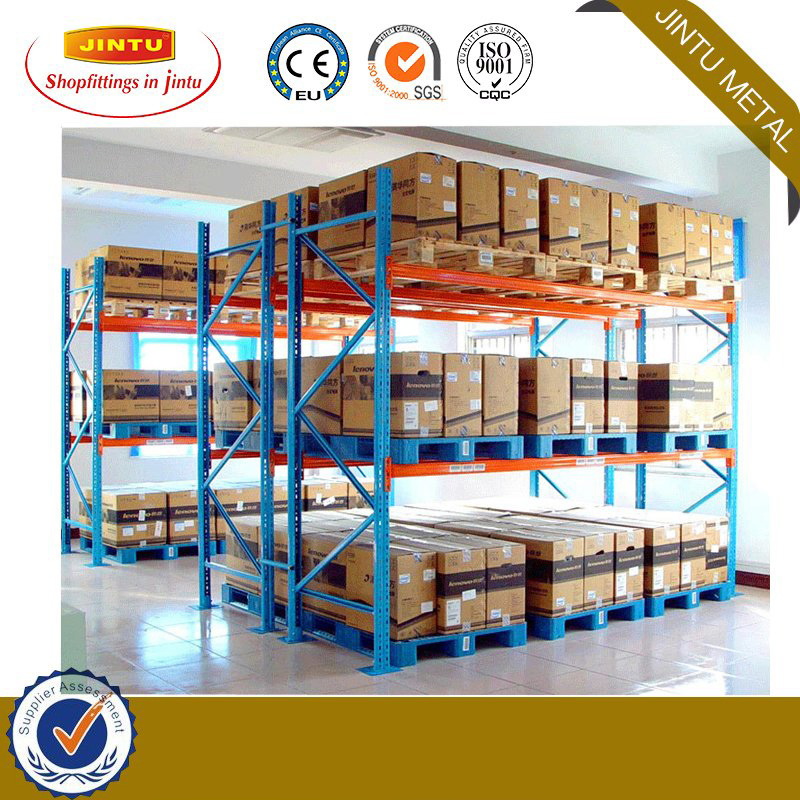

Heavy storage selective pallet storage racking

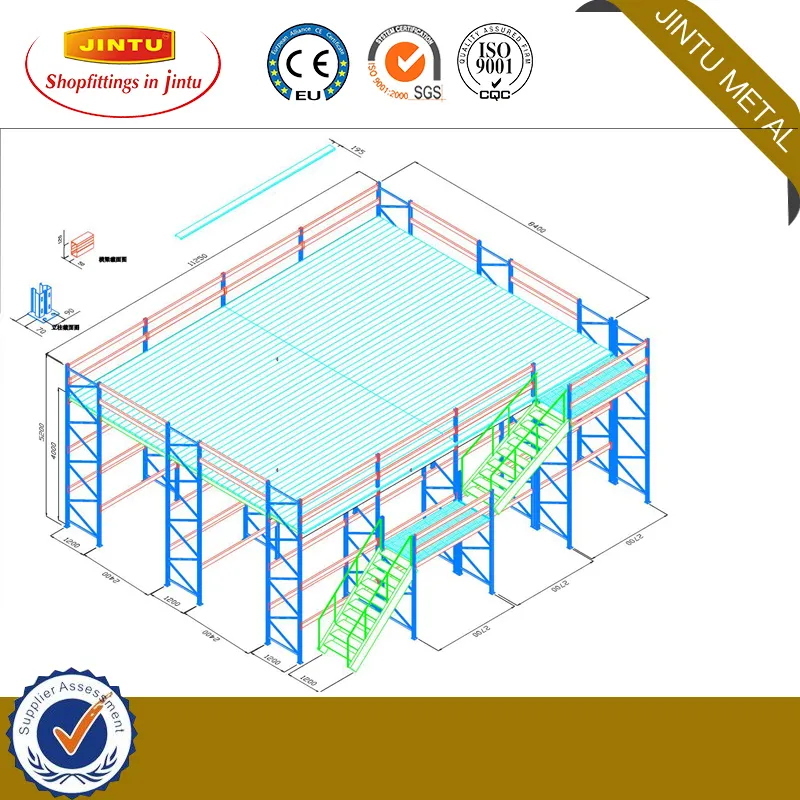

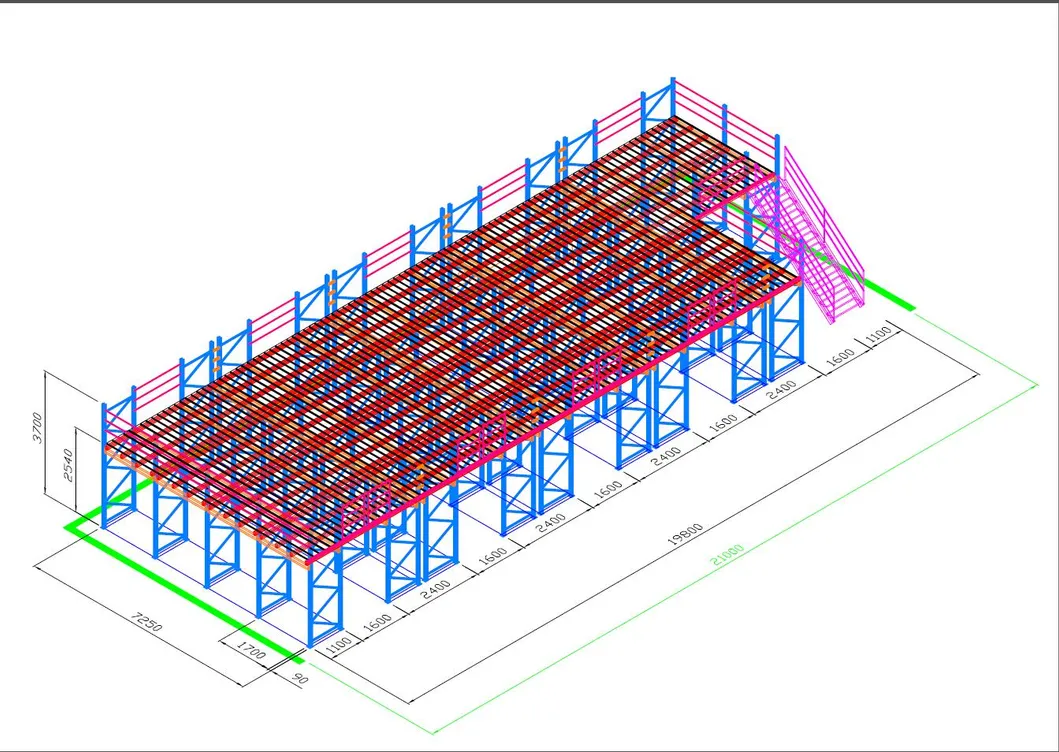

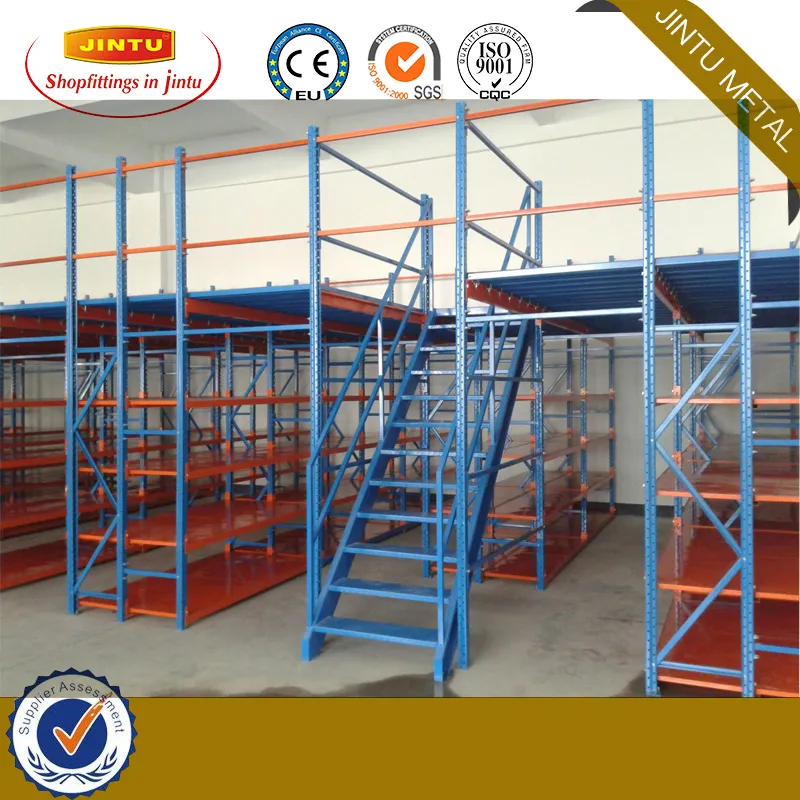

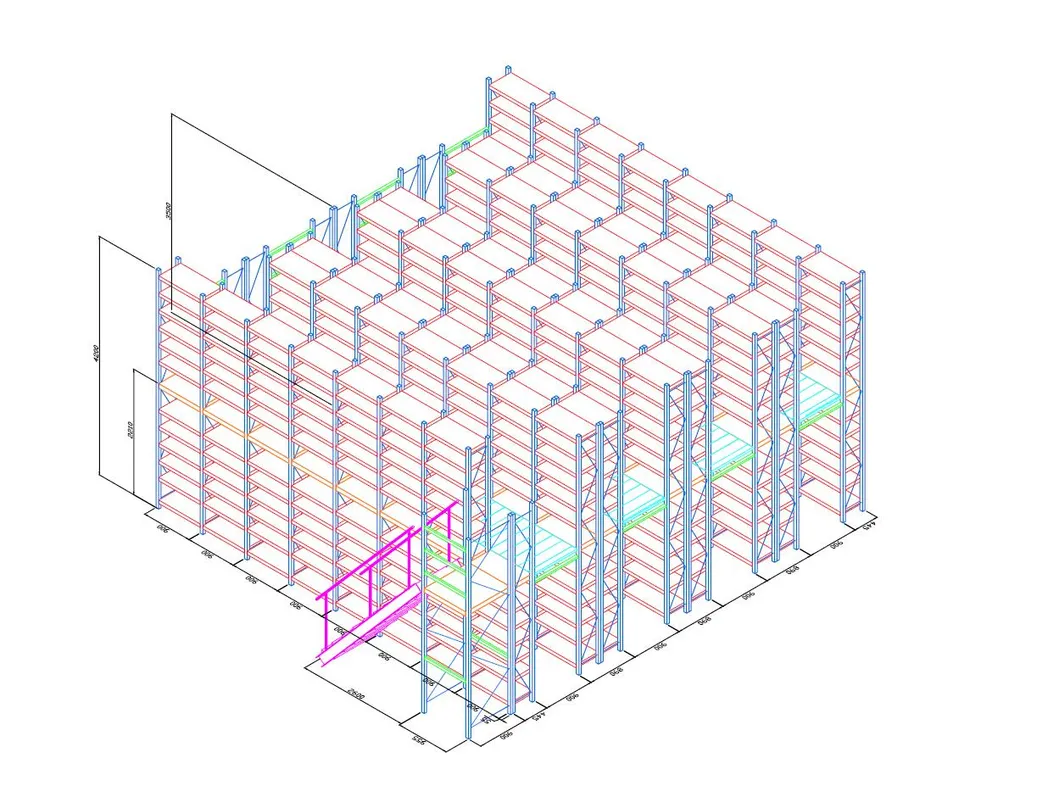

1. Mezzanine Racking Systems are widely used in high warehouses with manual access for small goods. They are ideal for situations requiring a larger access amount and maximizing space utilization. These systems are particularly applicable to auto parts, electronics, light industry, clothing, and other product-classified preservation enterprises.

2. These systems utilize medium or heavy-duty shelves plus floor panels as the main support (based on the total weight of the negative shelf unit). Plate appearances usually feature wood or cold-rolled steel gusset plates.

Product Name	Mezzanine racking system for warehouse storage
Product No.	TU-R10
Max Loading Capacity	200-1000 kgs/square meter
Material	High-quality steel, Q235
Upright Section	90651.5/2.0mm, 130901.5/2.0mm etc.
Finish	Powder coated (Corrosion protection)
Certification	SGS	ISO9001	AS4084:2012

Main Characteristics

✔Enhances shelf height and makes full use of warehouse storage space.

✔Steel gusset plates provide strong load capacity and a smooth, easy-to-lock surface.

✔User-friendly design with easy assembly, removal, and flexible ground-based configuration.

✔Custom installation without welding, suitable for various item types.

✔Compatible with downstairs forklifts, hydraulic lifts, and freight elevators.

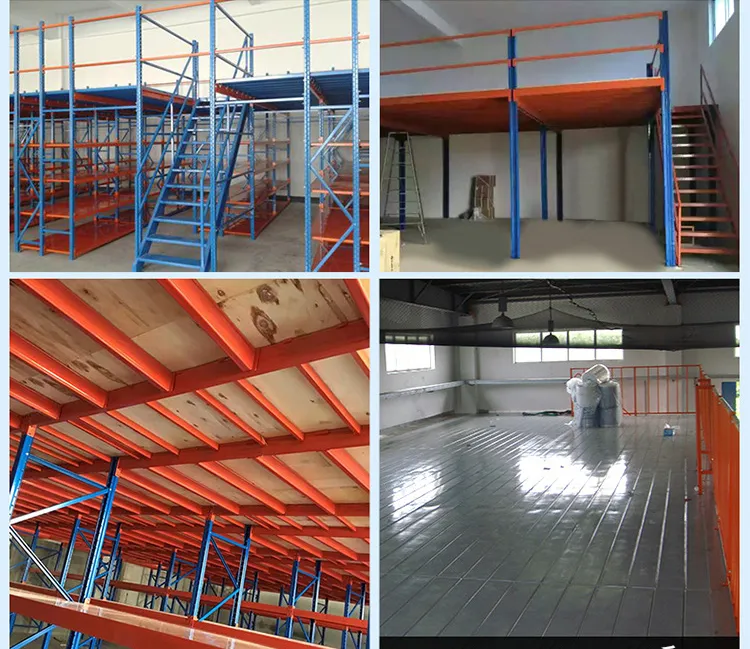

Product Gallery

Frequently Asked Questions

1. What is the main benefit of a Mezzanine Racking System? It maximizes vertical space in high warehouses, allowing for multi-level storage which significantly increases storage capacity without expanding the building's footprint.

2. What industries are best suited for this racking? It is ideal for auto parts, electronics, light industry, and clothing enterprises where manual access to small or classified items is required.

3. What is the loading capacity per square meter? The system can handle a maximum loading capacity ranging from 200kg to 1000kg per square meter, depending on the specific configuration and support structures.

4. What materials are used for the shelving? The system is constructed from high-quality Q235 steel, featuring powder-coated finishes for superior corrosion protection and durability.

5. Is the installation process difficult? No, the design allows for easy assembly and removal. It is a flexible system that can be custom-installed on-site without the need for welding.

6. Can I use forklifts with this mezzanine system? Yes, the design accounts for logistics needs and can be combined with downstairs forklifts, hydraulic lifts, and freight elevators for efficient cargo transport.
