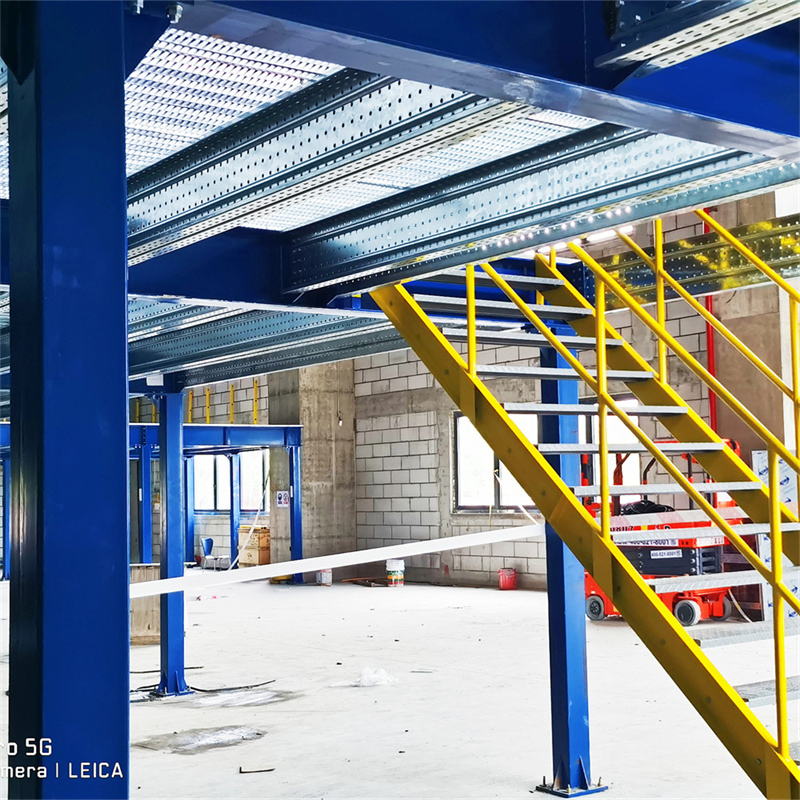

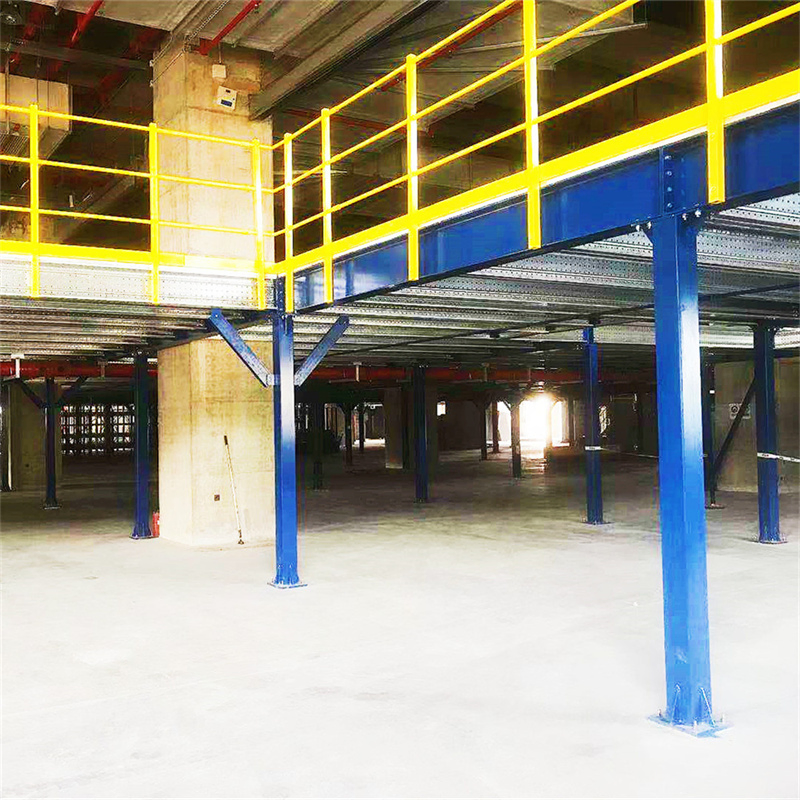

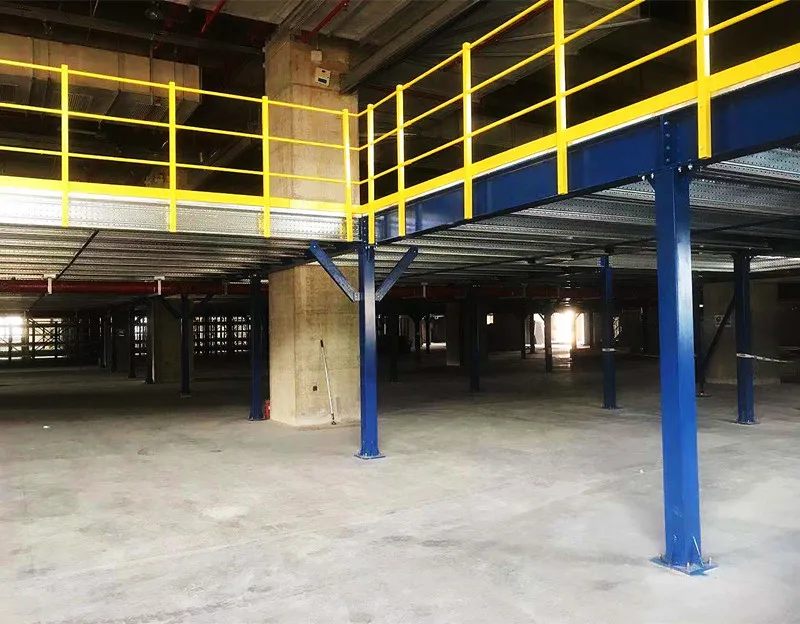

Warehouse Storage Heavy Duty Raised Platform Steel Mezzanine

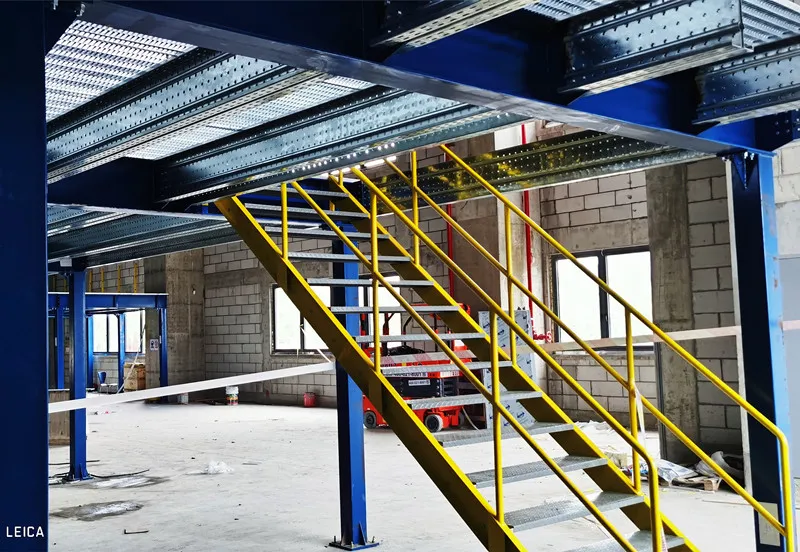

Warehouse storage heavy duty raised platform steel mezzanine is a structure that creates a partial intermediate floor. Steel platforms, sometimes referred to as mezzanines, help utilize overhead warehouse space and can be custom designed to fit the specific needs and capabilities of your space. Steel platforms may be temporary or semi-permanent structures. Together with the mezzanine floor steel columns, the mezzanine floor is secure, and the storage space below is maximized.

Warehouse storage heavy duty raised platform steel mezzanine are pre-engineered and pre-manufactured bolt together systems that install easily and efficiently into your facility footprint. Installing mezzanine steel structures in your warehouse can double the space you have by adding levels to your existing facility. They can provide more space and save time without taking up any additional room on the ground floor space. These versatile structures create new areas for manufacturing, storage, and offices without the need to lease new space or construct new buildings.

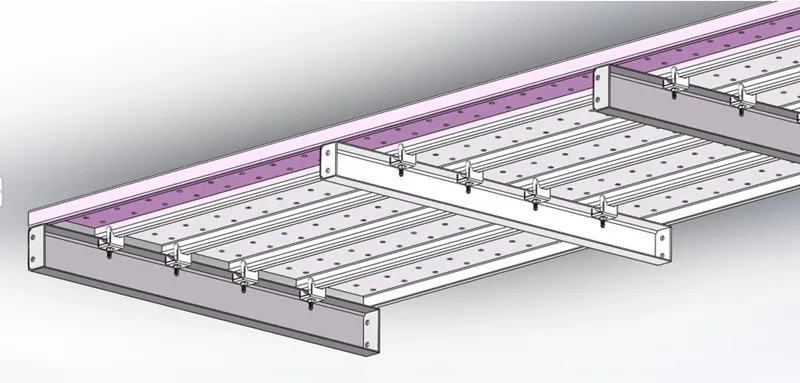

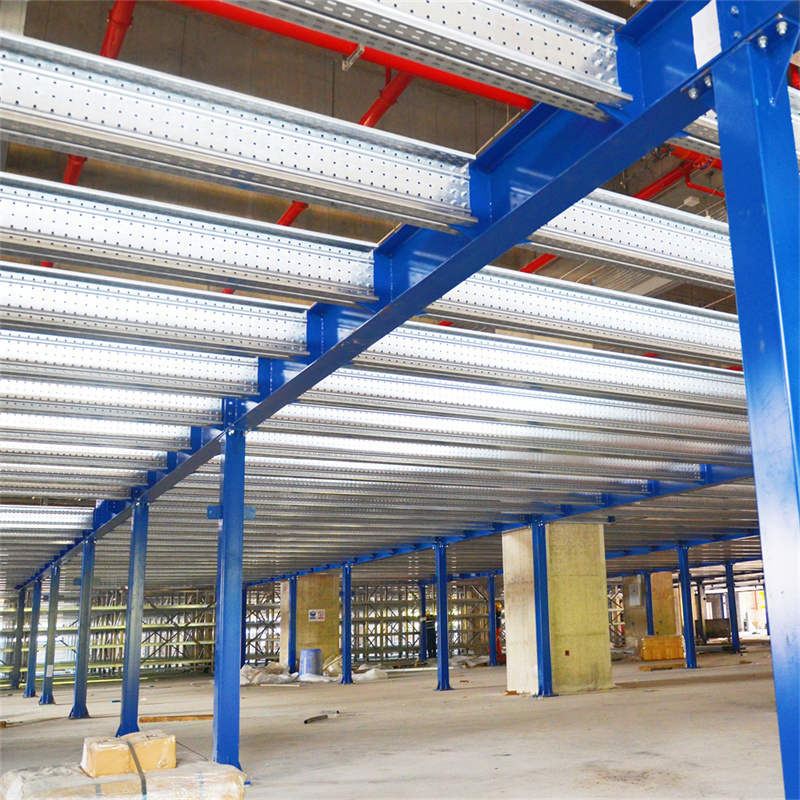

Steel platforms are usually composed of planks, primary and secondary beams, columns, inter-pillar supports, and ladders, railings. According to bearing treatment, they include:

• Platforms resting directly on tripod or cantilever legs of the workshop column.
• One side supported by plant columns or building walls, the other by independent columns.
• Platforms supported on large equipment.
• Full independent platforms.

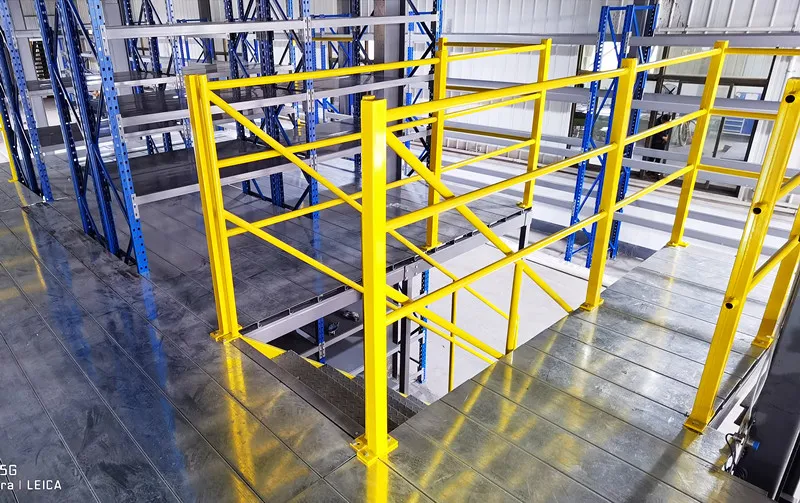

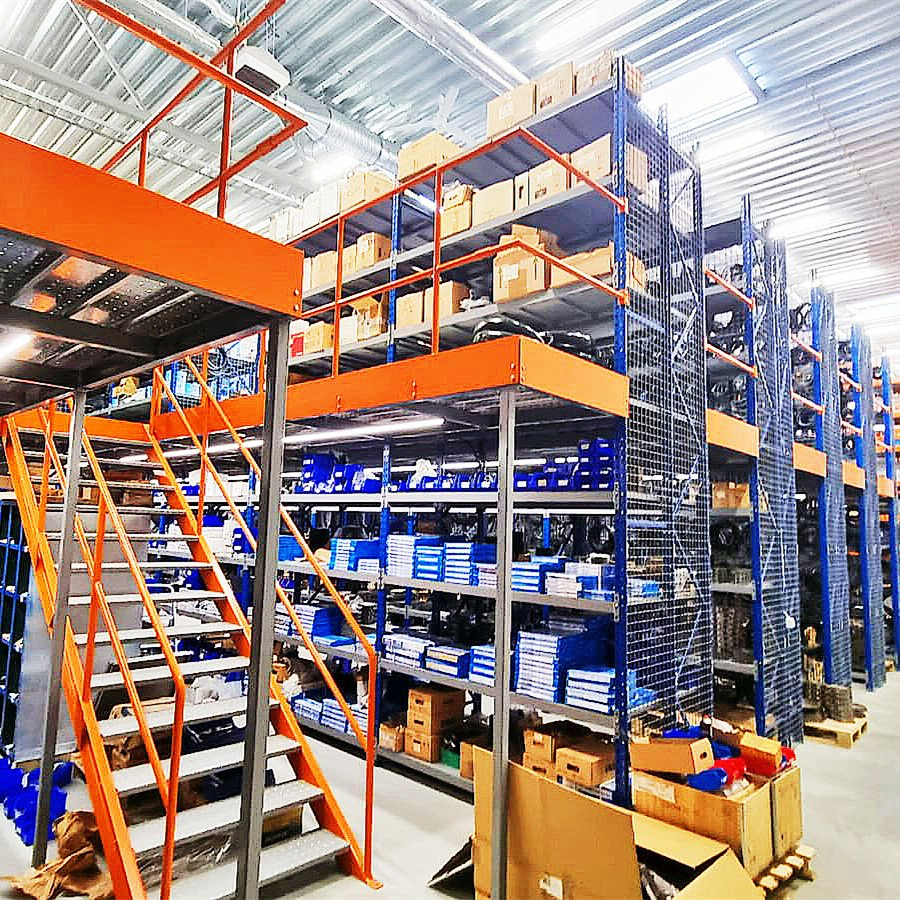

Unlike conventional steel constructions, it can be easily expanded, moved or modified for future requirements. Combined with a full range of accessories, such as staircases, handrails and safety gates, it lends itself to use in almost any situation: multitier flooring systems, shelving and pallet racking systems combined with flooring, etc. Mezzanine steel platform flooring system has a wide variety of span lengths, with the loading capacity from 350 kg/m² up to 1000 kg/m².

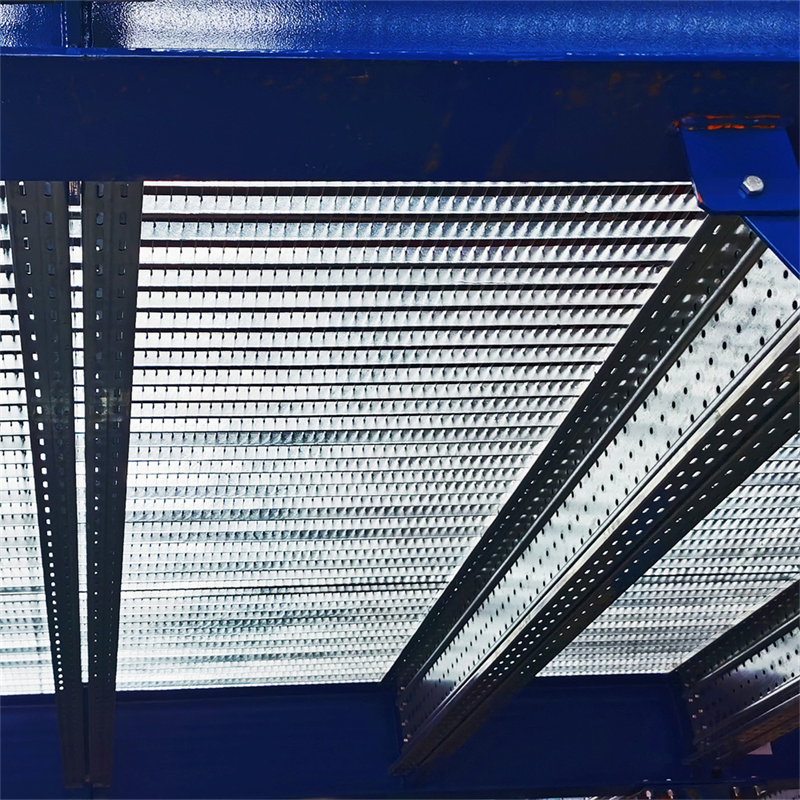

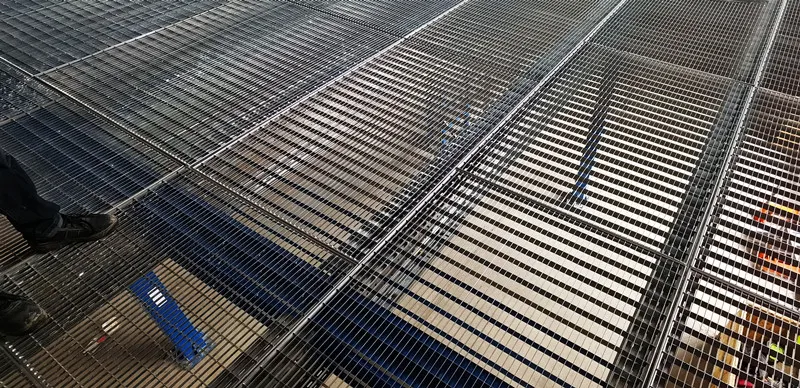

Common floor panels include plain, checker plate and perforated panel. Goods are delivered to higher floors by forklifts, lifting platforms or freight elevators, and then transported by trolleys or hydraulic pallet trucks. Column distance is usually 4-6m, first floor 3m high, and upper floors 2.5m high.

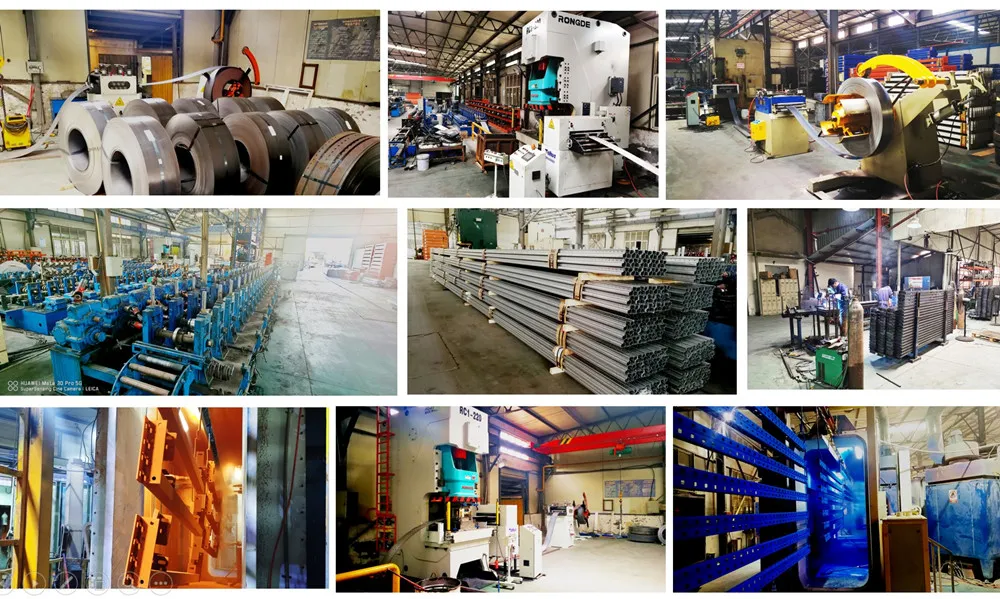

The manufacturing base covers an area of 18,000 square meters with more than 80 employees. The factory is equipped with a number of high-precision roll-forming production lines, automated welding, laser cutting, sheet metal processing equipment and two fully automatic electrostatic powder coating lines.

1). Packaging details: Standard export package. Long profiles are packed in bundles on plywood or steel pallets, covered by plastic films. For thinner material like steel decking, edge protectors are applied. Small accessories are packed in carton boxes and fixed on pallets.

2). Delivery time: 3 weeks after receipt of 30% deposit for standard products. Special application racks delivered within 4-5 weeks.

Information Required for Quotation:
