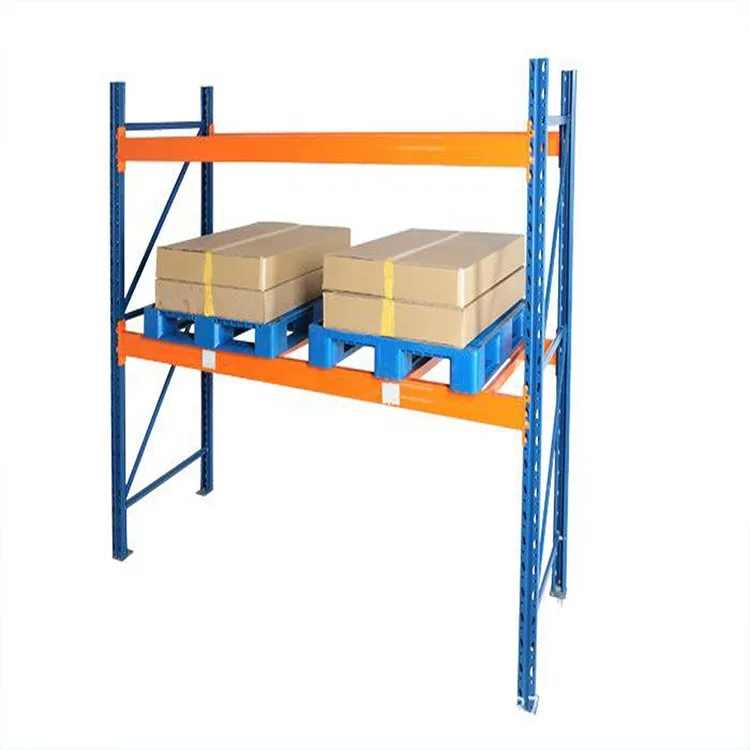

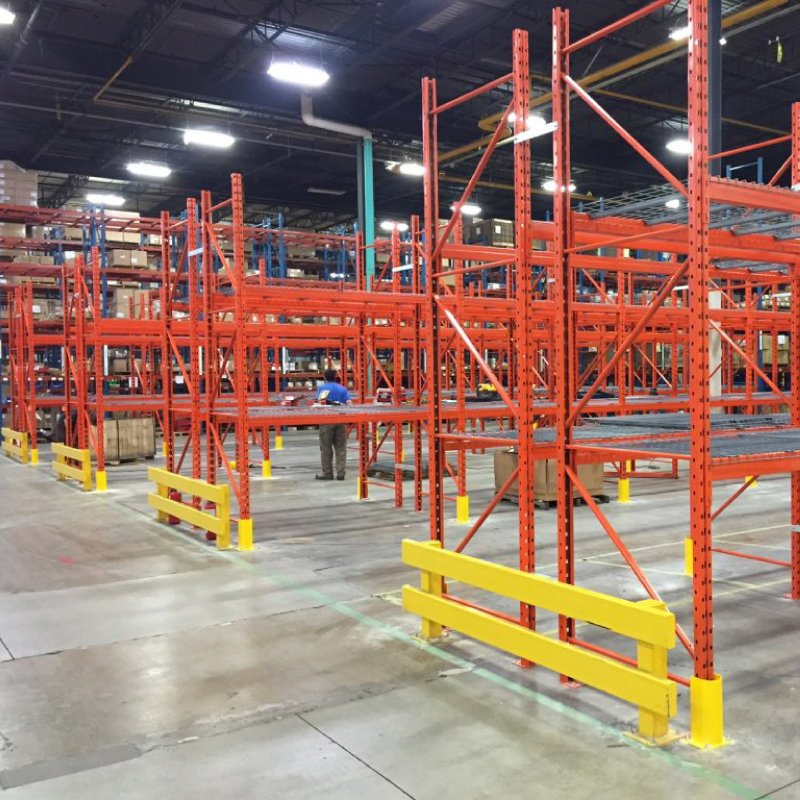

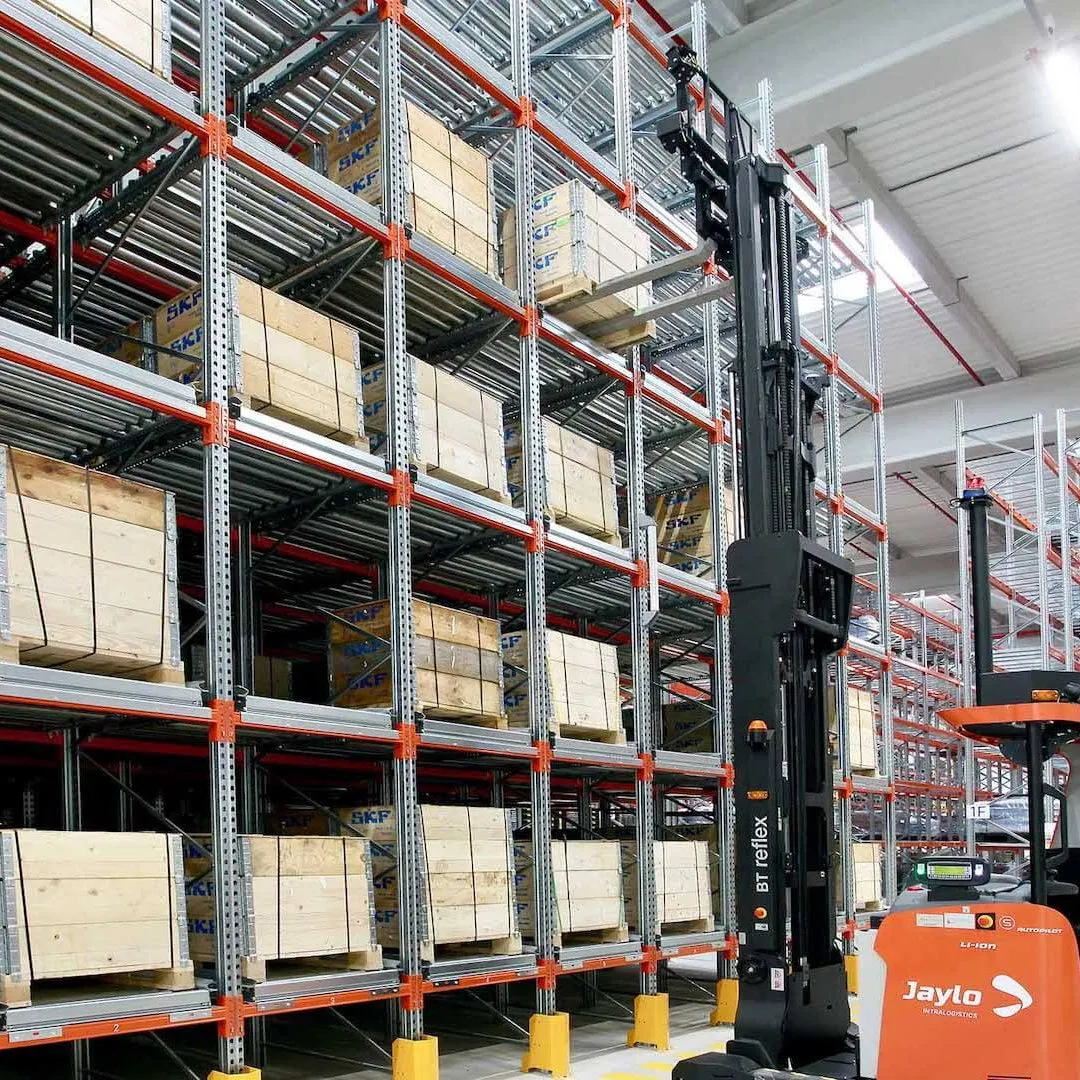

Pallet rack is a storage system designed for warehouses and other industrial applications. It is known for its ease of assembly, adjustability, and safety. The key feature of this rack is the teardrop-shaped punched holes in the vertical posts (uprights), providing a universal standard for heavy-duty storage solutions.

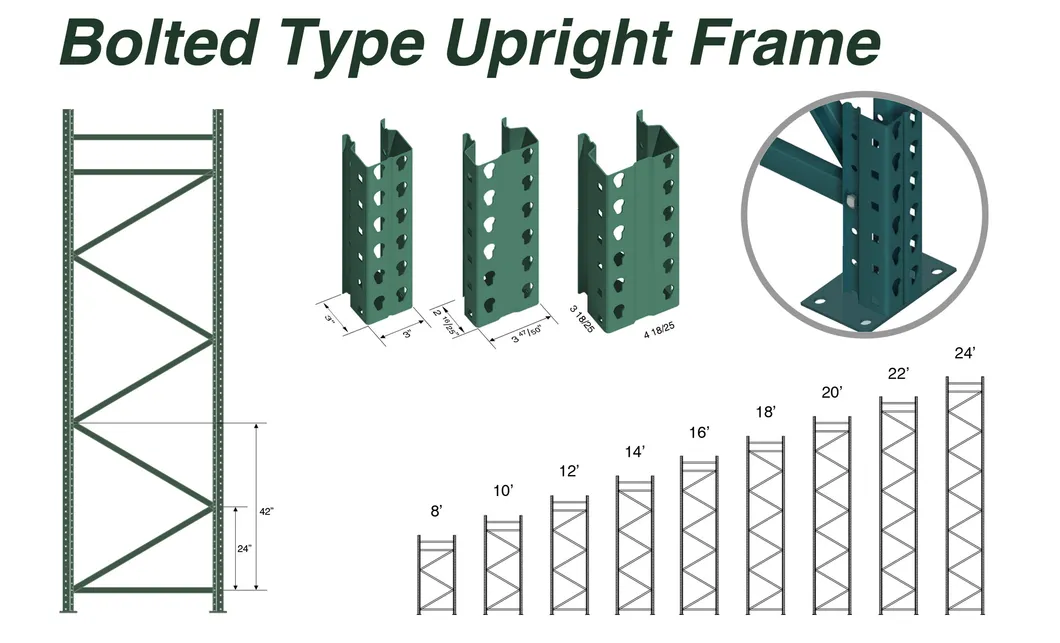

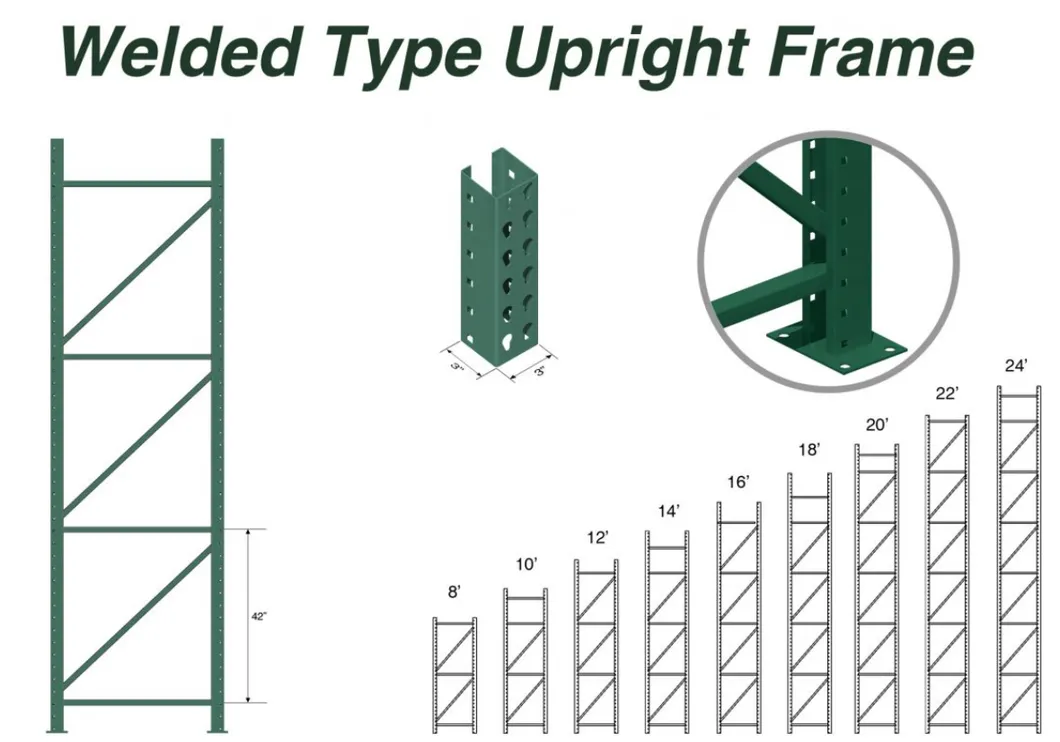

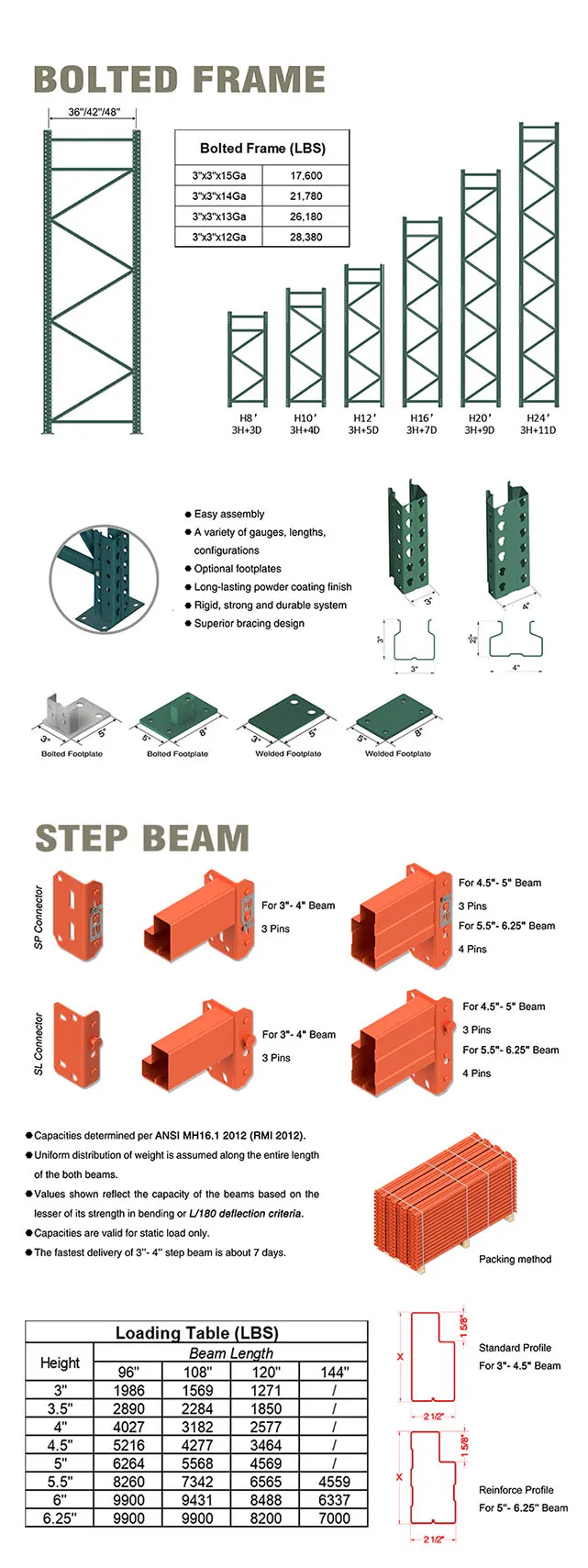

| Upright Sizes | 80*70 / 90*70 / 105*70 / 120*85 |
| Hole Pitch | 50.8mm |
| Box Beam Sizes | 80*50 to 160*50 / 120*50 to 160*50 |
| Upright Thickness | 1.8 / 2.0 / 2.5 / 2.75 / 3.0 mm |
| Beam Thickness | 1.5 / 1.8 / 2.0 mm |
| Frame Height | Up to 12000mm |
| Beam Length | Up to 6000mm |
| Capacity Per Layer | 500 - 4000 KG |
| Finish Options | Powder-coated or Hot dip galvanized |
* Other dimensions are available upon requirement.
