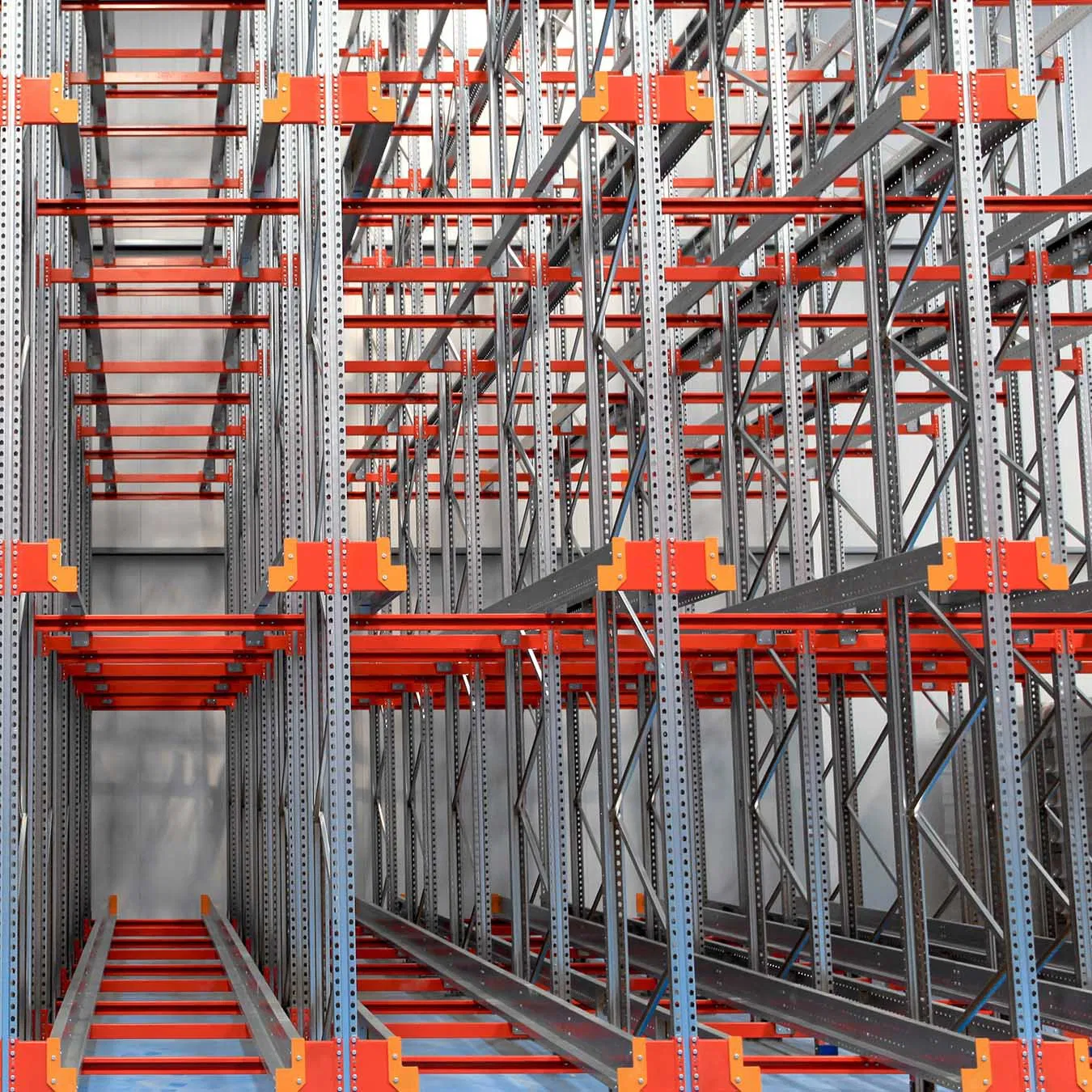

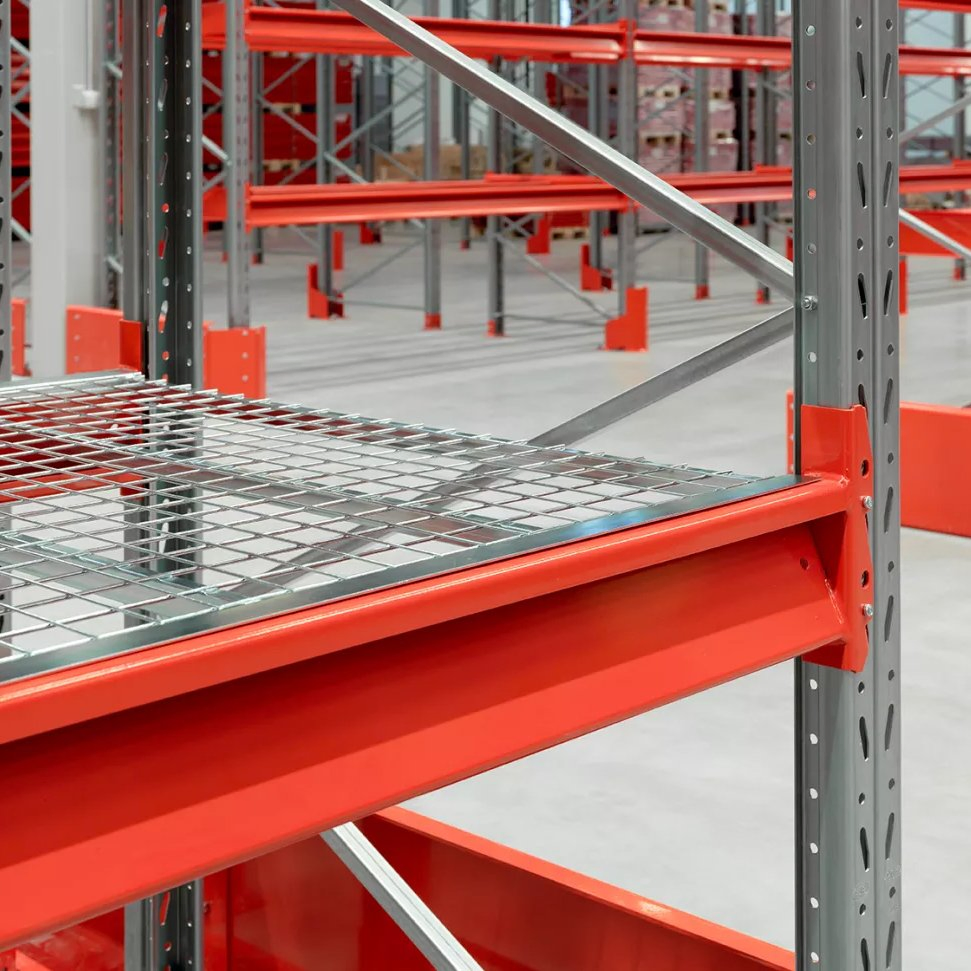

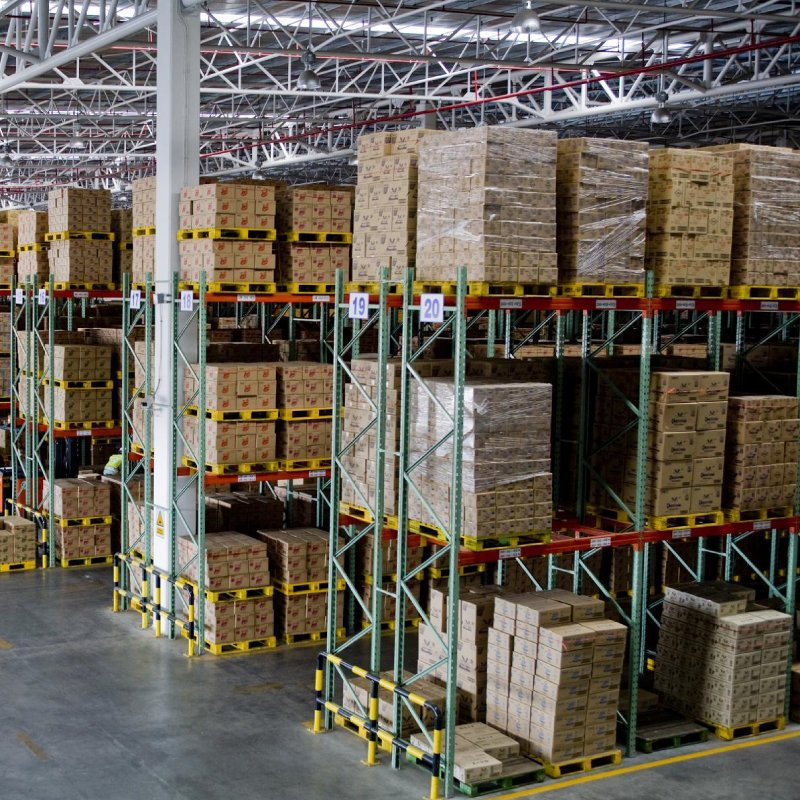

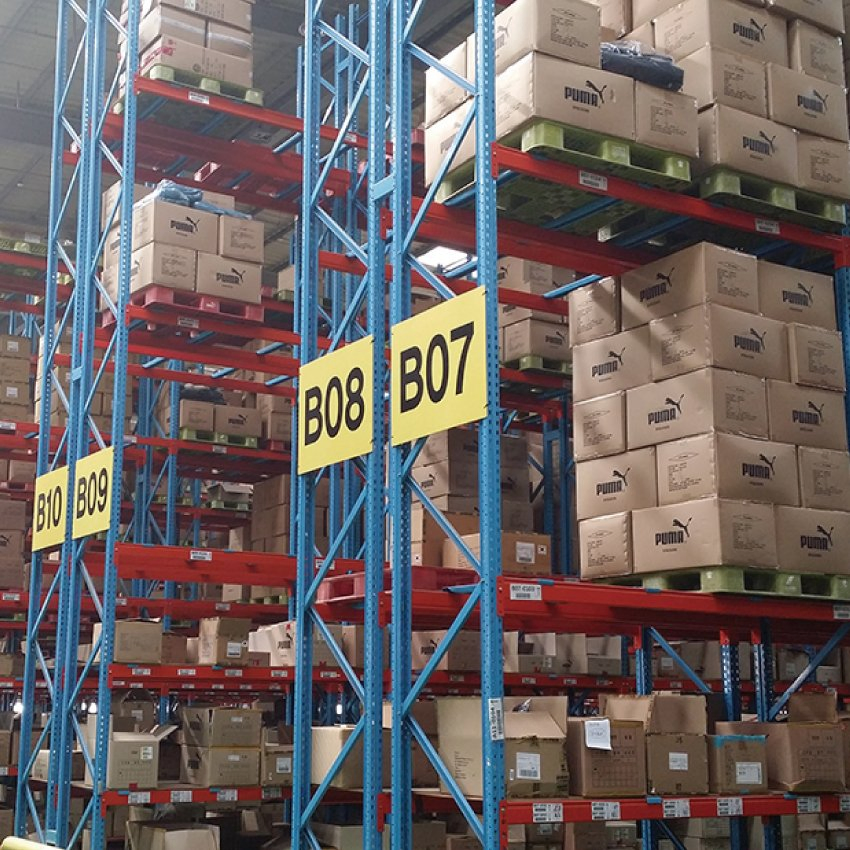

Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
1 / 5
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack
Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack

Heavy-Duty Teardrop Pallet Racking for Maximum Warehouse Efficiency ODM Rack

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
WD-PR-001
Material
Steel
Type
Pallet Racking
Height
up to 12000mm
Weight Cap.
500-4000kg
Hole Pitch
50.8mm
Finish
Powder-Coated / Galvanized
Lead Time
15 Work Days
What is Pallet Rack?

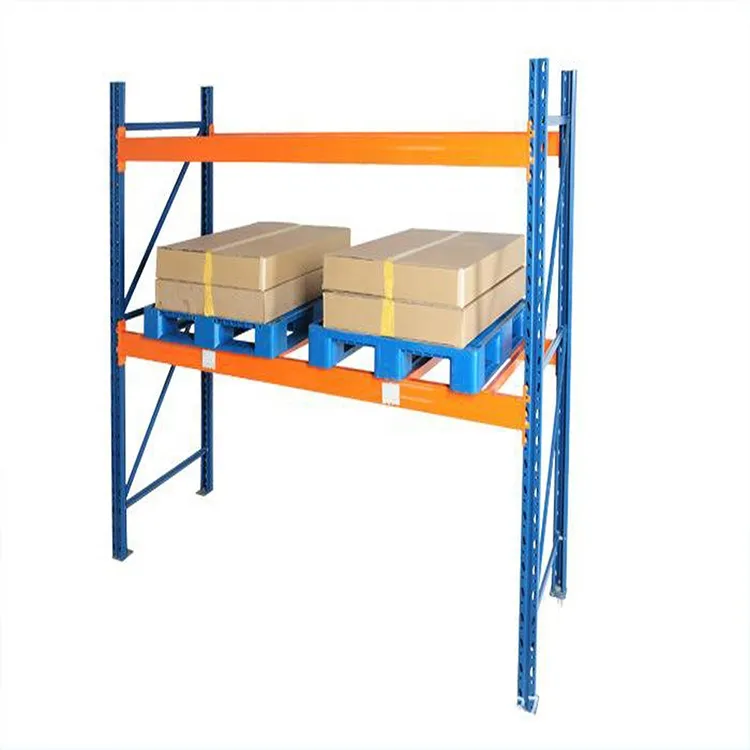

Pallet Racking System

Pallet rack is a storage system designed for warehouses and other industrial applications. It is known for its ease of assembly, adjustability, and safety. The key feature of this rack is the teardrop-shaped punched holes in the vertical posts (uprights).

Key Benefits
  • Easy to assemble and disassemble
  • Highly adjustable for various cargo sizes
  • Safe and secure structural design
  • Versatile storage for a wide variety of products
  • Relatively inexpensive industrial solution
  • Widespread compatibility with universal teardrop standards
Technical Specification

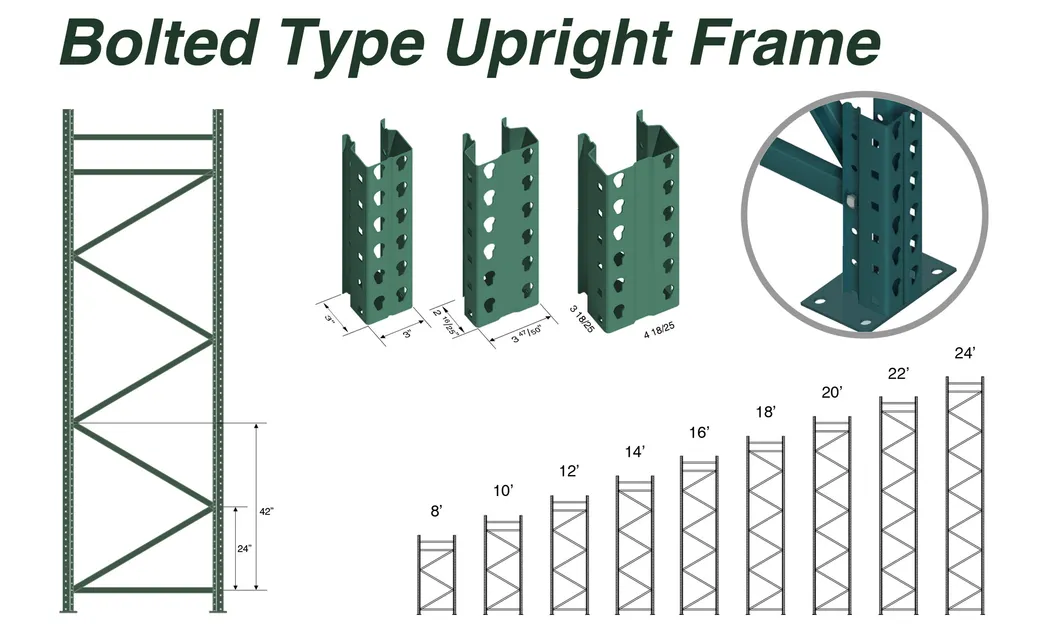

Specification 1 Specification 2
Upright Sizes80*70 / 90*70 / 105*70 / 120*85
Hole Pitch50.8mm
Box Beam Sizes80*50 / 90*50 / 100*50 / 110*50 / 140*50 / 160*50
Upright Thickness1.8 / 2.0 / 2.5 / 2.75 / 3.0 mm
Beam Thickness1.5 / 1.8 / 2.0mm
Frame HeightUp to 12000mm
Beam LengthUp to 6000mm
Capacity Per Layer500 - 4000 KG

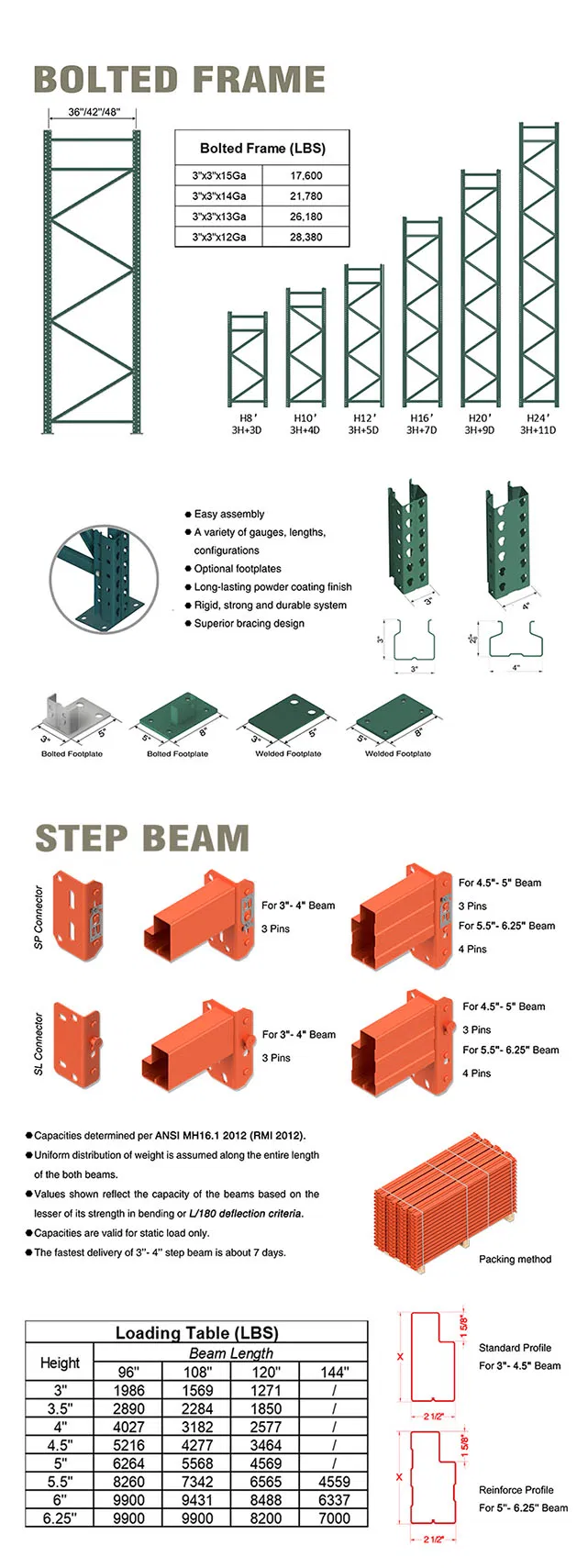

Structural Details
Production & Quality Control

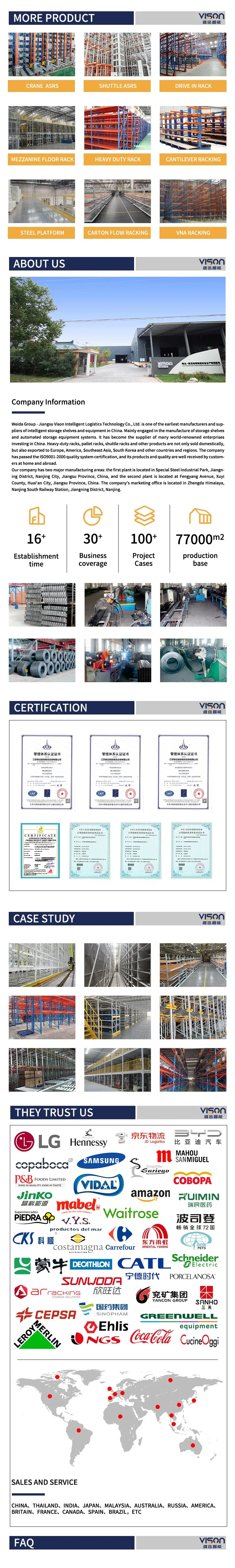

Production Process
Frequently Asked Questions
Q1: What are the main benefits of teardrop pallet racking?
It is easy to assemble, highly adjustable, and compatible with most universal teardrop components, making it a cost-effective and versatile warehouse solution.
Q2: Can the racking dimensions be customized?
Yes, we provide customizable specifications. Frame heights can go up to 12,000mm and beam lengths up to 6,000mm to meet specific warehouse needs.
Q3: What is the load capacity per layer?
The capacity typically ranges from 500kg to 4000kg per layer, depending on the beam and upright specifications selected.
Q4: What surface finishes are available?
The racks are available with a high-quality powder-coated finish or hot-dip galvanized finish as required for durability and corrosion resistance.
Q5: What is the standard lead time for an order?
Normally, the lead time is around 15-25 working days after the deposit is received. Standard products may be available within 7 working days.
Q6: Is there a minimum order quantity (MOQ)?
There is no strict MOQ, but we recommend ordering at least one 20ft container (approx. 15-20 tons) to achieve the most cost-effective shipping and pricing.
