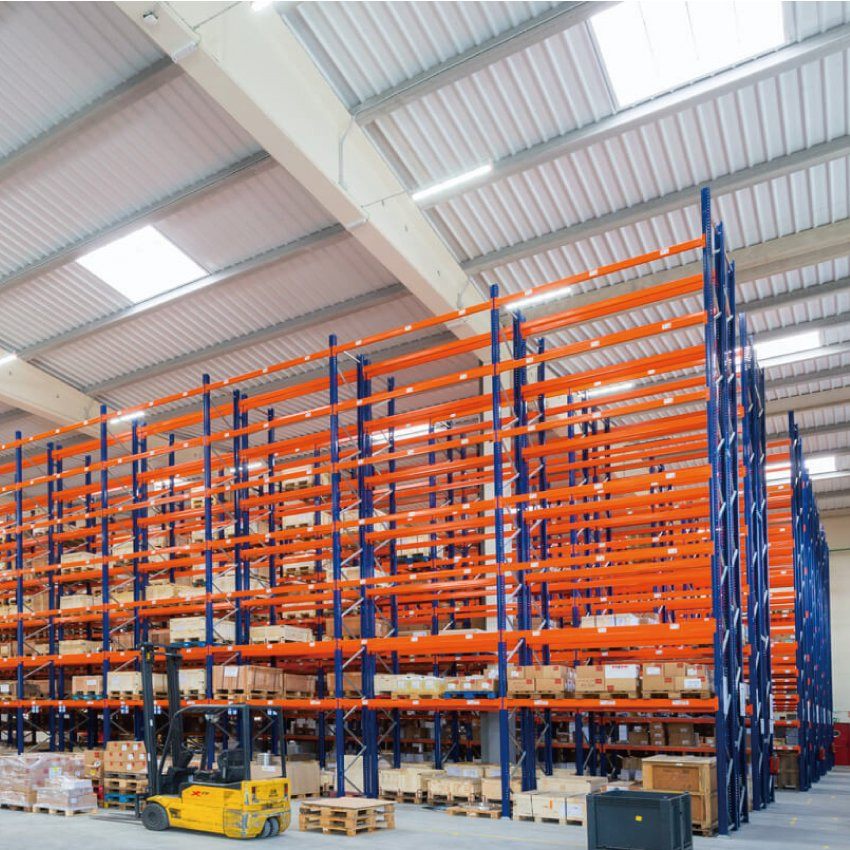

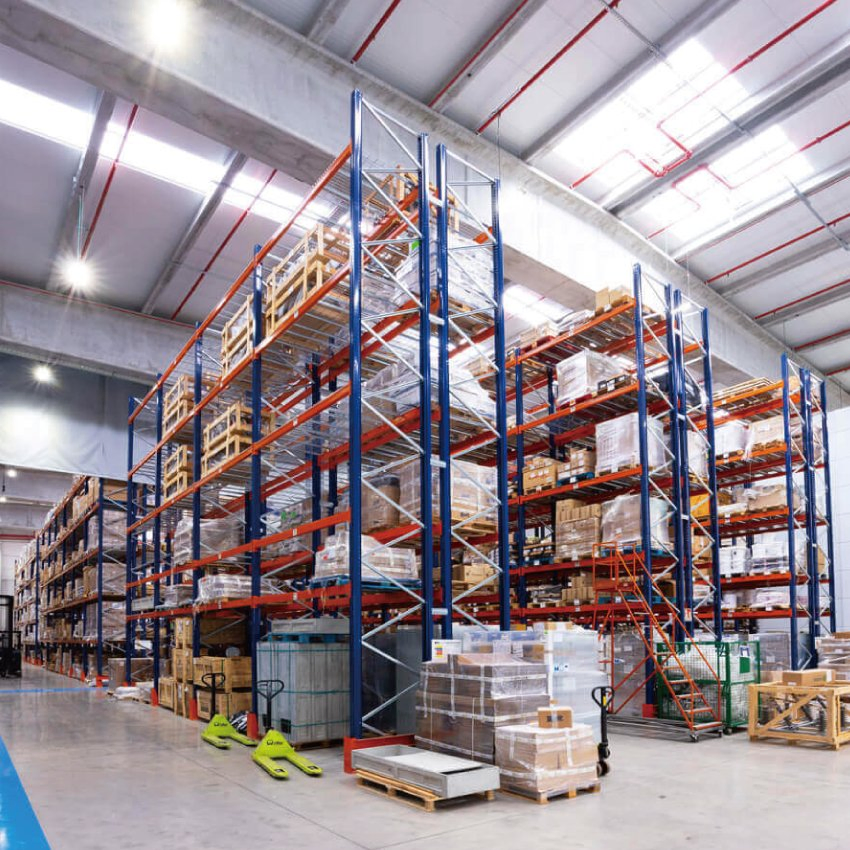

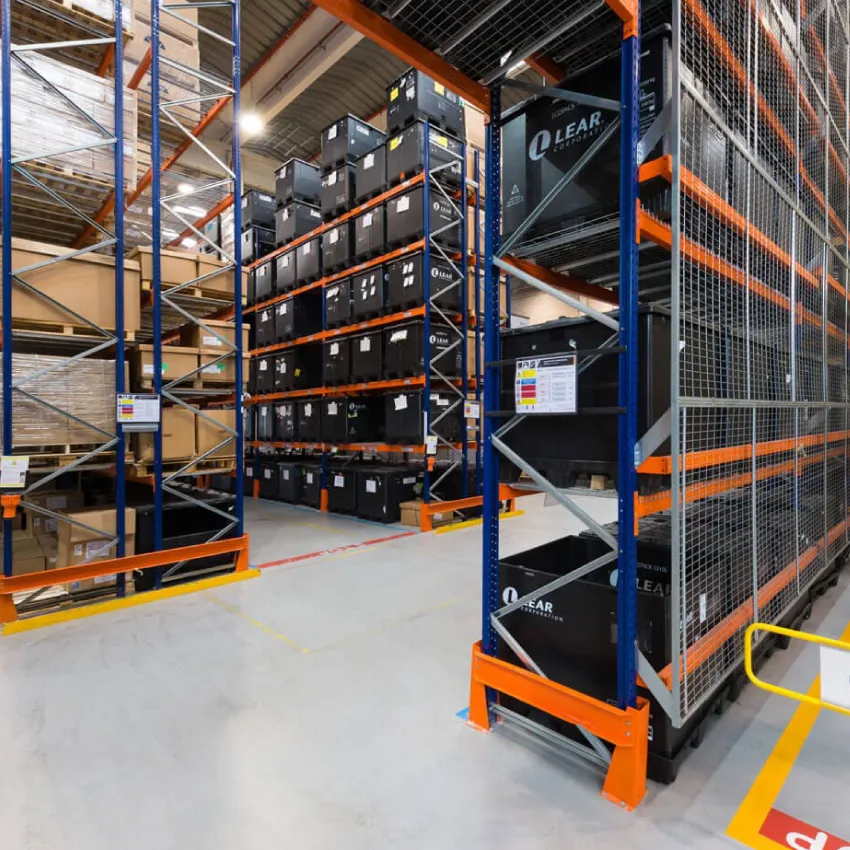

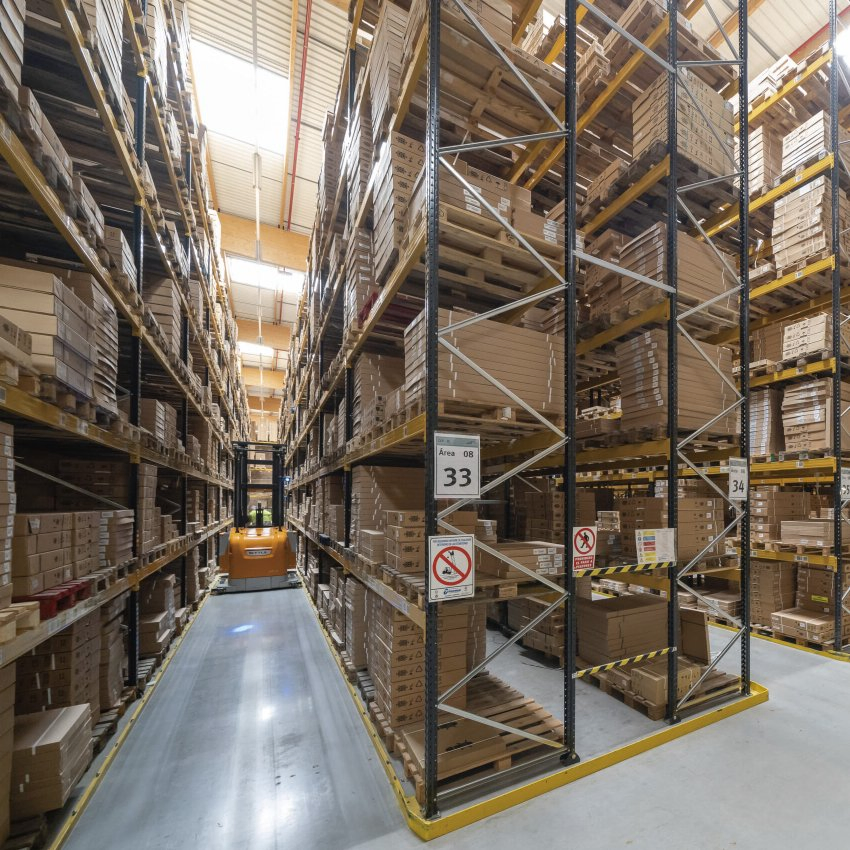

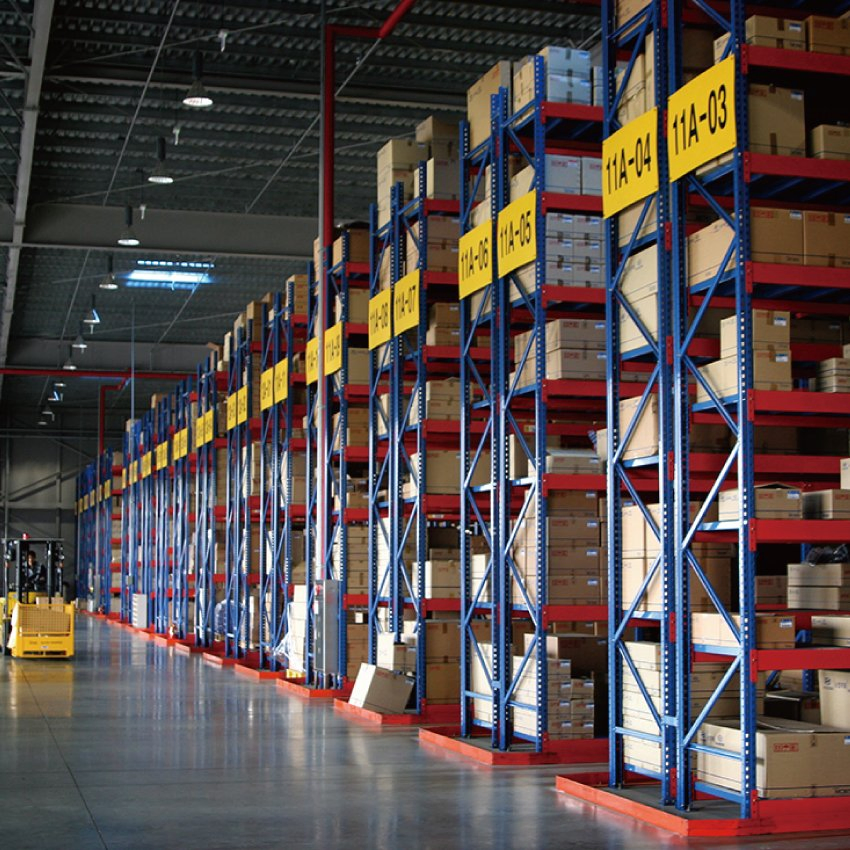

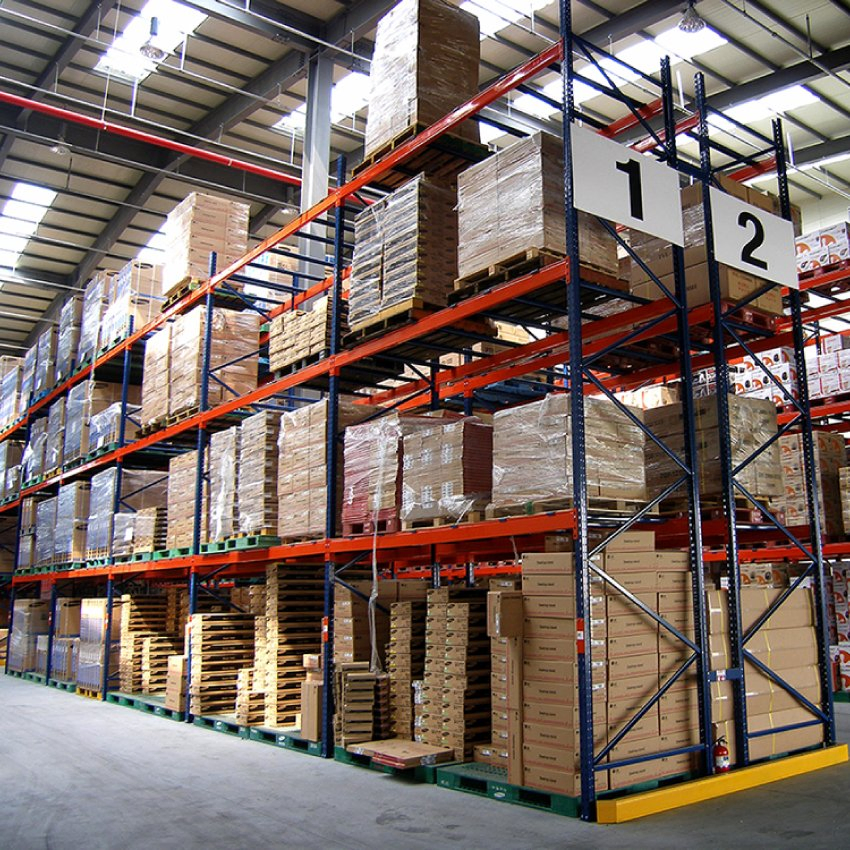

Pallet rack is a professional storage system designed specifically for warehouses and industrial applications. It is renowned for its ease of assembly, high adjustability, and superior safety standards. The defining feature of this system is the teardrop-shaped punched holes in the vertical upright posts, allowing for secure and flexible beam placement.
Designed for fast setup and breakdown, simplifying relocation, expansion, or reconfiguration as your business grows.
Beam levels can be repositioned easily to accommodate changing pallet heights, optimizing vertical space utilization.
Engineered with heavy-duty materials and safety locking mechanisms to ensure maximum structural integrity.
Teardrop-style components allow for cross-compatibility with various brands, offering great flexibility in sourcing.
| Component | Available Dimensions / Details |
|---|---|
| Upright Size | 80*70 / 90*70 / 105*70 / 120*85 |
| Hole Pitch | 50.8mm |
| Box Beam Size | 80*50 to 160*50 (Various options) |
| Upright Thickness | 1.8 / 2.0 / 2.5 / 2.75 / 3.0 mm |
| Beam Thickness | 1.5 / 1.8 / 2.0 mm |
| Frame Height | Up to 12,000 mm |
| Beam Length | Up to 6,000 mm |
| Capacity Per Layer | 500 - 4,000 KG |

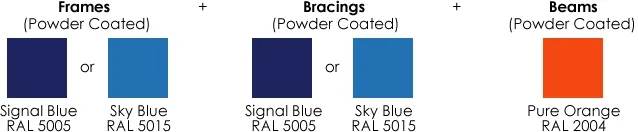

| Finish | Powder-coated or Hot Dip Galvanized |
*Custom dimensions are available upon request to meet specific storage needs.
