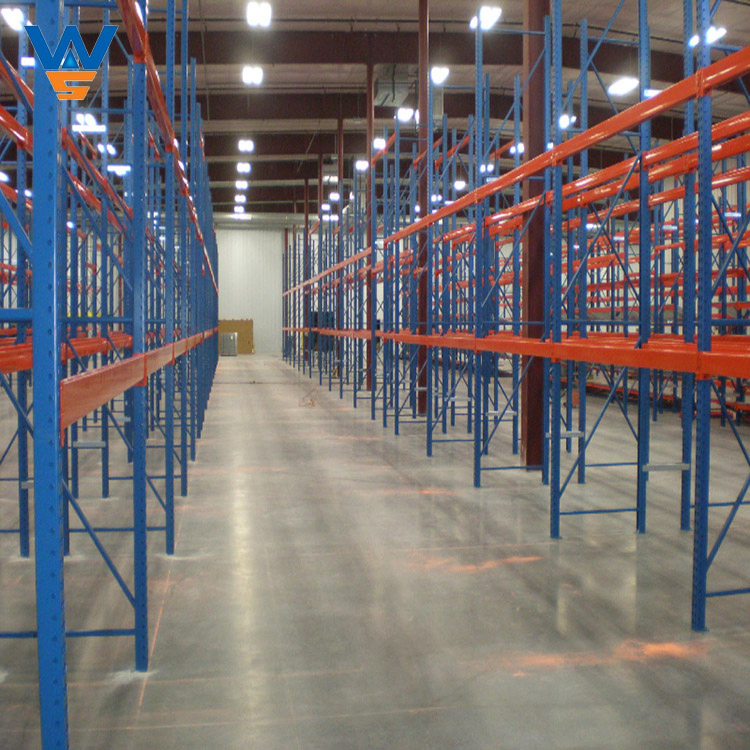

Heavy duty racking is a cost-effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
We ensure the most productive pallet racking solution is provided whether working from your plans or developing a cost-effective layout that is just right for your needs. You are assured of the best designed, most efficient and safest racking.
| Material |
Width |
Depth |
Height |
Capacity |
| Q235B Steel |
1200-4000mm |
800-1200mm |
3000-10000mm |
1000-5000kg/level |
| Component |
Section Dimensions (mm) |
| Upright Frame |
80*60, 90*70, 100*70, 120*75, 120*80 |
| Load Beam |
40*80, 50*100, 50*120, 50*140 |
Beam Connector: Depending on the section size of the beam, 3 or 4 hole hooks can be chosen to satisfy different capacity needs. A safety lock is integrated into the connection to lock the beams firmly and prevent accidental unhooking by forklifts.
?
Frequently Asked Questions
1. What is the maximum load capacity of these pallet racks?
The loading capacity is highly customizable, ranging from 1,000kg to 5,000kg per level, depending on the chosen beam and upright specifications.
2. Can the height of the shelves be adjusted after installation?
Yes, the beams are connected to the uprights via hooks and can be adjusted at intervals of 75mm or 76.2mm to accommodate different cargo heights.
3. What materials are used in the construction of the racks?
We use high-quality Q235B steel for all structural components, ensuring maximum strength, rigidity, and safety for heavy-duty storage.
4. Are the racks resistant to corrosion and fire?
Yes, our racks feature a durable electrostatic powder-coated finish or galvanization, which provides excellent protection against corrosion and is inherently fire-resistant.
5. Do you offer customized sizes for specific warehouse layouts?
Absolutely. While we have standard sizes, all specifications including width, depth, and height can be customized to fit your unique warehouse space and operational needs.
6. How safe are the beam connections?
Each beam connector is equipped with a safety lock or pin. This ensures that even if a forklift accidentally bumps the beam, it remains firmly attached to the upright, preventing structural failure.
