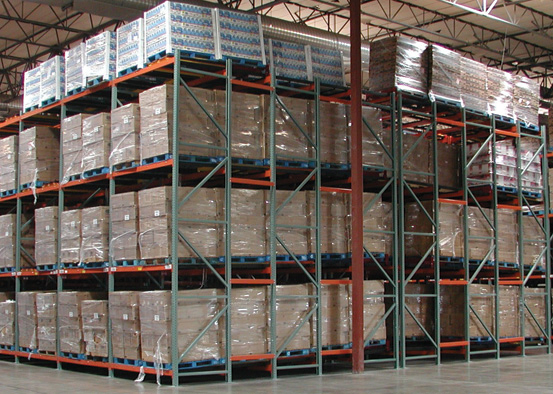

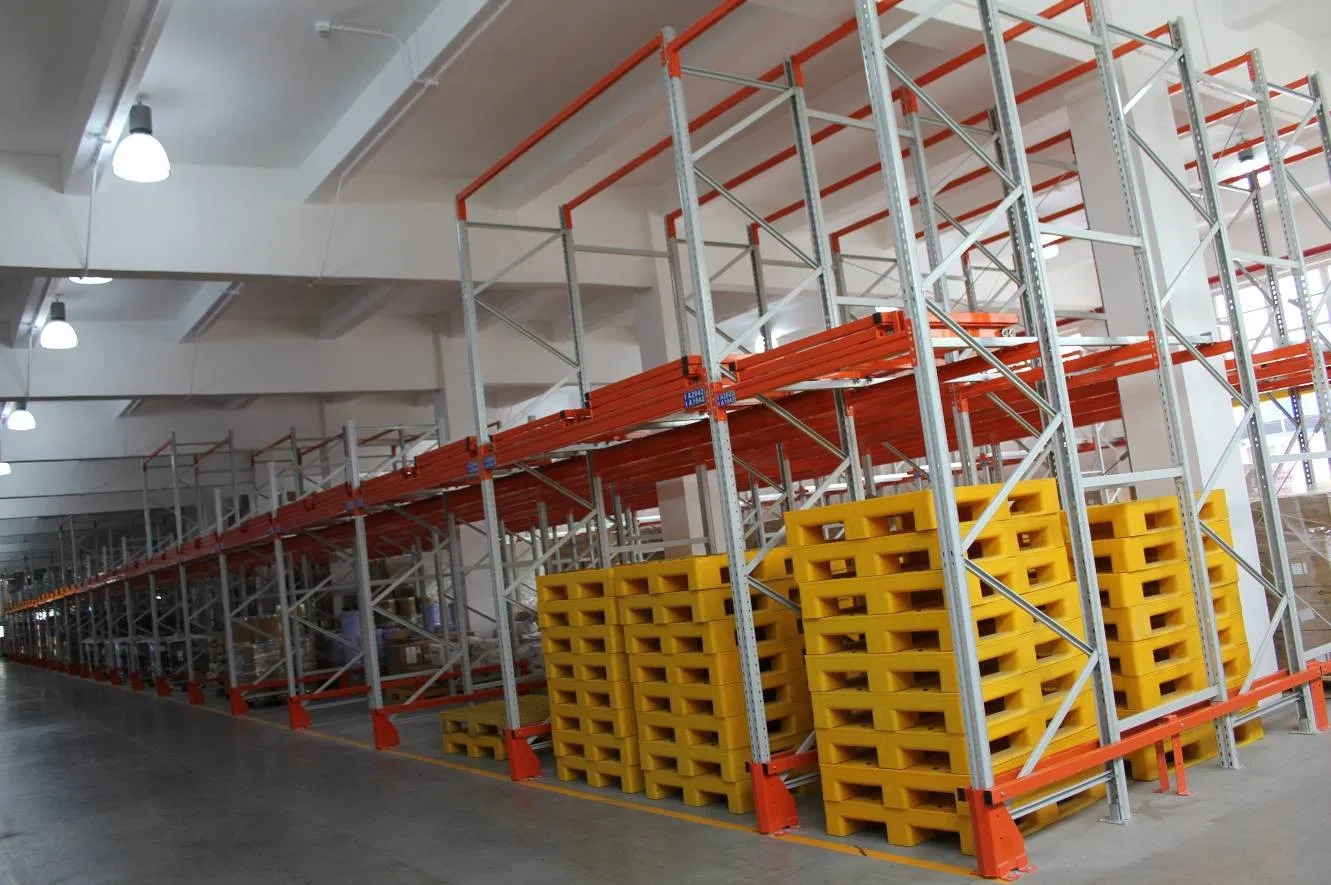

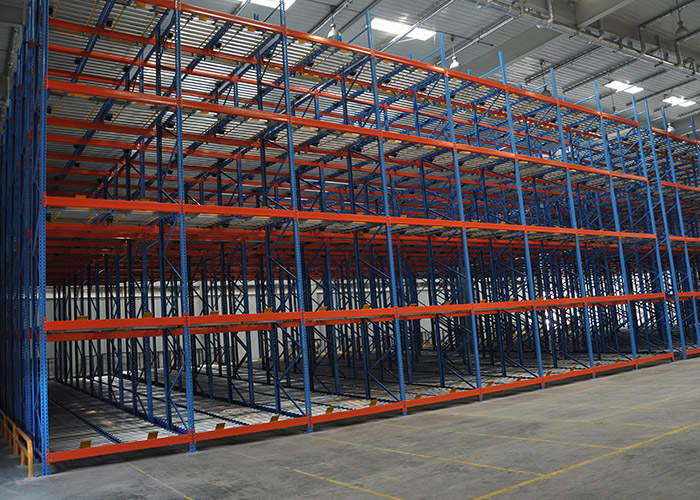

Jise Heavy-Duty Pushback Pallet Racking System for Industry Storage.

!

Overview & Basic Info

Model NO.

Push back racking

Usage

Warehouse, Industrial, Supermarket

Material

Steel Q235B, Q235D, SS400

Structure

Rack

Type

Pallet Racking

Height

Maximum 12000mm

Weight Capacity

1000-4000kg Per Tier

Surface Treatment

Powder Coated

Certification

CE, ISO9001, 14001

✓

Quick Viewing

Parameter	Details
Pitch	75mm
Feature	Corrosion Protection
Width	1350-3900 mm
Style	Adjustable
Layers	Up to 5 Layers

i

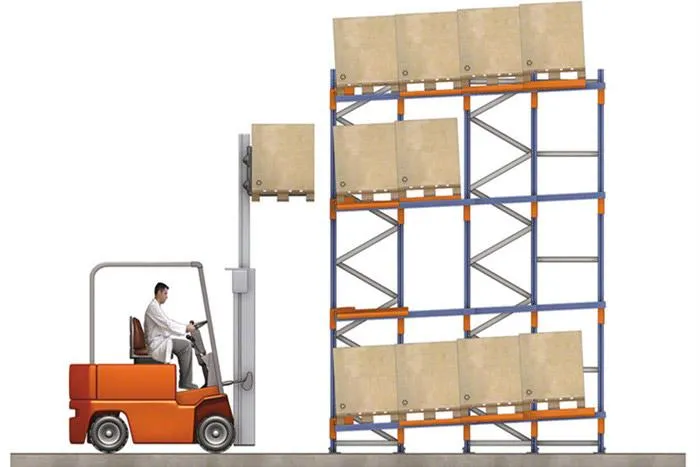

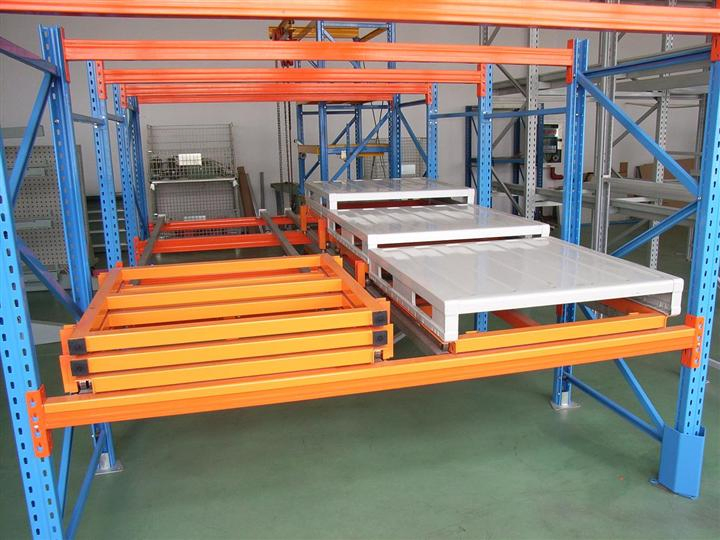

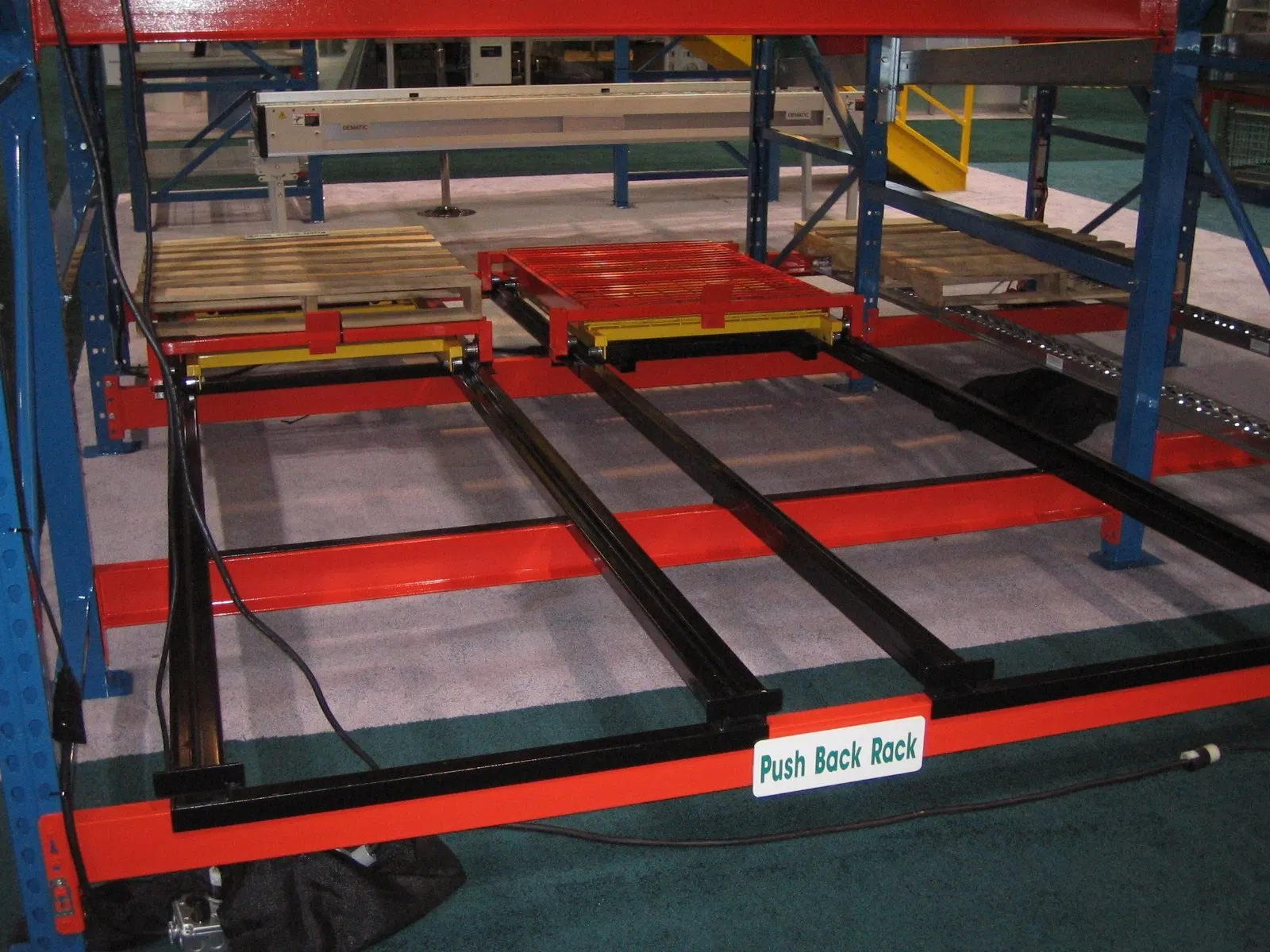

Understanding Push-Back Racking

The push-back racking system is a live storage solution for pallets formed by a compact structure, where unit loads are moved by means of rollers or shuttles with the aid of a slight incline.

LIFO Management: It is designed for Last-In, First-Out stock management, where the last pallet placed is the first to be unloaded.

Unlike FIFO systems which need separate aisles for loading and unloading, push-back racking uses a single work aisle, optimizing space significantly.

★

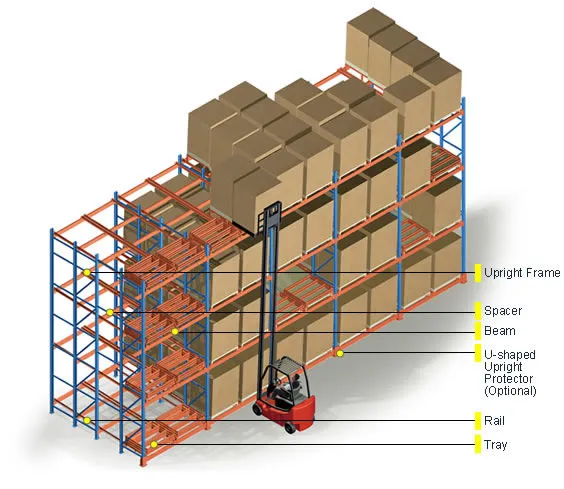

Main Applications

Storage of homogeneous non-perishable products.
Warehouses with a wide variety of product references per lane.
Efficient for low number of unit loads per reference (max 6 per lane).
Combination with other types of pallet racking or manual picking.
Suitable for cold rooms or freezing chambers.

✈

Packaging & Shipping

Supply Ability: 10 Cartons per Day

Lead Time: 20-40 days after production confirmed

Port Options: Nanjing, Shanghai, and others

Packaging: Beams and uprights in bubble film; specialized export pallets.

⚙

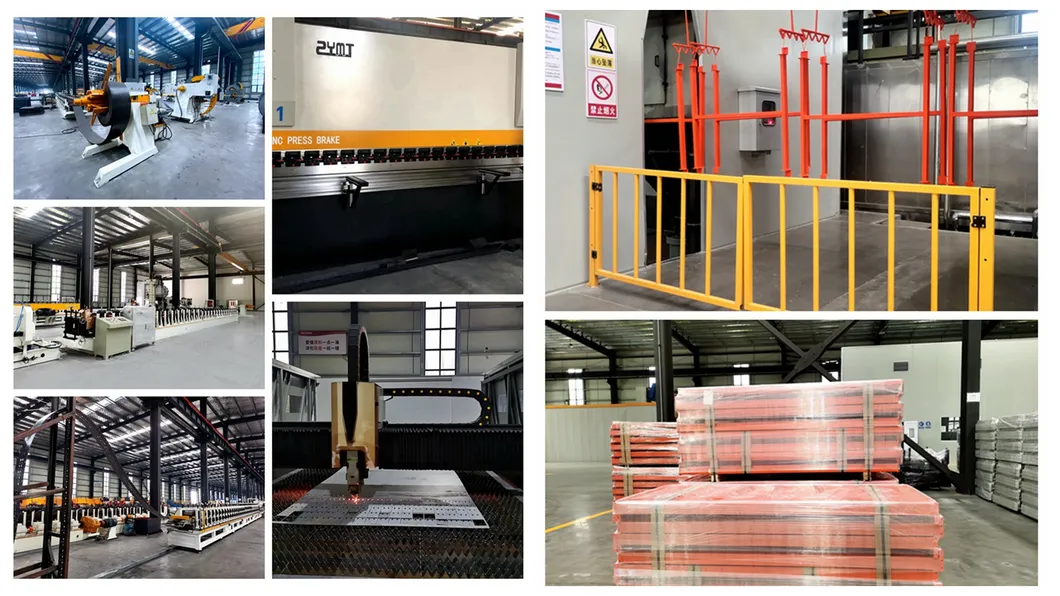

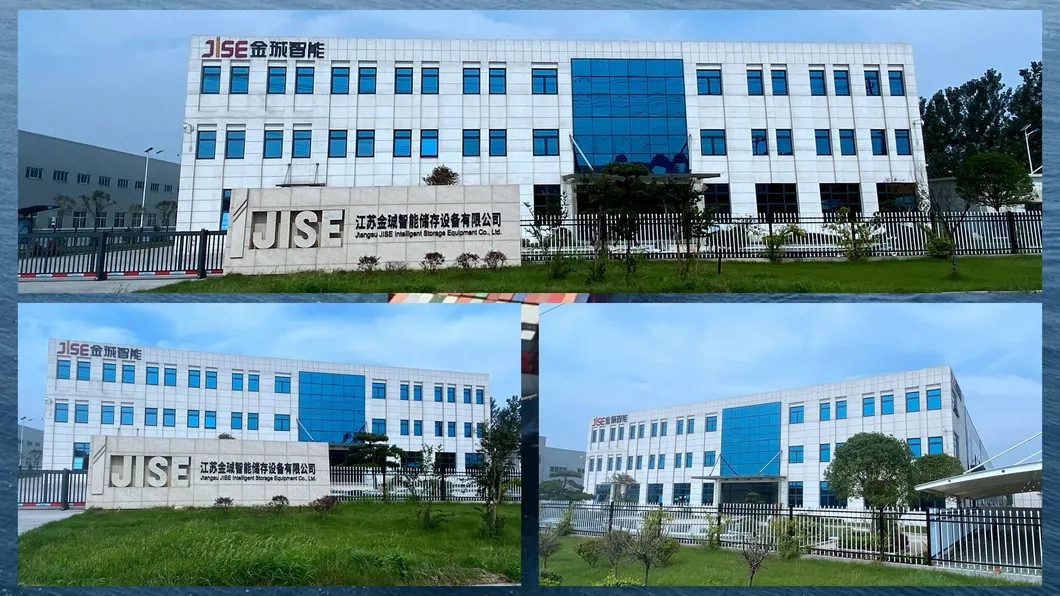

Factory & Production

Our facility is a high-tech enterprise specializing in the planning, design, manufacturing, and installation of advanced storage equipment. Covering 35,000 square meters, we utilize automatic production lines and electrostatic powder coating with an annual capacity of 40,000 tons.

✔

Our Advantages

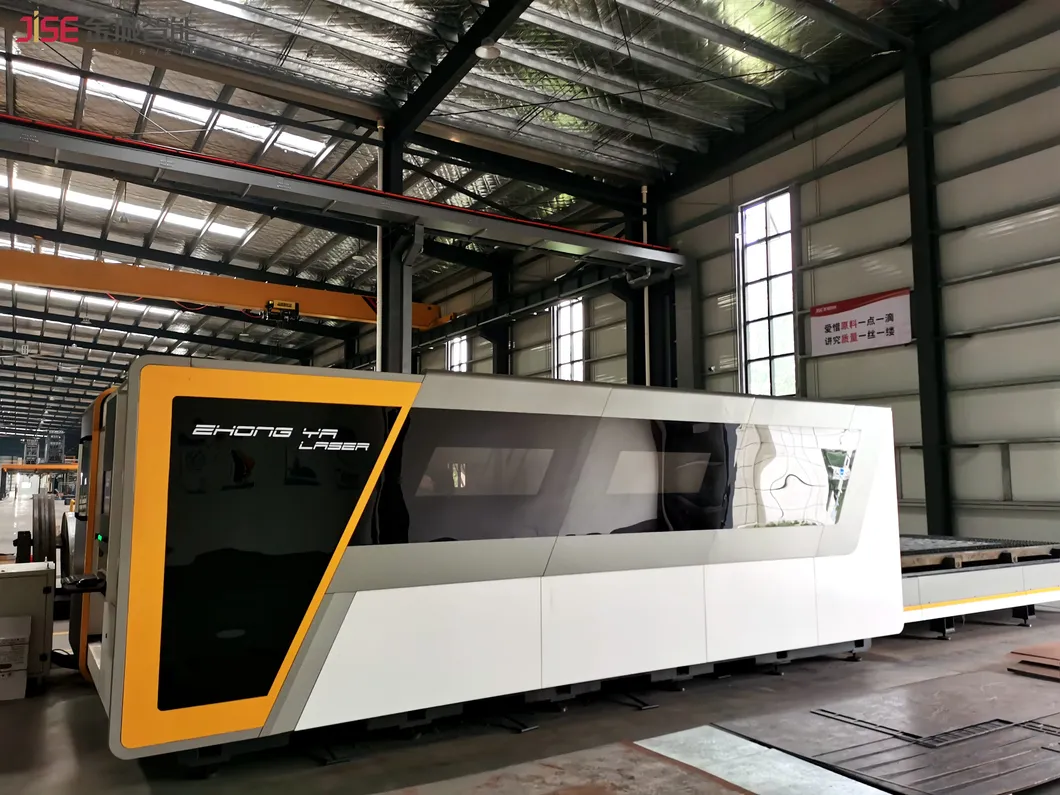

Efficiency: Highly efficient laser cutting machines for exact replicas.
Energy Saving: Lower energy consumption during manufacturing.
Precision: Computer-monitored processes ensure extreme accuracy.
Safety: Reduced human intervention minimizes workplace hazards.
Flexibility: Capable of handling various materials and complex designs.

+

Other Products

?

Frequently Asked Questions

Q1: What is the primary advantage of a Push-Back Racking system?

It offers high-density storage by utilizing a single aisle for both loading and unloading, maximizing warehouse floor space compared to standard pallet racks.

Q2: How does the LIFO principle work in this system?

LIFO stands for "Last-In, First-Out". In push-back racking, the newest pallet pushed into a lane is the first one available at the face for extraction.

Q3: Can these racks be used in cold storage environments?

Yes, the steel construction and powder-coated finish make them highly suitable for cold rooms and freezing chambers.

Q4: What is the maximum load capacity per tier?

Our push-back racking systems are heavy-duty and can support between 1000kg and 4000kg per tier depending on the specific design.

Q5: Is specialized equipment required to operate this system?

No specialized equipment is needed; standard forklifts can be used to push the pallets into the lanes and retrieve them from the aisle.

Q6: How many pallets deep can a push-back system go?

Generally, push-back systems are designed for 2 to 6 pallets deep per lane to maintain structural integrity and ease of operation.
