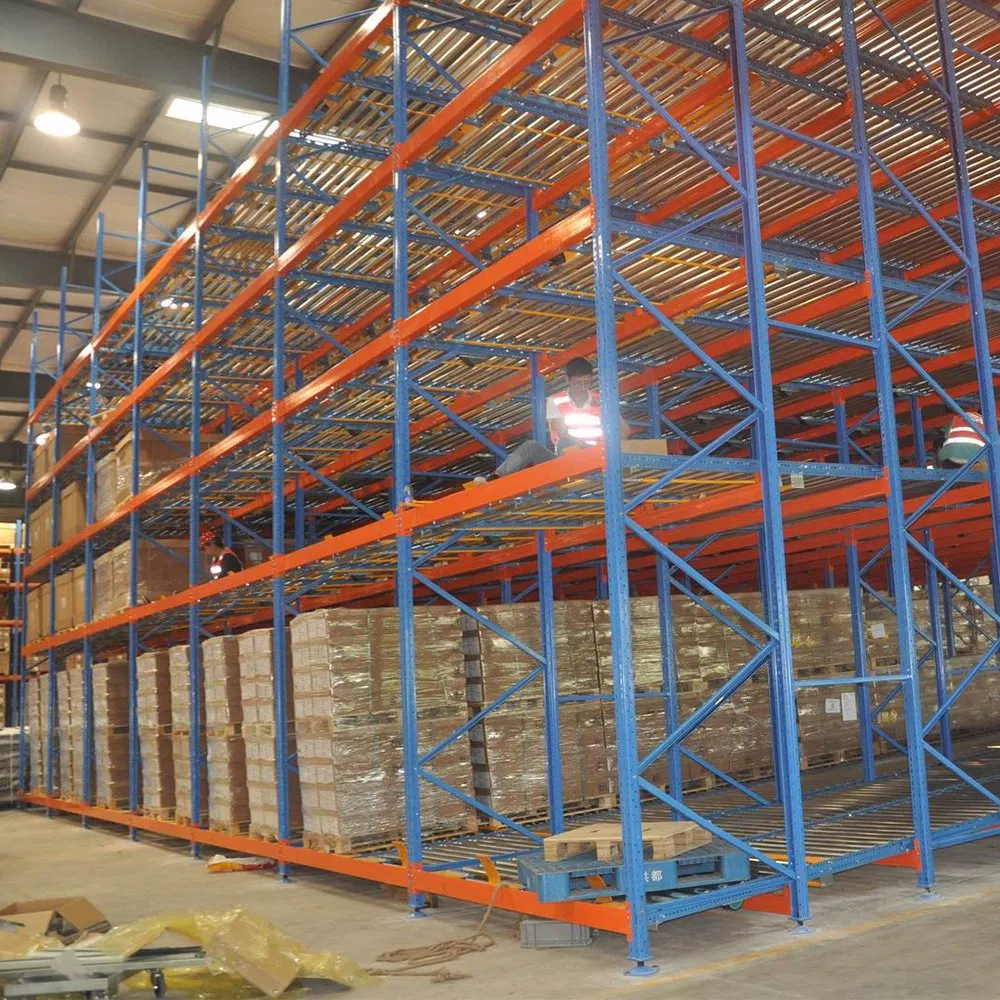

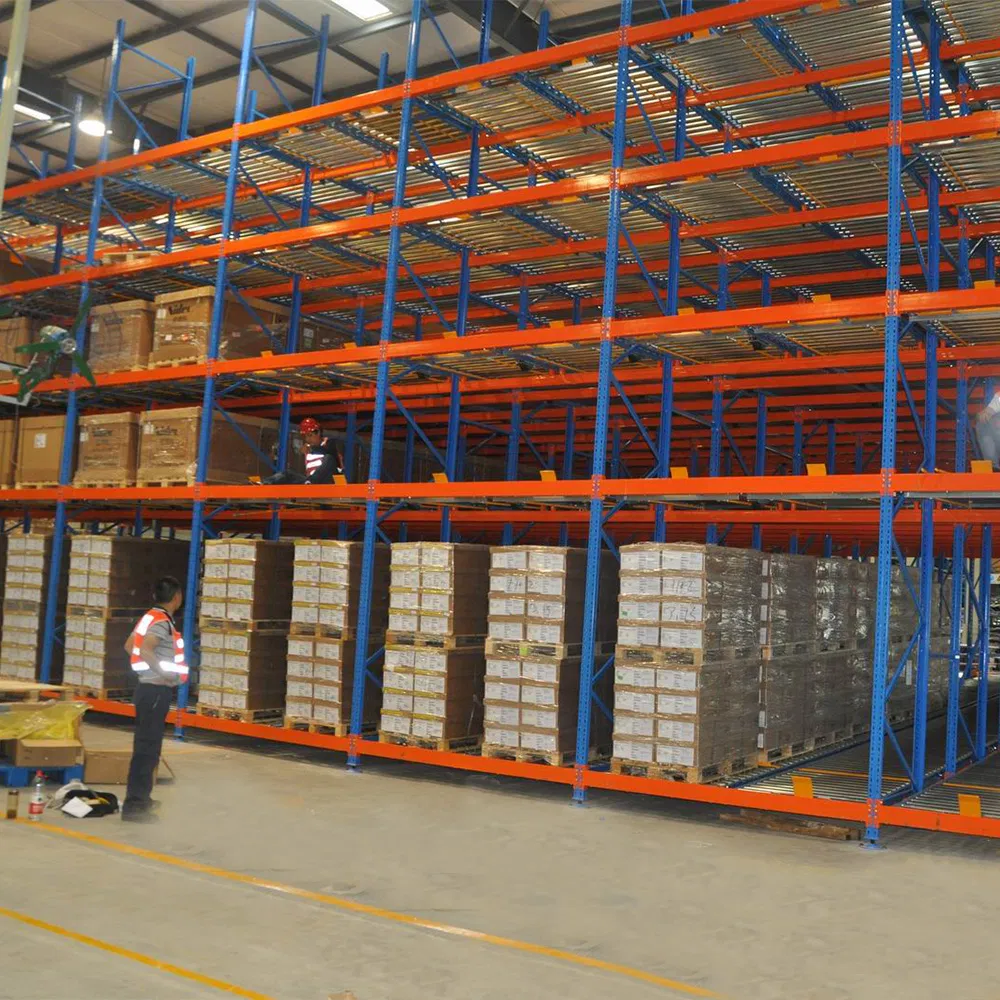

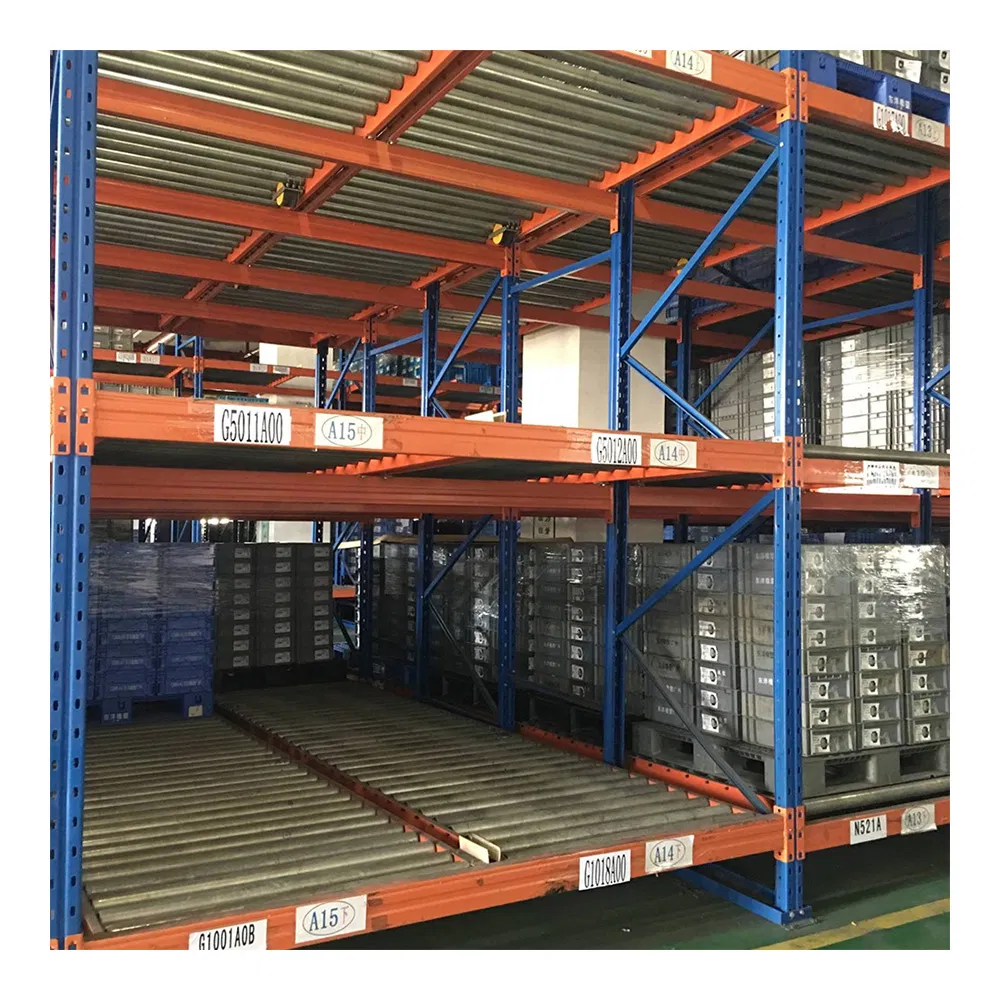

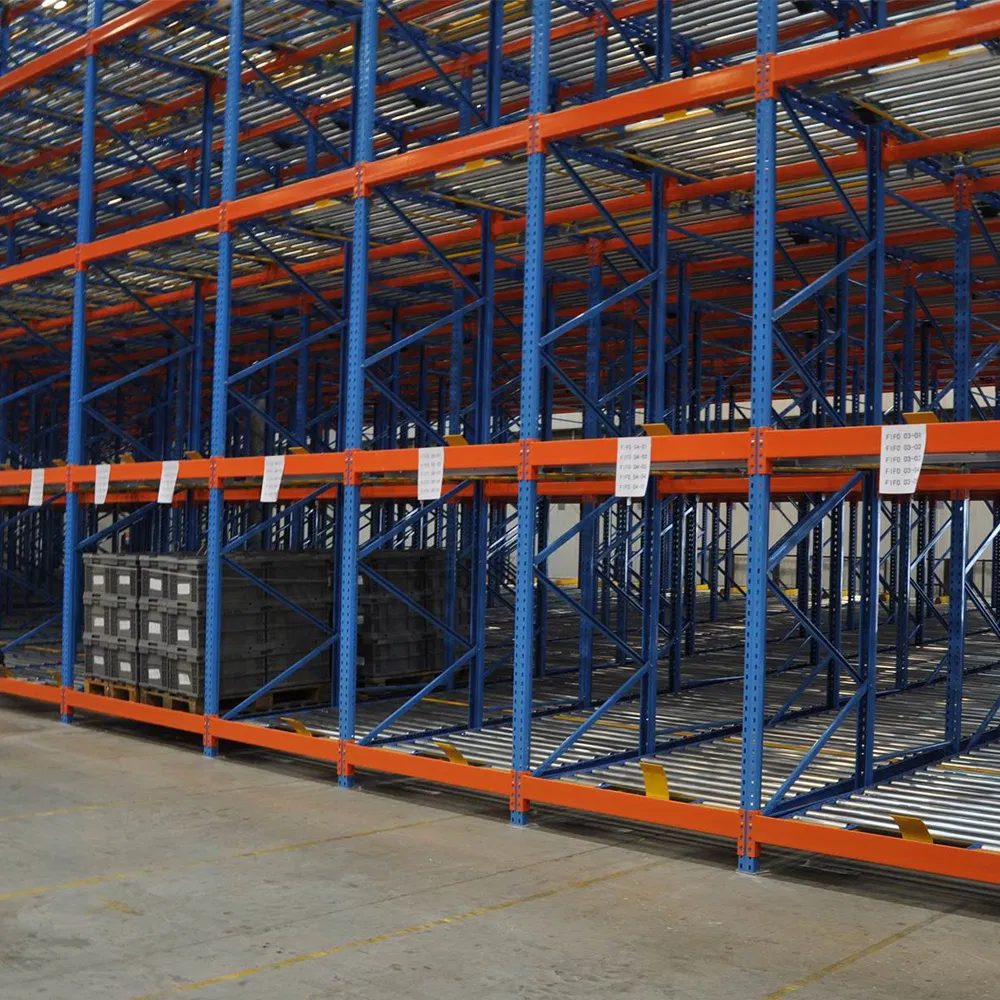

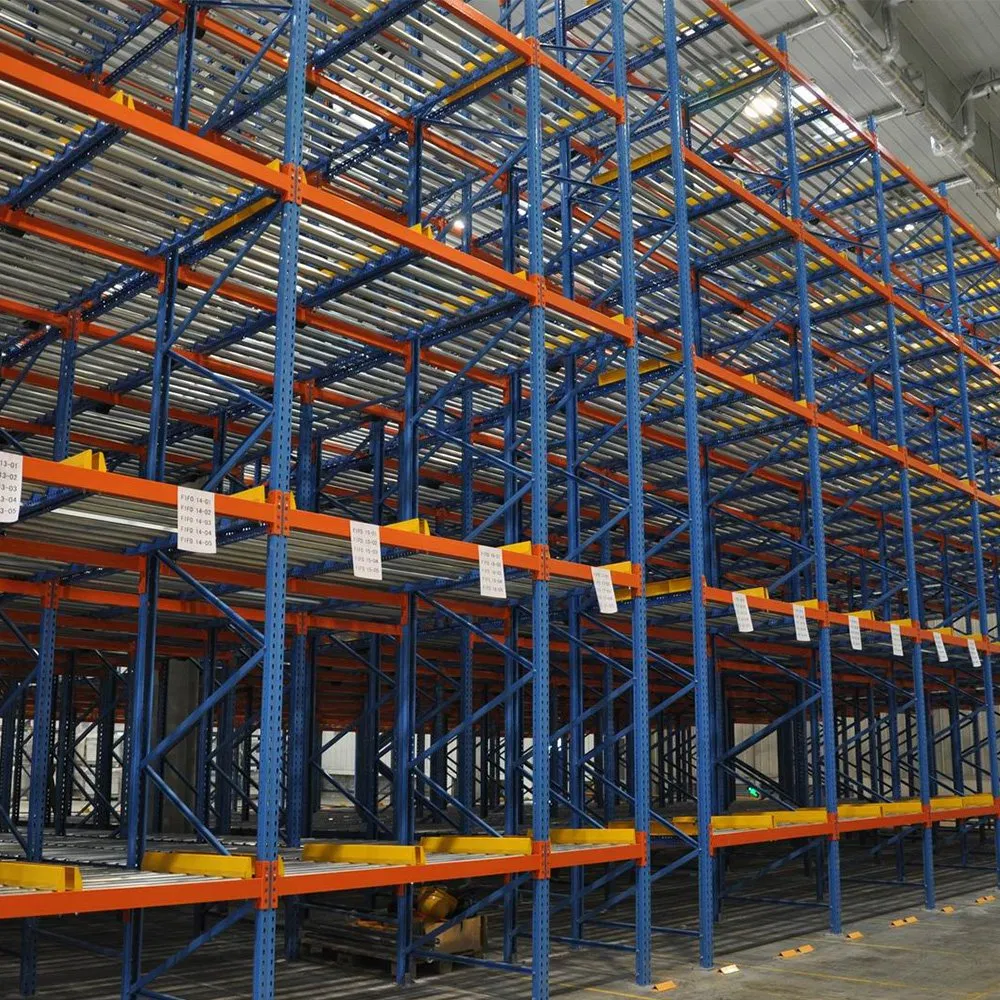

Low MOQ Roller Gravity Pallet Flow Rack for Toilet Paper

Product Overview

Model NO.	20240814-94
Usage	Tool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack
Material	Steel
Type	Gravity Flow Racking
Mobility	Adjustable
Height	Max 6m or Customized
Weight	Max 1000kg/Pallet
Product Name	Pallet Flow Racking
Width	1800/2700/3600mm or Customized
Track Angle	3 Degrees - 5 Degrees
Roller Diameter	60mm
Load Per Roller	150kg/Roller
Surface Finish	Powder Coated / Galvanized
Color	Blue, Orange or Customized: All Ral Color
HS Code	73089000

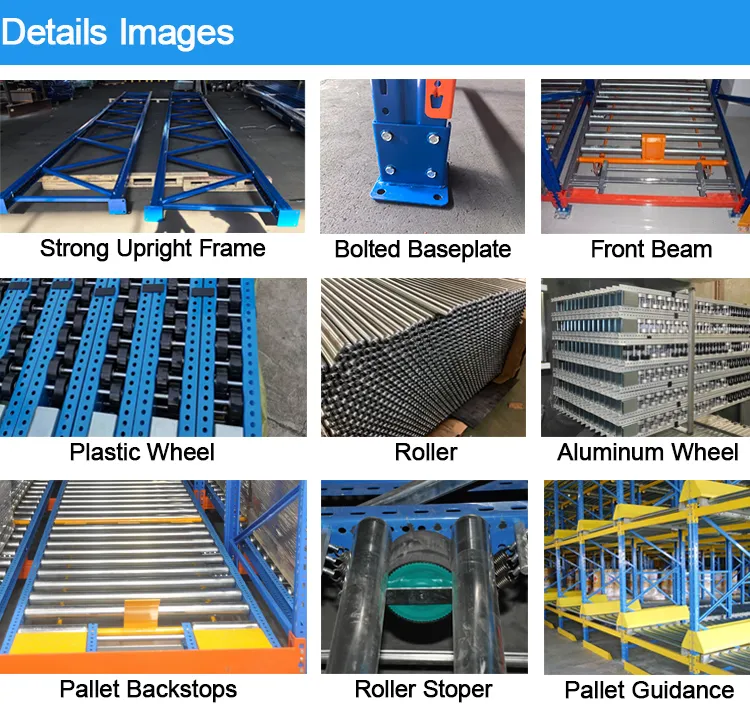

Details Images

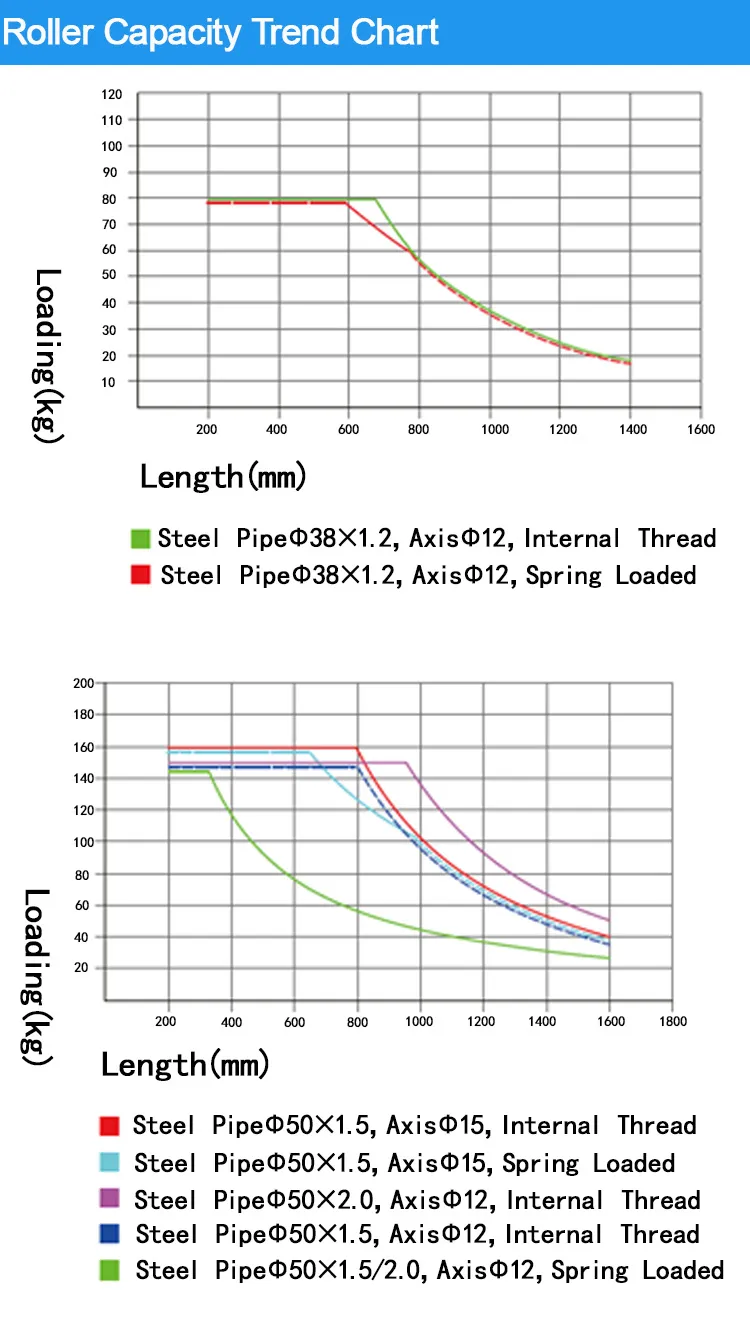

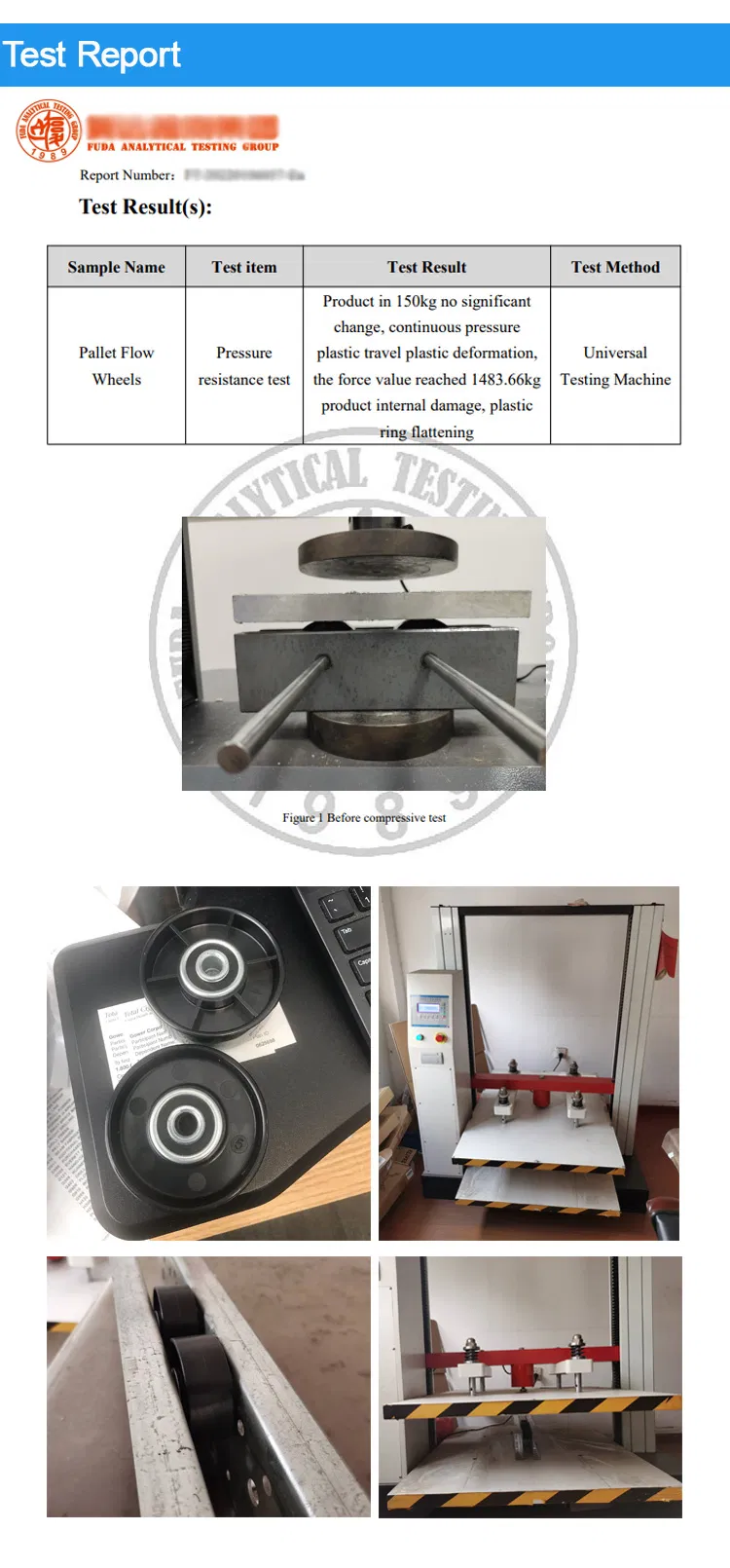

Load Test

Our Safety Assurance

Gravity racking places higher demands on stability and safety. Our professional engineers have implemented protective measures in accordance with standards:

Rollers D60*2-12 elastic shaft-mounted rollers with galvanized treatment for wear-resistance.

Damping Rollers (Speed Controllers) Prevents items from accelerating due to gravity, ensuring stable movement at no more than 0.3 m/s.

Beams Thickened high-quality angle steel (10mm thick) for front/rear connections; box beams for middle support.

Roller Brackets 80*40*3.0 C-shape cold rolled steel with 3mm thick pipes to ensure no deformation.

Guide Plates Limits pallets to the correct position and prevents unexpected sliding.

Separators Ensures smooth extraction by separating adjacent goods at the delivery point.

Frame Protector 4.0mm thick protection layer to prevent forklift collision damage.

Leveling Plates High-quality expansion bolts for adjusting tilt angle and ensuring smooth movement.

Professional Support & Services

Free Consultation	Available for any questions
Free Design	CAD / PDF / 3D Drawings provided
3D Sample	1:1 3D Sample to save time and trial costs
Lead Time	15-20 Days for regular pallet racking
Installation Service	Installation drawings, videos, or on-site engineer support
OEM & ODM	Available

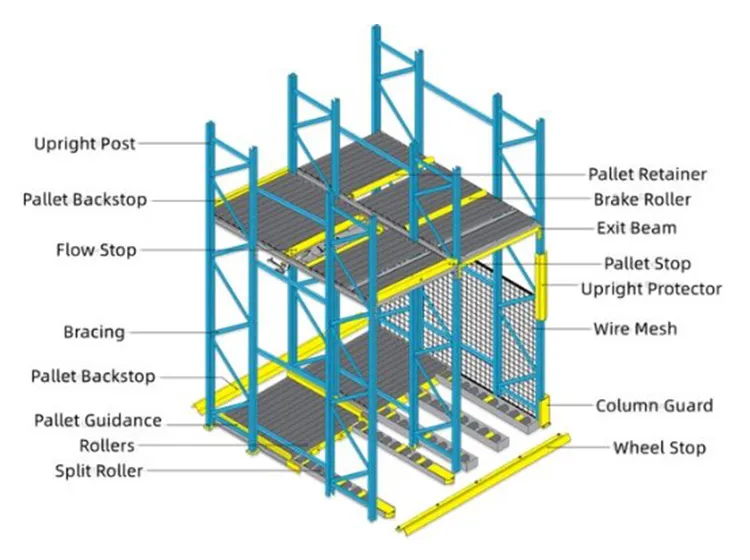

Gravity Flow Racking Components

Frame: Includes uprights, bracing, and floor fixing elements.

Beam: Joins frames and supports rollers for cargo movement.

Rollers: Essential elements enabling the FIFO system.

Roller Tracks: High-strength 3mm thick steel pipes with 3°-5° gradient.

Brake Rollers: Safety element controlling unit pallet speed.

Pallet Backstops: Stops pallet movement at the extraction point.

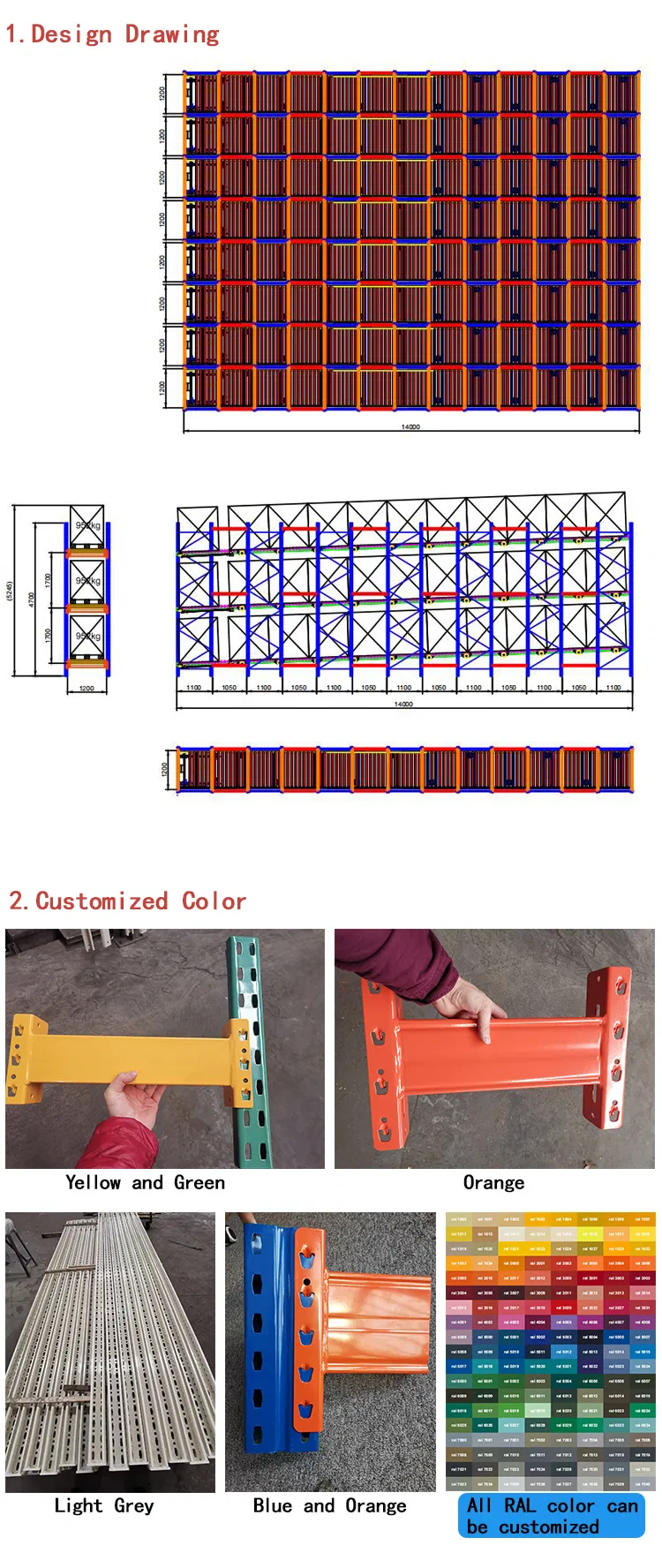

Customized Services

We support full customization including drawings, color, packaging, and sizing to meet specific warehouse requirements.

Why Choose Us

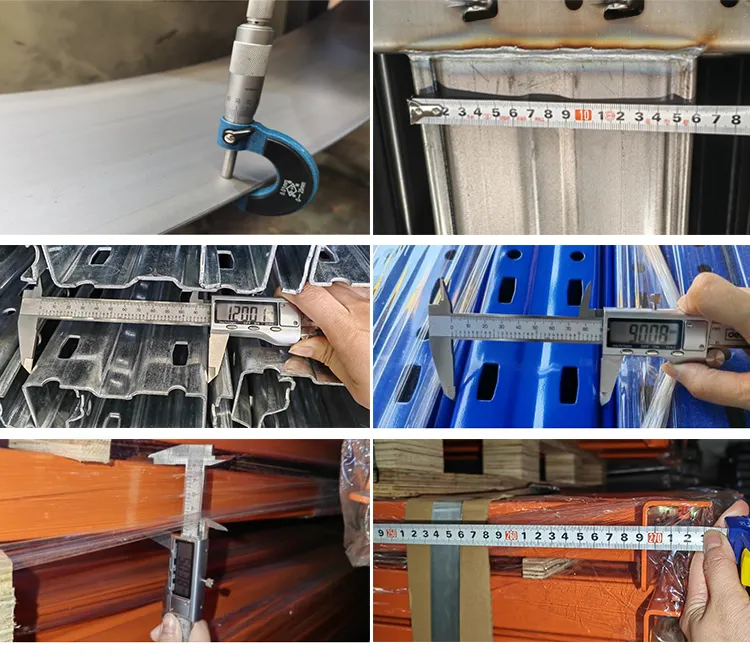

Strict Quality Inspection

A professional quality inspection team checks every production step to guarantee racking quality during processing.

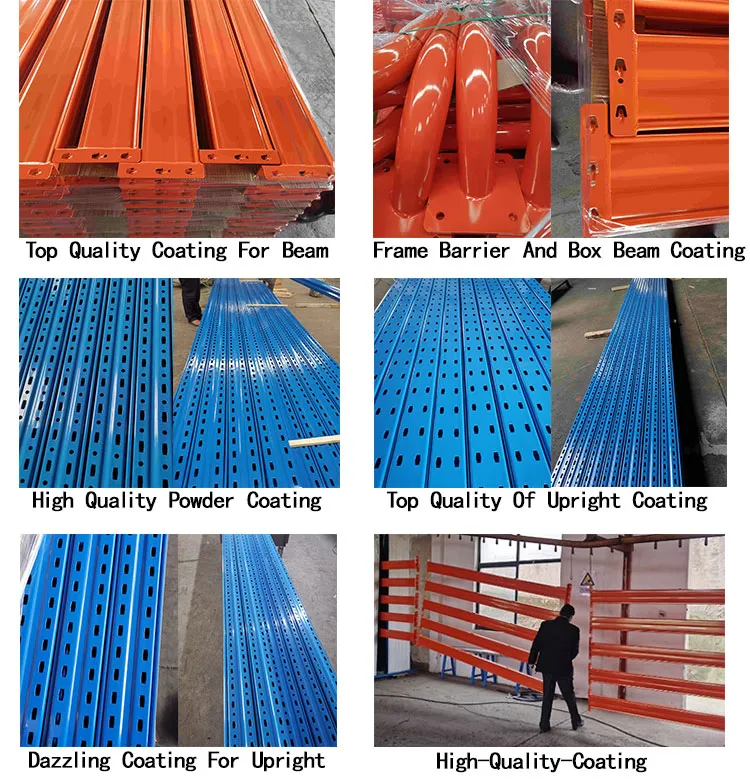

Superior Powder Coating Quality

Our powerful pickling technology creates a superior oxidation film, allowing resin powder to adsorb better, greatly increasing the racking lifespan.

Company Profile

Dedicated to storage production, providing quality solutions to maximize space. With over 23 years of experience exporting to 85 countries, we utilize automated state-of-the-art technology. We offer a 10-year warranty to cover all racking issues.

Frequently Asked Questions

Q1: What should be noted about gravity racks? The total track depth should not be excessively long to ensure smooth sliding. Damping devices are used in long tracks to prevent overturning. Generally, heights are limited to 6 meters and unit weights to 1000kg for optimal stability.

Q2: What products are suitable for gravity racks? Ideal for bulk goods with few varieties but large quantities. Commonly used in automotive, food, pharmaceutical, and cold storage industries where space utilization reaches over 75%.

Q3: Can dimensions be customized according to needs? Yes, we customize height, length, and width based on your pallet dimensions, warehouse size, and cargo information.

Q4: What is the standard delivery time? Typically, delivery takes 20-25 days. For highly customized products, the timeline is determined during the consultation.

Q5: How is safety ensured during high-speed sliding? We use specialized damping rollers (speed controllers) to keep pallet speeds under 0.3 meters per second, along with separators and cushioning devices at the exit point.

Q6: Does this system support FIFO (First-In, First-Out)? Yes, the inherent gravity flow design ensures that the first pallet loaded at the high end is the first one available for extraction at the low end.
