| Model NO. | SH00924 |
| Material | Steel |
| Structure | Rack |
| Type | Pallet Racking |
| Mobility | Adjustable |
| Height | 5-15m |
| Weight Capacity | 150-500kg per level |
| Color | Blue, Gray, Orange, Customizable |
| Standard Size | 2000*600*2000mm, 2000*600*2500mm, Customizable |
| Surface Treatment | Powder Coated |
| Steel Type | Steel Q235B |

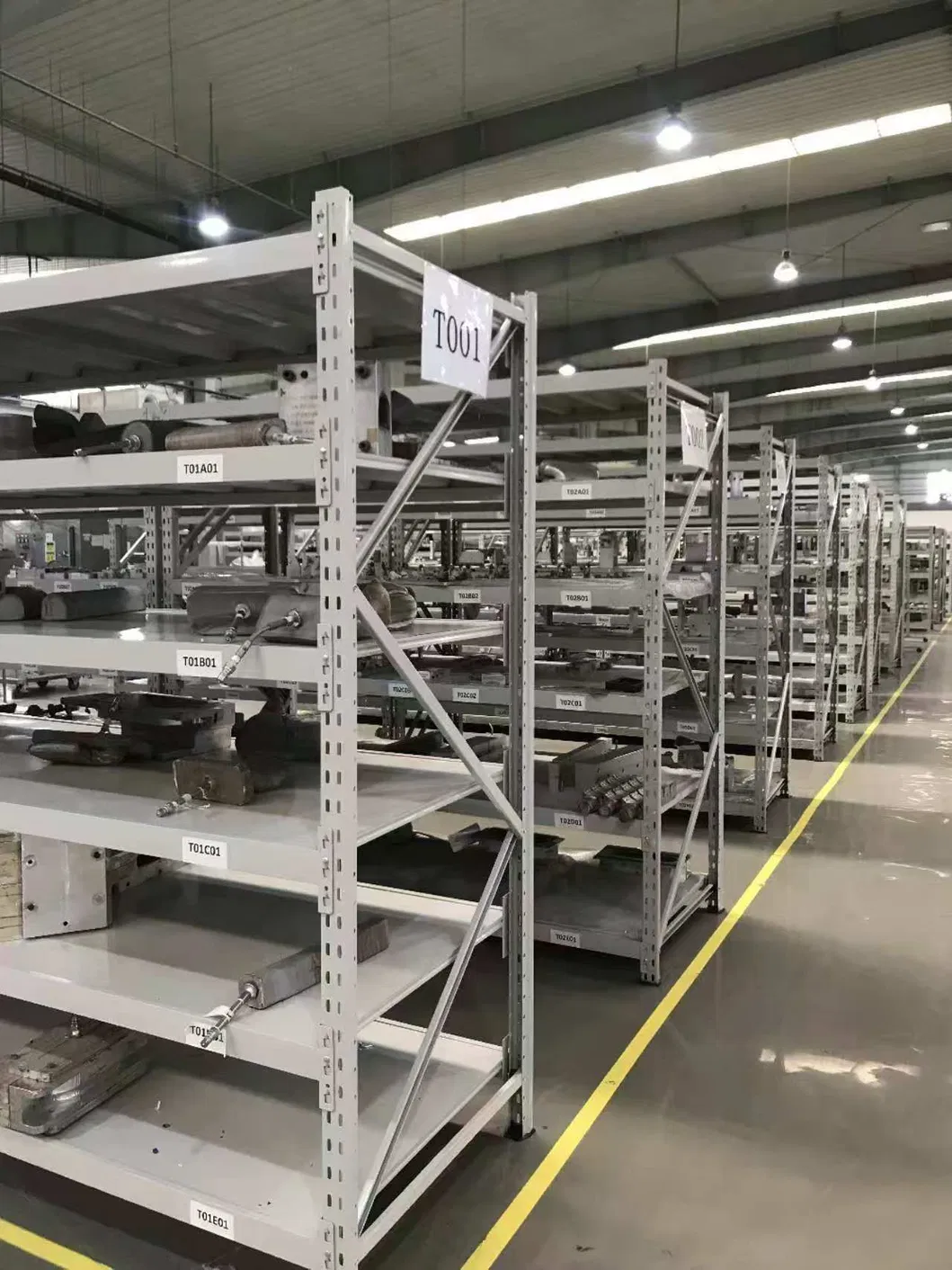

Longspan Shelving is divided into medium duty A type and medium duty B type shelving.

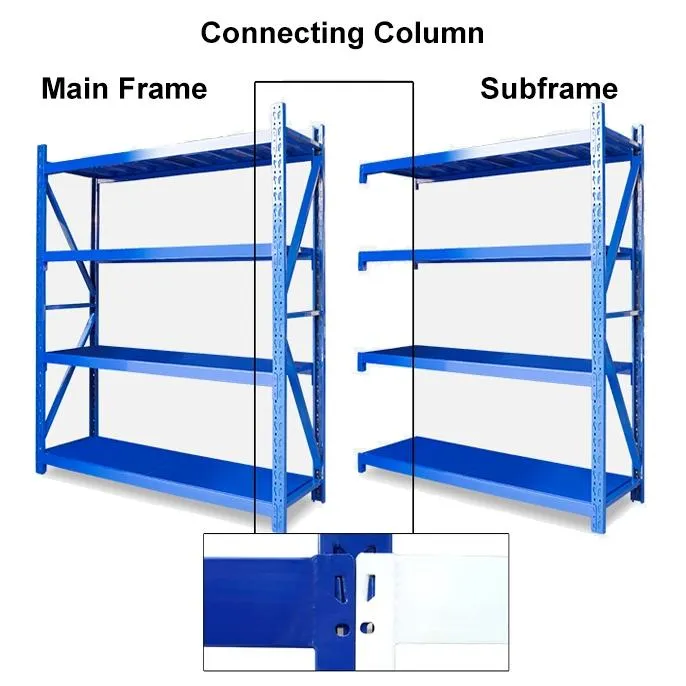

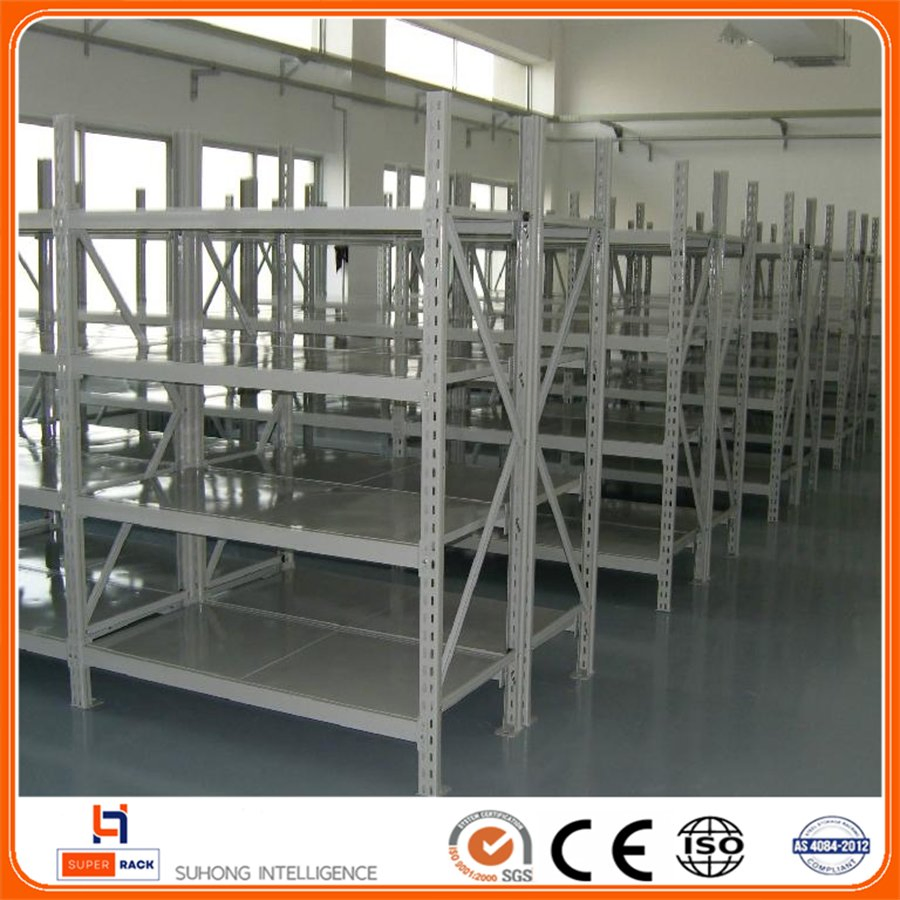

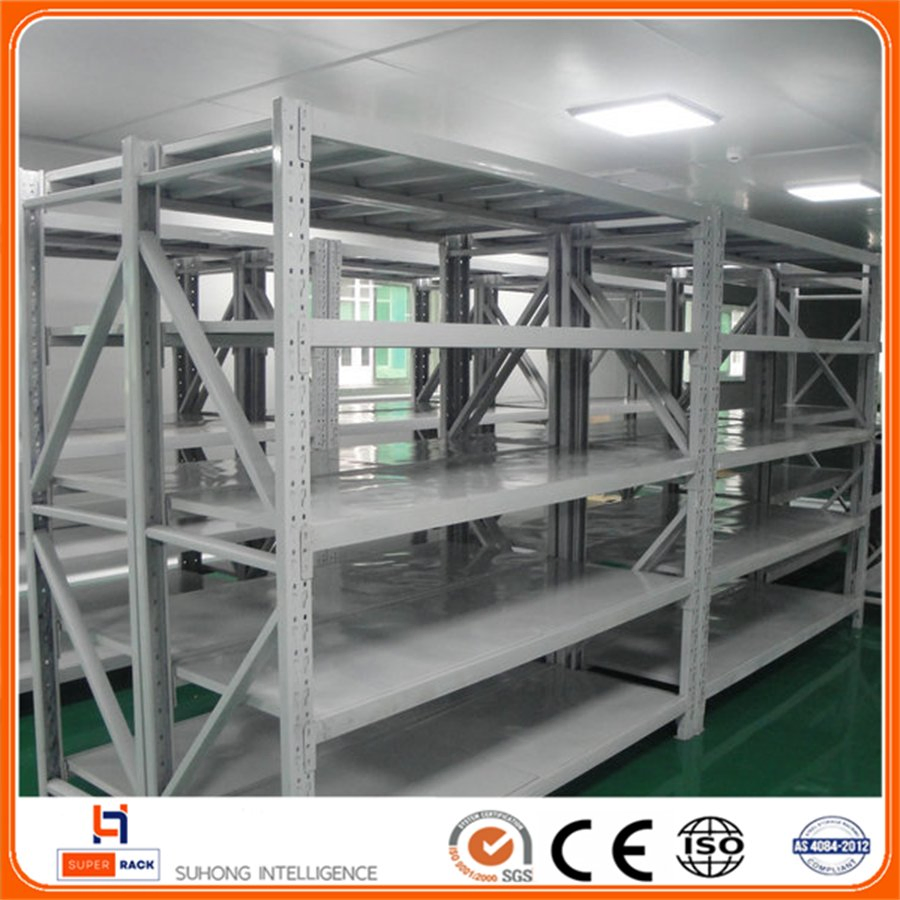

Medium duty A type shelving usually consist of uprights, beams, panel brackets and panels, its load capacity usually between 150-350KG / level. It's easy to be assembled and disassembled. It also can be easily adjustable in 50mm step distance and easily configurable. It's used for hand-loaded application.

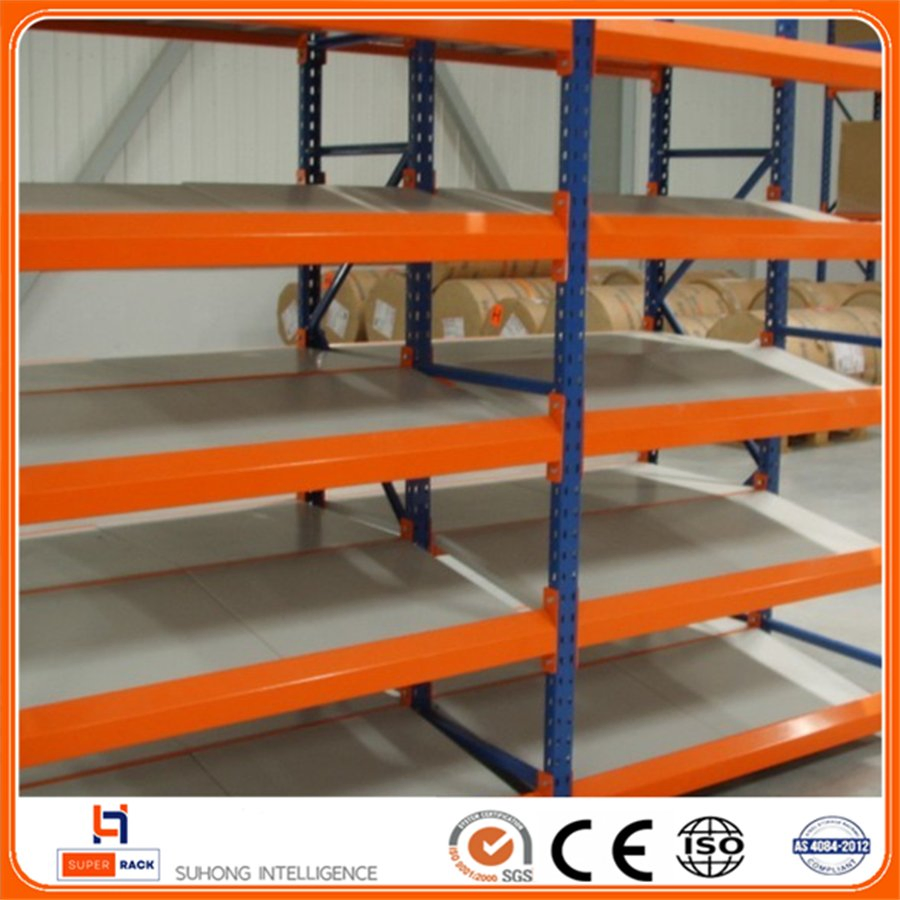

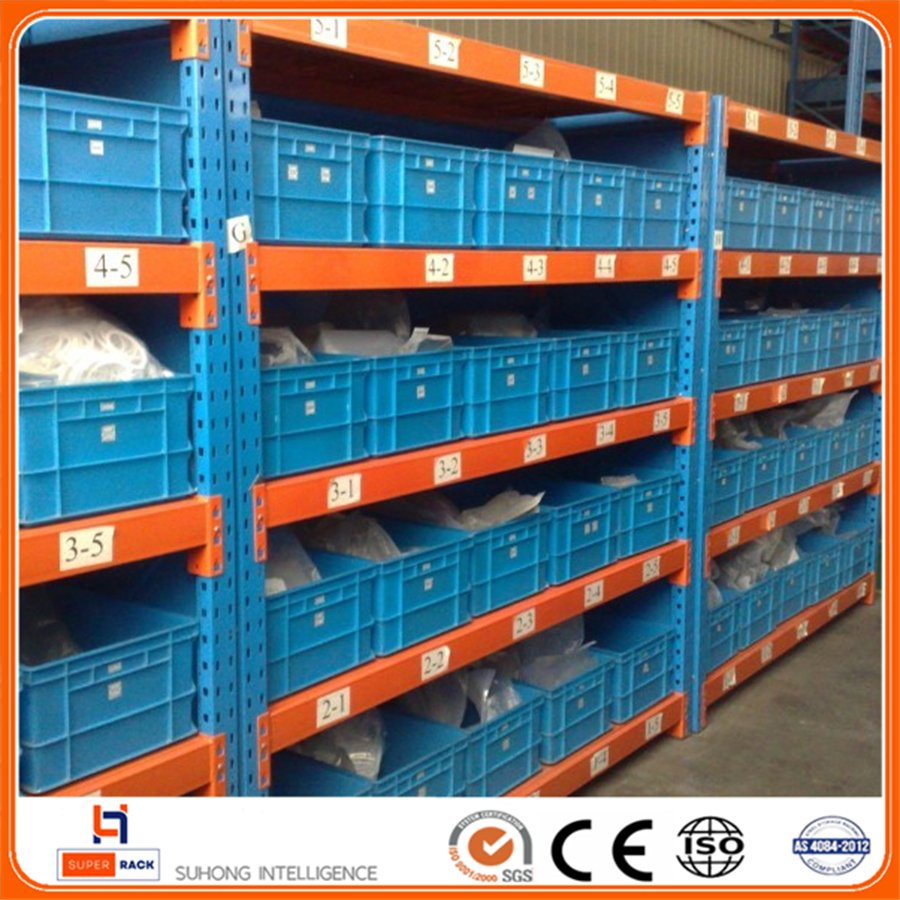

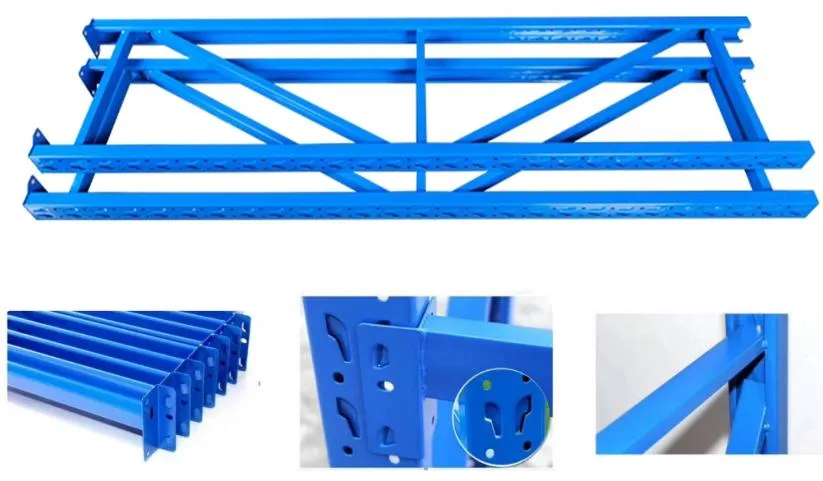

Medium duty B type shelving structure is inserting connected by frame and beam. The beam can be adjusted by 50mm distance, It is suit for large loading and big unit. Load capacity per level can reach 300-800kg. The panel can be used by steel plate, paring, fiber or wood plate.
| Product Name | Heavy Duty Steel Boltless Racking System For Storage |
| Weight Capacity | Customizable |
| Number of Layers | 4Layer, 5Layer, 6Layer, Customizable |
| Accessories | Optional lifting platform, stairs, climbing ladder, wire mesh panel, shelving, etc. |
| Scope of Application | Factory warehouses, food warehouses, e-commerce warehousing, logistics distribution centers, chemical warehouses, etc. |
| Technical Support | Site measurement and design calculation based on bearing capacity requirements. |

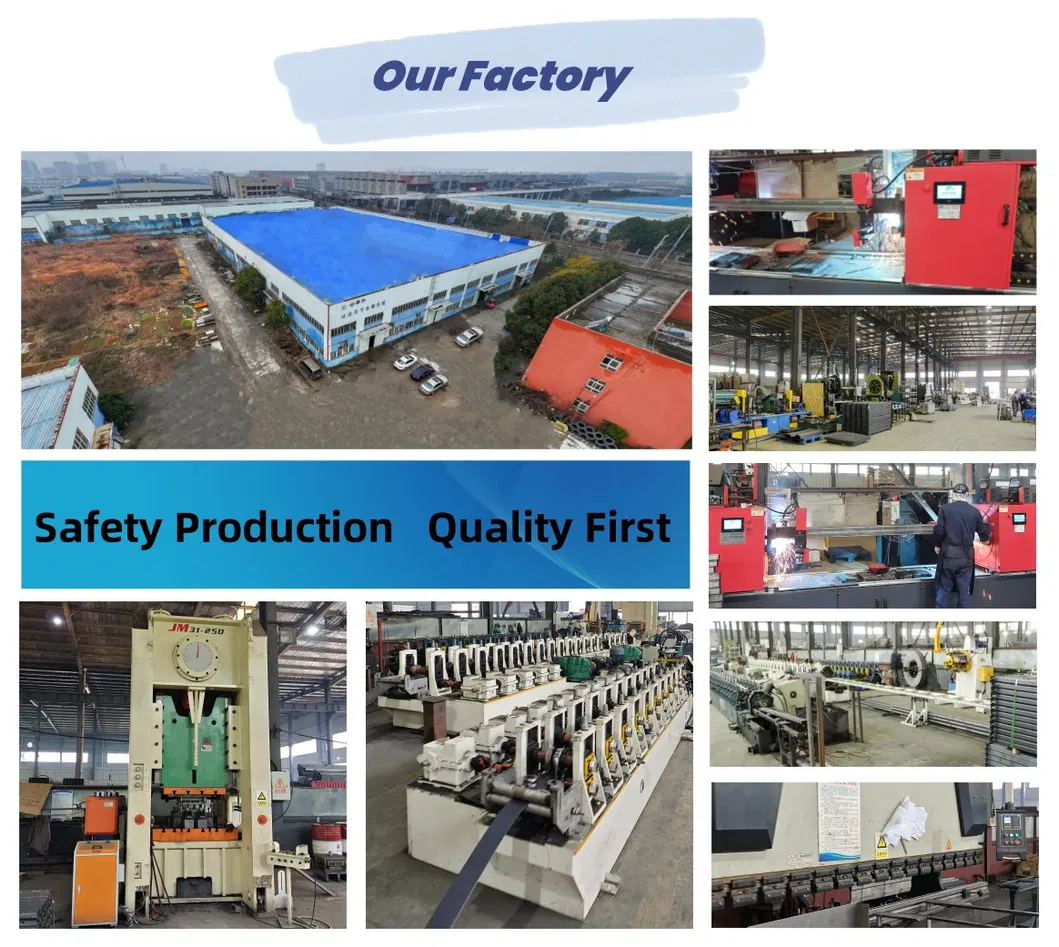

We are a professional manufacturer engaged in warehousing logistics and its supporting products. It integrates product research, development, design, manufacturing, installation and commissioning. We specialize in providing customers with professional intelligent warehousing solutions. The products cover a series of products such as storage shelves, workstation equipment, logistics containers, and handling equipment.
Our products are widely used in various industries such as aviation, automobiles, machinery, e-commerce, medicine, food, and chemicals. We utilize advanced technologies including shuttles, stackers, conveyors, and automated three-dimensional warehouses to greatly improve storage efficiency.
