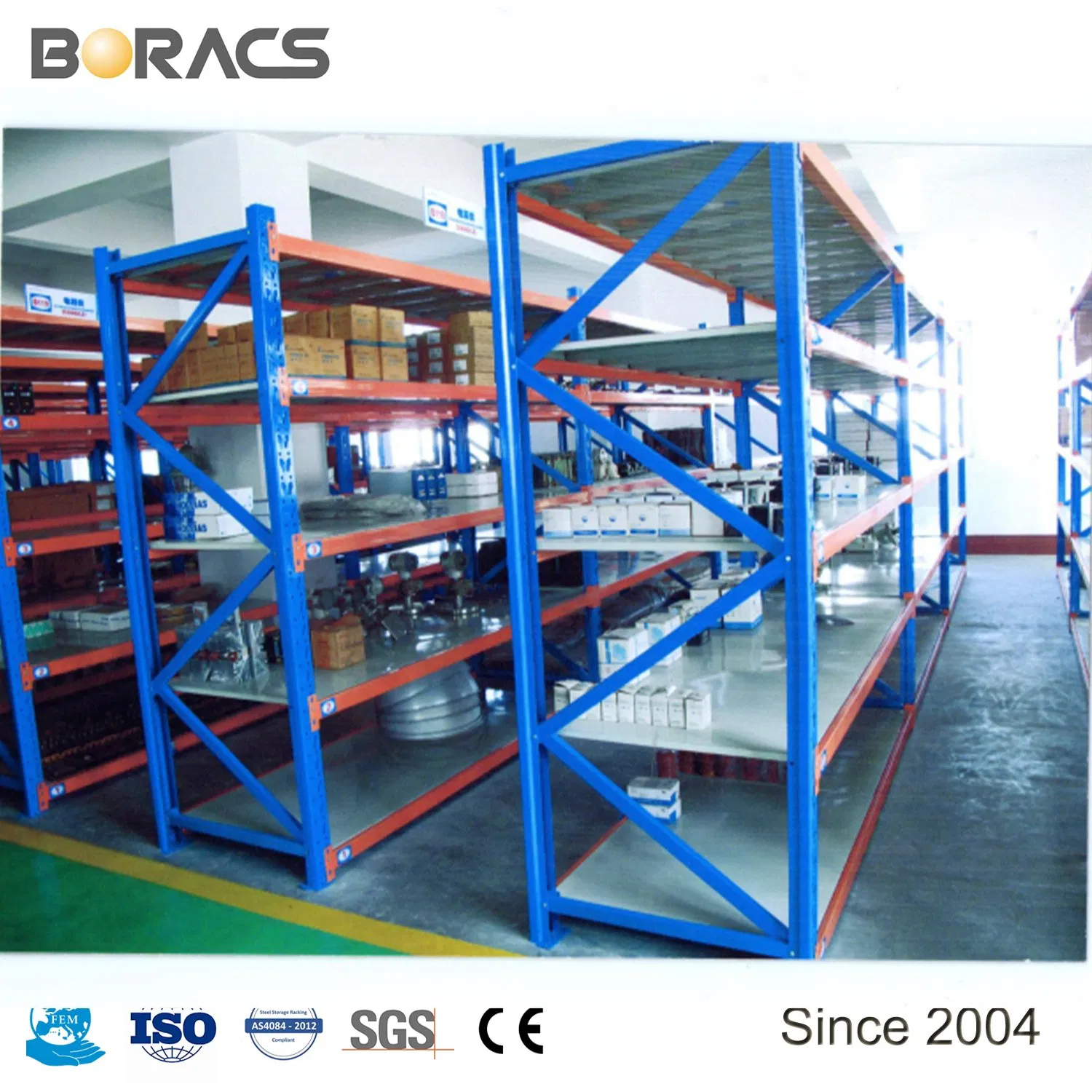

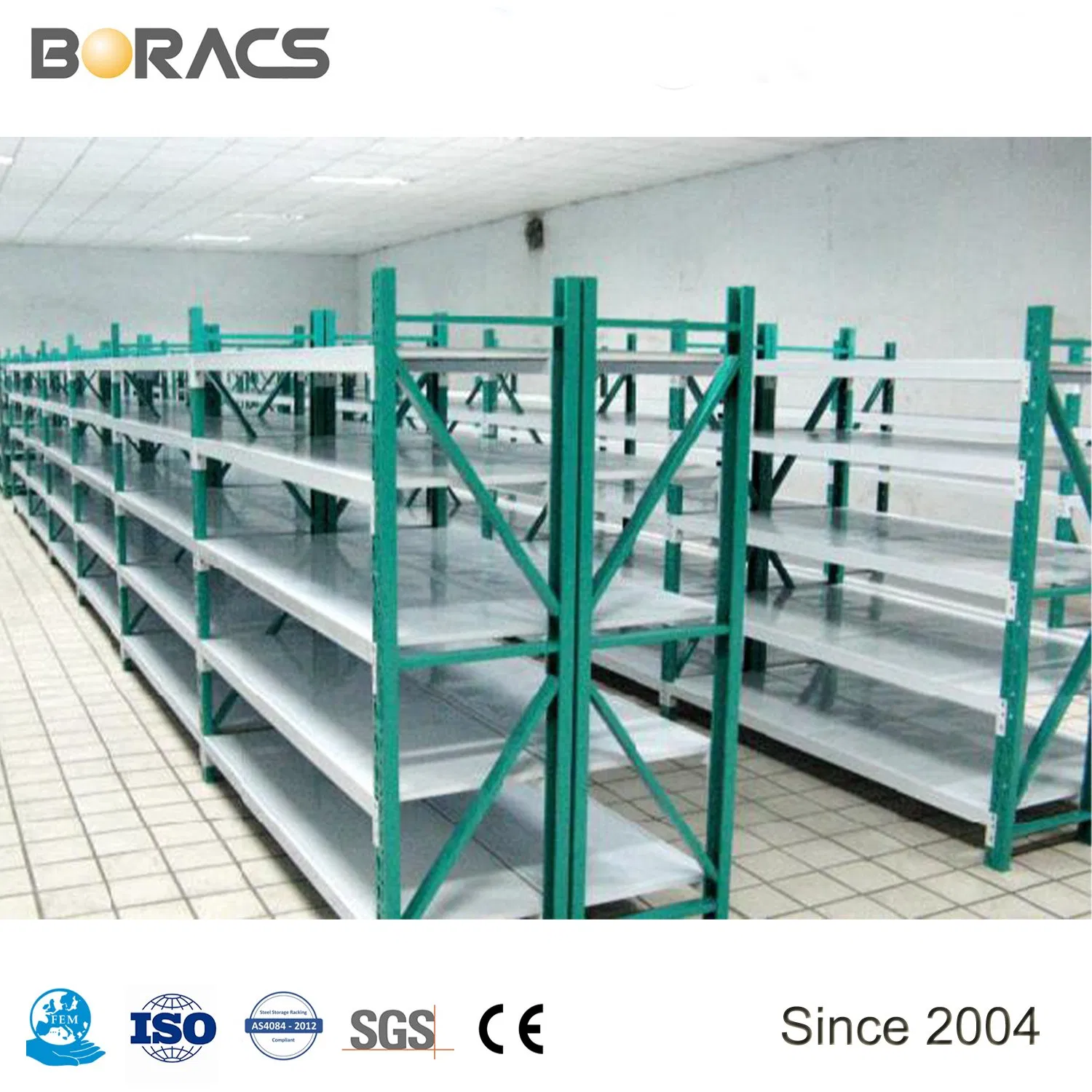

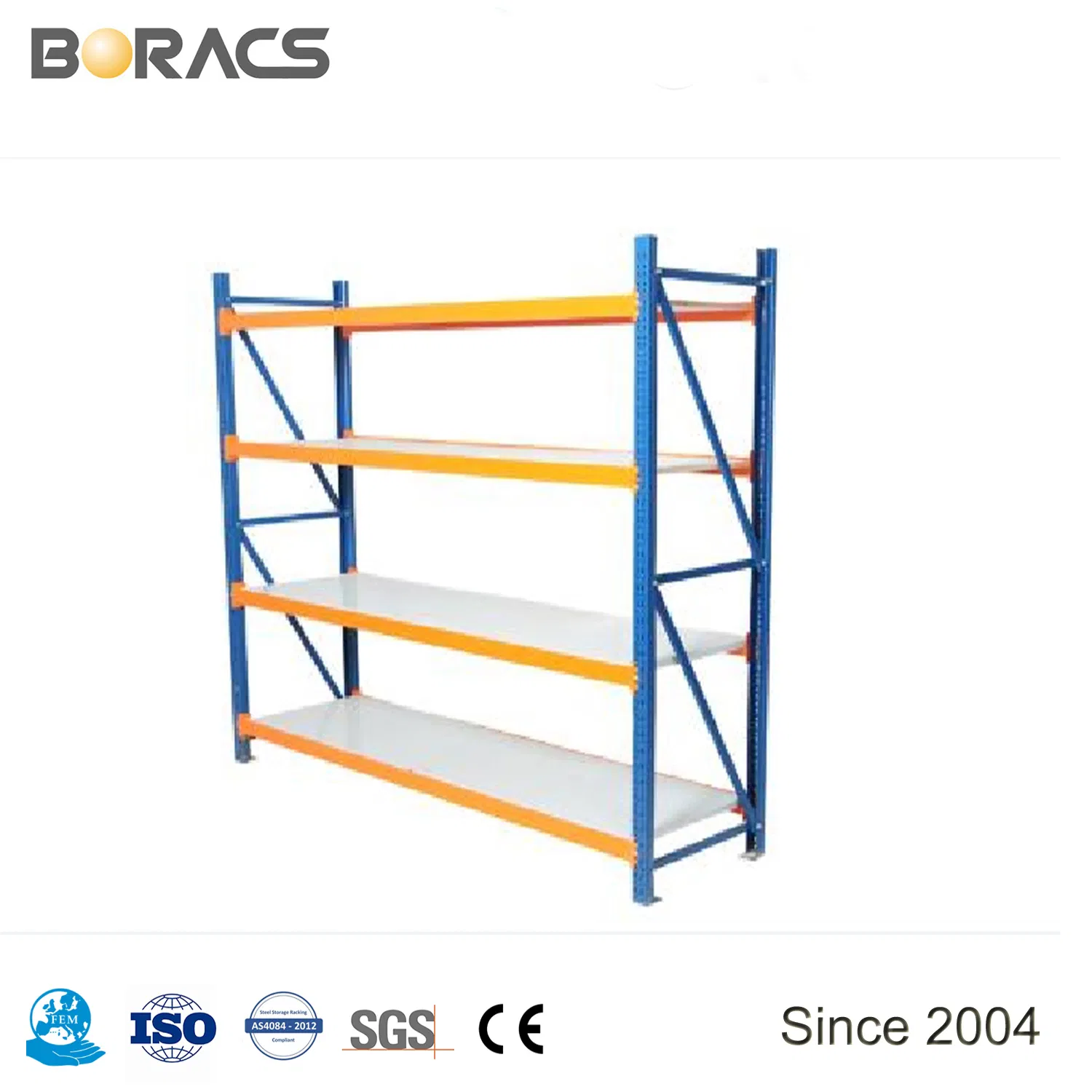

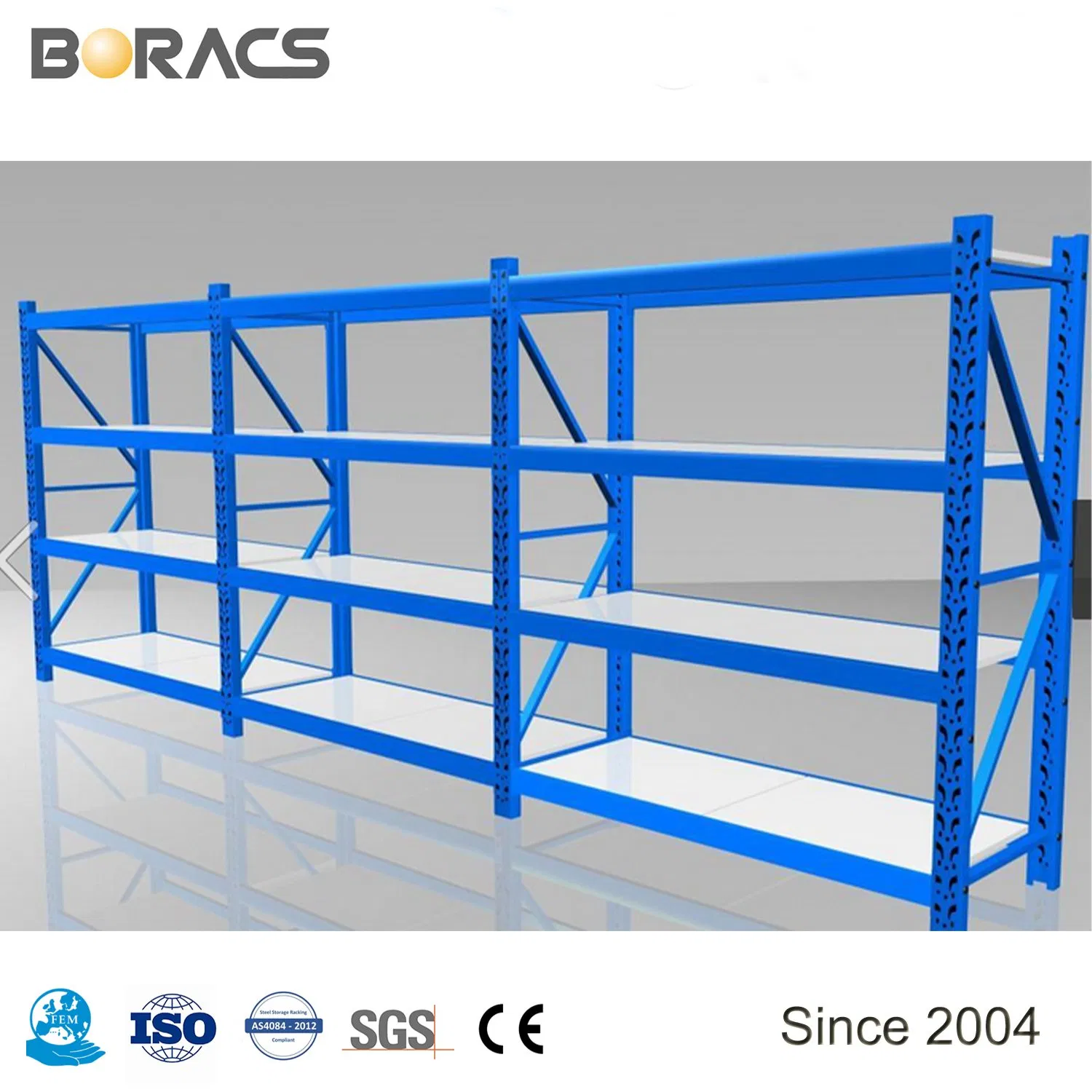

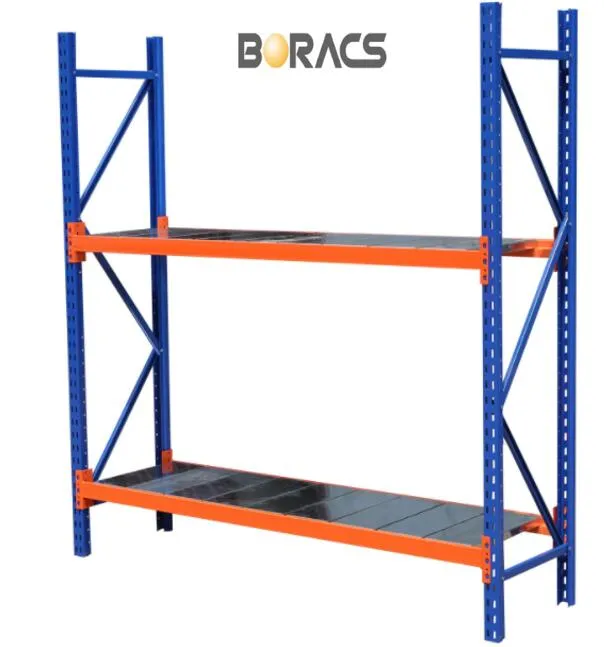

Warehouse Longspan Shelving/Medium duty shelving
The medium duty shelving is connected with columns and beams, all the connections are plug-in combination. The layer can be adjustable by 50mm pitch, which is suitable for different goods. Usually the load of each layer is 300-800kg, total loading weight per bay is 5400kg. Steel panel or wooden panel can be selected.

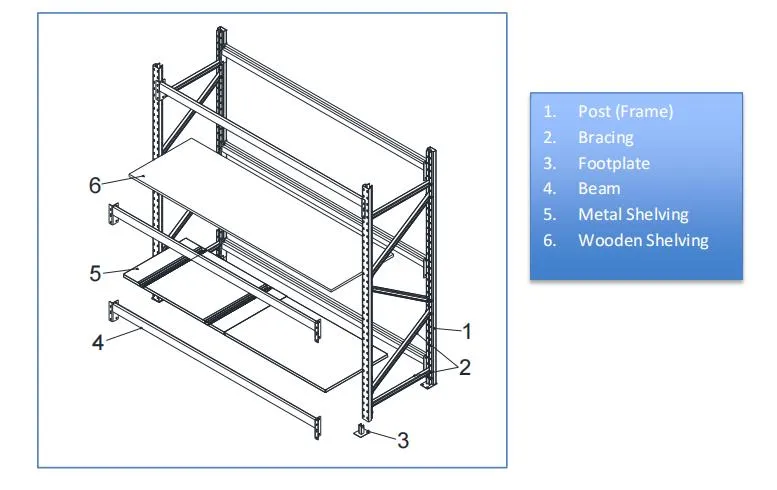

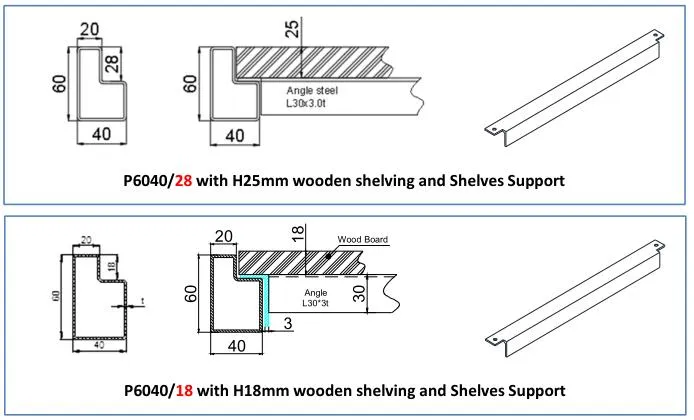

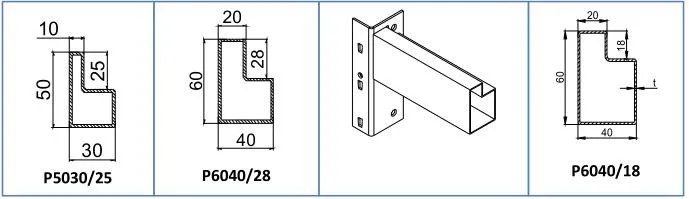

Section reference of medium duty shelving

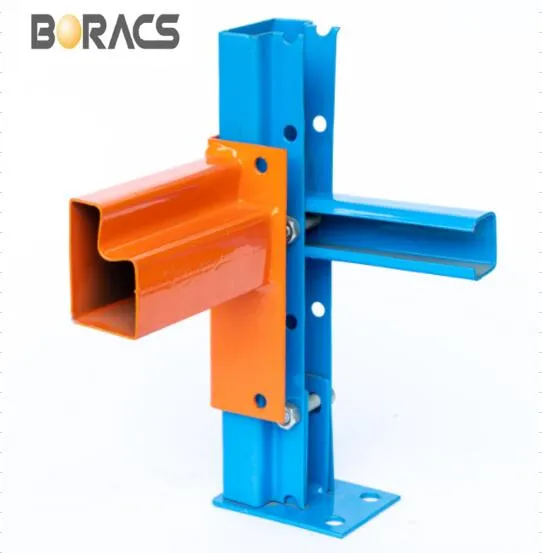

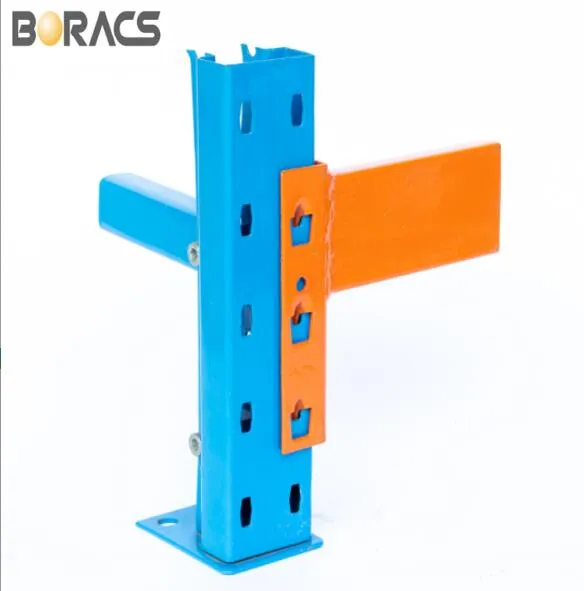

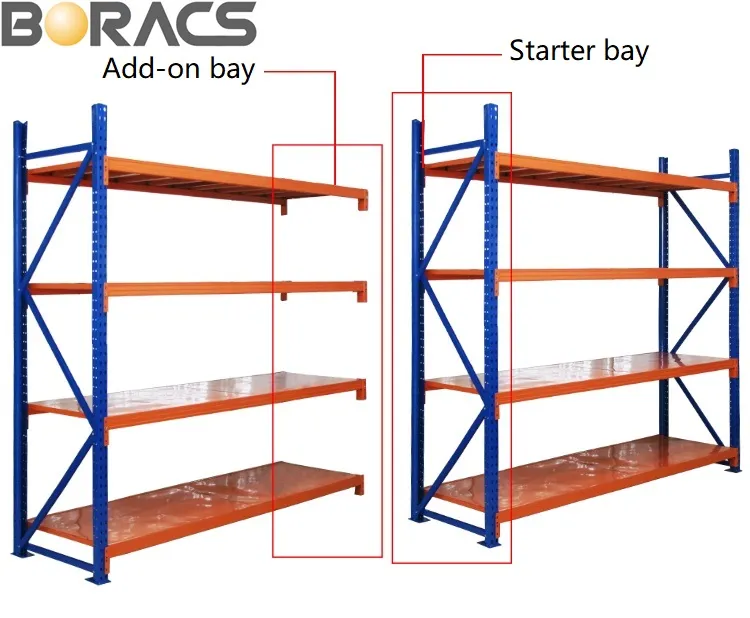

There are 3 types of Longspan post design: model L55A, L55B and L55C. In L55A and L55B, the Horizontal and Diagonal Bracing share the bolt at each node joint. For L55C, each bracing needs 2 bolts to assemble due to a narrower throat design.
| Depth of frame (mm) | Height of frame (mm) | Length of beam (mm) |
|---|---|---|
| 500 | 1500 | 1200 |
| 600 | 1800 | 1500 |
| 700 | 2000 | 1800 |
| 800 | 2500 | 2000 |
| 900 | 3000 | 2300 |
| 1000 | 3500 | 2500 |
| Remarks: | All sizes can be customized | |
The manufacturer specializes in international export markets with installations in over 30 countries. The focus is on providing high-quality products, competitive prices, and prompt services to global partners.
"Professional design, elaborate work, high-quality products, value-added services!"
