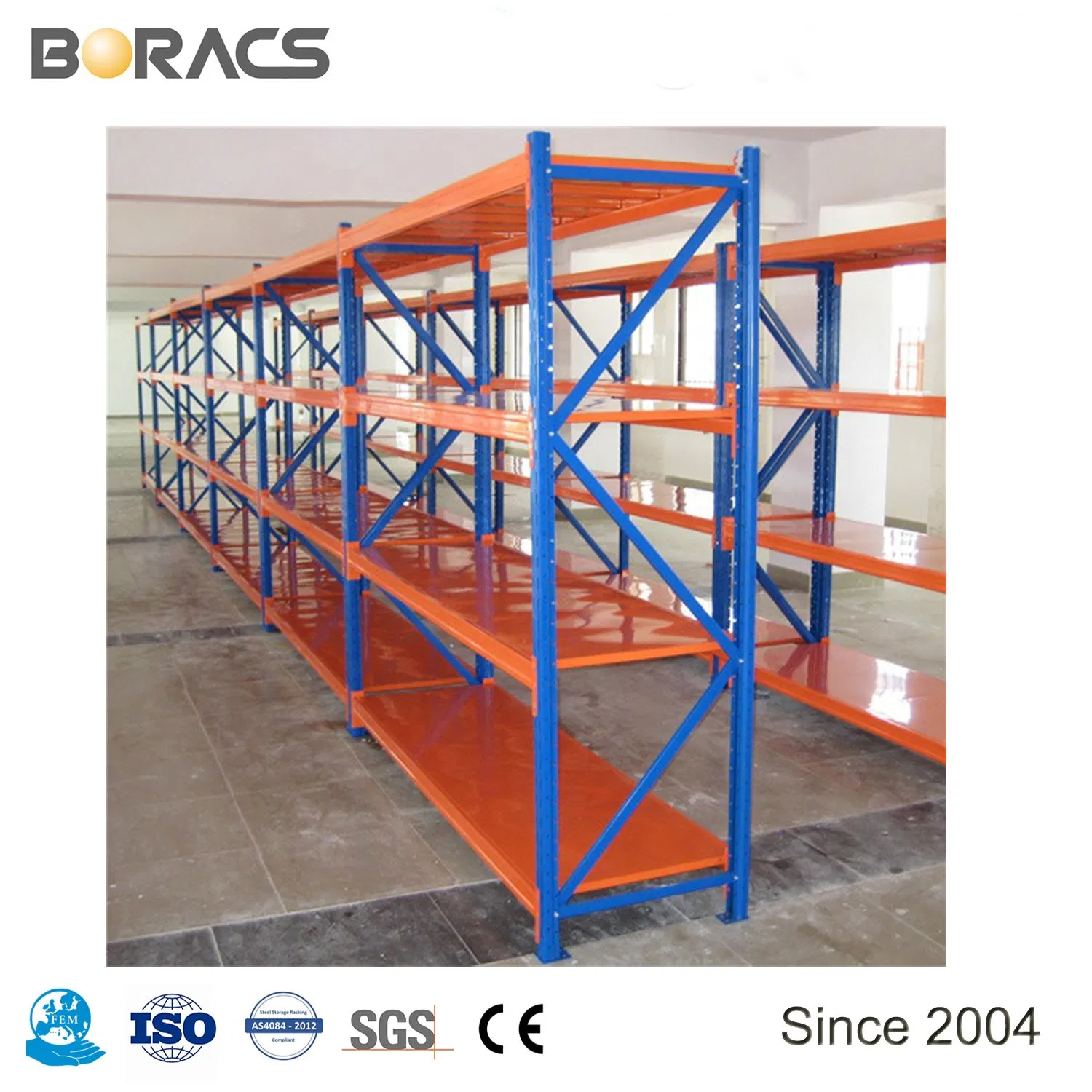

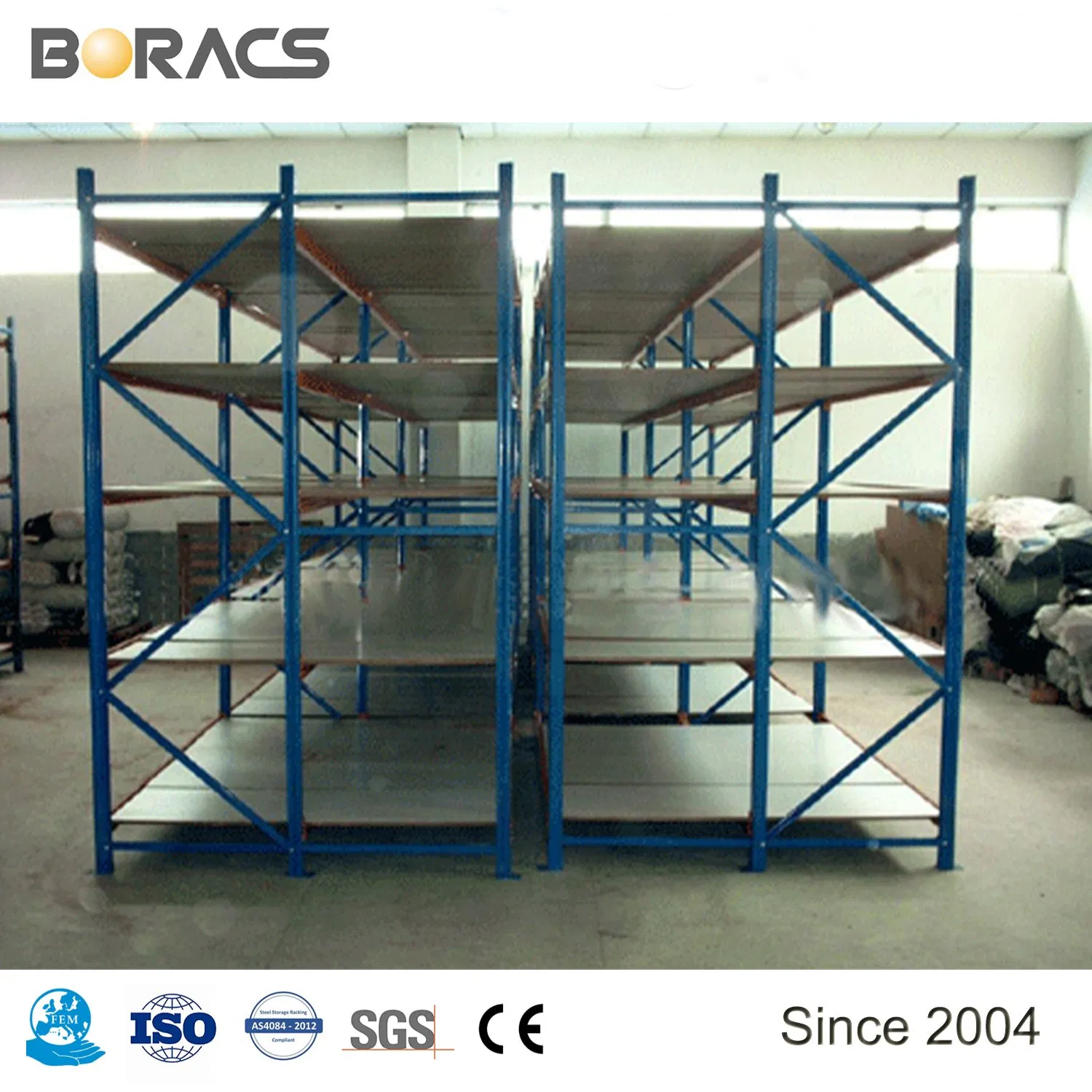

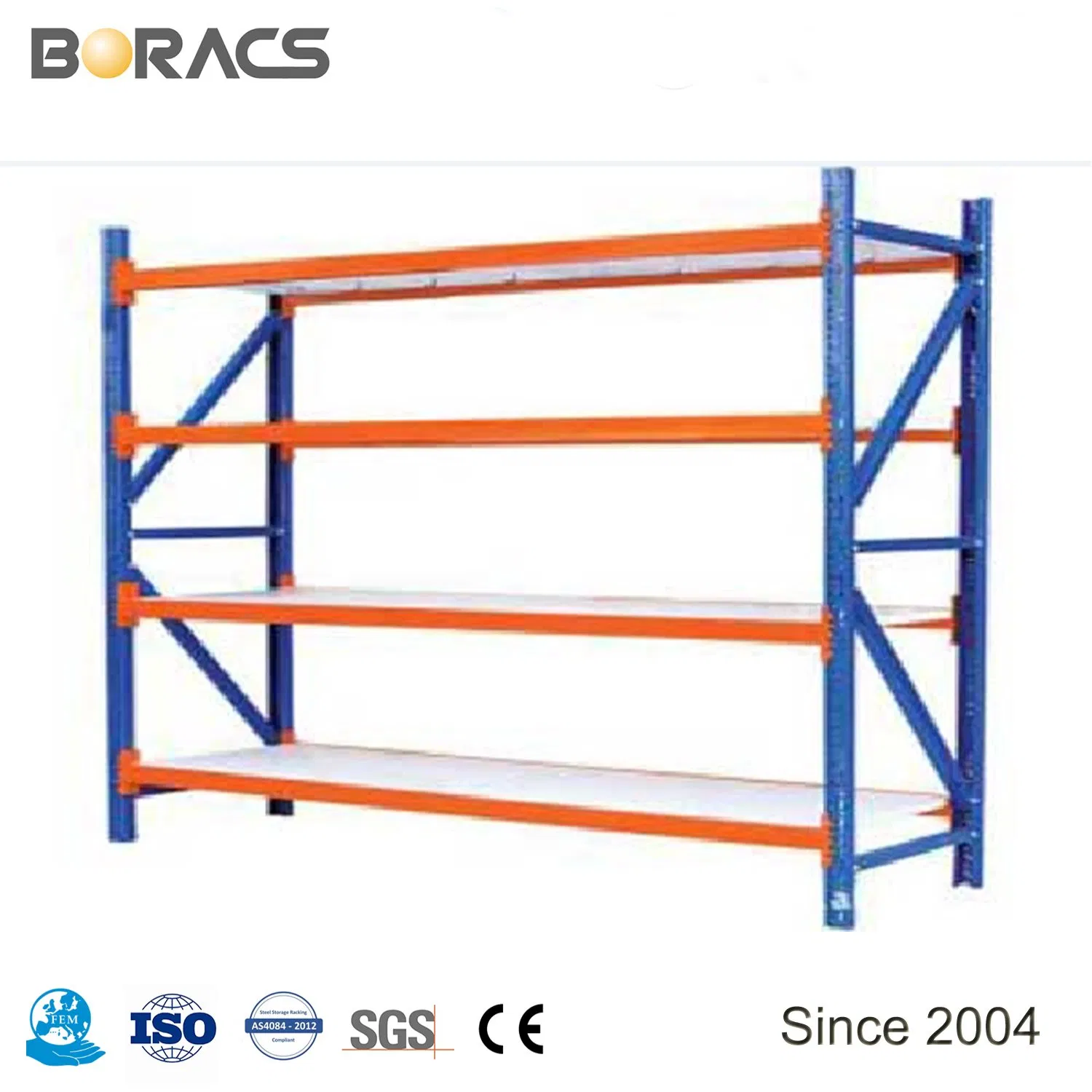

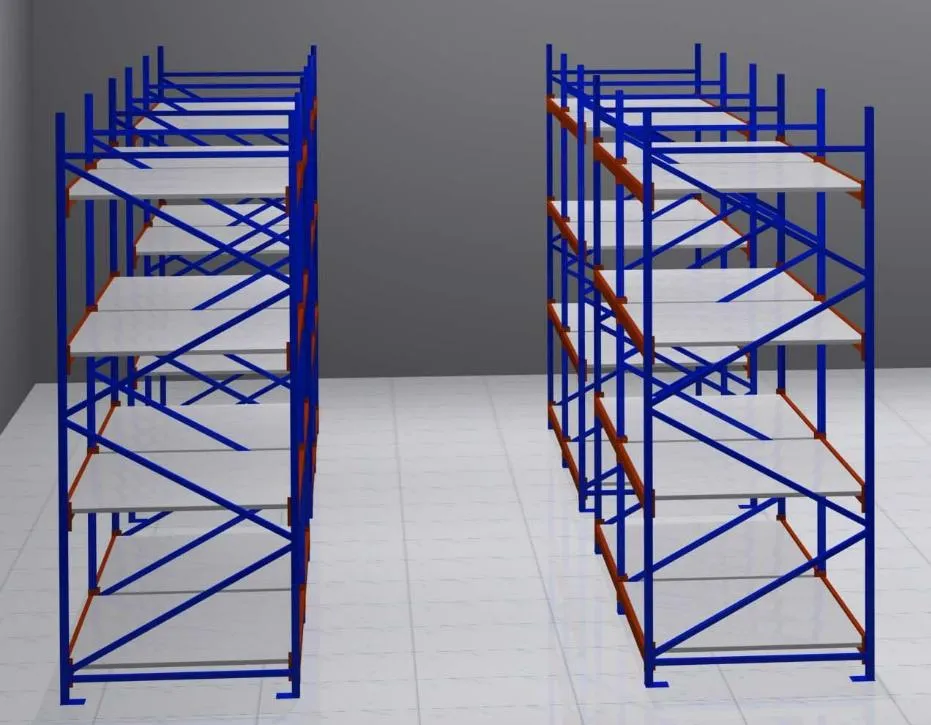

Industrial & Commercial Longspan Shelving / Medium Duty Shelving

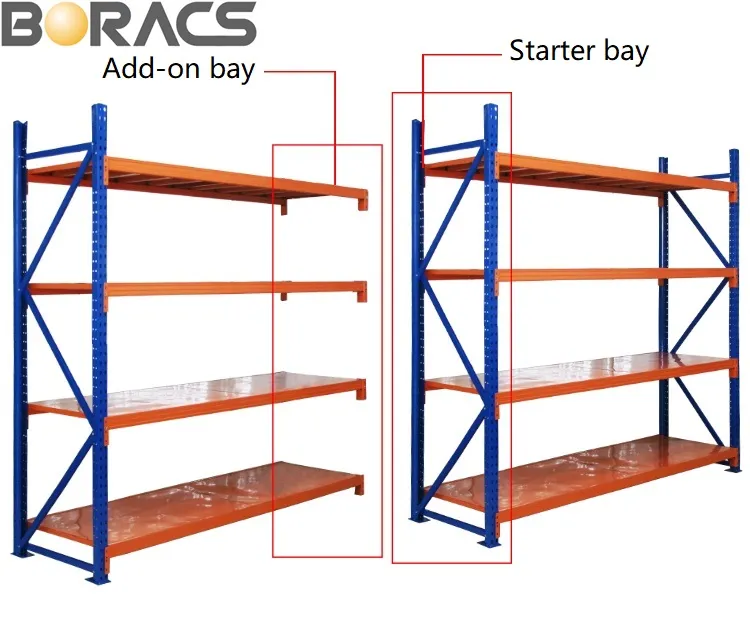

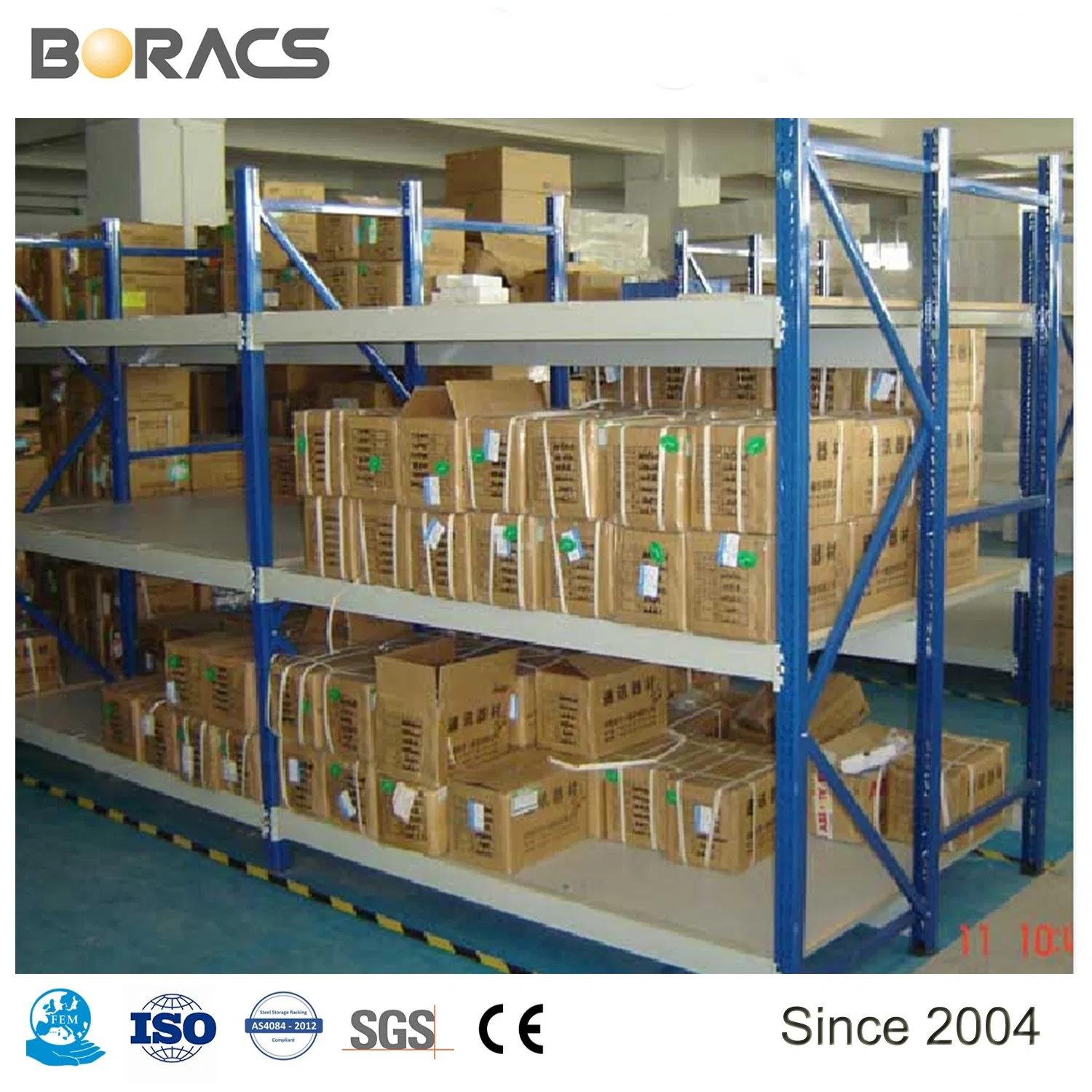

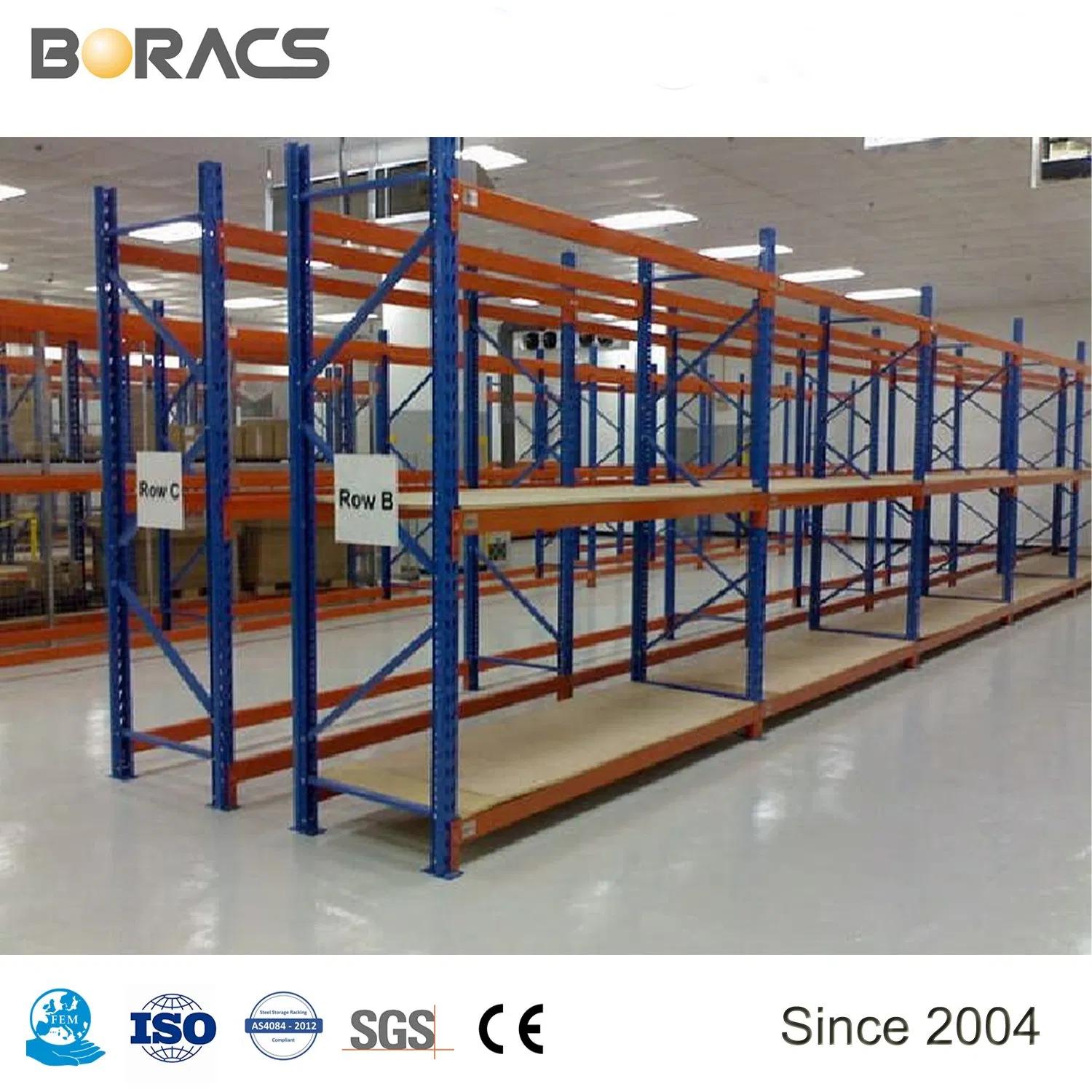

Medium duty longspan shelving is an excellent solution for the storage of light to medium-heavy loads. This versatile racking system can be adapted to almost any warehouse situation, including standard shelving racking, long span configurations, and multi-tier systems.

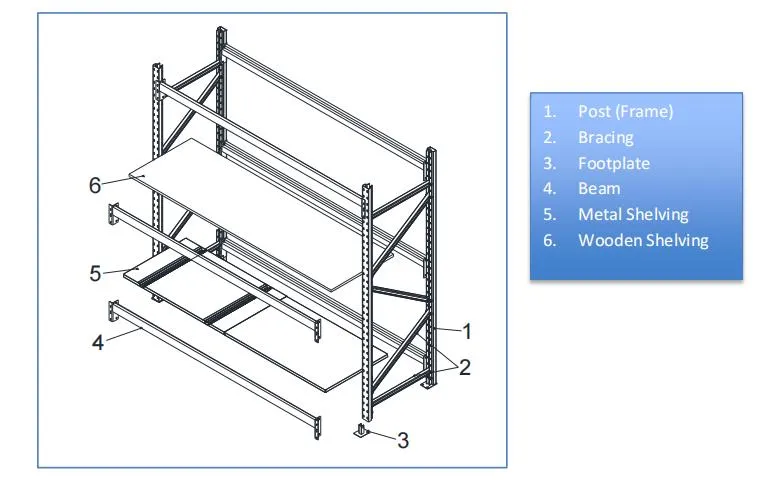

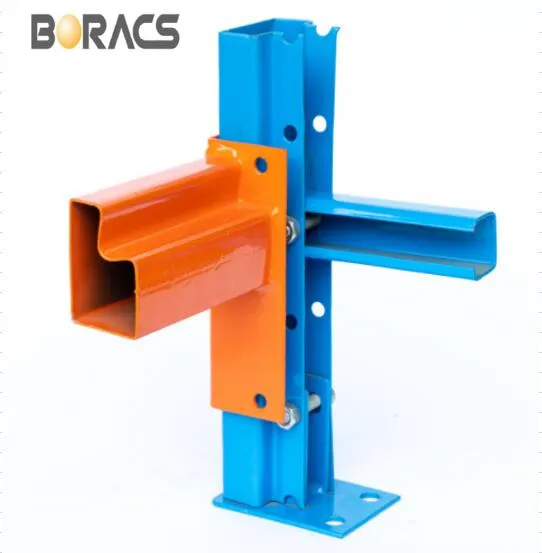

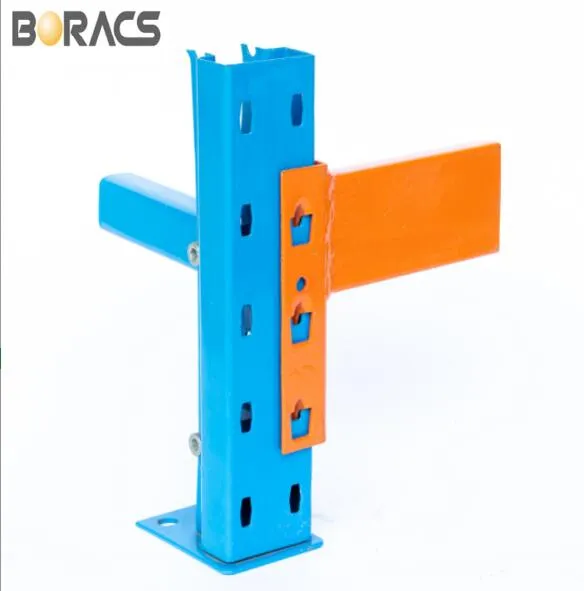

Construction Details: The system comprises frames, beams, a full range of accessories, and metal shelves. The uprights are perforated at a 50 mm pitch, allowing for boltless mounting of beams. The tapered hook design ensures a stable and rigid structure without the need for back bracing.
| Part | Components / Features |
|---|---|
| Frame | Upright/post, horizontal/diagonal bracings, footplate, bolts |

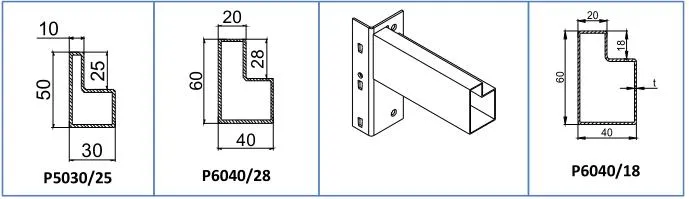

| Beam | Step beam, angle iron weld beam |

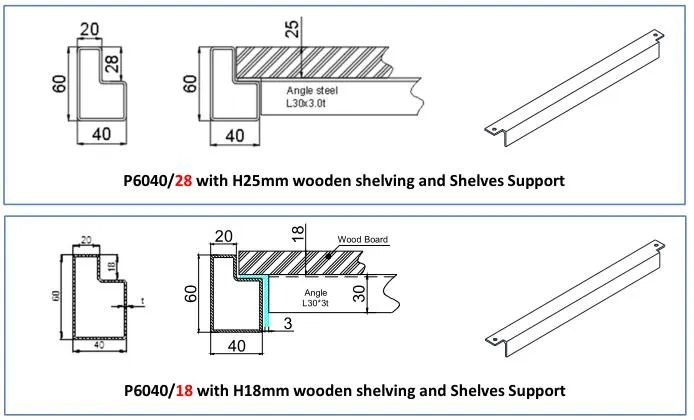

| Panel Options | Steel panel, wire decking panel, wooden panel |
| Application | Storage boxes, loosened goods, medium duty mezzanines |
| Depth of Frame (mm) | Height of Frame (mm) | Length of Beam (mm) |
|---|---|---|
| 500 | 1500 | 1200 |
| 600 | 1800 | 1500 |
| 700 | 2000 | 1800 |
| 800 | 2500 | 2000 |
| 900 | 3000 | 2300 |
| 1000 | 3500 | 2500 |
| Remarks: | All sizes are customized. Surface: Powder coating. | |

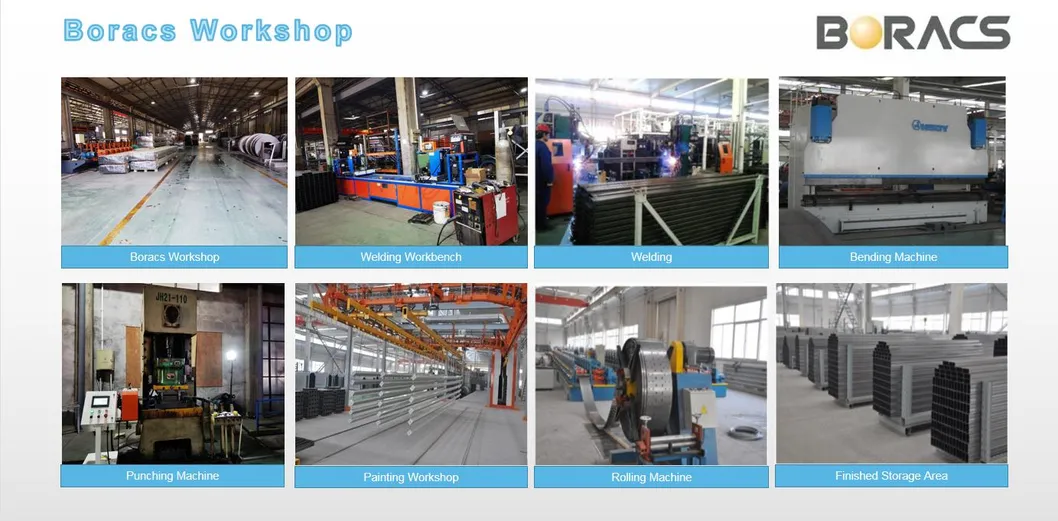

We are a professional racking systems manufacturer specializing in the international export market. Over the years, we have completed installations in over 30 countries. We strive to serve our clients with quality products, competitive prices, and prompt services.
