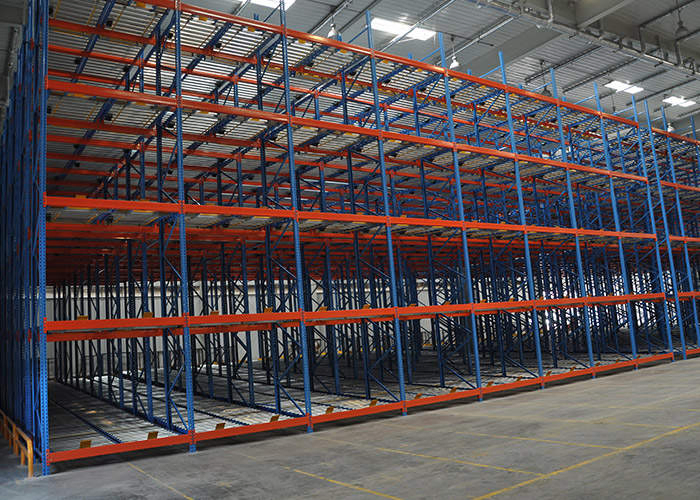

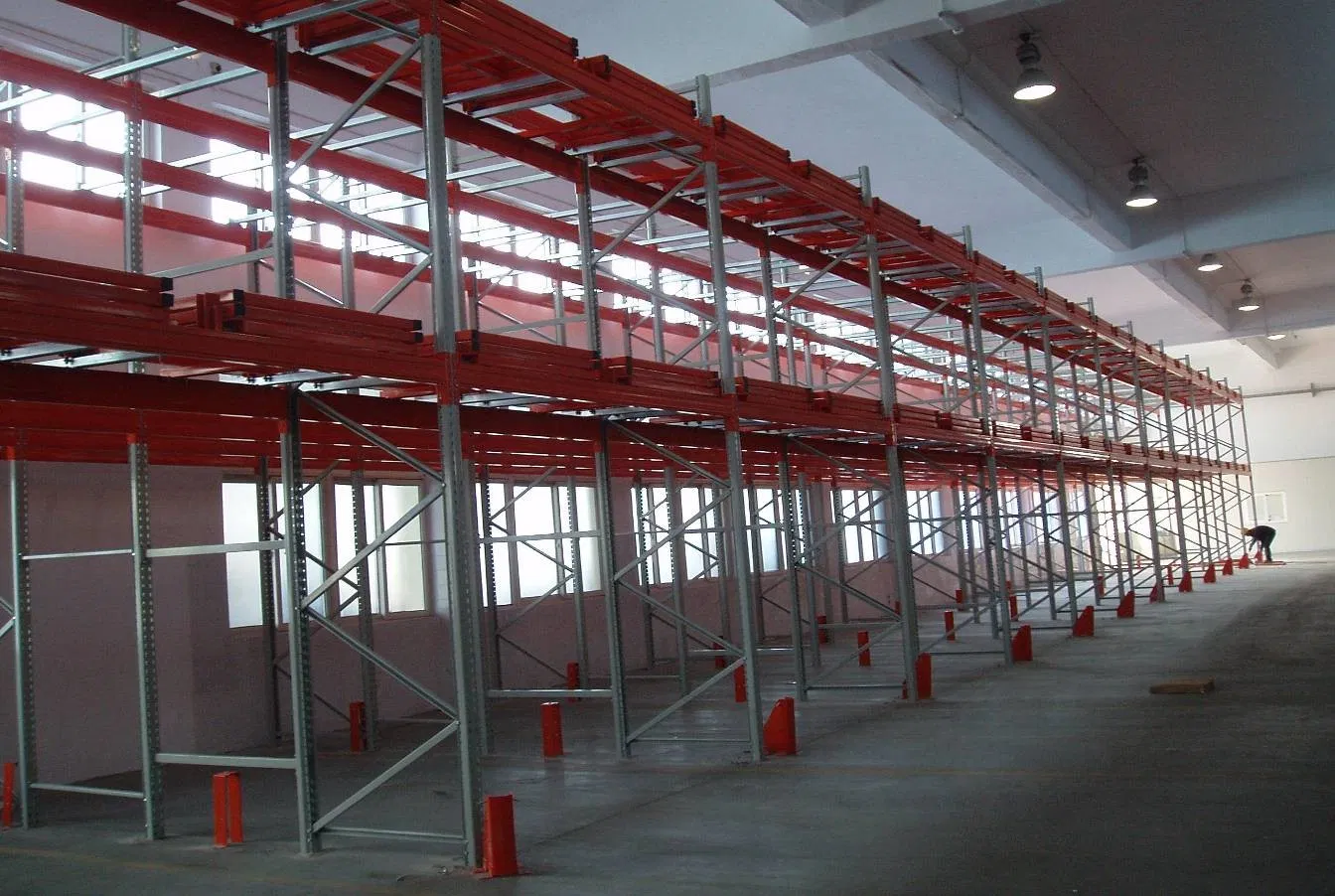

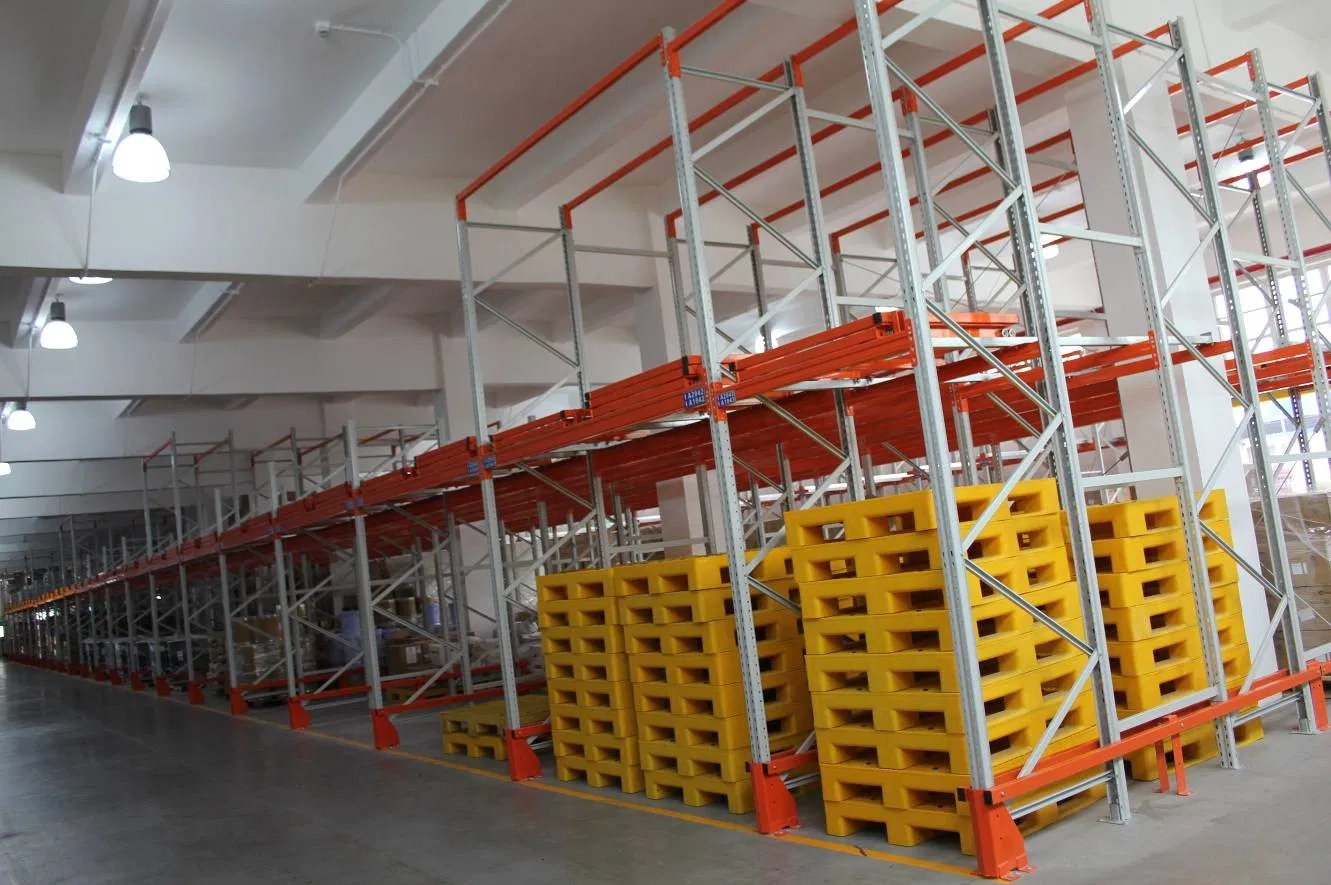

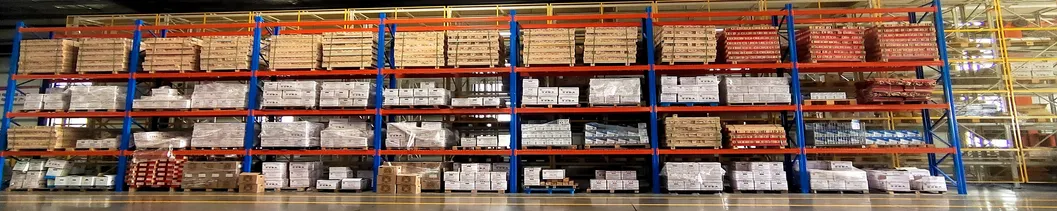

Warehouse Pushback Pallet Racking System.

1 / 5

Warehouse Pushback Pallet Racking System.

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Quick Viewing & Basic Info

Model:

Push back racking

Material:

Steel (Q235B, Q235D, SS400)

Type:

Pallet Racking

Height:

Maximum 12000mm

Weight Capacity:

1000-4000kg Per Tier

Surface:

Powder Coated

Pitch:

75mm

Certification:

CE, ISO9001, 14001

Understanding Push-Back Racking

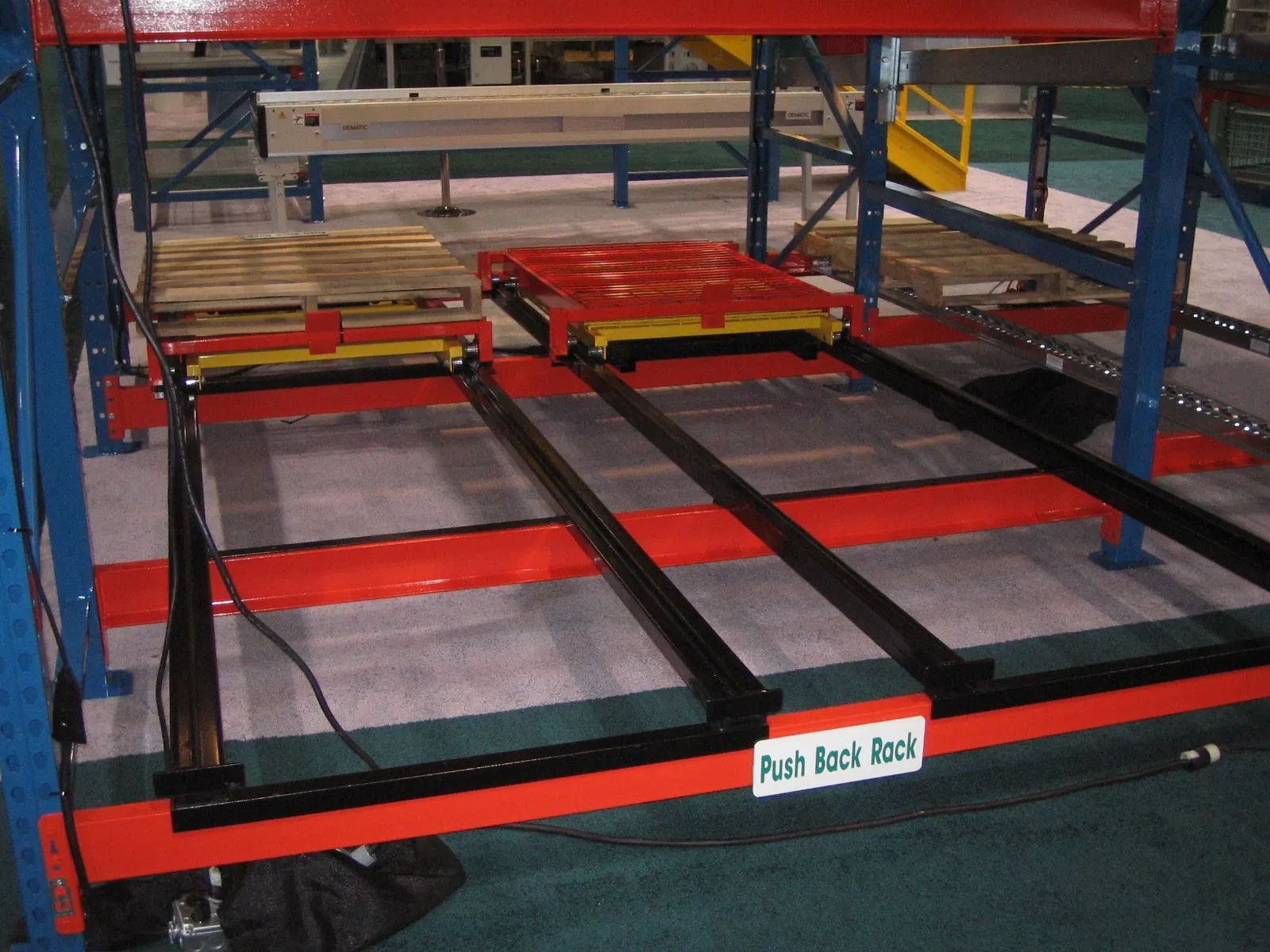

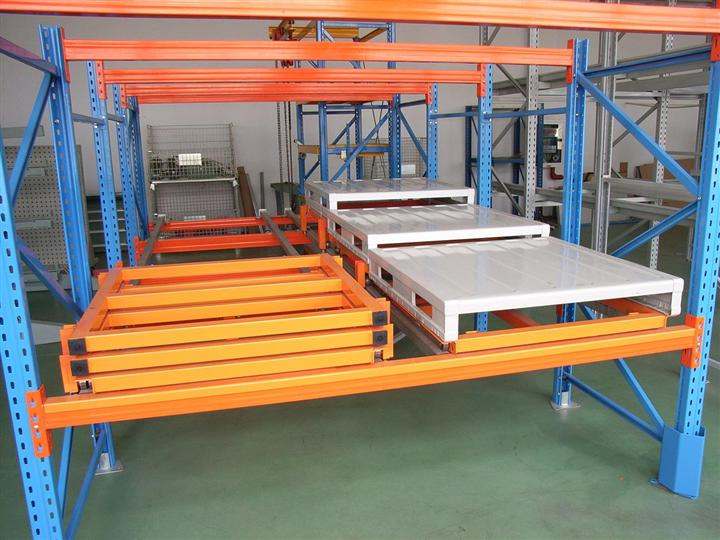

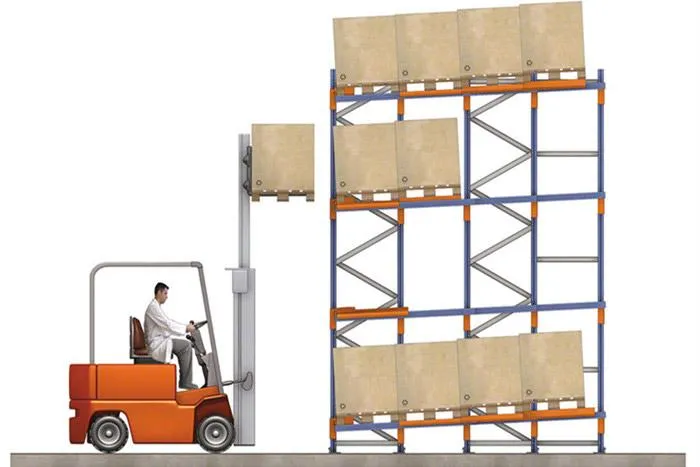

The push-back racking system is a live storage solution for pallets formed by a compact structure, where unit loads are moved by means of rollers or shuttles with the aid of a slight incline.

LIFO Management: It is especially designed for Last-in, First-out (LIFO) stock management, where the last pallet placed on the rack is the first to be unloaded.

Main Applications

Storage of homogeneous non-perishable products or products with a long expiration date.
Warehouses with a wide variety of product references.
Warehouses with a low number of unit loads for each reference (up to 6 unit loads per lane).
Combination with other types of pallet racking or for manual picking.
Suitable for installation in cold rooms or freezing chambers.

Packaging & Shipping

Supply Ability:

10 Cartons per Day

Lead Time:

20-40 days after confirmation

Ports:

Nanjing, Shanghai or others

Standard Packaging: Beam and upright in bubble film. One type part per pallet. Export-standard quantities per pallet.

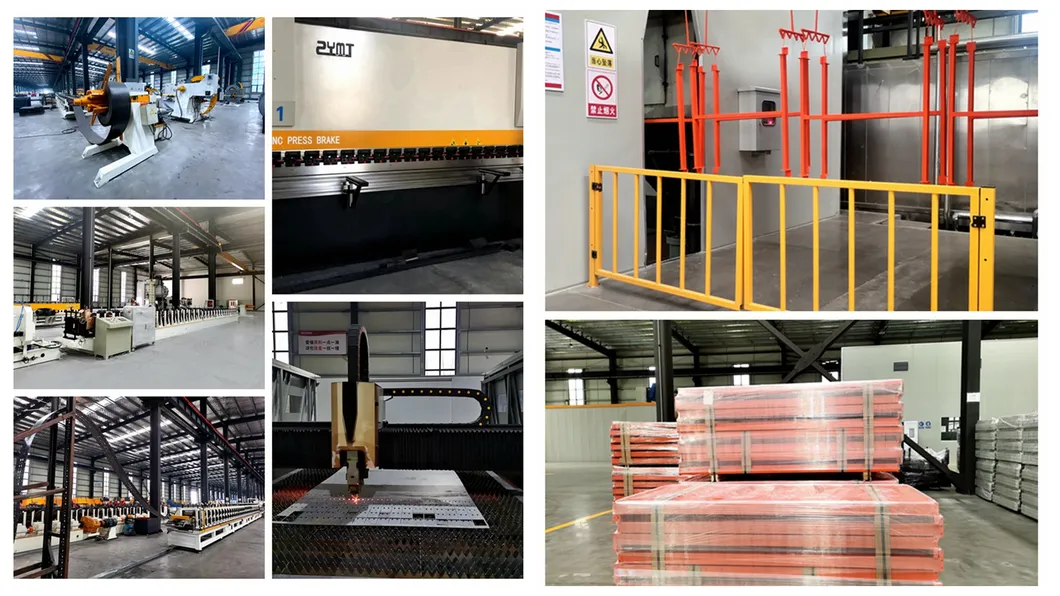

Manufacturing Excellence & Advantages

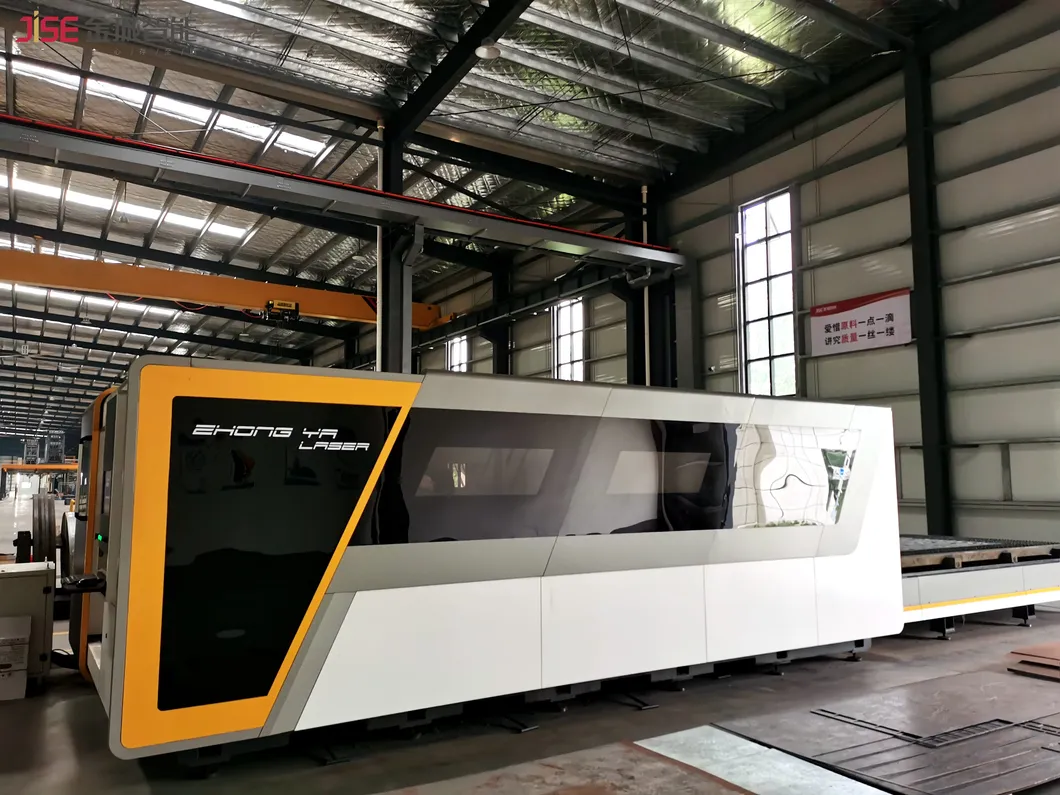

Advantages of laser cutting services:

High efficiency and exact design replicas.
Lower energy consumption for all material types.
Extremely accurate outcome compared to traditional methods.
Computer-monitored process reducing human error and workload.
High flexibility for almost all types of materials.

Frequently Asked Questions

What is the core storage principle of Push-Back racking?

It operates on the LIFO (Last-In, First-Out) principle. The last pallet loaded onto the lane is the first one to be retrieved.

What is the maximum height and weight capacity available?

The system can reach a maximum height of 12,000mm, with a weight capacity ranging from 1,000kg to 4,000kg per tier.

Is this system suitable for cold storage environments?

Yes, push-back racking systems are highly effective for installation in cold rooms or freezing chambers due to their high-density storage capabilities.

How many unit loads can be stored in a single lane?

Depending on the specific configuration and system used, each lane can typically store a maximum of 6 unit loads.

What materials and finishes are used?

The racking is constructed from high-quality steel (Q235B, Q235D, or SS400) and finished with a durable, corrosion-resistant powder coating.

What is the standard lead time for an order?

The typical lead time is about 20-40 days after the order details and production requirements are confirmed.
