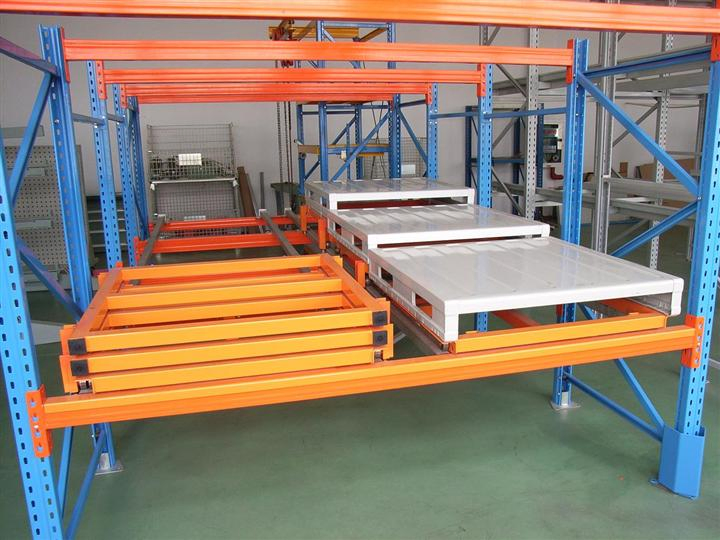

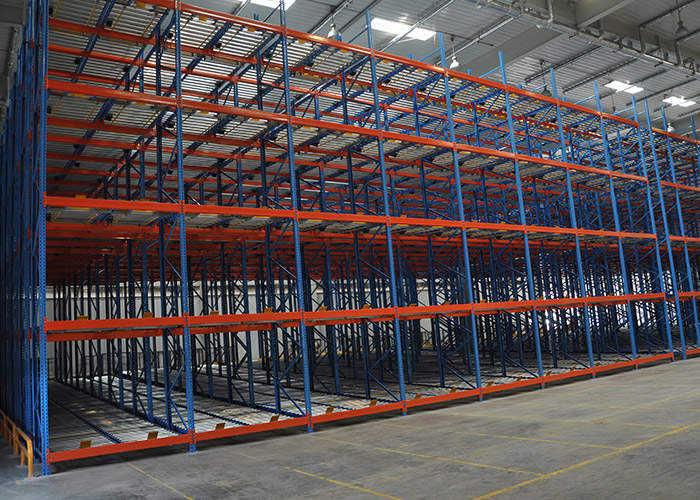

Pushback Pallet Racking System for Industry Storage.

1 / 5

Pushback Pallet Racking System for Industry Storage.

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Quick Viewing & Basic Info

Model

Push back racking

Usage

Warehouse, Industrial, Supermarket

Material

Steel Q235B, Q235D, SS400

Height

Maximum 12000mm

Weight Capacity

1000-4000kg Per Tier

Surface

Powder Coated

Pitch

75mm

Certification

CE, ISO9001, 14001

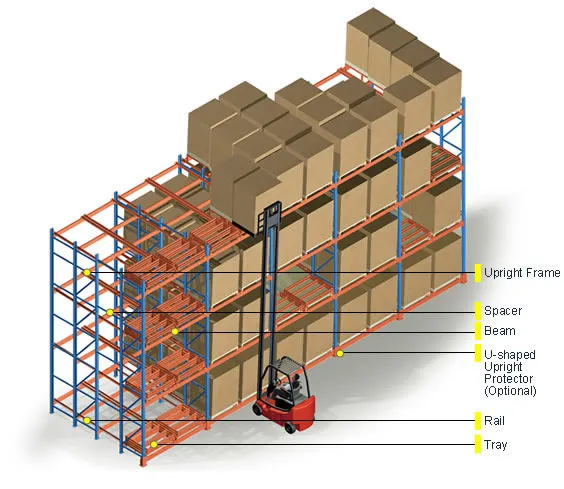

Understanding Push-Back Racking

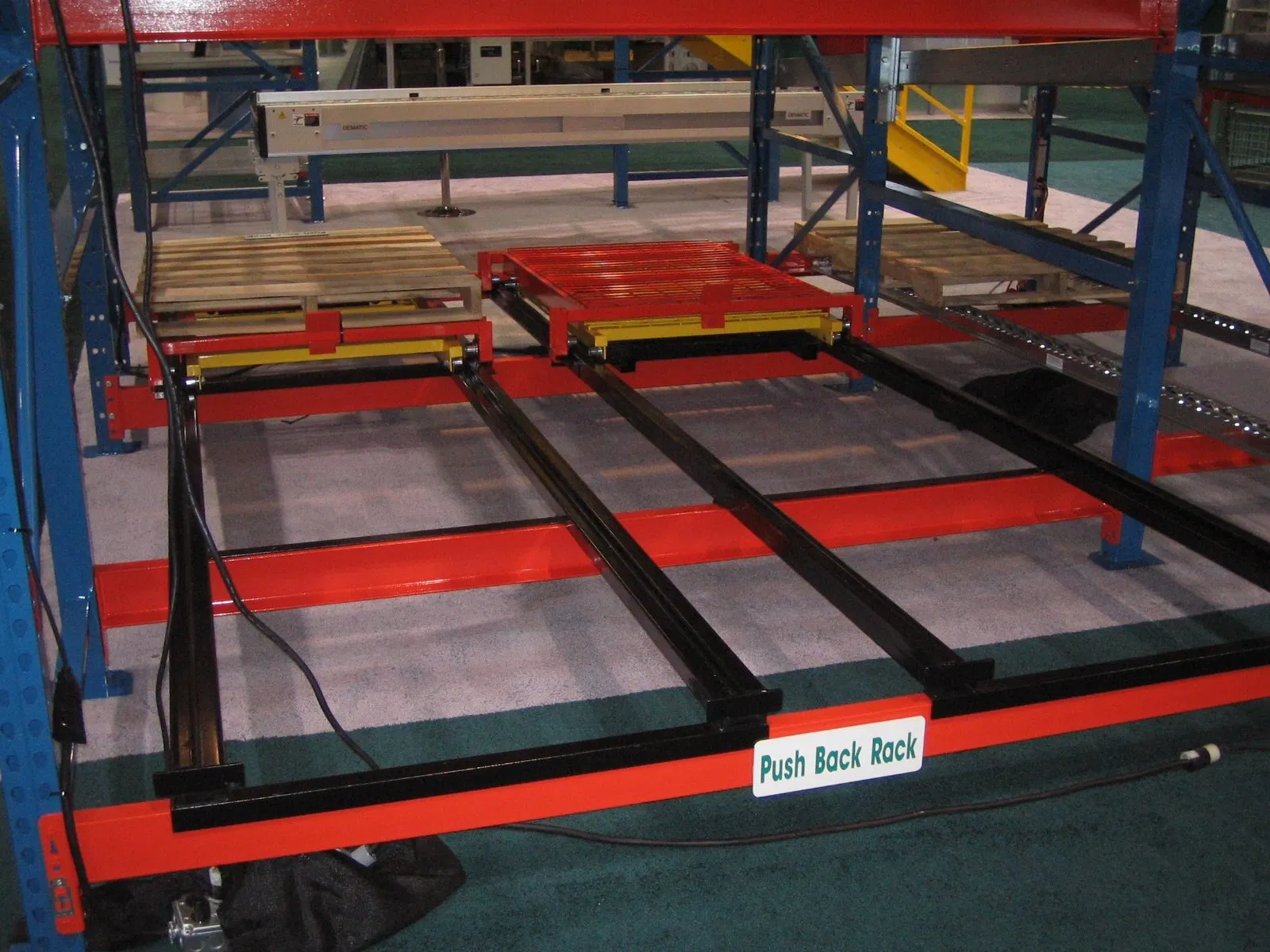

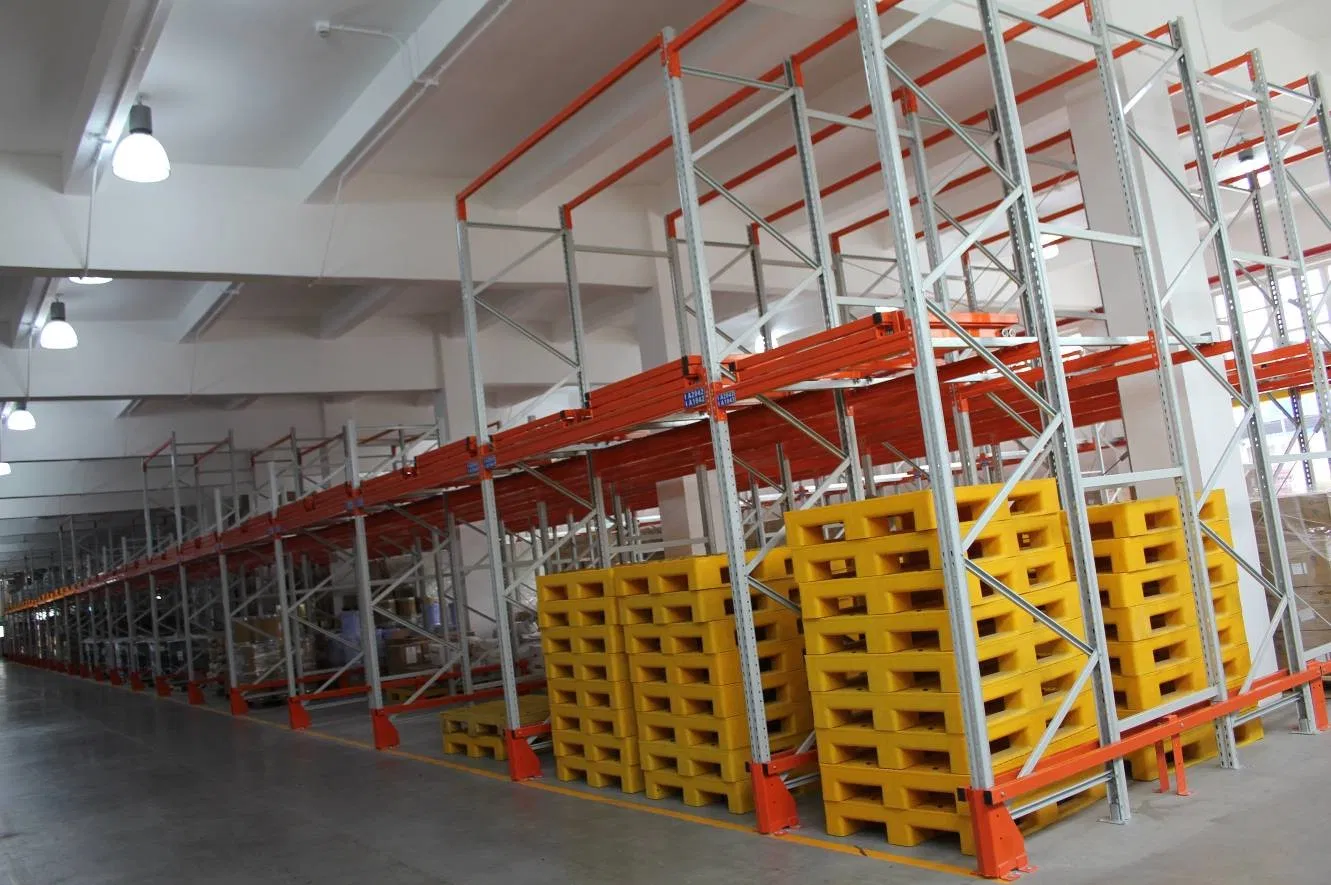

The push-back racking system is a live storage solution for pallets formed by a compact structure, where unit loads are moved by means of rollers or shuttles with the aid of a slight incline.

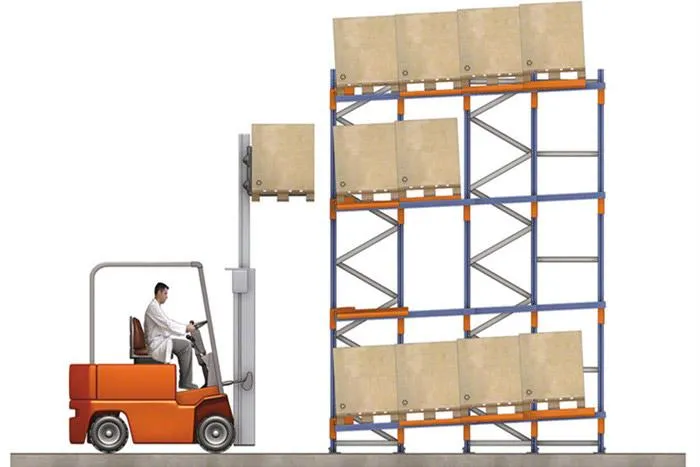

It is a system especially designed for LIFO stock management (Last in, First out), where the last pallet placed on the rack is the first to be unloaded. Unlike FIFO storage, which needs two aisles, push-back racking utilizes a single work aisle for both loading and unloading.

Main Applications

Storage of homogeneous non-perishable products or products with a long expiration date.
Wide variety of product references: Each lane can be reserved for a specific type of reference.
Lower unit loads per reference: Ideal when each lane stores a maximum of 6 unit loads.
Cold Storage: Perfectly suitable for installation in warehouses with cold rooms or freezing chambers.
Versatile Integration: Can be combined with other types of pallet racking or manual picking systems.

Technical Specifications

Material	Steel Q235B, Q235D, SS400
Finish	Color Powder Coated
Width Range	1350 - 3900 mm
Thickness	1.5mm - 3.0mm
Lead Time	20-40 Days
Packaging	Beam and upright in bubble film on export pallets

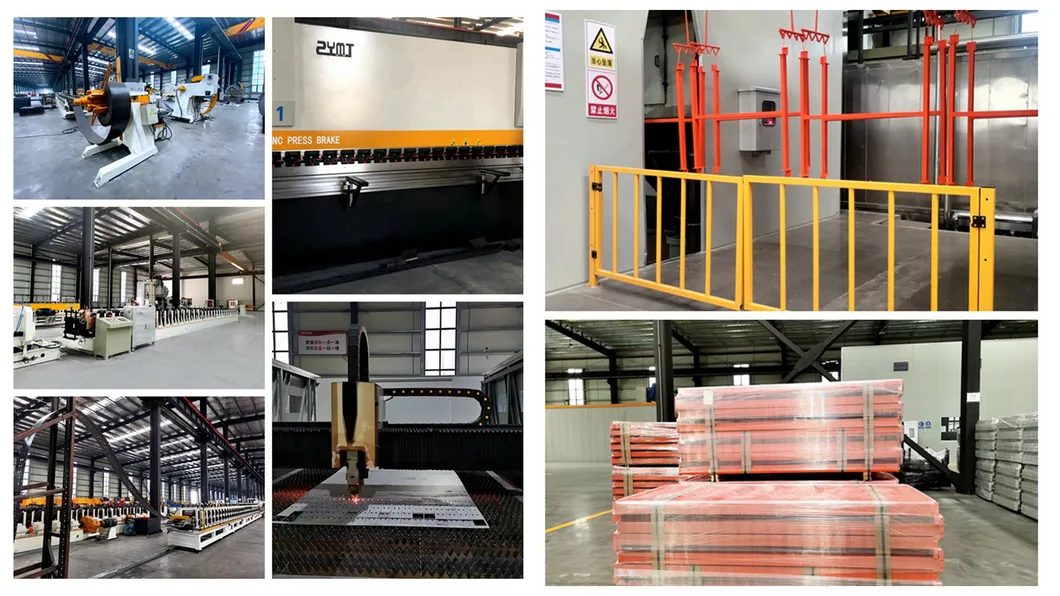

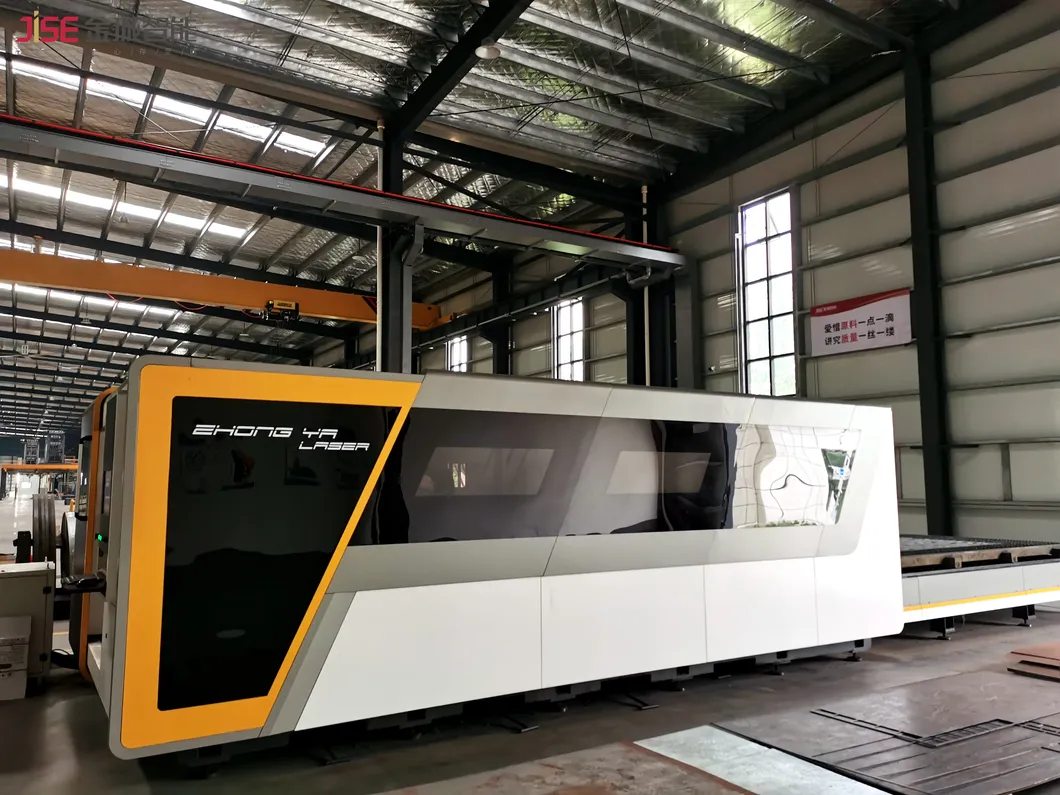

Advantages of Manufacturing Technology

High Precision: Computer-monitored laser cutting ensures exact design replicas.
Efficiency: Rapid cutting of large sheets with extreme accuracy.
Material Flexibility: Capable of handling almost all types of steel materials.
Quality Control: Reduced human intervention ensures consistent production standards.

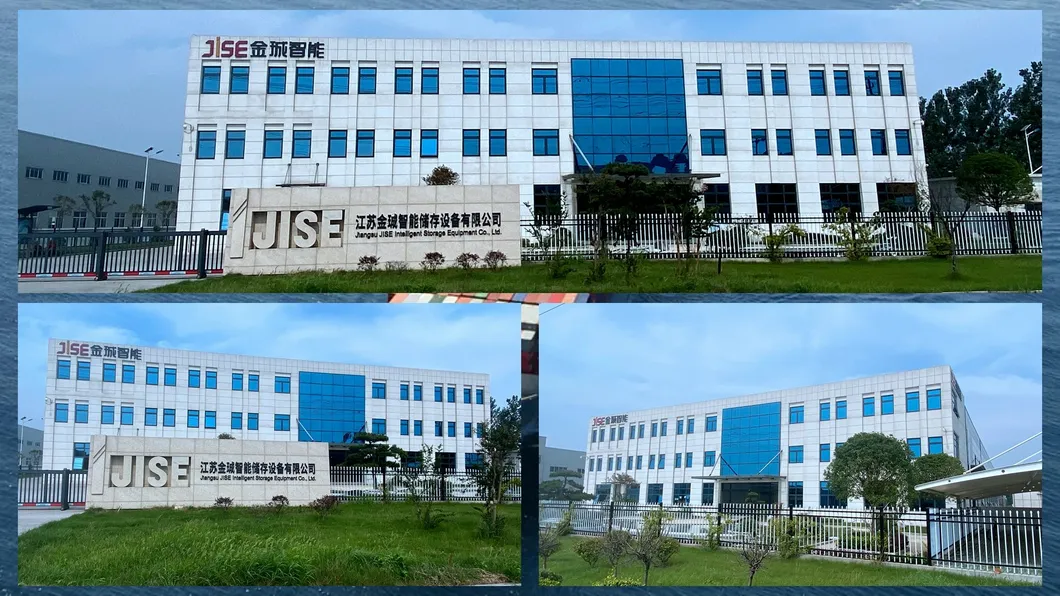

Facilities & Quality Assurance

Frequently Asked Questions

What is the core principle of Push-Back Racking?

It operates on a LIFO (Last-In, First-Out) principle using a nested cart or roller system on a slight incline. When a new pallet is loaded, it pushes the existing pallets back.

How much weight can each tier support?

The system is robust and designed to support between 1000kg and 4000kg per tier, depending on the specific customization and materials used.

What are the maximum storage depths available?

Typically, push-back racking systems can store a maximum of 6 unit loads (pallets) deep per lane.

Is this system suitable for cold storage environments?

Yes, the steel construction and powder-coated finish make it highly durable and suitable for both cold rooms and freezing chambers.

What materials are used in the construction?

We use high-quality steel including Q235B, Q235D, and SS400 to ensure maximum stability and durability for industrial use.

What is the typical lead time for an order?

Lead time is approximately 20-40 days after the order details and production specifications are confirmed.
