Q235B Steel Heavy Duty Warehouse Storage Pallet Rack

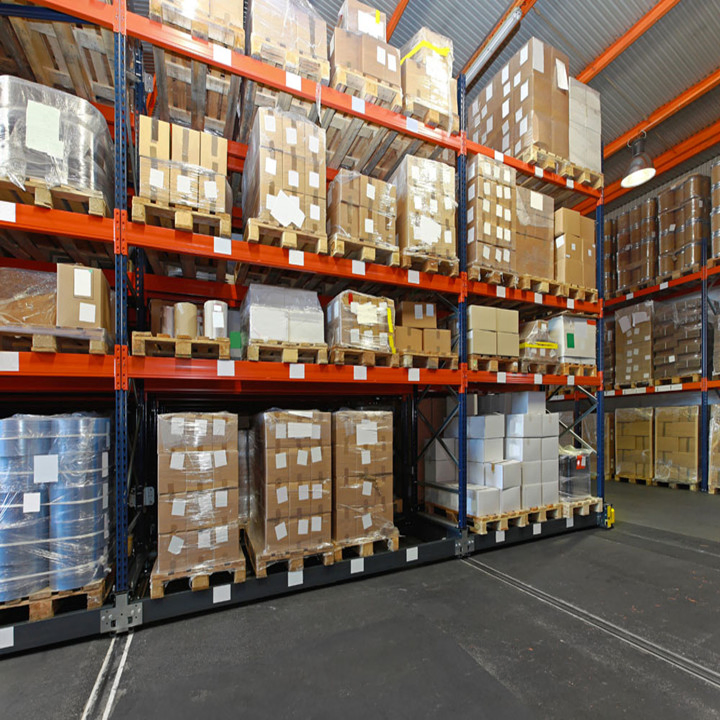

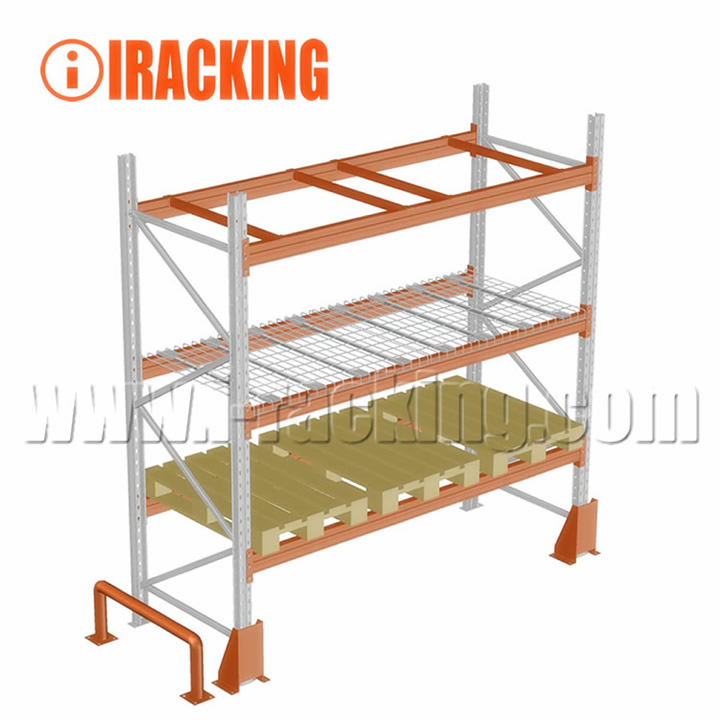

Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
| Parameter | Details |
|---|---|
| Material | Steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 4,000 Kg UDL/level |
| Racking Height | Customized and up to 11,000 mm |
| Racking Depth | 700-1,200 mm |
| Beam Length | Customized and up to 3,600 mm |
| Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings + Beams |
Standard section sizes: 80*60*1.8-2.0, 90*70*1.8-2.0-2.5, 100*70*2.0-2.5, 120*95*2.0-2.5mm.

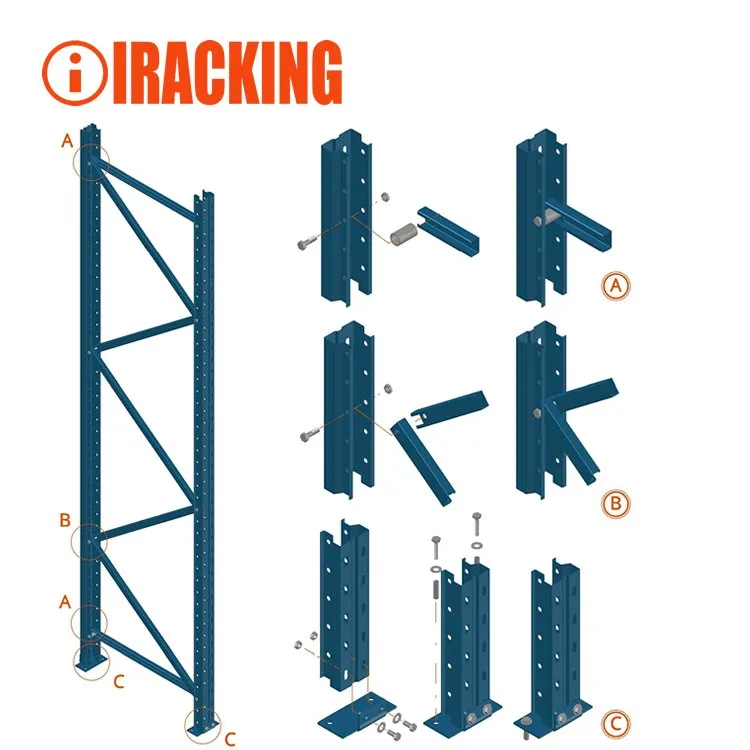

Punched with symmetric hexagonal slots at 75mm/76.2mm intervals for beam height adjustment. The different sections and thickness of uprights enable them to be adapted to a wide range of loading requirements.

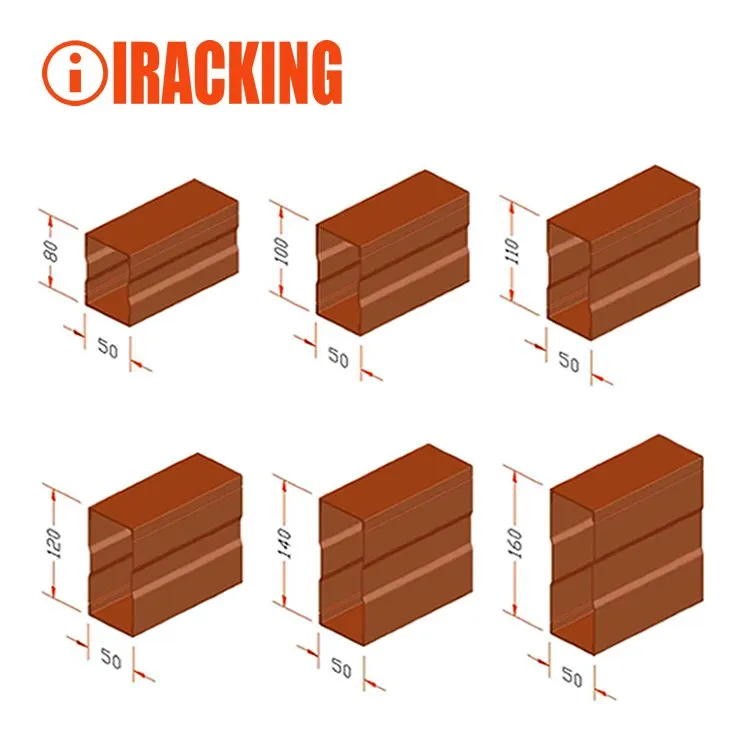

Standard section sizes: 80*50*1.5 to 180*50*2.0mm.

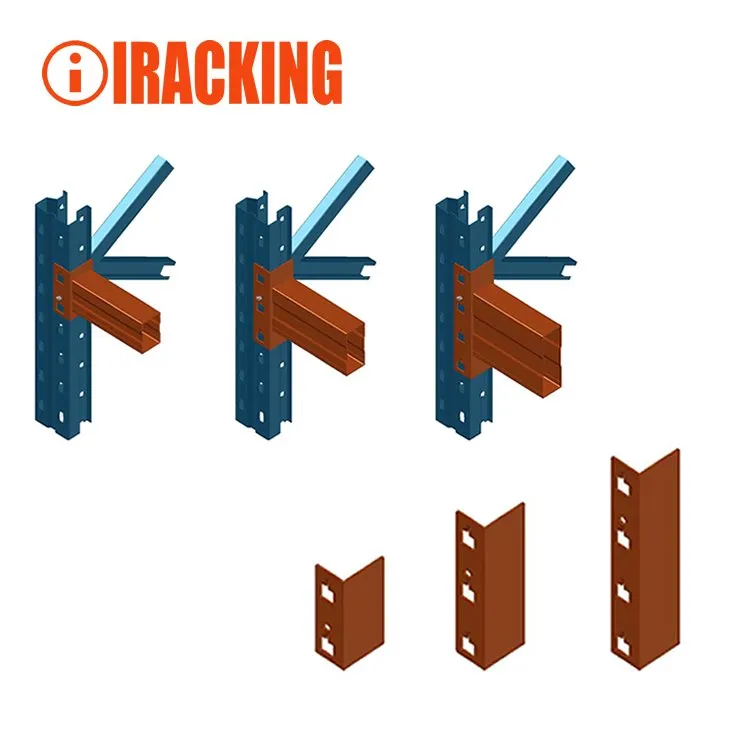

Beams provide support to pallets. Box beams are constructed by joining two "c" sections. Double material thickness top and bottom provides much greater added strength, rigidity and safety.

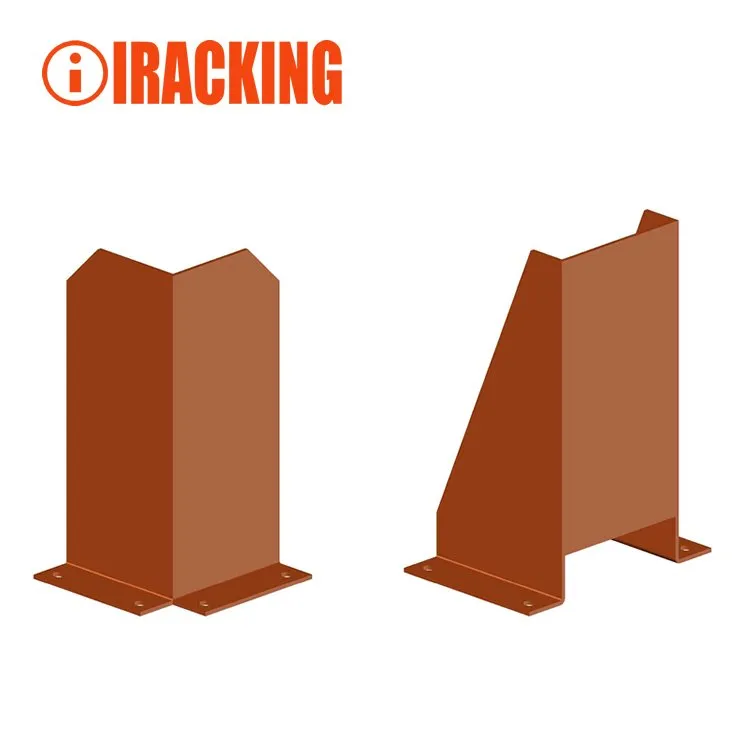

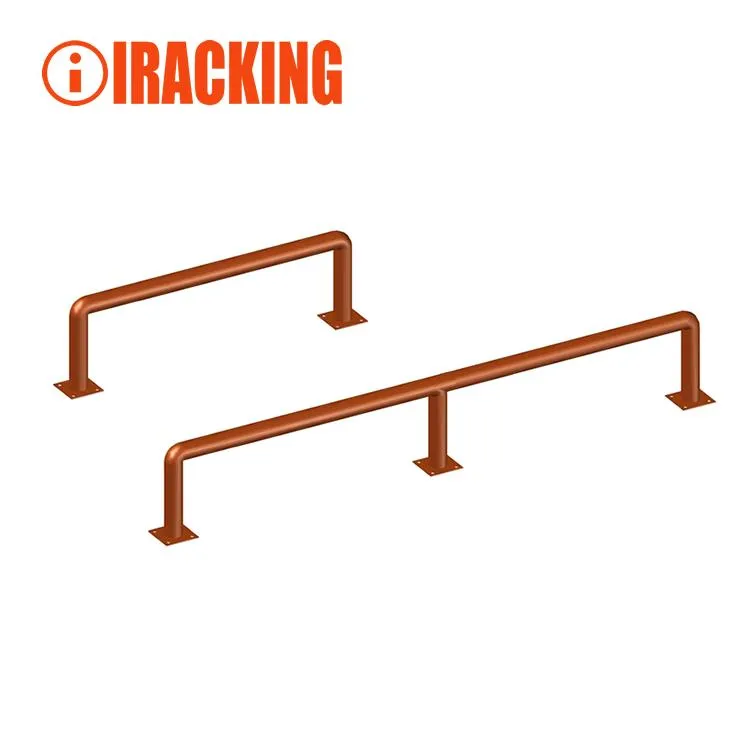

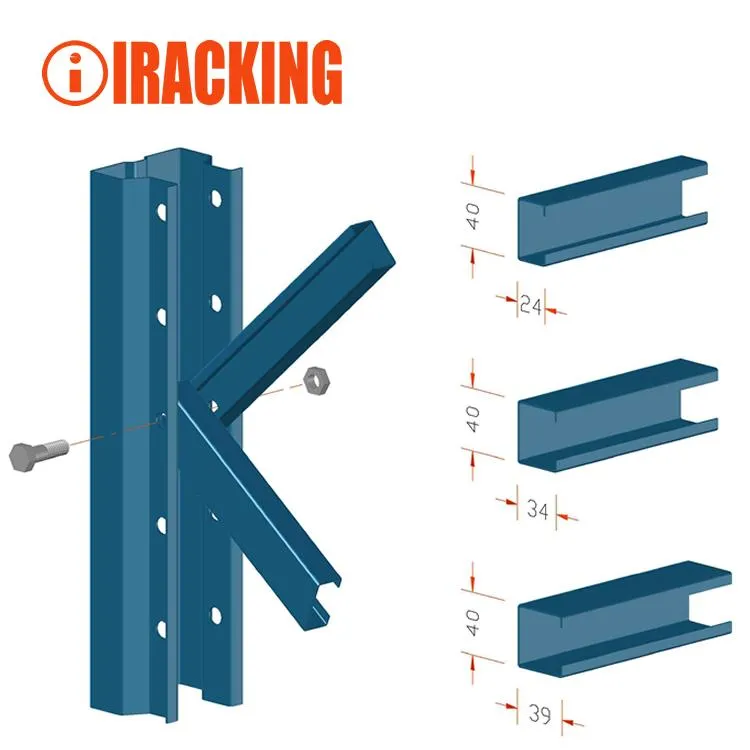

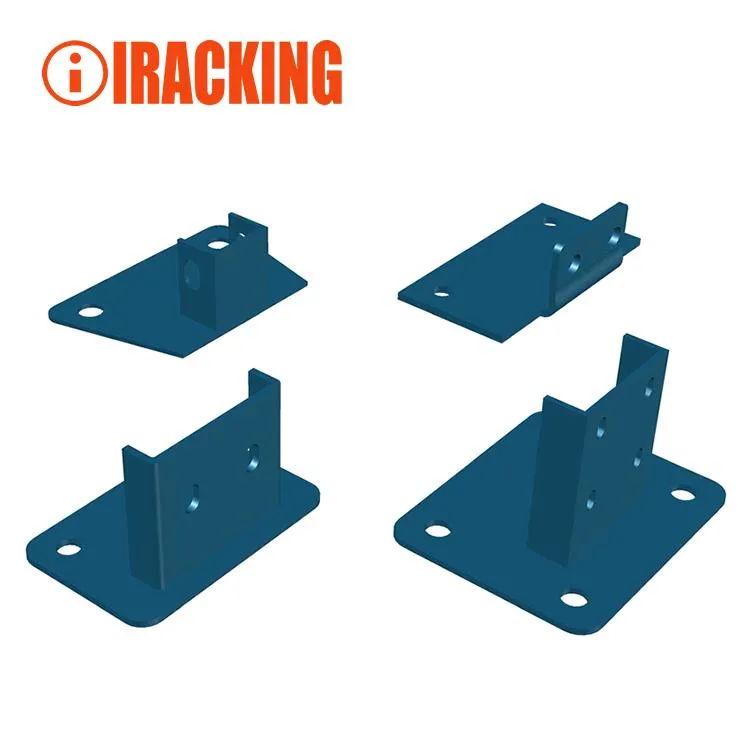

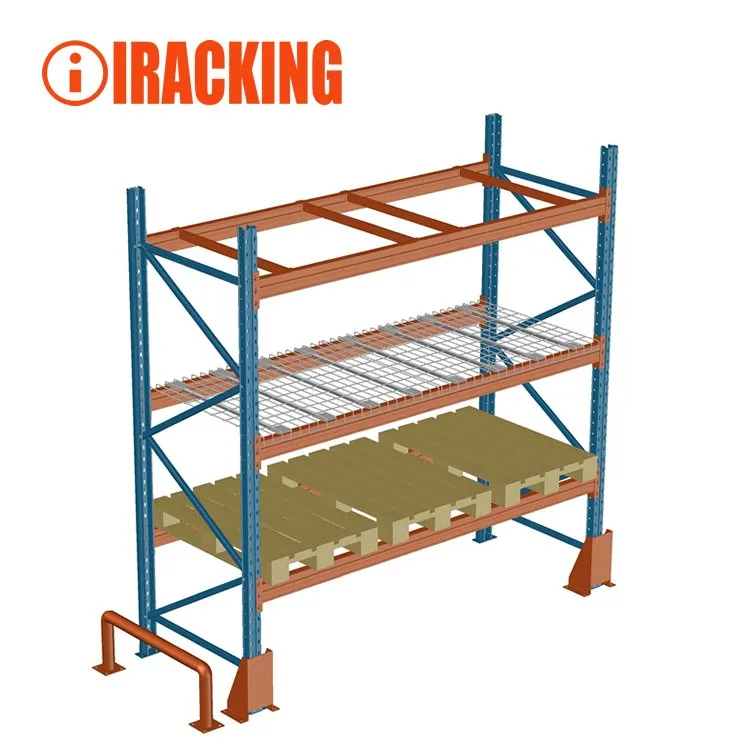

Includes: Post Baseplate, Bracing, Plastic Block, Anchors, Bolts & Nuts, Safety Pin, Row Spacer, U-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Mesh Deck, etc.
Custom design and quick quotation available. We can design and work out drawings for you within 48 hours based on your warehouse dimensions.
| 1 | CAD Drawing (if available) |
| 2 | Warehouse Size (width, length, clear height) |
| 3 | Racking Size (H*W*L) |
| 4 | Number of levels |
| 5 | Loading capacity per level |
| 6 | Required RAL Color |
