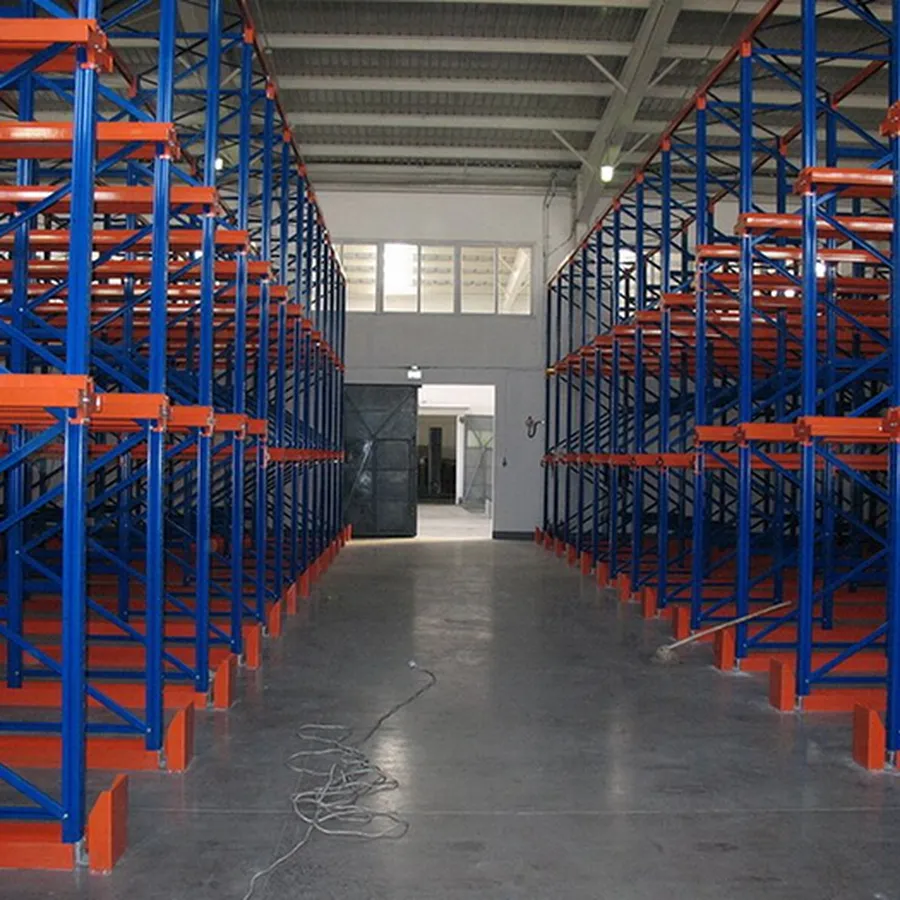

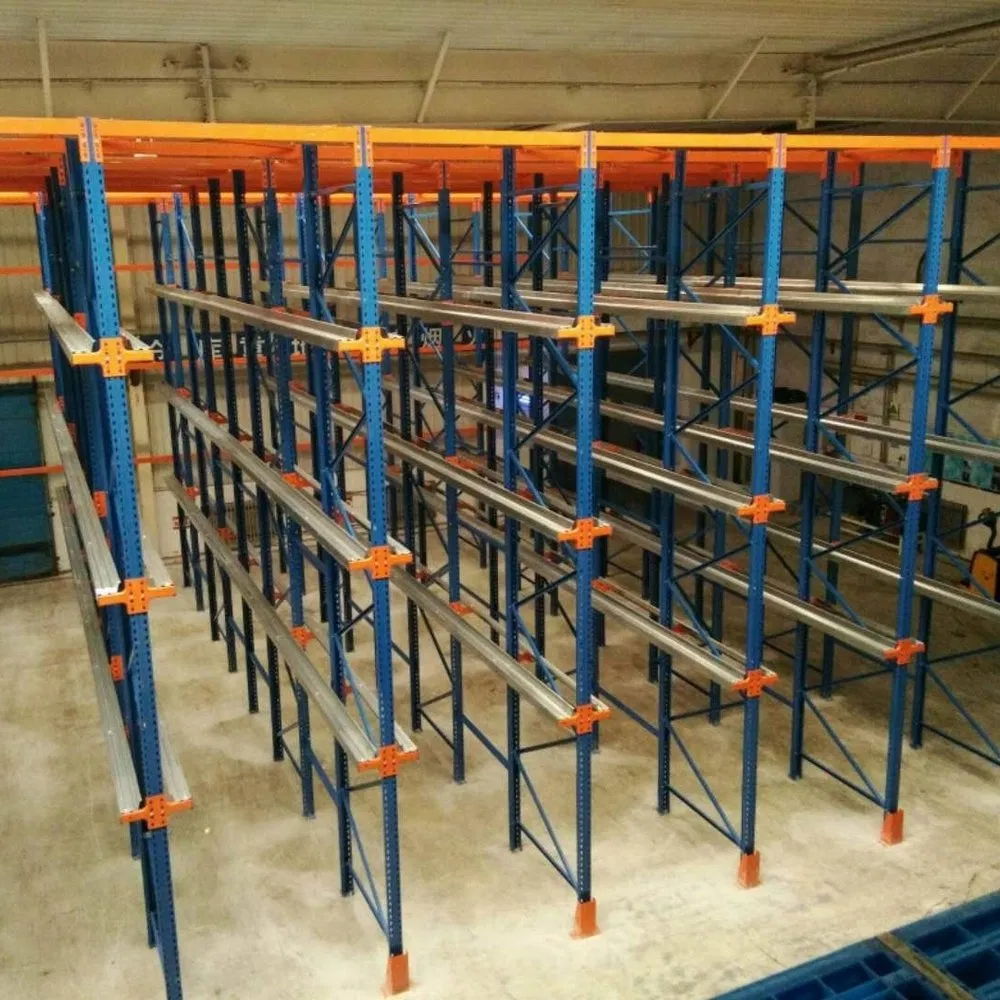

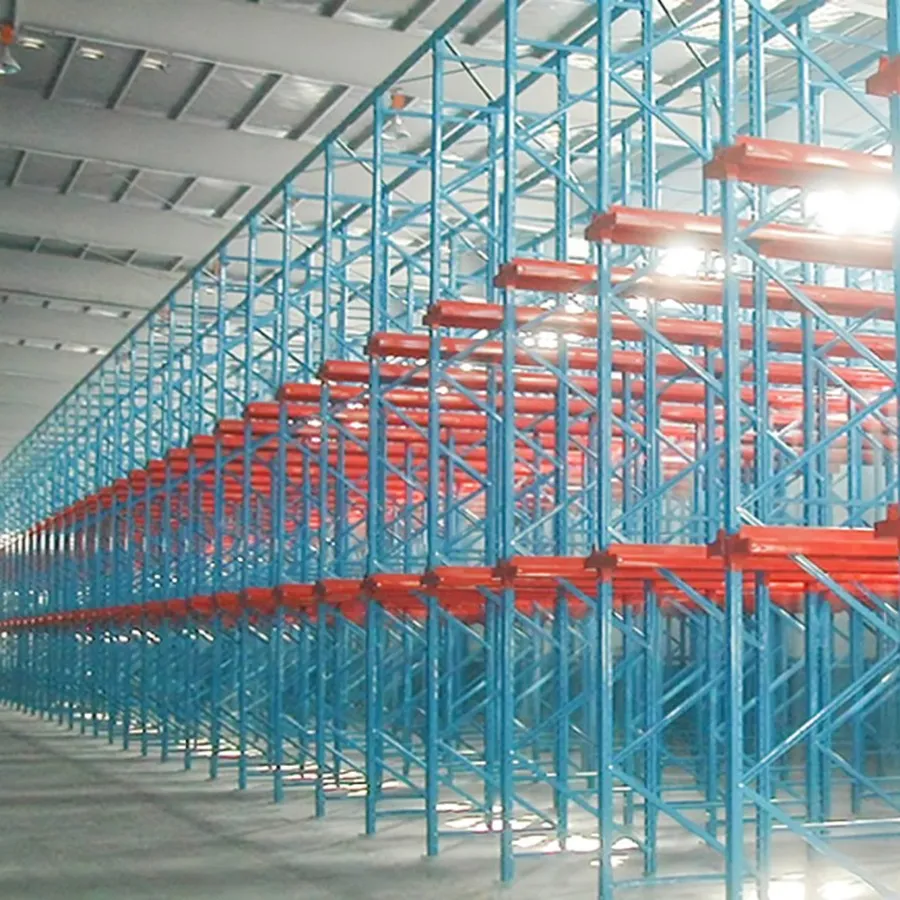

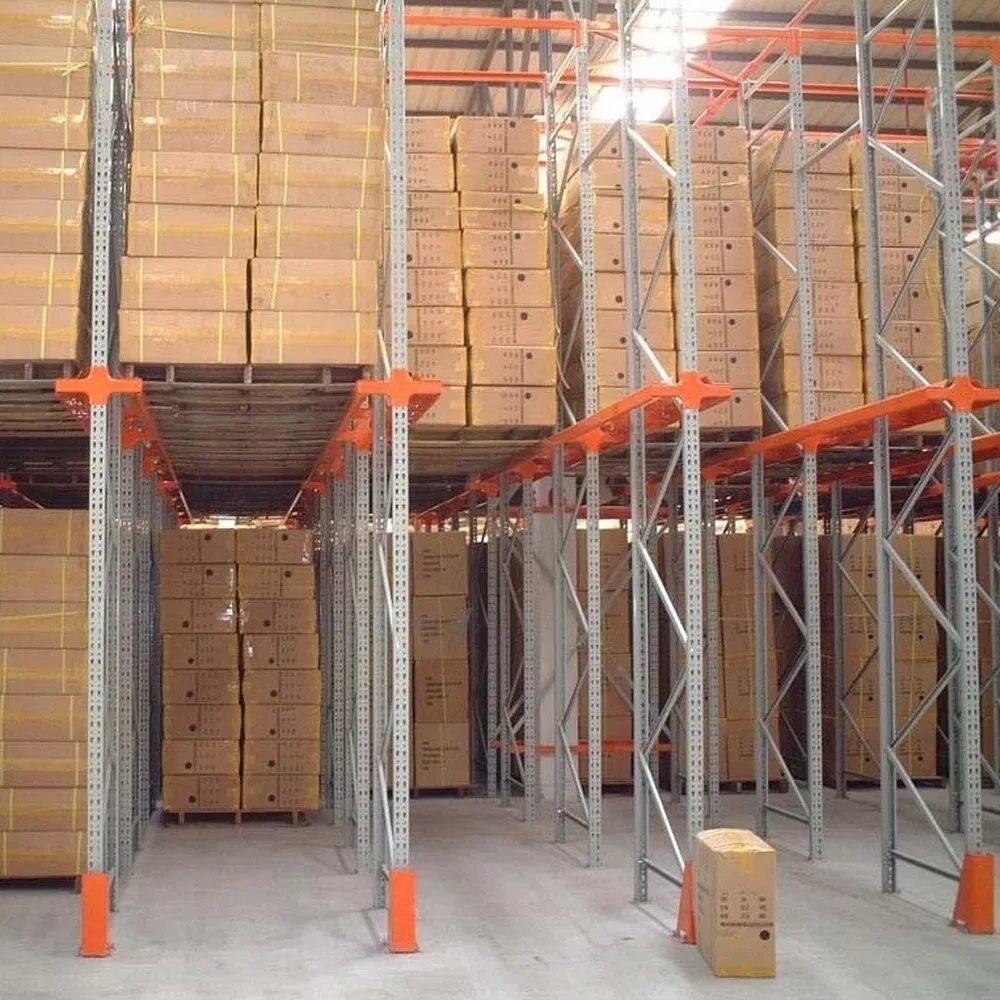

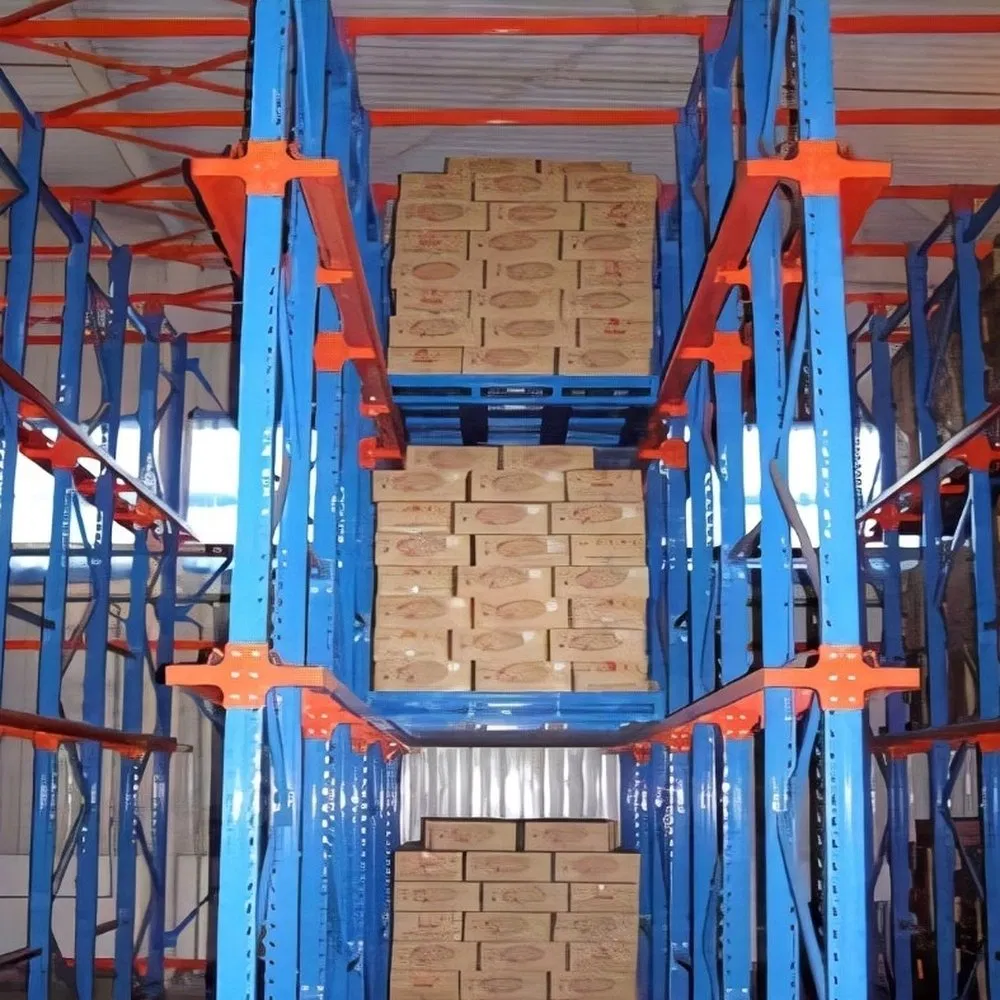

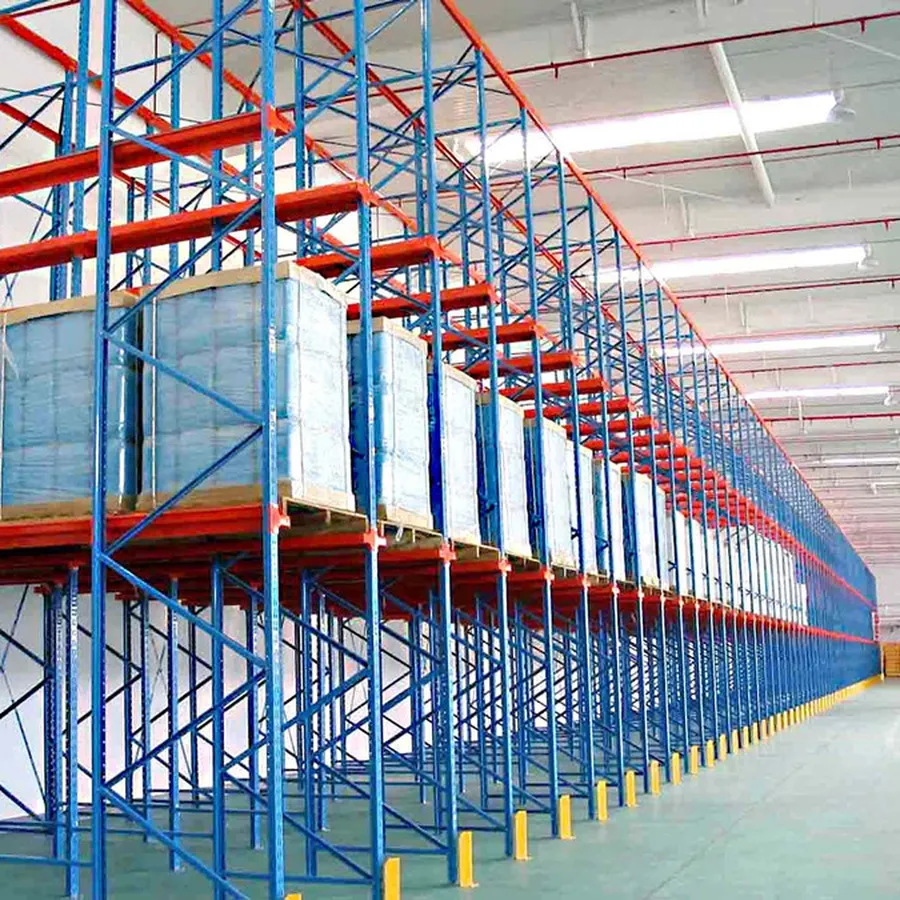

Drive-in racks and drive-through racks are designed for last-in, first-out (LIFO - drive-in) or first-in, first-out (FIFO - drive-through) inventory management. Pallets are stored on support rails connected to columns, and forklifts drive into the system, lift the load to the rail height, and place it in the selected storage location.
| Drive In Racking Specification List | ||||
|---|---|---|---|---|
| No. | Item | Size (mm) | Section size (mm) | Production process |
| 1 | Frame | Height x Depth | 90/100/120 | Punching- Roll forming-Cutting |
| 2 | Single Upright | Height | 90/100/120 | Punching- Roll forming-Cutting |
| 3 | Frame spacer | Length | 50x30, 60x40 | Steel Tube :Cutting - Welding |
| 4 | Support rail | Length | Thickness:2.0/2.5 | Roll forming-Cutting |
| 5 | Top beam | Length | 60x40x1.5 | Steel Tube :Cutting - Welding |
| 6 | Post guard | Height | U type/ Round type | Cutting-Bending - Welding |

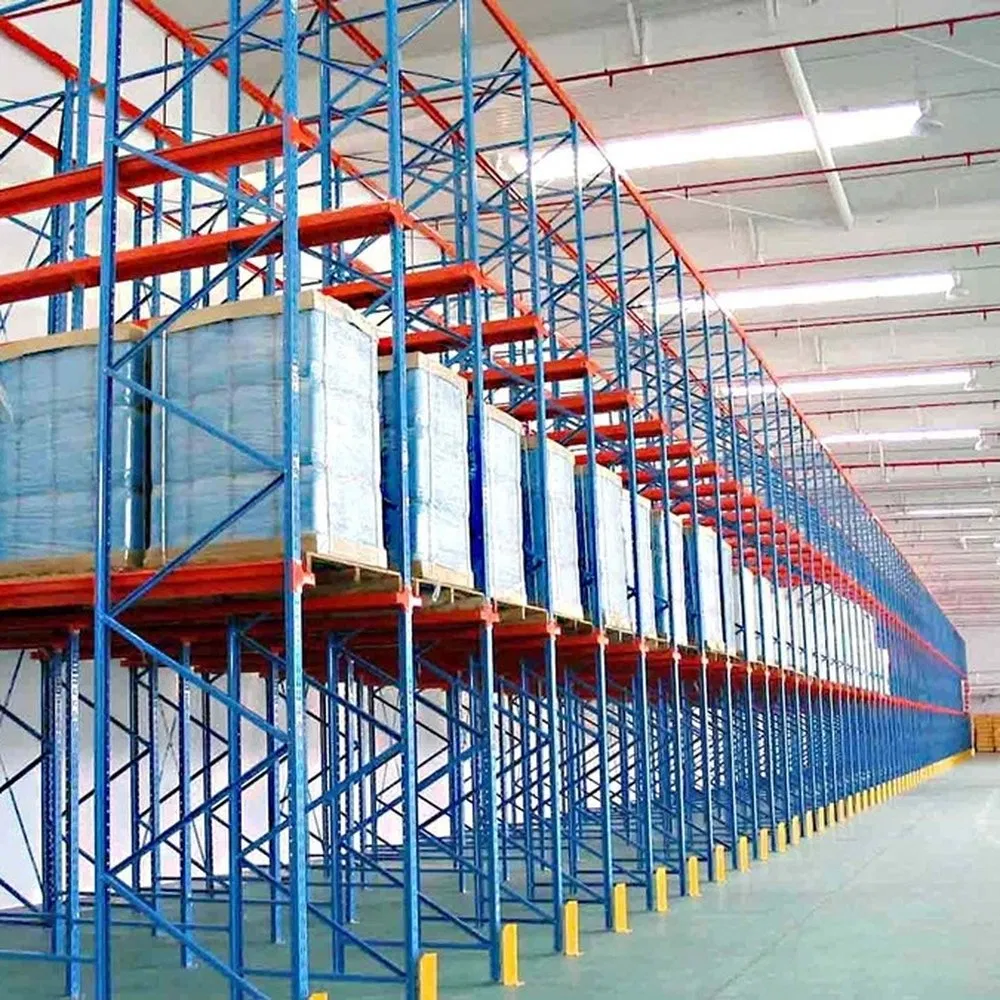

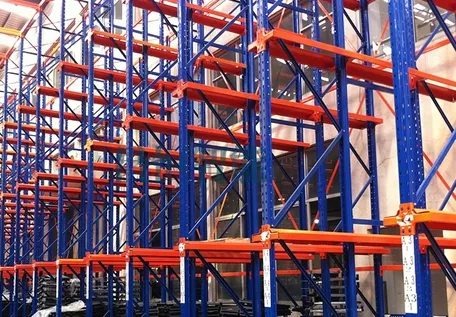

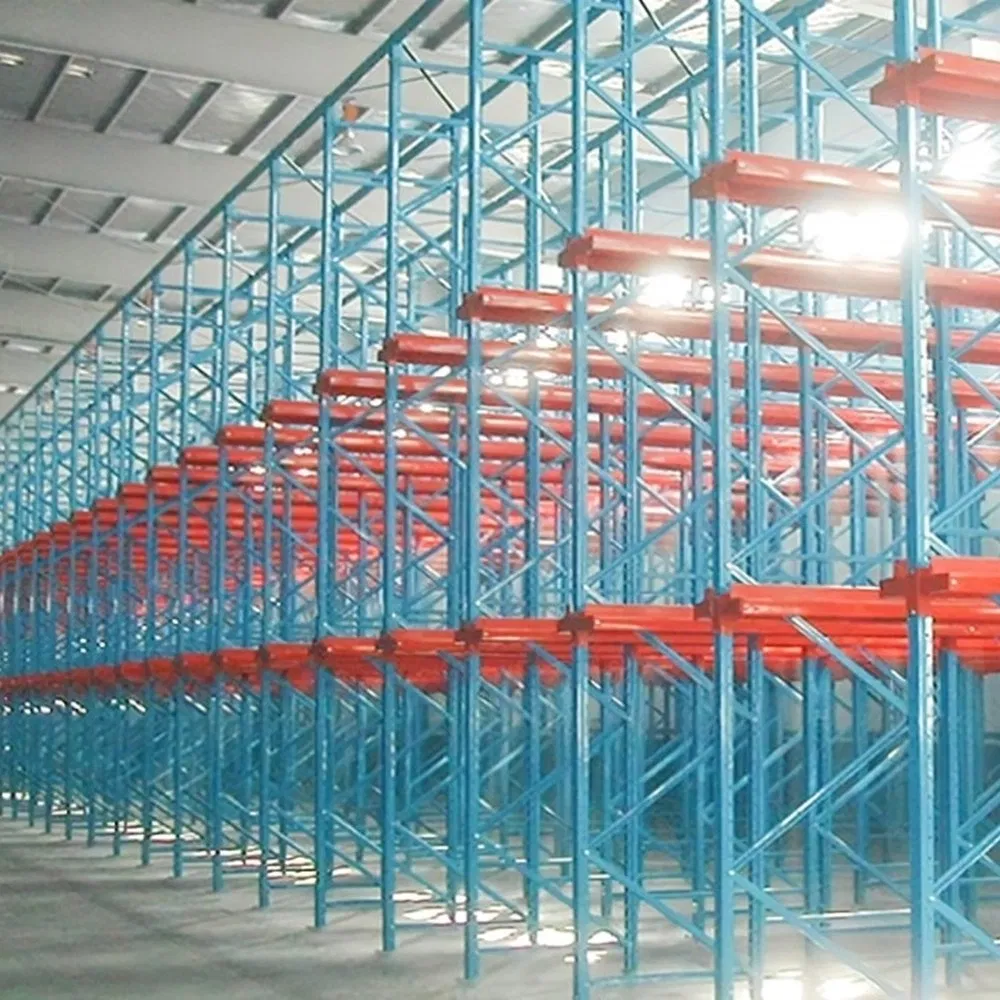

With a load capacity of 300-2000 kg per tier, this drive-in pallet storage rack system is suitable for heavy-duty warehouse storage and food freezer storage applications.

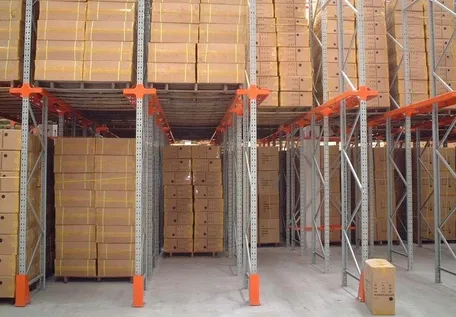

The height and width of the racks can be customized to specific user requirements, ensuring a tailor-made solution for a variety of warehouse spaces.

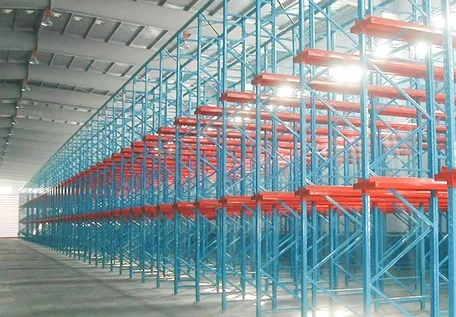

Made from high-quality steel with an electrostatic spray finish, this racking system offers corrosion resistance and a long service life.
