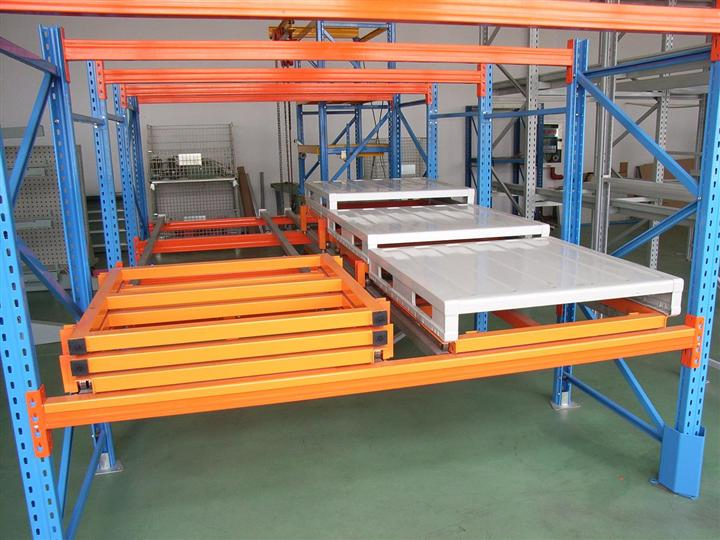

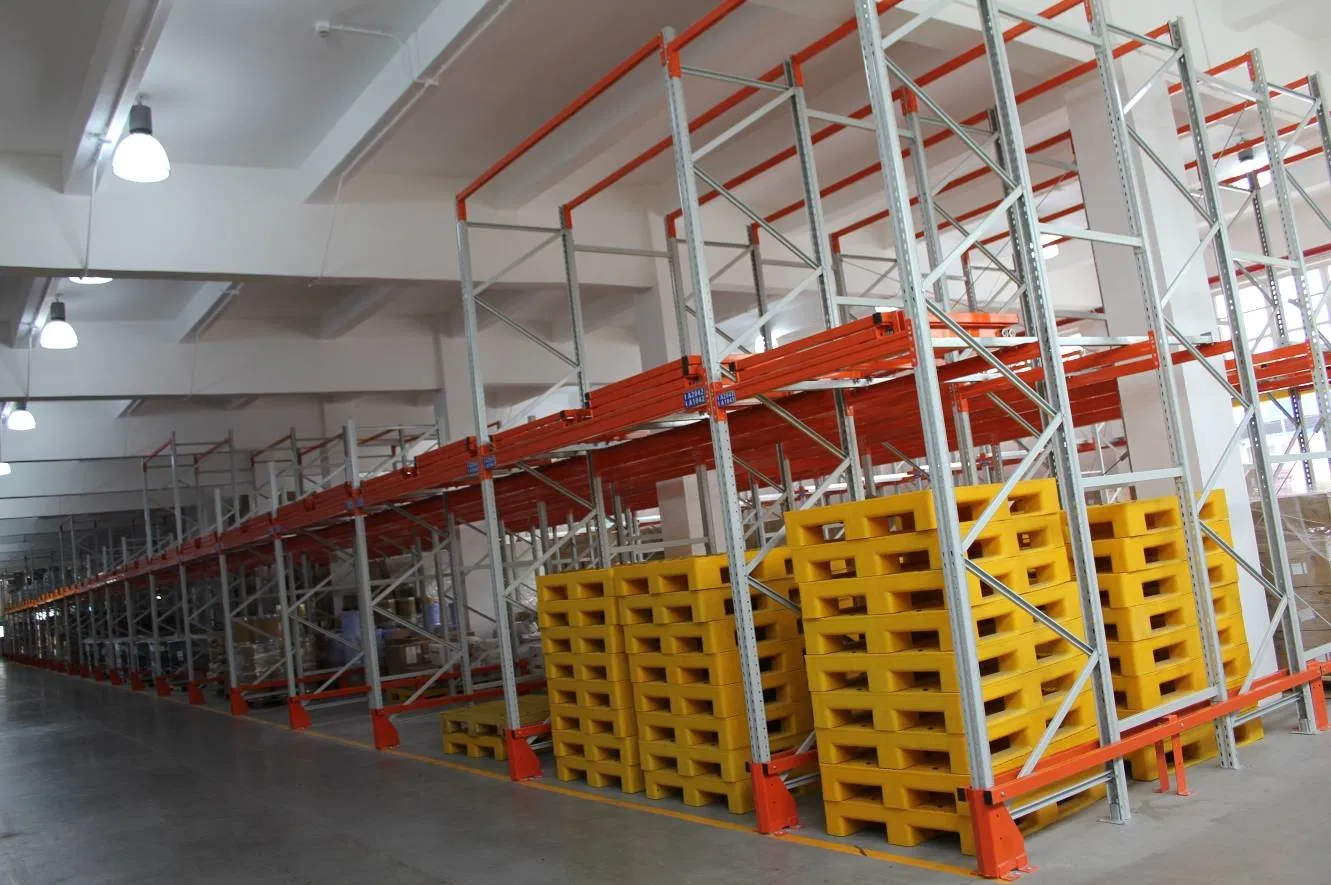

Storage Pushback Pallet Racking System.

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model	Push back racking	Usage	Industrial, Warehouse, Supermarket
Material	Steel Q235B, Q235D, SS400	Structure	Rack / Pallet Racking
Weight Capacity	1000-4000kg Per Tier	Maximum Height	12000mm
Surface Treatment	Powder Coated	Pitch	75mm
Width	1350-3900 mm	Thickness	1.5mm-3.0 mm
Certification	CE, ISO9001, 14001	Features	Versatility, Stability and Durability

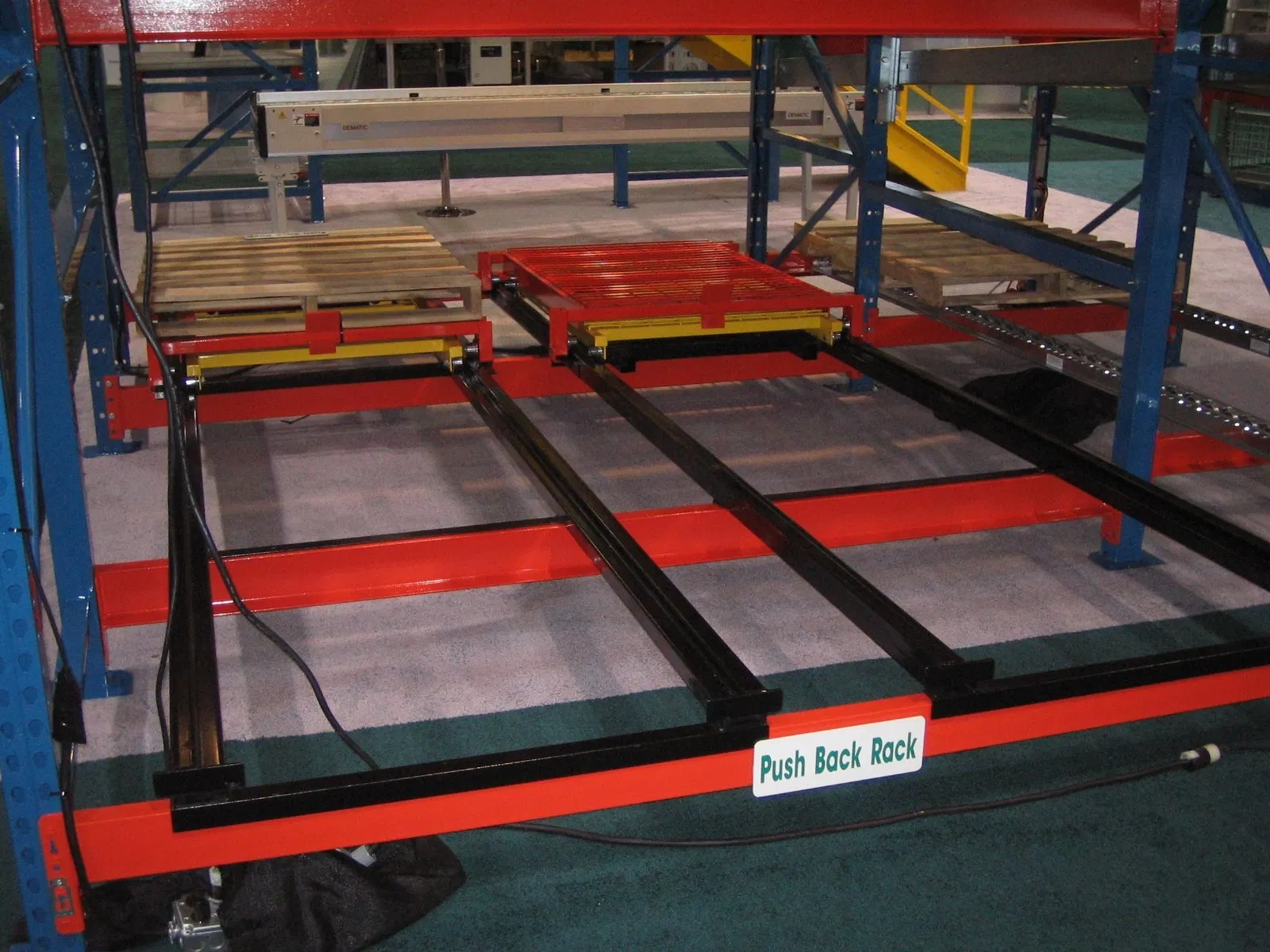

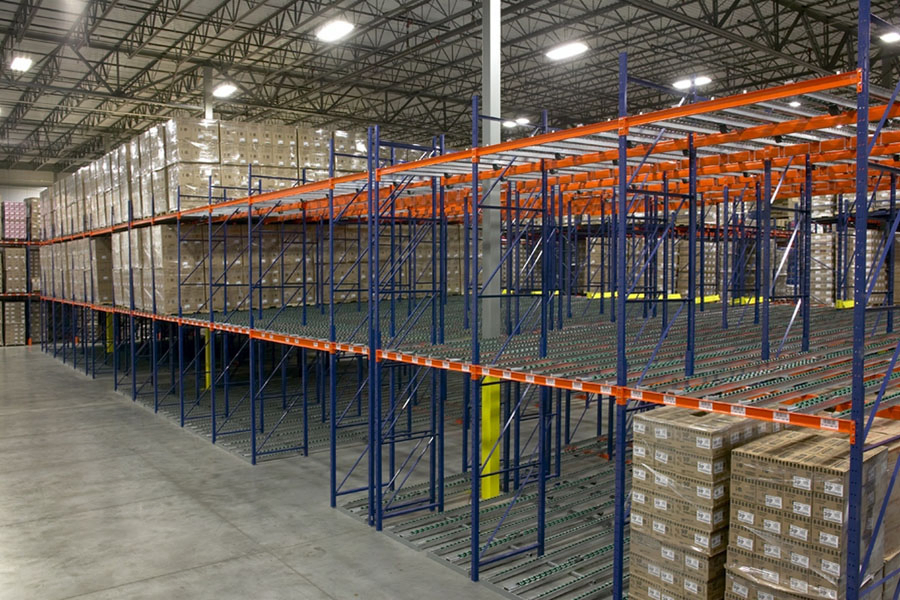

Understanding Push-Back Racking

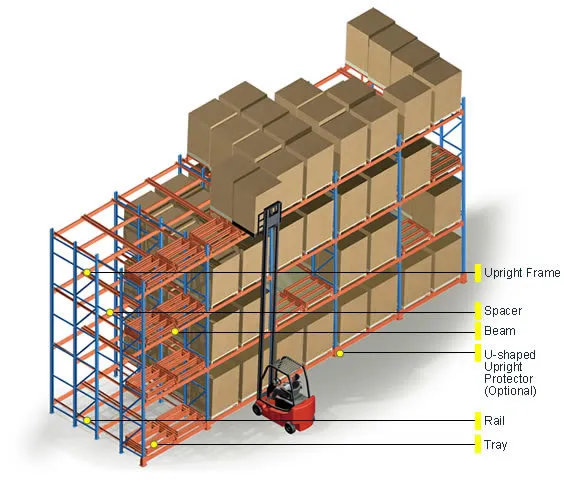

The push-back racking system is a live storage solution for pallets formed by a compact structure, where unit loads are moved by means of rollers or shuttles with the aid of a slight incline.

LIFO Stock Management: It is a system especially designed for Last-In, First-Out (LIFO) management, where the last pallet placed on the rack is the first to be unloaded.

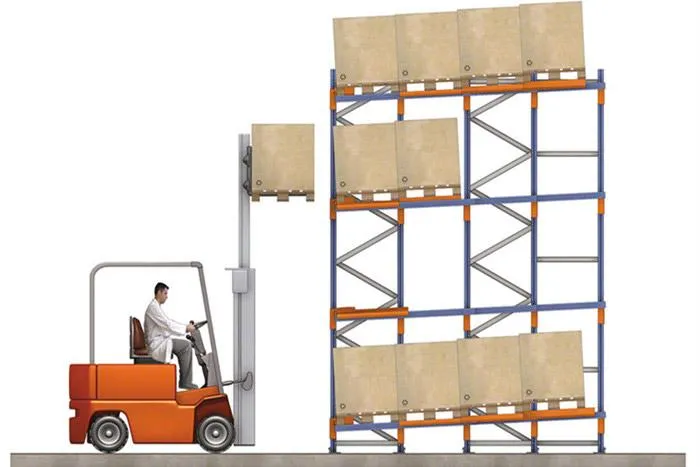

Exerting a pushing force is used to place a new pallet, where the forklift pushes the unit loads already stored towards the back, making space for the new pallet to be deposited.

Main Applications

Push-Back storage systems significantly optimize available warehouse space. They are recommended for:

Storage of homogeneous non-perishable products or products with a long expiration date.
Warehouses with a wide variety of product references; each lane can be reserved for a specific type.
Warehouses with a low number of unit loads for each reference (up to 6 unit loads per lane).
Combination with other types of pallet racking or manual picking systems.
Installation in warehouses with cold rooms or freezing chambers.

Packaging & Logistics

Supply Ability: 10 Cartons per Day

Packaging Details: Parts are packed on pallets. Beams and uprights are wrapped in bubble film for protection. Customized packing is available upon request.

Lead Time: Approximately 20-40 days after order confirmation.

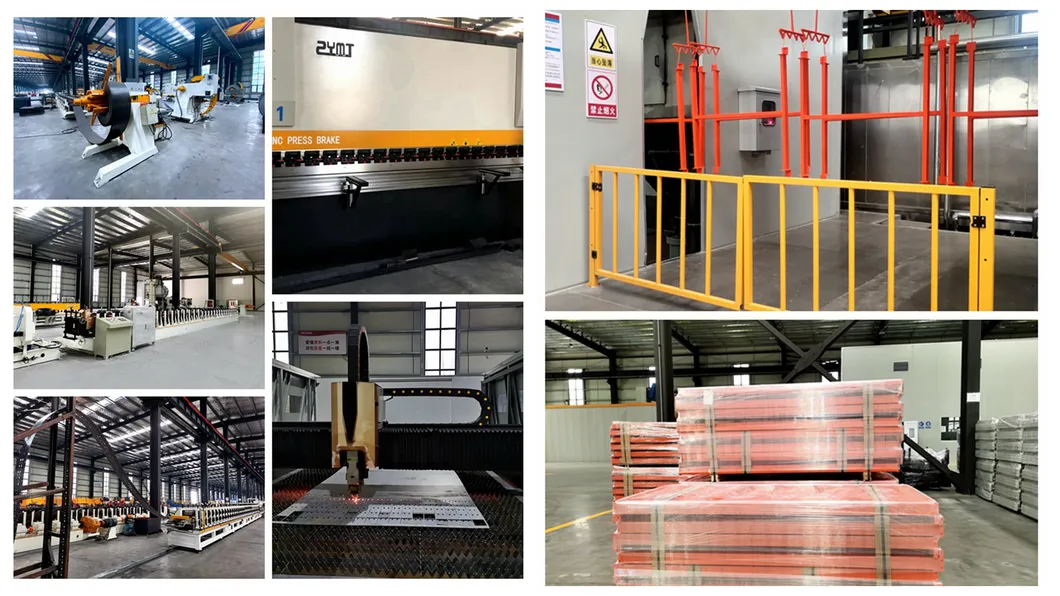

Manufacturing Advantages

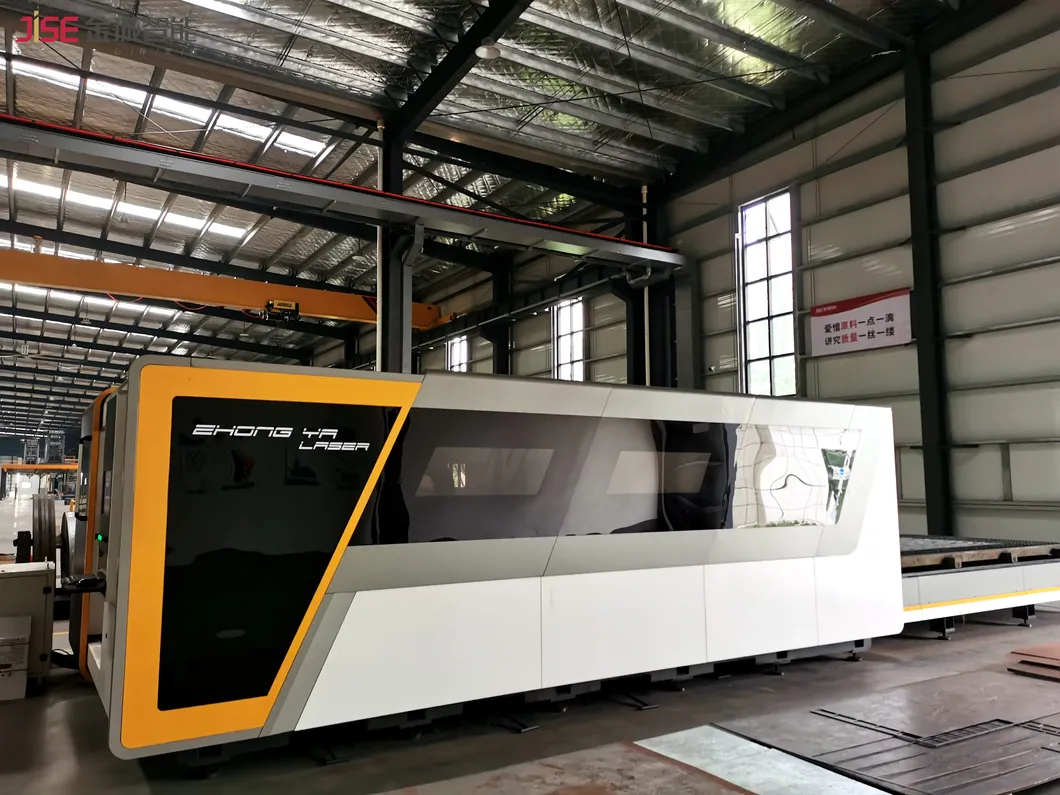

Utilizing high-tech laser cutting services ensures precision and efficiency:

Highly efficient machines ensure exact design replicas.
Lower energy consumption compared to traditional cutting.
Extremely accurate outcomes for large sheets in less time.
Computer-monitored processes reduce manual workload and risks.
Flexible application for almost all types of materials.

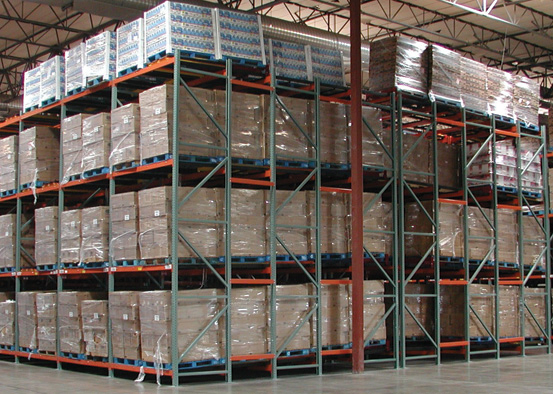

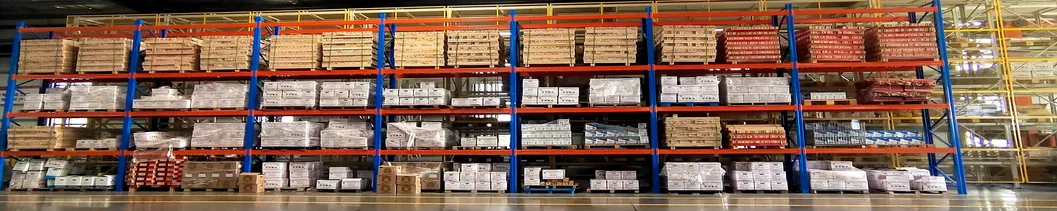

Product Gallery

Frequently Asked Questions

1. What is the main storage principle of push-back racking? Push-back racking follows the LIFO (Last-In, First-Out) principle, where the last pallet loaded is the first to be retrieved.

2. What is the maximum weight capacity of this system? The system can handle between 1000kg to 4000kg per tier, depending on the specific design and material used.

3. Can push-back racking be used in cold storage environments? Yes, the system is suitable for installation in warehouses with cold rooms or freezing chambers.

4. What materials are used for the rack construction? We use high-quality steel such as Q235B, Q235D, and SS400, typically finished with a powder coating for durability.

5. What is the standard lead time for an order? The typical lead time is about 20-40 days after the order details and production are confirmed.

6. How many pallets deep can a push-back system go? Depending on the system used (rollers or shuttles), each lane can generally store up to a maximum of 6 unit loads deep.
