Teardrop Pallet Rack for Supernaket Warehouse

1 / 5

Teardrop Pallet Rack for Supernaket Warehouse

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.HBE-SR-14

Side NumberDouble Sided

WeightHeavy Weight

RotaryFixed

SurfacePowder Coating

Layers4 Layers

BeamBox Beam

Capacity5000 PCS/ Week

UsageShop, Supermarket, Storage

SpecificationCE, ROHS, TUV

Product Description

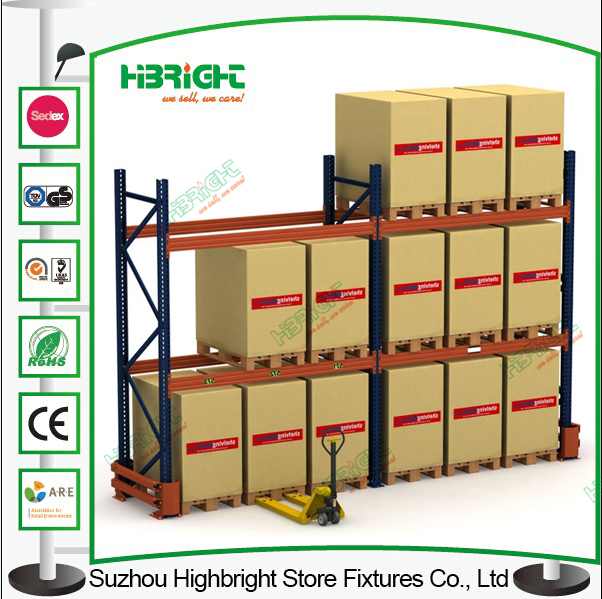

Teardrop Pallet Racking

Our heavy-duty shelving racking system is designed for high-capacity storage requirements, using premium cold-rolled steel and an electrostatic spray finish for maximum durability.

Load Capacity: 1000-5000kg per level
Material: High-quality Cold-rolled Steel
Feature: Anti-rust and Corrosion-protection
Accessibility: Pallets can be located, accessed, and moved individually
Adjustability: Fully adjustable shelf height to meet varied storage needs

Beam Spec	Length 1500	1800	2000	2300	2500	2700	3000
80×50	3000kg	2300kg	1800kg	1500kg	1200kg	1000kg	800kg
100×50	4000kg	4000kg	3000kg	2400kg	2000kg	1750kg	1400kg
120×50	4000kg	4000kg	4000kg	3500kg	3000kg	2500kg	2000kg

Features	Details
Rigid Structure	Durable, versatile, and economical shelving system widely used for various storage configurations.
Load & Dimension	Height: 1,000-6,000mm; Depth: 400-1,500mm; Length: 1,500-2,700mm.
Main Parts	Upright sections (5547 to 8060mm), Step beams, and Steel panels (0.7-1.2mm).
Compliance	Designed to European Racking Code FEM 10.2.02 and AS4084-1993 standards.

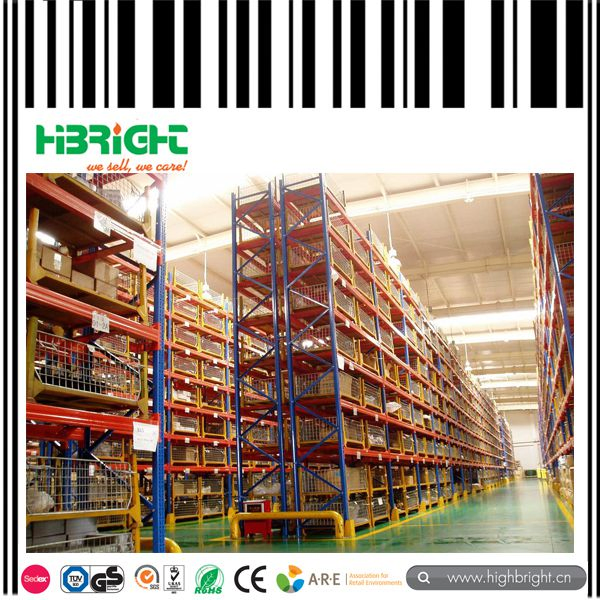

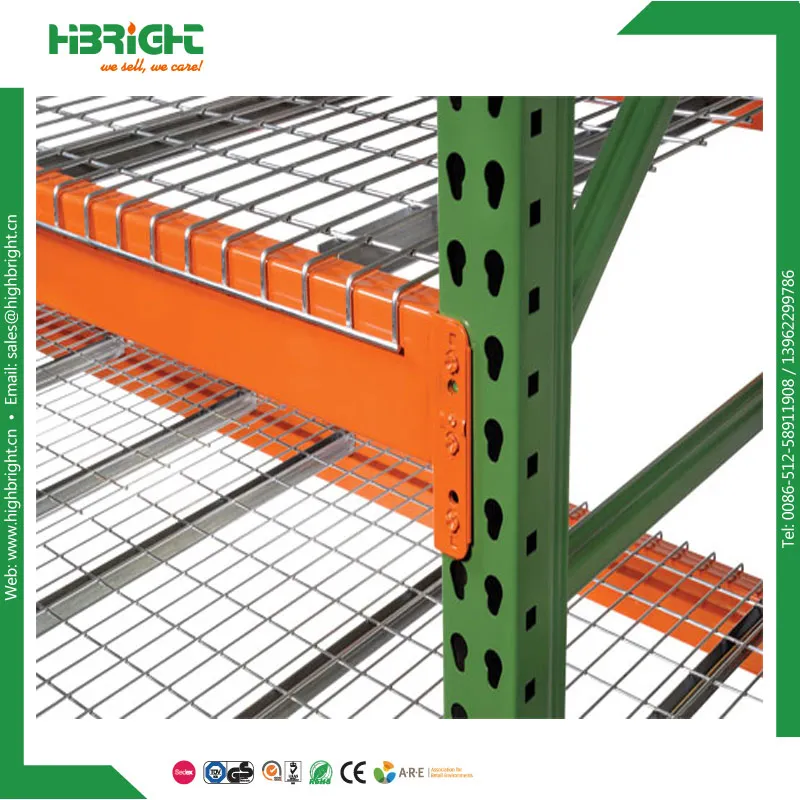

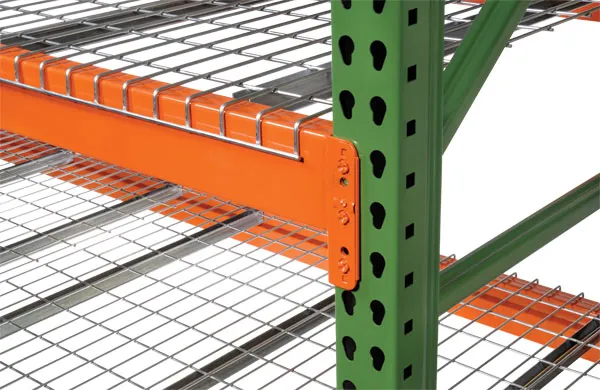

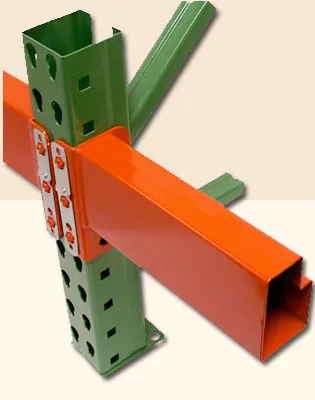

Visual Display

Frequently Asked Questions

Q1: What is the maximum load capacity for this racking system? A: The load capacity ranges from 1000kg to 5000kg per level, depending on the beam specification and configuration.

Q2: Can the shelf height be adjusted after installation? A: Yes, the shelf height is fully adjustable to accommodate different sizes of goods and storage needs.

Q3: What materials are used in the construction? A: We use high-quality cold-rolled steel with an electrostatic spray powder coating finish for durability and corrosion protection.

Q4: What certifications does the product hold? A: The system is CE certified and complies with international standards including ROHS, TUV, and European Racking Code FEM 10.2.02.

Q5: What is the typical lead time for an order? A: For ordinary order quantities, delivery is typically within 25 days due to our large production capacity.

Q6: Is it easy to install and dismantle? A: Yes, the teardrop design allows for very easy installation and dismantling while maintaining high structural rigidity.

Teardrop Pallet Rack for Supernaket Warehouse

Product Description

Basic Specifications

Product Description

Visual Display

Frequently Asked Questions
