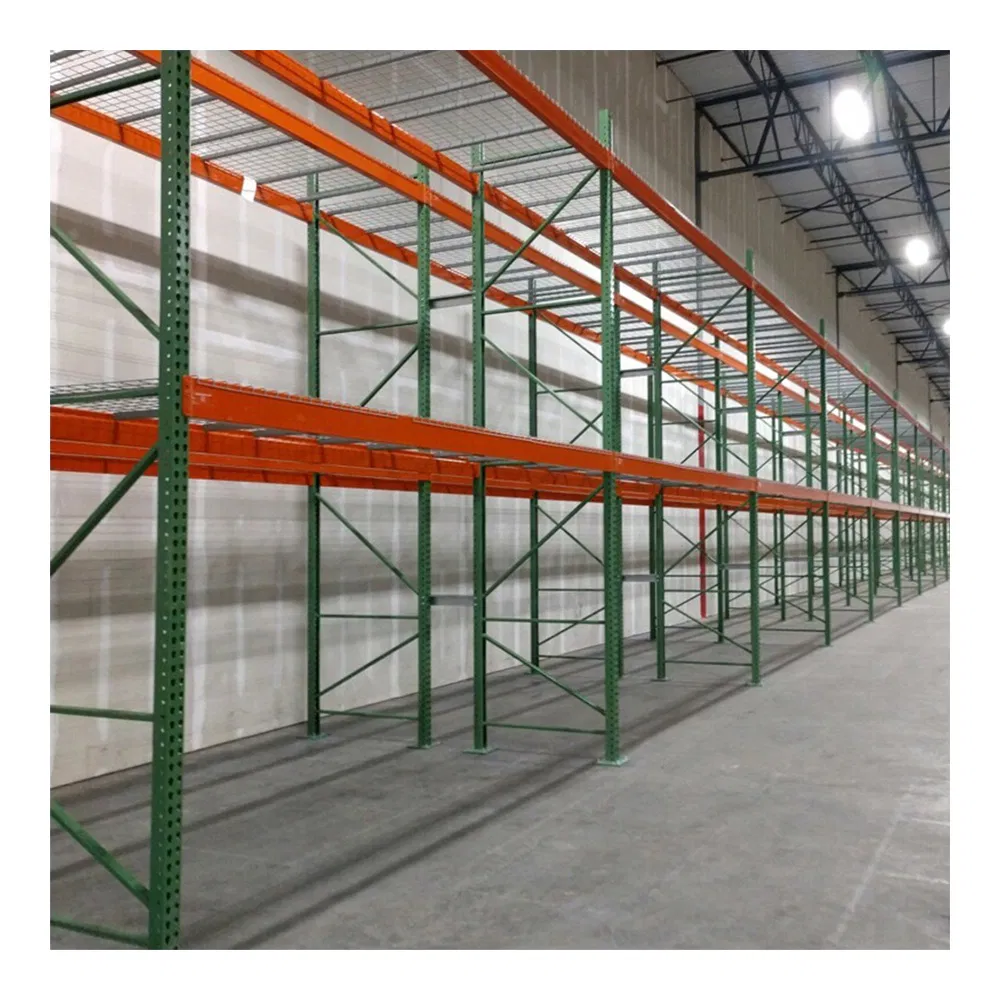

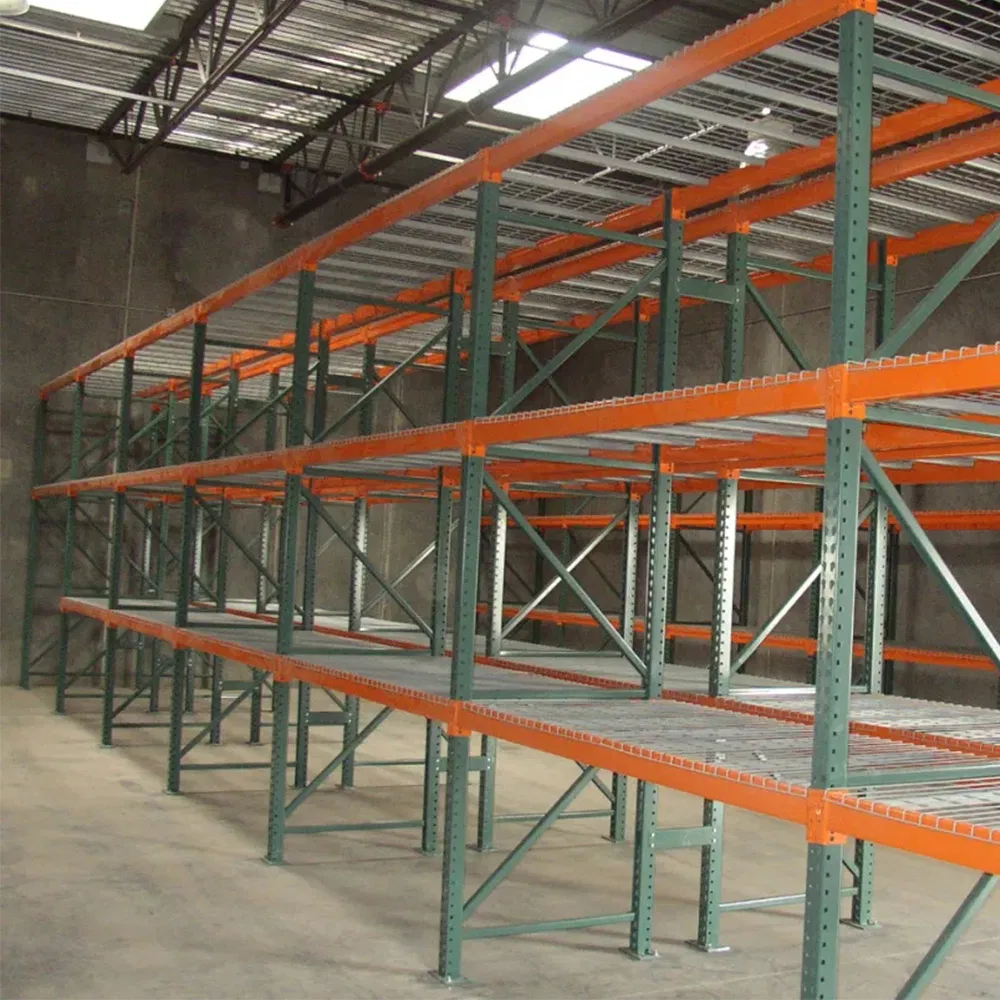

Teardrop Selective Metal Steel Multi Storage Rack for Plastic Wooden Pallet Tire Stackable

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.OKE-20240827-69
UsageTool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack
MaterialSteel
StructureRack
TypeSelective Pallet Racking
MobilityAdjustable
HeightMax 12000mm or Customized
Weight5000kg (Each Shelf)
Width1800/2700/3600mm or Customized
Upright3 Inch X 3 Inch
Surface FinishPowder Coated/ Galvanized
FeatureDurable, Corrosion Protection

Product Details

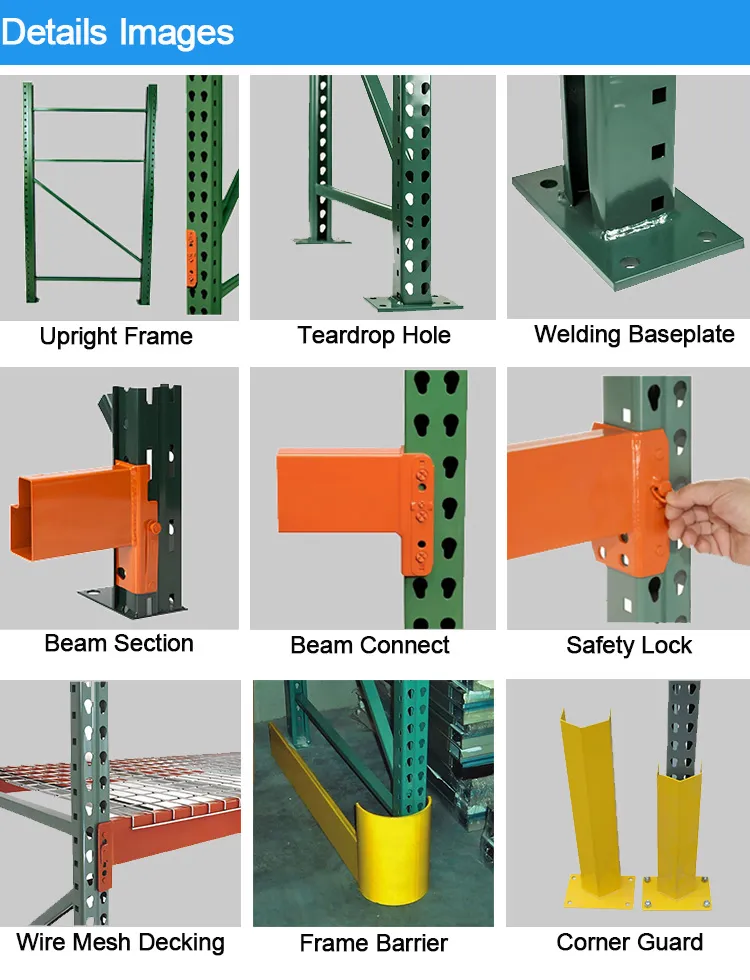

Storage Rack Details

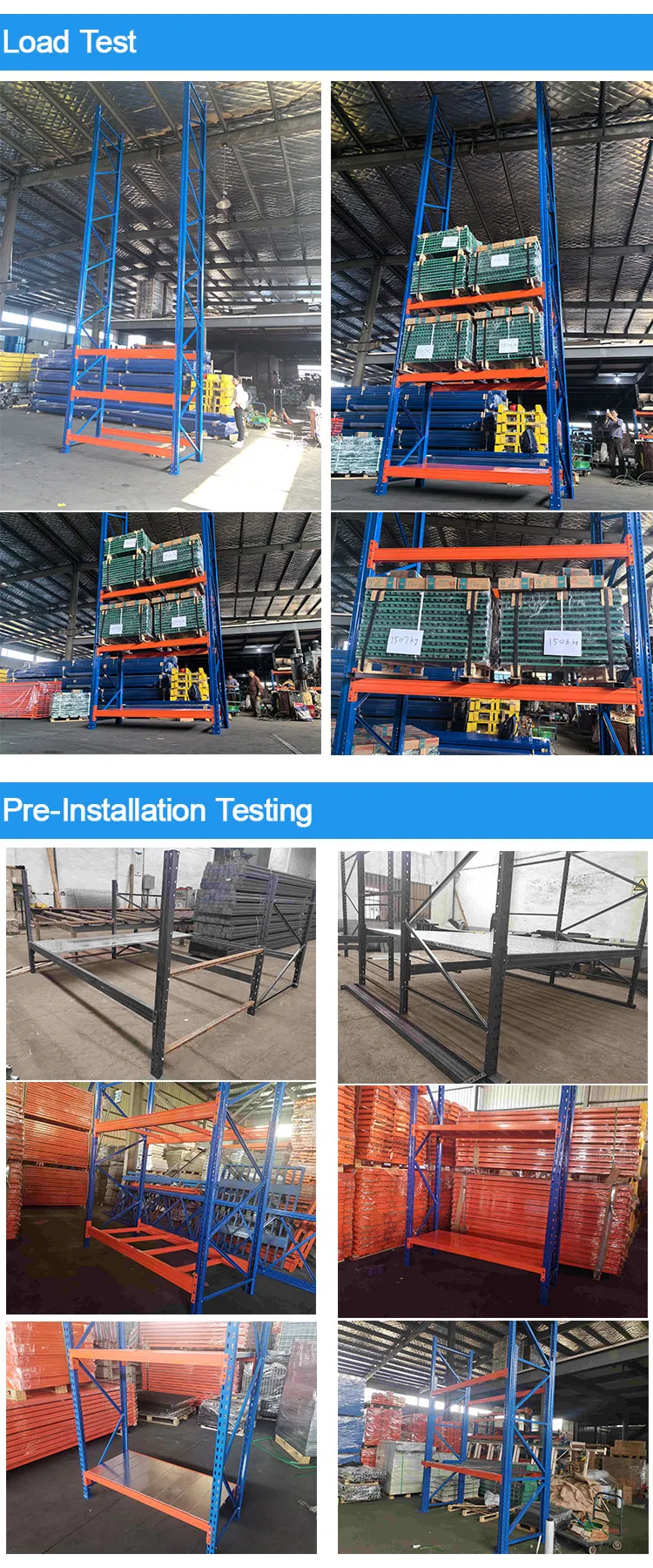

Load Test Performance

Load Test

Safety Assurance

Safety Assurance

The stability of our shelves and the safety of personnel are always our top priorities. High-quality materials and Stringent Inspection Standards form the foundation of our stability.

  • High-Quality Steel: Premium Q235 cold-rolled steel (Yield Strength: ~235 MPa, Tensile Strength: 370-500 MPa).
  • Footplates: Fixed to the ground using expansion screws for maximum stability.
  • Guardrail: Prevents forklifts from accidental impacts with the structure.
  • Safety Bolt: 7-shaped design to maintain the integrity of the beam-to-upright connection.
  • Mesh Decking: Enhances fire safety and supports various load sizes.
Products SupportDetails
Free ConsultationYes, Any Questions You Can Consult With Free.
Free DesignYes, CAD/PDF/3D Drawing
Free SampleAvailable (Delivery Cost By Buyer)
Lead Time15-20 Days For Regular Pallet Racking
Repair ServiceYes, We Submit Repair Services.

Main Components

Components

Frame: Available in various sizes (up to 120*95mm, thickness 1.5 to 3.0mm).

Beam: Heights ranging from 80 to 160mm, widths of 50mm, and thickness of 2.0mm.

Pallet Supports: Enhance beam support; available in straight and diagonal designs.

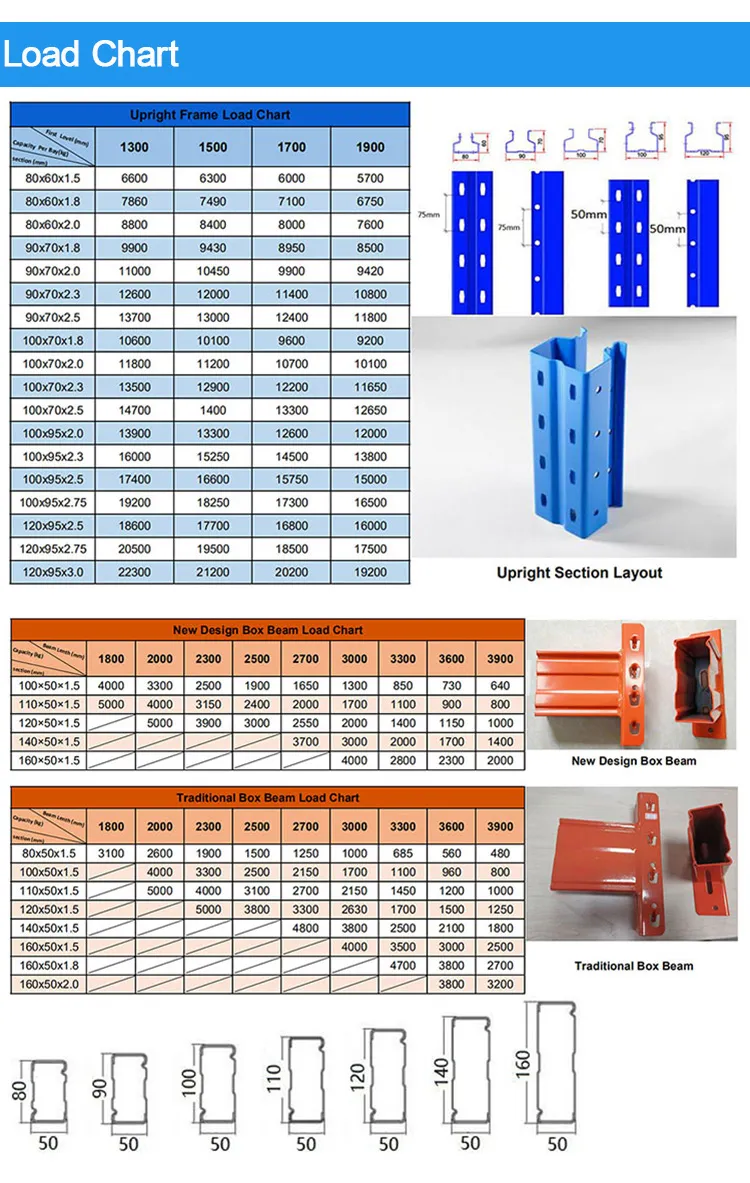

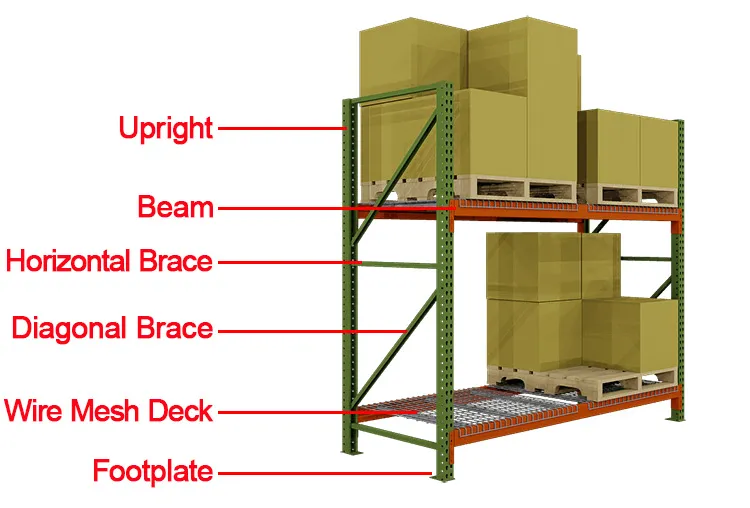

Component Diagram

Customized Services

Custom Service Header

Support for customization including drawing, color, package, and sizing.

Custom Options

Why Choose Our Solutions

Quality Inspection

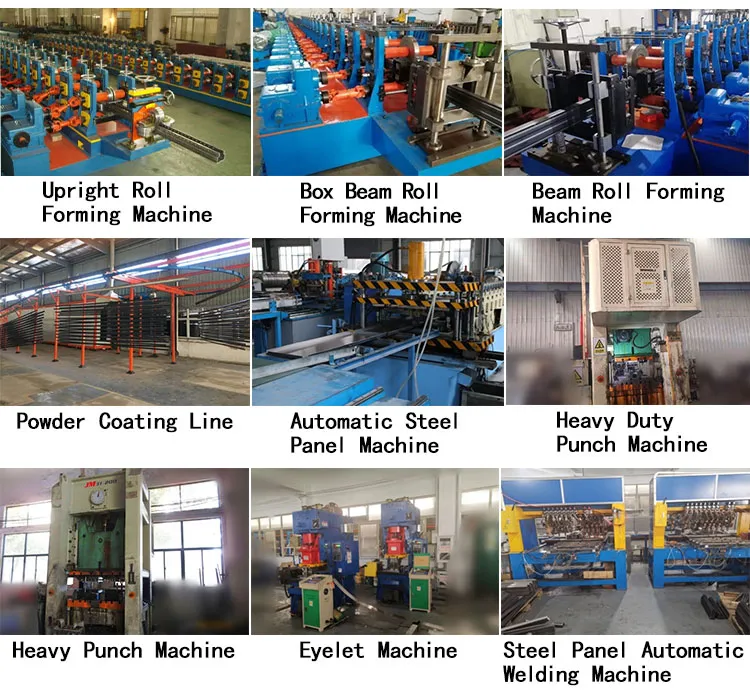

Advanced Equipment

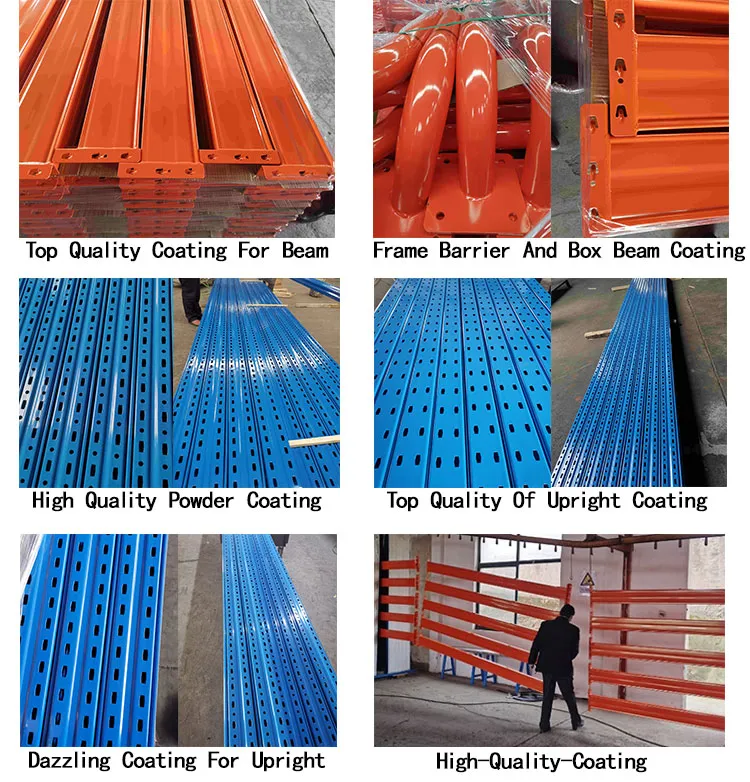

Powder Coating

1. Strict Quality Inspection: Professional inspection team monitors every production step.

2. Advanced Equipment: State-of-the-art machinery ensures precision and timely delivery.

3. Premium Powder Coating: Dual powerful pickling technology creates a superior oxidation film for better resin adhesion.

Company Introduction

Company Introduction

Dedicated to the production of racking storage, providing quality solutions for saving your storage space. With over 23 years of experience exporting to over 85 countries worldwide, we utilize fully automated technology for optimum racking production. We offer a 10-year warranty to cover your racking needs.

Warehouse 1
Warehouse 2
Warehouse 3

Frequently Asked Questions

Q1: How much weight a pallet rack can bear? A1: A standard pallet rack can bear approximately 15,000 lbs. to 18,000 lbs. For heavy-duty systems, capacity ranges from 25,000 lbs. to 30,000 lbs.
Q2: What is the approximate height of the teardrop pallet rack? A2: An approximate height for a standard pallet rack can be up to 240 inches.
Q3: What are the different types of teardrop pallet rack beams? A3: Types include Box-type beams, Structural pallet beams, and Step-type beams.
Q4: What is the most popular style of teardrop Pallet Rack Beams? A4: The teardrop style is most popular due to its ease of installation and versatility in connectors.
Q5: What are the approximate lengths for a teardrop pallet rack beam? A5: Standard lengths range from 96", 108", 120", up to 144" inches.
Q6: What are the weight-bearing capacities for these beams? A6: Capacities range from 2,000 lbs. per shelf up to 9,000 lbs. per shelf, depending on width and size.
