| Model NO. | Cantilever Rack |
| Usage | Tool Rack, Clothing, Tools, Food, Industrial, Warehouse Rack, Building |
| Material | Steel |
| Structure | Rack |
| Height | 5-15m |
| Weight Capacity | 400kg Per Arm |
| Surface Treatment | Powder Coating or Galvanized |
| Material Grade | Q235B Q355B Q235D Q355D |
| Production Capacity | 2000 Ton Per Month |

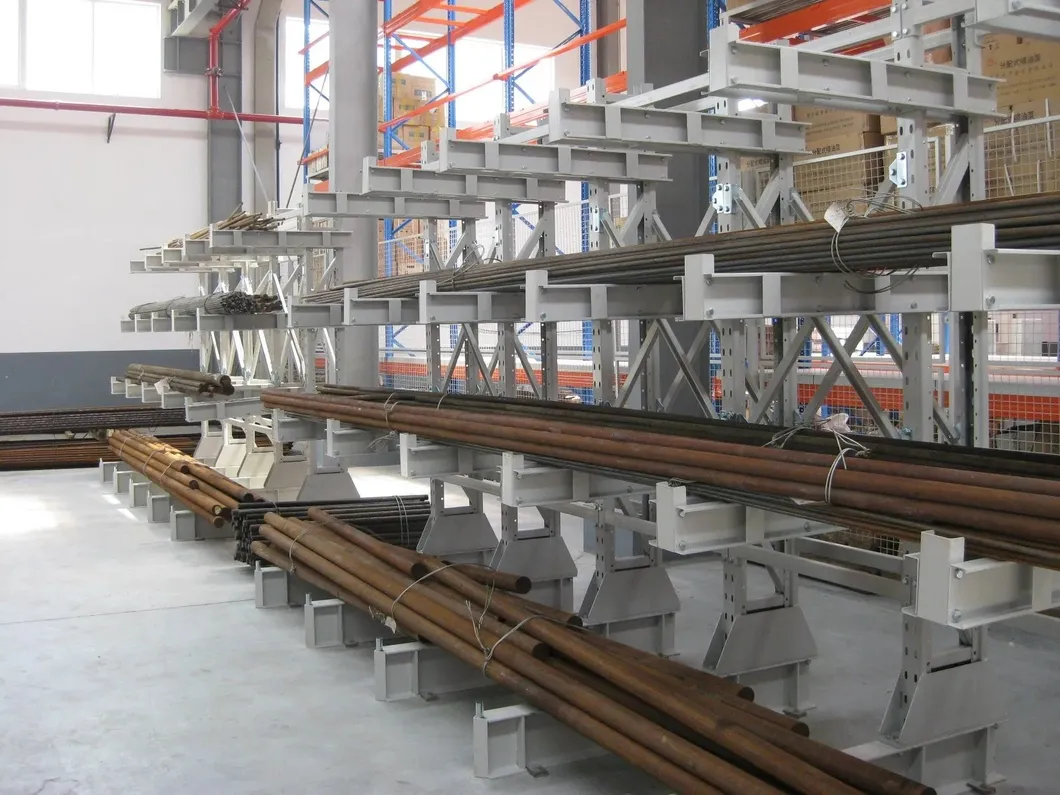

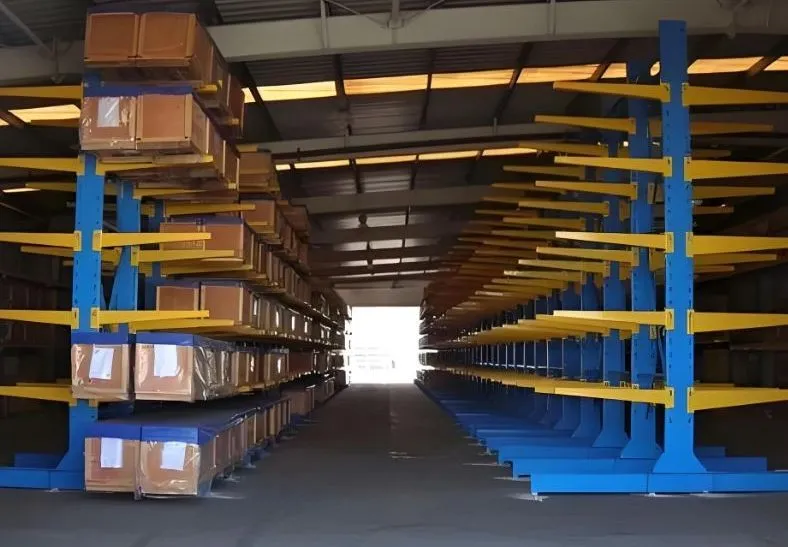

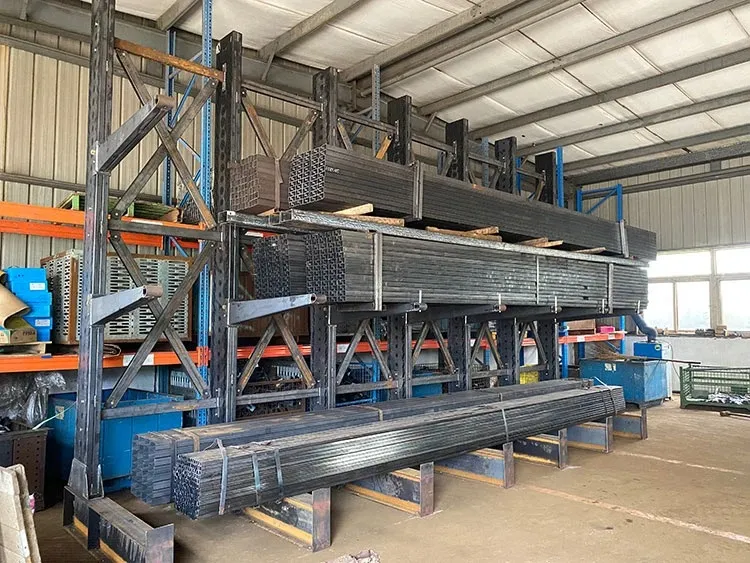

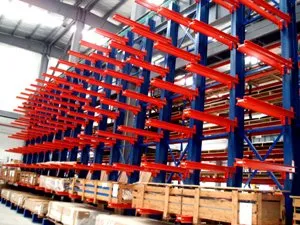

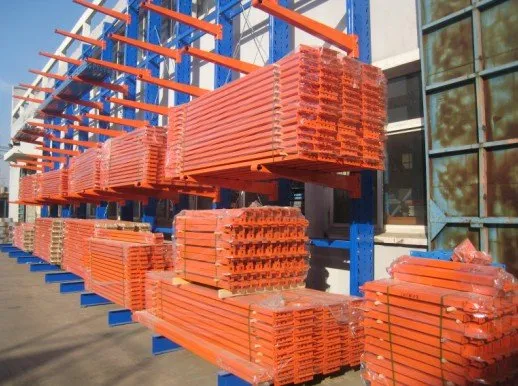

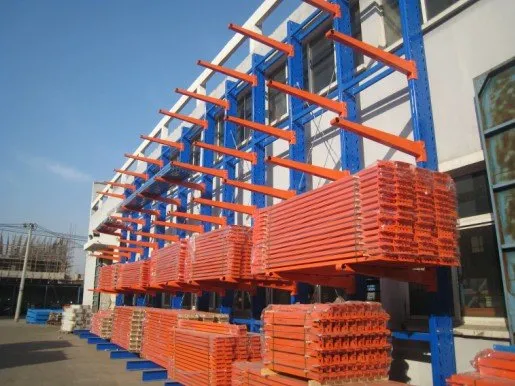

Cantilever Storage Rack Systems are designed for storing long-shaped materials, ring materials, plates, pipes, and irregular goods. This system is ideal for warehouses with limited space or low ceiling height, providing superior utilization rates compared to standard shelving.

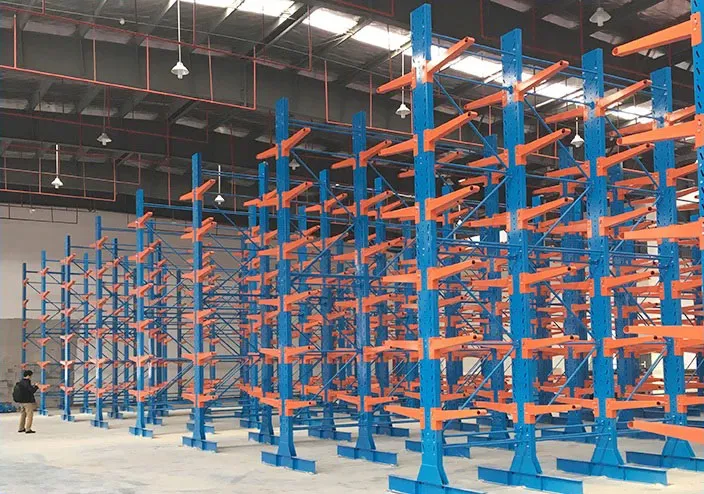

Versatile Application: Widely used in machinery manufacturing and building material markets.
High Accessibility: Offers convenient management and wide visibility for inventory control.
| Beam Spec (mm) | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 |
|---|---|---|---|---|---|---|---|
| 80×50 | 3000kg | 2300kg | 1800kg | 1500kg | 1200kg | 1000kg | 800kg |
| 100×50 | 4000kg | 4000kg | 3000kg | 2400kg | 2000kg | 1750kg | 1400kg |
| 120×50 | 4000kg | 4000kg | 4000kg | 3500kg | 3000kg | 2500kg | 2000kg |
| 140×50 | 4000kg | 4000kg | 4000kg | 4000kg | 4000kg | 3800kg | 3000kg |
Provide us with your CAD drawings for a rapid quote, or share your warehouse dimensions, and our engineers will design a custom drawing for you within 48 hours.
